◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#54495) — 339 parça

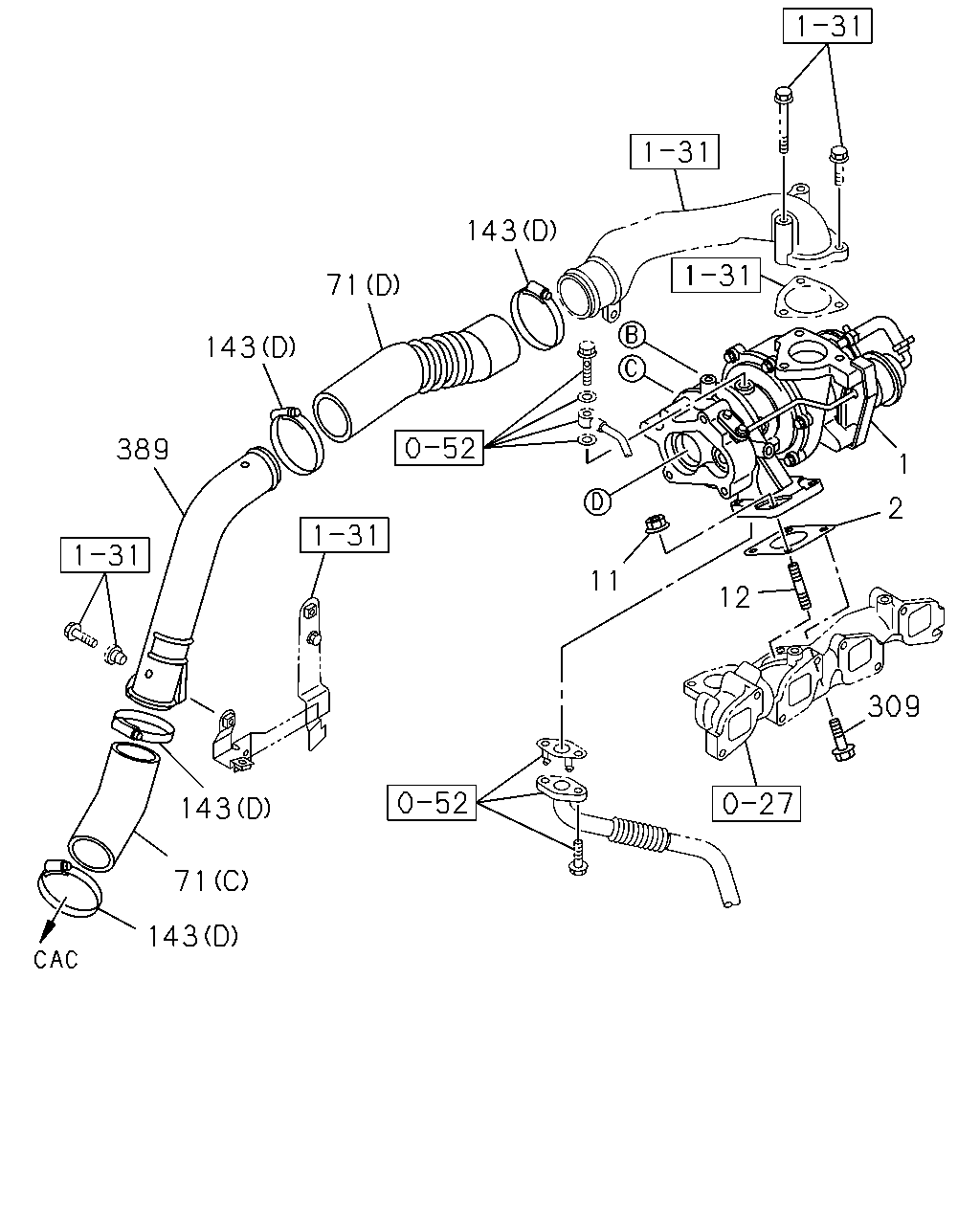

çizim 175865
143 71 143 389 1 2 11 12 309 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> 		8-98254-714-0 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97326-752-1 01 1 1012-1406 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF> 		8-97326-752-1 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 1012- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 1012- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 1012- ●
11 03.342 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1012- ●
12 03.342 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 1012- ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98059-964-1 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98107-509-1 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(C) 		8-98036-513-2 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(D) 		8-98159-280-1 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1012- ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1012- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 1012- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 1012- ●

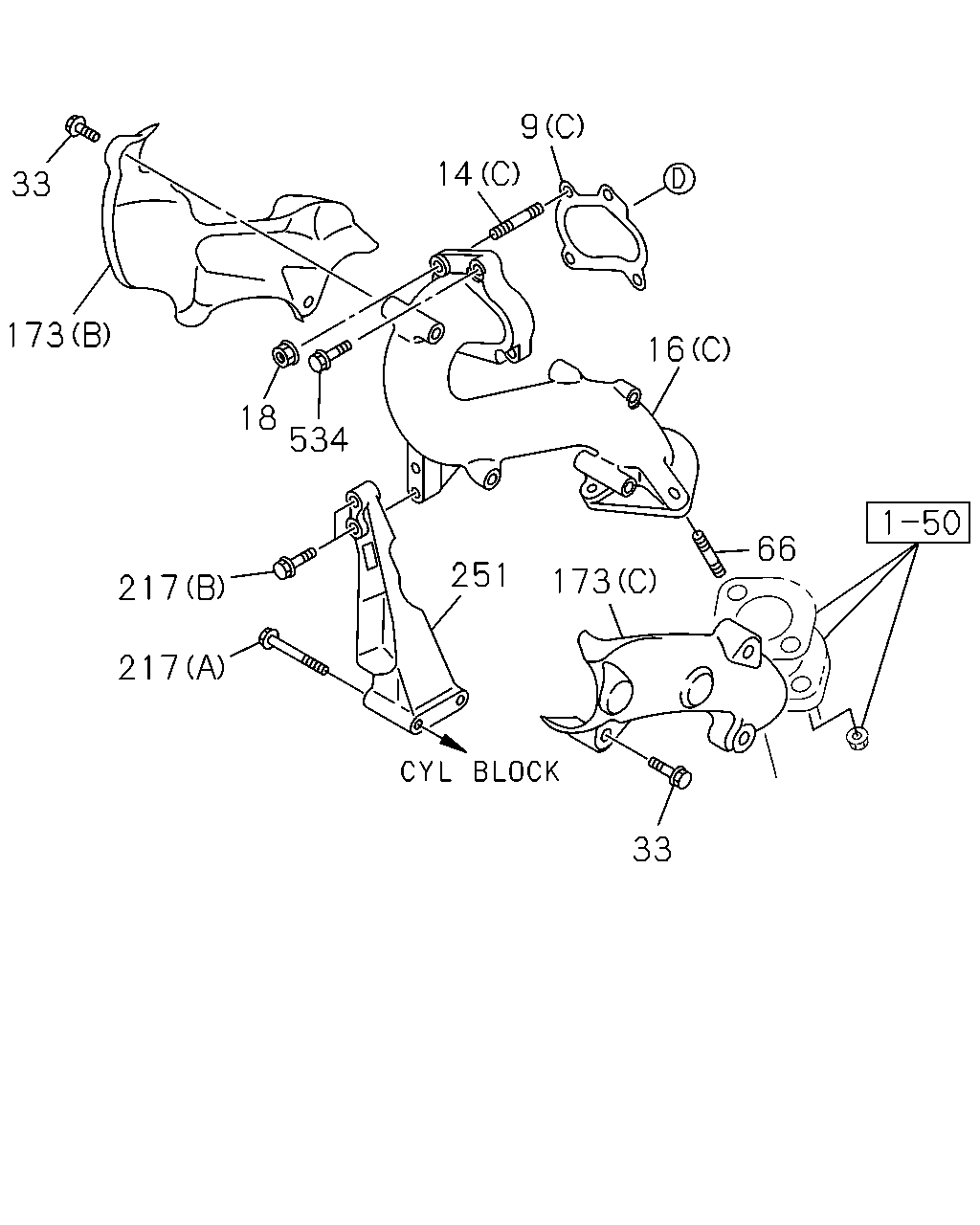

çizim 175867
33 173 217 217 18 14 534 251 9 16 66 33 173
BalonParca AdiParca NoAdetTipApplied Date A B C
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) 		8-98015-116-1 01 1 1012- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) 		8-97039-777-1 01 1 1012- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-97374-412-0 01 1 1012- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) (D) 		8-98209-505-0 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(A) 		8-97178-487-3 01 1 1012-1302 ●
16 03.609 ADAPTER; EXH PIPE
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(B) 		8-97039-749-2 01 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
(C) 		8-98012-735-4 01 1 1012- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 1012- ●
33 03.342 BOLT; HEAT PROTECTOR
03.604 M6X12 FLANGE 		8-97108-669-0 04 1 1012- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 1012- ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 1012- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-97178-497-2 01 1 1012- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(C) 		8-98032-023-1 01 1 1012- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-3 01 1 1012- ●
217 03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE 		0-28051-070-0 02 1 1012- ●
217 03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE 		8-98032-158-0 02 1 1012- ●
251 03.417 BRACKET; ADAPTER 8-98009-098-1 01 1 1012- ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE 		8-98053-224-0 02 1 1012- ●

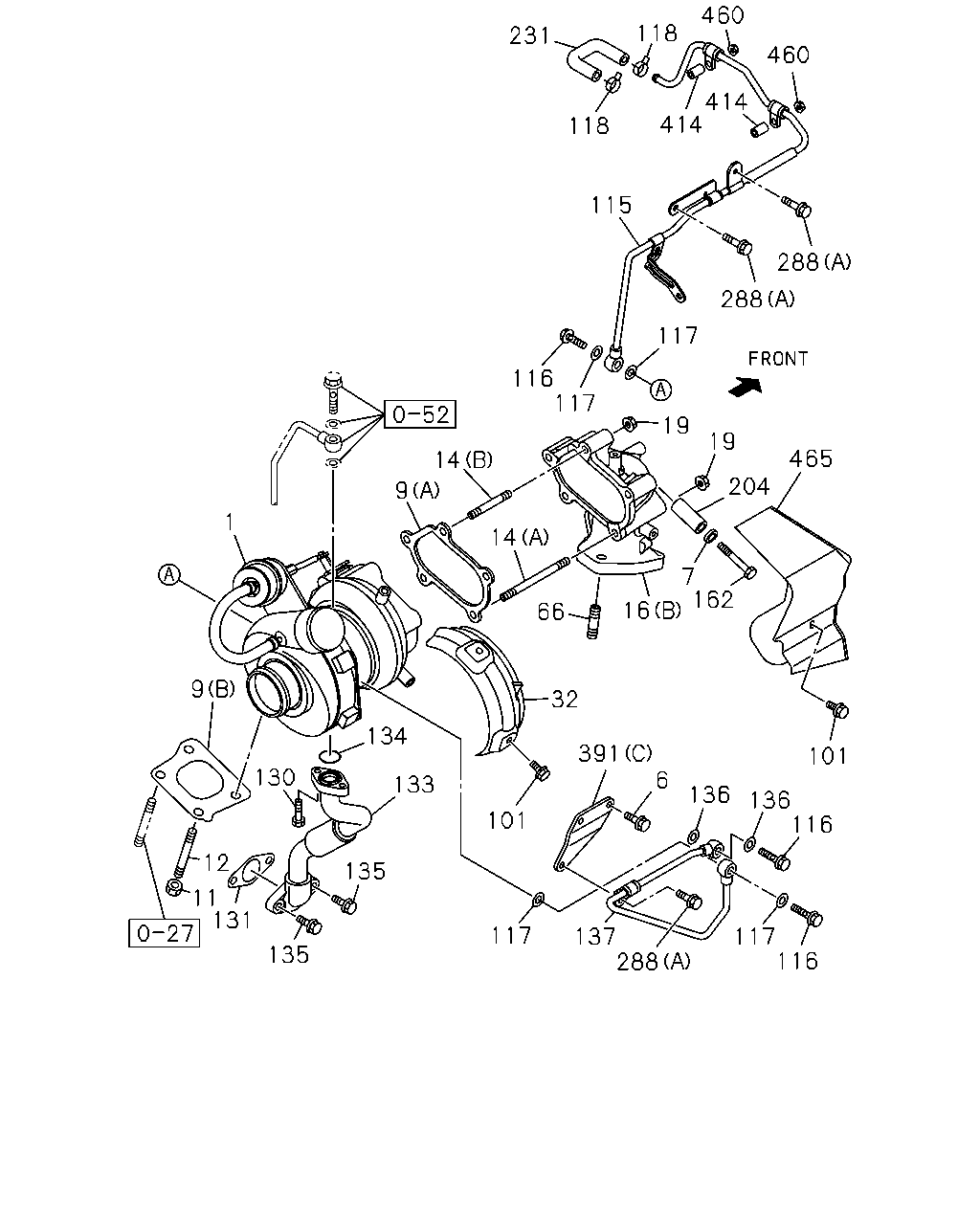

çizim 175869
231 118 460 460 414 414 118 115 288 288 117 116 117 19 19 465 204 7 162 101 116 16 66 14 14 9 1 9 134 133 130 12 11 131 135 135 101 117 137 288 117 116 136 136 6 391 32
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> 		8-98254-714-0 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97326-752-1 01 1 1012-1406 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF> 		8-97326-752-1 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 1012- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 1012- ●
6 03.417 BOLT; BRKT TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1012- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) 		8-98015-116-1 01 1 1012- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) 		8-97039-777-1 01 1 1012- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-97374-412-0 01 1 1012- ●
11 03.342 NUT; TURBOCHARGER
M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1012- ●
12 03.342 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 1012- ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 1012- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) (D) 		8-98209-505-0 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(A) 		8-97178-487-3 01 1 1012-1302 ●
16 03.609 ADAPTER; EXH PIPE
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(B) 		8-97039-749-2 01 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
(C) 		8-98012-735-4 01 1 1012- ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
03.604 M8 FLANGE 		8-94170-486-0 05 1 1012- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1012- ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 1012- ●
101 03.602 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1012- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
VIN MODEL YEAR 2015<VZF> 		8-98261-645-0 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97210-077-2 01 1 1012-1406 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF> 		8-97210-077-2 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98096-928-0 01 1 1012- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98113-710-0 01 1 1012- ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT 		8-98037-067-0 01 1 1407-1409 ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT 		8-98037-067-0 02 1 1410- ●
116 03.342 BOLT; WATER PIPE
EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1407-1501 ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1407-1501 ●
116 03.342 BOLT; WATER PIPE
MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1012-1406 ● ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 02 1 1407-1409 ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 01 1 1410- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 06 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 04 1 1012-1312 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 04 1 1012- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=12.6 		8-97331-137-1 02 1 1012- ●
118 03.342 CLIP; WATER HOSE
03.162 ID=15.5 		8-94221-519-0 02 1 1012- ● ●
118 03.342 CLIP; WATER HOSE
01.153 ID=12.8 		8-94367-943-0 04 1 1012- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
VIN MODEL YEAR 2015<VZF> 00.724 M6X16 HEX SOCKET 		0-58330-616-0 02 1 1407-1410 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
VIN MODEL YEAR 2015<VZF> 00.662 M6X16 W/LK WASHER 		0-50540-616-0 02 1 1411- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1012-1406 ● ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1407-1501 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1407-1501 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1012- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
VIN MODEL YEAR 2015<VZF> 		8-98261-657-0 01 1 1407- ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-659-0 01 1 1012-1406 ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-659-0 01 1 1407- ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-658-0 01 1 1012- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1012-1406 ● ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1407-1501 ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1407-1501 ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1502- ●
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
VIN MODEL YEAR 2015<VZF> 		8-98213-680-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97229-036-0 01 1 1012-1406 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EXC. VIN MODEL YEAR 2015<VZF> 		8-97229-036-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98063-840-0 01 1 1012- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97381-650-0 01 1 1012- ●
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1012- ● ●
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1012- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) 		8-98215-875-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012-1302 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1012- ●
391 03.342 BRACKET; WATER PIPE
MINI BUS CHASSIS(V4B) (A) 		8-98209-661-0 01 1 1303-1406 ●
391 03.342 BRACKET; WATER PIPE
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-98209-661-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (A) 		8-98209-661-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
(A) 		8-97210-078-0 01 1 1012-1302 ●
391 03.342 BRACKET; WATER PIPE
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97210-078-0 01 1 1303-1406 ●
391 03.342 BRACKET; WATER PIPE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-97210-078-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (A) 		8-97210-078-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
(B) 		8-97221-061-0 01 1 1012- ●
391 03.342 BRACKET; WATER PIPE
(C) 		8-97371-730-0 01 1 1012- ●
414 03.602 SPACER
01.429 M8X10 		1-11369-081-0 02 1 1012- ●
460 03.374 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
03.417 		8-97351-167-0 01 1 1012-1204 ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ●

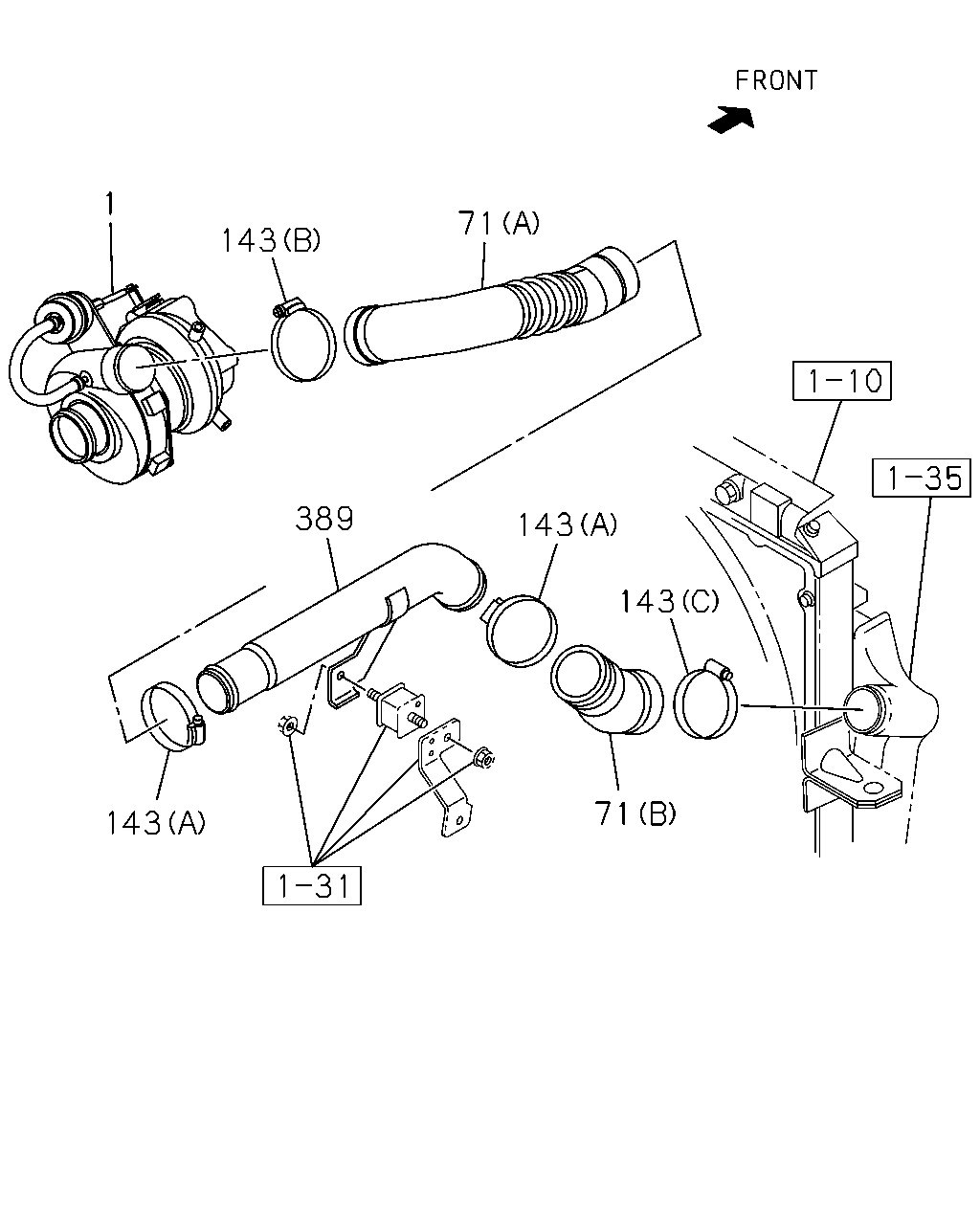

çizim 175870
1 71 143 389 143 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> 		8-98254-714-0 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97326-752-1 01 1 1012-1406 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF> 		8-97326-752-1 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 1012- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98059-964-1 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98107-509-1 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(C) 		8-98036-513-2 01 1 1012- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(D) 		8-98159-280-1 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1012- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1012- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 1012- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 1012- ●

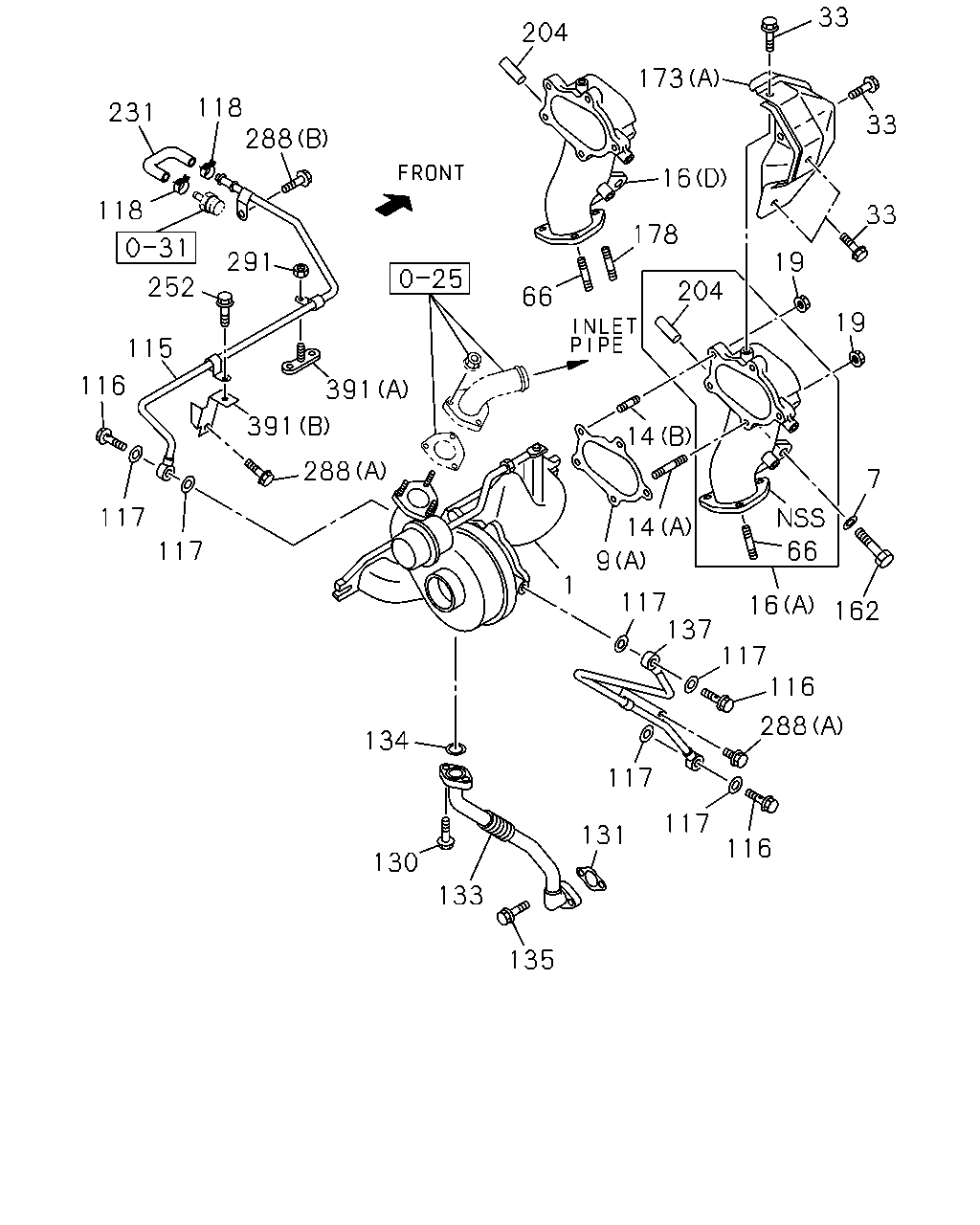

çizim 175872
231 118 288 118 291 252 115 116 117 117 391 391 288 204 173 33 33 16 33 19 19 178 204 66 14 7 66 162 16 14 9 1 117 137 117 116 288 116 117 117 131 135 133 130 134
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. VIN MODEL YEAR 2015<VZF> 		8-98254-714-0 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-97326-752-1 01 1 1012-1406 ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. EXC. VIN MODEL YEAR 2015<VZF> 		8-97326-752-1 01 1 1407- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 1012- ●
1 03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 1012- ●
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1012- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) 		8-98015-116-1 01 1 1012- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (A) 		8-97039-777-1 01 1 1012- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (B) 		8-97374-412-0 01 1 1012- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) (D) 		8-98209-505-0 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (D) 		8-98209-505-0 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(A) 		8-97178-487-3 01 1 1012-1302 ●
16 03.609 ADAPTER; EXH PIPE
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1303-1406 ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (A) 		8-97178-487-3 01 1 1407- ●
16 03.609 ADAPTER; EXH PIPE
(B) 		8-97039-749-2 01 1 1012- ●
16 03.609 ADAPTER; EXH PIPE
(C) 		8-98012-735-4 01 1 1012- ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
03.604 M8 FLANGE 		8-94170-486-0 05 1 1012- ● ●
33 03.342 BOLT; HEAT PROTECTOR
03.604 M6X12 FLANGE 		8-97108-669-0 04 1 1012- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE 		0-28050-812-0 06 1 1012- ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 1012- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
VIN MODEL YEAR 2015<VZF> 		8-98261-645-0 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97210-077-2 01 1 1012-1406 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF> 		8-97210-077-2 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98096-928-0 01 1 1012- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98113-710-0 01 1 1012- ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT 		8-98037-067-0 01 1 1407-1409 ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X31 EYE-BOLT 		8-98037-067-0 02 1 1410- ●
116 03.342 BOLT; WATER PIPE
EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1407-1501 ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1407-1501 ●
116 03.342 BOLT; WATER PIPE
MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1502- ●
116 03.342 BOLT; WATER PIPE
M14X30 EYE-BOLT 		8-94455-144-0 03 1 1012-1406 ● ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 02 1 1407-1409 ●
116 03.342 BOLT; WATER PIPE
VIN MODEL YEAR 2015<VZF> M14X30 EYE-BOLT 		8-94455-144-0 01 1 1410- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 06 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 04 1 1012-1312 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 04 1 1012- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=12.6 		8-97331-137-1 02 1 1012- ●
118 03.342 CLIP; WATER HOSE
03.162 ID=15.5 		8-94221-519-0 02 1 1012- ● ●
118 03.342 CLIP; WATER HOSE
01.153 ID=12.8 		8-94367-943-0 04 1 1012- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
VIN MODEL YEAR 2015<VZF> 00.724 M6X16 HEX SOCKET 		0-58330-616-0 02 1 1407-1410 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
VIN MODEL YEAR 2015<VZF> 00.662 M6X16 W/LK WASHER 		0-50540-616-0 02 1 1411- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1012-1406 ● ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1407-1501 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1407-1501 ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF> M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1502- ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1012- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
VIN MODEL YEAR 2015<VZF> 		8-98261-657-0 01 1 1407- ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-659-0 01 1 1012-1406 ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-659-0 01 1 1407- ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-658-0 01 1 1012- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1012-1406 ● ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1407-1501 ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1407-1501 ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) GLOW SYSTEM DELETE<7RK> EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). INDONESIA EQUIPMENT(B00) FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),HIGH ALTITUDE COMPENSATOR(EE2), VIN MODEL YEAR 2015<VZF>. ID=22.8 		1-09623-462-0 01 1 1502- ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1502- ●
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
VIN MODEL YEAR 2015<VZF> 		8-98213-680-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97229-036-0 01 1 1012-1406 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EXC. VIN MODEL YEAR 2015<VZF> 		8-97229-036-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98063-840-0 01 1 1012- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97381-650-0 01 1 1012- ●
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1012- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-97178-497-2 01 1 1012- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(C) 		8-98032-023-1 01 1 1012- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-3 01 1 1012- ●
178 03.407 STUD; DUCT
VIN MODEL YEAR 2015<VZF> 03.275 M6X25 L=34 		0-41010-625-0 04 1 1407- ●
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1012- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) 		8-98215-875-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012-1302 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 1012- ●
252 03.417 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 1012- ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (A) M8X12 FLANGE 		0-28050-812-0 03 1 1012- ●
291 03.374 NUT; PIPE TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
391 03.342 BRACKET; WATER PIPE
MINI BUS CHASSIS(V4B) (A) 		8-98209-661-0 01 1 1303-1406 ●
391 03.342 BRACKET; WATER PIPE
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (A) 		8-98209-661-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (A) 		8-98209-661-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
(A) 		8-97210-078-0 01 1 1012-1302 ●
391 03.342 BRACKET; WATER PIPE
EXC. MINI BUS CHASSIS(V4B) (A) 		8-97210-078-0 01 1 1303-1406 ●
391 03.342 BRACKET; WATER PIPE
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (A) 		8-97210-078-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (A) 		8-97210-078-0 01 1 1407- ●
391 03.342 BRACKET; WATER PIPE
(B) 		8-97221-061-0 01 1 1012- ●
391 03.342 BRACKET; WATER PIPE
(C) 		8-97371-730-0 01 1 1012- ●

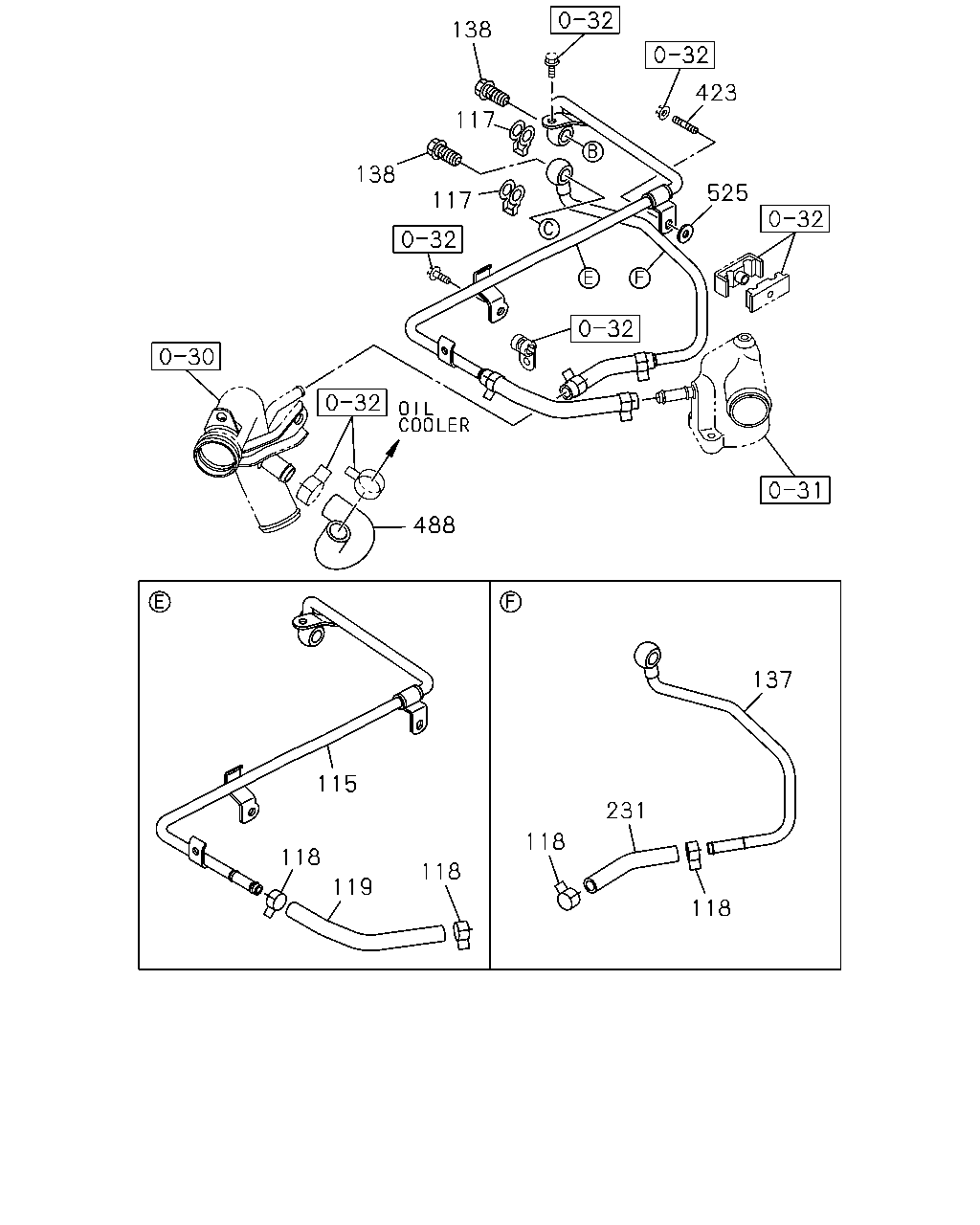

çizim 175873
138 423 117 138 525 117 488 137 115 231 118 118 118 119 118
BalonParca AdiParca NoAdetTipApplied Date A B C
115 03.342 PIPE; WATER,TURBOCHARGER OUT
VIN MODEL YEAR 2015<VZF> 		8-98261-645-0 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-97210-077-2 01 1 1012-1406 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF> 		8-97210-077-2 01 1 1407- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98096-928-0 01 1 1012- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT 8-98113-710-0 01 1 1012- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 06 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 04 1 1012-1312 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1401-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 01.531 ID=14.2 OD=19.2 		8-98251-345-0 04 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1012-1406 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1407- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 04 1 1012- ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=12.6 		8-97331-137-1 02 1 1012- ●
118 03.342 CLIP; WATER HOSE
03.162 ID=15.5 		8-94221-519-0 02 1 1012- ● ●
118 03.342 CLIP; WATER HOSE
01.153 ID=12.8 		8-94367-943-0 04 1 1012- ●
119 03.342 HOSE; WATER,TURBOCHARGER 8-98113-336-0 01 1 1012- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
VIN MODEL YEAR 2015<VZF> 		8-98213-680-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97229-036-0 01 1 1012-1406 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EXC. VIN MODEL YEAR 2015<VZF> 		8-97229-036-0 01 1 1407- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-98063-840-0 01 1 1012- ●
137 01.097 PIPE; WATER,TURBOCHARGER IN 8-97381-650-0 01 1 1012- ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 1012- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) 		8-98215-875-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> 		8-98215-875-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012-1302 ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1303-1406 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT
MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 		8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1407- ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 1012- ●
423 03.373 STUD; WATER PIPE
00.206 M6X16 L=25 		0-41010-616-0 01 1 1012- ●
488 03.163 HOSE; RUBBER 8-98066-091-0 01 1 1012- ●
525 03.373 PLATE; WATER,TURBO
02.334 ID=6.4 OD=18 		9-09164-706-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
