0-32 — WATER PIPING; ENGINE (#54492) — 26 parça

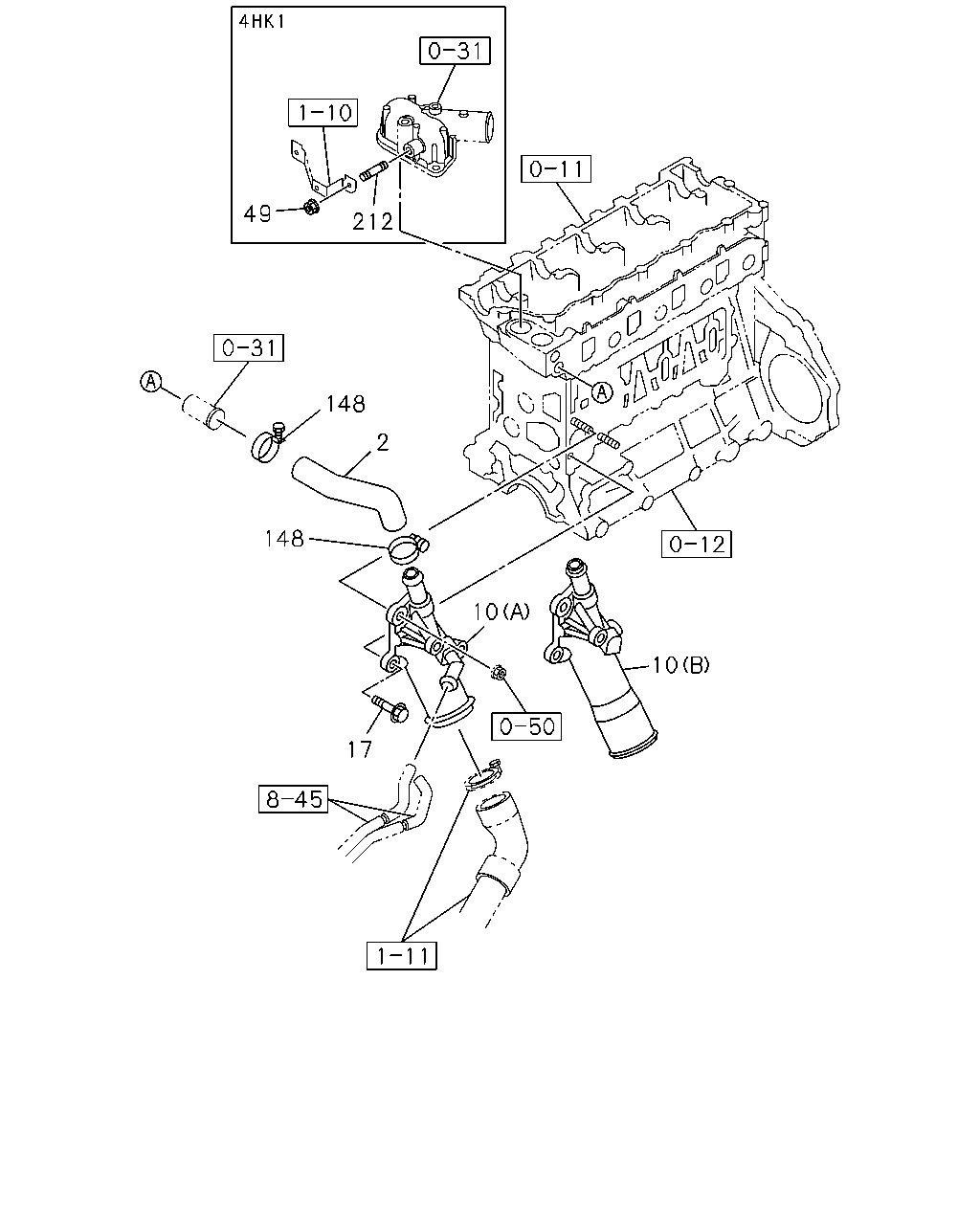

212 49 148 2 148 17 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.097 HOSE; WATER,BY-PASS MINI BUS CHASSIS(V4B)	8-98209-851-0	01	1	1303-1406	●
2	01.097 HOSE; WATER,BY-PASS MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98209-851-0	01	1	1407-	●
2	01.097 HOSE; WATER,BY-PASS INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98209-851-0	01	1	1407-	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1012-1302	●	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1303-1406		●
2	01.097 HOSE; WATER,BY-PASS EXC. MINI BUS CHASSIS(V4B)	8-97209-948-0	01	1	1303-1406	●
2	01.097 HOSE; WATER,BY-PASS	8-97209-948-0	01	1	1407-		●
2	01.097 HOSE; WATER,BY-PASS EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97209-948-0	01	1	1407-	●
2	01.097 HOSE; WATER,BY-PASS MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97209-948-0	01	1	1407-	●
2	01.097 HOSE; WATER,BY-PASS	8-97379-228-1	01	1	1012-			●
10	01.153 PIPE; SUCTION EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98212-009-0	01	1	1203-	●	●
10	01.153 PIPE; SUCTION (A)	8-98166-992-0	01	1	1012-1202	●	●
10	01.153 PIPE; SUCTION HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98166-992-0	01	1	1203-	●	●
10	01.153 PIPE; SUCTION (A)	8-98166-991-0	01	1	1012-			●
17	01.153 BOLT; SUCTION PIPE 03.415 M8X48 FLANGE	8-94458-473-1	01	1	1012-	●	●	●
49	01.153 NUT; WATER PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●
148	01.097 CLIP; BYPASS HOSE 03.417 ID=30	9-09915-315-1	02	1	1012-	●	●	●
212	01.153 STUD; PIPE 00.413 M8X45 L=55	8-94217-227-0	02	1	1012-			●

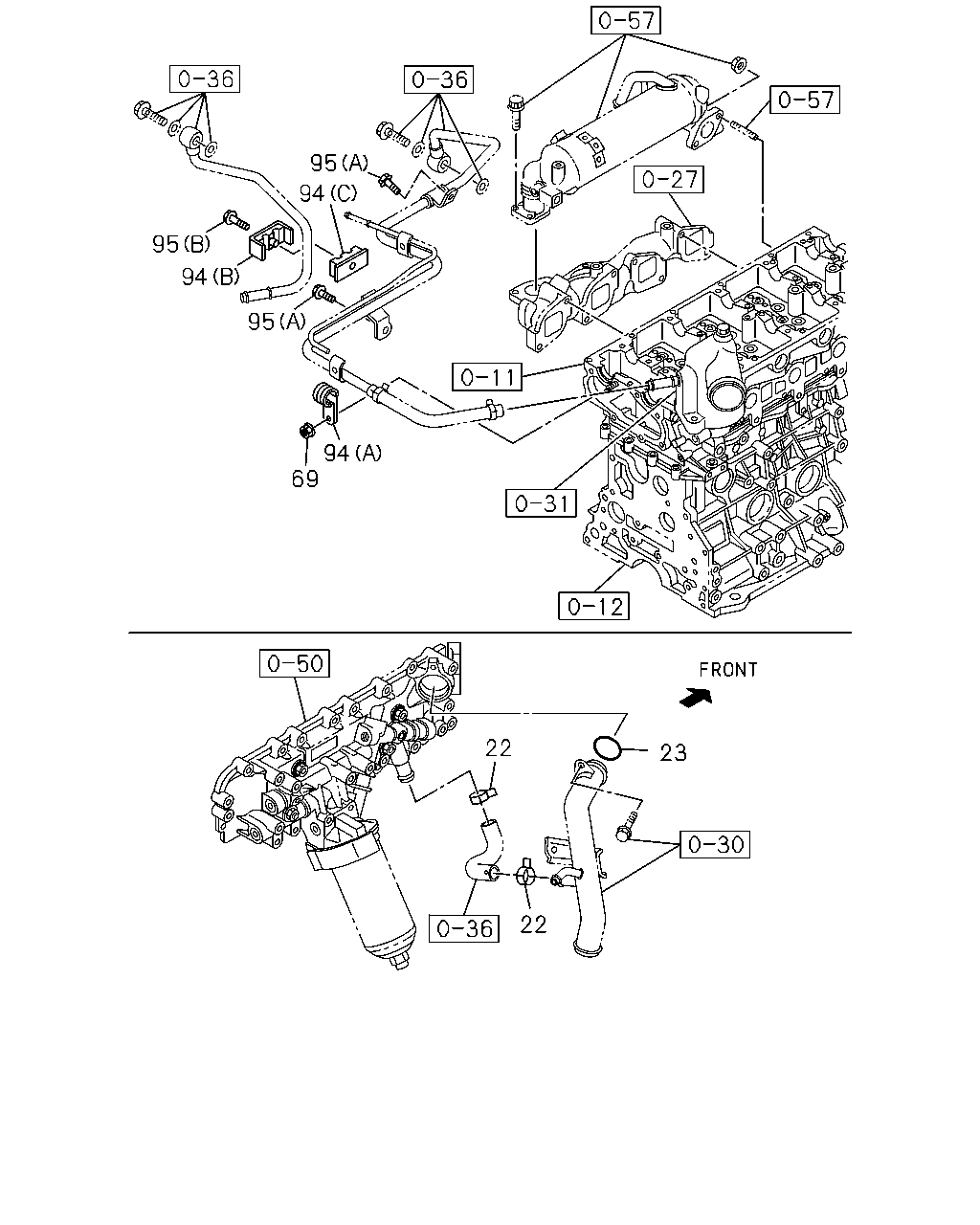

95 94 95 94 95 94 69 22 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
22	01.153 CLIP; WATER HOSE 03.278 ID=22	8-97359-141-0	02	1	1012-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	0-95690-338-0	01	1	1012-	●
69	01.153 NUT; WATER PIPE 01.540 M6 FLANGE	0-91180-206-0	02	1	1012-	●
94	01.153 CLIP; WATER PIPE 04.047 (A) ID=12 L=20	1-09700-911-1	01	1	1012-	●
94	01.153 CLIP; WATER PIPE 01.531 (B) ID=7 & 9 L=25	1-09701-228-3	01	1	1012-	●
94	01.153 CLIP; WATER PIPE 01.531 (C) ID=7 & 9 L=25	1-09701-229-2	01	1	1012-	●
95	01.240 BOLT; CLIP 03.162 (A) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●
95	01.240 BOLT; CLIP 03.162 (B) M6X35 FLANGE	0-28650-635-0	01	1	1012-	●
