0-31 — THERMOSTAT AND HOUSING (#54491) — 101 parça

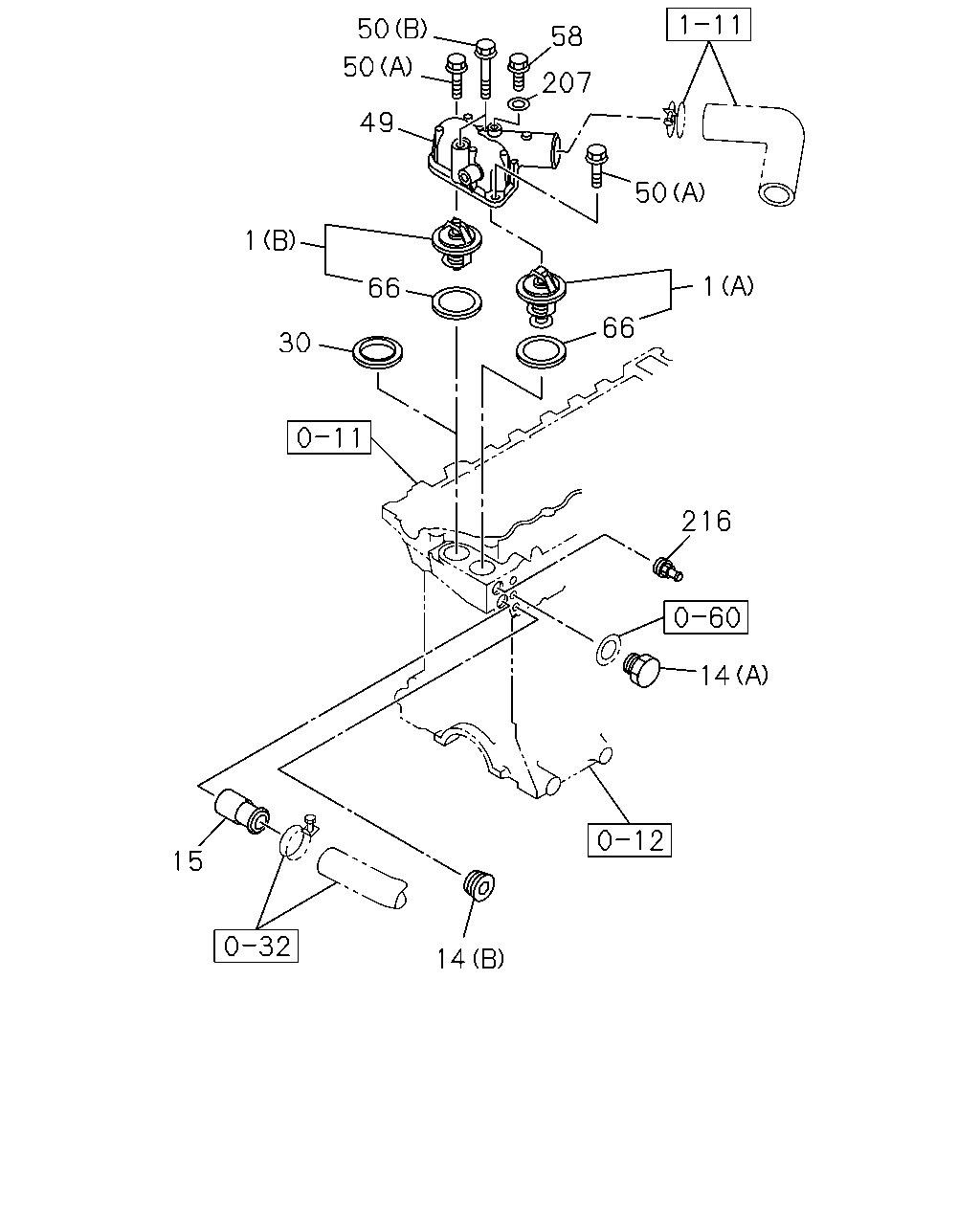

14 15 14 216 1 66 66 30 1 50 207 58 49 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-792-1	01	1	1012-1405	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),MINI BUS CHASSIS(V4B) (B) 85 CELSIUS	8-97300-792-1	01	1	1406-1406	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>,MINI BUSCHASSIS(V4B) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-	●
1	01.246 THERMOSTAT MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-3	01	1	1012-	●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-787-3	01	1	1012-	●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-3	01	1	1012-			●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-3	01	1	1012-			●
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-98017-027-2	01	1	1012-				●
14	01.252 PLUG; SW 01.073 (B) PT3/8	5-09605-005-0	01	1	1012-1409	●		●
14	01.252 PLUG; SW GLOW SYSTEM DELETE<7RK> 01.073 (B) PT3/8	5-09605-005-0	01	1	1410-	●		●
14	01.252 PLUG; SW 04.520 (A) M16X8 PLUG	9-09661-005-0	01	1	1012-	●		●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1012-	●	●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1012-				●
30	01.153 SPACER MINI BUS CHASSIS(V4B) 01.246	8-97373-039-0	01	1	1303-1406	●
30	01.153 SPACER MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> 01.246	8-97373-039-1	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET MINI BUS CHASSIS(V4B)	8-98210-658-0	01	1	1303-1406	●
49	01.153 PIPE; WATER OUTLET MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-658-0	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-658-0	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	1012-1302	●	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	1303-1406		●
49	01.153 PIPE; WATER OUTLET EXC. MINI BUS CHASSIS(V4B)	8-97372-769-0	01	1	1303-1406	●
49	01.153 PIPE; WATER OUTLET EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97372-769-1	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97372-769-1	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1012-			●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	1012-				●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1012-				●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1012-	●	●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1302	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1302	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	02	1	1012-1501			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98114-587-0	01	1	1012-				●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●	●	●
216	01.153 PIPE ASM; WATER,TURBOCHARGER RET	8-97358-699-0	01	1	1012-	●		●

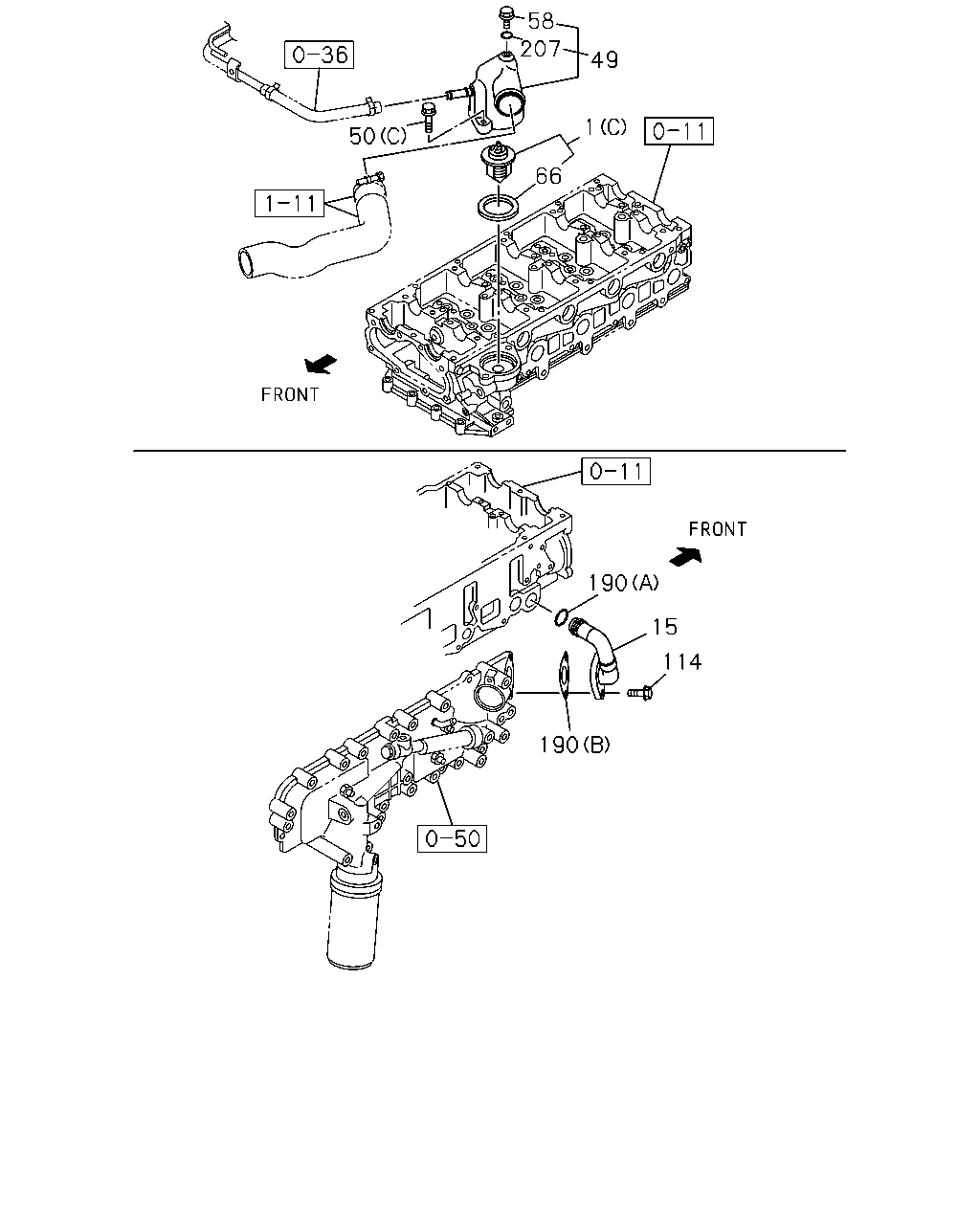

58 207 49 50 1 66 190 15 114 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-792-1	01	1	1012-1405	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),MINI BUS CHASSIS(V4B) (B) 85 CELSIUS	8-97300-792-1	01	1	1406-1406	●	●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-		●
1	01.246 THERMOSTAT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>,MINI BUSCHASSIS(V4B) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-	●
1	01.246 THERMOSTAT MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) (B) 85 CELSIUS	8-97300-792-2	01	1	1407-	●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-789-3	01	1	1012-	●	●
1	01.246 THERMOSTAT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 85 CELSIUS	8-97300-787-3	01	1	1012-	●	●
1	01.246 THERMOSTAT (B) 85 CELSIUS	8-97300-787-3	01	1	1012-			●
1	01.246 THERMOSTAT (A) 82 CELSIUS	8-97300-790-3	01	1	1012-			●
1	01.246 THERMOSTAT (C) 85 CELSIUS	8-98017-027-2	01	1	1012-				●
15	01.251 PIPE; BYPASS 01.153	8-94342-574-0	01	1	1012-	●	●	●
15	01.251 PIPE; BYPASS	8-97318-732-2	01	1	1012-				●
49	01.153 PIPE; WATER OUTLET MINI BUS CHASSIS(V4B)	8-98210-658-0	01	1	1303-1406	●
49	01.153 PIPE; WATER OUTLET MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-658-0	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-658-0	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	1012-1302	●	●
49	01.153 PIPE; WATER OUTLET	8-97372-769-0	01	1	1303-1406		●
49	01.153 PIPE; WATER OUTLET EXC. MINI BUS CHASSIS(V4B)	8-97372-769-0	01	1	1303-1406	●
49	01.153 PIPE; WATER OUTLET EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97372-769-1	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97372-769-1	01	1	1407-	●
49	01.153 PIPE; WATER OUTLET	8-97329-914-0	01	1	1012-			●
49	01.153 PIPE; WATER OUTLET	8-98028-252-1	01	1	1012-				●
50	01.252 BOLT; OUTLET PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●	●
50	01.252 BOLT; OUTLET PIPE 01.097 (B) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●	●
50	01.252 BOLT; OUTLET PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	02	1	1012-				●
58	00.073 PLUG; WATER OUTLET PIPE M8X16	8-97021-211-1	01	1	1012-	●	●	●
58	00.073 PLUG; WATER OUTLET PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-				●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1302	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1012-1302	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-97300-793-0	01	1	1303-1406	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) ID=49.5 OD=56.5	8-97300-793-0	01	1	1407-1501	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-		●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) VIN MODEL YEAR 2015<VZF> ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65) ID=49.5 OD=56.5	8-98280-281-0	01	1	1502-	●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-97300-793-0	02	1	1012-1501			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5	8-98280-281-0	02	1	1502-			●
66	01.252 GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98114-587-0	01	1	1012-				●
114	01.097 BOLT; BYPASS PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	0-95690-226-0	01	1	1012-				●
190	01.159 GASKET; BYPASS PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98009-322-0	01	1	1012-				●
207	08.845 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●	●	●
