Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

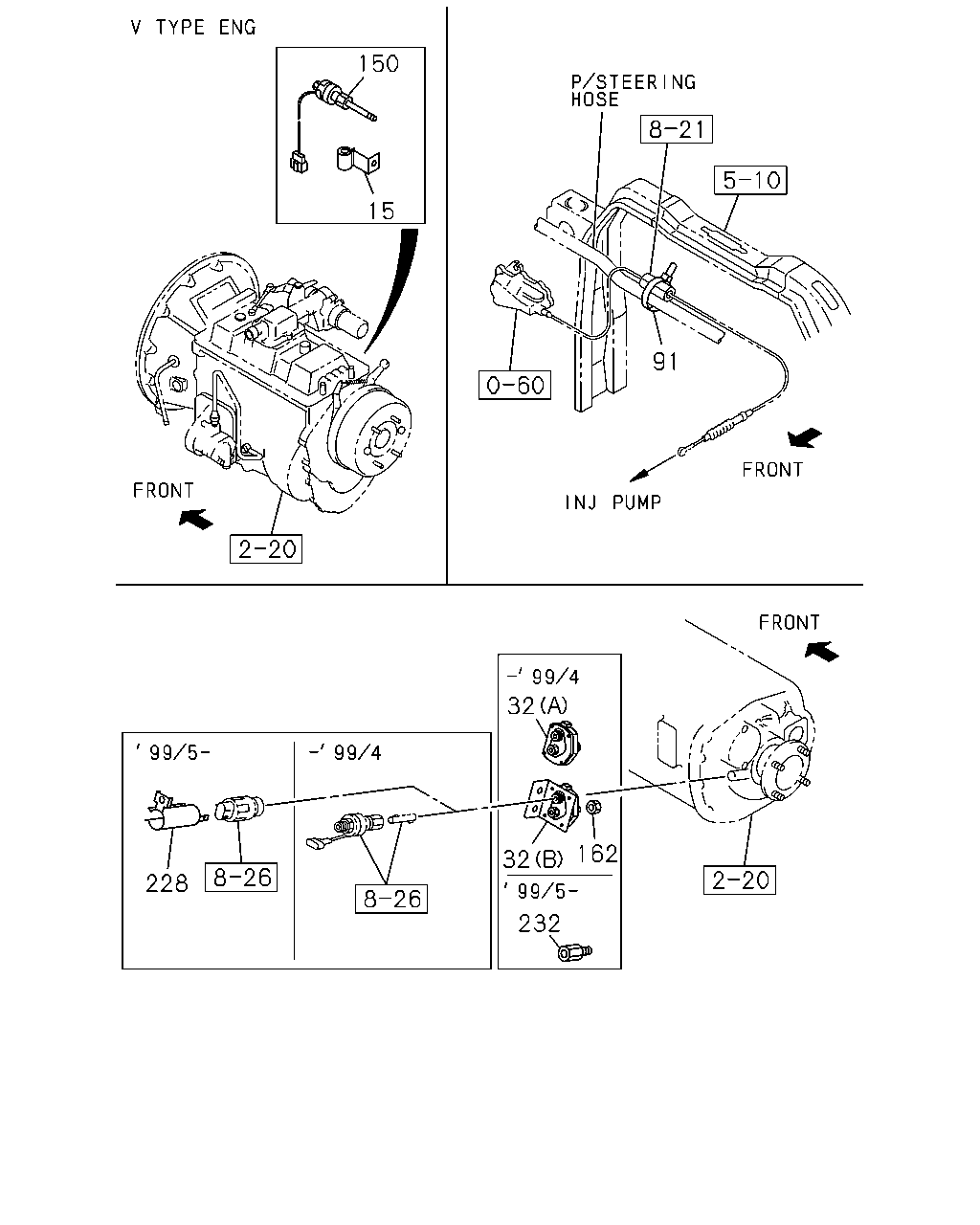

8-20 - METER CABLE
▶
8-20 — METER CABLE
(#5449) — 17 parça
150
15
91
32
162
32
228
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; BAND,HARNESS
V TYPE ENG<91L> ID=6 H=25 L=21
1-09700-432-0
01
1
9601-9603
15
CLIP; BAND,HARNESS
V TYPE ENG<91L> ID=6 H=25 L=21
1-09700-432-0
01
1
9605-
32
BOX; GEAR,FLEX SHAFT
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) (A)
1-83126-331-0
01
1
9611-9804
32
BOX; GEAR,FLEX SHAFT
ZF M/T<X9E> (B)
1-83126-262-0
01
1
9601-9702
32
BOX; GEAR,FLEX SHAFT
ZF M/T<X9E> (B)
1-83126-409-0
01
1
9703-9904
91
CLIP; BAND
L=140
5-09707-031-0
01
1
9601-9601
91
CLIP; BAND
10PE1S(60L) L=140
5-09707-031-0
01
1
9601-9601
91
CLIP; BAND
L=140
5-09707-031-0
01
1
9602-9602
91
CLIP; BAND
10PE1S(60L) EXC. RLD GOVERNOR(SD7) L=140
5-09707-031-1
02
1
9603-9910
91
CLIP; BAND
10PE1S(60L) EXC. RLD GOVERNOR(SD7) L=140
5-09707-031-1
01
1
9911-
91
CLIP; BAND
10PE1S(60L) EXC. RLD GOVERNOR(SD7) L=250
1-09707-126-0
01
1
9911-
132
SENSOR; SPD,SPEEDOMETER
V TYPE ENG<91L>
1-83127-115-0
01
1
0004-
150
SENSOR; SPEED,ABS
V TYPE ENG<91L>
1-83127-115-0
01
1
9601-
162
NUT; GEAR BOX
ZF M/T<X9E> M22
9-83111-951-0
01
1
9601-9809
162
NUT; GEAR BOX
ZF M/T<X9E> M22
1-80249-005-0
01
1
9810-9904
228
PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E>
8-97168-308-0
01
1
9905-
232
ADAPTER; SPEED SENSOR
ZF M/T<X9E>
1-80249-006-0
01
1
9905-
