Isuzu WW
▶
TRUCKS
▶
NPR
▶
51296 - NPR/NQR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#54489) — 31 parça
Tümü
A - 4HG1-T ENG
B - 4HG1 ENG
C - 4HK1-TCN ENG
◀

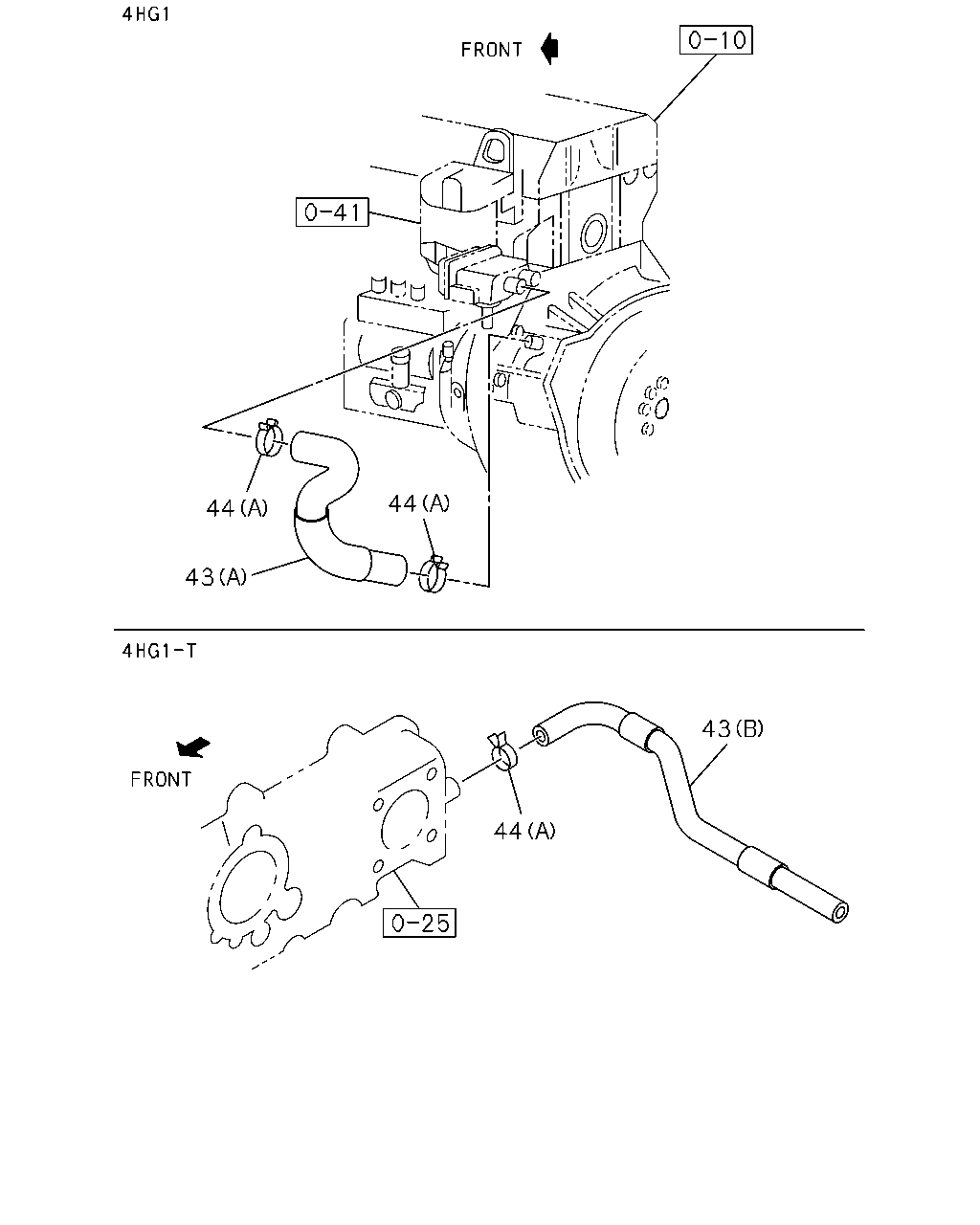

[028A] 4HG1 (13 parça)

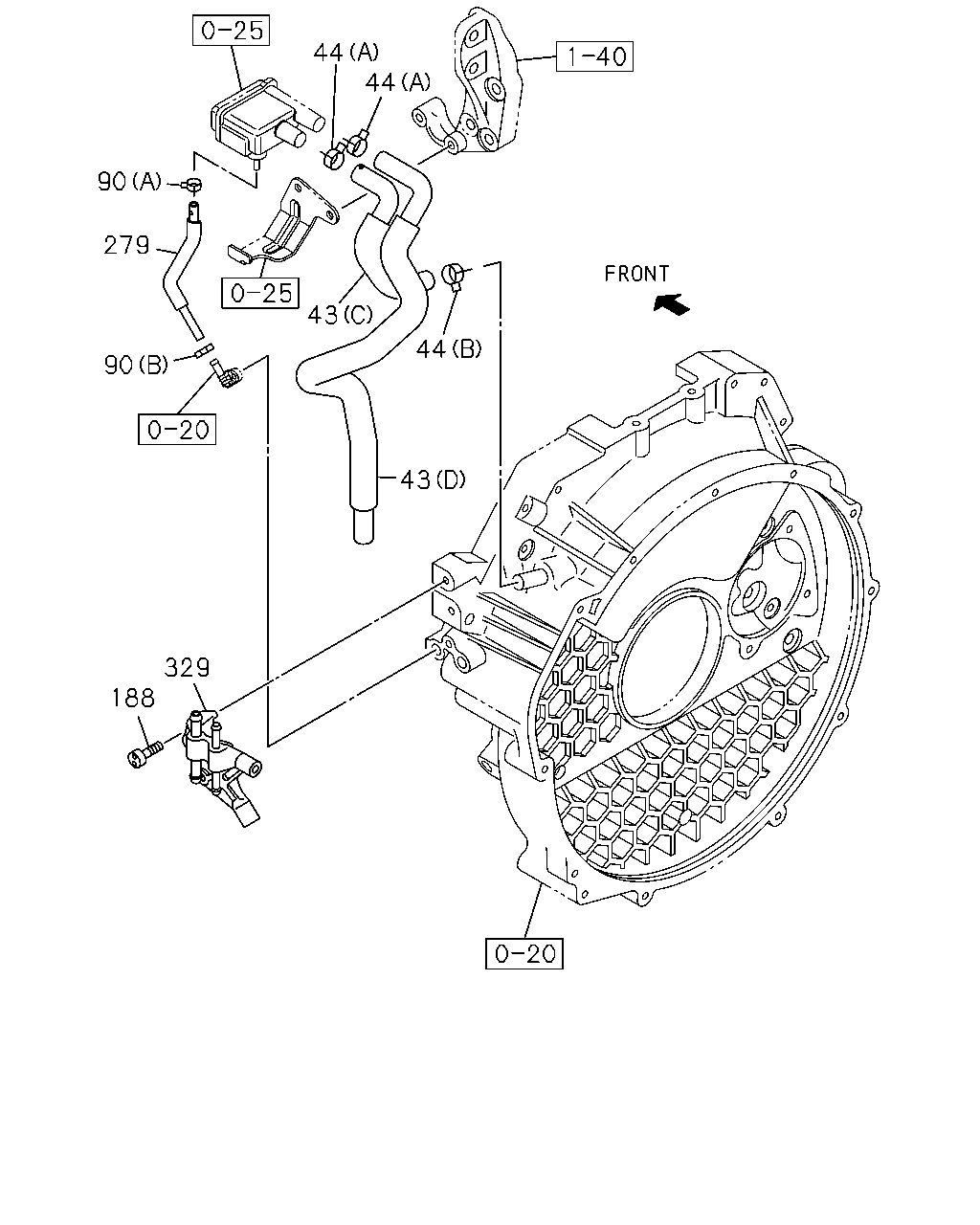

[028A] 4HK1 (18 parça)
▶
44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
03.278 HOSE; PCV
MINI BUS CHASSIS(V4B) (B)
8-98209-762-0
01
1
1303-1406
●
43
03.278 HOSE; PCV
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B)
8-98209-762-0
01
1
1407-
●
43
03.278 HOSE; PCV
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (B)
8-98209-762-0
01
1
1407-
●
43
03.278 HOSE; PCV
(B)
8-97375-134-0
01
1
1012-1302
●
43
03.278 HOSE; PCV
EXC. MINI BUS CHASSIS(V4B) (B)
8-97375-134-0
01
1
1303-1406
●
43
03.278 HOSE; PCV
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B)
8-97375-134-0
01
1
1407-
●
43
03.278 HOSE; PCV
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (B)
8-97375-134-0
01
1
1407-
●
43
03.278 HOSE; PCV
(A)
8-97375-924-0
01
1
1012-
●
43
03.278 HOSE; PCV
(C)
8-98075-187-2
01
1
1012-
●
43
03.278 HOSE; PCV
(D)
8-98089-567-2
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
●
44
44
90
279
43
44
90
43
329
188
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
43
03.278 HOSE; PCV
MINI BUS CHASSIS(V4B) (B)
8-98209-762-0
01
1
1303-1406
●
43
03.278 HOSE; PCV
MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> (B)
8-98209-762-0
01
1
1407-
●
43
03.278 HOSE; PCV
INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> (B)
8-98209-762-0
01
1
1407-
●
43
03.278 HOSE; PCV
(B)
8-97375-134-0
01
1
1012-1302
●
43
03.278 HOSE; PCV
EXC. MINI BUS CHASSIS(V4B) (B)
8-97375-134-0
01
1
1303-1406
●
43
03.278 HOSE; PCV
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) (B)
8-97375-134-0
01
1
1407-
●
43
03.278 HOSE; PCV
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) (B)
8-97375-134-0
01
1
1407-
●
43
03.278 HOSE; PCV
(A)
8-97375-924-0
01
1
1012-
●
43
03.278 HOSE; PCV
(C)
8-98075-187-2
01
1
1012-
●
43
03.278 HOSE; PCV
(D)
8-98089-567-2
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
1012-
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
1012-
●
●
90
03.358 CLIP; RUBBER HOSE
03.163 (A) ID=11
8-94238-570-0
01
1
1012-
●
90
03.358 CLIP; RUBBER HOSE
03.162 (B) ID=11.5
8-97138-011-0
02
1
1012-
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
1012-
●
279
03.278 HOSE; RUBBER,OIL DRAIN
8-98075-190-1
01
1
1012-
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1012-
●
