Sayfa 0-25 - Isuzu EPC

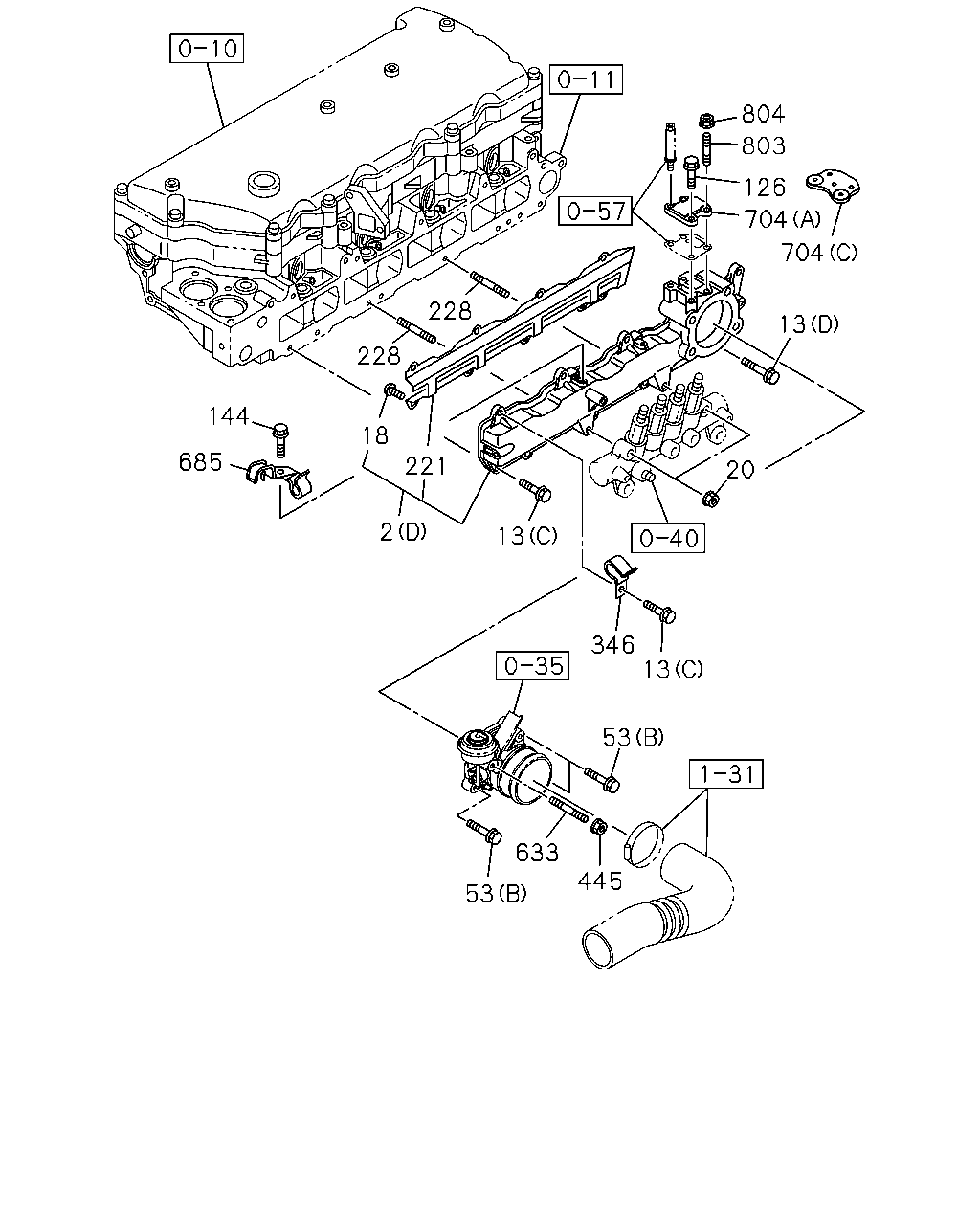

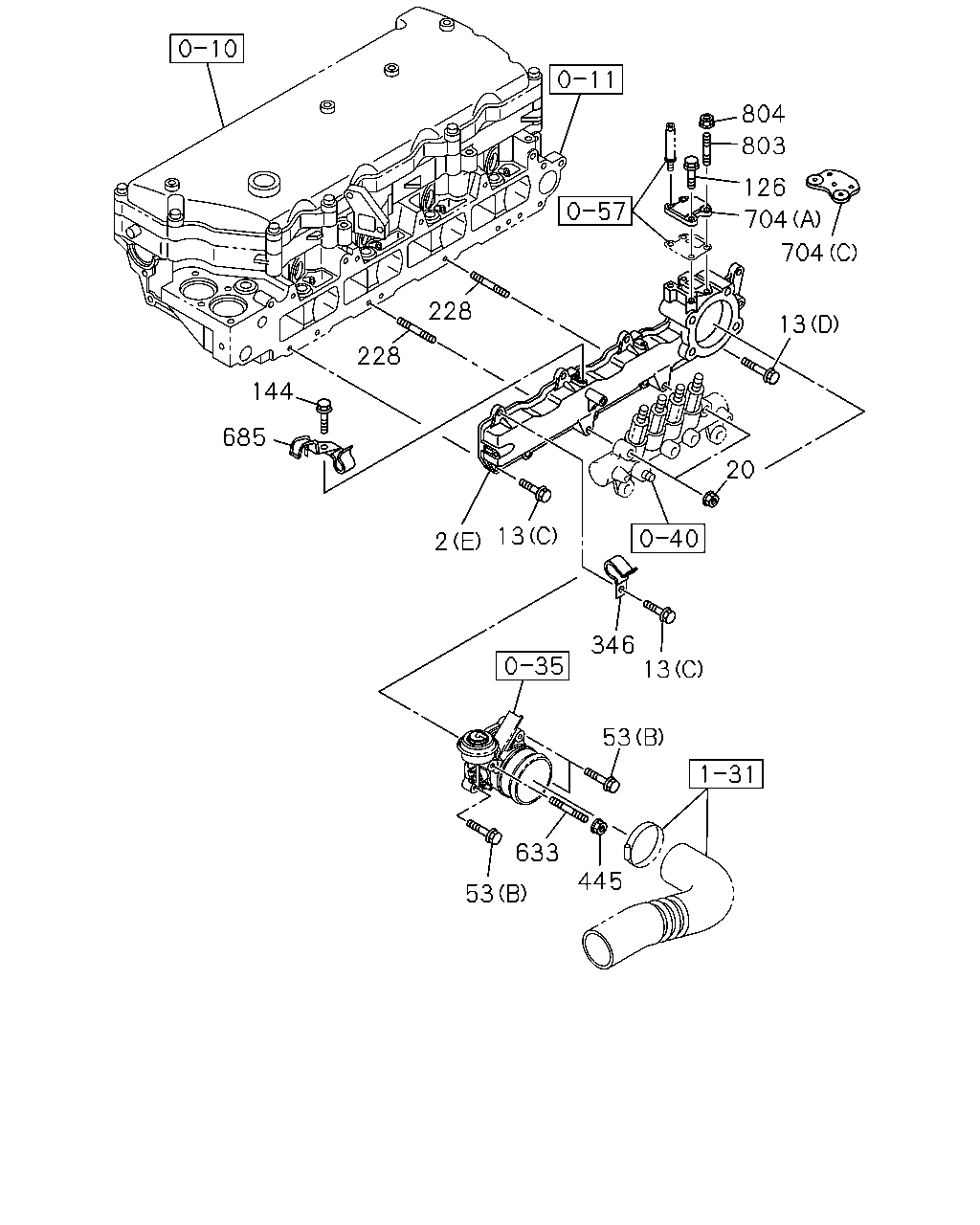

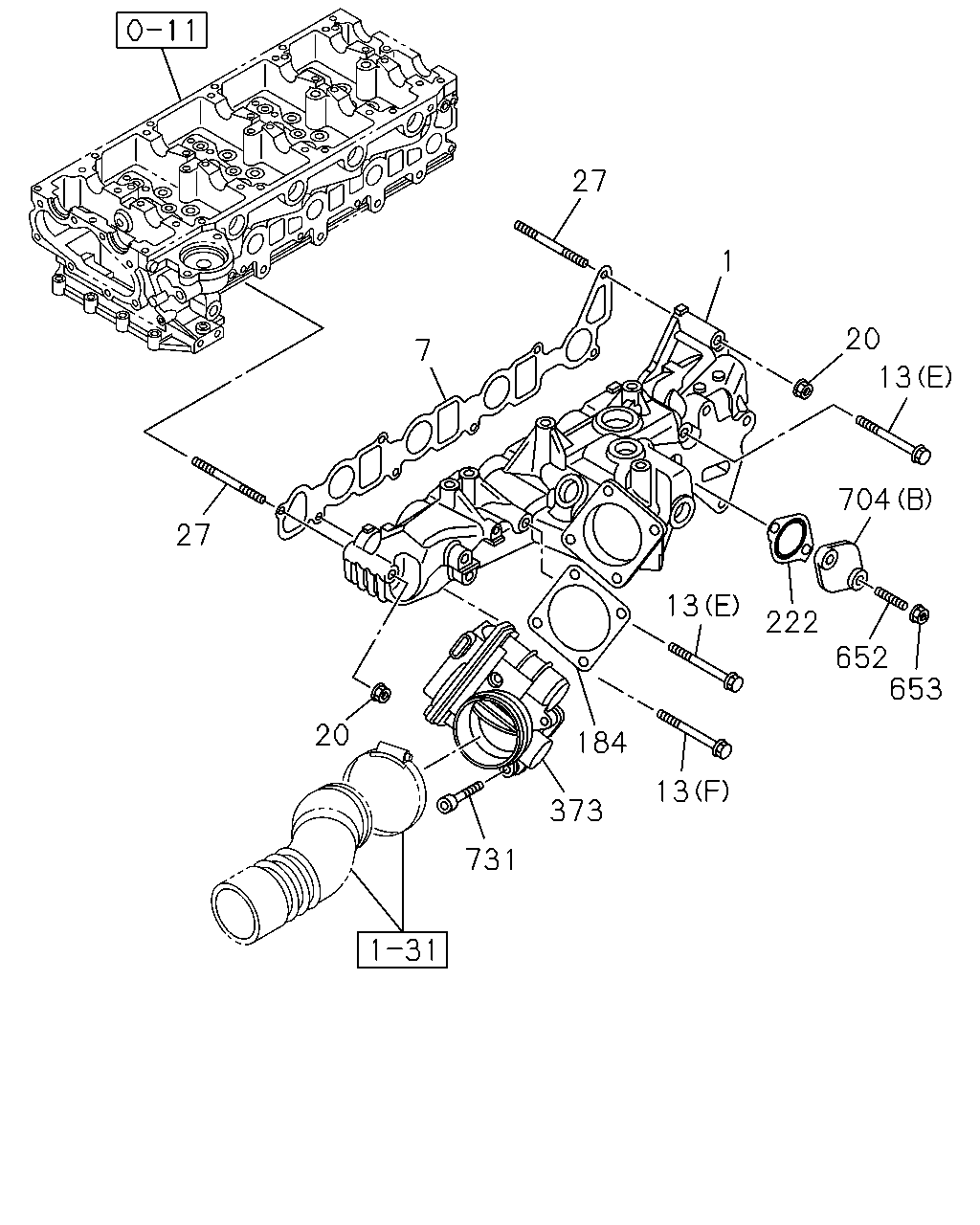

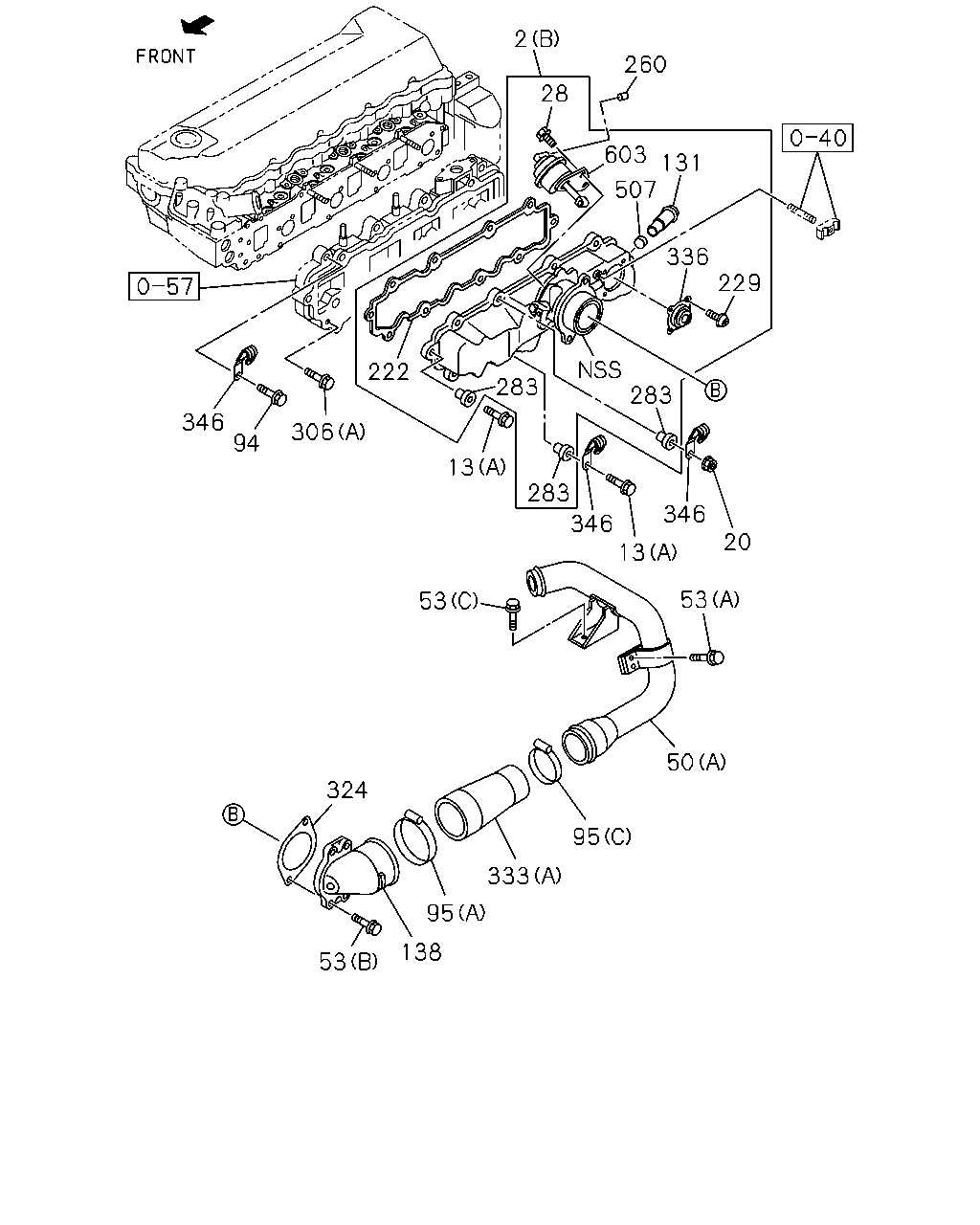

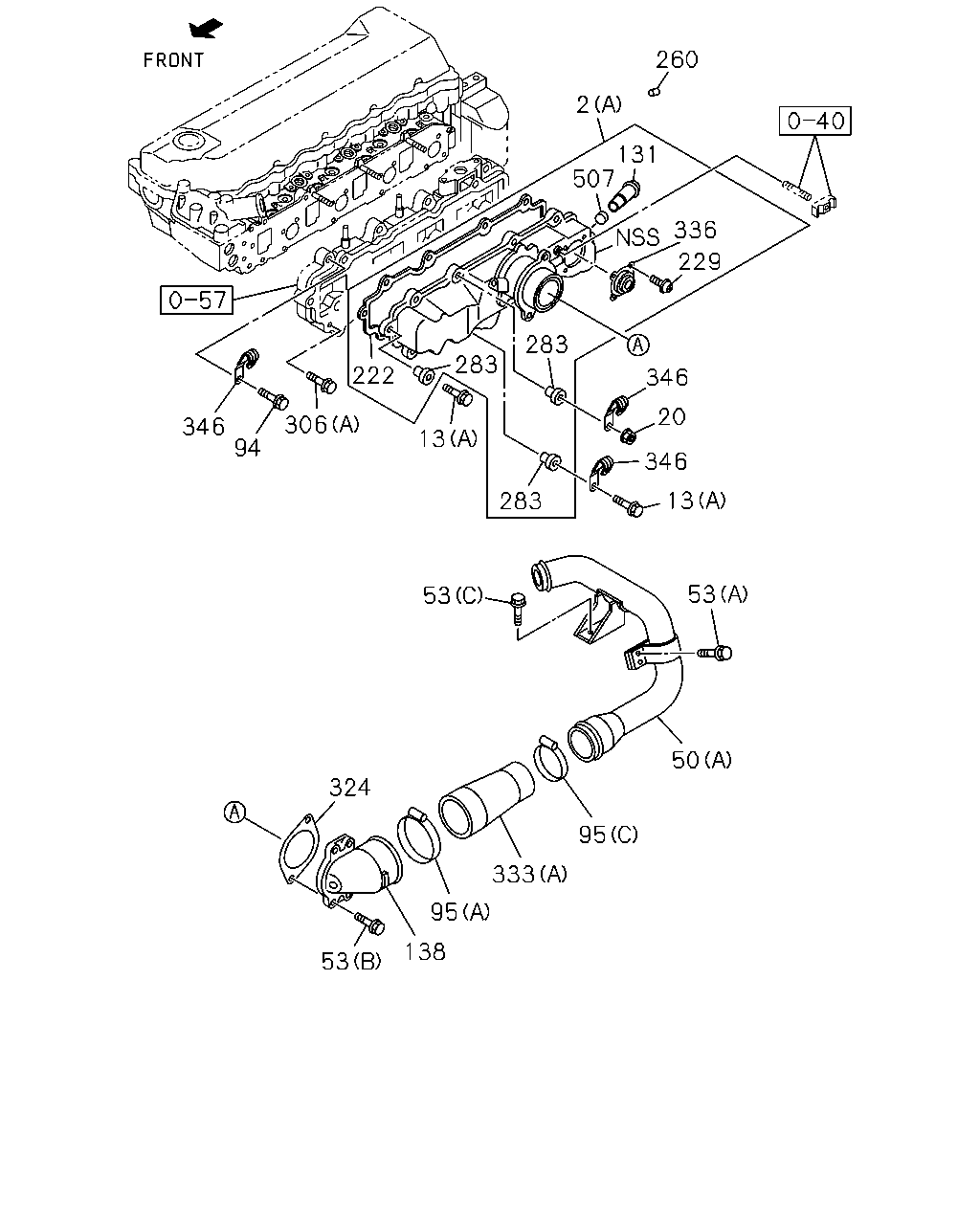

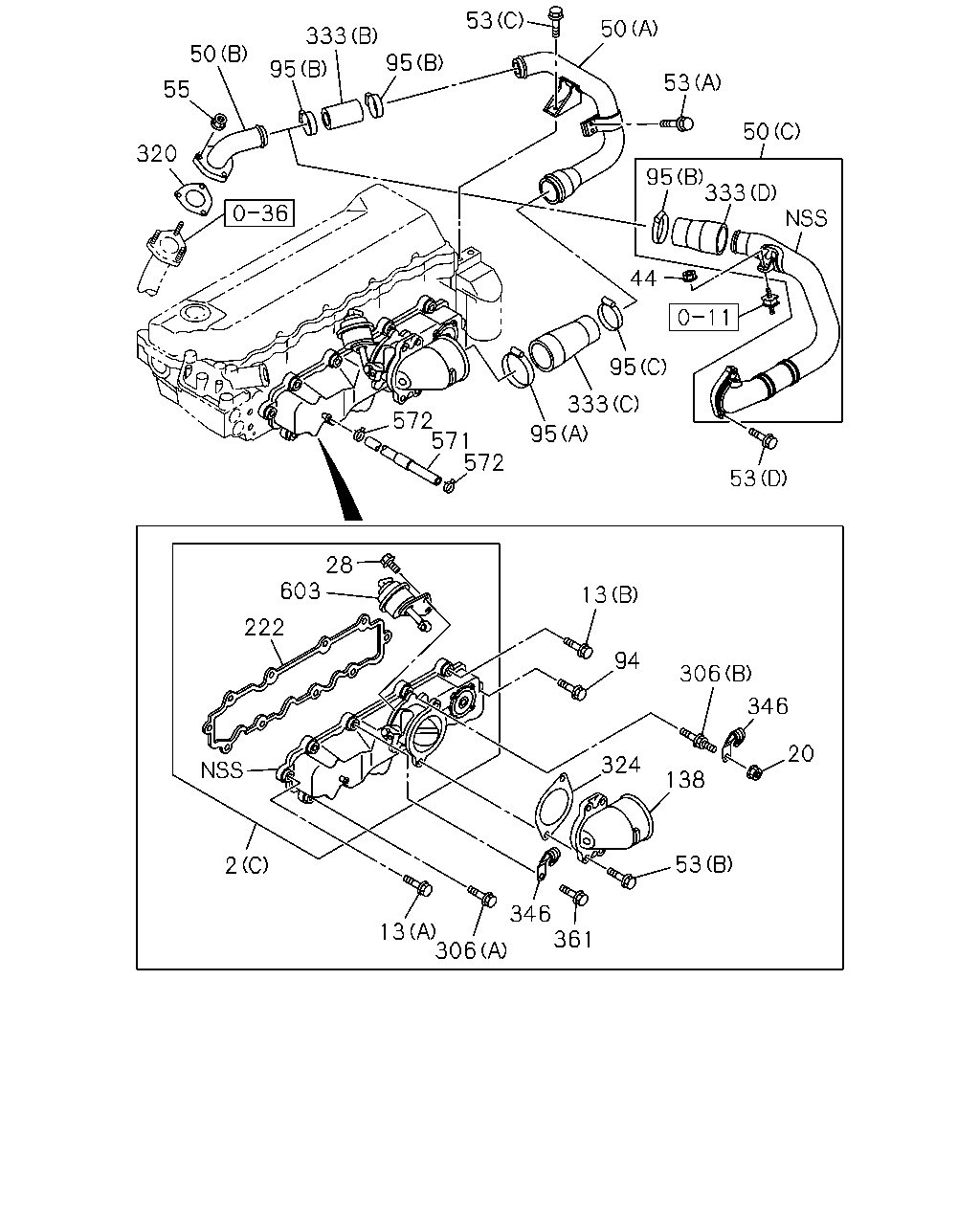

0-25 — INLET MANIFOLD (#54487) — 536 parça

2 260 28 603 131 507 336 229 283 222 283 346 94 306 13 283 346 346 13 20 53 53 50 324 95 333 95 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL (E)	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL (C)	8-97212-454-2	01	1	1012-1406		●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97212-454-2	01	1	1407-1409		●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1410-			●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (A)	8-97222-239-0	01	1	1012-1106			●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL (B)	8-97146-866-2	01	1	1107-1310			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1311-1406			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1407-1409			●
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409		●
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1410-		●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-		●	●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1407-			●
50	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL HYDRO BRAKE BOOSTER(7QQ) (C)	8-98254-369-0	01	1	1406-1406		●
50	03.265 PIPE; INL INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1407-		●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-1406		●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-		●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405		●	●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1406-1406			●
50	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97178-735-5	01	1	1406-1406		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-		●
53	03.602 BOLT; INL PIPE HYDRO BRAKE BOOSTER(7QQ) 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1012-1209		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	1210-1405		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE INDONESIA EQUIPMENT(B00) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (B) ID=50-69	8-94316-991-0	02	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER(7QQ) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-1406			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1407-1409			●
131	03.278 PIPE; PCV,INL VIN MODEL YEAR 2015<VZF>	8-97102-601-0	01	1	1407-1409		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1410-			●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405		●	●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1406-1406			●
138	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-566-2	01	1	1406-1406		●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1407-			●
138	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	1012-		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	1012-				●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-1406			●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1407-1409			●
229	03.278 SCREW; VENTILATION VLV VIN MODEL YEAR 2015<VZF> 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1407-1409		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1410-			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-1409			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1410-			●
260	03.278 CAP; RUBBER VIN MODEL YEAR 2015<VZF> 01.780 ID=4	8-94217-809-0	01	1	1410-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1012-1406			●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1407-1409			●
283	03.265 RUBBER VIN MODEL YEAR 2015<VZF> OD=23	8-97105-689-6	10	1	1407-1409		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1410-			●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1012-1405		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1406-1406			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-546-1	01	1	1406-1406		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1407-			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (D)	8-98219-796-0	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (C)	8-97201-103-2	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (B)	8-97369-717-3	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-			●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-		●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1310			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-1406			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1407-1409			●
336	03.415 VALVE; VENTILATION VIN MODEL YEAR 2015<VZF>	8-98245-399-0	01	1	1407-1409		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1410-			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-1406			●
507	03.415 ORIFICE	8-97088-649-0	01	1	1407-1409			●
507	03.415 ORIFICE VIN MODEL YEAR 2015<VZF>	8-97088-649-0	01	1	1407-1409		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1410-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1012-		●	●

260 2 131 507 336 229 283 283 222 346 20 306 346 94 346 13 13 283 53 53 50 324 95 333 95 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL (E)	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL (C)	8-97212-454-2	01	1	1012-1406		●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97212-454-2	01	1	1407-1409		●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1410-			●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (A)	8-97222-239-0	01	1	1012-1106			●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL (B)	8-97146-866-2	01	1	1107-1310			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1311-1406			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1407-1409			●
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409		●
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1410-		●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1407-			●
50	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL HYDRO BRAKE BOOSTER(7QQ) (C)	8-98254-369-0	01	1	1406-1406		●
50	03.265 PIPE; INL INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1407-		●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-1406		●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-		●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405		●	●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1406-1406			●
50	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97178-735-5	01	1	1406-1406		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-		●
53	03.602 BOLT; INL PIPE HYDRO BRAKE BOOSTER(7QQ) 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1012-1209		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	1210-1405		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE INDONESIA EQUIPMENT(B00) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (B) ID=50-69	8-94316-991-0	02	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER(7QQ) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-1406			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1407-1409			●
131	03.278 PIPE; PCV,INL VIN MODEL YEAR 2015<VZF>	8-97102-601-0	01	1	1407-1409		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1410-			●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405		●	●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1406-1406			●
138	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-566-2	01	1	1406-1406		●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1407-			●
138	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	1012-		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	1012-				●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-1406			●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1407-1409			●
229	03.278 SCREW; VENTILATION VLV VIN MODEL YEAR 2015<VZF> 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1407-1409		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1410-			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-1409			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1410-			●
260	03.278 CAP; RUBBER VIN MODEL YEAR 2015<VZF> 01.780 ID=4	8-94217-809-0	01	1	1410-		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1012-1406			●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1407-1409			●
283	03.265 RUBBER VIN MODEL YEAR 2015<VZF> OD=23	8-97105-689-6	10	1	1407-1409		●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	1410-			●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1012-1405		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1406-1406			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-546-1	01	1	1406-1406		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1407-			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (D)	8-98219-796-0	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (C)	8-97201-103-2	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (B)	8-97369-717-3	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-			●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-		●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1310			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-1406			●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1407-1409			●
336	03.415 VALVE; VENTILATION VIN MODEL YEAR 2015<VZF>	8-98245-399-0	01	1	1407-1409		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1410-			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-1406			●
507	03.415 ORIFICE	8-97088-649-0	01	1	1407-1409			●
507	03.415 ORIFICE VIN MODEL YEAR 2015<VZF>	8-97088-649-0	01	1	1407-1409		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1410-			●

228 228 144 685 2 18 13 221 804 126 803 704 13 704 20 346 13 53 633 53 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL (E)	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL (C)	8-97212-454-2	01	1	1012-1406		●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97212-454-2	01	1	1407-1409		●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1410-			●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (A)	8-97222-239-0	01	1	1012-1106			●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL (B)	8-97146-866-2	01	1	1107-1310			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1311-1406			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1407-1409			●
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409		●
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1410-		●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	1012-1409	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
53	03.602 BOLT; INL PIPE HYDRO BRAKE BOOSTER(7QQ) 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
126	03.275 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	1012-1409	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●
704	03.270 COVER 03.407 (A)	8-98062-651-1	01	1	1012-1408	●
704	03.270 COVER (C)	8-98260-138-0	01	1	1409-	●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-				●
803	03.275 STUD; COVER 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-	●
804	03.275 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●

228 228 144 685 2 13 346 13 53 633 445 53 20 13 704 704 126 803 804

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL (E)	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL (C)	8-97212-454-2	01	1	1012-1406		●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97212-454-2	01	1	1407-1409		●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1410-			●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (A)	8-97222-239-0	01	1	1012-1106			●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL (B)	8-97146-866-2	01	1	1107-1310			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1311-1406			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1407-1409			●
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409		●
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1410-		●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
53	03.602 BOLT; INL PIPE HYDRO BRAKE BOOSTER(7QQ) 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
126	03.275 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●
704	03.270 COVER 03.407 (A)	8-98062-651-1	01	1	1012-1408	●
704	03.270 COVER (C)	8-98260-138-0	01	1	1409-	●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-				●
803	03.275 STUD; COVER 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-	●
804	03.275 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●

50 55 320 95 333 53 50 95 53 50 95 44 333 333 95 95 53 572 571 572 28 603 222 13 306 94 346 138 324 20 53 361 346 306 13 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL (E)	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL (C)	8-97212-454-2	01	1	1012-1406		●
2	03.407 COVER; INL EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97212-454-2	01	1	1407-1409		●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1410-			●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (A)	8-97222-239-0	01	1	1012-1106			●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2), ANTI EROSION SPEC<7XK> (B)	8-97146-866-2	01	1	1012-1106			●
2	03.407 COVER; INL (B)	8-97146-866-2	01	1	1107-1310			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1311-1406			●
2	03.407 COVER; INL (B)	8-98245-383-0	01	1	1407-1409			●
2	03.407 COVER; INL VIN MODEL YEAR 2015<VZF> (B)	8-98245-383-0	01	1	1407-1409		●
2	03.407 COVER; INL (C)	8-97212-454-3	01	1	1410-		●
2	03.407 COVER; INL (D)	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-		●	●
44	03.407 NUT; PIPE BRKT HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-1406		●
44	03.407 NUT; PIPE BRKT INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-		●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1407-			●
50	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (A)	8-97178-735-5	01	1	1407-		●
50	03.265 PIPE; INL HYDRO BRAKE BOOSTER(7QQ) (C)	8-98254-369-0	01	1	1406-1406		●
50	03.265 PIPE; INL INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-98254-369-0	01	1	1407-		●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	1012-1406		●
50	03.265 PIPE; INL EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97202-327-2	01	1	1407-		●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405		●	●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1406-1406			●
50	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97178-735-5	01	1	1406-1406		●
50	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF> (B)	8-98261-643-0	01	1	1407-		●
53	03.602 BOLT; INL PIPE HYDRO BRAKE BOOSTER(7QQ) 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406			●
53	03.602 BOLT; INL PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1406-1406		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-			●
53	03.602 BOLT; INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE VIN MODEL YEAR 2015<VZF> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1407-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	1012-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	01	1	1012-		●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-			●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1012-1209		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	1210-1405		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE INDONESIA EQUIPMENT(B00) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (B) ID=50-69	8-94316-991-0	02	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (A) ID=77-95	1-09707-114-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (A) ID=77-95	1-09707-114-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1012-1405		●	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406			●
95	03.278 CLIP; RUBBER HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) 03.407 (C) ID=68-85	8-94320-428-0	01	1	1406-1406		●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-			●
95	03.278 CLIP; RUBBER HOSE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE VIN MODEL YEAR 2015<VZF> 03.407 (C) ID=68-85	8-94320-428-0	01	1	1407-		●
95	03.278 CLIP; RUBBER HOSE HYDRO BRAKE BOOSTER(7QQ) 03.407 (B) ID=50-69	8-94316-991-0	01	1	1406-		●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405		●	●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1406-1406			●
138	03.265 PIPE; INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-566-2	01	1	1406-1406		●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1407-			●
138	03.265 PIPE; INL MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
138	03.265 PIPE; INL VIN MODEL YEAR 2015<VZF>	8-97180-566-2	01	1	1407-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	1012-		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	1012-				●
306	03.265 BOLT; VLV (B) M8X85 L=101	8-98048-394-0	01	1	1012-		●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	1012-		●	●
320	03.270 GASKET; PIPE MINI BUS CHASSIS(V4B)	8-98211-431-0	01	1	1303-1406		●
320	03.270 GASKET; PIPE MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98211-431-0	01	1	1407-		●
320	03.270 GASKET; PIPE INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-98211-431-0	01	1	1407-		●
320	03.270 GASKET; PIPE ID=47	8-97202-328-1	01	1	1012-1302		●
320	03.270 GASKET; PIPE EXC. MINI BUS CHASSIS(V4B) ID=47	8-97202-328-1	01	1	1303-1406		●
320	03.270 GASKET; PIPE EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=47 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97202-328-1	01	1	1407-		●
320	03.270 GASKET; PIPE VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) ID=47 ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97202-328-1	01	1	1407-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1012-1405		●	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1406-1406			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97180-546-1	01	1	1406-1406		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97180-546-1	01	1	1407-			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIN MODEL YEAR 2015<VZF>	8-97180-546-1	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE INDONESIA EQUIPMENT(B00) EXC. VIN MODEL YEAR 2015<VZF> (D)	8-98219-796-0	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97201-103-2	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (C)	8-97201-103-2	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (C)	8-97201-103-2	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) (B)	8-97369-717-3	01	1	1406-1406		●
333	03.278 HOSE; RUBBER,INL PIPE MALAYSIA EQUIPMENT(B10) EXC. VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE VIN MODEL YEAR 2015<VZF> (B)	8-97369-717-3	01	1	1407-		●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-98157-877-0	01	1	1012-			●
333	03.278 HOSE; RUBBER,INL PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-98219-796-0	01	1	1406-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-		●
571	03.265 HOSE; AIR BOOST MINI BUS CHASSIS(V4B) L=210	8-98210-164-0	01	1	1303-1406		●
571	03.265 HOSE; AIR BOOST MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> L=210	8-98210-164-0	01	1	1407-		●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1012-1302		●
571	03.265 HOSE; AIR BOOST EXC. MINI BUS CHASSIS(V4B) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1303-1406		●
571	03.265 HOSE; AIR BOOST EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	1407-		●
572	03.407 CLIP; BOOST HOSE VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	01	1	1410-		●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	1012-1406		●
572	03.407 CLIP; BOOST HOSE EXC. VIN MODEL YEAR 2015<VZF> 03.145 ID=8	8-94107-762-0	02	1	1407-		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1012-		●	●

27 1 7 27 20 731 373 184 13 13 222 652 653 704 13 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	1012-				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98063-396-0	01	1	1012-1211				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98212-999-0	01	1	1212-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	1012-		●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-			●
13	03.275 BOLT; INL MANIF 00.206 (C) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (D) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
13	03.275 BOLT; INL MANIF (E) M8X110 FLANGE	0-28055-811-0	02	1	1012-				●
13	03.275 BOLT; INL MANIF (F) M8X70 12-POINT HEAD	8-97101-065-0	04	1	1012-				●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1012-				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	1012-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97084-938-2	01	1	1012-		●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	1012-				●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	1012-				●
652	03.275 STUD; DUCT,AIR INLET M8X25 L=41	0-40210-825-0	02	1	1012-				●
653	03.265 NUT; DUCT,AIR INLET 01.540 M8 FLANGE	0-91180-208-0	02	1	1012-				●
704	03.270 COVER 03.407 (A)	8-98062-651-1	01	1	1012-1408	●
704	03.270 COVER (C)	8-98260-138-0	01	1	1409-	●
704	03.270 COVER (B)	8-98056-986-0	01	1	1012-				●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	1012-				●

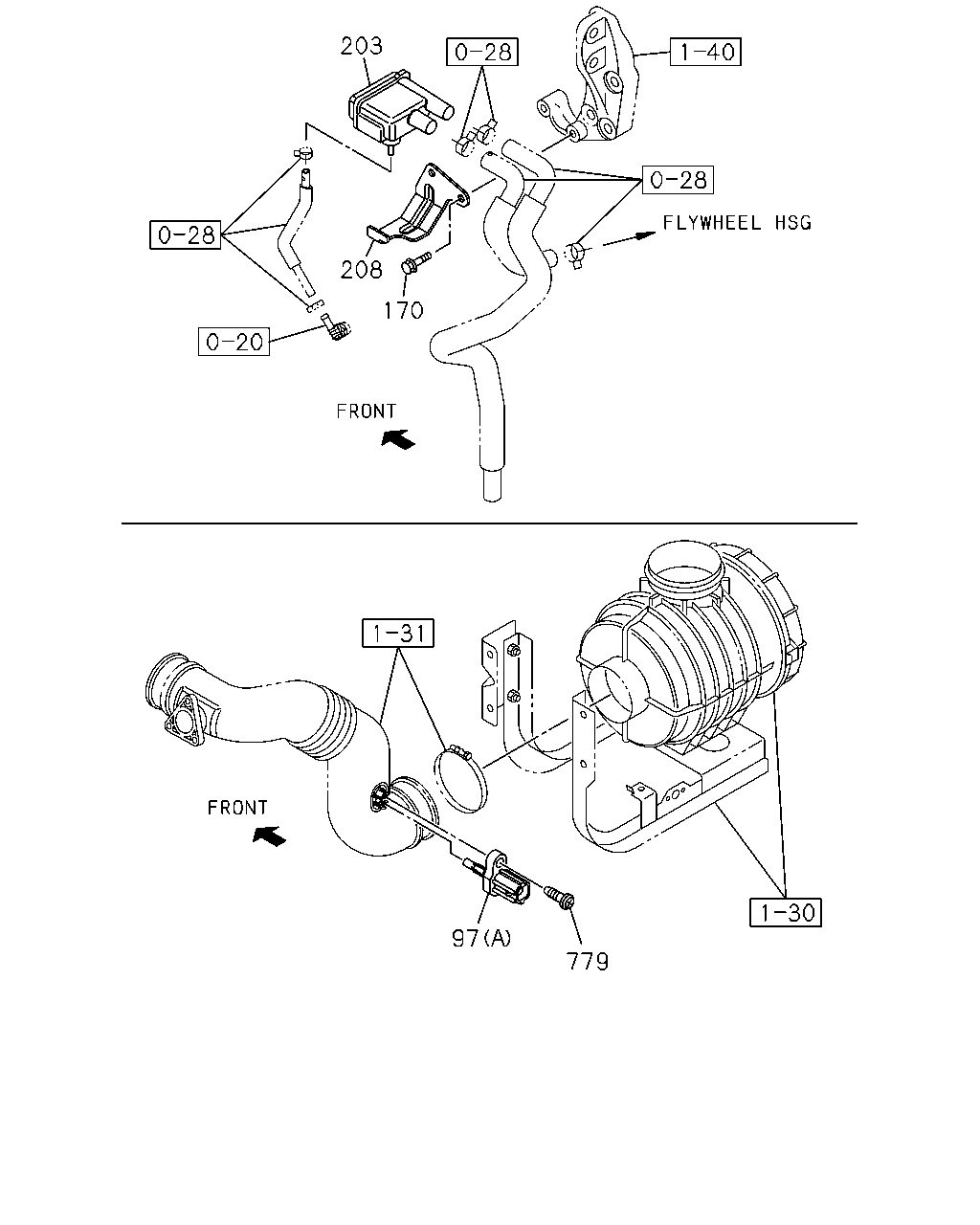

203 208 170 97 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE (A)	8-98065-377-0	01	1	1012-	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	1012-		●
170	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1012-	●
208	01.750 BRACKET; CATCH TANK,OIL	8-98074-130-0	01	1	1012-	●
779	03.682 BOLT; SENSOR 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●

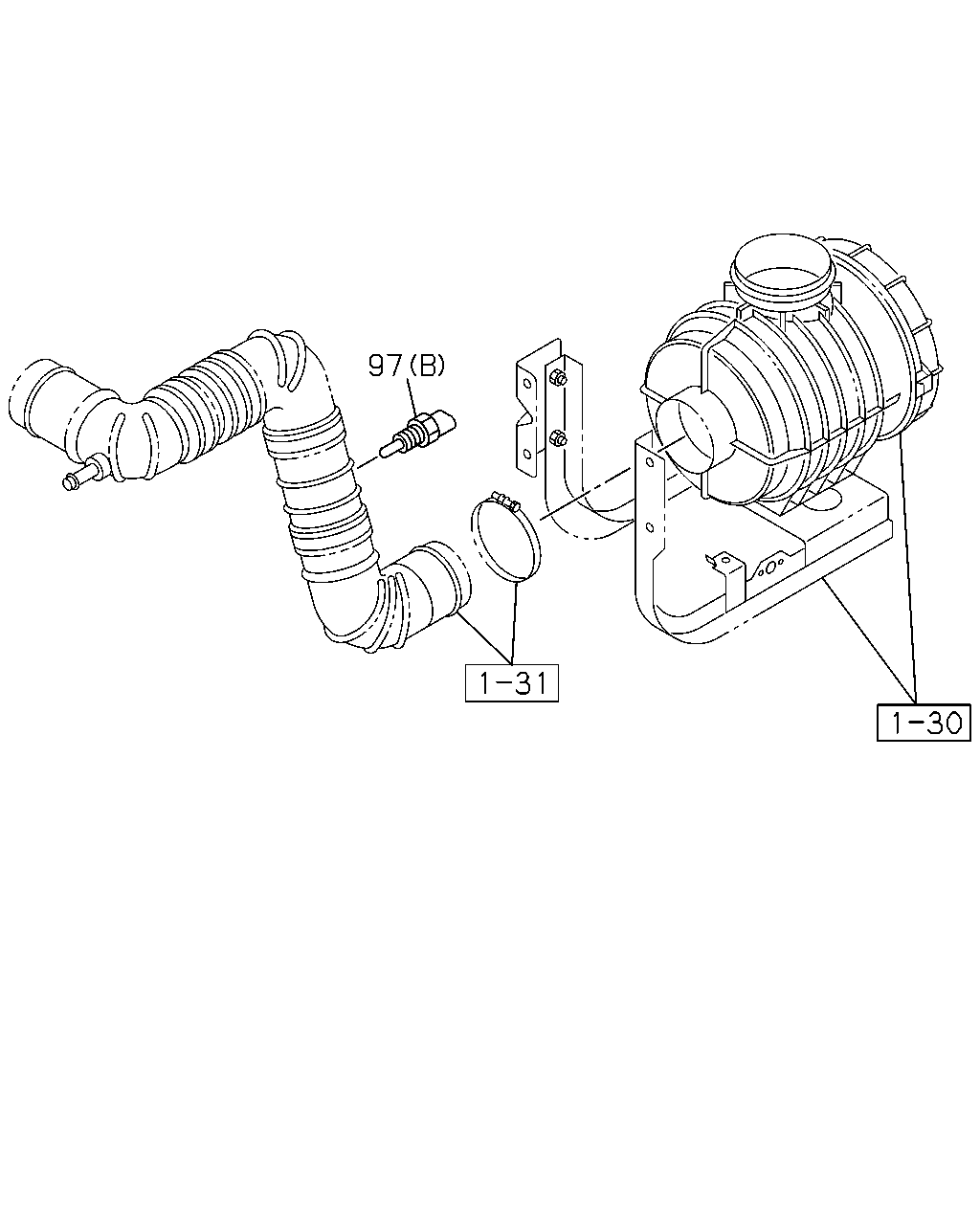

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE (A)	8-98065-377-0	01	1	1012-	●
	97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
