0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#54484) — 170 parça

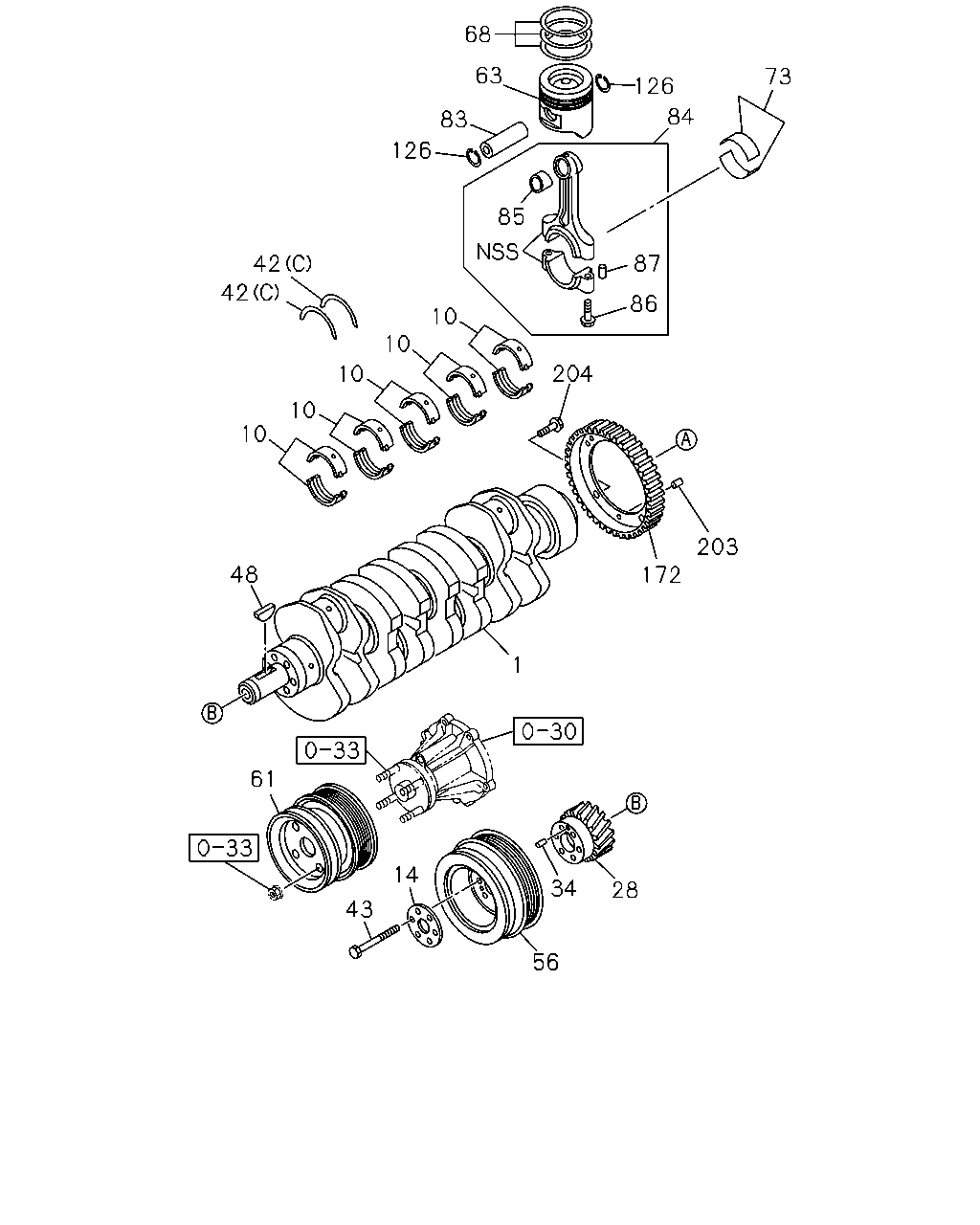

68 83 63 126 42 42 10 10 10 10 10 48 1 172 203 28 34 56 14 43 61 204 84 126 73 87 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-	●	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1012-			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1409				●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-				●
14	00.662 WASHER; PULLEY DAMPER ID=23 OD=72 T=3	8-98165-125-0	01	1	1012-				●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1012-			●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1012-				●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-	●	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-			●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1012-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1012-				●
43	00.662 BOLT; CR/SHF PULLEY M10X90	8-98165-234-1	06	1	1012-				●
48	00.662 KEY; WOODRUFF,CR/SHF 00.729	8-94201-641-0	01	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1012-			●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1012-				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1501			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1502-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-				●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-				●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-	●	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1012-			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1012-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-				●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	1012-1101				●
172	02.383 ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1102-				●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	1012-				●
204	01.150 BOLT; ROTOR 02.383 M6X10	8-98038-343-0	03	1	1012-				●

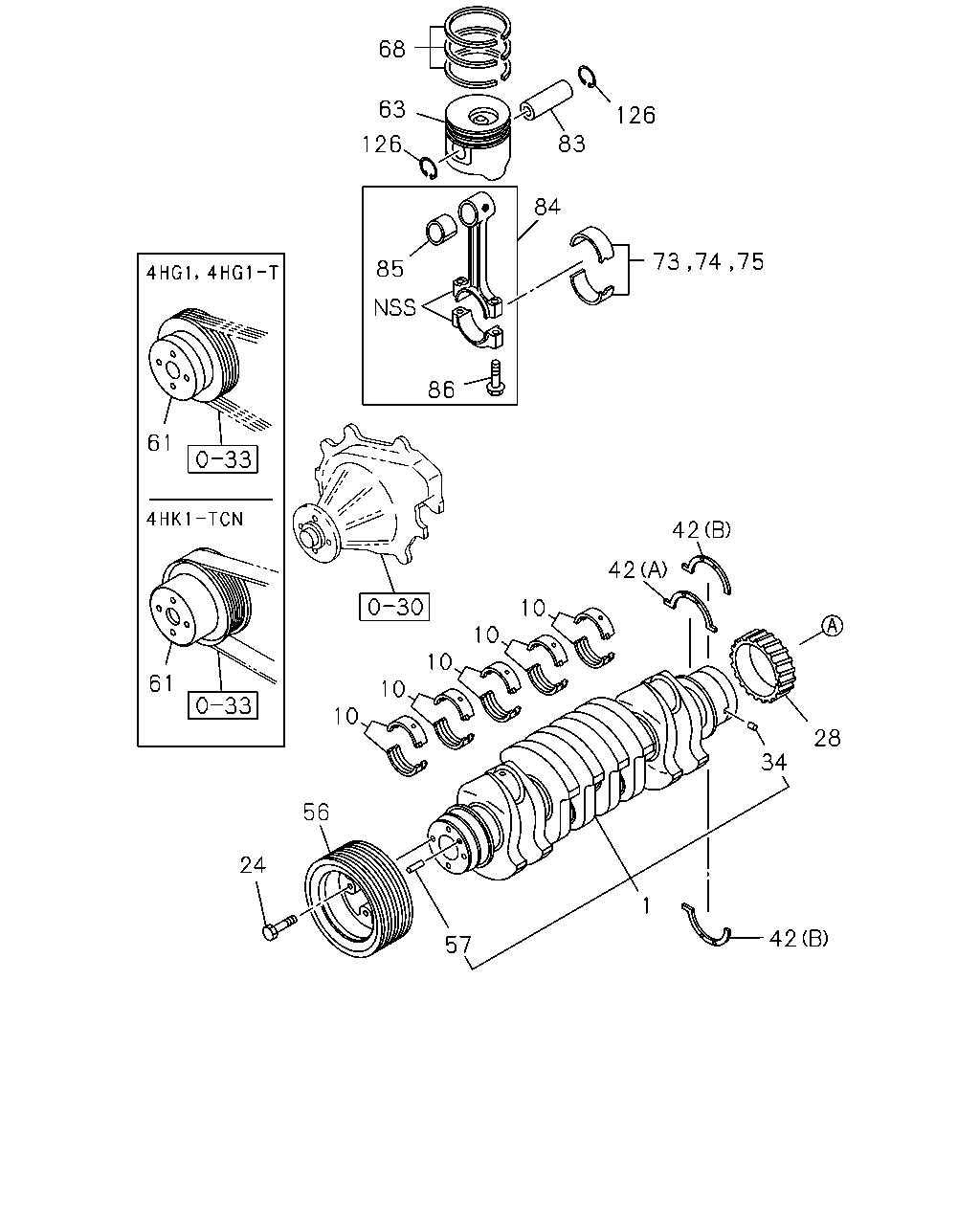

68 63 126 61 61 126 83 84 85 86 73 75 74 42 42 10 10 10 10 10 56 24 57 1 42 28 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT	8-97112-981-3	01	1	1012-	●	●
1	00.646 CRANKSHAFT	8-98029-270-0	01	1	1012-			●
1	00.646 CRANKSHAFT	8-98154-950-2	01	1	1012-1409				●
1	00.646 CRANKSHAFT	8-98273-590-0	01	1	1410-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 4	8-97387-967-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 1,2,4,5 GRADE 5	8-97387-968-0	04	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 9	8-98053-576-0	01	1	1012-				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD CRANK 3 GRADE 0	8-98053-578-0	01	1	1012-				●
24	00.659 BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-	●	●	●
28	00.728 GEAR; CR/SHF Z=42	8-97109-626-1	01	1	1012-	●	●
28	00.728 GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1012-			●
28	00.728 GEAR; CR/SHF Z=44	8-98154-945-1	01	1	1012-				●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	1012-	●	●
34	00.738 PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-			●
34	00.738 PIN; GEAR SETTING OD=5 L=10	9-08160-510-0	01	1	1012-				●
42	00.095 WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1012-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●	●
42	00.095 WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1012-				●
56	00.659 PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	1012-	●	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1012-			●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-98154-943-1	01	1	1012-				●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	04	1	1012-	●	●
57	00.662 PIN; PULLEY 00.862 OD=8 L=20	9-08150-820-0	02	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	1012-	●	●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-			●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	1012-1112	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-	●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97183-666-1	04	1	1012-1112		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-746-0	04	1	1201-		●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-1501			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	08	1	1502-			●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98043-703-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98043-704-0	04	1	1012-				●
63	00.629 PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98043-705-0	04	1	1012-				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	1012-	●	●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98053-579-0	04	1	1012-1105				●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98185-780-0	04	1	1106-				●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	1012-	●	●
73	00.616 METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-			●
73	00.616 METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-			●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1012-				●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	1012-1405	●	●
74	00.616 METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	08	1	1406-	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	1012-1405	●	●
75	00.616 METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	08	1	1406-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	1012-	●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-			●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1012-				●
84	00.603 ROD ASM; CONN	8-97135-032-6	04	1	1012-	●	●
84	00.603 ROD ASM; CONN	8-98018-425-3	04	1	1012-			●
84	00.603 ROD ASM; CONN	8-97388-921-2	04	1	1012-				●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	1012-	●	●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-			●
85	00.613 BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1012-				●
86	00.623 BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1012-				●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=38.8	8-94318-798-2	08	1	1012-	●	●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-			●
126	00.639 RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1012-				●

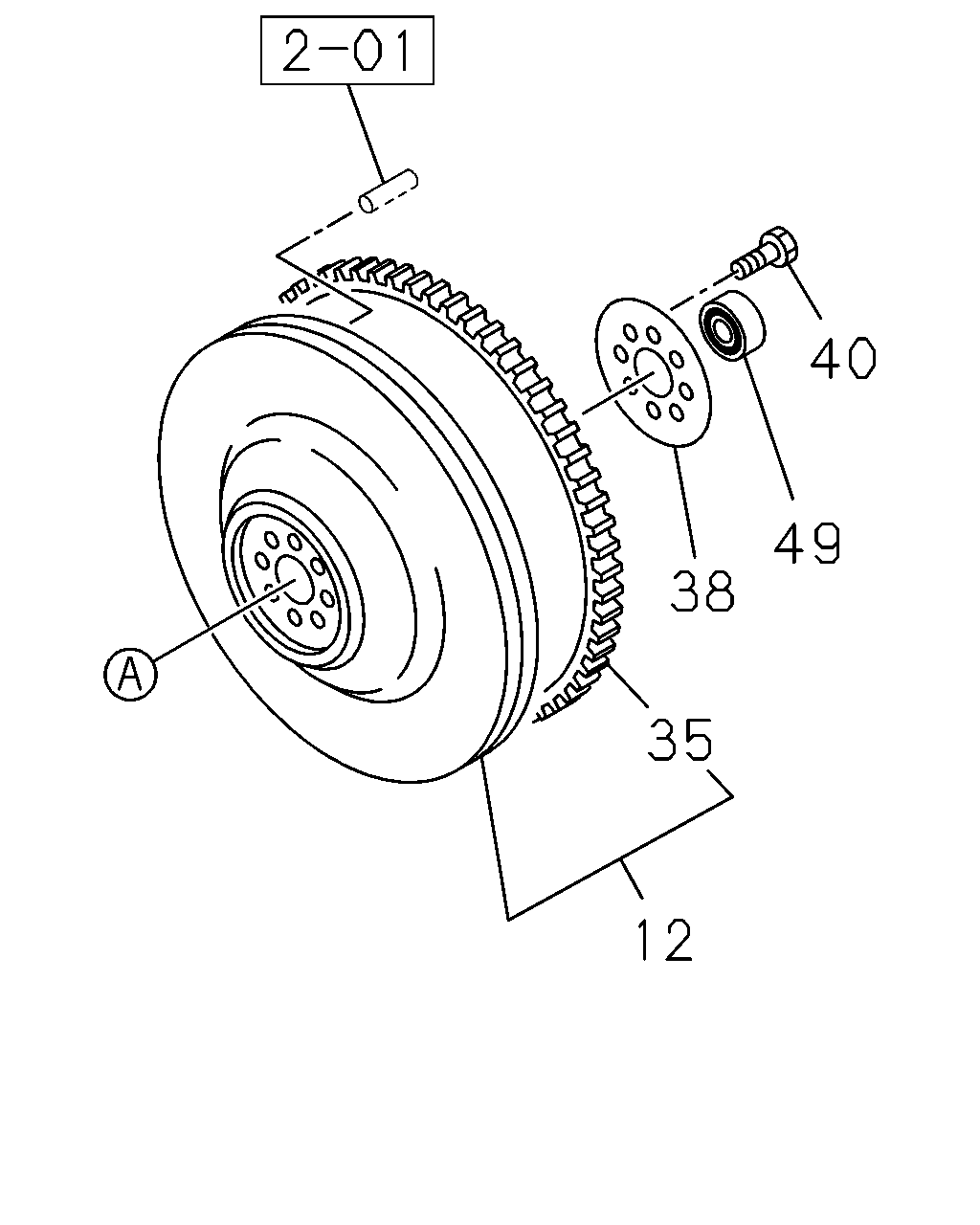

40 49 38 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	00.666 FLYWHEEL	8-97330-892-1	01	1	1012-	●	●
12	00.666 FLYWHEEL	8-97326-227-2	01	1	1012-			●
12	00.666 FLYWHEEL	8-98148-063-1	01	1	1012-				●
35	00.673 GEAR; RING Z=138	8-97046-366-1	01	1	1012-	●	●	●	●
38	00.862 WASHER; FLYWHEEL MINI BUS CHASSIS(V4B) ID=55 OD=110	8-98210-373-0	01	1	1303-1406	●
38	00.862 WASHER; FLYWHEEL MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF> ID=55 OD=110	8-98210-373-0	01	1	1407-	●
38	00.862 WASHER; FLYWHEEL INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF> ID=55 OD=110	8-98210-373-0	01	1	1407-	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1012-1302	●	●	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1303-1406		●	●
38	00.862 WASHER; FLYWHEEL EXC. MINI BUS CHASSIS(V4B) ID=55 OD=110	8-94397-496-1	01	1	1303-1406	●
38	00.862 WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1407-		●	●
38	00.862 WASHER; FLYWHEEL EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) ID=55 OD=110	8-94397-496-1	01	1	1407-	●
38	00.862 WASHER; FLYWHEEL MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> ID=55 OD=110	8-94397-496-1	01	1	1407-	●
38	00.862 WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1012-				●
40	00.669 BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	1012-	●	●	●
40	00.669 BOLT; FLYWHEEL M13X45	8-94418-050-0	08	1	1012-				●
49	00.669 BEARING; PILOT MINI BUS CHASSIS(V4B)	8-98208-431-0	01	1	1303-1406	●
49	00.669 BEARING; PILOT MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98208-431-0	01	1	1407-	●
49	00.669 BEARING; PILOT INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98208-431-0	01	1	1407-	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1012-1302	●	●	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1303-1406		●	●
49	00.669 BEARING; PILOT EXC. MINI BUS CHASSIS(V4B)	8-97258-239-0	01	1	1303-1406	●
49	00.669 BEARING; PILOT	8-97258-239-0	01	1	1407-		●	●
49	00.669 BEARING; PILOT EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97258-239-0	01	1	1407-	●
49	00.669 BEARING; PILOT MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97258-239-0	01	1	1407-	●
49	00.669 BEARING; PILOT	8-97325-153-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-166-0	01	1	1012-				●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-1302	●	●	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1303-1406		●	●
49	00.669 BEARING; PILOT EXC. MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-164-0	01	1	1303-1406	●
49	00.669 BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1407-		●	●
49	00.669 BEARING; PILOT EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) BEST VALUE PARTS	5-87610-164-0	01	1	1407-	●
49	00.669 BEARING; PILOT MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> BEST VALUE PARTS	5-87610-164-0	01	1	1407-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
