◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#5448) — 645 parça

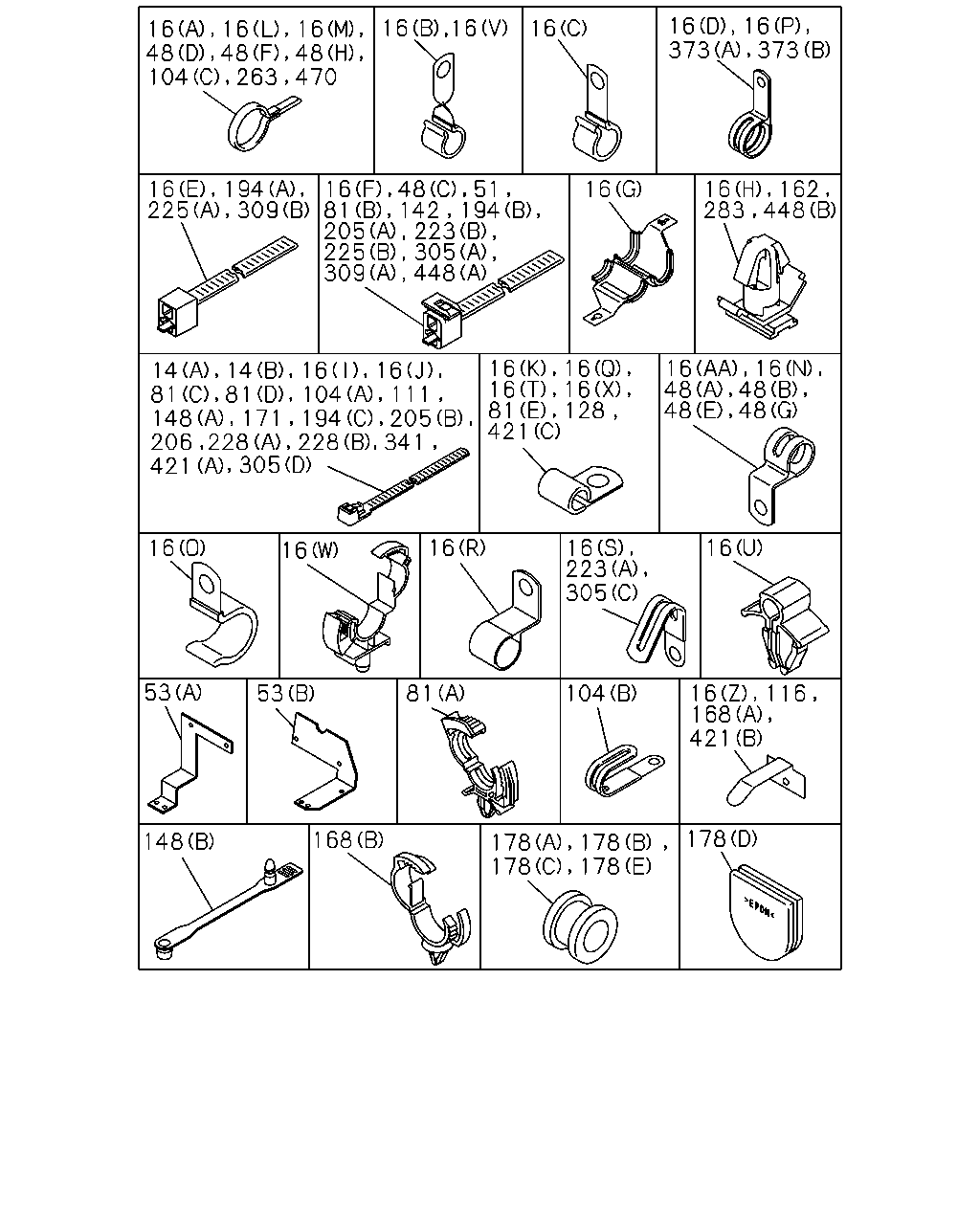

çizim 6138
16 16 16 16 16 16 16 16 373 373 48 48 48 104 263 470 16 194 225 309 16 48 51 81 142 194 205 223 225 305 309 448 16 16 162 448 283 16 16 48 48 48 48 16 16 16 16 128 81 421 16 16 14 14 81 81 104 111 205 194 171 148 206 228 228 341 305 421 16 16 16 16 16 223 305 16 116 168 421 104 81 53 53 148 168 178 178 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
V TYPE ENG<91L> (A) L=250 		5-09707-030-1 02 1 9601-
14 CLIP; BAND,HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 04 1 9601-9904
14 CLIP; BAND,HARNESS
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) L=140 		5-09707-031-1 01 1 9905-9907
14 CLIP; BAND,HARNESS
V TYPE ENG<91L> (B) L=140 		5-09707-031-1 04 1 9905-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9601-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9601-0005
16 CLIP; HARNESS
(M) ID=20 L=70 		1-09700-485-0 03 1 0006-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9601-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 9601-
16 CLIP; HARNESS
(D) ID=14.5 L=28 		1-09701-013-0 01 1 9601-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 9601-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 9601-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9601-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9601-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 9601-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 04 1 9601-9710
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 9711-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 07 1 9601-9601
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 9602-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-0 02 1 9601-9610
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9611-
16 CLIP; HARNESS
FULLER M/T<X9B> (I) L=250 		5-09707-030-1 02 1 9611-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 9601-9907
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-0 01 1 9601-9610
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (J) L=140 		5-09707-031-0 01 1 9611-9708
16 CLIP; HARNESS
(J) L=140 		5-09707-031-0 01 1 9611-9708
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
EXC. FULLER M/T<X9B> (J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9601-0001
16 CLIP; HARNESS
L TYPE ENG<90L> (L) ID=14 L=44 		9-09917-427-0 04 1 0002-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9601-9601
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 9601-9601
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9602-0004
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 9601-9601
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9602-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 9602-9606
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 01 1 9602-9606
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 9607-0001
16 CLIP; HARNESS
6WA1 TC-S(56L),10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 01 1 9607-0001
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 08 1 0005-
16 CLIP; HARNESS
(P) ID=19 L=32 		1-09701-235-0 02 1 9905-
16 CLIP; HARNESS
(W) ID=14-20 		8-97061-603-0 01 1 9905-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
V TYPE ENG<91L> (J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (X) ID=11 L=16 		9-09525-025-0 01 1 9905-9907
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (Y) ID=42.7 L=38 		1-09700-583-1 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (Y) ID=42.7 L=38 		1-09700-583-1 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (P) ID=19 L=32 		1-09701-235-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (P) ID=19 L=32 		1-09701-235-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (L) ID=14 L=44 		9-09917-427-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (L) ID=14 L=44 		9-09917-427-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 03 1 9611-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 9905-0001
16 CLIP; HARNESS
6WA1 TC-C(55L) (M) ID=20 L=50 		9-09917-430-0 03 1 9905-0001
16 CLIP; HARNESS
6WA1 TC-C(55L) (M) ID=20 L=50 		9-09917-430-0 03 1 0002-
16 CLIP; HARNESS
FULLER M/T<X9B> (H) OD=9 H=6 		1-09709-178-0 02 1 9611-
16 CLIP; HARNESS
HIGH ROOF<S2F> (Z) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9601-9601
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9602-0004
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9602-0004
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0005-
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> (H) OD=9 H=6 		1-09709-178-0 01 1 0005-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (S) L=36 		8-94224-891-1 01 1 9601-9610
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 9611-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (K) ID=16 L=20 		9-09525-535-0 01 1 9601-9904
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (T) ID=16 L=40 		9-09525-576-0 01 1 9601-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9601-9601
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9602-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9611-9904
16 CLIP; HARNESS
L TYPE ENG<90L> (O) 		8-94403-348-0 01 1 9601-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (O) 		8-94403-348-0 01 1 9611-9904
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=70 		1-09700-485-0 03 1 0005-0005
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0006-
16 CLIP; HARNESS
ZF M/T<X9E> V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 04 1 0006-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 9601-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 9601-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9601-9603
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 01 1 9604-0001
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 04 1 0002-
16 CLIP; HARNESS
V TYPE ENG<91L> (P) ID=21 L=24 		1-09701-201-0 02 1 9601-
16 CLIP; HARNESS
V TYPE ENG<91L> (Q) ID=11 L=20 		9-09525-035-0 01 1 9601-
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 02 1 9601-9605
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 9606-
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9601-9710
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 9711-
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9711-
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=15 L=42 		9-09716-203-1 01 1 9606-9904
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (Z) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 01 1 9601-9603
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 02 1 9604-9904
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9905-0001
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9905-0001
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
ZF M/T<X9E> L TYPE ENG<90L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 07 1 0005-0005
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 06 1 0006-
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (B) ID=35 H=45 L=33 		1-09700-947-0 02 1 9601-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) ID=35 H=45 L=33 		1-09700-947-0 02 1 9611-9904
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (C) L=300 		1-09707-001-1 06 1 9601-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (C) L=300 		1-09707-001-0 06 1 9611-9904
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 04 1 9601-9602
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (D) ID=20 L=50 		9-09917-430-0 05 1 9603-0004
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (E) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0005-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (D) ID=20 L=50 		9-09917-430-0 05 1 9611-9904
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9602-0004
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0005-
48 CLIP; FRAME HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9611-9904
48 CLIP; FRAME HARNESS
V TYPE ENG<91L> (C) L=300 		1-09707-001-1 10 1 9601-
48 CLIP; FRAME HARNESS
10PE1S(60L) (A) ID=24.5 H=23 L=25 		1-09700-862-0 07 1 9601-9601
48 CLIP; FRAME HARNESS
10PE1S(60L) (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9602-9904
48 CLIP; FRAME HARNESS
V TYPE ENG<91L> (A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 9905-
48 CLIP; FRAME HARNESS
10PE1S(60L) (G) ID=24 H=40 L=24 		1-09701-243-0 03 1 9601-
48 CLIP; FRAME HARNESS
10PE1S(60L) (D) ID=20 L=50 		9-09917-430-0 02 1 9601-9601
48 CLIP; FRAME HARNESS
10PE1S(60L) (D) ID=20 L=50 		9-09917-430-0 03 1 9602-9904
48 CLIP; FRAME HARNESS
V TYPE ENG<91L> (D) ID=20 L=50 		9-09917-430-0 03 1 9905-0005
48 CLIP; FRAME HARNESS
10PE1S(60L) (H) ID=22 L=52 		9-09917-431-0 01 1 9603-9603
48 CLIP; FRAME HARNESS
10PE1S(60L) ZF M/T<X9E> (F) ID=11 L=41 		1-09700-403-0 03 1 9601-9609
48 CLIP; FRAME HARNESS
10PE1S(60L) ZF M/T<X9E> (F) ID=11 L=41 		1-09700-403-0 04 1 9610-9904
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) V TYPE ENG<91L> (F) ID=11 L=41 		1-09700-403-0 04 1 9905-0005
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) (C) L=300 		1-09707-001-0 01 1 9601-9904
48 CLIP; FRAME HARNESS
L TYPE ENG<90L> (C) L=300 		1-09707-001-1 01 1 9905-
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) EXC. MJA7U M/T(X6G) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9601-9601
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) EXC. ZF M/T<X9E> (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9602-0004
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) (E) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 9602-0004
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) ZF M/T<X9E> (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9601-9904
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L TYPE ENG<90L> (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9905-0005
48 CLIP; FRAME HARNESS
6WA1 TC-S(56L) ZF M/T<X9E> (F) ID=11 L=41 		1-09700-403-0 01 1 9610-9904
48 CLIP; FRAME HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L TYPE ENG<90L> (F) ID=11 L=41 		1-09700-403-0 01 1 9905-0004
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 9611-
53 BRACKET; HARNESS
(C) 		1-82699-592-1 01 1 9601-
53 BRACKET; HARNESS
(A) 		1-82699-737-0 01 1 9601-9601
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41) (A) 		1-82699-916-0 01 1 9602-9805
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-916-0 01 1 9806-
53 BRACKET; HARNESS
(B) 		1-82699-826-0 01 1 9601-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 9601-9606
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9607-9907
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 9908-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9606-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9908-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (B) L=180 		1-09707-162-1 02 1 9601-9904
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (E) ID=11 L=20 		9-09525-035-0 01 1 9905-9907
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (C) L=140 		5-09707-031-1 02 1 9601-9904
81 CLIP; HARNESS
(C) L=140 		5-09707-031-1 02 1 9905-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9601-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9601-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=14 L=44 		9-09917-427-0 06 1 9601-9810
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) ID=13-18 L=14.5 		1-09709-290-0 08 1 9811-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 9905-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 9601-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0010-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 9905-
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=16 L=20 		9-09525-535-0 01 1 9601-
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=19 L=32 		9-09525-862-0 01 1 9601-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
ID=14.5 L=30 		9-09916-893-1 01 1 0012-
142 CLIP; HARNESS,ENG
L TYPE ENG<90L> L=180 		1-09707-162-1 01 1 9601-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=140 		5-09707-031-0 01 1 9601-9804
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 04 1 9601-
162 CLIP; SW HARNESS
WATER LEVEL OD=9 H=6 		1-09709-178-0 01 1 9601-
168 CLIP; DASH HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 06 1 9601-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=30 		1-09987-265-0 01 1 0102-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9601-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 9601-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9601-9601
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9602-9611
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9612-
178 GROMMET; HARNESS
SINGAPORE EQUIPMENT(WQ3) (E) ID=24 OD=30 T=22 		1-09332-104-0 01 1 9612-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 01 1 9601-9601
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 03 1 9602-
178 GROMMET; HARNESS
(C) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9601-9601
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9602-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 9601-
178 GROMMET; HARNESS
(E) ID=24 OD=30 T=17 		9-09956-092-1 01 1 9601-9601
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 9601-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9601-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 9601-
194 CLIP; BAND
V TYPE ENG<91L> (A) L=300 		1-09707-001-1 03 1 9601-
194 CLIP; BAND
10PE1S(60L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (C) L=140 		5-09707-031-0 02 1 9601-9601
194 CLIP; BAND
10PE1S(60L) INTAKE HEATER<SL2> (C) L=140 		5-09707-031-0 02 1 9602-9603
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-0 01 1 9601-9611
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (A) L=180 		1-09707-162-1 01 1 9612-
205 CLIP; BACK LAMP HARNESS
(A) L=180 		1-09707-162-1 01 1 9612-
205 CLIP; BACK LAMP HARNESS
SINGAPORE EQUIPMENT(WQ3) (B) L=250 		5-09707-030-1 05 1 9612-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9601-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=18 L=44 		8-94225-185-0 01 1 9601-9601
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) L=600 		1-09707-107-1 01 1 9602-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 9601-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 9601-
225 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-1 01 1 9601-9610
225 CLIP; AIR TANK HARNESS
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-1 01 1 9611-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) 10PE1S(60L) (B) L=250 		5-09707-030-0 03 1 9802-9810
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) 10PE1S(60L) (A) L=140 		5-09707-031-0 03 1 9802-9810
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) 10PE1S(60L) (A) L=140 		5-09707-031-1 06 1 9811-9904
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A) L=140 		5-09707-031-1 06 1 9905-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 9601-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9601-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9601-
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9601-9603
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9605-
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (C) L=36 		8-94224-891-1 02 1 9601-9603
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (C) L=36 		8-94224-891-1 02 1 9605-
305 CLIP; ENG HARNESS
6WA1 TC-N(54L),6WA1 TC-R(93L) (D) L=140 		5-09707-031-1 01 1 0102-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 9601-
309 CLIP; HARNESS,HAND BRAKE CABLE
HONG KONG EQUIPMENT(PQ1) (B) L=250 		1-09707-126-0 01 1 9601-9610
309 CLIP; HARNESS,HAND BRAKE CABLE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=250 		1-09707-126-0 01 1 9611-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-0 02 1 9601-9608
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9609-
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (B) ID=26 L=27 		1-09701-006-0 02 1 9601-
373 CLIP; BAND,GEN HARNESS
V TYPE ENG<91L> (A) ID=25 L=50 		1-09701-019-0 01 1 9601-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 12 1 9705-0101
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5) (C) 		9-09525-532-0 02 1 9611-9904
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 9601-
421 CLIP; FLOOR HARNESS
6WA1 TC-C(55L) (C) ID=19 L=20 		9-09525-832-0 02 1 9905-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (A) L=180 		1-09707-162-1 01 1 9601-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB<W16> (B) OD=9 H=6 		1-09709-178-0 01 1 9601-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9601-

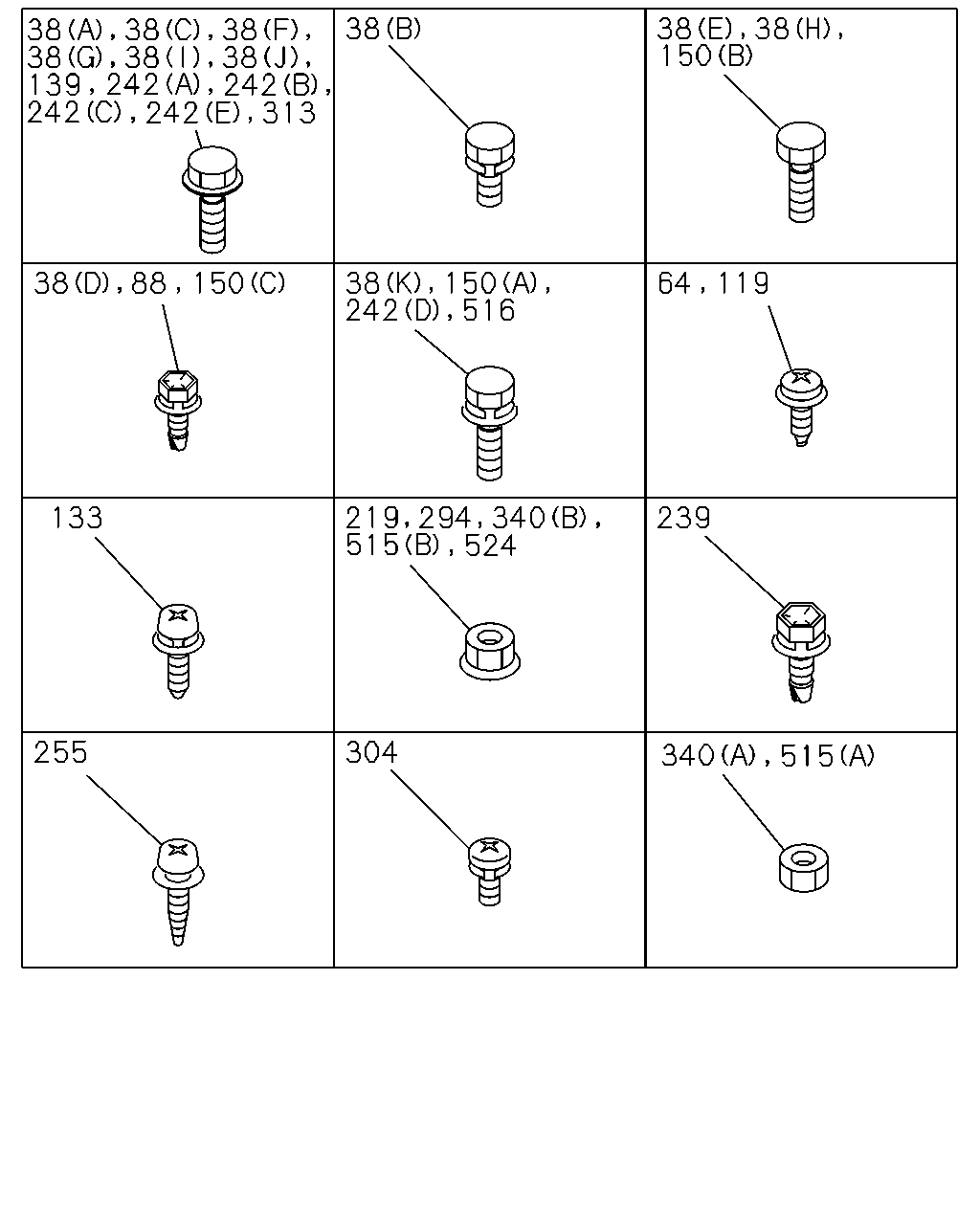

çizim 7825
38 150 150 38 150 64 119 239 133 255 304 340 515 38 38 38 38 38 38 139 242 242 313 242 242 38 88 242 516 340 294 219 515 524 38 38
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9601
38 BOLT; CLIP,HARNESS
EXC. FULL FLOATING CAB<W16> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9602-9602
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9602-9602
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9603-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9607-9904
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9601-9601
38 BOLT; CLIP,HARNESS
6WA1 TC-S(56L) (A) M8X20 FLANGE 		0-28080-820-0 01 1 9601-9601
38 BOLT; CLIP,HARNESS
AIR DRYER<PS7> (A) M8X20 FLANGE 		0-28080-820-0 01 1 9601-9601
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 03 1 9602-9602
38 BOLT; CLIP,HARNESS
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 03 1 9602-9602
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28080-820-0 03 1 9603-9606
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9607-9907
38 BOLT; CLIP,HARNESS
10PE1S(60L) (A) M8X20 FLANGE 		0-28680-820-0 03 1 9908-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9601-9606
38 BOLT; CLIP,HARNESS
10PE1S(60L) (G) M8X30 FLANGE 		0-28680-830-0 07 1 9607-9904
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (G) M8X30 FLANGE 		0-28680-830-0 07 1 9905-
38 BOLT; CLIP,HARNESS
(C) M12X16 FLANGE 		1-09044-079-0 01 1 9601-
38 BOLT; CLIP,HARNESS
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9603-9606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-9904
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9905-9907
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 9908-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (J) M8X16 FLANGE 		0-28080-816-0 01 1 9905-9907
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (G) M8X30 FLANGE 		0-28680-830-0 02 1 9611-9904
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (G) M8X30 FLANGE 		0-28680-830-0 02 1 9905-
38 BOLT; CLIP,HARNESS
EXC. FULL FLOATING CAB<W16> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9601-9601
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> (E) M6X8 		0-20800-608-0 01 1 9601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (E) M6X8 		0-20800-608-0 01 1 9611-9904
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> (F) M8X12 FLANGE 		0-28080-812-0 01 1 9601-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (F) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9904
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> (G) M8X25 FLANGE 		0-28080-825-0 09 1 9601-9606
38 BOLT; CLIP,HARNESS
L TYPE ENG<90L> (G) M8X30 FLANGE 		0-28680-830-0 09 1 9607-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (G) M8X30 FLANGE 		0-28680-830-0 09 1 9611-9904
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (H) M5X8 		0-20800-508-0 01 1 9601-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (I) M6X14 FLANGE 		0-28080-614-0 02 1 9601-9606
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (I) M6X12 FLANGE 		0-28080-612-0 02 1 9607-9907
38 BOLT; CLIP,HARNESS
10PE1S(60L) (I) M6X16 FLANGE 		0-28680-616-0 02 1 9908-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9601
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (G) M8X25 FLANGE 		0-28680-825-0 03 1 9601-9601
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (G) M8X25 FLANGE 		0-28080-825-0 03 1 9602-9606
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (G) M8X30 FLANGE 		0-28680-830-0 03 1 9607-
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (K) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9601-
38 BOLT; CLIP,HARNESS
10PE1S(60L) (G) M8X25 FLANGE 		0-28080-825-0 07 1 9601-9606
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-9608
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9611-9904
38 BOLT; CLIP,HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9611-9904
38 BOLT; CLIP,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER<RE2> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9908-9908
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9908-9908
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9908-9908
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L) (A) M8X20 FLANGE 		0-28680-820-0 01 1 9909-
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9909-
64 SCREW; CLIP
EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 9703-9904
64 SCREW; CLIP
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 9905-
64 SCREW; CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 9905-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9601-9804
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9805-9806
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9807-9807
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9808-
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 9601-9804
119 SCREW; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9805-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9601-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28680-825-0 01 1 9905-9907
150 BOLT; CLIP
(A) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9601-9604
150 BOLT; CLIP
(B) M6X16 W/LK&PL WASHER 		1-09980-506-0 01 1 9601-9604
150 BOLT; CLIP
EURO2 SPECIFICATION<THN> (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9611-9702
219 NUT
M10 FLANGE 		0-91250-210-0 01 1 9607-
219 NUT
EXC. FULL FLOATING CAB<W16> M8 		9-09110-408-0 01 1 9601-9602
219 NUT
EXC. ZF M/T<X9E> M8 		9-09110-408-0 01 1 9601-9602
219 NUT
EXC. ZF M/T<X9E> M8 		9-09110-408-0 01 1 9603-9606
219 NUT
M8 		9-09110-408-0 01 1 9603-9606
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9607-9608
219 NUT
EXC. ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9607-9608
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9609-9609
219 NUT
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9609-9609
219 NUT
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 01 1 9609-9609
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9611-9904
219 NUT
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9611-9904
219 NUT
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 01 1 9611-9904
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
EXC. ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 01 1 9909-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-
219 NUT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-110-0 01 1 9601-9606
219 NUT
EXC. ZF M/T<X9E> M10 FLANGE 		0-91150-110-0 01 1 9601-9606
219 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9607-9908
219 NUT
FULLER M/T<X9B>,ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 9909-
219 NUT
ISUZU M/T<X9A> M10X16 FLANGE 		0-28081-016-0 01 1 9607-9904
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 9905-9908
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 9909-
219 NUT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 01 1 9607-9904
219 NUT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 01 1 9905-0004
219 NUT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 01 1 9905-0004
219 NUT
EXC. FULLER M/T<X9B>,ZF M/T<X9E> M10 FLANGE 		0-91150-210-0 01 1 0005-
219 NUT
MJD7 M/T<X9J> M10 FLANGE 		0-91150-210-0 01 1 0005-
219 NUT
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> M10 FLANGE 		0-91150-210-0 01 1 0005-
219 NUT
L TYPE ENG<90L> M8 		9-09110-408-0 09 1 9601-9606
219 NUT
L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 09 1 9607-
219 NUT
6WA1 TC-C(55L),6WA1 TC-S(56L) M8 FLANGE 		0-91150-108-0 09 1 9611-9904
219 NUT
V TYPE ENG<91L> M8 		9-09110-408-0 05 1 9601-9606
219 NUT
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 05 1 9607-
219 NUT
ZF M/T<X9E> M8 		9-09110-408-0 02 1 9601-9602
219 NUT
M8 		9-09110-408-0 02 1 9603-9606
219 NUT
ZF M/T<X9E> M8 		9-09110-408-0 02 1 9603-9606
219 NUT
M8 		9-09110-408-0 01 1 9607-9609
219 NUT
10PE1S(60L) M8 		9-09110-408-0 07 1 9601-9606
219 NUT
10PE1S(60L) M8 FLANGE 		0-91150-108-0 07 1 9607-9904
219 NUT
V TYPE ENG<91L> M8 FLANGE 		0-91150-108-0 07 1 9905-
239 BOLT; GRAND
INST HARNESS EARTH M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 08 1 9601-9601
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 06 1 9602-9606
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 06 1 9607-9611
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 04 1 9612-9910
242 BOLT; BRKT,HARNESS
(A) M8X18 FLANGE 		0-28080-818-0 04 1 9911-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-9611
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-9611
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9612-
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9612-9805
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9806-9910
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X18 FLANGE 		0-28080-818-0 02 1 9911-
242 BOLT; BRKT,HARNESS
L TYPE ENG<90L> (B) M8X12 FLANGE 		0-28080-812-0 01 1 9601-
242 BOLT; BRKT,HARNESS
V TYPE ENG<91L> (C) M8X25 FLANGE 		0-28080-825-0 01 1 9601-9601
242 BOLT; BRKT,HARNESS
V TYPE ENG<91L> (C) M8X25 FLANGE 		0-28080-825-0 02 1 9602-9606
242 BOLT; BRKT,HARNESS
V TYPE ENG<91L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9607-
242 BOLT; BRKT,HARNESS
V TYPE ENG<91L> (D) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9601-
242 BOLT; BRKT,HARNESS
V TYPE ENG<91L> (C) M8X25 FLANGE 		0-28680-825-0 01 1 9607-
242 BOLT; BRKT,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) M8X12 FLANGE 		0-28080-812-0 01 1 9611-9904
242 BOLT; BRKT,HARNESS
6WA1 TC-S(56L) (E) M10X20 FLANGE 		0-28081-020-0 02 1 9601-9606
242 BOLT; BRKT,HARNESS
6WA1 TC-S(56L) (E) M10X20 FLANGE 		0-28681-020-0 02 1 9607-9610
242 BOLT; BRKT,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (E) M10X20 FLANGE 		0-28681-020-0 02 1 9611-9612
242 BOLT; BRKT,HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. ELECTRONIC GOV RED3(KG5) (E) M10X20 FLANGE 		0-28681-020-0 02 1 9701-9904
242 BOLT; BRKT,HARNESS
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (E) M10X20 FLANGE 		0-28681-020-0 02 1 9905-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9601-
294 NUT
M8 		9-09110-408-0 01 1 9601-9606
294 NUT
M8 		9-09110-408-0 01 1 9607-9609
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9607-9904
294 NUT
6WA1 TC-C(55L) M8 FLANGE 		0-91150-108-0 02 1 9905-9907
294 NUT
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9611-9904
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9907
294 NUT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 01 1 9905-9907
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9907
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
ISUZU M/T<X9A> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
ISUZU M/T<X9A> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
ISUZU M/T<X9A> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-
304 BOLT; ENG HARNESS CLIP
V TYPE ENG<91L> M10X16 W/LK WASHER 		1-09033-012-0 06 1 9601-9603
304 BOLT; ENG HARNESS CLIP
V TYPE ENG<91L> M10X16 W/LK WASHER 		1-09033-012-0 06 1 9605-
313 BOLT; BRKT
M8X30 FLANGE 		0-28080-830-0 01 1 9601-9606
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9607-9907
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
ISUZU M/T<X9A> L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
FULLER M/T<X9B> M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 9909-
313 BOLT; BRKT
ISUZU M/T<X9A> L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 01 1 9909-
313 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> M8X20 FLANGE 		0-28680-820-0 01 1 9611-9904
313 BOLT; BRKT
6WA1 TC-C(55L) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
313 BOLT; BRKT
6WA1 TC-C(55L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28680-820-0 01 1 9908-
313 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> M8X30 FLANGE 		0-28680-830-0 02 1 9611-9904
313 BOLT; BRKT
6WA1 TC-C(55L) M8X30 FLANGE 		0-28680-830-0 02 1 9905-
340 NUT; HARNESS CAB TO FRAME
(A) M8 		9-09110-408-0 01 1 9601-9606
340 NUT; HARNESS CAB TO FRAME
(B) M8 FLANGE 		0-91150-108-0 01 1 9607-
515 NUT; BRKT
V TYPE ENG<91L> (A) M8 		9-09110-408-0 01 1 9601-9606
515 NUT; BRKT
V TYPE ENG<91L> (B) M8 FLANGE 		0-91150-108-0 01 1 9607-
515 NUT; BRKT
6WA1 TC-S(56L) (A) M10 		9-09110-510-0 02 1 9601-9610
515 NUT; BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L) (A) M10 		9-09110-510-0 02 1 9611-9612
515 NUT; BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		9-09110-510-0 02 1 9701-9904
515 NUT; BRKT
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) M10 		9-09110-510-0 02 1 9905-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9601-

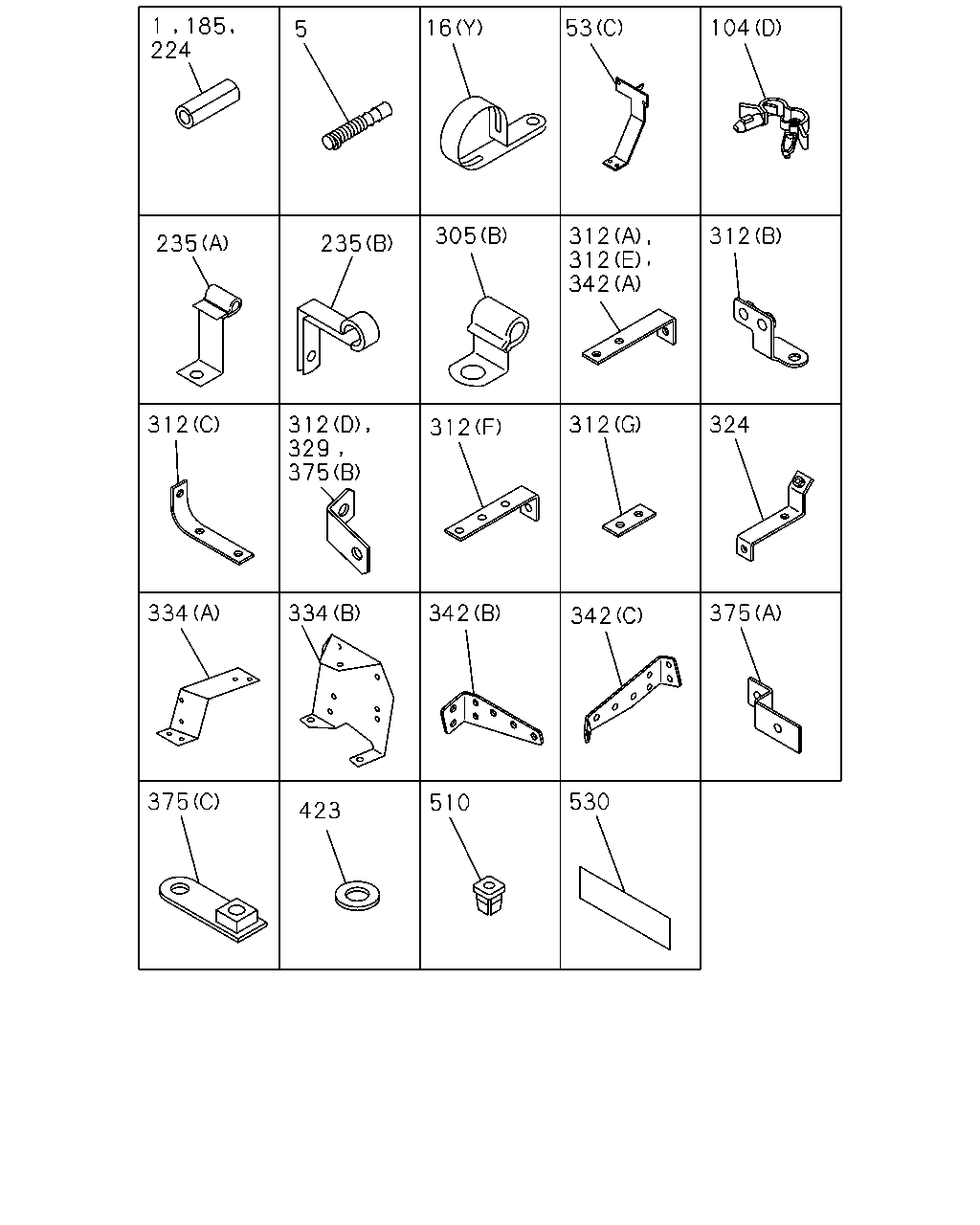

çizim 42568
1 185 224 16 53 104 5 305 312 312 342 312 235 235 312 312 329 375 312 324 312 334 334 342 375 342 375 530 510 423
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
10PE1S(60L),10PE1N(61L) AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0010-
5 GUIDE; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> L=360 		1-82699-476-1 01 1 9611-9904
5 GUIDE; HARNESS
6WA1 TC-C(55L) L=360 		1-82699-476-1 01 1 9905-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 9601-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 9601-0005
16 CLIP; HARNESS
(M) ID=20 L=70 		1-09700-485-0 03 1 0006-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 9601-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 9601-
16 CLIP; HARNESS
(D) ID=14.5 L=28 		1-09701-013-0 01 1 9601-
16 CLIP; HARNESS
(U) ID=4.8 		1-09701-218-0 01 1 9601-
16 CLIP; HARNESS
(E) L=300 		1-09707-001-1 03 1 9601-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 02 1 9601-
16 CLIP; HARNESS
(G) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9601-
16 CLIP; HARNESS
(G) W/SPONGE RUBBER 		1-09709-150-0 01 1 9601-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 04 1 9601-9710
16 CLIP; HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 9711-
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 07 1 9601-9601
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 06 1 9602-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-0 02 1 9601-9610
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 02 1 9611-
16 CLIP; HARNESS
FULLER M/T<X9B> (I) L=250 		5-09707-030-1 02 1 9611-
16 CLIP; HARNESS
(I) L=250 		5-09707-030-1 01 1 9601-9907
16 CLIP; HARNESS
ZF M/T<X9E> (I) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-0 01 1 9601-9610
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (J) L=140 		5-09707-031-0 01 1 9611-9708
16 CLIP; HARNESS
(J) L=140 		5-09707-031-0 01 1 9611-9708
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
ISUZU M/T<X9A>,ZF M/T<X9E> (J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9709-9904
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
EXC. FULLER M/T<X9B> (J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9905-9907
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q>,MJA6 M/T<X9S> (J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
ISUZU M/T<X9A> (J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(J) L=140 		5-09707-031-1 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 9601-0001
16 CLIP; HARNESS
L TYPE ENG<90L> (L) ID=14 L=44 		9-09917-427-0 04 1 0002-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9601-9601
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 08 1 9601-9601
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 07 1 9602-0004
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0005-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 06 1 9601-9601
16 CLIP; HARNESS
(N) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9602-
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 9602-9606
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 01 1 9602-9606
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 9607-0001
16 CLIP; HARNESS
6WA1 TC-S(56L),10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 01 1 9607-0001
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 01 1 0002-0004
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 08 1 0005-
16 CLIP; HARNESS
(P) ID=19 L=32 		1-09701-235-0 02 1 9905-
16 CLIP; HARNESS
(W) ID=14-20 		8-97061-603-0 01 1 9905-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
V TYPE ENG<91L> (J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER<RE2> (X) ID=11 L=16 		9-09525-025-0 01 1 9905-9907
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (Y) ID=42.7 L=38 		1-09700-583-1 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (Y) ID=42.7 L=38 		1-09700-583-1 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (AA) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (P) ID=19 L=32 		1-09701-235-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (P) ID=19 L=32 		1-09701-235-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (L) ID=14 L=44 		9-09917-427-0 01 1 9611-9904
16 CLIP; HARNESS
6WA1 TC-C(55L) (L) ID=14 L=44 		9-09917-427-0 01 1 9905-
16 CLIP; HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (M) ID=20 L=50 		9-09917-430-0 03 1 9611-9904
16 CLIP; HARNESS
(M) ID=20 L=50 		9-09917-430-0 03 1 9905-0001
16 CLIP; HARNESS
6WA1 TC-C(55L) (M) ID=20 L=50 		9-09917-430-0 03 1 9905-0001
16 CLIP; HARNESS
6WA1 TC-C(55L) (M) ID=20 L=50 		9-09917-430-0 03 1 0002-
16 CLIP; HARNESS
FULLER M/T<X9B> (H) OD=9 H=6 		1-09709-178-0 02 1 9611-
16 CLIP; HARNESS
HIGH ROOF<S2F> (Z) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9601-9601
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 9602-0004
16 CLIP; HARNESS
ISUZU M/T<X9A> (H) OD=9 H=6 		1-09709-178-0 01 1 9602-0004
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0005-
16 CLIP; HARNESS
MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> (H) OD=9 H=6 		1-09709-178-0 01 1 0005-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (S) L=36 		8-94224-891-1 01 1 9601-9610
16 CLIP; HARNESS
ISUZU M/T<X9A> (S) L=36 		8-94224-891-1 01 1 9611-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (K) ID=16 L=20 		9-09525-535-0 01 1 9601-9904
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(K) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (K) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (T) ID=16 L=40 		9-09525-576-0 01 1 9601-
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9601-9601
16 CLIP; HARNESS
L TYPE ENG<90L> (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9602-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (N) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9611-9904
16 CLIP; HARNESS
L TYPE ENG<90L> (O) 		8-94403-348-0 01 1 9601-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WA1 TC-S(56L) (O) 		8-94403-348-0 01 1 9611-9904
16 CLIP; HARNESS
L TYPE ENG<90L> (M) ID=20 L=70 		1-09700-485-0 03 1 0005-0005
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0006-
16 CLIP; HARNESS
ZF M/T<X9E> V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 04 1 0006-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (F) L=180 		1-09707-162-1 01 1 9601-
16 CLIP; HARNESS
(F) L=180 		1-09707-162-1 01 1 9601-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9601-9603
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 01 1 9604-0001
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 04 1 0002-
16 CLIP; HARNESS
V TYPE ENG<91L> (P) ID=21 L=24 		1-09701-201-0 02 1 9601-
16 CLIP; HARNESS
V TYPE ENG<91L> (Q) ID=11 L=20 		9-09525-035-0 01 1 9601-
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 02 1 9601-9605
16 CLIP; HARNESS
ZF M/T<X9E> (R) ID=15 H=30 L=30 		1-09700-832-0 01 1 9606-
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9601-9710
16 CLIP; HARNESS
(H) OD=9 H=6 		1-09709-178-0 03 1 9711-
16 CLIP; HARNESS
ZF M/T<X9E> (H) OD=9 H=6 		1-09709-178-0 03 1 9711-
16 CLIP; HARNESS
ZF M/T<X9E> (V) ID=15 L=42 		9-09716-203-1 01 1 9606-9904
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (Z) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 01 1 9601-9603
16 CLIP; HARNESS
10PE1S(60L) (A) ID=11 L=41 		1-09700-403-0 02 1 9604-9904
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9905-0001
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 02 1 9905-0001
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0002-0004
16 CLIP; HARNESS
ZF M/T<X9E> L TYPE ENG<90L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
V TYPE ENG<91L> (A) ID=11 L=41 		1-09700-403-0 01 1 0005-
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 07 1 0005-0005
16 CLIP; HARNESS
10PE1S(60L) (M) ID=20 L=50 		9-09917-430-0 06 1 0006-
53 BRACKET; HARNESS
(C) 		1-82699-592-1 01 1 9601-
53 BRACKET; HARNESS
(A) 		1-82699-737-0 01 1 9601-9601
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41) (A) 		1-82699-916-0 01 1 9602-9805
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82699-916-0 01 1 9806-
53 BRACKET; HARNESS
(B) 		1-82699-826-0 01 1 9601-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9601-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=21 L=47.5 		8-94178-108-0 02 1 9601-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=14 L=44 		9-09917-427-0 06 1 9601-9810
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) ID=13-18 L=14.5 		1-09709-290-0 08 1 9811-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
224 SLEEVE; RUBBER,HARNESS
6WA1 TC-N(54L),6WA1 TC-R(93L) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0102-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9601-9610
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9611-9904
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9905-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9601-
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9601-9603
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 9605-
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (C) L=36 		8-94224-891-1 02 1 9601-9603
305 CLIP; ENG HARNESS
V TYPE ENG<91L> (C) L=36 		8-94224-891-1 02 1 9605-
305 CLIP; ENG HARNESS
6WA1 TC-N(54L),6WA1 TC-R(93L) (D) L=140 		5-09707-031-1 01 1 0102-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9601-9605
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (A) L=120 		1-82699-465-0 01 1 9606-9610
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) L=120 		1-82699-465-0 01 1 9611-9904
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9905-9908
312 BRACKET; CLIP HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (C) 		1-47477-156-2 01 1 9611-9904
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L) (C) 		1-47477-156-2 01 1 9905-
312 BRACKET; CLIP HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (D) 		1-82699-199-0 01 1 9611-9904
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L) (D) 		1-82699-199-0 01 1 9905-
312 BRACKET; CLIP HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (G) 		1-82699-239-0 01 1 9611-9904
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L) (G) 		1-82699-239-0 01 1 9905-9907
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G) 		1-82699-239-0 01 1 9908-
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (B) 		1-82699-348-0 01 1 9601-9603
312 BRACKET; CLIP HARNESS
V TYPE ENG<91L> (B) 		1-82699-348-0 01 1 9605-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (E) 		1-82699-208-1 01 1 9606-9701
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (F) L=120 H=35 		1-82699-970-0 01 1 9702-9904
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (F) L=120 H=35 		1-82699-970-0 01 1 9905-9907
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> L TYPE ENG<90L> (F) L=120 H=35 		1-82699-970-0 01 1 9908-9908
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (F) L=120 H=35 		1-82699-970-0 01 1 9908-9908
312 BRACKET; CLIP HARNESS
(F) L=120 H=35 		1-82699-970-0 01 1 9909-
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> L TYPE ENG<90L> (F) L=120 H=35 		1-82699-970-0 01 1 9909-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> 		1-82699-996-0 01 1 9905-9907
329 BRACKET; CLIP,CABLE 1-82699-199-0 01 1 9601-
334 BRACKET
(A) 		1-53458-362-0 01 1 9601-
334 BRACKET
6WA1 TC-S(56L) (B) 		1-53458-709-1 01 1 9601-9610
334 BRACKET
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53458-709-1 01 1 9611-9612
334 BRACKET
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-53458-709-1 01 1 9701-9904
334 BRACKET
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-53458-709-1 01 1 9905-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 9601-0007
342 BRACKET; HARNESS CAB MTG
L TYPE ENG<90L> EXC. ZF M/T<X9E> (B) 		1-82699-625-0 01 1 0008-
342 BRACKET; HARNESS CAB MTG
V TYPE ENG<91L> (B) 		1-82699-625-0 01 1 0008-
342 BRACKET; HARNESS CAB MTG
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) L TYPE ENG<90L> (C) 		1-82698-224-0 01 1 0008-
342 BRACKET; HARNESS CAB MTG
V TYPE ENG<91L> (A) 		1-82699-208-1 01 1 9602-9701
342 BRACKET; HARNESS CAB MTG
V TYPE ENG<91L> (A) L=120 H=35 		1-82699-970-0 01 1 9702-
375 BRACKET; AC GEN HARNESS CLIP
L TYPE ENG<90L> (C) 		1-82699-182-0 01 1 9601-
375 BRACKET; AC GEN HARNESS CLIP
V TYPE ENG<91L> (A) 		1-47476-393-0 01 1 9601-
375 BRACKET; AC GEN HARNESS CLIP
V TYPE ENG<91L> (B) 		1-82699-199-0 01 1 9601-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9601-
510 GROMMET; SCREW
EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8 		8-94222-314-0 02 1 9611-9904
510 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 9905-
510 GROMMET; SCREW
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 01 1 9905-
530 SEAL; HARNESS
100X30 		1-72498-014-1 01 1 9601-9903
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 9904-9904
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 9905-0011
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0012-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0012-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0102-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> 180X40 		1-72498-019-0 02 1 0102-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 180X40 		1-72498-019-0 01 1 0006-
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) 100X30 		1-72498-014-1 06 1 9611-9611
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) 100X30 		1-72498-014-1 05 1 9612-9702
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) 180X40 		1-72498-019-0 06 1 9703-9904
530 SEAL; HARNESS
6WA1 TC-C(55L) 180X40 		1-72498-019-0 06 1 9905-0101
530 SEAL; HARNESS
6WA1 TC-C(55L) 180X40 		1-72498-019-0 04 1 0102-
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) 170X30 		1-75558-519-0 01 1 9612-9702
530 SEAL; HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> 180X40 		1-72498-019-0 03 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
