Sayfa 0-10 - Isuzu EPC

0-10 — CYLINDER HEAD COVER (#54479) — 189 parça

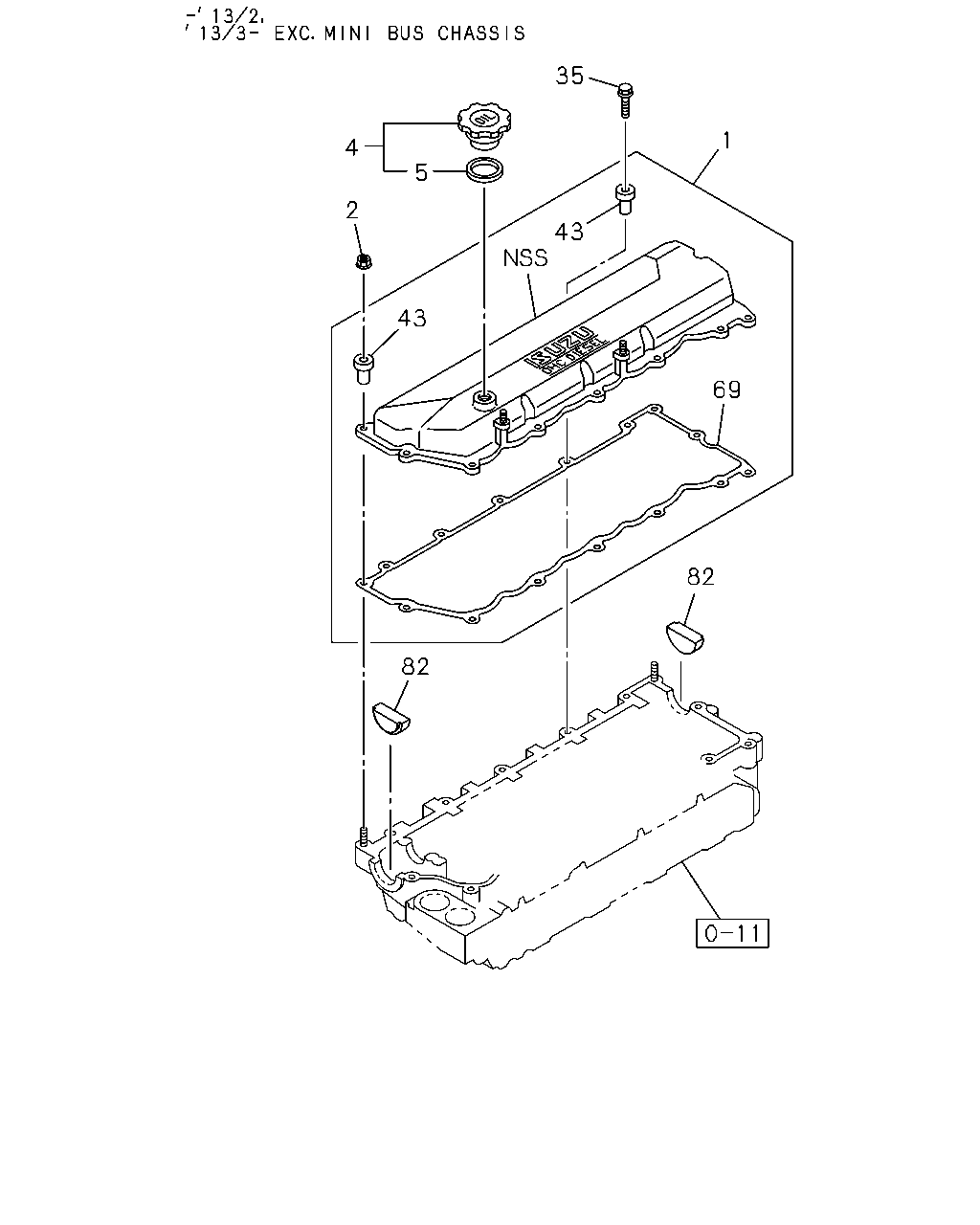

35 4 5 2 43 82 82 69 1 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B)	8-98210-092-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-1302	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1303-1406		●
1	00.386 COVER; CYL HD EXC. MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1407-		●
1	00.386 COVER; CYL HD EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204				●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305				●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-				●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	03	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-1406	●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-		●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1102-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-1101	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1102-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-1302	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1303-1406		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. MINI BUS CHASSIS(V4B) 03.265 OD=23	8-97105-689-6	15	1	1303-1406	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1407-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 03.265 OD=23	8-97105-689-6	15	1	1407-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 03.265 OD=23	8-97105-689-6	15	1	1407-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B)	8-98207-973-0	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1012-1302	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1303-1406		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1407-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	1012-				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●	●

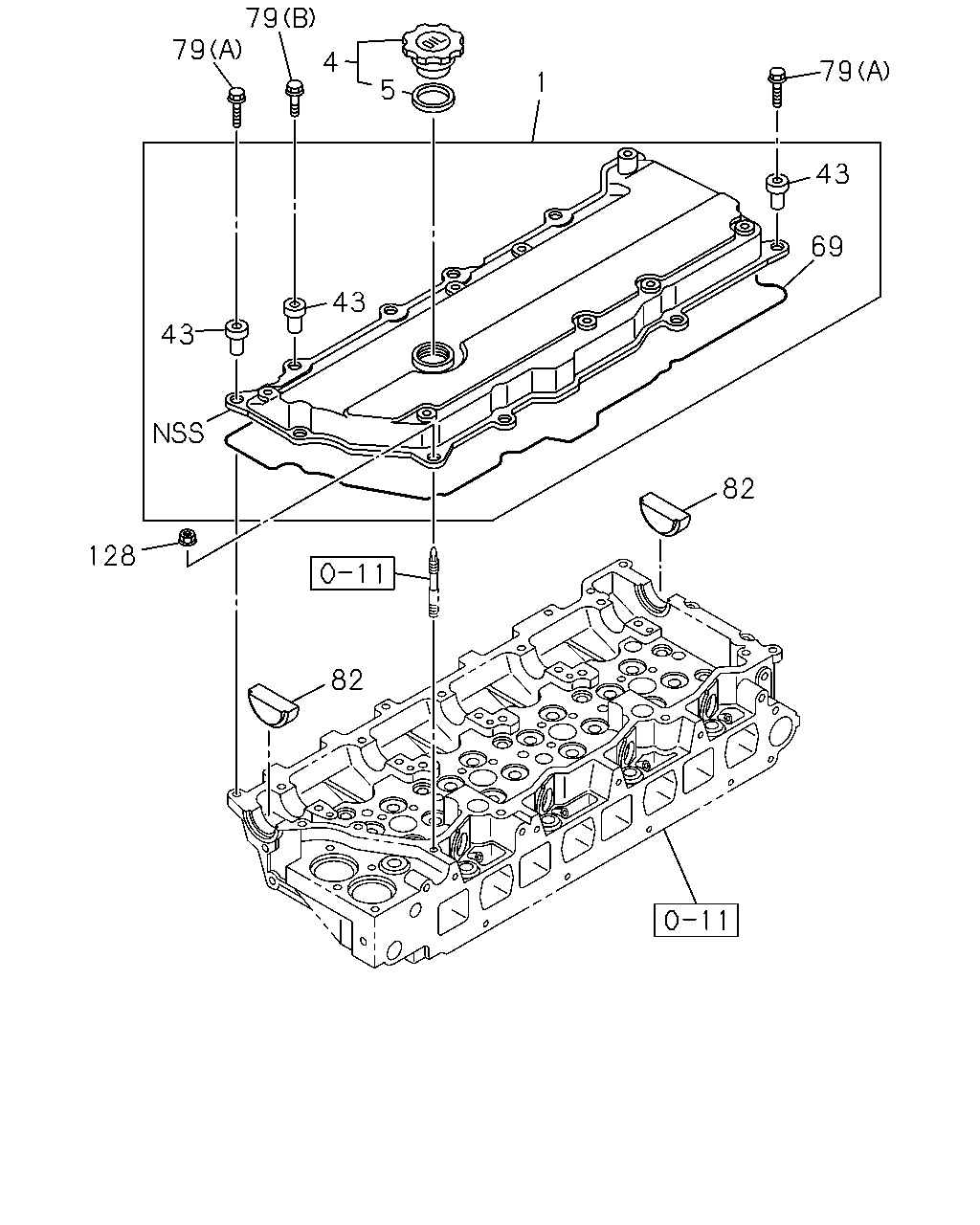

79 4 5 79 1 43 43 128 82 82 69 43 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B)	8-98210-092-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-1302	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1303-1406		●
1	00.386 COVER; CYL HD EXC. MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1407-		●
1	00.386 COVER; CYL HD EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204				●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305				●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1012-1302	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1303-1406		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. MINI BUS CHASSIS(V4B) 03.265 OD=23	8-97105-689-6	15	1	1303-1406	●
43	00.413 RUBBER; MTG,HD COVER,OUTER 03.265 OD=23	8-97105-689-6	15	1	1407-		●
43	00.413 RUBBER; MTG,HD COVER,OUTER EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) 03.265 OD=23	8-97105-689-6	15	1	1407-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF> 03.265 OD=23	8-97105-689-6	15	1	1407-	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B)	8-98207-973-0	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1012-1302	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1303-1406		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1407-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	1012-				●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-			●
79	00.293 BOLT; COVER 01.097 (A) M8X65 FLANGE	1-09044-072-1	07	1	1012-			●
79	00.293 BOLT; COVER 04.338 (C) M8X20 FLANGE	0-28050-820-0	04	1	1012-				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-			●

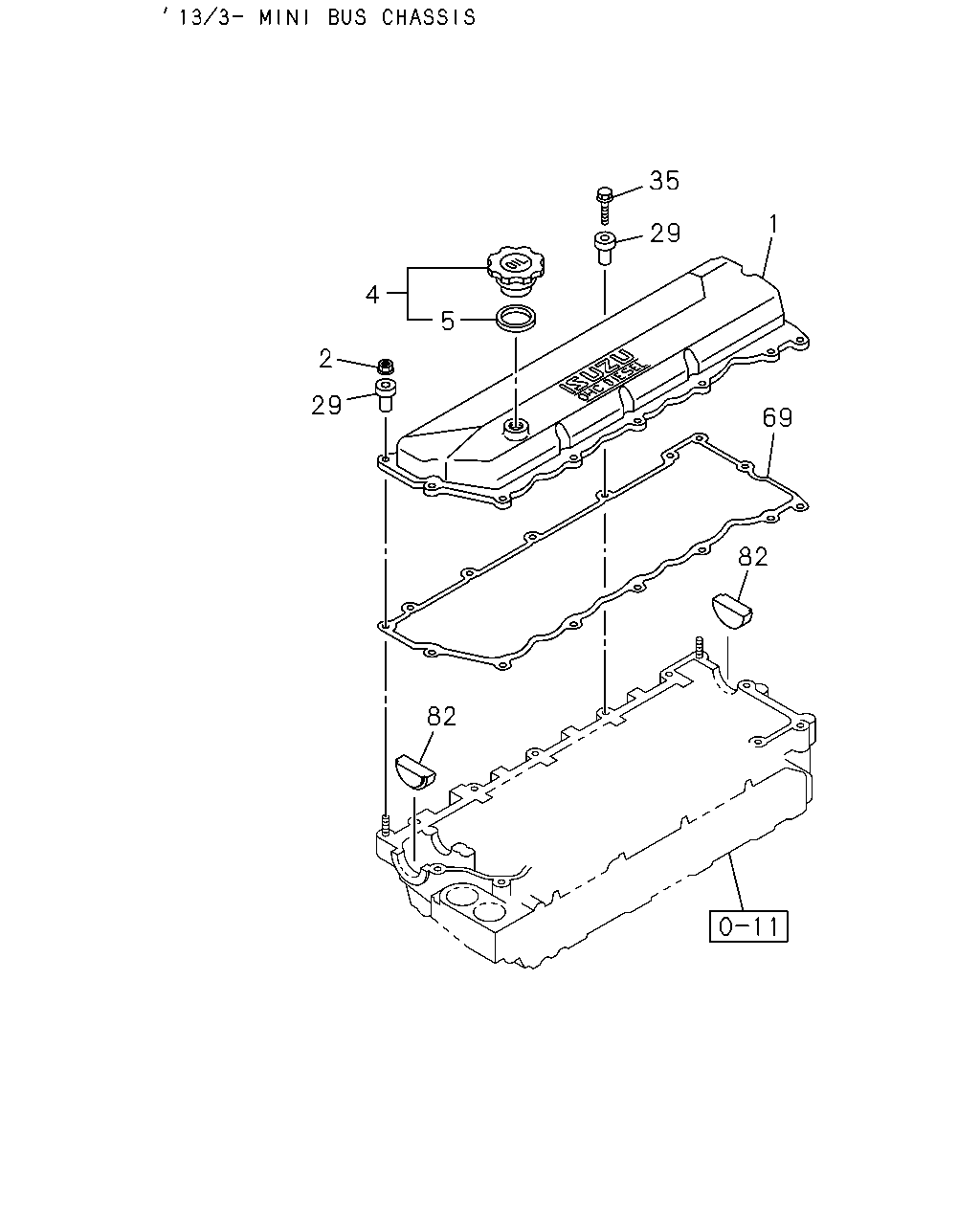

35 29 4 5 2 29 82 82 69 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B)	8-98210-092-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-1302	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1303-1406		●
1	00.386 COVER; CYL HD EXC. MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1407-		●
1	00.386 COVER; CYL HD EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204				●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305				●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-				●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	03	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-1406	●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-		●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●
29	00.413 RUBBER; MTG,HD COVER MINI BUS CHASSIS(V4B)	8-98208-910-0	15	1	1303-1406	●
29	00.413 RUBBER; MTG,HD COVER MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98208-910-0	15	1	1407-	●
29	00.413 RUBBER; MTG,HD COVER INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98208-910-0	15	1	1407-	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1012-1408				●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-				●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1102-		●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	13	1	1012-1101	●	●
35	00.293 BOLT; NOISE SHIELD COVER 03.403 M8X30 FLANGE	0-28650-830-0	12	1	1102-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B)	8-98207-973-0	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1012-1302	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1303-1406		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1407-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	1012-				●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1012-	●	●	●

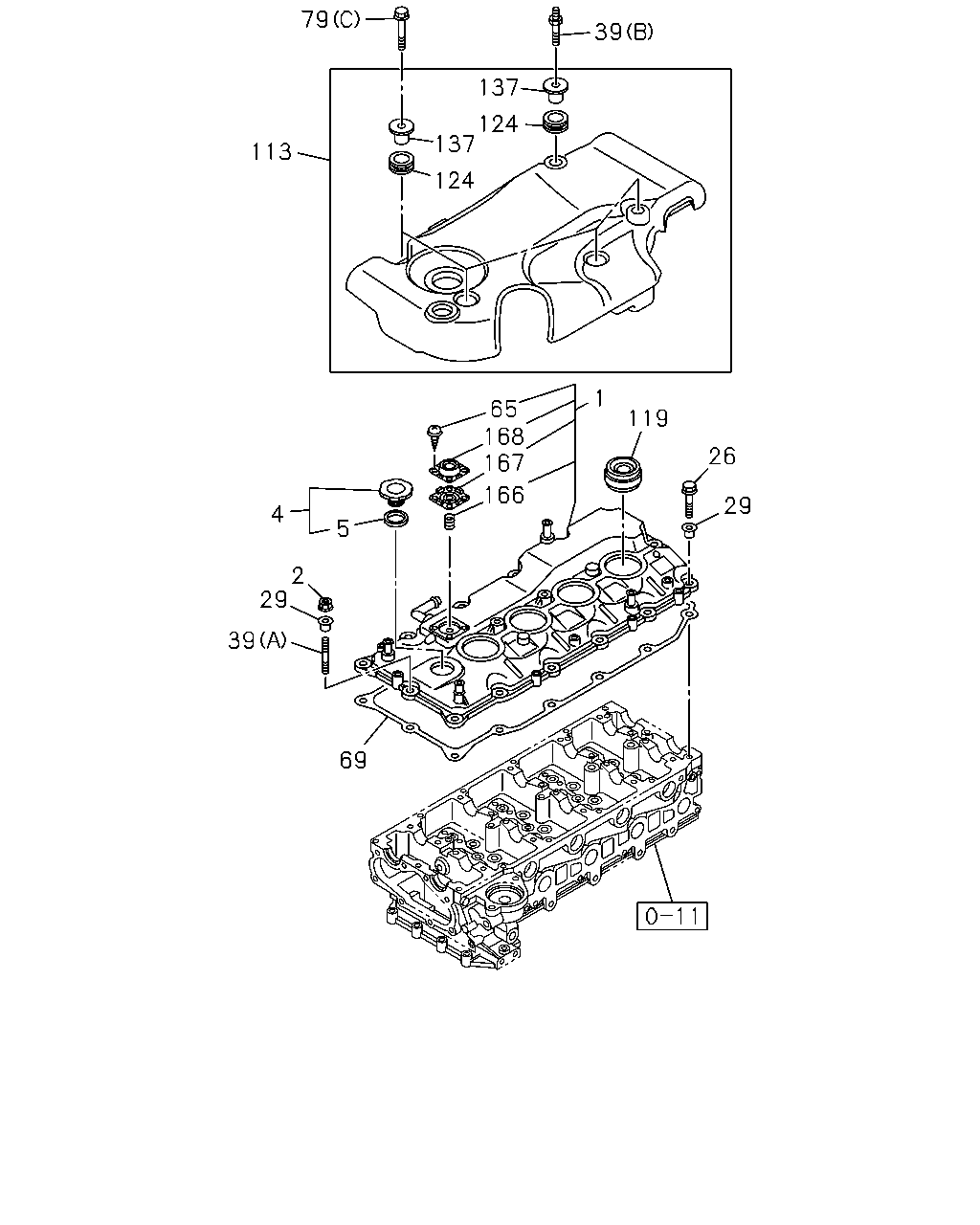

79 113 4 5 2 29 39 69 29 26 119 1 65 168 167 166 39 137 124 137 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B)	8-98210-092-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98210-092-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1012-1302	●	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1303-1406		●
1	00.386 COVER; CYL HD EXC. MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1303-1406	●
1	00.386 COVER; CYL HD	8-98171-615-0	01	1	1407-		●
1	00.386 COVER; CYL HD EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-98171-615-0	01	1	1407-	●
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	1012-			●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1012-1204				●
1	00.386 COVER; CYL HD	8-98209-078-0	01	1	1205-1205				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1205-1305				●
1	00.386 COVER; CYL HD	8-98226-103-0	01	1	1306-1505				●
1	00.386 COVER; CYL HD	8-98051-197-1	01	1	1506-				●
2	00.413 NUT; COVER,HD VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	03	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	01	1	1102-1406	●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	01	1	1407-	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-		●
2	00.413 NUT; COVER,HD EXC. VIN MODEL YEAR 2015<VZF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●
2	00.413 NUT; COVER,HD 01.540 M6 FLANGE	0-91180-206-0	01	1	1012-				●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	1012-	●	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	1012-	●	●	●	●
26	08.900 BOLT; CYL HD COVER 03.680 M6X30 FLANGE	0-28650-630-0	13	1	1012-				●
29	00.413 RUBBER; MTG,HD COVER MINI BUS CHASSIS(V4B)	8-98208-910-0	15	1	1303-1406	●
29	00.413 RUBBER; MTG,HD COVER MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98208-910-0	15	1	1407-	●
29	00.413 RUBBER; MTG,HD COVER INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98208-910-0	15	1	1407-	●
29	00.413 RUBBER; MTG,HD COVER	8-97381-524-0	14	1	1012-1408				●
29	00.413 RUBBER; MTG,HD COVER 00.206	8-97168-200-1	14	1	1409-				●
39	00.413 STUD; COVER,HD 03.403 (B) M8X11,M8X25 L=45	8-97220-552-2	01	1	1012-				●
39	00.413 STUD; COVER,HD (A) M6X30 L=38	8-97372-795-0	01	1	1012-				●
65	00.413 SCREW; ADAPTER M5X10 W/LK WASHER	8-97366-592-0	04	1	1012-				●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B)	8-98207-973-0	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MINI BUS CHASSIS(V4B) EXC. VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INDONESIA EQUIPMENT(B00) VIN MODEL YEAR 2015<VZF>	8-98207-973-0	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1012-1302	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1303-1406		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1303-1406	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97105-690-2	01	1	1407-		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B)	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) MALAYSIA EQUIPMENT(B10) VIN MODEL YEAR 2015<VZF>	8-97105-690-2	01	1	1407-	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-359-1	01	1	1012-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97945-338-0	01	1	1012-				●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	1012-			●
79	00.293 BOLT; COVER 01.097 (A) M8X65 FLANGE	1-09044-072-1	07	1	1012-			●
79	00.293 BOLT; COVER 04.338 (C) M8X20 FLANGE	0-28050-820-0	04	1	1012-				●
113	00.386 COVER; CYL HEAD COVER	8-98039-090-4	01	1	1012-1104				●
113	00.386 COVER; CYL HEAD COVER	8-98158-904-1	01	1	1105-				●
119	00.386 COVER; SEAL,NOZZLE	8-98037-543-0	04	1	1012-				●
124	00.413 RUBBER; MTG,COVER	8-98036-119-0	05	1	1012-				●
137	00.413 BUSHING; MTG RUBBER,COVER	8-98036-120-0	05	1	1012-				●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1012-1204				●
166	00.283 SPRING; VENTILATOR	8-98209-384-0	01	1	1205-1205				●
166	00.283 SPRING; VENTILATOR 00.423	8-97365-998-0	01	1	1205-				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1012-1305				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98226-101-0	01	1	1306-1505				●
167	00.283 DIAPHRAGM; VENTILATOR	8-98003-164-0	01	1	1506-				●
168	00.283 COVER; VENTILATOR 00.269	8-97365-992-0	01	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
