◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#54478) — 360 parça

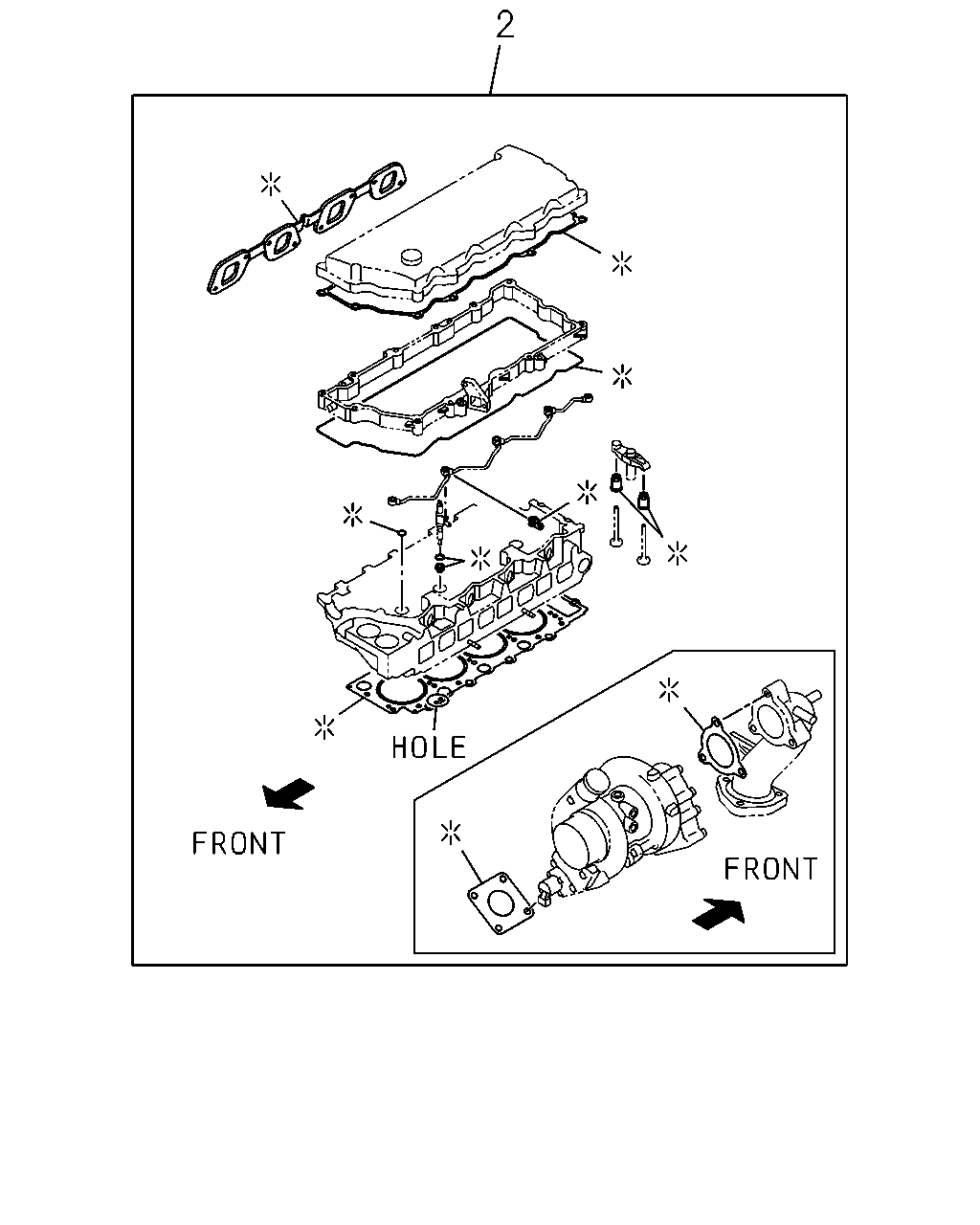

çizim 175802
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87813-964-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87813-965-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●

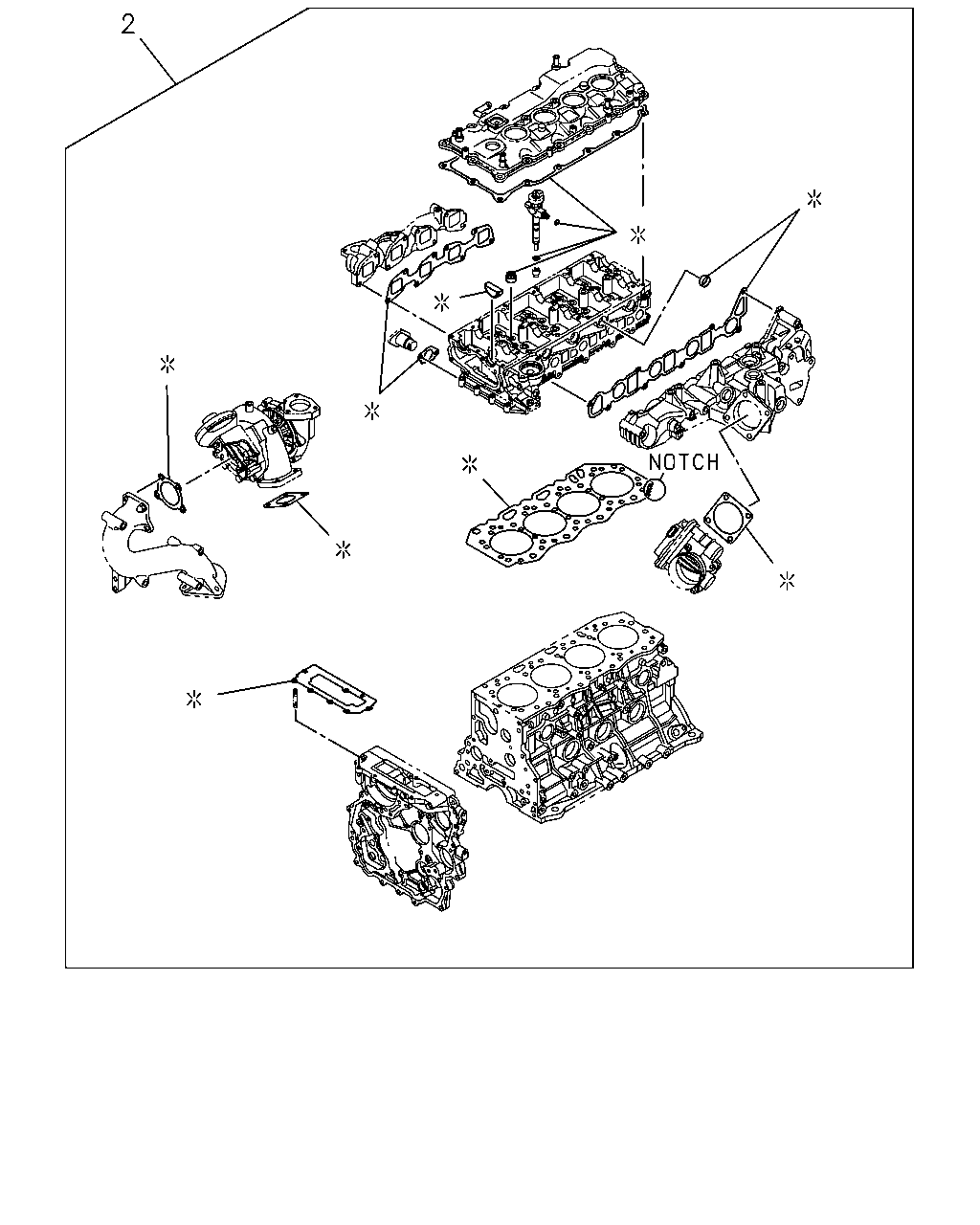

çizim 175805
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87813-964-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87813-965-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●

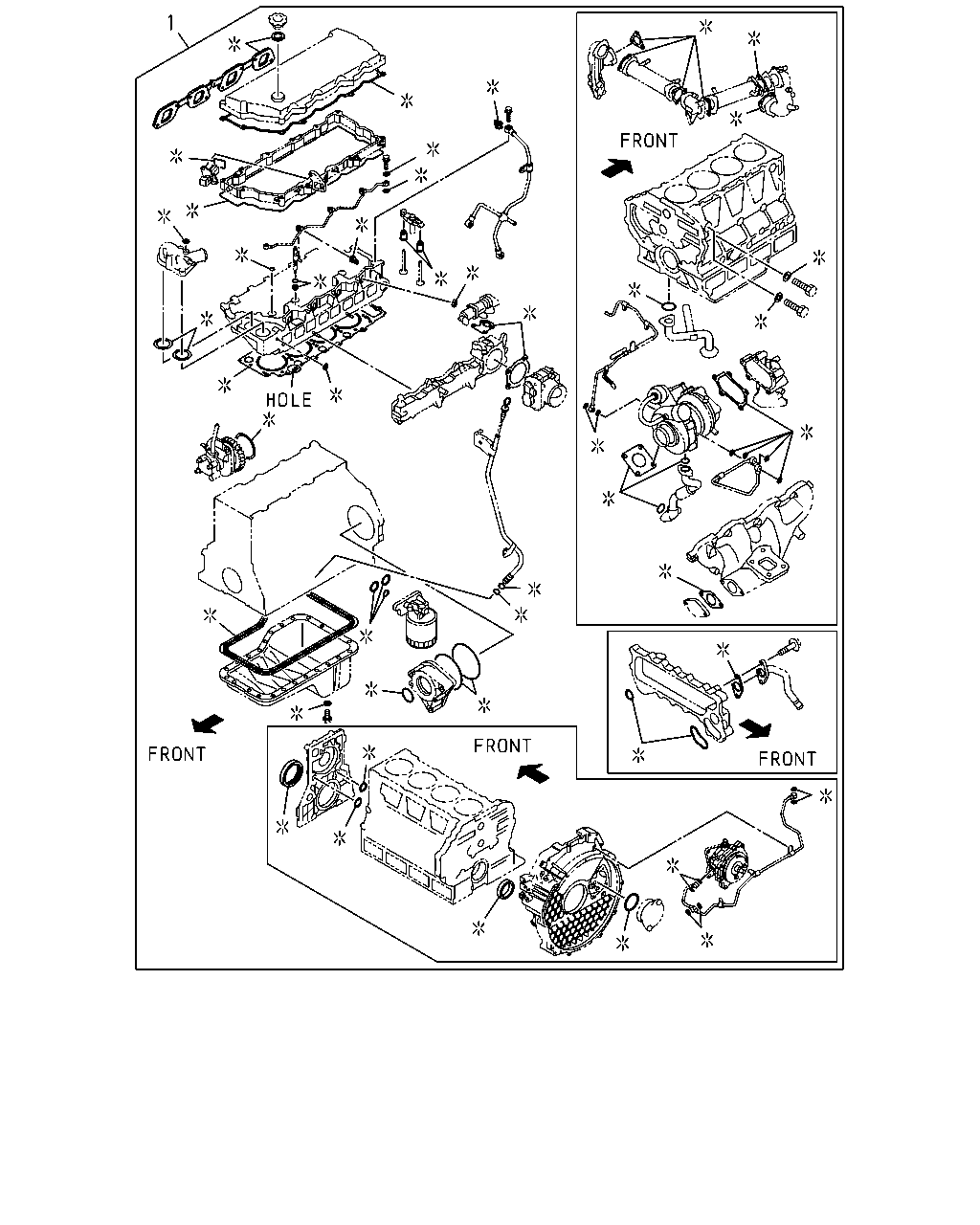

çizim 175811
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87815-969-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87815-970-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●

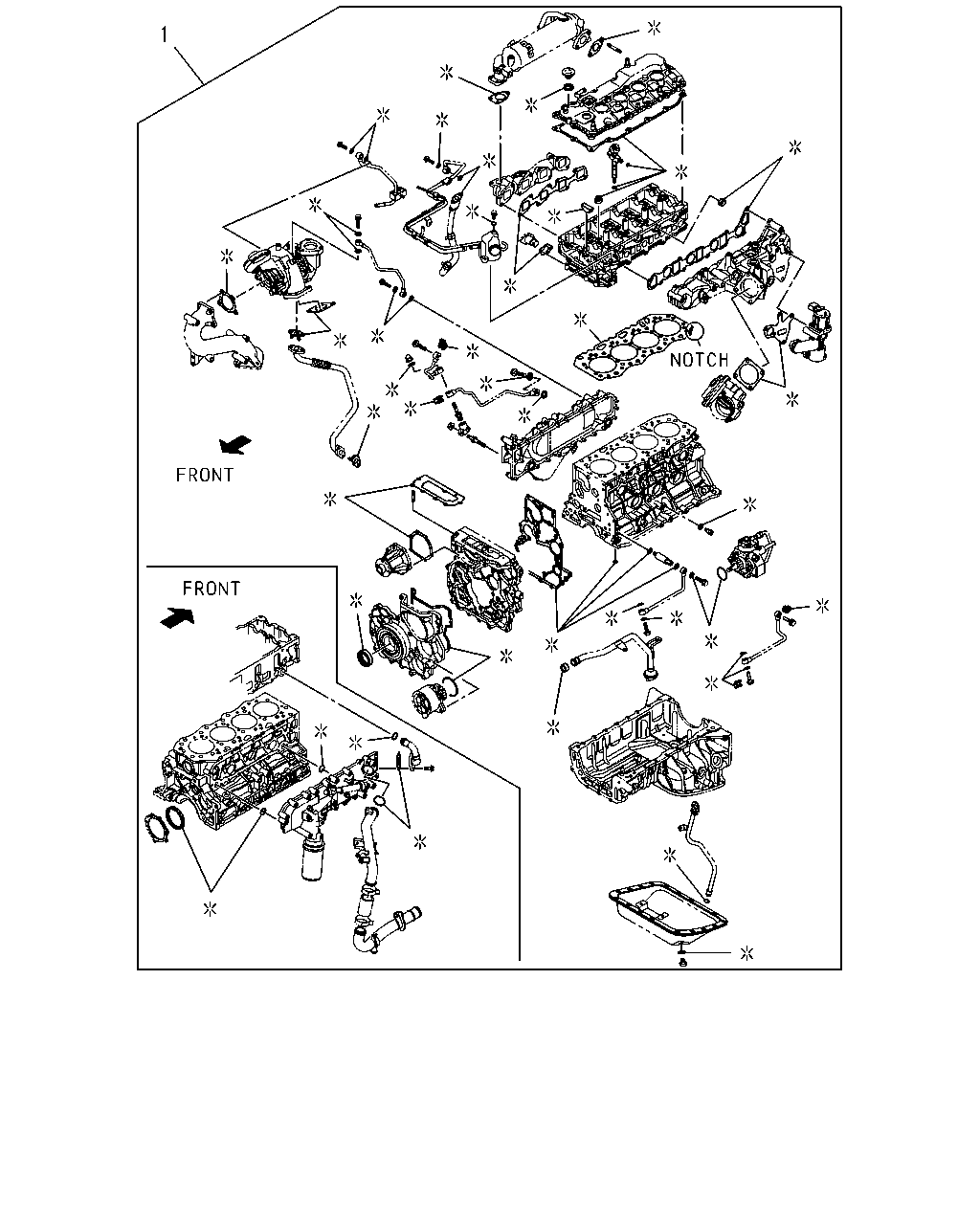

çizim 175813
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87815-969-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87815-970-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●

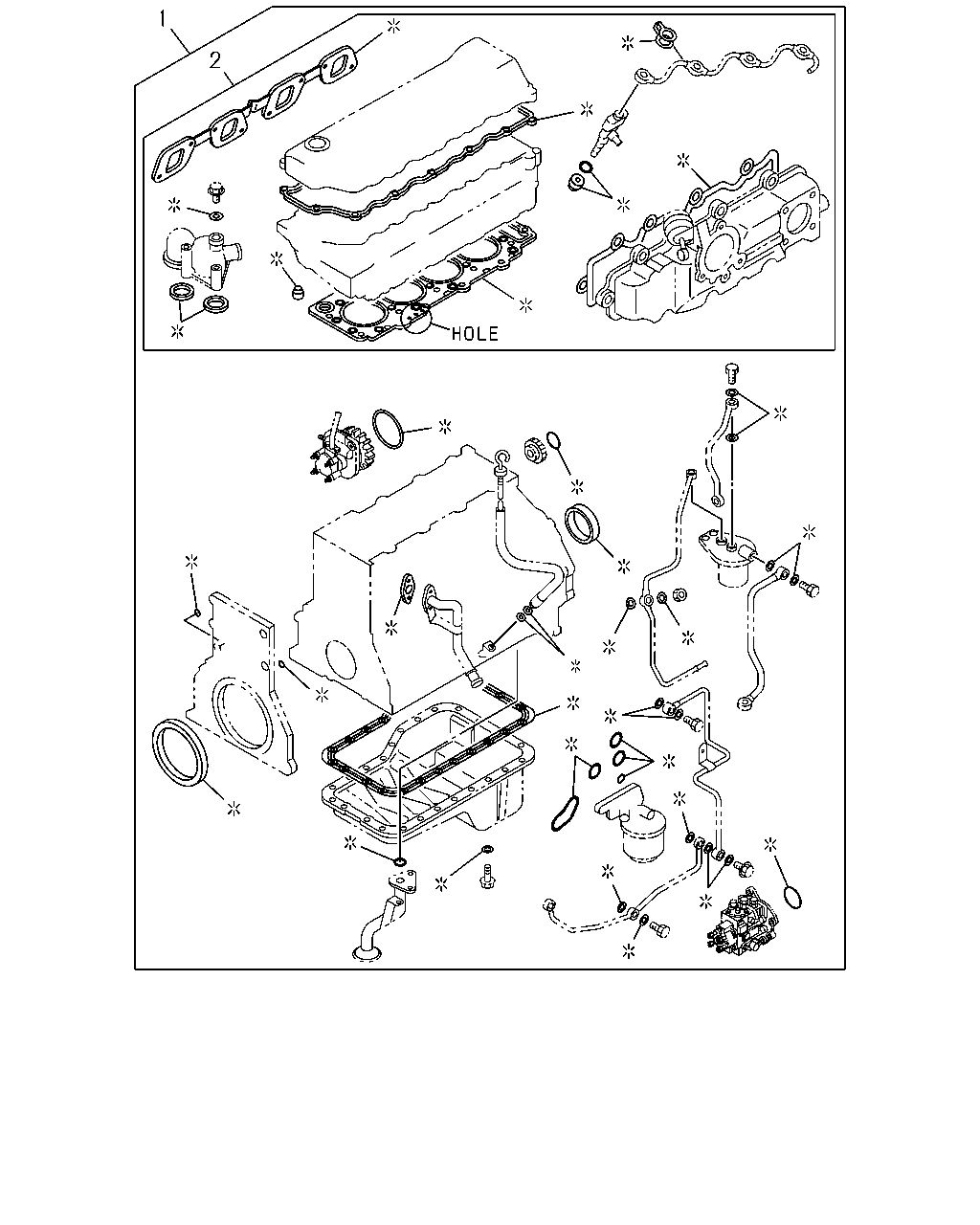

çizim 175816
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.475 NON-HOLE 		5-87818-116-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.525 1-HOLE 		5-87818-117-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1407-1410 ●
1 00.010 GASKET SET; ENG OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
HIGH ALTITUDE COMPENSATOR(EE2) BIO DIESEL FUEL B10<8NV> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER (C65),VIN MODEL YEAR 2015<VZF> T=1.575 2-HOLE 		5-87818-118-0 01 1 1411- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-706-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-968-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87815-968-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-032-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-707-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-969-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87815-969-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-033-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-708-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-970-1 01 1 1102-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87815-970-1 01 1 1303-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-0 01 1 1401-1406 ●
1 00.010 GASKET SET; ENG OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-034-1 01 1 1407- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-653-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-029-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-654-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-030-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-655-2 01 1 1012-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-031-1 01 1 1401- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-810-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87817-957-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-811-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-763-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87817-958-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-812-0 01 1 1012-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-764-0 01 1 1502-1505 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87817-959-0 01 1 1506- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-776-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87815-921-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-108-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-352-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-534-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-574-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-779-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87816-877-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH 		5-87817-674-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-777-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87815-922-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-109-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-353-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-535-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-575-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-780-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87816-878-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH 		5-87817-675-0 01 1 1412- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-778-1 01 1 1012-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87815-923-1 01 1 1101-1108 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-110-0 01 1 1109-1204 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-354-0 01 1 1205-1211 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-536-0 01 1 1212-1212 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-576-0 01 1 1301-1302 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-781-0 01 1 1303-1304 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87816-879-1 01 1 1305-1411 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH 		5-87817-676-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87813-963-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87813-963-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.475 NON-HOLE 		5-87817-038-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87813-964-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87813-964-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.525 1-HOLE 		5-87817-039-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87813-965-4 01 1 1012-1302 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87813-965-4 01 1 1303-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-0 01 1 1401-1406 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EXC. VIN MODEL YEAR 2015<VZF>,MINI BUS CHASSIS(V4B) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
VIN MODEL YEAR 2015<VZF> MALAYSIA EQUIPMENT(B10) T=1.575 2-HOLE 		5-87817-040-1 01 1 1407- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-656-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-035-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-657-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-036-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-658-2 01 1 1012-1312 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-037-1 01 1 1401- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-532-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87817-993-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-533-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87817-994-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-534-3 01 1 1012-1505 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87817-995-0 01 1 1506- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-373-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87815-912-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-117-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-361-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-543-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87816-886-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH 		5-87817-668-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-374-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87815-913-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-118-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-362-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-544-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87816-887-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH 		5-87817-669-0 01 1 1412- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-375-2 01 1 1012-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87815-914-1 01 1 1101-1108 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-119-0 01 1 1109-1204 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-363-0 01 1 1205-1211 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-545-0 01 1 1212-1304 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87816-888-1 01 1 1305-1411 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH 		5-87817-670-0 01 1 1412- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
