Isuzu WW
▶
TRUCKS
▶
NPR
▶
51295 - NPR/NQR BUS CHA(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#54472) — 43 parça
Tümü
A - NPR5JN
B - NPR5JS
◀

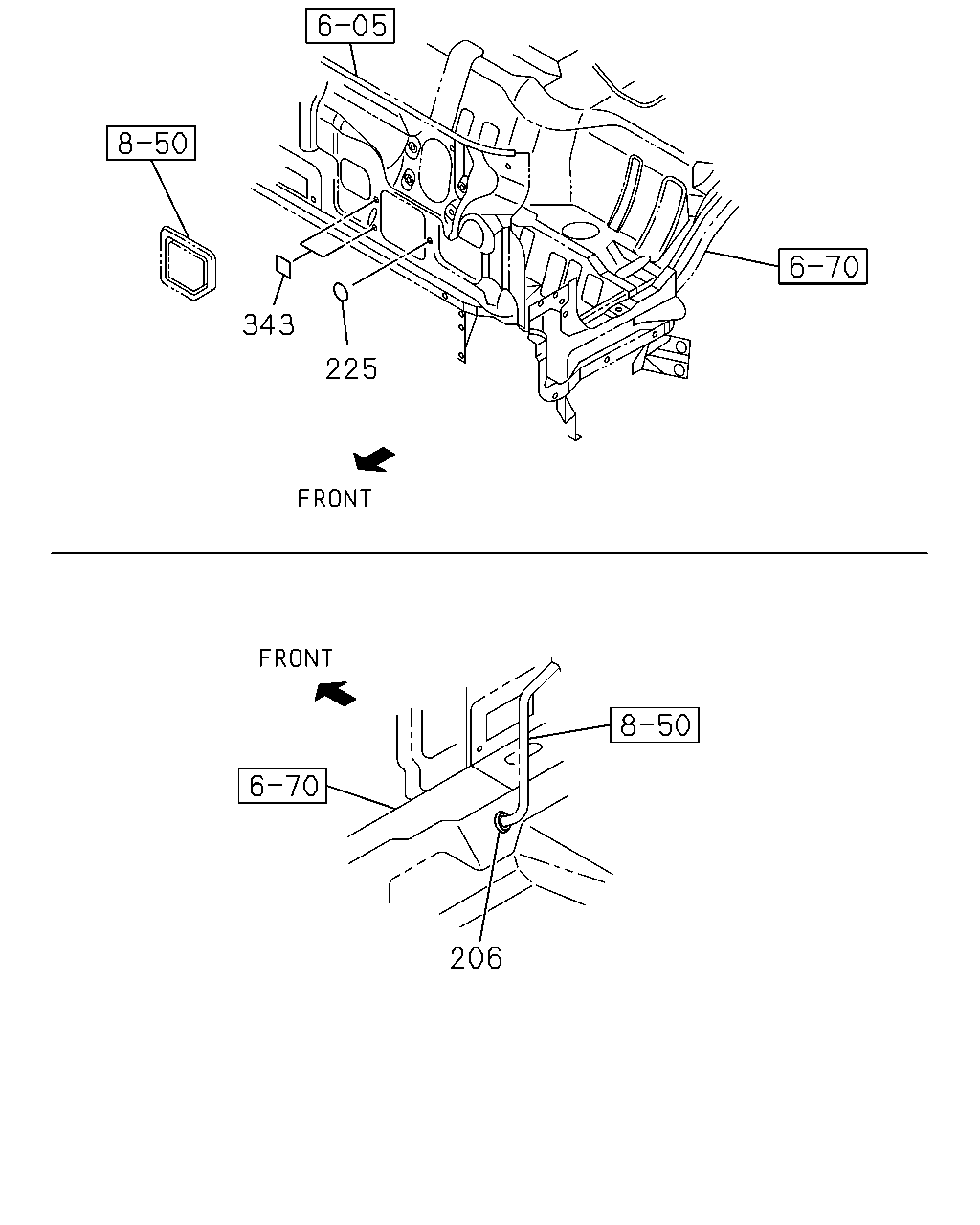

[840A] OTHER PARTS (6 parça)
[840A] DUCT (37 parça)
▶
343
225
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1012-1303
●
206
09.743 GROMMET; A/C PIPE TO BLOWER UNIT
8-98019-649-0
01
1
1304-
●
●
225
08.845 SEAL; WATER
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1012-1303
●
225
08.845 SEAL; WATER
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
1304-
●
●
343
08.845 SEAL; AIR DUCT
8-97856-616-0
02
1
1012-1303
●
343
08.845 SEAL; AIR DUCT
8-97856-616-0
02
1
1304-
●
●
12
186
317
66
66
126
175
274
477
198
186
192
66
66
198
198
126
186
477
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
09.779 NOZZLE; DEFROSTER
8-97585-480-4
01
1
1012-1303
●
12
09.779 NOZZLE; DEFROSTER
8-97585-480-4
01
1
1304-
●
●
66
08.845 BOLT; DUCT
02.343 (A) M6X16 FLANGE
0-28650-616-0
02
1
1012-1303
●
66
08.845 BOLT; DUCT
02.343 (A) M6X16 FLANGE
0-28650-616-0
02
1
1304-
●
●
66
08.845 BOLT; DUCT
08.857 (C) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1012-1303
●
66
08.845 BOLT; DUCT
08.857 (C) M6X20 W/LK&PL WASHER
8-98081-030-0
02
1
1304-
●
●
66
08.845 BOLT; DUCT
(B) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1012-1303
●
66
08.845 BOLT; DUCT
(B) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1304-
●
●
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1012-1303
●
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1012-1303
●
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1304-
●
●
126
09.262 NUT; BRKT
01.062 M6 FLANGE
0-91180-106-0
01
1
1304-
●
●
175
09.262 BRACKET; HTR DUCT
8-98091-544-5
01
1
1012-1012
●
175
09.262 BRACKET; HTR DUCT
8-98184-165-0
01
1
1012-1303
●
175
09.262 BRACKET; HTR DUCT
8-98184-165-0
01
1
1304-
●
●
186
09.786 DUCT; VENTILATOR
(A)
8-98054-363-0
01
1
1012-1303
●
186
09.786 DUCT; VENTILATOR
(A)
8-98054-363-0
01
1
1304-
●
●
186
09.786 DUCT; VENTILATOR
(C)
8-98054-371-0
01
1
1012-1303
●
186
09.786 DUCT; VENTILATOR
(C)
8-98054-371-0
01
1
1304-
●
●
186
09.786 DUCT; VENTILATOR
(B)
8-98054-379-2
01
1
1012-1303
●
186
09.786 DUCT; VENTILATOR
(B)
8-98054-379-2
01
1
1304-
●
●
192
09.262 DUCT; RAM AIR
03.417
8-98054-386-4
01
1
1012-1303
●
192
09.262 DUCT; RAM AIR
03.417
8-98054-386-4
01
1
1304-
●
●
198
09.787 CLIP; DUCT
09.264
1-09987-144-0
05
1
1012-1303
●
198
09.787 CLIP; DUCT
09.264
1-09987-144-0
05
1
1304-
●
●
274
08.852 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1012-1012
●
274
08.852 SCREW; VENT DUCT
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
02
1
1101-1212
●
274
08.852 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1301-1303
●
274
08.852 SCREW; VENT DUCT
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1304-
●
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1012-1012
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 HEXALOBULAR SOCKET
8-98177-744-0
04
1
1101-1212
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1301-1303
●
317
09.264 SCREW; DEFROSTER NOZZLE
16.090 M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1304-
●
●
477
09.786 BRACKET; DUCT
(A)
8-98091-304-0
01
1
1012-1303
●
477
09.786 BRACKET; DUCT
(A)
8-98091-304-0
01
1
1304-
●
●
477
09.786 BRACKET; DUCT
(B)
8-98164-455-0
01
1
1012-1303
●
477
09.786 BRACKET; DUCT
(B)
8-98164-455-0
01
1
1304-
●
●
