8-28 — CHASSIS ELECTRICAL (#54471) — 36 parça

çizim 175393

531 666

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1303	●
	531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1304-1402	●	●
	531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
	666	02.173 RELAY; STARTER 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC	8-98167-173-0	01	1	1012-1303	●
	666	02.173 RELAY; STARTER 4HK1-TCN ENG(RDQ) 24V 10A PANASONIC	8-98167-173-0	01	1	1304-	●	●

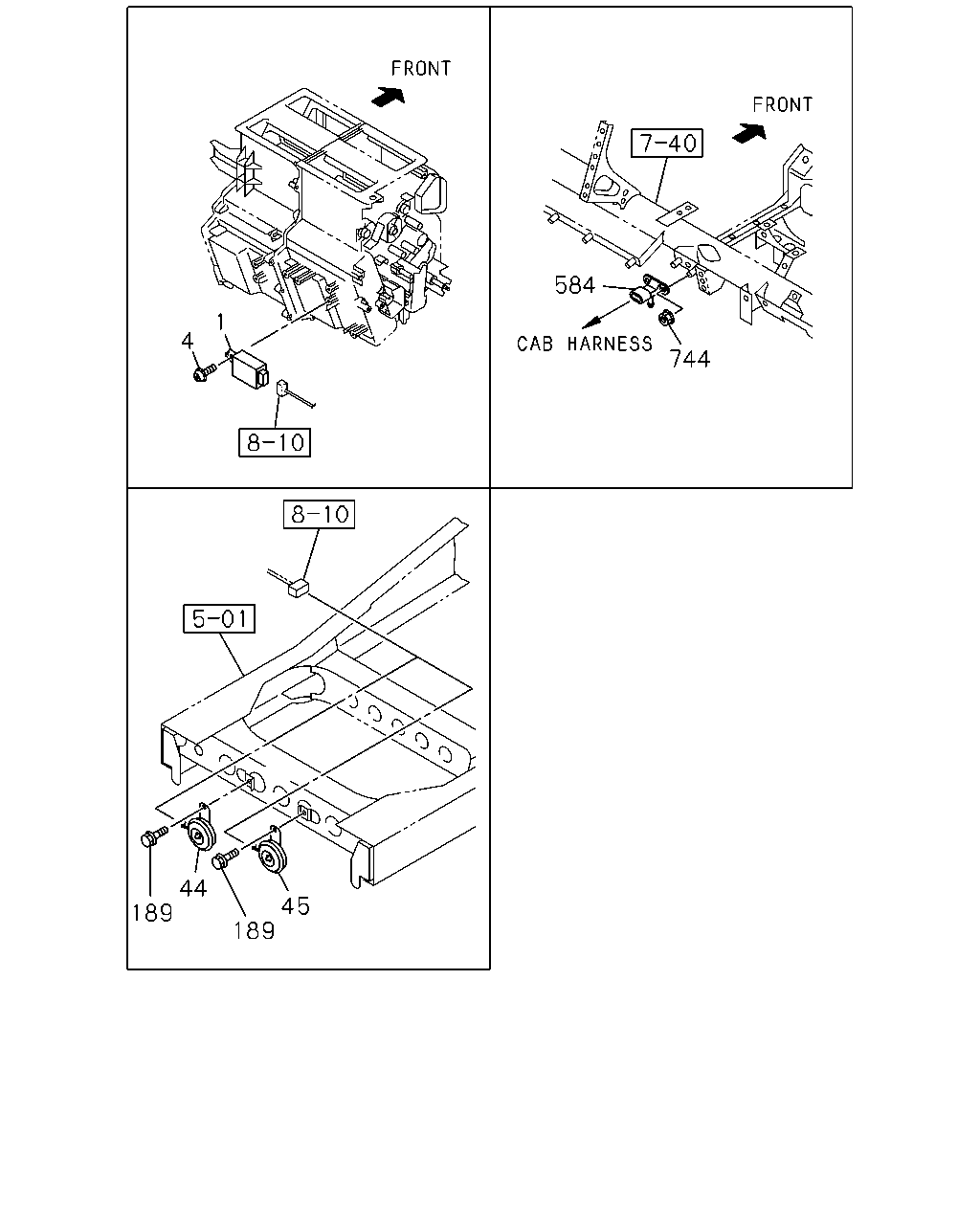

çizim 175395

584 1 4 744 44 189 45 189

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	02.575 UNIT; FLASHER	1-83470-057-0	01	1	1012-1303	●
	1	02.575 UNIT; FLASHER	1-83470-057-0	01	1	1304-	●	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1303	●
	4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1304-	●	●
	44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	1012-1303	●
	44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	1304-	●	●
	45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1012-1303	●
	45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1304-	●	●
	189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-1303	●
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-1303	●
	189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1304-	●	●
	189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1304-	●	●
	584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ) 03.331	8-98020-514-0	01	1	1012-1303	●
	584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ) 03.331	8-98020-514-0	01	1	1304-	●	●
	744	09.277 NUT; SENSOR 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-1303	●
	744	09.277 NUT; SENSOR 4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE	0-91180-106-0	02	1	1304-	●	●

çizim 175397

236

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	236	02.485 RELAY; FUEL PUMP 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●

çizim 175399

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1303	●
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●
	22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-		●

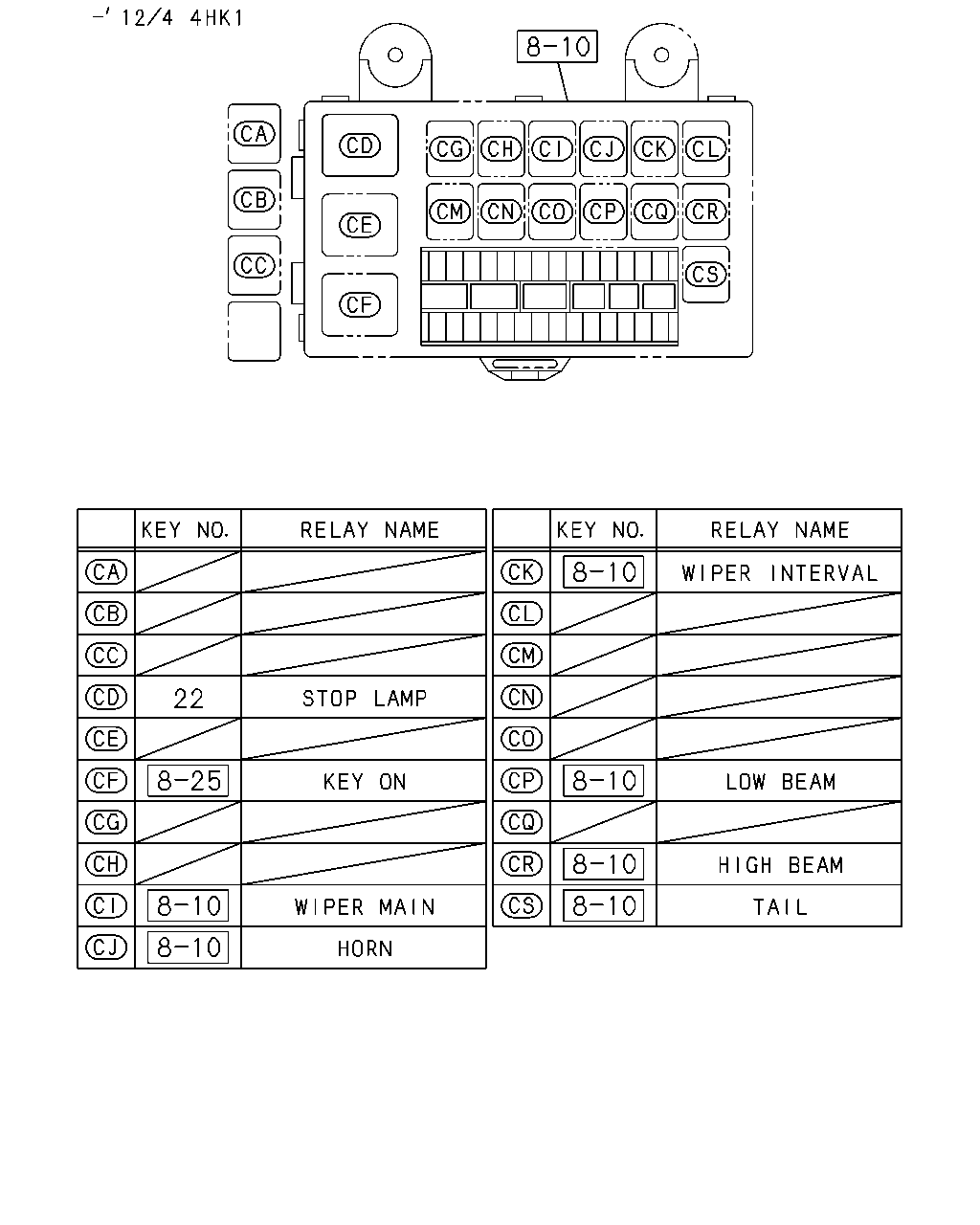

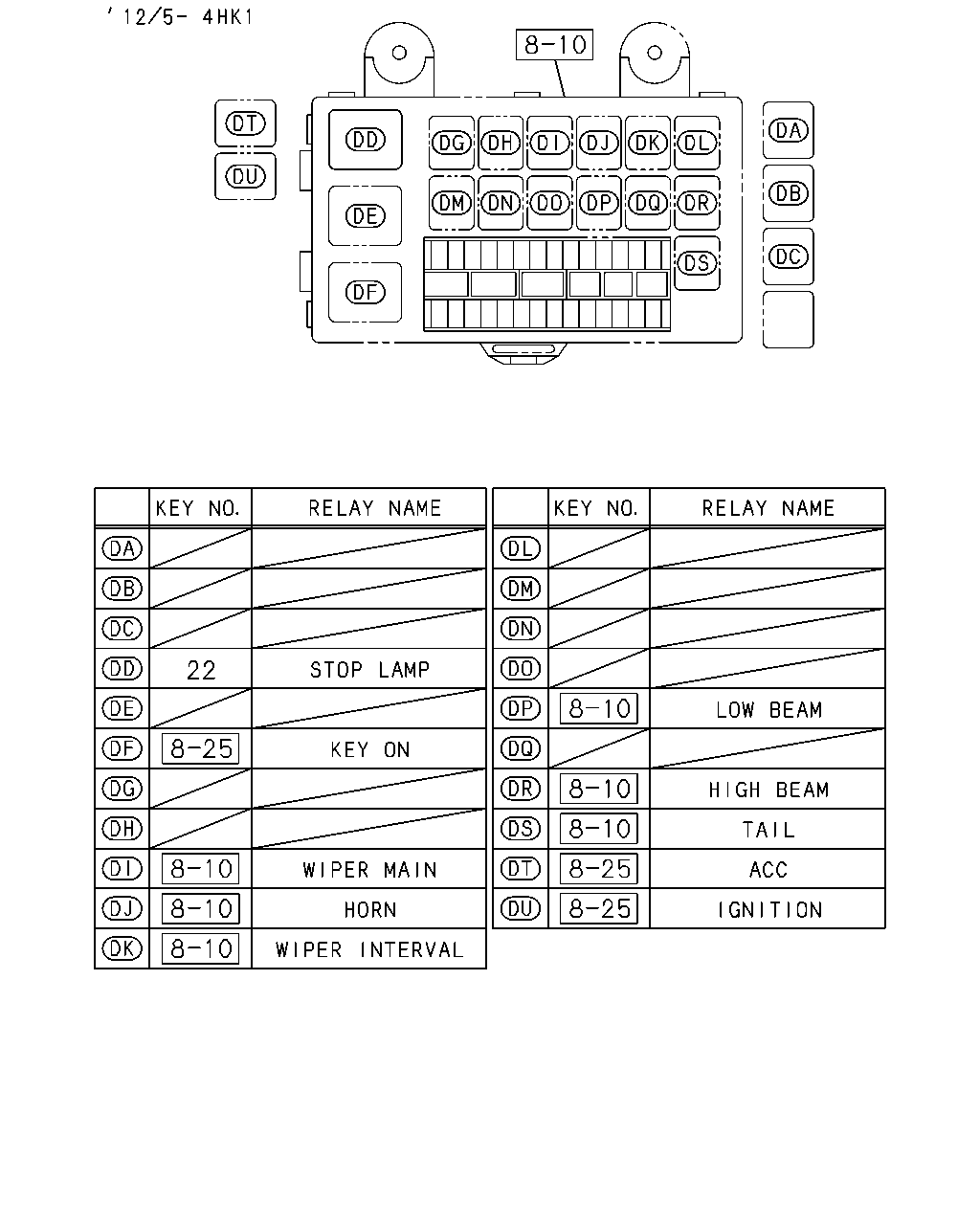

çizim 175400

22

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1303	●
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●
	22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-		●

çizim 283549

22 770 8 540

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	8	16.067 RELAY; WIPER 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1303	●
	22	02.679 RELAY; STOP LAMP 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-	●
	22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1304-		●
	540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
	770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
