◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#5447) — 509 parça

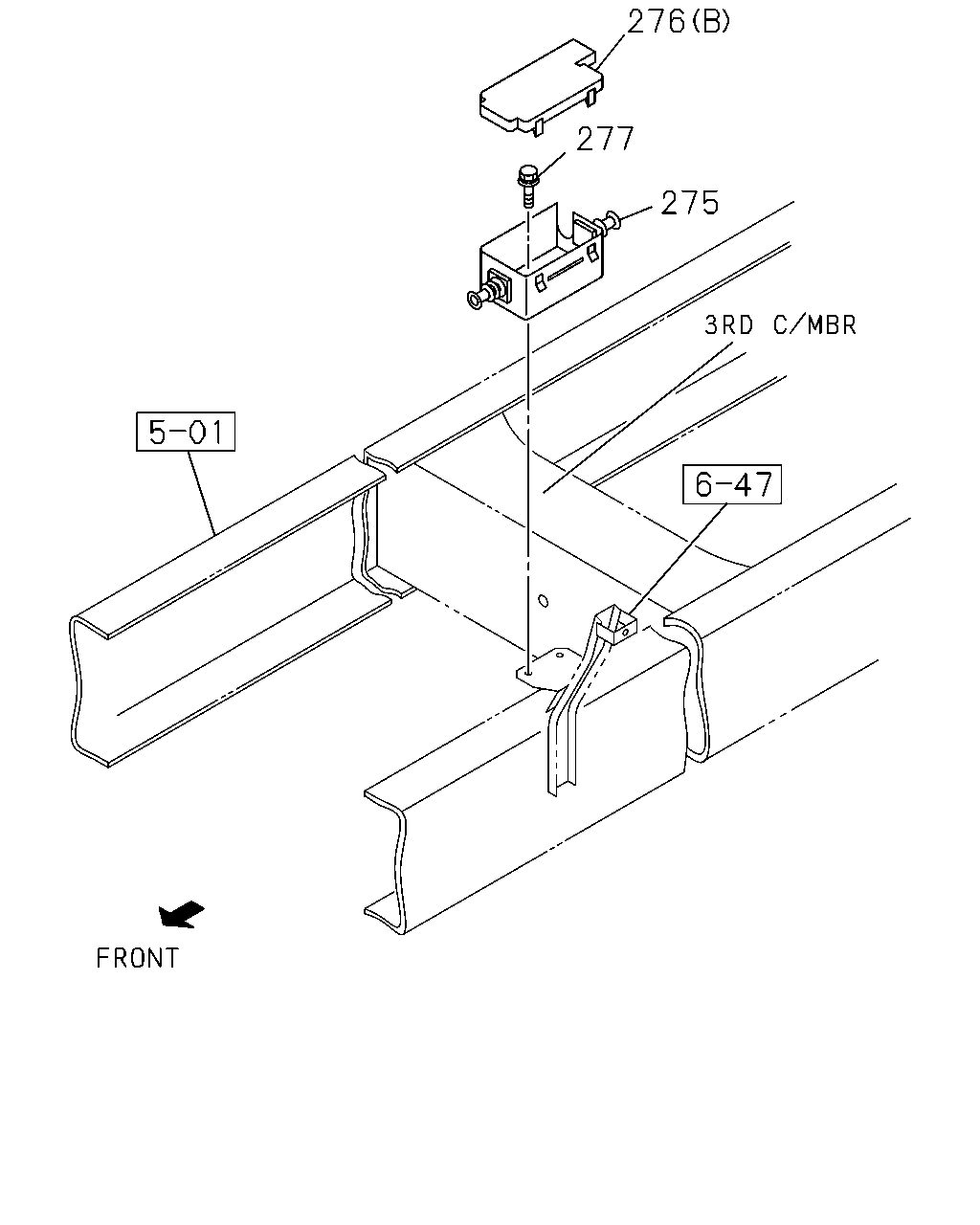

çizim 6137
276 277 275
BalonParca AdiParca NoAdetTipApplied Date
275 BOX ASM; FRAME HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> 		1-82699-474-0 01 1 9611-9904
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L) 		1-82699-474-1 01 1 9905-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 9601-
276 COVER; BOX,FRAME HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (B) 		1-82699-475-1 01 1 9611-9904
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L) (B) 		1-82699-475-2 01 1 9905-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9601-9608
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9611-9904
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9611-9904
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9905-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9905-

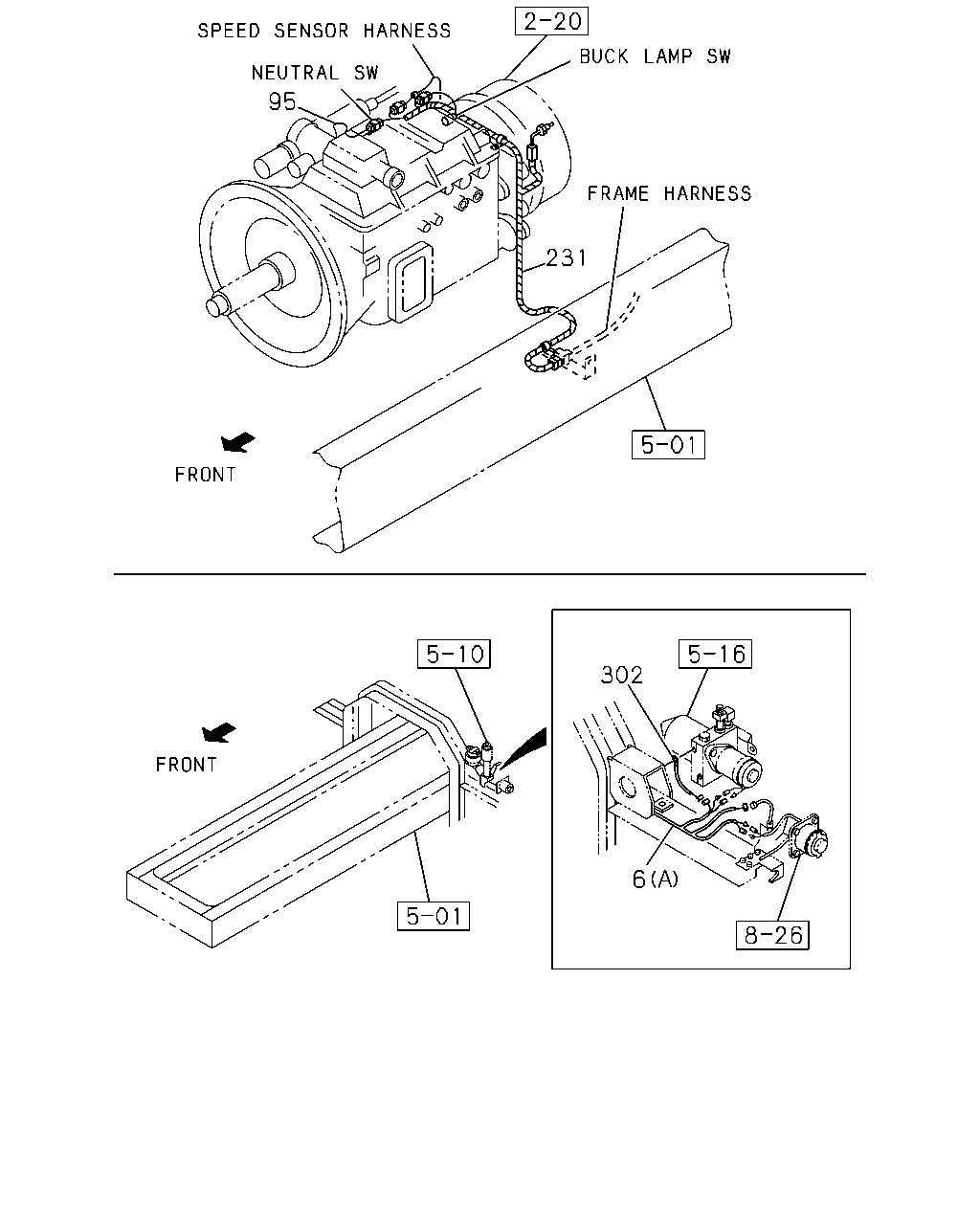

çizim 7824
95 231 302 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (A) 		1-82639-999-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> (A) 		1-82671-666-0 01 1 9905-
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (A) 		1-82639-998-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-628-3 01 1 9905-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-971-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-310-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-620-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82674-322-0 01 1 0102-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-970-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-309-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-619-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-321-0 01 1 0102-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-973-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-312-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-626-3 01 1 9905-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-972-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-311-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-625-3 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) FULL FLOATING CAB<W16> (A) 		1-82639-266-1 01 1 9601-9904
6 HARNESS; FRAME
FULL FLOATING CAB<W16> V TYPE ENG<91L> (A) 		1-82671-893-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-265-1 01 1 9601-9904
6 HARNESS; FRAME
V TYPE ENG<91L> EXC. FULL FLOATING CAB<W16> (A) 		1-82671-892-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-236-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-302-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-609-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-235-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-301-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-610-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82639-239-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82671-304-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82671-612-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-238-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-303-0 01 1 9802-9904
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-611-1 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-622-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82674-324-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-621-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-323-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB<W16> (A) 		1-82639-264-1 01 1 9601-9608
6 HARNESS; FRAME
FULL FLOATING CAB<W16> L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82639-264-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> (A) 		1-82671-899-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9601-9608
6 HARNESS; FRAME
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-898-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-242-3 01 1 9601-9609
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-242-5 01 1 9610-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) FULL FLOATING CAB<W16> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (B) 		1-82639-242-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-306-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-665-0 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-305-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-627-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82639-244-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-244-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-308-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-307-0 01 1 9802-9904
95 HARNESS; NEUTRAL SW
6WA1 TC-C(55L),6WA1 TC-S(56L) FULLER M/T<X9B> P115 PROP SHAFT<C5X> 		1-82639-626-0 01 1 9611-9904
95 HARNESS; NEUTRAL SW
L TYPE ENG<90L> TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> 		1-82639-626-0 01 1 9905-
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82638-903-3 01 1 9611-
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82638-490-2 01 1 9601-9904
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82671-661-1 01 1 9905-
302 HARNESS; POWER CAB TILT 1-82639-273-0 01 1 9601-

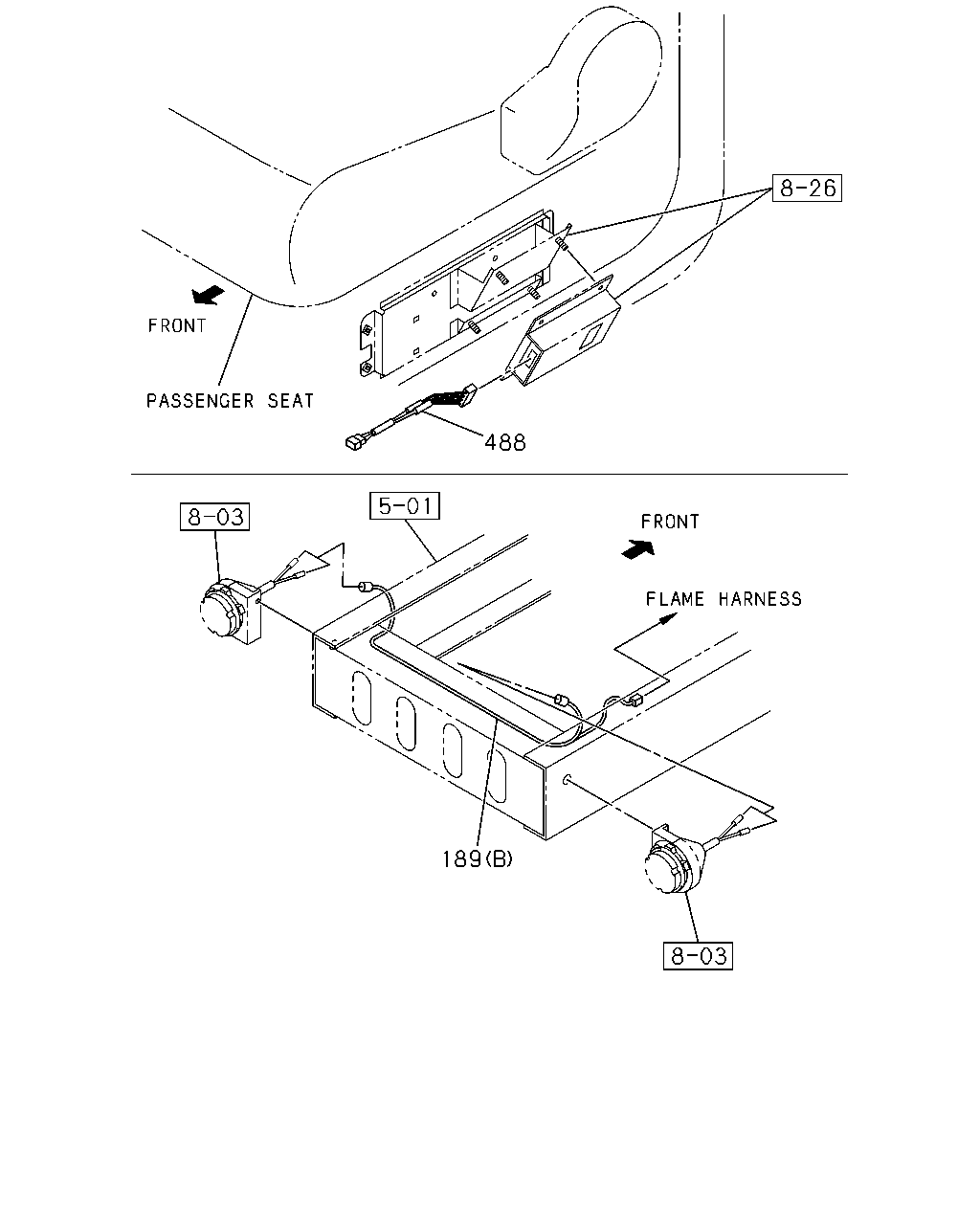

çizim 8280
488 189
BalonParca AdiParca NoAdetTipApplied Date
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) 10PE1S(60L) (A) L=890 		1-82636-373-0 01 1 9802-9904
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A) L=890 		1-82636-373-0 01 1 9905-
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) (B) 		1-82670-107-0 01 1 9612-
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-
çizim 9119
6 557
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (A) 		1-82639-999-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> (A) 		1-82671-666-0 01 1 9905-
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (A) 		1-82639-998-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-628-3 01 1 9905-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-971-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-310-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-620-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82674-322-0 01 1 0102-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-970-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-309-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-619-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-321-0 01 1 0102-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-973-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-312-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-626-3 01 1 9905-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-972-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-311-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-625-3 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) FULL FLOATING CAB<W16> (A) 		1-82639-266-1 01 1 9601-9904
6 HARNESS; FRAME
FULL FLOATING CAB<W16> V TYPE ENG<91L> (A) 		1-82671-893-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-265-1 01 1 9601-9904
6 HARNESS; FRAME
V TYPE ENG<91L> EXC. FULL FLOATING CAB<W16> (A) 		1-82671-892-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-236-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-302-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-609-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-235-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-301-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-610-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82639-239-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82671-304-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82671-612-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-238-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-303-0 01 1 9802-9904
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-611-1 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-622-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82674-324-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-621-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-323-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB<W16> (A) 		1-82639-264-1 01 1 9601-9608
6 HARNESS; FRAME
FULL FLOATING CAB<W16> L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82639-264-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> (A) 		1-82671-899-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9601-9608
6 HARNESS; FRAME
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-898-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-242-3 01 1 9601-9609
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-242-5 01 1 9610-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) FULL FLOATING CAB<W16> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (B) 		1-82639-242-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-306-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-665-0 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-305-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-627-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82639-244-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-244-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-308-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-307-0 01 1 9802-9904
557 HARNESS; TR,BOARD
TR BOARD SIDE 		1-82639-271-1 01 1 9601-

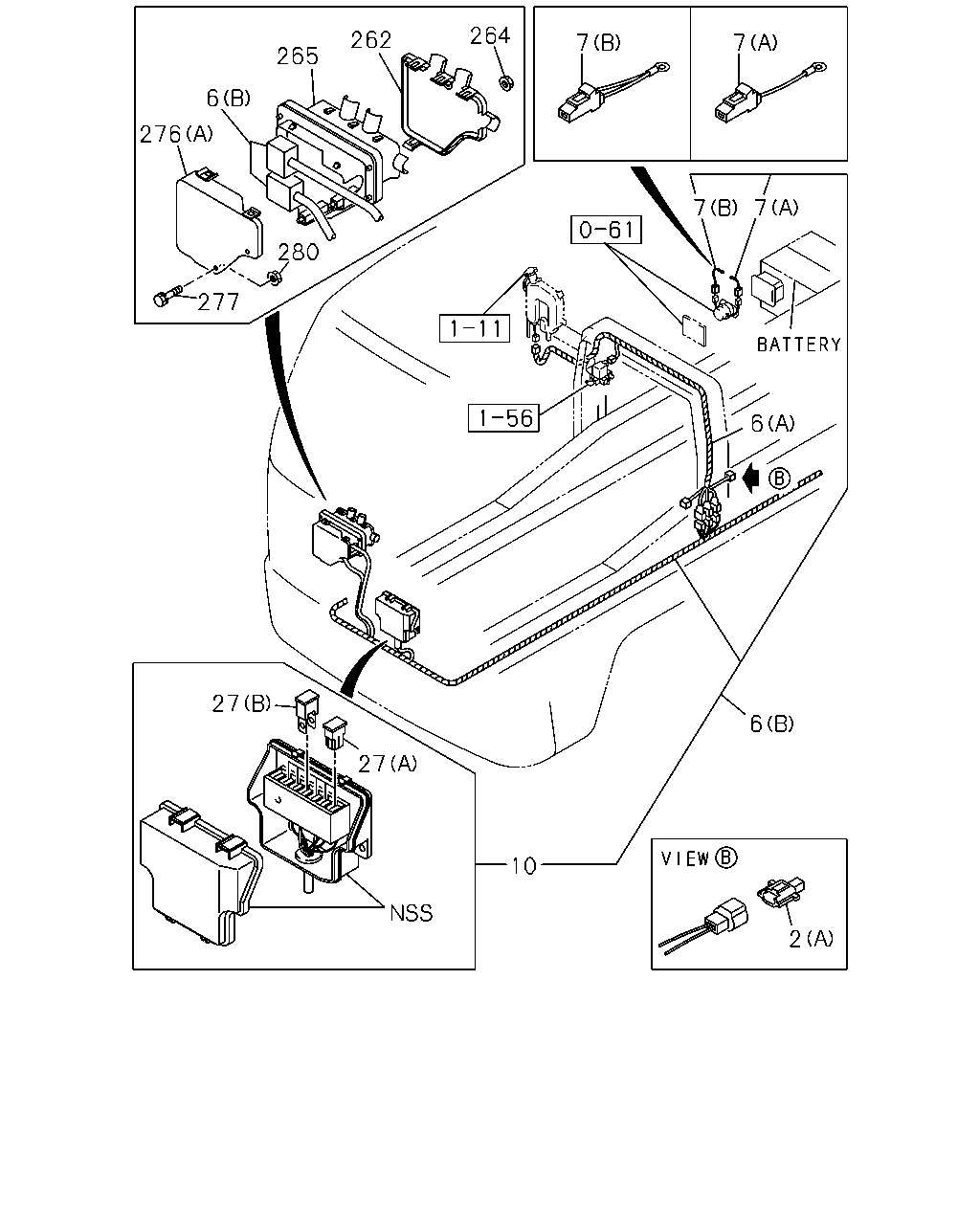

çizim 39137
264 262 7 7 265 6 276 7 7 280 277 6 27 6 27 10 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9601-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9601-
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (A) 		1-82639-999-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> (A) 		1-82671-666-0 01 1 9905-
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (A) 		1-82639-998-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-628-3 01 1 9905-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-971-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-310-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-620-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82674-322-0 01 1 0102-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-970-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-309-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-619-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-321-0 01 1 0102-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-973-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-312-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-626-3 01 1 9905-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-972-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-311-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-625-3 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) FULL FLOATING CAB<W16> (A) 		1-82639-266-1 01 1 9601-9904
6 HARNESS; FRAME
FULL FLOATING CAB<W16> V TYPE ENG<91L> (A) 		1-82671-893-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-265-1 01 1 9601-9904
6 HARNESS; FRAME
V TYPE ENG<91L> EXC. FULL FLOATING CAB<W16> (A) 		1-82671-892-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-236-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-302-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-609-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-235-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-301-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-610-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82639-239-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82671-304-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82671-612-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-238-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-303-0 01 1 9802-9904
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-611-1 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-622-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82674-324-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-621-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-323-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB<W16> (A) 		1-82639-264-1 01 1 9601-9608
6 HARNESS; FRAME
FULL FLOATING CAB<W16> L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82639-264-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> (A) 		1-82671-899-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9601-9608
6 HARNESS; FRAME
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-898-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-242-3 01 1 9601-9609
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-242-5 01 1 9610-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) FULL FLOATING CAB<W16> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (B) 		1-82639-242-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-306-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-665-0 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-305-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-627-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82639-244-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-244-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-308-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-307-0 01 1 9802-9904
7 LINK ASM; FUSIBLE
(B) 		1-82659-085-0 01 1 9601-
7 LINK ASM; FUSIBLE
(A) 60A BLUE 		1-82659-119-0 01 1 9601-
10 BOX; FUSE,HARNESS 1-82510-369-0 01 1 9601-9609
10 BOX; FUSE,HARNESS 1-82510-466-0 01 1 9610-
27 FUSE UNIT
(A) 40A GREEN 		8-94468-662-0 05 1 9601-
27 FUSE UNIT
(B) 60A YELLOW 		8-94468-669-0 01 1 9601-9609
27 FUSE UNIT
(B) 80A BLACK 		8-94468-671-0 01 1 9610-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 9601-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 9601-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 9601-
276 COVER; BOX,FRAME HARNESS
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> (B) 		1-82699-475-1 01 1 9611-9904
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L) (B) 		1-82699-475-2 01 1 9905-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9601-9608
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9611-9904
277 BOLT; BOX ASM FIX
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9611-9904
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9905-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9905-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9601-

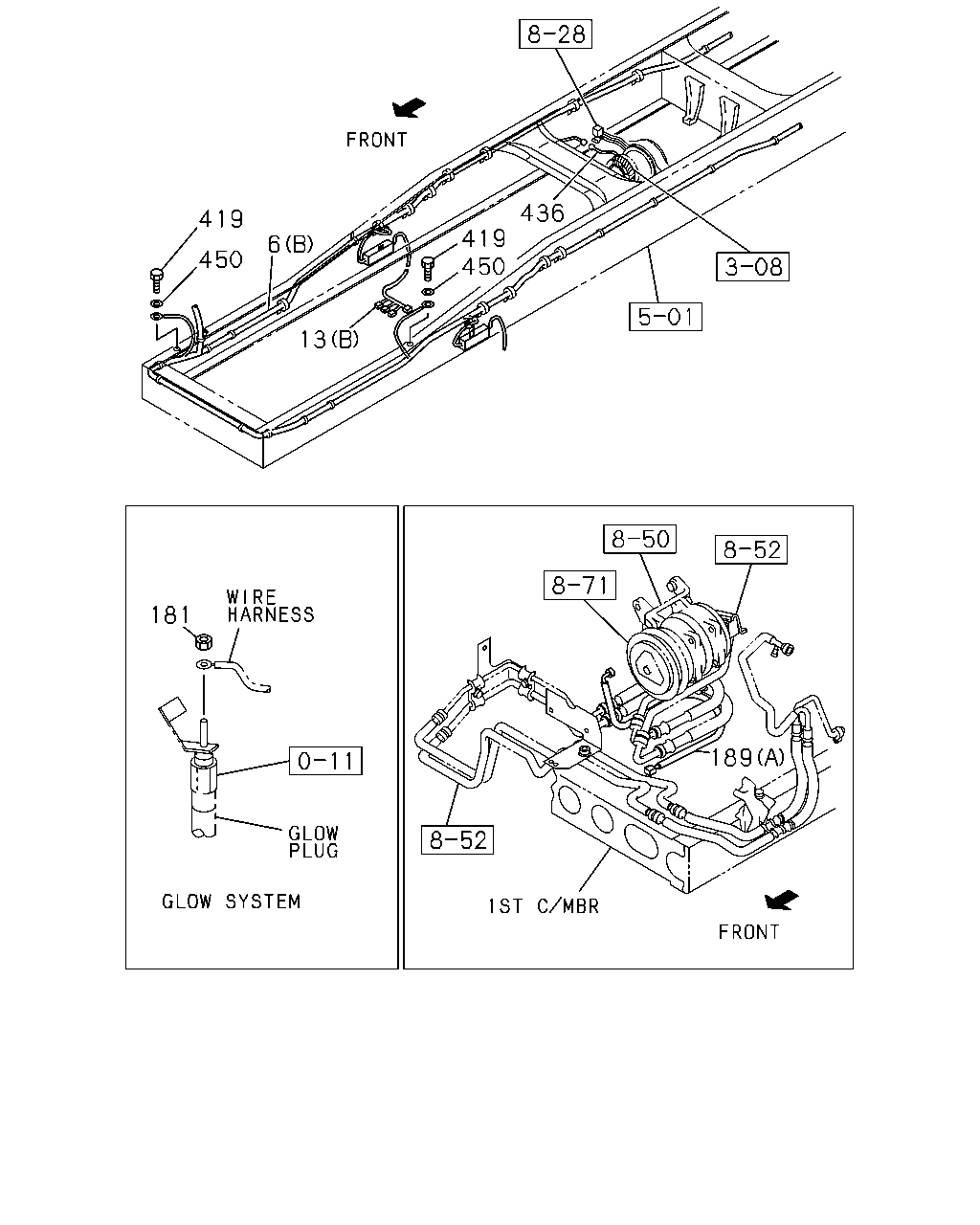

çizim 39169
436 419 419 450 6 450 13 181 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (A) 		1-82639-999-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> (A) 		1-82671-666-0 01 1 9905-
6 HARNESS; FRAME
ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (A) 		1-82639-998-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-628-3 01 1 9905-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-971-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-310-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-620-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82674-322-0 01 1 0102-
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-970-1 01 1 9611-9801
6 HARNESS; FRAME
MJA7U M/T(X6G),MJA6A M/T(X6V) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-309-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-619-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-321-0 01 1 0102-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82639-973-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) FULL FLOATING CAB<W16> L TYPE ENG<90L> (B) 		1-82671-312-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB<W16> ISUZU M/T<X9A>,FULLER M/T<X9B> (B) 		1-82671-626-3 01 1 9905-
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-972-1 01 1 9611-9801
6 HARNESS; FRAME
TRANSMISSION-ZF 16S151 OD(Y2N) ELECTRONIC GOV RED3(KG5) L TYPE ENG<90L> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-311-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-625-3 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) FULL FLOATING CAB<W16> (A) 		1-82639-266-1 01 1 9601-9904
6 HARNESS; FRAME
FULL FLOATING CAB<W16> V TYPE ENG<91L> (A) 		1-82671-893-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-265-1 01 1 9601-9904
6 HARNESS; FRAME
V TYPE ENG<91L> EXC. FULL FLOATING CAB<W16> (A) 		1-82671-892-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-236-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-302-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-609-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-235-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-301-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82671-610-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82639-239-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> (B) 		1-82671-304-0 01 1 9802-9904
6 HARNESS; FRAME
V TYPE ENG<91L> ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82671-612-1 01 1 9905-
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-238-6 01 1 9601-9801
6 HARNESS; FRAME
10PE1S(60L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-303-0 01 1 9802-9904
6 HARNESS; FRAME
10PE1S(60L),10PE1N(61L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-611-1 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) FULL FLOATING CAB<W16> (B) 		1-82639-246-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82671-622-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> ZF M/T<X9E> (B) 		1-82674-324-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-6 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-FULLER RTL0147 13 OD(Y2P) EXC. FULL FLOATING CAB<W16> (B) 		1-82639-245-7 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-621-3 01 1 9905-0101
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82674-323-0 01 1 0102-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB<W16> (A) 		1-82639-264-1 01 1 9601-9608
6 HARNESS; FRAME
FULL FLOATING CAB<W16> L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82639-264-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) FULL FLOATING CAB<W16> (A) 		1-82671-899-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9601-9608
6 HARNESS; FRAME
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (A) 		1-82639-263-1 01 1 9611-9904
6 HARNESS; FRAME
6WA1 TC-N(54L),6WA1 TC-R(93L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-898-2 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> (B) 		1-82639-242-3 01 1 9601-9609
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-242-5 01 1 9610-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) FULL FLOATING CAB<W16> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (B) 		1-82639-242-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-306-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. FULL FLOATING CAB<W16> (A) 		1-82671-665-0 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9611-9705
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-241-5 01 1 9706-9801
6 HARNESS; FRAME
6WA1 TC-S(56L) ISUZU M/T<X9A> EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-305-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-C(55L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82671-627-3 01 1 9905-
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> FULL FLOATING CAB<W16> (B) 		1-82639-244-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82639-244-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) FULL FLOATING CAB<W16> EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82671-308-0 01 1 9802-9904
6 HARNESS; FRAME
6WA1 TC-S(56L) ZF M/T<X9E> EXC. FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9601-9610
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82639-243-5 01 1 9611-9801
6 HARNESS; FRAME
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. ELECTRONIC GOV RED3(KG5),FULL FLOATING CAB<W16> (B) 		1-82671-307-0 01 1 9802-9904
13 HARNESS; ENG
L TYPE ENG<90L> (B) 		1-82639-272-0 01 1 9601-9603
13 HARNESS; ENG
L TYPE ENG<90L> (A) 		1-82640-746-2 01 1 9601-9904
13 HARNESS; ENG
L TYPE ENG<90L> (A) 		1-82640-553-4 01 1 9905-
181 NUT; GLOW PLUG HARNESS
6WA1 TC-S(56L) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE 		5-09440-007-0 01 1 9601-9603
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) 10PE1S(60L) (A) L=890 		1-82636-373-0 01 1 9802-9904
189 HARNESS; EXT
AIR CONDITIONER MANUAL CONTROL(C60) V TYPE ENG<91L> (A) L=890 		1-82636-373-0 01 1 9905-
189 HARNESS; EXT
SINGAPORE EQUIPMENT(WQ3) (B) 		1-82670-107-0 01 1 9612-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9601-
436 HARNESS; RETARDER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-82671-549-2 01 1 9905-9907
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 9601-

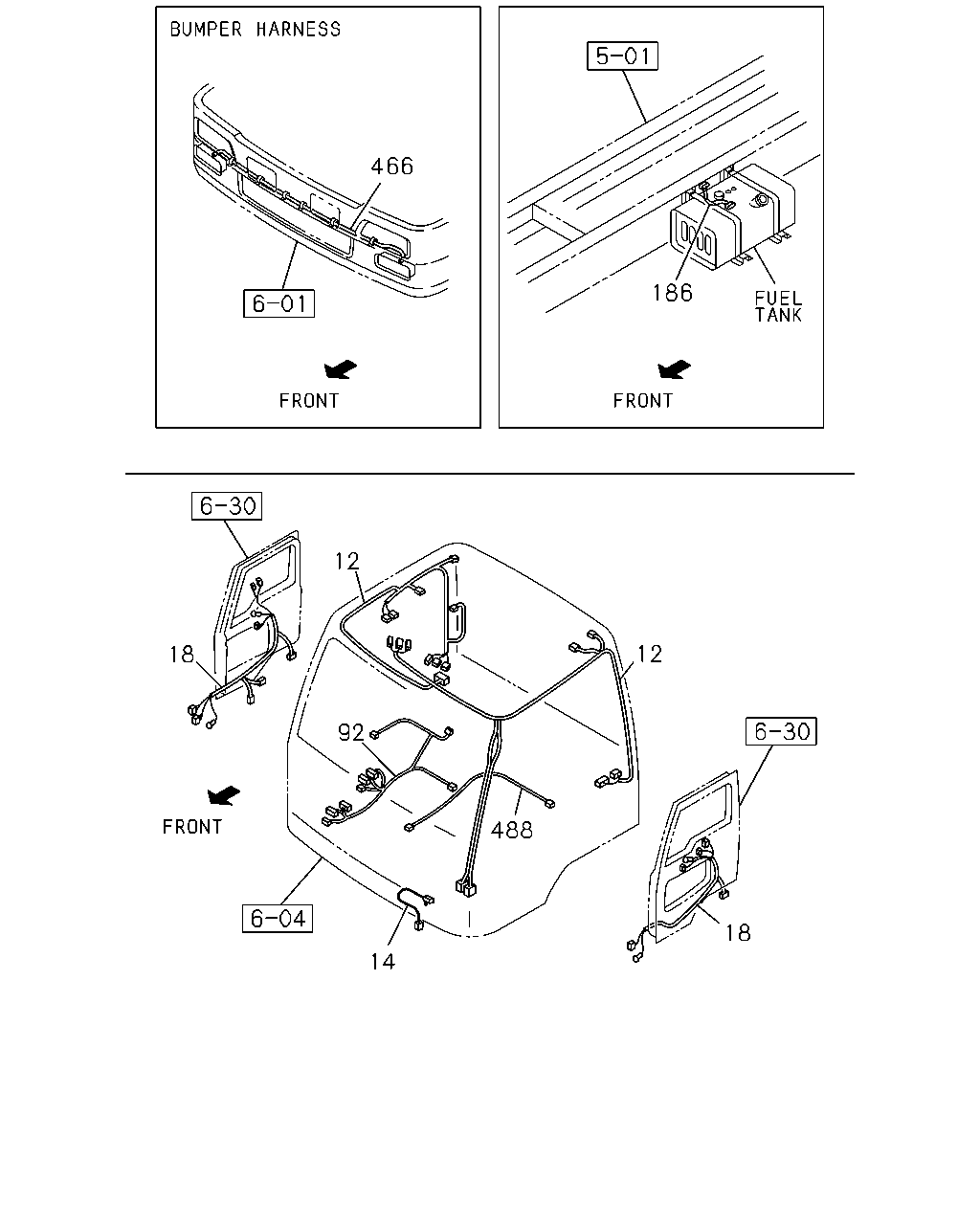

çizim 40687
466 186 12 12 18 92 488 18 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82625-980-4 01 1 9601-9904
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-105-0 01 1 9905-
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82625-984-2 01 1 9601-9904
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-101-3 01 1 9905-9909
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> PASSENGER SIDE 		1-82628-101-3 01 1 9910-
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82628-097-3 01 1 9905-9909
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F> PASSENGER SIDE 		1-82628-097-3 01 1 9910-
12 HARNESS; ROOF
EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82625-983-1 01 1 9601-9610
12 HARNESS; ROOF
EXC. LAMPS FOUR ROOF MARKER<PJ5>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82625-983-1 01 1 9611-9904
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-104-2 01 1 9905-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE 		1-82629-312-0 01 1 9910-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82629-314-0 01 1 9910-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82629-315-0 01 1 9910-
12 HARNESS; ROOF
LAMP-ROOM OPERATION W/CONSOLE<C93> LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82629-313-0 01 1 9910-
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82625-982-2 01 1 9611-9904
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 9905-9909
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-103-3 01 1 9910-
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-099-2 01 1 9905-9909
12 HARNESS; ROOF
LAMPS FOUR ROOF MARKER<PJ5> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-099-2 01 1 9910-
12 HARNESS; ROOF
EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F>, AUTO ROUND CURTAIN<TAR> PASSENGER SIDE 		1-82628-100-1 01 1 9905-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> DRIVER SIDE 		1-82628-107-0 01 1 9905-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82638-450-3 02 1 9601-9609
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82670-022-2 02 1 9610-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 9601-9904
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB> 		1-82625-150-2 02 1 9905-
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> 		1-82625-986-0 02 1 9601-9904
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82625-799-0 01 1 9601-9610
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82626-790-0 01 1 9611-9904
18 HARNESS; DOOR
POWER WINDOW<A30> 		1-82628-588-0 01 1 9905-
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82625-493-1 01 1 9601-9610
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82626-776-0 01 1 9611-9904
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-673-0 01 1 9905-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82625-722-1 01 1 9601-9610
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82626-786-0 01 1 9611-9904
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-82628-582-0 01 1 9905-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82625-719-2 01 1 9601-9610
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82626-785-0 01 1 9611-9904
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-581-0 01 1 9905-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82625-800-0 01 1 9601-9610
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82626-791-0 01 1 9611-9904
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> 		1-82628-589-0 01 1 9905-
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> 		1-82625-976-2 01 1 9601-9904
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82628-117-2 01 1 9905-9909
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82629-330-0 01 1 9910-
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82628-113-0 01 1 9905-9909
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82629-328-0 01 1 9910-
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR> 		1-82625-977-2 01 1 9601-9904
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82628-118-2 01 1 9905-9909
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82629-331-0 01 1 9910-
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82628-114-0 01 1 9905-9906
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82629-055-0 01 1 9907-9909
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82629-329-0 01 1 9910-
92 HARNESS; FLOOR
LAMP-ROOM OPERATION W/CONSOLE<C93> 		1-82625-261-5 01 1 9910-
186 HARNESS; FUEL TANK
L=350 		1-82657-064-0 01 1 9603-9704
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 9601-9904
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 9601-9904
466 HARNESS; BUMPER 1-82639-281-0 01 1 9905-
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-

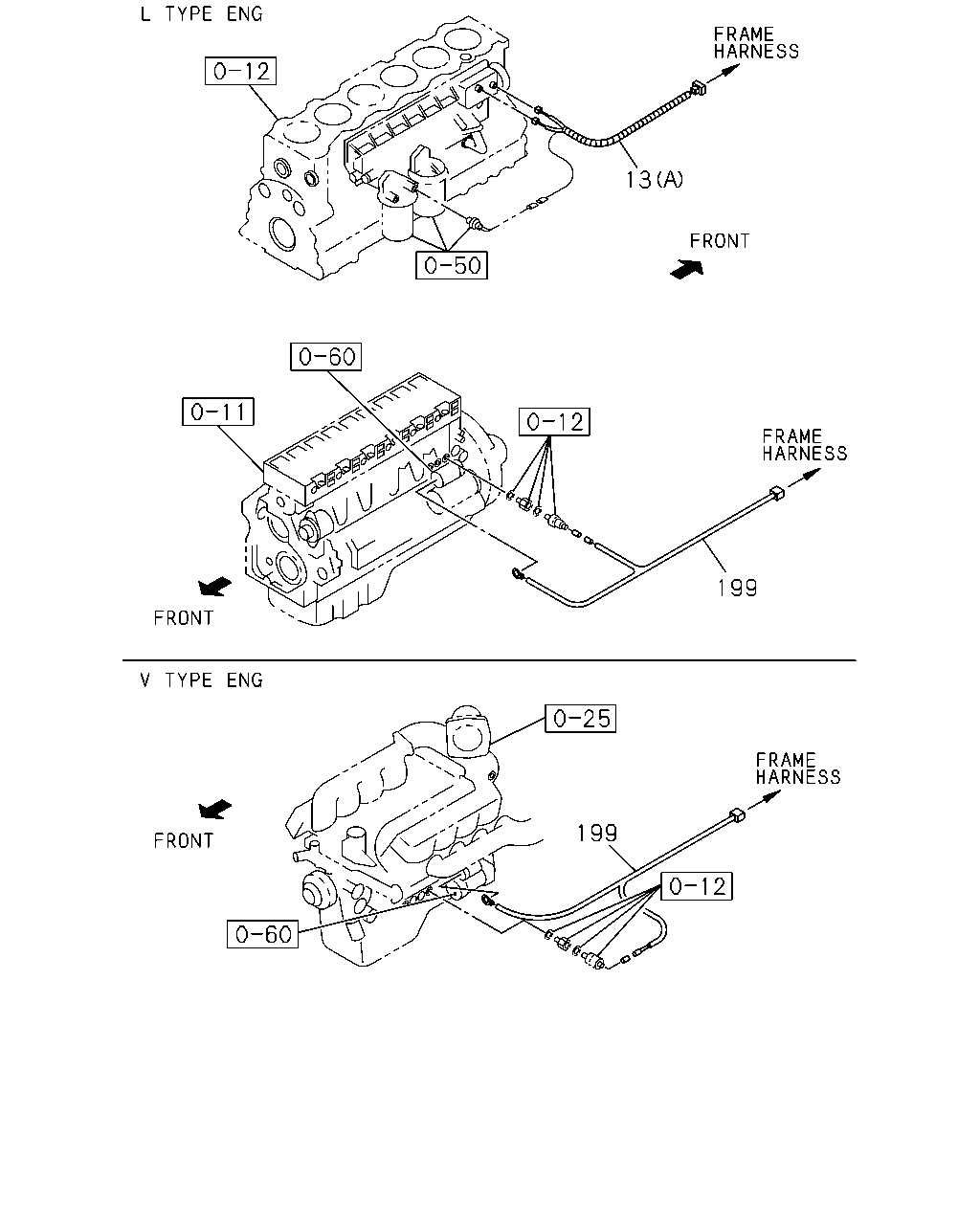

çizim 40903
13 199 199
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
L TYPE ENG<90L> (B) 		1-82639-272-0 01 1 9601-9603
13 HARNESS; ENG
L TYPE ENG<90L> (A) 		1-82640-746-2 01 1 9601-9904
13 HARNESS; ENG
L TYPE ENG<90L> (A) 		1-82640-553-4 01 1 9905-
199 HARNESS; STARTER
L TYPE ENG<90L> 		1-82640-734-0 01 1 9601-
199 HARNESS; STARTER
V TYPE ENG<91L> 		1-82640-733-1 01 1 9601-

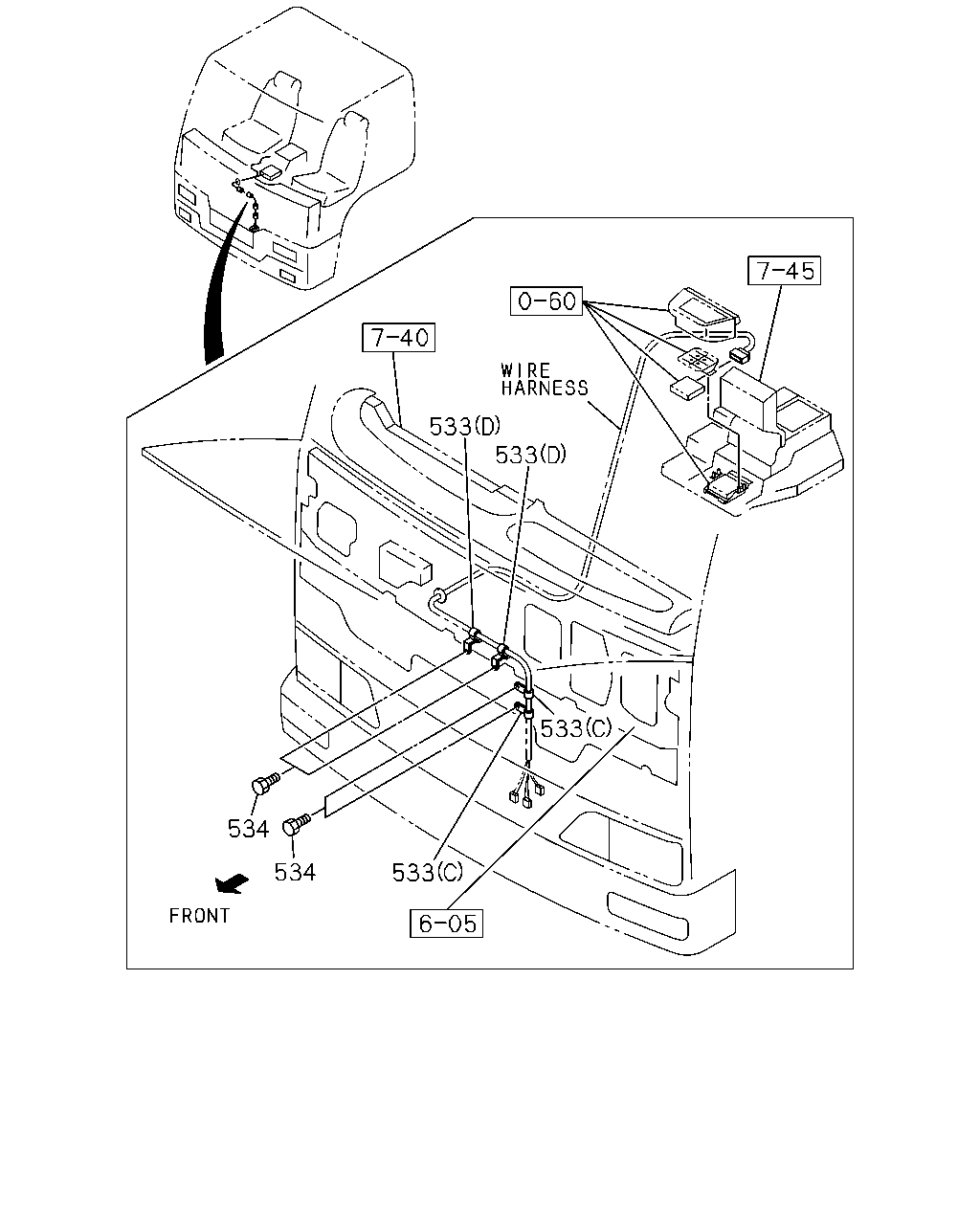

çizim 41917
533 533 533 534 534 533
BalonParca AdiParca NoAdetTipApplied Date
533 CLIP
ELECTRONIC GOV RED3(KG5) (B) ID=19 L=32 		1-09701-235-0 01 1 9611-9904
533 CLIP
6WA1 TC-C(55L) (B) ID=19 L=32 		1-09701-235-0 01 1 9905-
533 CLIP
ELECTRONIC GOV RED3(KG5) (A) L=140 		5-09707-031-0 03 1 9611-9611
533 CLIP
ELECTRONIC GOV RED3(KG5) (A) L=250 		5-09707-030-1 03 1 9612-9904
533 CLIP
6WA1 TC-C(55L) (A) L=250 		5-09707-030-1 03 1 9905-
533 CLIP
10PE1S(60L) (D) 		1-09701-234-0 02 1 9601-9601
533 CLIP
10PE1S(60L) (C) ID=19 L=32 		1-09701-235-0 02 1 9601-9601
533 CLIP
6WA1 TC-S(56L) (D) 		1-09701-233-0 02 1 9601-9601
533 CLIP
6WA1 TC-S(56L) (C) ID=32 L=35 		1-09701-237-0 02 1 9601-9601
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9601-9601

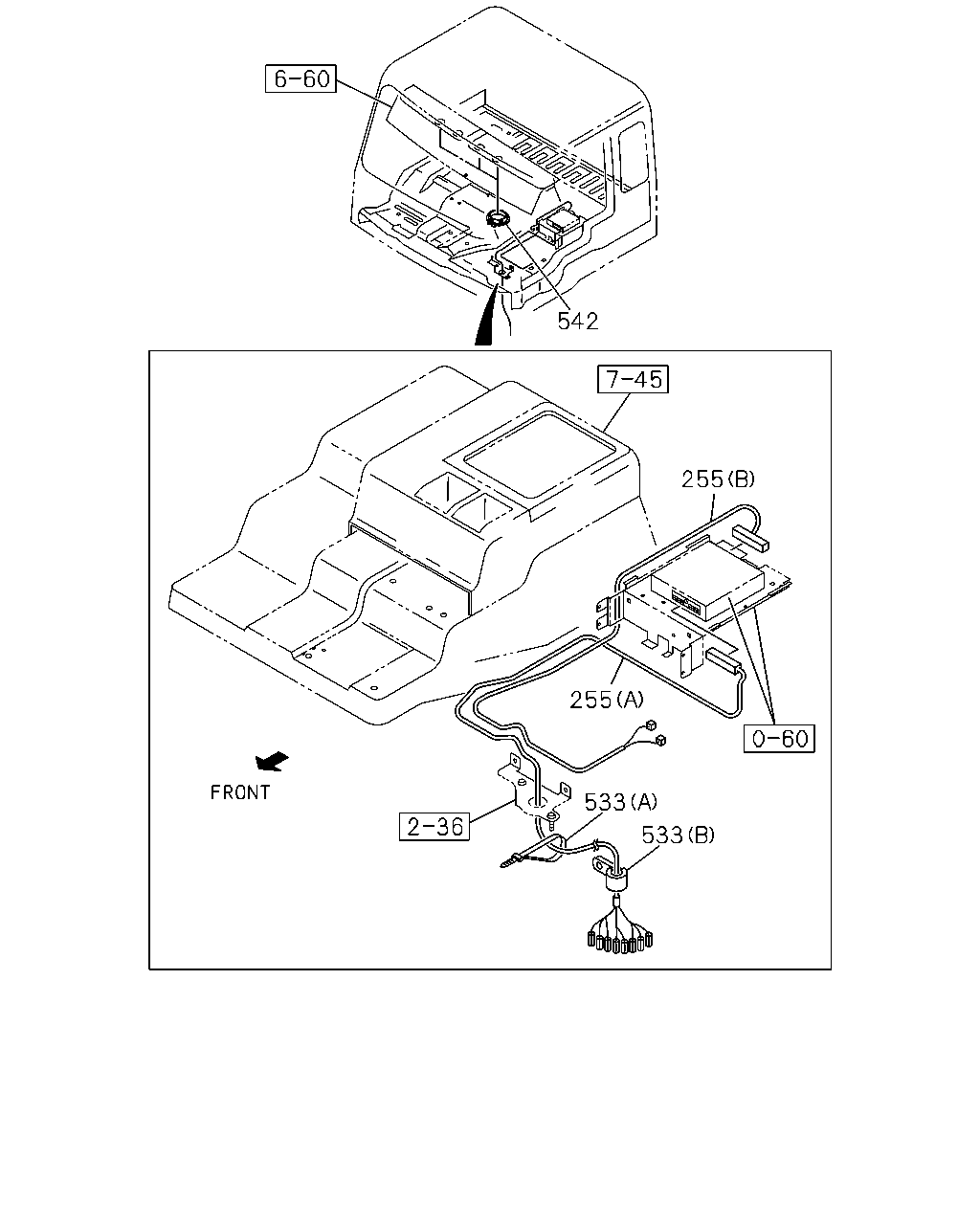

çizim 42462
542 255 255 533 533
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (A) 		1-82626-650-1 01 1 9611-9904
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (A) 		1-82628-063-2 01 1 9905-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) (B) 		1-82626-653-2 01 1 9611-9904
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) 		1-82628-091-2 01 1 9905-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) 		1-82660-218-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (A) 		1-82660-208-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82628-060-3 01 1 9905-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-090-1 01 1 9905-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-214-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82660-202-0 01 1 0102-
533 CLIP
ELECTRONIC GOV RED3(KG5) (B) ID=19 L=32 		1-09701-235-0 01 1 9611-9904
533 CLIP
6WA1 TC-C(55L) (B) ID=19 L=32 		1-09701-235-0 01 1 9905-
533 CLIP
ELECTRONIC GOV RED3(KG5) (A) L=140 		5-09707-031-0 03 1 9611-9611
533 CLIP
ELECTRONIC GOV RED3(KG5) (A) L=250 		5-09707-030-1 03 1 9612-9904
533 CLIP
6WA1 TC-C(55L) (A) L=250 		5-09707-030-1 03 1 9905-
533 CLIP
10PE1S(60L) (D) 		1-09701-234-0 02 1 9601-9601
533 CLIP
10PE1S(60L) (C) ID=19 L=32 		1-09701-235-0 02 1 9601-9601
533 CLIP
6WA1 TC-S(56L) (D) 		1-09701-233-0 02 1 9601-9601
533 CLIP
6WA1 TC-S(56L) (C) ID=32 L=35 		1-09701-237-0 02 1 9601-9601
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 9905-

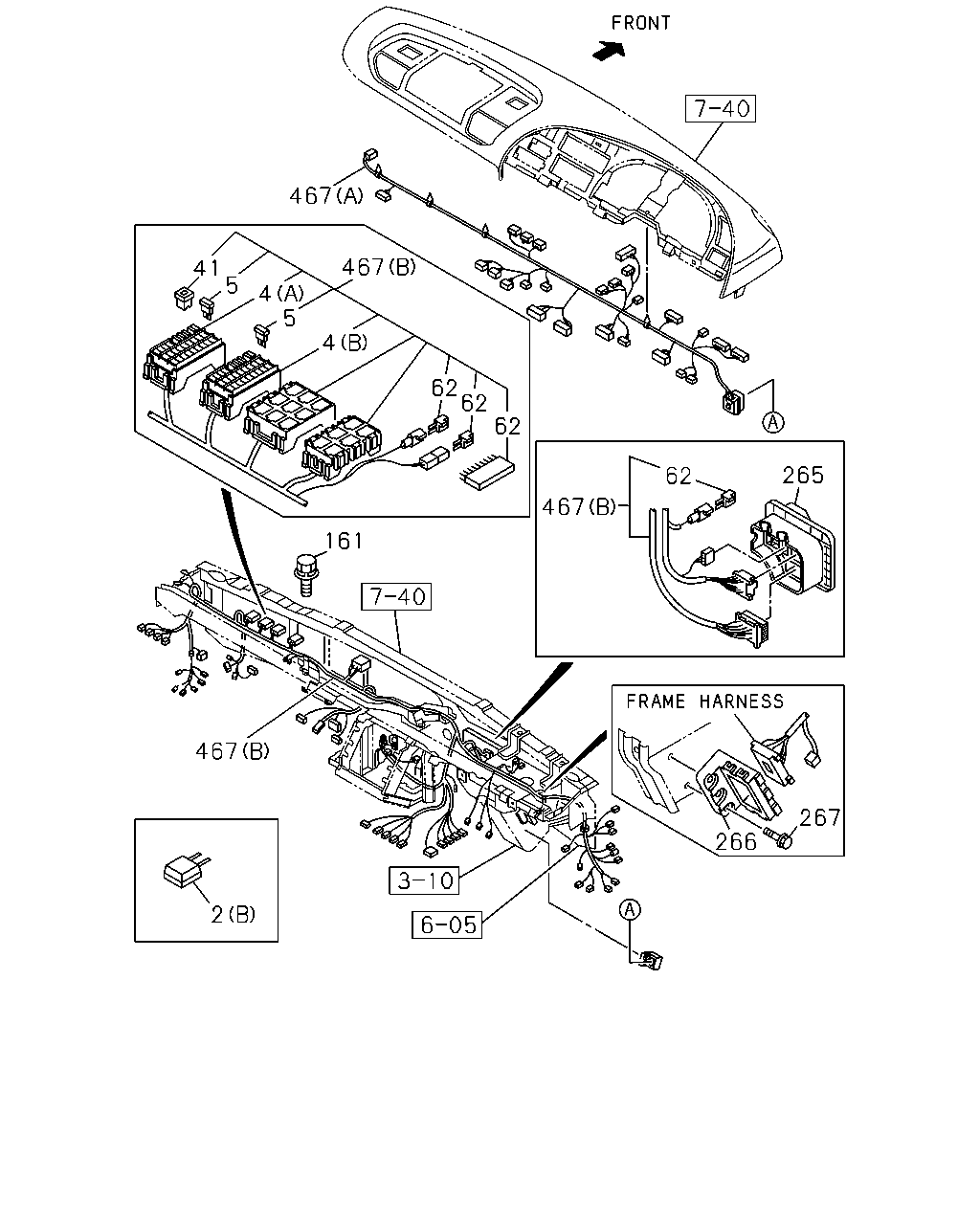

çizim 42608
467 467 41 5 4 5 4 62 62 62 265 62 467 161 467 267 266 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9601-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9601-
4 BOX ASM; FUSE,HARNESS
(B) 7.5AX17 		1-82510-393-0 01 1 9601-9609
4 BOX ASM; FUSE,HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (B) 7.5AX17 		1-82510-393-0 01 1 9610-9610
4 BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) 7.5AX17 		1-82510-393-0 01 1 9611-9801
4 BOX ASM; FUSE,HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (B) 7.5AX17 		1-82510-393-0 01 1 9611-9801
4 BOX ASM; FUSE,HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (B) 7.5AX17 		1-82510-393-0 01 1 9802-9904
4 BOX ASM; FUSE,HARNESS
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) (B) 7.5AX17 		1-82510-393-0 01 1 9905-
4 BOX ASM; FUSE,HARNESS
(A) 15AX19 		1-82510-436-0 01 1 9601-9609
4 BOX ASM; FUSE,HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX19 		1-82510-436-0 01 1 9610-9610
4 BOX ASM; FUSE,HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (A) 15AX19 		1-82510-436-0 01 1 9611-9611
4 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) (A) 15AX20 		1-82510-405-0 01 1 9610-9610
4 BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) 15AX20 		1-82510-405-0 01 1 9611-9611
4 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) (A) 15AX20 		1-82510-405-0 01 1 9611-9611
4 BOX ASM; FUSE,HARNESS
(A) 15AX20 		1-82510-405-0 01 1 9612-9708
4 BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) 15AX20 		1-82510-405-0 01 1 9709-9801
4 BOX ASM; FUSE,HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5) (A) 15AX20 		1-82510-405-0 01 1 9709-9801
4 BOX ASM; FUSE,HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (A) 15AX20 		1-82510-405-0 01 1 9802-9904
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (A) 15AX22 		1-82510-394-0 01 1 9905-
4 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) (B) 7.5AX20 		1-82510-410-0 01 1 9611-9611
4 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) (B) 7.5AX21 		1-82510-420-0 01 1 9612-9904
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) 7.5AX21 		1-82510-420-0 01 1 9905-
4 BOX ASM; FUSE,HARNESS
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) (A) 15AX21 		1-82510-396-0 01 1 9709-9904
4 BOX ASM; FUSE,HARNESS
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) (A) 15AX21 		1-82510-396-0 01 1 9905-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 7.5AX20 		1-82510-410-0 01 1 9905-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX23 20AX3 		1-82510-546-0 01 1 9905-0101
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX23 25AX2 		1-82510-575-0 01 1 0102-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9601-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9601-
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9905-
5 FUSE; FACIA HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 25A CLEAR 		5-82516-005-0 AR 1 0102-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9601-
62 DIODE; HARNESS
10P BROWN 		1-82699-601-0 AR 1 9601-
62 DIODE; HARNESS
BLACK 10P 		1-82699-703-0 AR 1 9601-
62 DIODE; HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 9709-
62 DIODE; HARNESS
BLACK 3P-1.5A 		8-94416-438-1 AR 1 0102-
161 BOLT; GROUND,HARNESS
WASHER MOTOR SIDE M6X16 W/LK&PL WASHER 		1-09981-375-0 01 1 9601-9604
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 9601-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9601-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9601-
467 HARNESS; FACIA
(A) UPPER 		1-82625-974-5 01 1 9601-9904
467 HARNESS; FACIA
(A) UPPER 		1-82628-111-3 01 1 9905-9909
467 HARNESS; FACIA
(A) UPPER 		1-82629-327-0 01 1 9910-
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) CORNARING LAMP<TDS> (B) LOWER 		1-82626-742-4 01 1 9611-9801
467 HARNESS; FACIA
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82626-743-4 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>, FULL FLOATING CAB<W16> CORNARING LAMP<TDS> (B) LOWER 		1-82625-967-3 01 1 9601-9609
467 HARNESS; FACIA
POWER WINDOW<A30> AUTO ROUND CURTAIN<TAR> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5),MIR STAY O/S W/REMOTE<TBA> (B) LOWER 		1-82625-967-6 01 1 9610-9801
467 HARNESS; FACIA
POWER WINDOW<A30> MIR STAY O/S W/REMOTE<TBA> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82625-967-6 01 1 9610-9801
467 HARNESS; FACIA
POWER WINDOW<A30> AUTO ROUND CURTAIN<TAR> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5),MIR STAY O/S W/REMOTE<TBA> (B) LOWER 		1-82627-634-2 01 1 9802-9904
467 HARNESS; FACIA
POWER WINDOW<A30> MIR STAY O/S W/REMOTE<TBA> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82627-634-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82628-074-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82629-320-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-270-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>, FULL FLOATING CAB<W16> EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82625-968-3 01 1 9601-9609
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) LOWER 		1-82625-968-6 01 1 9610-9801
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) LOWER 		1-82627-635-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82628-075-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82629-332-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82660-274-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS>,FULL FLOATING CAB<W16> (B) LOWER 		1-82625-970-2 01 1 9601-9609
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. ELECTRONIC GOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS>,F ULL FLOATING CAB<W16> (B) LOWER 		1-82625-970-4 01 1 9610-9610
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/SW/REMOTE<TBA>,CORNARING LAMP<TDS>,FULL FLOATING CAB<W16> (B) LOWER 		1-82625-970-4 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> EXC. ELECTRONIC GOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS>,F ULL FLOATING CAB<W16> (B) LOWER 		1-82627-637-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82628-073-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82629-319-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82660-269-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> CORNARING LAMP<TDS> EXC. AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,FULL FLOATING CAB<W16> (B) LOWER 		1-82625-969-2 01 1 9601-9609
467 HARNESS; FACIA
POWER WINDOW<A30> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,FULL FLOATING CAB<W16> (B) LOWER 		1-82625-969-4 01 1 9610-9610
467 HARNESS; FACIA
POWER WINDOW<A30> CORNARING LAMP<TDS> EXC. AIR CONDITIONER MANUAL CONTROL(C60), ELECTRONICGOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/SW/REMOTE<TBA>,FULL FLOATING CAB<W16> (B) LOWER 		1-82625-969-4 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> CORNARING LAMP<TDS> EXC. ELECTRONIC GOV RED3(KG5),AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,FULL FLOATING CAB<W16> (B) LOWER 		1-82627-636-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82628-072-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82629-318-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-N(54L),10PE1S(60L),10PE1N(61L),6WA1 TC-R(93L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-268-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) AUTO ROUND CURTAIN<TAR> EXC. MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS> (B) LOWER 		1-82626-647-2 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) MIR STAY O/S W/REMOTE<TBA> EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82626-647-2 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) AUTO ROUND CURTAIN<TAR> EXC. MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS> (B) LOWER 		1-82627-640-2 01 1 9802-9904
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) MIR STAY O/S W/REMOTE<TBA> EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82627-640-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) LOWER 		1-82628-076-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) LOWER 		1-82629-333-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) LOWER 		1-82660-275-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) EXC. AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS>,FULL FLOATING CAB<W16> (B) LOWER 		1-82626-649-2 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) EXC. AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,CORNARING LAMP<TDS>,FULL FLOATING CAB<W16> (B) LOWER 		1-82627-642-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82628-079-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82629-325-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) LOWER 		1-82660-280-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> EXC. AUTO ROUND CURTAIN<TAR>,MIR STAY O/S W/REMOTE<TBA>,FULL FLOATING CAB<W16> (B) LOWER 		1-82627-641-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82628-078-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82629-324-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) LOWER 		1-82660-279-0 01 1 0102-
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) MIR STAY O/S W/REMOTE<TBA> CORNARING LAMP<TDS> AUTO ROUND CURTAIN<TAR> (B) LOWER 		1-82626-646-2 01 1 9611-9801
467 HARNESS; FACIA
POWER WINDOW<A30> ELECTRONIC GOV RED3(KG5) MIR STAY O/S W/REMOTE<TBA> CORNARING LAMP<TDS> AUTO ROUND CURTAIN<TAR> (B) LOWER 		1-82627-639-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) LOWER 		1-82628-077-1 01 1 9905-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) LOWER 		1-82660-276-0 01 1 0102-
467 HARNESS; FACIA
EXC. POWER WINDOW<A30> (B) LOWER 		1-82625-973-2 01 1 9601-9609
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82625-973-3 01 1 9610-9610
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,AIR CONDITIONER MANUAL CONTROL(C60),ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82625-973-3 01 1 9611-9801
467 HARNESS; FACIA
EXC. POWER WINDOW<A30>,ELECTRONIC GOV RED3(KG5) (B) LOWER 		1-82627-638-2 01 1 9802-9904
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82628-080-1 01 1 9905-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82629-326-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) LOWER 		1-82660-281-0 01 1 0102-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
