◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#54466) — 371 parça

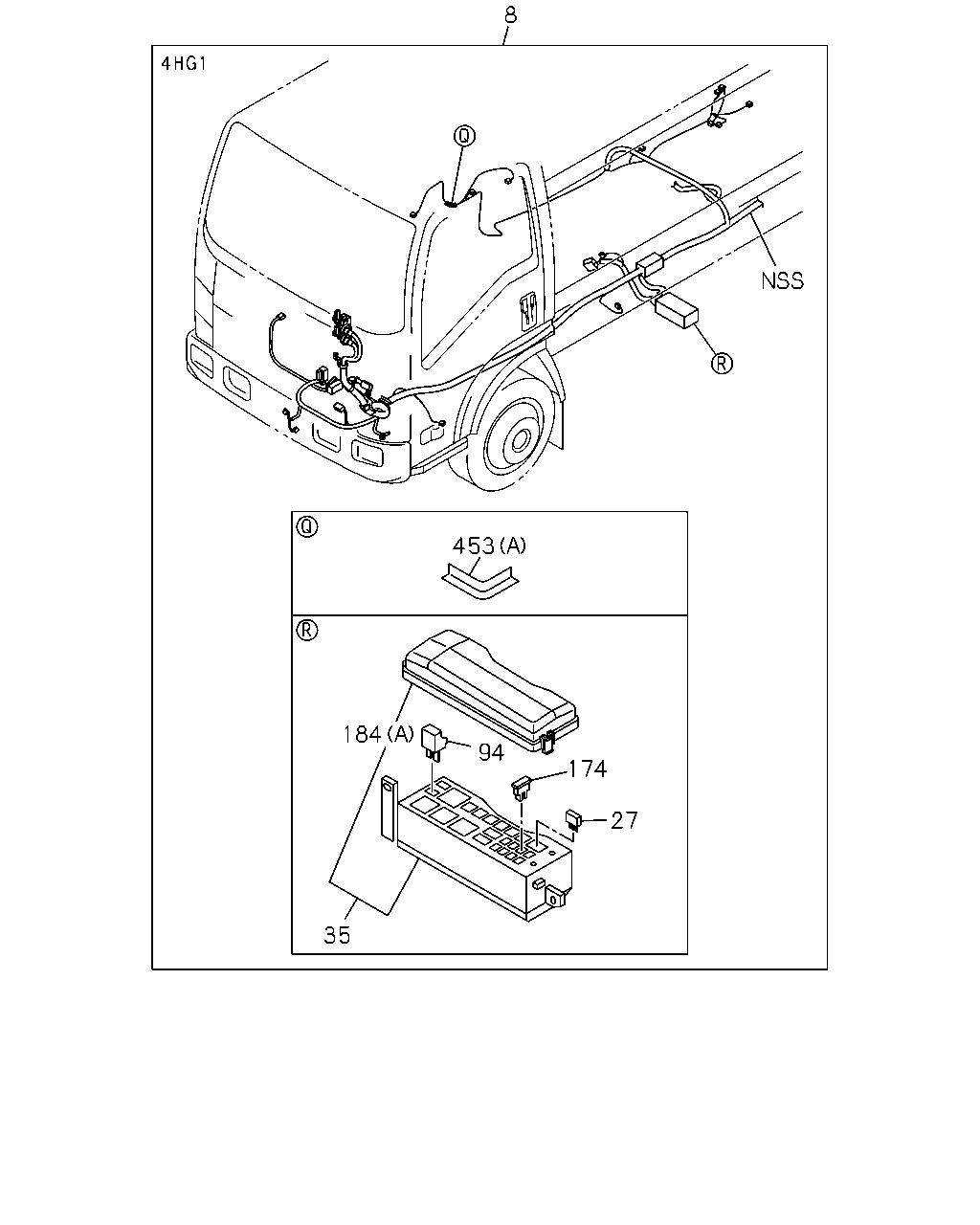

çizim 175360
8 453 184 94 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1012-1303 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98173-354-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98294-409-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98173-356-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-410-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1012- ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 AR 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ) 		8-98030-763-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) 		8-98173-937-0 01 1 1012- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012-1303 ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1304-1509 ● ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
94 02.483 DIODE; FRAME HARNESS
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1304- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) (A) 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ) (B) 		8-98030-766-0 01 1 1012-1303 ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98030-766-0 01 1 1304- ● ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 01 1 1012-1101 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1304- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) (B) 		8-98031-620-1 01 1 1012- ●

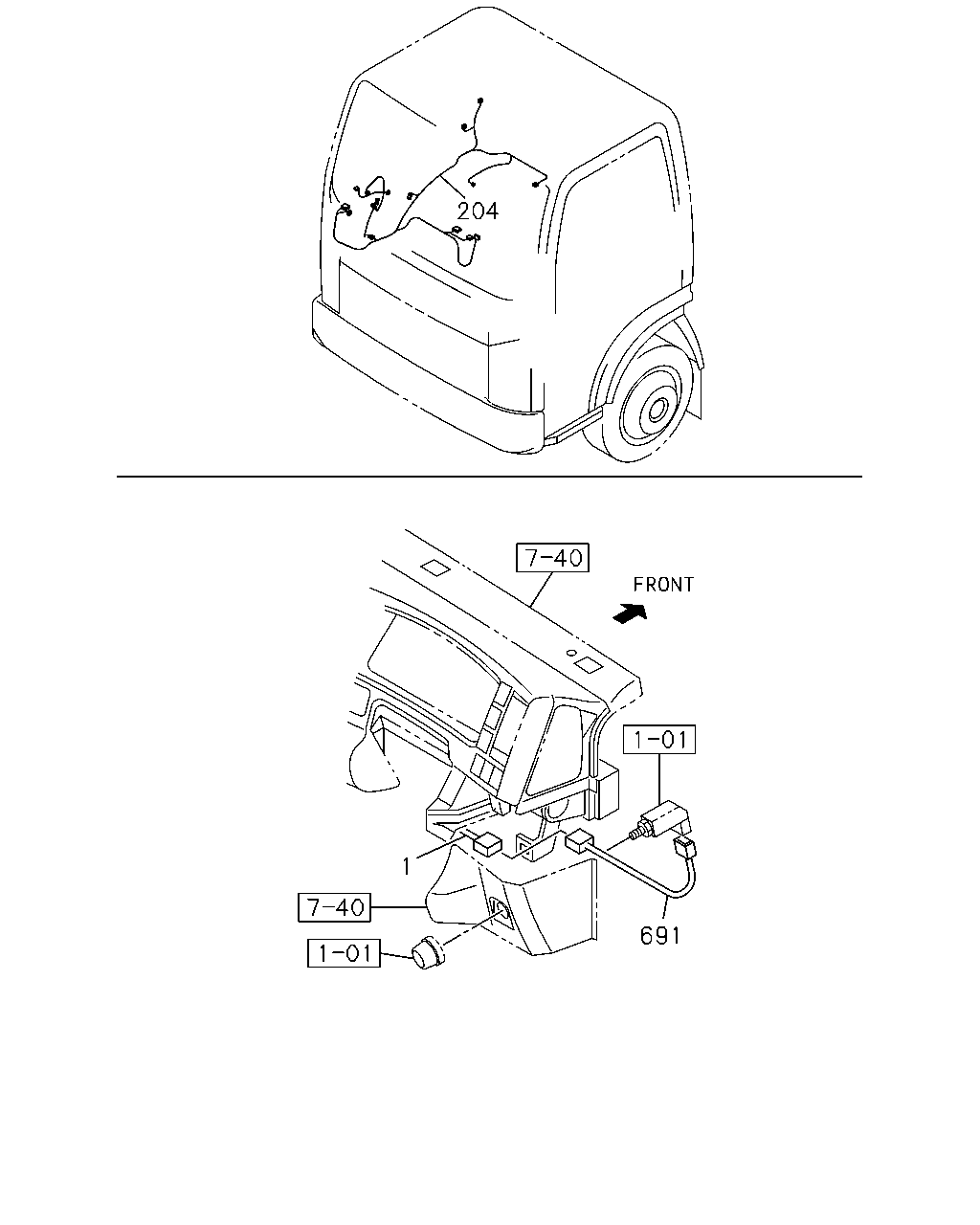

çizim 175366
204 1 691
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FAST GLOW SYSTEM<KM6> 		8-98298-782-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98298-780-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98158-584-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98207-655-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1301-1303 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1304- ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1504- ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-787-4 01 1 1012-1303 ●
204 02.559 HARNESS; CABLE,FLOOR 8-98070-787-4 01 1 1304- ● ●
691 02.480 HARNESS; IDLE CONT 8-98049-014-2 01 1 1012-1107 ●
691 02.480 HARNESS; IDLE CONT
4HK1-TCN ENG(RDQ) 		8-98049-014-2 01 1 1108-1303 ●
691 02.480 HARNESS; IDLE CONT
4HK1-TCN ENG(RDQ) 		8-98049-014-2 01 1 1304- ● ●

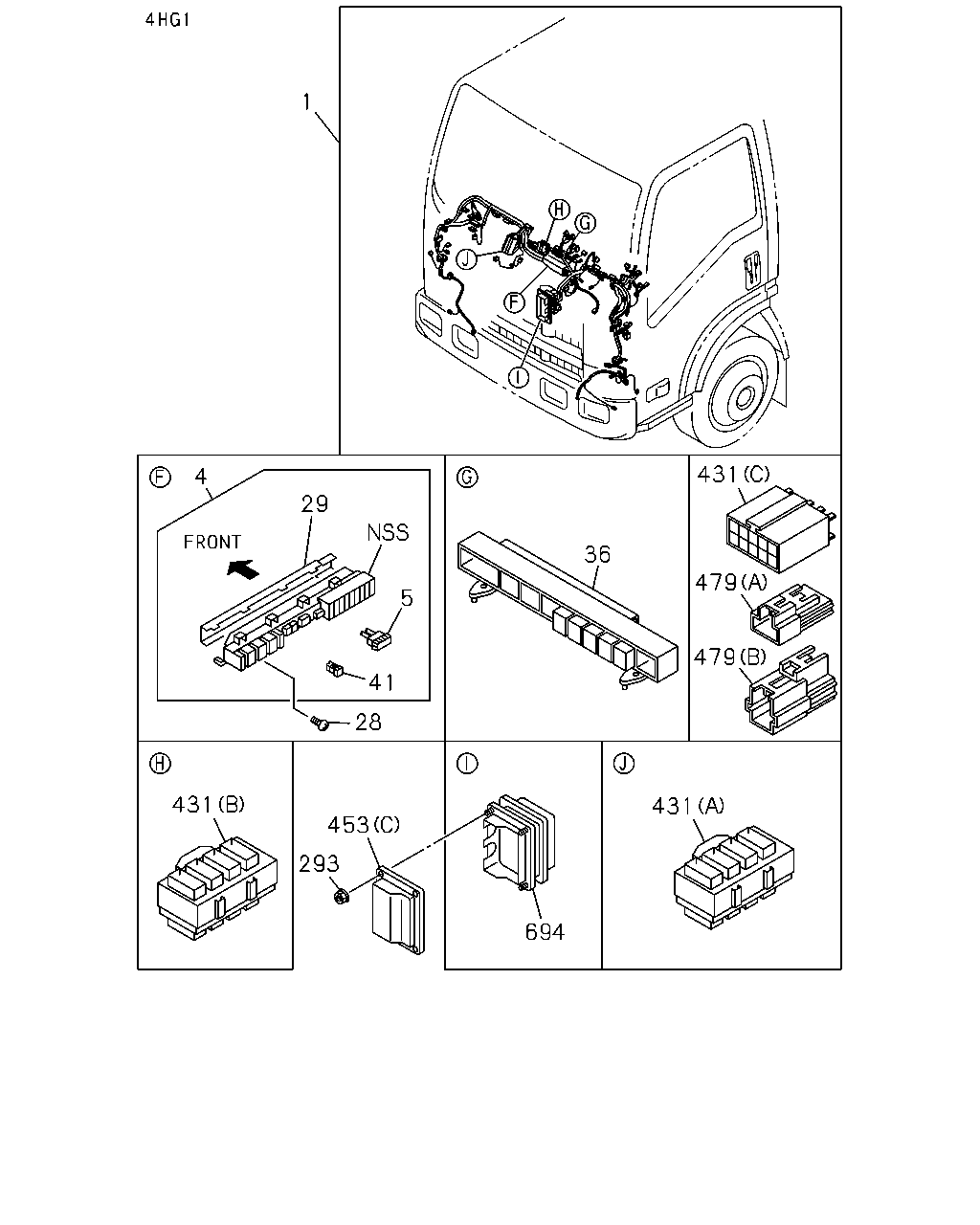

çizim 175368
1 431 4 29 36 479 5 479 41 28 431 431 453 293 694
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FAST GLOW SYSTEM<KM6> 		8-98298-782-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98298-780-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98158-584-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98207-655-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1301-1303 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1304- ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1504- ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98067-619-1 01 1 1012-1212 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1301-1303 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1304- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1012- ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR 		8-97062-025-0 AR 1 1012- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-1303 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304- ● ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98056-968-0 01 1 1012-1212 ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98056-968-0 01 1 1301-1303 ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98056-968-0 01 1 1304- ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) 		8-97074-955-0 01 1 1012- ●
36 02.530 BOX; RELAY
4HG1 ENG(RJH) 		8-97187-918-1 01 1 1012- ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98054-260-0 01 1 1012-1212 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) 		8-98054-260-0 01 1 1301-1303 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) 		8-98054-260-0 01 1 1304- ● ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) 		8-97103-388-0 01 1 1012- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012-1303 ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1304- ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 10P BLUE 		1-82699-598-0 01 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (E) 10P GREEN 		1-82699-599-0 01 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98046-205-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (A) 		8-98046-205-0 01 1 1301-1303 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (A) 		8-98046-205-0 01 1 1304- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) (C) 10P 		8-97077-943-0 02 1 1205- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98046-206-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98046-206-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1301-1303 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1304- ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (B) 		8-98046-206-0 01 1 1304- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 01 1 1012-1101 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1304- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) (B) 		8-98031-620-1 01 1 1012- ●
479 02.530 CAP; CONNECTOR
(A) 		8-98108-678-0 01 1 1012-1303 ●
479 02.530 CAP; CONNECTOR
(A) 		8-98108-678-0 01 1 1304- ● ●
479 02.530 CAP; CONNECTOR
(B) 		8-98108-679-0 01 1 1012-1303 ●
479 02.530 CAP; CONNECTOR
(B) 		8-98108-679-0 01 1 1304- ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98057-772-0 01 1 1012-1212 ●
694 02.483 BOX ASM; CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98057-772-0 01 1 1012-1212 ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1301-1303 ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1304- ●
694 02.483 BOX ASM; CONNECTOR
4HK1-TCN ENG(RDQ) 		8-98057-772-0 01 1 1304- ●

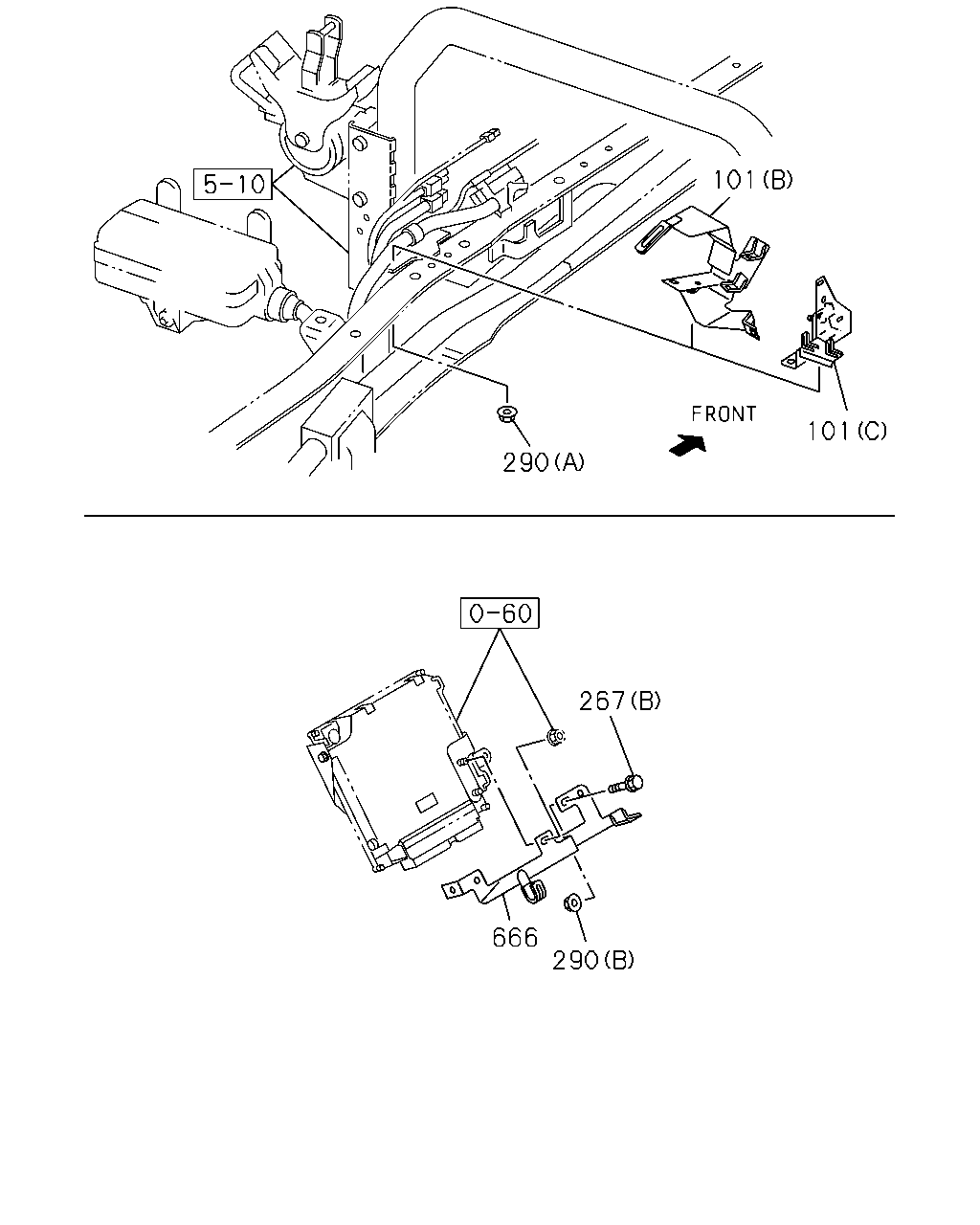

çizim 175372
101 101 290 267 666 290
BalonParca AdiParca NoAdetTipApplied Date A B
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 1012-1303 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 1304- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98094-483-1 01 1 1012-1303 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98094-483-1 01 1 1304- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (B) 		8-98094-483-1 01 1 1304- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98032-447-1 01 1 1012- ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1012-1303 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1304- ● ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1012-1303 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ●
290 02.483 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1102-1111 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1112-1303 ●
290 02.483 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1112-1303 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
290 02.483 NUT; BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1012-1303 ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1304- ●
290 02.483 NUT; BRKT
4HK1-TCN ENG(RDQ) 01.062 (B) M6 FLANGE 		0-91180-106-0 02 1 1304- ●
666 02.483 BRACKET; CLIP
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98110-213-0 01 1 1012-1303 ●
666 02.483 BRACKET; CLIP
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 		8-98110-213-0 01 1 1304- ●
666 02.483 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98110-213-0 01 1 1304- ●

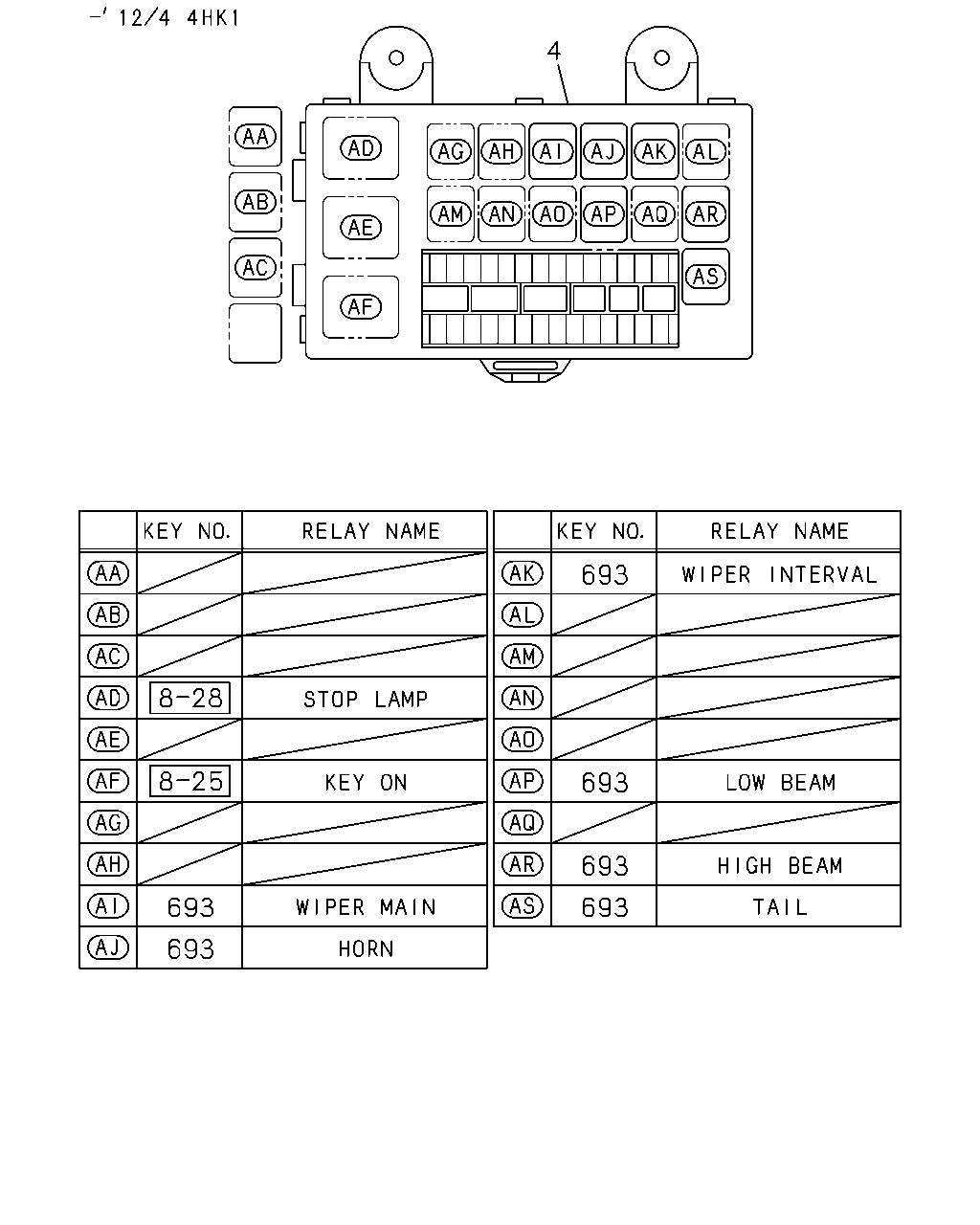

çizim 175373
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98067-619-1 01 1 1012-1212 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1301-1303 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1304- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1012- ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012-1212 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1301-1303 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1304- ● ●

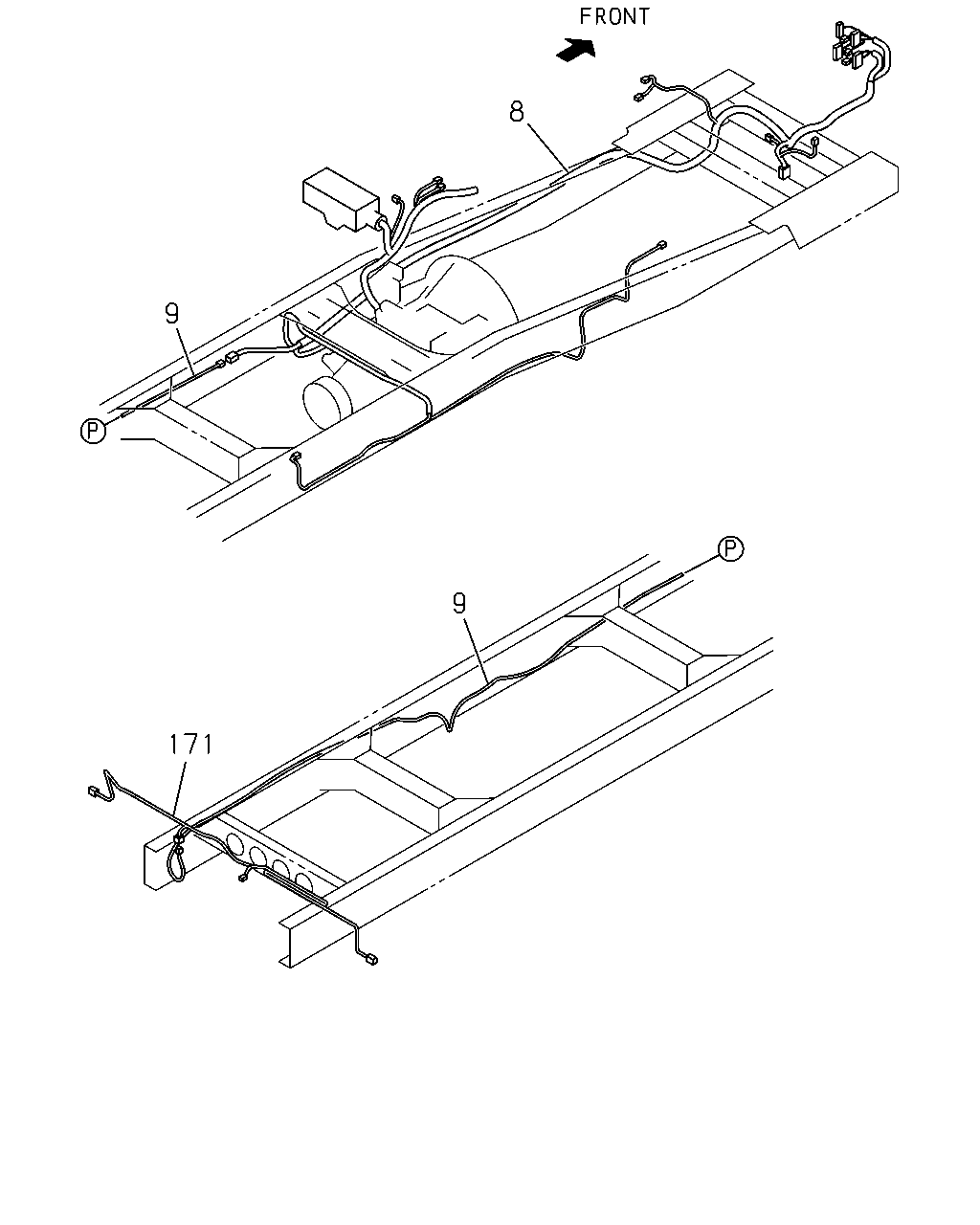

çizim 175374
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1012-1303 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98173-354-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98294-409-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98173-356-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-410-0 01 1 1410- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 		8-98117-250-0 01 1 1304- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) 		8-98117-251-0 01 1 1304- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98117-249-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 		8-98173-516-0 01 1 1012- ●
9 02.480 HARNESS; FRAME,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98047-009-2 01 1 1012- ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1012-1303 ●
171 02.596 HARNESS; CABLE,TAIL LAMP 8-98156-028-0 01 1 1304- ● ●

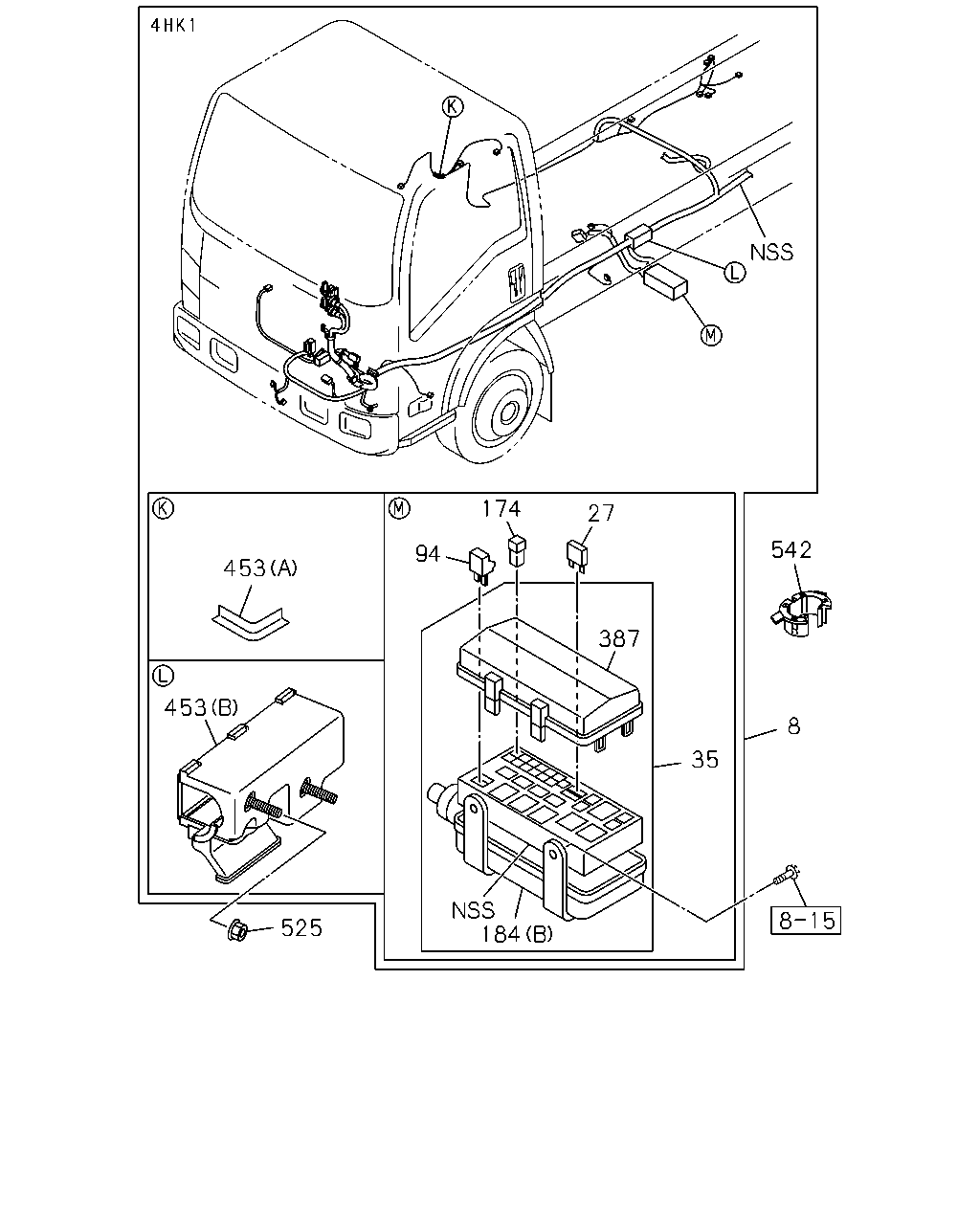

çizim 175375
174 27 542 94 453 387 453 8 35 184 525
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1012-1303 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98115-312-4 01 1 1304-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1410-1509 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 		8-98294-279-0 01 1 1510- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98173-354-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98199-732-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FUEL SEDIMENTER WITH HEATER<6HU> FRAME STRAIGHT TYPE<7KJ> 		8-98294-409-0 01 1 1410- ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98173-356-2 01 1 1012-1107 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1108-1306 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98199-733-1 01 1 1307-1409 ●
8 02.480 HARNESS; FRAME,FRT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98294-410-0 01 1 1410- ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1012- ●
27 08.965 FUSE UNIT
10A MINI RED 		8-97062-022-0 AR 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ) 		8-98030-763-0 01 1 1012- ●
35 02.530 BOX; RELAY & FUSE
4HG1 ENG(RJH) 		8-98173-937-0 01 1 1012- ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012-1303 ●
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A 		8-94422-639-1 AR 1 1304-1509 ● ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
94 02.483 DIODE; FRAME HARNESS
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
94 02.483 DIODE; FRAME HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1510- ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-97183-643-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-97183-644-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 AR 1 1304- ● ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1012-1303 ●
174 08.965 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 AR 1 1304- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HG1 ENG(RJH) (A) 		8-98179-321-0 01 1 1012- ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ) (B) 		8-98030-766-0 01 1 1012-1303 ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98030-766-0 01 1 1304- ● ●
387 02.483 COVER; RELAY BOX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98081-367-0 01 1 1012-1303 ●
387 02.483 COVER; RELAY BOX
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98081-367-0 01 1 1012-1303 ●
387 02.483 COVER; RELAY BOX
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98081-367-0 01 1 1304- ●
387 02.483 COVER; RELAY BOX
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98081-367-0 01 1 1304- ●
387 02.483 COVER; RELAY BOX
4HK1-TCN ENG(RDQ) 		8-98081-367-0 01 1 1304- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 01 1 1012-1101 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1304- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) (B) 		8-98031-620-1 01 1 1012- ●
525 08.919 NUT; CLIP
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1303 ●
525 08.919 NUT; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012-1303 ●
525 08.919 NUT; CLIP
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
525 08.919 NUT; CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
525 08.919 NUT; CLIP
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1304- ●
542 02.483 GROMMET; HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17 		8-94128-319-2 01 1 1012- ●

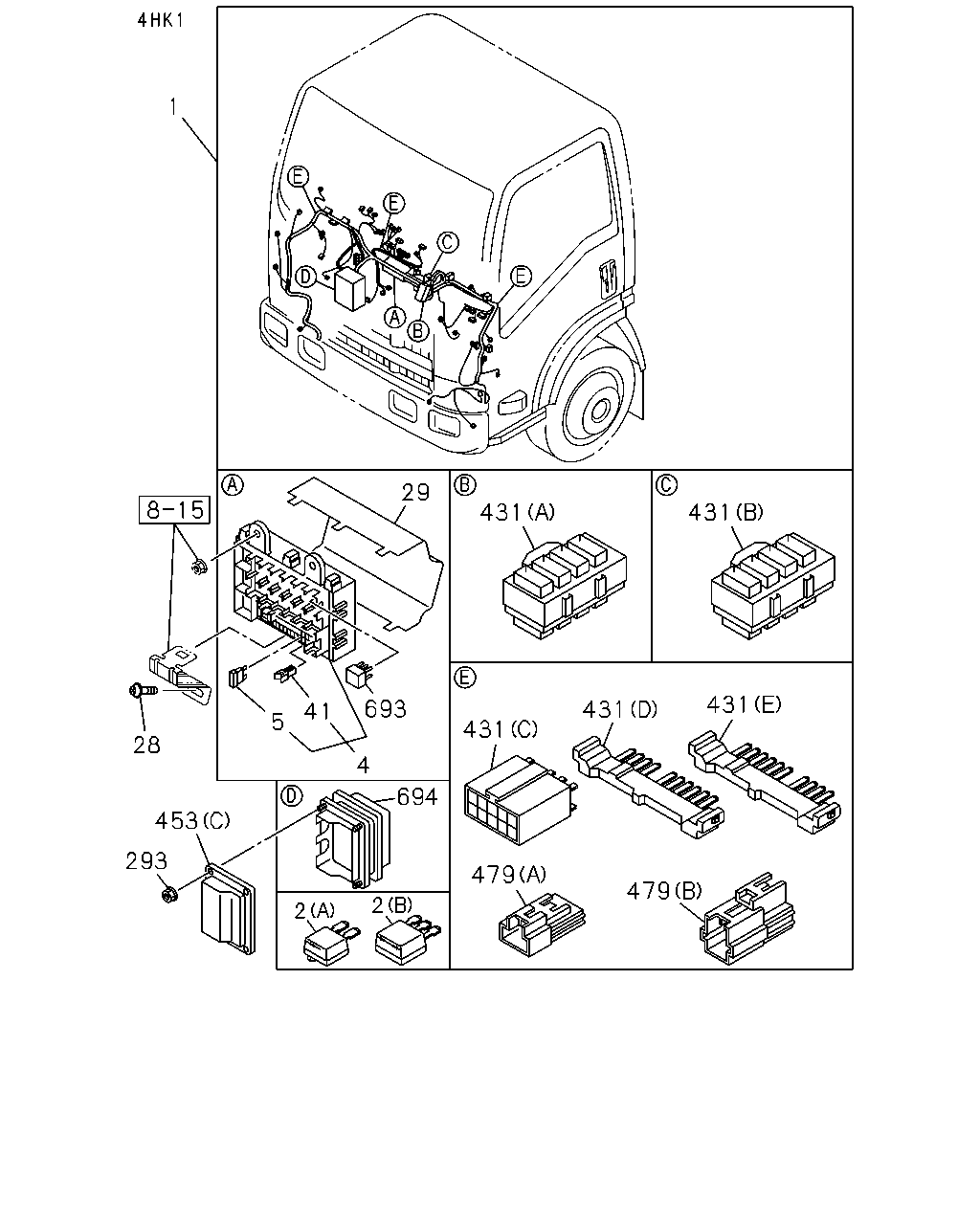

çizim 175388
1 29 431 431 431 693 431 41 5 431 28 4 694 453 293 479 479 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> EXC. FAST GLOW SYSTEM<KM6> 		8-98298-782-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FAST GLOW SYSTEM<KM6>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98298-780-0 01 1 1504- ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98158-584-1 01 1 1012-1204 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98207-655-0 01 1 1205-1212 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1301-1303 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ) 		8-98207-655-0 01 1 1304- ● ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-115-2 01 1 1504- ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1012-1503 ●
1 02.480 HARNESS; CAB
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-114-2 01 1 1504- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1012-1303 ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1304- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1012-1303 ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1304- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98067-619-1 01 1 1012-1212 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1301-1303 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1304- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1012- ●
5 02.485 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 1012- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR 		8-97062-025-0 AR 1 1012- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-1303 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1304- ● ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98056-968-0 01 1 1012-1212 ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98056-968-0 01 1 1301-1303 ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98056-968-0 01 1 1304- ● ●
29 02.483 COVER; FUSE BOX
4HG1 ENG(RJH) 		8-97074-955-0 01 1 1012- ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98054-260-0 01 1 1012-1212 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) 		8-98054-260-0 01 1 1301-1303 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ) 		8-98054-260-0 01 1 1304- ● ●
41 08.821 PULLER; FUSE
4HG1 ENG(RJH) 		8-97103-388-0 01 1 1012- ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1012-1303 ●
293 02.559 NUT
01.062 M6 FLANGE 		0-91180-106-0 04 1 1304- ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 10P BLUE 		1-82699-598-0 01 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (E) 10P GREEN 		1-82699-599-0 01 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-98046-205-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (A) 		8-98046-205-0 01 1 1301-1303 ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (A) 		8-98046-205-0 01 1 1304- ● ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C) 10P 		8-97077-943-0 02 1 1012-1204 ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) (C) 10P 		8-97077-943-0 02 1 1205- ●
431 02.530 CONNECTOR; JOINT
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98046-206-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98046-206-0 01 1 1012-1212 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1301-1303 ●
431 02.530 CONNECTOR; JOINT
(B) 		8-98046-206-0 01 1 1304- ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ) (B) 		8-98046-206-0 01 1 1304- ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 01 1 1012-1101 ●
453 02.483 PROTECTOR; HARNESS
4HG1 ENG(RJH) (A) 		8-94417-716-0 03 1 1102- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1304-1509 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A) 		8-94417-716-0 02 1 1510- ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1012-1303 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-98034-039-1 01 1 1304- ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ) (B) 		8-98031-620-1 01 1 1012- ●
479 02.530 CAP; CONNECTOR
(A) 		8-98108-678-0 01 1 1012-1303 ●
479 02.530 CAP; CONNECTOR
(A) 		8-98108-678-0 01 1 1304- ● ●
479 02.530 CAP; CONNECTOR
(B) 		8-98108-679-0 01 1 1012-1303 ●
479 02.530 CAP; CONNECTOR
(B) 		8-98108-679-0 01 1 1304- ● ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012-1212 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1301-1303 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1304- ● ●
694 02.483 BOX ASM; CONNECTOR
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-98057-772-0 01 1 1012-1212 ●
694 02.483 BOX ASM; CONNECTOR
EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98057-772-0 01 1 1012-1212 ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1301-1303 ●
694 02.483 BOX ASM; CONNECTOR 8-98057-772-0 01 1 1304- ●
694 02.483 BOX ASM; CONNECTOR
4HK1-TCN ENG(RDQ) 		8-98057-772-0 01 1 1304- ●

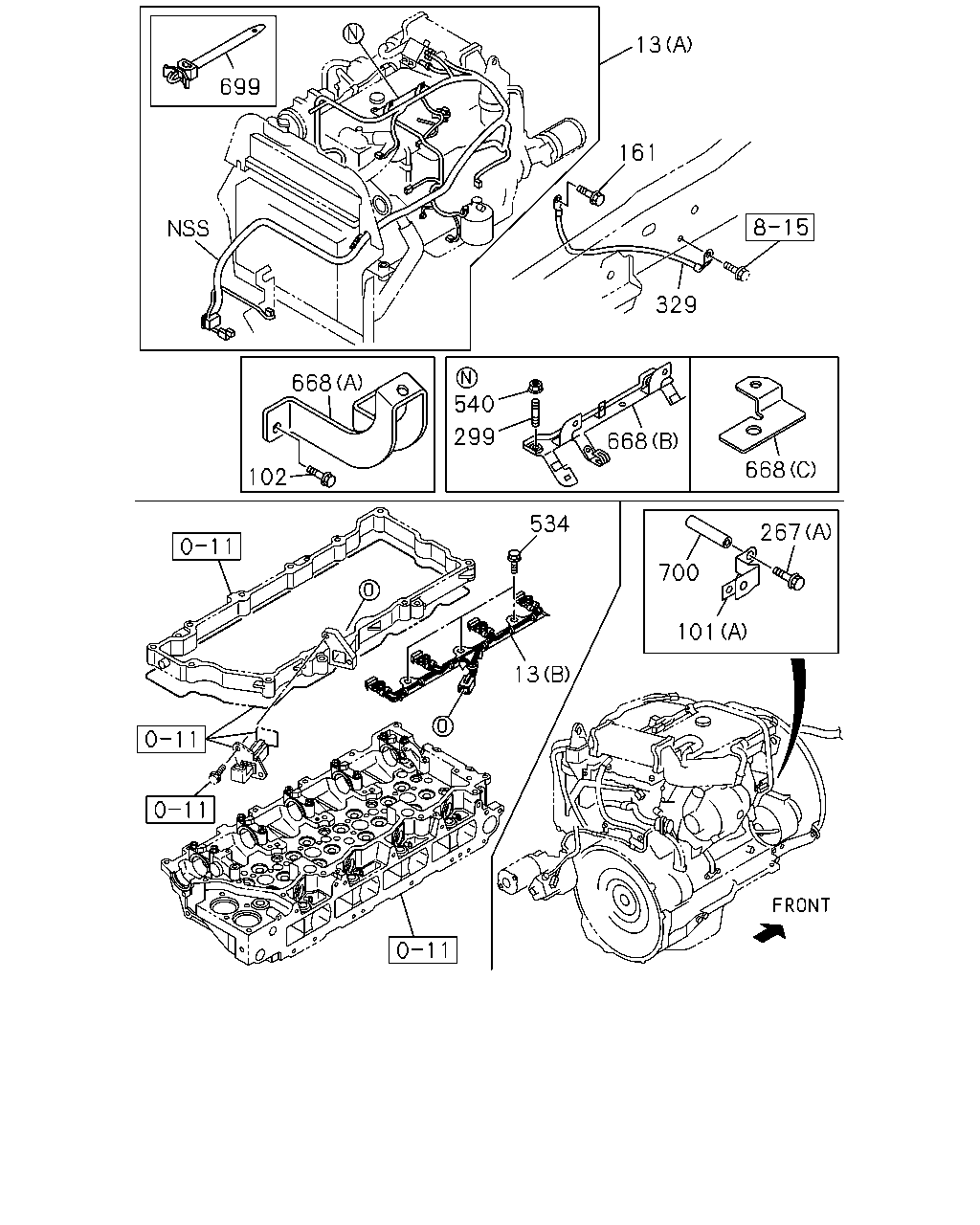

çizim 175401
13 101 700 534 267 668 668 299 540 668 102 329 161 13 699
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
4HG1 ENG(RJH) (A) 		8-97356-988-1 01 1 1012- ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A) 		8-98149-125-0 01 1 1012-1012 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A) 		8-98178-534-0 01 1 1101-1202 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN) (A) 		8-98209-819-0 01 1 1203-1303 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR 24V50A(6QN) (A) 		8-98209-819-0 01 1 1304- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) (B) 		8-98171-638-0 01 1 1012-1303 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) (B) 		8-98171-638-0 01 1 1304- ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A) 		8-98149-126-0 01 1 1012-1012 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A) 		8-98178-535-0 01 1 1101-1202 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V80A(7YN) (A) 		8-98209-820-0 01 1 1203-1303 ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (A) 		8-98209-820-0 01 1 1304- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 1012-1303 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (A) 		8-98052-805-0 01 1 1304- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98094-483-1 01 1 1012-1303 ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98094-483-1 01 1 1304- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) (B) 		8-98094-483-1 01 1 1304- ●
101 02.483 BRACKET; HARNESS CONNECTOR
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98032-447-1 01 1 1012- ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE 		0-28151-016-0 02 1 1012-1303 ●
102 08.900 BOLT; BRKT,HARNESS CONNECTOR
4HK1-TCN ENG(RDQ) 00.029 M10X16 FLANGE 		0-28151-016-0 02 1 1304- ● ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1012-1303 ●
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1304- ●
161 02.559 BOLT; GROUND,HARNESS
4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1304- ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1012-1303 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 09.171 (A) M10X120 FLANGE 		0-28156-012-0 01 1 1304- ● ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1012-1303 ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ●
267 02.483 BOLT; BRKT
4HK1-TCN ENG(RDQ) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 02 1 1304- ●
299 02.559 STUD; BRKT
4HK1-TCN ENG(RDQ) 01.062 M6X18 L=27 		0-41010-618-0 02 1 1012-1202 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1012-1303 ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 		8-98102-465-0 01 1 1304- ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ) 		8-98102-465-0 01 1 1304- ●
329 02.480 CABLE; ENG TO FRAME
4HG1 ENG(RJH) 		8-98123-064-0 01 1 1012- ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1012-1303 ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 1304- ● ●
540 02.483 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1012-1202 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (A) 		8-98011-484-0 01 1 1012-1303 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (A) 		8-98011-484-0 01 1 1304- ● ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (B) 		8-98061-805-2 01 1 1012-1202 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (C) 		8-98205-089-0 01 1 1203-1303 ●
668 02.559 BRACKET; HARNESS
4HK1-TCN ENG(RDQ) (C) 		8-98205-089-0 01 1 1304- ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) 04.128 L=213.5 		8-98000-506-1 01 1 1012-1303 ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) 04.128 L=213.5 		8-98000-506-1 01 1 1304- ● ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) L=146.2 		8-98052-677-0 01 1 1012-1303 ●
699 02.559 CLIP; ENG HARNESS
4HK1-TCN ENG(RDQ) L=146.2 		8-98052-677-0 01 1 1304- ● ●
700 02.483 TUBE; DISTANCE
4HK1-TCN ENG(RDQ) L=105 		8-98084-726-0 01 1 1012-1303 ●
700 02.483 TUBE; DISTANCE
4HK1-TCN ENG(RDQ) L=105 		8-98084-726-0 01 1 1304- ● ●

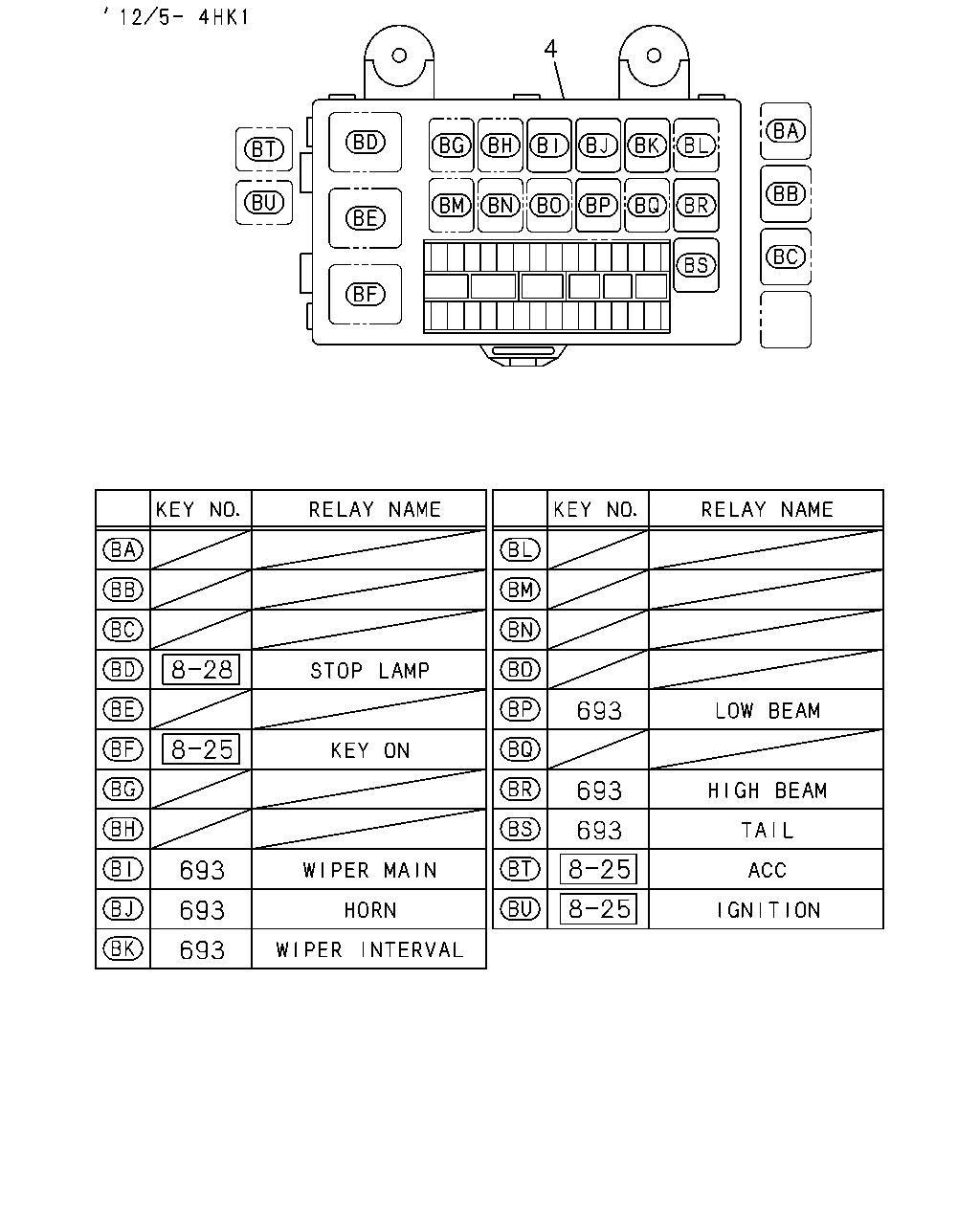

çizim 283550
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98067-619-1 01 1 1012-1212 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1301-1303 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ) 		8-98067-619-1 01 1 1304- ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HG1 ENG(RJH) 		8-97187-921-1 01 1 1012- ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1012-1212 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1301-1303 ●
693 02.694 RELAY; FUSE BOX
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 AR 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
