Isuzu WW
▶
TRUCKS
▶
NPR
▶
51295 - NPR/NQR BUS CHA(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

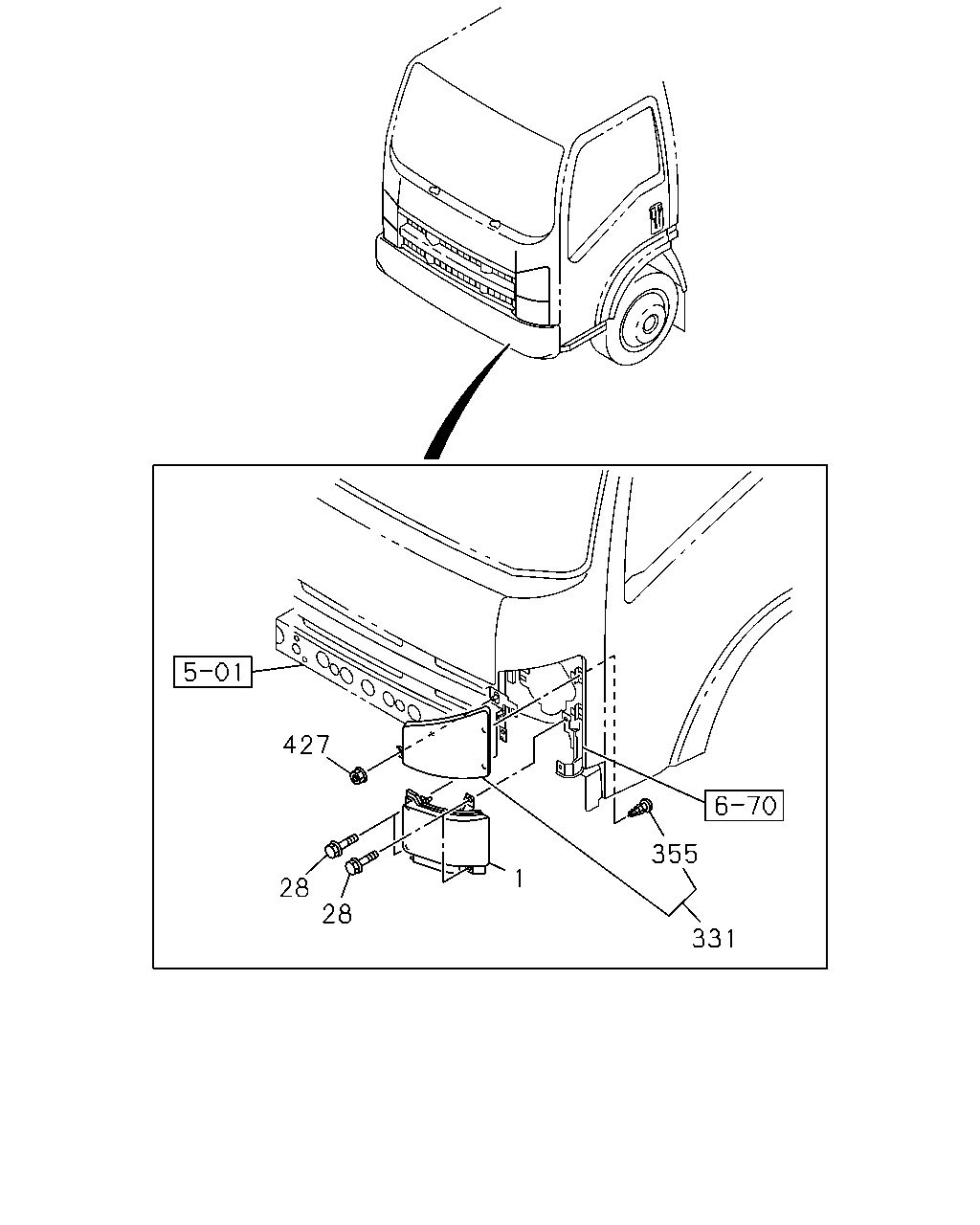

8-01 — LAMP; FRONT AND FRONT SIDE
(#54464) — 67 parça
Tümü
A - NPR5JN
B - NPR5JS
◀
[801A] COMPONENT;TURN SIGNAL AND HEADLAMP (47 parça)
[801A] FIXING;FRONT LAMP (20 parça)
▶
331
431
357
399
355
432
1
23
4
420
20
408
5
5
457
382
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.725 LAMP ASM; HEAD
8-98098-479-1
01
1
1012-1208
●
1
02.725 LAMP ASM; HEAD
8-98225-599-0
01
1
1209-1301
●
1
02.725 LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1303
●
1
02.725 LAMP ASM; HEAD
8-98225-640-0
01
1
1304-1305
●
●
1
02.725 LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
●
●
1
02.725 LAMP ASM; HEAD
8-98098-480-1
01
1
1012-1208
●
1
02.725 LAMP ASM; HEAD
8-98225-600-0
01
1
1209-1301
●
1
02.725 LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1303
●
1
02.725 LAMP ASM; HEAD
8-98225-641-0
01
1
1304-1305
●
●
1
02.725 LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
●
●
4
02.727 HEADLAMP UNIT
8-98051-400-0
01
1
1012-1301
●
4
02.727 HEADLAMP UNIT
8-98226-182-0
01
1
1302-1303
●
4
02.727 HEADLAMP UNIT
8-98226-182-0
01
1
1304-
●
●
4
02.727 HEADLAMP UNIT
8-98051-401-0
01
1
1012-1301
●
4
02.727 HEADLAMP UNIT
8-98226-183-0
01
1
1302-1303
●
4
02.727 HEADLAMP UNIT
8-98226-183-0
01
1
1304-
●
●
5
02.727 BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1012-1303
●
5
02.727 BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1304-
●
●
5
02.727 BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1012-1303
●
5
02.727 BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1304-
●
●
20
02.736 SCREW; HEADLAMP
8-97378-871-0
06
1
1012-1303
●
20
02.736 SCREW; HEADLAMP
8-97378-871-0
06
1
1304-
●
●
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1012-1303
●
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1304-
●
●
331
02.585 LAMP; TURN SIGNAL
8-98155-458-0
01
1
1012-1303
●
331
02.585 LAMP; TURN SIGNAL
8-98155-458-0
01
1
1304-
●
●
331
02.585 LAMP; TURN SIGNAL
8-98155-459-0
01
1
1012-1303
●
331
02.585 LAMP; TURN SIGNAL
8-98155-459-0
01
1
1304-
●
●
355
02.726 SCREW; TURN SIGNAL
8-98051-428-0
04
1
1012-1303
●
355
02.726 SCREW; TURN SIGNAL
8-98051-428-0
04
1
1304-
●
●
357
08.991 BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1012-1303
●
357
08.991 BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1304-
●
●
382
02.575 PLUG; SOCKET,HEADLAMP
8-98069-364-0
02
1
1012-1208
●
382
02.575 PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1209-1303
●
382
02.575 PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1304-
●
●
399
02.596 SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1012-1303
●
399
02.596 SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1304-
●
●
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1012-1303
●
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1304-
●
●
420
02.737 SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
1012-1301
●
420
02.737 SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1302-1303
●
420
02.737 SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1304-
●
●
431
02.727 CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1012-1303
●
431
02.727 CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1304-
●
●
432
02.726 FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1012-1303
●
432
02.726 FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1304-
●
●
457
16.450 GRIP; HEADLAMP
8-98241-354-0
02
1
1306-
●
●
427
355
1
28
28
331
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
02.725 LAMP ASM; HEAD
8-98098-479-1
01
1
1012-1208
●
1
02.725 LAMP ASM; HEAD
8-98225-599-0
01
1
1209-1301
●
1
02.725 LAMP ASM; HEAD
8-98225-640-0
01
1
1302-1303
●
1
02.725 LAMP ASM; HEAD
8-98225-640-0
01
1
1304-1305
●
●
1
02.725 LAMP ASM; HEAD
8-98241-325-0
01
1
1306-
●
●
1
02.725 LAMP ASM; HEAD
8-98098-480-1
01
1
1012-1208
●
1
02.725 LAMP ASM; HEAD
8-98225-600-0
01
1
1209-1301
●
1
02.725 LAMP ASM; HEAD
8-98225-641-0
01
1
1302-1303
●
1
02.725 LAMP ASM; HEAD
8-98225-641-0
01
1
1304-1305
●
●
1
02.725 LAMP ASM; HEAD
8-98241-326-0
01
1
1306-
●
●
28
02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1012-1303
●
28
02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1304-
●
●
331
02.585 LAMP; TURN SIGNAL
8-98155-458-0
01
1
1012-1303
●
331
02.585 LAMP; TURN SIGNAL
8-98155-458-0
01
1
1304-
●
●
331
02.585 LAMP; TURN SIGNAL
8-98155-459-0
01
1
1012-1303
●
331
02.585 LAMP; TURN SIGNAL
8-98155-459-0
01
1
1304-
●
●
355
02.726 SCREW; TURN SIGNAL
8-98051-428-0
04
1
1012-1303
●
355
02.726 SCREW; TURN SIGNAL
8-98051-428-0
04
1
1304-
●
●
427
02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE
0-91180-106-0
02
1
1012-1303
●
427
02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE
0-91180-106-0
02
1
1304-
●
●
