◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#54458) — 17 parça
çizim 175338
234 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98090-175-0 01 1 1012-1303 ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ) 		8-98090-175-0 01 1 1304- ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1 ENG(RJH) 		8-98173-142-0 01 1 1012- ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1012-1303 ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1304- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1012-1303 ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1304- ● ●

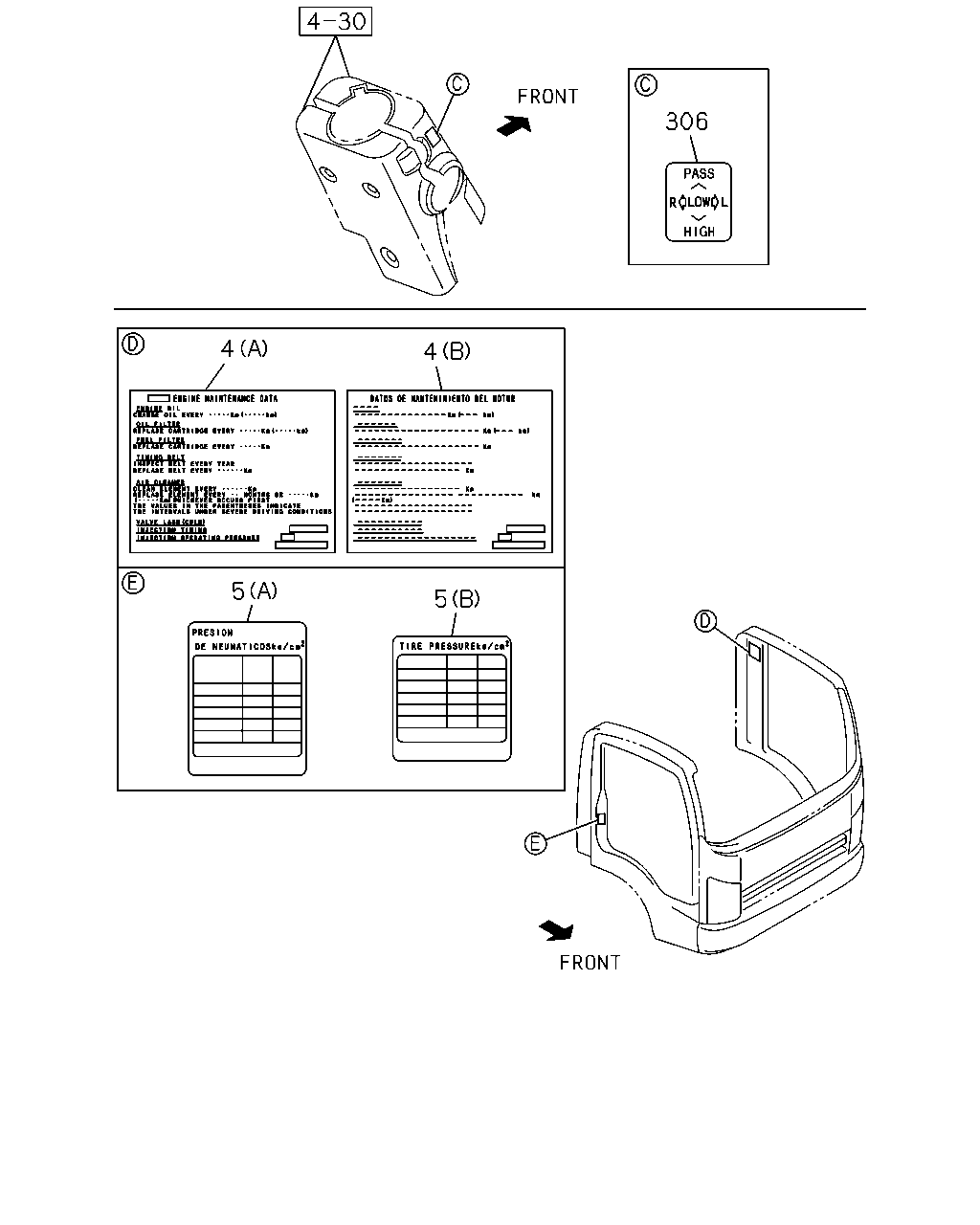

çizim 175351
306 4 4 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 1012- ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 1012- ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1012-1303 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1304- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1012-1303 ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1304- ● ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1304- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1304- ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1012-1303 ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1304- ● ●
