◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#54453) — 69 parça

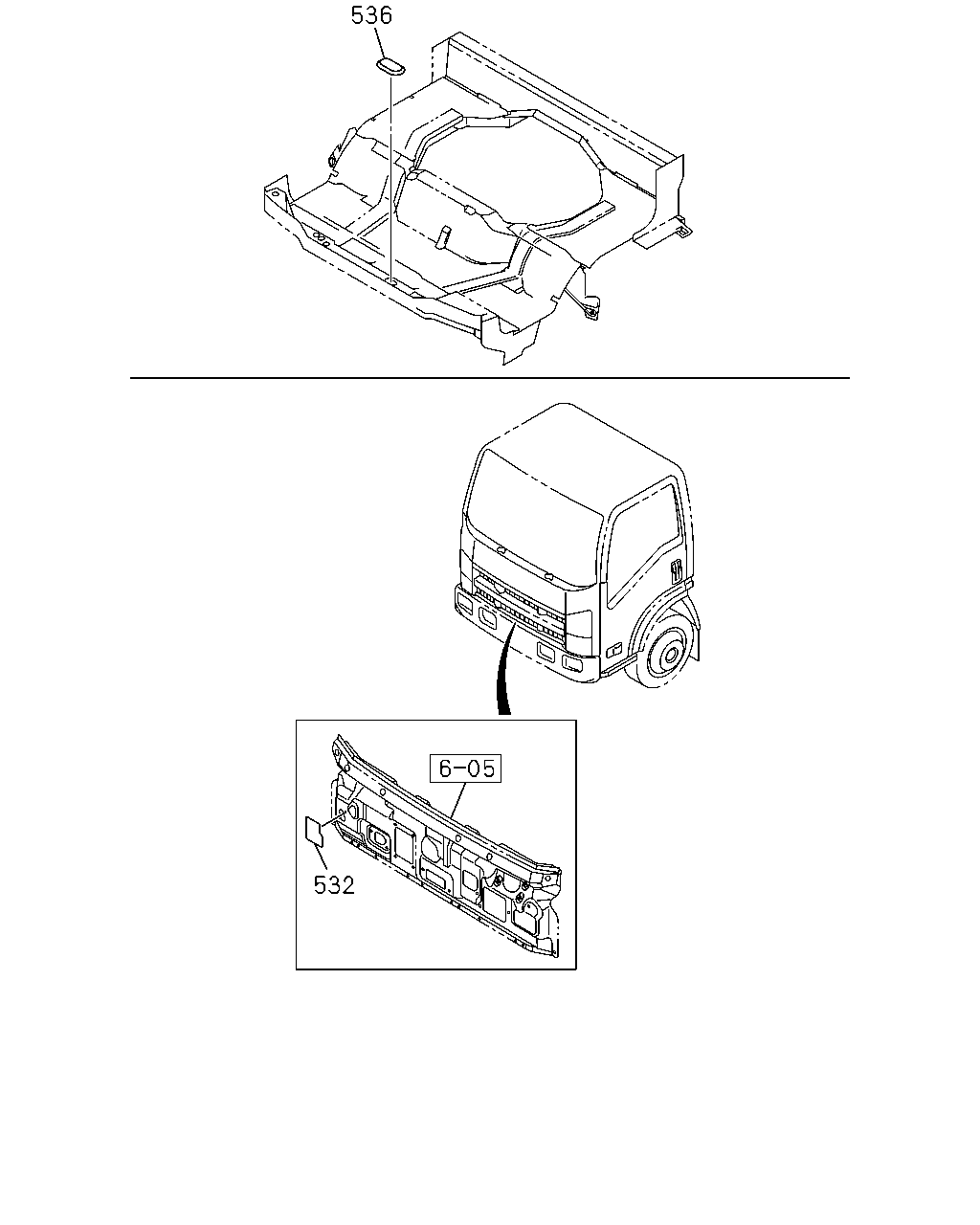

çizim 175346
536 532
BalonParca AdiParca NoAdetTipApplied Date A B
532 16.520 SEAL; CABLE 8-98042-432-1 01 1 1012-1303 ●
532 16.520 SEAL; CABLE 8-98042-432-1 01 1 1304- ● ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1012-1303 ●
536 16.549 PLUG; CABLE,PTO
04.008 		8-98029-219-1 01 1 1304- ● ●

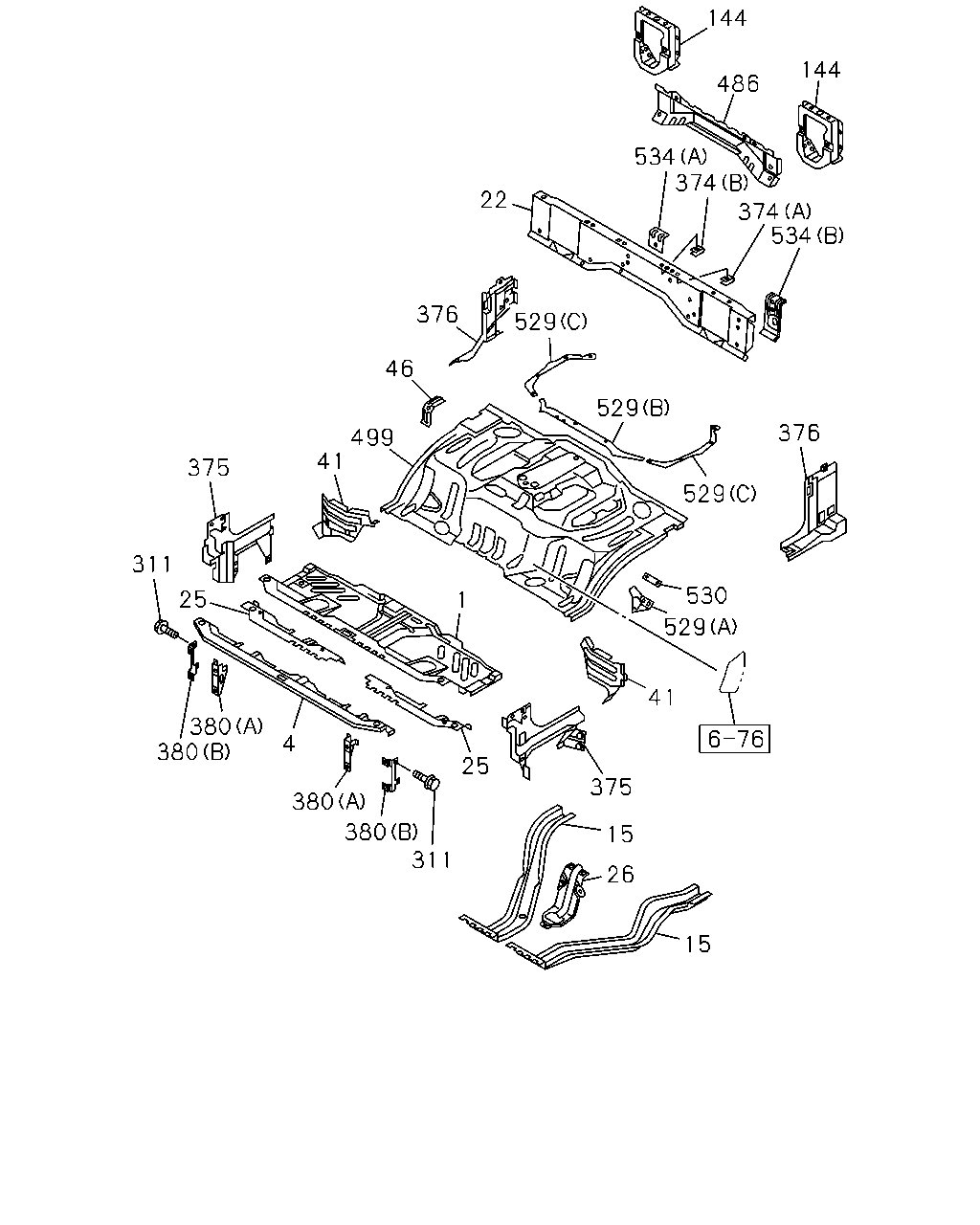

çizim 175361
144 144 486 534 374 22 374 534 376 529 46 529 376 499 41 375 529 311 530 25 1 529 41 380 380 4 25 375 380 380 311 15 26 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR 8-98112-870-0 01 1 1012-1303 ●
1 16.545 PANEL; FLOOR 8-98112-870-0 01 1 1304- ● ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1012-1303 ●
4 16.545 FRAME; FLOOR,FRT 8-98107-595-0 01 1 1304- ● ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1012-1303 ●
15 16.545 FRAME; UNDER 8-98059-497-1 01 1 1304- ● ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1012-1303 ●
15 16.545 FRAME; UNDER 8-98059-498-1 01 1 1304- ● ●
22 16.545 FRAME; FLOOR REAR 8-97587-394-4 01 1 1012-1303 ●
22 16.545 FRAME; FLOOR REAR 8-97587-394-4 01 1 1304- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1012-1303 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-97583-823-0 01 1 1304- ● ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1012-1303 ●
25 16.545 REINFORCEMENT; FRAME FLOOR,FRT 8-98107-587-0 01 1 1304- ● ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1012-1303 ●
26 16.545 PANEL; GEAR CONT REINF 8-97589-382-1 01 1 1304- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1012-1303 ●
41 16.545 SUPPORT; STEP,RR 8-97583-880-1 01 1 1304- ● ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1012-1303 ●
41 16.545 SUPPORT; STEP,RR 8-97583-881-1 01 1 1304- ● ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1012-1303 ●
46 16.545 BRACKET; FRT SEAT,RR OUTER 8-97583-834-0 01 1 1304- ● ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1012-1303 ●
144 16.545 BRACKET; MTG,RR 8-98112-244-2 02 1 1304- ● ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1012-1303 ●
311 16.545 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1304- ● ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1012-1303 ●
374 16.545 NUT; FLOOR
(B) M6 		1-09984-110-0 02 1 1304- ● ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1012-1303 ●
374 16.545 NUT; FLOOR
(A) M8 		1-09984-111-0 04 1 1304- ● ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1012-1303 ●
375 16.545 CLOSING; PILLAR 8-97583-882-3 01 1 1304- ● ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1012-1303 ●
375 16.545 CLOSING; PILLAR 8-97583-883-2 01 1 1304- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1012-1303 ●
376 16.545 CLOSING; PILLAR,LWR 8-97583-888-2 01 1 1304- ● ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1012-1303 ●
376 16.545 CLOSING; PILLAR,LWR 8-97584-618-2 01 1 1304- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1012-1303 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-384-4 01 1 1304- ● ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1012-1303 ●
380 16.545 BRACKET; HEAD LAMP
(A) 		8-97589-385-3 01 1 1304- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1012-1303 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-288-0 01 1 1304- ● ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1012-1303 ●
380 16.545 BRACKET; HEAD LAMP
(B) 		8-98029-289-0 01 1 1304- ● ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-614-2 01 1 1012-1303 ●
486 16.545 REINFORCEMENT; FRAME FLOOR,REAR 8-98030-614-2 01 1 1304- ● ●
499 16.545 PANEL; FLOOR,RR 8-97587-390-4 01 1 1012-1207 ●
499 16.545 PANEL; FLOOR,RR 8-98205-116-0 01 1 1208-1303 ●
499 16.545 PANEL; FLOOR,RR 8-98205-116-0 01 1 1304- ● ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-249-0 01 1 1012-1303 ●
529 16.545 RETAINER; FLOOR PANEL
(B) 		8-97589-249-0 01 1 1304- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-97589-467-1 01 1 1012-1303 ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-97589-467-1 01 1 1304- ● ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-97589-468-1 01 1 1012-1303 ●
529 16.545 RETAINER; FLOOR PANEL
(C) 		8-97589-468-1 01 1 1304- ● ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1012-1303 ●
529 16.545 RETAINER; FLOOR PANEL
(A) 		8-98030-358-0 01 1 1304- ● ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1012-1303 ●
530 16.565 BRACKET; COVER 8-97589-255-0 01 1 1304- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 1012-1303 ●
534 16.545 REINFORCEMENT; SEAT BACK
(B) 		8-97583-851-3 01 1 1304- ● ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1012-1303 ●
534 16.545 REINFORCEMENT; SEAT BACK
(A) 		8-98019-181-2 01 1 1304- ● ●
