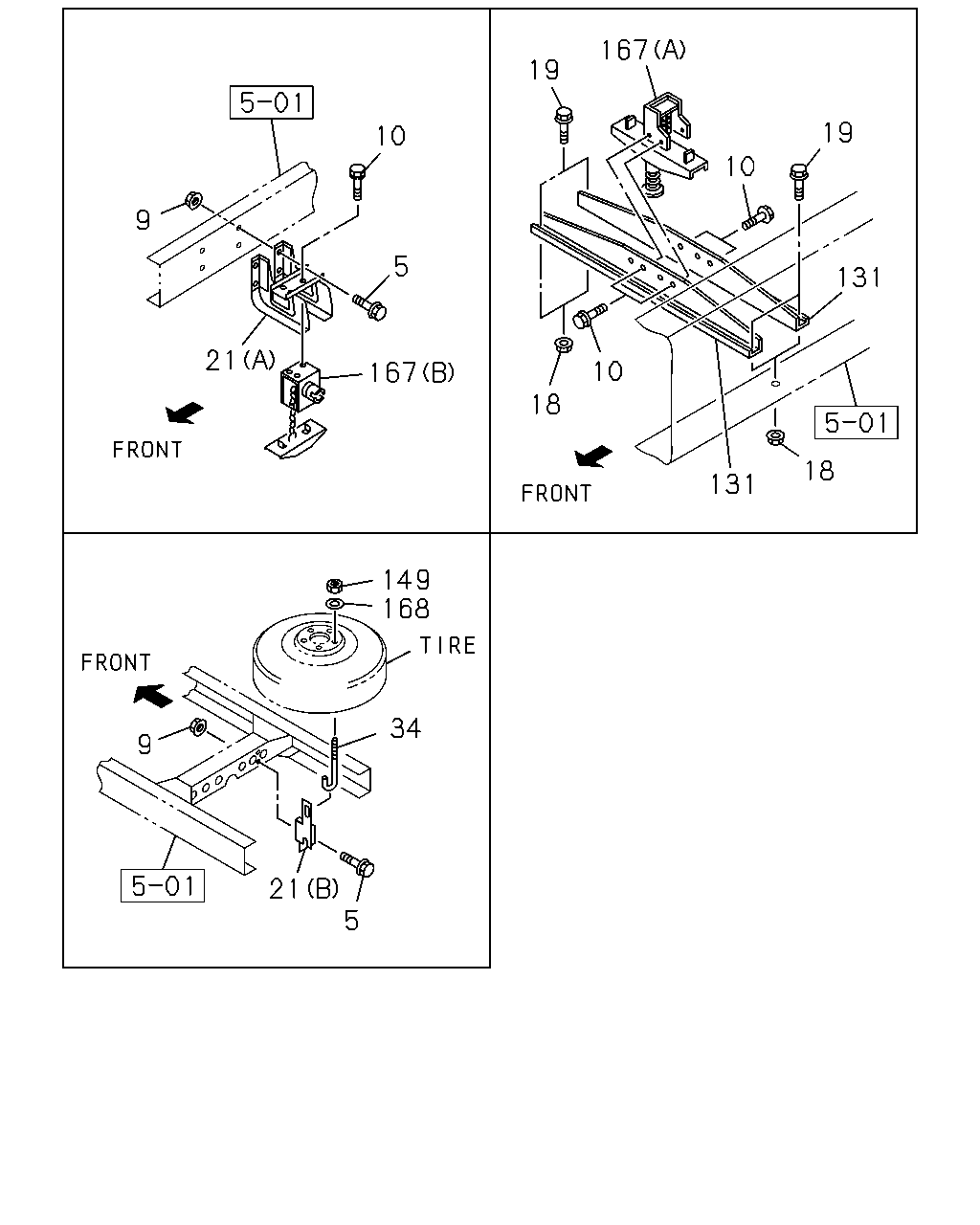

5-30 — SPARE TIRE CARRIER AND COVER (#54446) — 28 parça

18 131 10 18 19 167 10 19 131 167 5 10 21 9 149 168 34 5 21 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	07.632 BOLT; BRKT TO FRAME 09.171 M10X25 FLANGE	0-28051-025-0	04	1	1304-	●
5	07.632 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1304-		●
5	07.632 BOLT; BRKT TO FRAME 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
9	07.633 NUT; BRKT TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	1304-	●
9	07.633 NUT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1304-		●
9	07.633 NUT; BRKT TO FRAME 01.062 M8 FLANGE	0-91180-108-0	04	1	1304-	●
10	07.632 BOLT; TIRE HANGER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1304-	●
10	07.632 BOLT; TIRE HANGER 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1012-		●
18	07.633 NUT; MEMBER 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-		●
19	07.632 BOLT; C/MBR 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-		●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4100MM(41W) (A)	8-98072-378-2	01	1	1304-	●
21	07.629 BRACKET; SPARE TIRE HANGER WHEEL BASE 4400MM(44W) (A)	8-98036-085-2	01	1	1304-	●
21	07.629 BRACKET; SPARE TIRE HANGER FRAME STRAIGHT TYPE<7KJ> (B)	8-98019-889-0	02	1	1304-		●
21	07.629 BRACKET; SPARE TIRE HANGER (B)	8-98019-889-0	02	1	1304-	●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X305	8-94441-189-0	02	1	1012-1209		●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X330	8-98226-501-0	02	1	1210-1303		●
34	07.629 BOLT; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> M12X330	8-98226-501-0	02	1	1304-		●
34	07.629 BOLT; SPARE TIRE M12X330	8-98226-501-0	02	1	1304-	●
131	07.629 CROSSMEMBER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ>	8-98035-827-1	02	1	1012-		●
131	07.629 CROSSMEMBER; SPARE TIRE EXC. FRAME STRAIGHT TYPE<7KJ>	8-98024-842-2	02	1	1012-		●
149	07.629 NUT; CARRIER FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	02	1	1012-1303		●
149	07.629 NUT; CARRIER FRAME STRAIGHT TYPE<7KJ> 05.002 M12	0-91110-512-0	02	1	1304-		●
149	07.629 NUT; CARRIER 05.002 M12	0-91110-512-0	02	1	1304-	●
167	07.629 HANGER; TIRE (B)	8-97010-955-1	01	1	1304-	●
167	07.629 HANGER; TIRE FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) ,FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6 -WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) (A)	8-98036-383-0	01	1	1012-		●
168	07.633 WASHER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1012-1303		●
168	07.633 WASHER; SPARE TIRE FRAME STRAIGHT TYPE<7KJ> 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1304-		●
168	07.633 WASHER; SPARE TIRE 07.243 ID=12.5 OD=54	8-94466-483-0	02	1	1304-	●
