◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#54443) — 52 parça

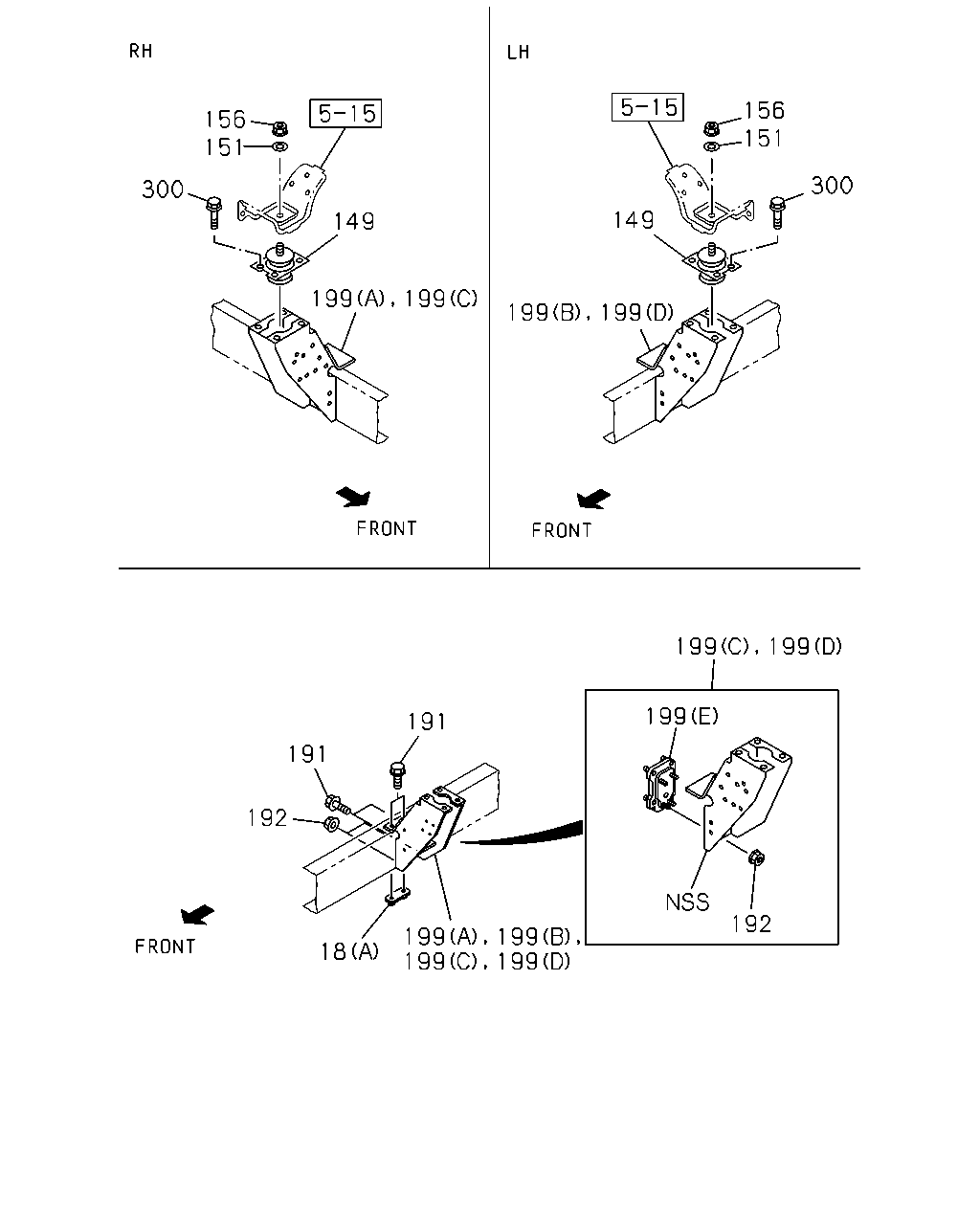

çizim 175321
156 151 156 151 300 300 149 149 199 199 199 199 199 199 199 191 191 192 192 199 199 199 199 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1304- ● ●
149 09.023 RUBBER; MTG,CAB,UPR RR
H=94 		8-98038-868-0 02 1 1012-1303 ●
149 09.023 RUBBER; MTG,CAB,UPR RR
H=94 		8-98038-868-0 02 1 1304- ● ●
151 09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 		8-97359-040-1 02 1 1012-1303 ●
151 09.011 WASHER; CAB MTG,RR UPR
ID=16.5 OD=58 		8-97359-040-1 02 1 1304- ● ●
156 07.529 NUT; CAB MTG RR
M14 FLANGE 		0-91180-114-0 02 1 1012-1303 ●
156 07.529 NUT; CAB MTG RR
M14 FLANGE 		0-91180-114-0 02 1 1304- ● ●
191 09.003 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 08 1 1012-1303 ●
191 09.003 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 08 1 1304-1511 ●
191 09.003 BOLT; BRKT FIX
M12X40 FLANGE 		0-28651-240-0 08 1 1304-1511 ●
191 09.003 BOLT; BRKT FIX
M12X40 FLANGE 		0-28651-240-0 08 1 1512- ● ●
191 09.003 BOLT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28651-240-0 04 1 1012-1511 ●
192 09.003 NUT; BRKT FIX
02.042 M12 FLANGE 		0-91180-112-0 08 1 1012-1303 ●
192 09.003 NUT; BRKT FIX
02.042 M12 FLANGE 		0-91180-112-0 08 1 1304- ● ●
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 1012-1511 ●
192 09.003 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> 02.042 M12 FLANGE 		0-91180-112-0 04 1 1012-1511 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98024-772-1 01 1 1012-1101 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-144-1 01 1 1102-1303 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-144-1 01 1 1304-1511 ●
199 09.003 BRACKET; CAB RR MTG
(A) 		8-98099-144-1 01 1 1304-1511 ●
199 09.003 BRACKET; CAB RR MTG
(A) 		8-98099-144-1 01 1 1512- ● ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98024-778-1 01 1 1012-1303 ●
199 09.003 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> (B) 		8-98024-778-1 01 1 1304-1511 ●
199 09.003 BRACKET; CAB RR MTG
(B) 		8-98024-778-1 01 1 1304-1511 ●
199 09.003 BRACKET; CAB RR MTG
(B) 		8-98024-778-1 01 1 1512- ● ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-98024-770-1 01 1 1012-1511 ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-98024-771-1 01 1 1012-1511 ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 1012-1511 ●
199 09.003 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (E) 		8-97092-102-5 01 1 1012-1511 ●
300 09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE 		0-28651-020-0 08 1 1012-1303 ●
300 09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE 		0-28651-020-0 08 1 1304- ● ●

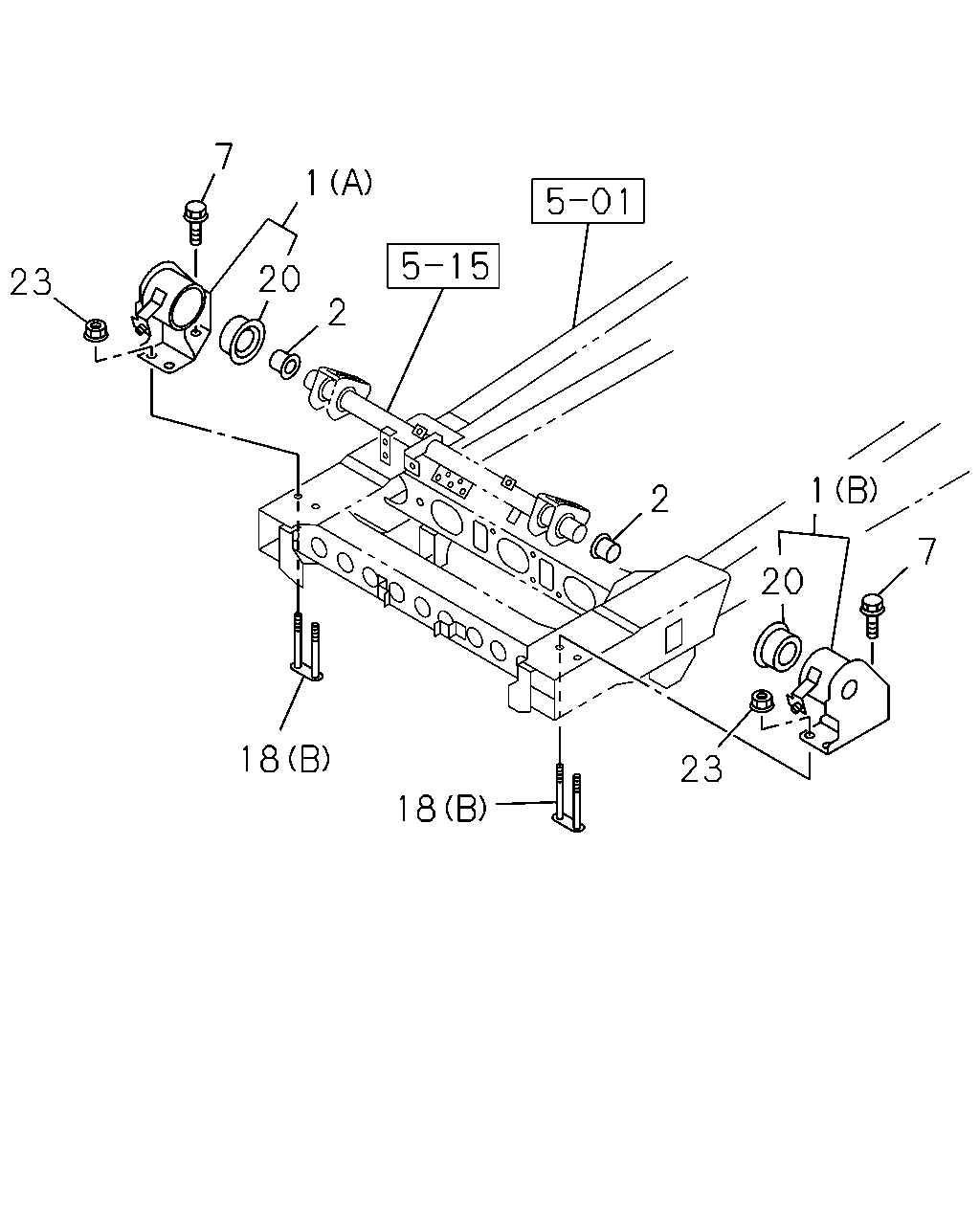

çizim 175343
7 1 20 23 2 1 2 7 20 18 23 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.003 BRACKET; CAB MTG
16.545 (A) 		8-98074-798-2 01 1 1012-1303 ●
1 09.003 BRACKET; CAB MTG
16.545 (A) 		8-98074-798-2 01 1 1304- ● ●
1 09.003 BRACKET; CAB MTG
16.545 (B) 		8-98074-800-2 01 1 1012-1303 ●
1 09.003 BRACKET; CAB MTG
16.545 (B) 		8-98074-800-2 01 1 1304- ● ●
2 09.009 BUSHING; TORSION BAR 8-97061-514-0 02 1 1012-1303 ●
2 09.009 BUSHING; TORSION BAR 8-97061-514-0 02 1 1304- ● ●
7 09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE 		0-28661-440-0 02 1 1012-1303 ●
7 09.003 BOLT; BRKT,CAB TILT
M14X40 FLANGE 		0-28661-440-0 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 1304- ● ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1012-1303 ●
18 09.003 PLATE; MTG BRKT FIX
(B) 		8-98029-285-1 02 1 1304- ● ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1012-1303 ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1012-1303 ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1304- ● ●
20 09.003 RUBBER; MTG,CAB BRKT 8-98007-037-1 01 1 1304- ● ●
23 09.003 NUT; MTG BRKT
M14 		8-98039-989-0 04 1 1012-1303 ●
23 09.003 NUT; MTG BRKT
M14 		8-98039-989-0 04 1 1304- ● ●
