5-01 — FRAME AND OTHER PARTS (#54442) — 131 parça

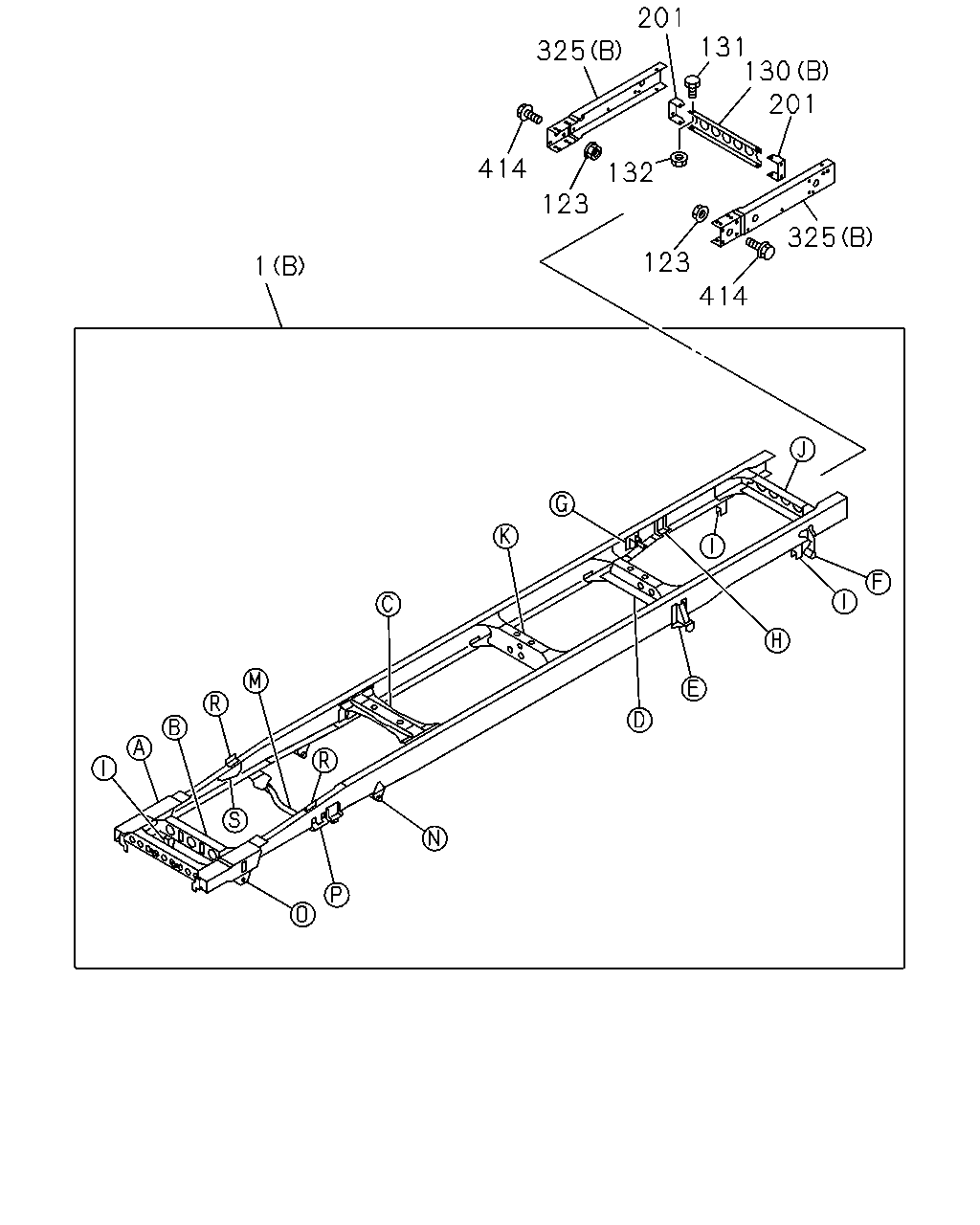

çizim 175318
1 414 325 201 131 130 132 123 123 325 414 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) (B) 		8-98240-429-0 01 1 1304- ●
1 07.003 FRAME ASM
WHEEL BASE 4400MM(44W) (B) 		8-98240-431-0 01 1 1304- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ) (A) 		8-98099-798-1 01 1 1012- ●
1 07.003 FRAME ASM
4HG1 ENG(RJH) (A) 		8-98106-324-1 01 1 1012- ●
123 07.039 NUT
07.395 M12 		8-97360-126-0 16 1 1304- ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 1304- ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 1012- ●
131 07.014 BOLT; END C/MBR
07.833 M10X25 FLANGE 		0-28661-025-0 08 1 1304- ●
132 07.014 NUT; END C/MBR
03.162 M10 FLANGE 		0-91180-110-0 08 1 1304- ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1012-1303 ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1304- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1304- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1012-1303 ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1304- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1012-1303 ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1304- ● ●
414 07.011 BOLT
06.509 M12X30 FLANGE 		0-28661-230-0 12 1 1304- ●
414 07.011 BOLT
M12X40 FLANGE 		0-28661-240-0 04 1 1304- ●

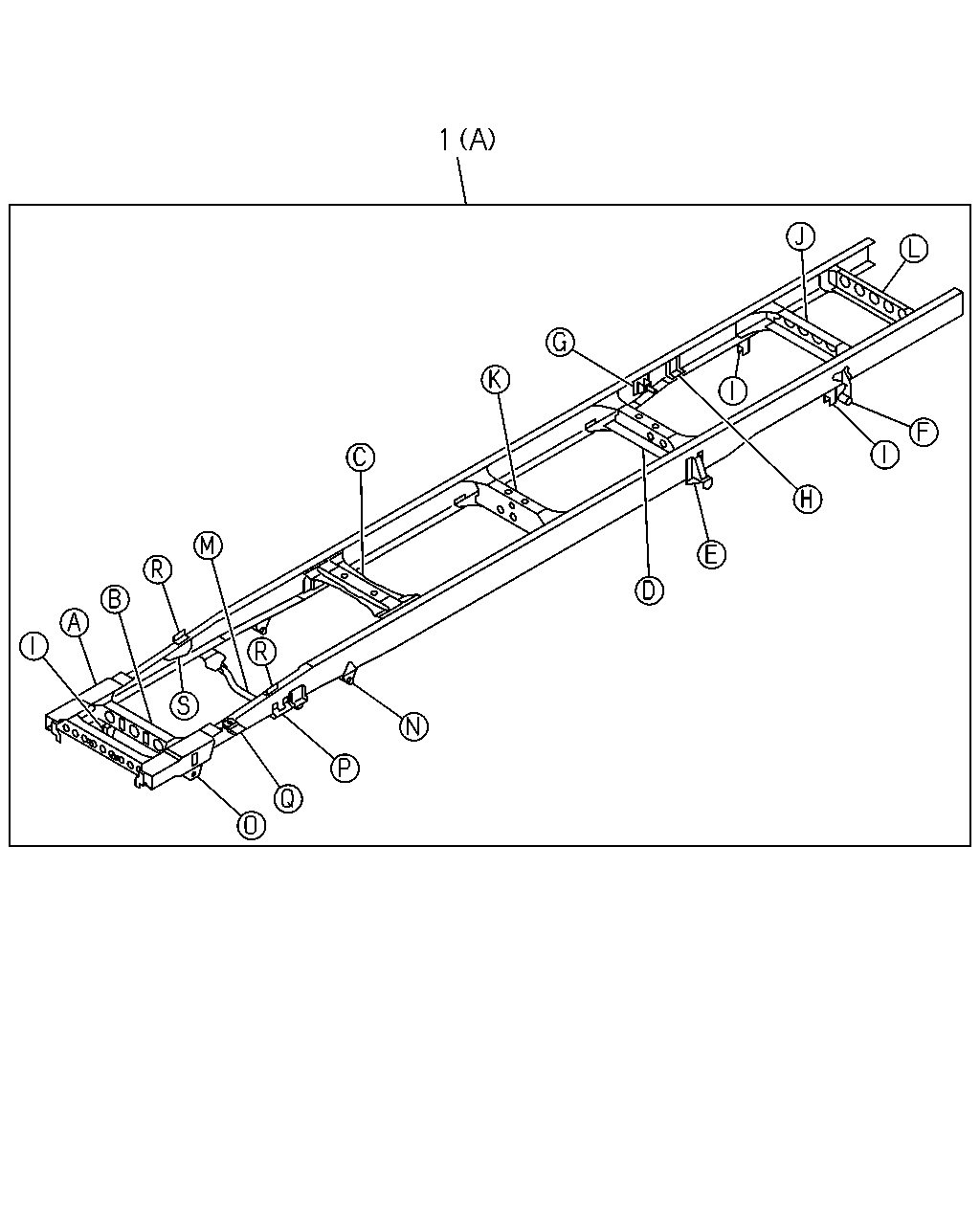

çizim 175327
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.003 FRAME ASM
WHEEL BASE 4100MM(41W) (B) 		8-98240-429-0 01 1 1304- ●
1 07.003 FRAME ASM
WHEEL BASE 4400MM(44W) (B) 		8-98240-431-0 01 1 1304- ●
1 07.003 FRAME ASM
4HK1-TCN ENG(RDQ) (A) 		8-98099-798-1 01 1 1012- ●
1 07.003 FRAME ASM
4HG1 ENG(RJH) (A) 		8-98106-324-1 01 1 1012- ●

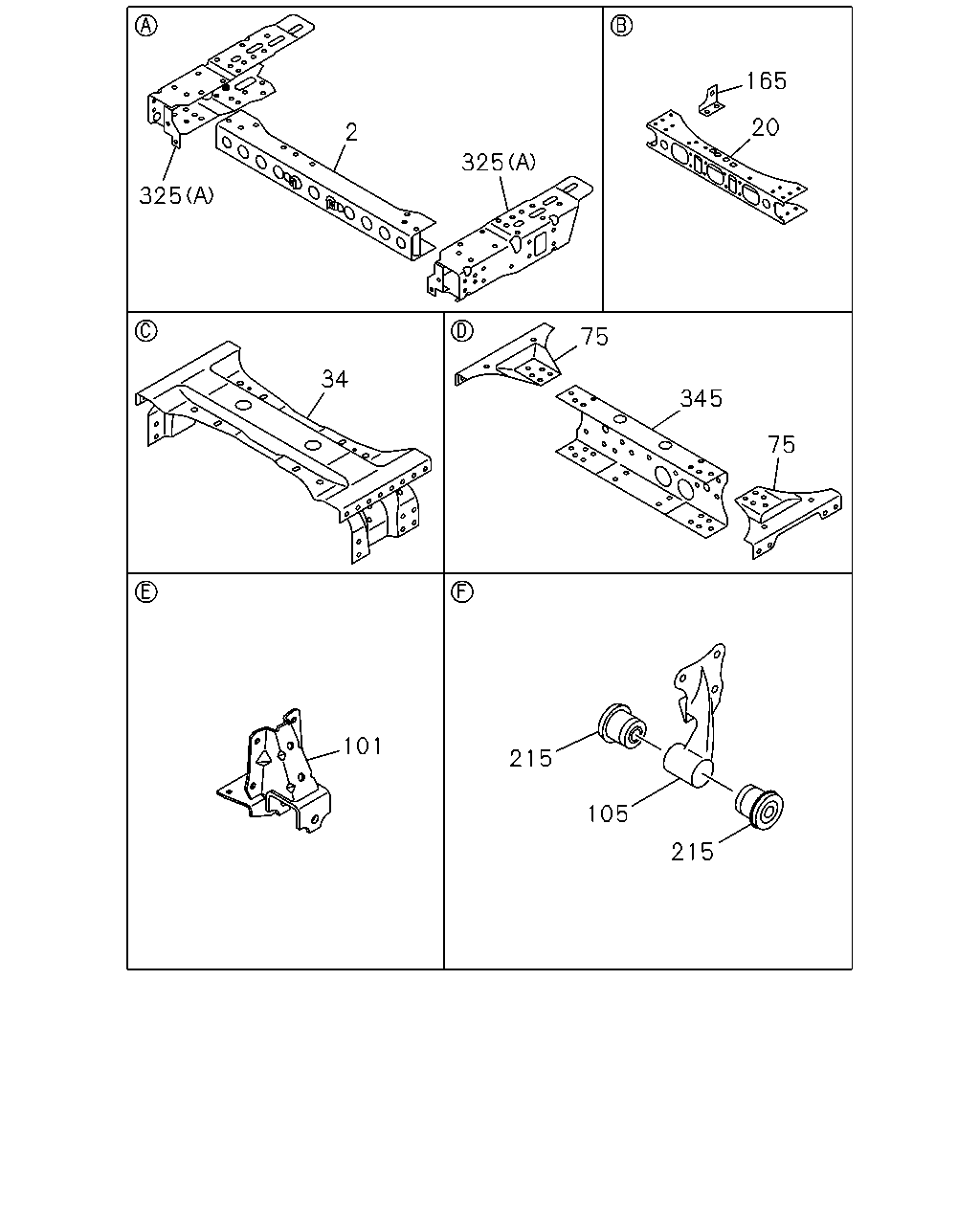

çizim 175328
325 2 325 34 101 165 20 75 345 75 215 105 215
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1012-1303 ●
2 07.010 MEMBER; CROSS,1ST 8-97387-866-5 01 1 1304- ● ●
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1012-1303 ●
20 07.012 MEMBER; CROSS,2ND 8-98014-074-7 01 1 1304- ● ●
34 07.012 MEMBER; CROSS,3RD 8-98074-639-4 01 1 1012-1303 ●
34 07.012 MEMBER; CROSS,3RD 8-98074-639-4 01 1 1304- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1012-1303 ●
75 07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-583-0 02 1 1304- ● ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1012-1303 ●
75 07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-584-0 02 1 1304- ● ●
101 07.112 BRACKET; RR SPR,FRT 8-98202-857-0 02 1 1304- ●
101 07.112 BRACKET; RR SPR,FRT 8-97042-245-1 02 1 1012- ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1012-1303 ●
105 07.112 BRACKET; RR SPR,RR 8-98032-488-0 01 1 1304- ● ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1012-1303 ●
105 07.112 BRACKET; RR SPR,RR 8-98032-489-0 01 1 1304- ● ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1012-1303 ●
165 01.270 BRACKET; RAD STAY 8-98000-886-0 01 1 1304- ● ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1012-1303 ●
215 07.524 BUSHING; BRKT,RR SPRING 8-97184-699-1 04 1 1304- ● ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-891-1 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4100MM(41W) (B) 		8-97222-892-1 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-752-3 01 1 1304- ●
325 07.039 EXTENSION; FRAME
WHEEL BASE 4400MM(44W) (B) 		8-97128-753-3 01 1 1304- ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1012-1303 ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-344-1 01 1 1304- ● ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1012-1303 ●
325 07.039 EXTENSION; FRAME
(A) 		8-98073-345-0 01 1 1304- ● ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1012-1303 ●
345 07.012 MEMBER; CROSS,5TH 8-97175-993-3 01 1 1304- ● ●

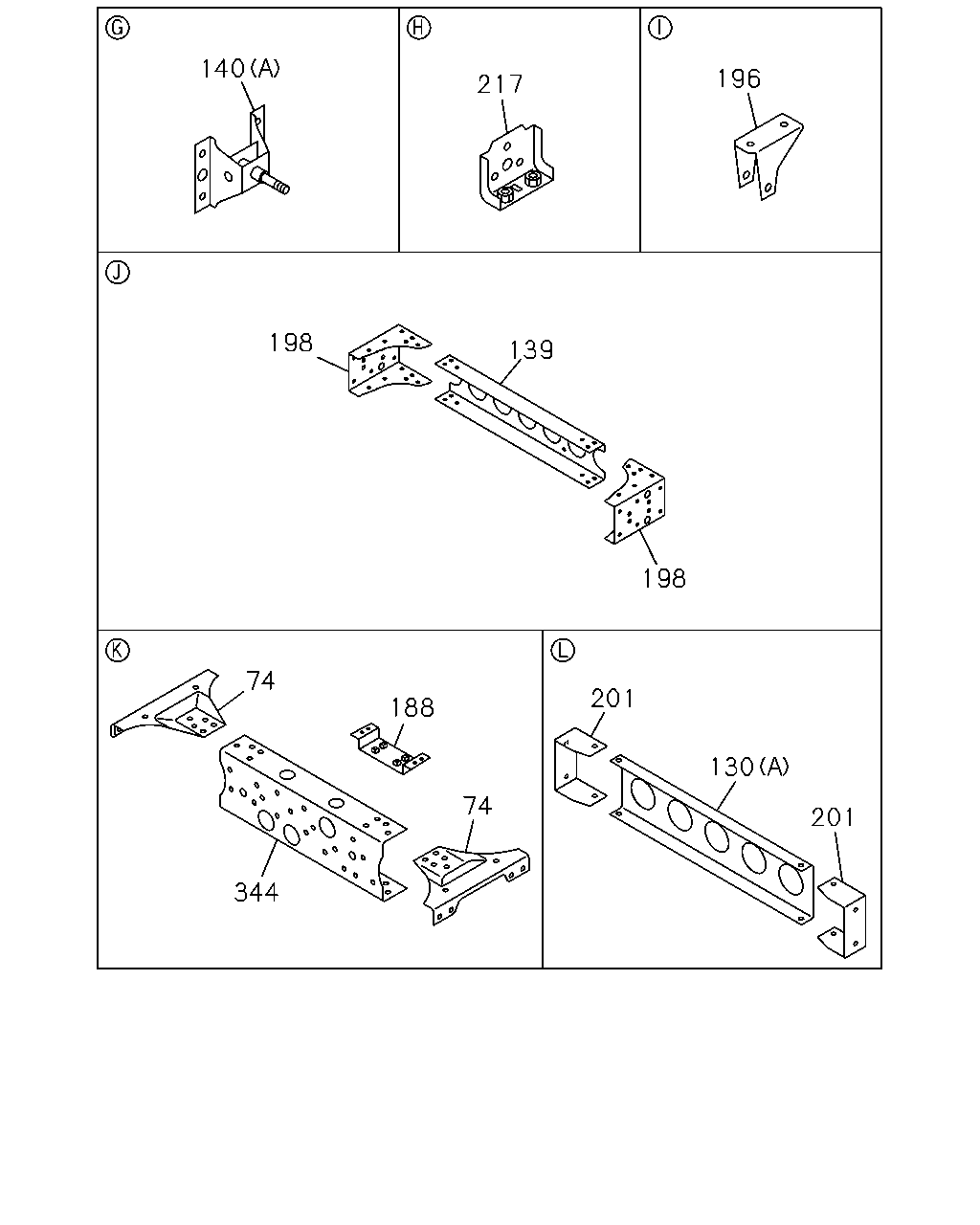

çizim 175333
140 217 196 198 139 198 201 130 201 74 188 74 344
BalonParca AdiParca NoAdetTipApplied Date A B
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1012-1303 ●
74 07.039 GUSSET; 4TH C/MBR
RH-LOWER,LH-UPPER 		8-98000-583-0 02 1 1304- ● ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1012-1303 ●
74 07.039 GUSSET; 4TH C/MBR
RH-UPPER,LH-LOWER 		8-98000-584-0 02 1 1304- ● ●
130 07.014 MEMBER; CROSS,END
(B) 		8-97205-394-0 01 1 1304- ●
130 07.014 MEMBER; CROSS,END
(A) 		8-97080-872-0 01 1 1012- ●
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1012-1303 ●
139 07.012 MEMBER; CROSS,6TH 8-97107-384-0 01 1 1304- ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1012-1303 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1304- ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1012-1303 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1304- ● ●
188 07.039 BRACKET; SUPPORT,CTR BRG
4HG1 ENG(RJH) 		8-98227-662-0 01 1 1212- ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 1012-1303 ●
196 07.242 BRACKET; STAB TO FRAME 8-98033-523-0 04 1 1304- ● ●
198 07.039 GUSSET; 6TH C/MBR 8-98014-079-1 02 1 1012-1303 ●
198 07.039 GUSSET; 6TH C/MBR 8-98014-079-1 02 1 1304- ● ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1012-1303 ●
201 07.039 GUSSET; C/MBR 8-97096-871-0 02 1 1304- ● ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1012-1303 ●
217 07.535 BRACKET; HELPER RUBBER,RR SPRING 8-97202-417-0 02 1 1304- ● ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1012-1303 ●
344 07.012 MEMBER; CROSS,4TH 8-97175-993-3 01 1 1304- ● ●
çizim 175335
51 51 42 31 39 31 24 140 63 103 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1012-1303 ●
24 07.105 BRACKET; FRT SPR,FRT 8-98015-274-0 02 1 1304- ● ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1012-1303 ●
31 07.428 BUSHING; FRT SPR,RR
07.524 		8-97184-699-1 04 1 1304- ● ●
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1012-1303 ●
39 07.112 BRACKET; FRT SPR,RR 8-98014-125-0 02 1 1304- ● ●
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1012-1303 ●
42 07.011 MEMBER; CROSS,ENG MTG 8-98032-389-0 01 1 1304- ● ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1012-1303 ●
51 07.011 BRACKET; ENG SUPPORT,OUTER 8-98034-961-0 02 1 1304- ● ●
63 01.270 BRACKET; RAD MTG
4HG1 ENG(RJH) 		8-97115-668-0 01 1 1012- ●
103 07.420 STOPPER; SUB SPR
07.524 		8-97079-659-1 02 1 1012-1303 ●
103 07.420 STOPPER; SUB SPR
07.524 		8-97079-659-1 02 1 1304- ● ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1012-1303 ●
140 07.112 BRACKET; S/ABS,RR
(A) 		8-97080-884-1 02 1 1304- ● ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1012-1303 ●
140 07.112 BRACKET; S/ABS,RR
07.395 (B) 		8-97302-511-0 02 1 1304- ● ●
141 07.112 STIFFENER 8-98064-354-1 01 1 1012-1303 ●
141 07.112 STIFFENER 8-98064-354-2 01 1 1304- ● ●
141 07.112 STIFFENER 8-98064-355-1 01 1 1012-1303 ●
141 07.112 STIFFENER 8-98064-355-2 01 1 1304- ● ●
çizim 356798
376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 67 222
BalonParca AdiParca NoAdetTipApplied Date A B
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 18 1 1012-1303 ●
67 07.011 NUT; C/MBR
04.085 M10 FLANGE 		0-91180-210-0 18 1 1304- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1012-1303 ●
176 04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE 		0-28051-030-0 04 1 1304- ● ●
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1012-1303 ●
176 04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE 		0-28651-025-0 04 1 1304- ● ●
221 01.270 BOLT; RAD MTG BRKT,FRAME
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
222 07.039 NUT; RAD MTG BRKT,FRAME
4HK1-TCN ENG(RDQ) 01.540 M8 FLANGE 		0-91180-208-0 02 1 1012- ●
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1012-1303 ●
296 07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE 		0-28651-030-0 16 1 1304- ● ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END 		9-06750-824-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(B) D10X24 TAPER END 		9-06751-024-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(C) D10X26 TAPER END 		9-06751-026-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(D) D10X28 TAPER END 		9-06751-028-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(E) D10X32 TAPER END 		9-06751-032-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(E) D10X32 TAPER END 		9-06751-032-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(F) D10X36 TAPER END 		9-06751-036-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(F) D10X36 TAPER END 		9-06751-036-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(G) D11X26 TAPER END 		9-06751-126-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(G) D11X26 TAPER END 		9-06751-126-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
(H) D11X30 TAPER END 		9-06751-130-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
(H) D11X30 TAPER END 		9-06751-130-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END 		9-06751-230-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END 		9-06751-230-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END 		9-06751-236-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END 		9-06751-236-0 AR 1 1304- ● ●
376 07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END 		9-06751-240-0 AR 1 1012-1303 ●
376 07.039 RIVET; FRAME
07.112 (K) D12X40 TAPER END 		9-06751-240-0 AR 1 1304- ● ●
