Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#5444) — 222 parça

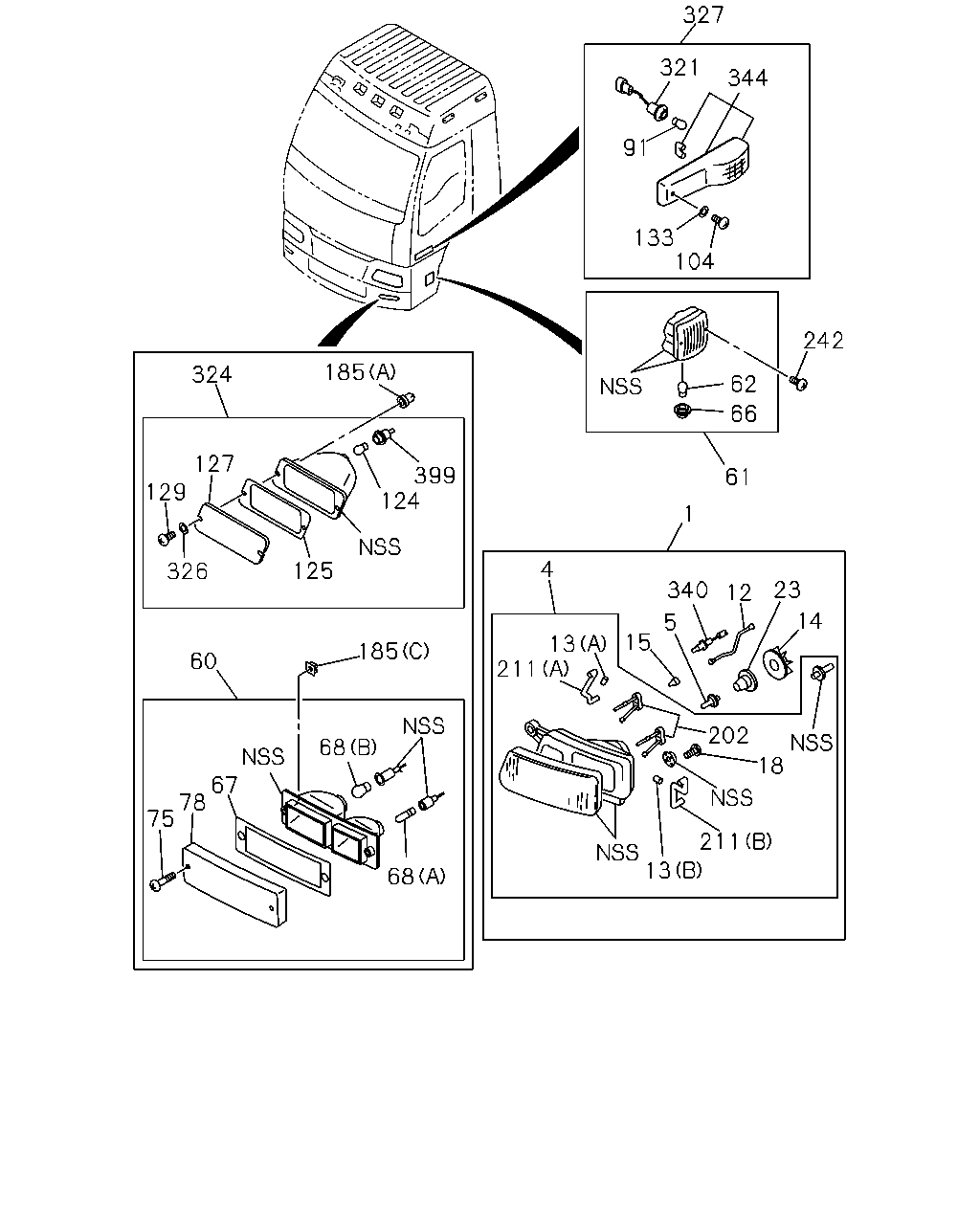

327 321 344 91 133 104 242 185 324 62 66 127 399 124 61 129 1 4 125 326 23 340 12 14 5 15 13 211 185 60 202 18 68 67 78 75 211 13 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
4	HEADLAMP UNIT	1-82119-114-0	01	1	9601-9609
4	HEADLAMP UNIT	1-82119-113-0	01	1	9601-9710
4	HEADLAMP UNIT	1-82119-128-0	01	1	9711-
4	HEADLAMP UNIT	1-82119-129-0	01	1	9610-
5	BULB; HEADLAMP 24V 75/70W	1-82194-063-0	02	1	9601-
12	HARNESS; HEADLAMP	1-82118-012-0	02	1	9601-
13	CLIP; HEADLAMP (A)	1-82119-084-0	04	1	9601-
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	9601-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	9601-
15	BULB; FOG LAMP 24V 55W	1-82194-079-0	02	1	9601-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9601-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	9601-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	9601-9904
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	9601-9904
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-188-2	01	1	9601-
61	LAMP ASM; CORNERING CORNARING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	9601-
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	9601-
62	BULB; CORNERING LAMP CORNARING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	9601-
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-146-0	01	1	9601-
66	HARNESS; CORNERING LAMP CORNARING LAMP<TDS>	1-86830-146-0	01	1	9601-
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	9601-9904
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	9601-9904
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	9601-9904
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	9601-9904
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	9601-9904
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	9601-9904
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	9601-9809
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	9810-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	9601-
124	BULB; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	9601-9904
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	9905-
125	GASKET; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	9601-9904
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	9905-
127	LENS; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	9601-9904
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	9905-
127	LENS; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	9601-9904
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	9905-
129	SCREW; FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	9601-9904
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	9905-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	9601-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9601-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9601-9904
185	GROMMET; SCREW EXC. REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9601-9606
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	9601-
211	TUBE; HEADLAMP (A)	1-86830-142-0	01	1	9601-9911
211	TUBE; HEADLAMP (A)	1-86830-329-0	01	1	9912-0105
211	TUBE; HEADLAMP (B)	1-86830-144-0	01	1	9601-9911
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	9912-
211	TUBE; HEADLAMP (A)	1-86830-141-0	01	1	9601-9911
211	TUBE; HEADLAMP (A)	1-86830-328-0	01	1	9912-0105
211	TUBE; HEADLAMP (B)	1-86830-143-0	01	1	9601-9911
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	9912-
242	SCREW; CORNERING LAMP CORNARING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	9601-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	9601-
324	LAMP; FRT FLASHER EXC. REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	9601-9904
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	9905-
324	LAMP; FRT FLASHER EXC. REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	9601-9904
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	9905-
326	WASHER; PL,FRT TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	9601-9904
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	9905-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-263-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	9810-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-262-0	01	1	9601-9809
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	9810-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	9601-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	9601-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	9601-
399	SOCKET; TURN SIGNAL EXC. REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	9601-9904
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	9905-

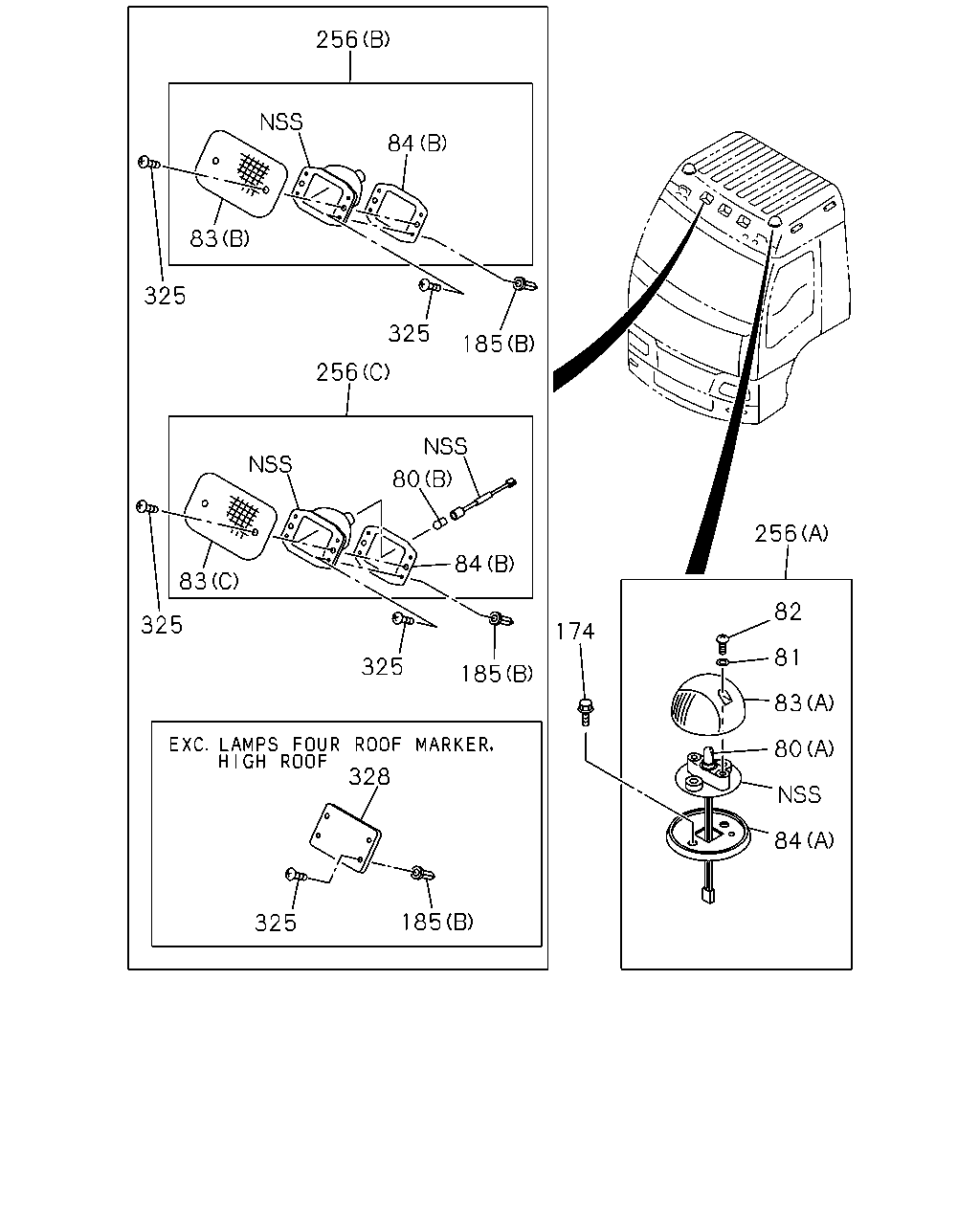

256 84 83 325 325 185 256 80 256 84 83 82 325 174 81 325 185 83 80 328 84 185 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A) 24V 5W	8-94135-397-0	02	1	9611-
80	BULB; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B) 24V 12W	9-82691-302-0	02	1	9611-
81	SEAT; SCREW LAMPS FOUR ROOF MARKER<PJ5>	1-82219-012-0	04	1	9611-
82	SCREW; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5>	1-82219-011-0	04	1	9611-
83	LENS; MARKER LAMP HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-321-0	03	1	9905-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-82215-048-0	02	1	9611-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (C)	1-82215-068-0	02	1	9611-9904
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C)	1-82215-068-0	02	1	9905-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82215-069-0	01	1	9611-9904
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-82215-069-0	01	1	9905-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C)	1-86830-320-0	02	1	9905-
83	LENS; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B)	1-86830-321-0	01	1	9905-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9611-9904
84	GASKET; MARKER LAMP HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9905-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-153-0	03	1	9905-
84	GASKET; MARKER LAMP LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-288-0	02	1	9611-
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X25 W/LK & PL WASHER	8-94279-204-0	04	1	9611-0012
174	BOLT LAMPS FOUR ROOF MARKER<PJ5> M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0101-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	9601-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (C) M4	5-09470-002-0	04	1	9601-9904
185	GROMMET; SCREW EXC. REINFORCEMENT BUMPER<VG7> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9601-9606
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	9607-
256	LAMP; MARKER HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5> (B)	1-82210-230-0	03	1	9905-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (A)	1-86830-129-0	02	1	9611-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (B)	1-86830-131-0	01	1	9611-9904
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (B)	1-86830-131-0	01	1	9905-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> (C)	1-86830-170-0	02	1	9611-9904
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> (C)	1-86830-170-0	02	1	9905-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (C)	1-82210-229-0	02	1	9905-
256	LAMP; MARKER LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> (B)	1-82210-230-0	01	1	9905-
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	9601-9610
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5> M5X14 TAPPING	9-07066-514-0	12	1	9611-9904
325	SCREW; SPD INDICATOR LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F> M5X14 TAPPING	9-07066-514-0	12	1	9905-
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> M5X20 TAPPING	0-71090-520-0	18	1	9611-9904
325	SCREW; SPD INDICATOR LAMP LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9905-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> M5X20 TAPPING	0-71090-520-0	18	1	9905-
328	COVER; LAMP	1-76217-122-0	03	1	9601-9610
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>	1-76217-122-0	03	1	9611-9904
328	COVER; LAMP EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F>	1-76217-122-0	03	1	9905-

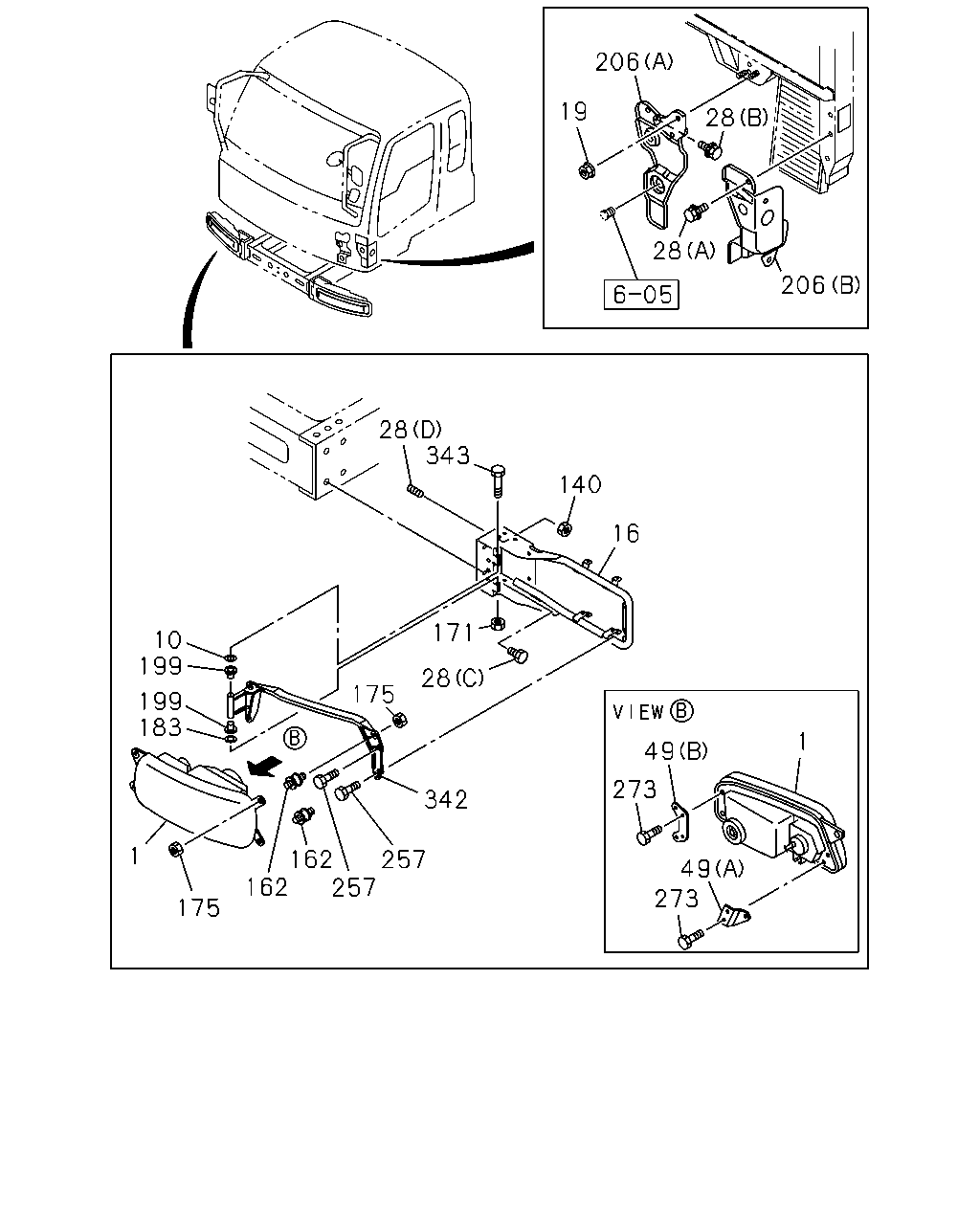

206 19 28 28 206 28 343 140 16 171 10 199 28 175 199 18 1 49 273 342 1 162 257 162 257 49 273 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	9601-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-082-5	02	1	9601-9606
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-116-1	02	1	9607-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	9601-
19	NUT; HEADLAMP M8 FLANGE	8-94279-517-0	04	1	9601-9611
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
28	BOLT; HEADLAMP (B)	8-94279-207-0	02	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	08	1	9601-9606
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	9601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	9601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	9601-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-110-0	02	1	9607-9608
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	9609-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	9601-
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	9601-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9601-
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9601-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	9601-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9904
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28080-616-0	04	1	9601-9904
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	9905-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	9601-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	9601-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	9601-

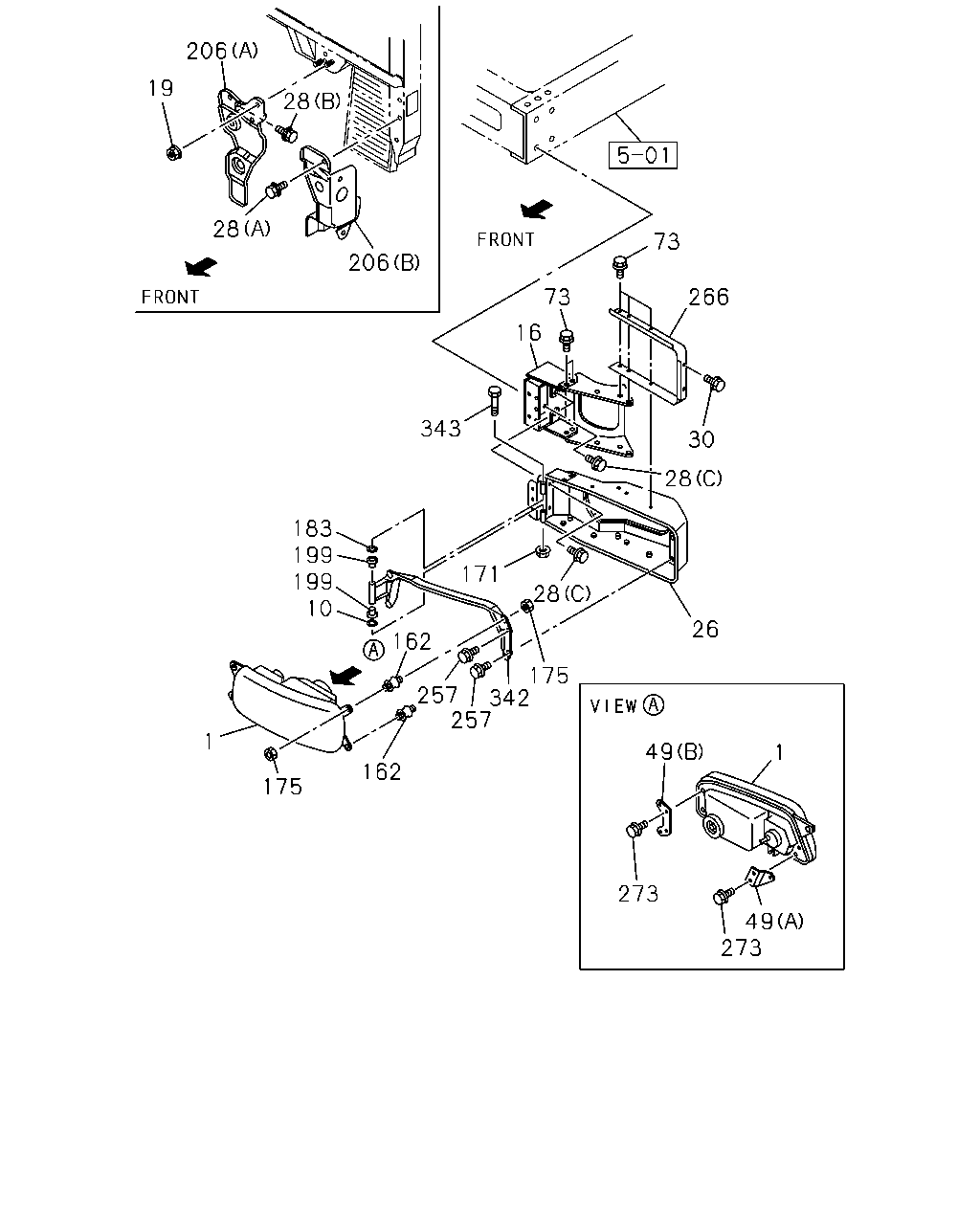

206 28 19 28 28 206 1 28 1 110 26 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-024-0	01	1	9601-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-023-0	01	1	9601-
19	NUT; HEADLAMP M8 FLANGE	8-94279-517-0	04	1	9601-9611
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
26	BRACKET ASM; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-114-0	02	1	9601-9606
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9601-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9601-
28	BOLT; HEADLAMP (B)	8-94279-207-0	02	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	08	1	9601-9606
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9601-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9601-

206 19 28 28 73 206 266 73 16 343 30 28 183 199 199 10 171 28 26 162 175 257 342 257 1 49 1 162 175 273 49 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD	1-82110-306-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-305-4	01	1	9601-9609
1	LAMP ASM; HEAD	1-82110-326-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-396-2	01	1	9808-
1	LAMP ASM; HEAD	1-82110-325-1	01	1	9610-9807
1	LAMP ASM; HEAD	1-82110-395-2	01	1	9808-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> ID=8.4	9-09160-508-0	02	1	9601-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-082-5	02	1	9601-9606
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-116-1	02	1	9607-
19	NUT; HEADLAMP M8 FLANGE	8-94279-517-0	04	1	9601-9611
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	9612-
26	BRACKET ASM; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-114-0	02	1	9601-9606
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	9601-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	9601-
28	BOLT; HEADLAMP (B)	8-94279-207-0	02	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	08	1	9601-9606
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X35 FLANGE	0-28081-035-0	06	1	9607-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9601-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	9607-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	9601-
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	04	1	9601-9606
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	9601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	9601-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	9601-
73	BOLT; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X20 FLANGE	0-28081-020-0	28	1	9601-9606
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	9601-
171	NUT BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91150-106-0	02	1	9601-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	9601-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> ID=8.5	9-09855-333-0	02	1	9601-
199	BUSHING BUMPER W/HEADLAMPS<SLB>	5-15549-001-1	04	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-574-3	01	1	9601-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	9601-
206	HOLDER; HEADLAMP (B)	1-65671-573-3	01	1	9601-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> M8X20 FLANGE	0-28080-820-0	04	1	9601-
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-115-0	02	1	9601-9606
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 W/LK WASHER	0-50040-616-0	04	1	9601-9904
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28080-616-0	04	1	9601-9904
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> M6X16 FLANGE	0-28680-616-0	08	1	9905-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-087-2	01	1	9601-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB>	1-82117-088-2	01	1	9601-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB>	1-82119-096-1	02	1	9601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
