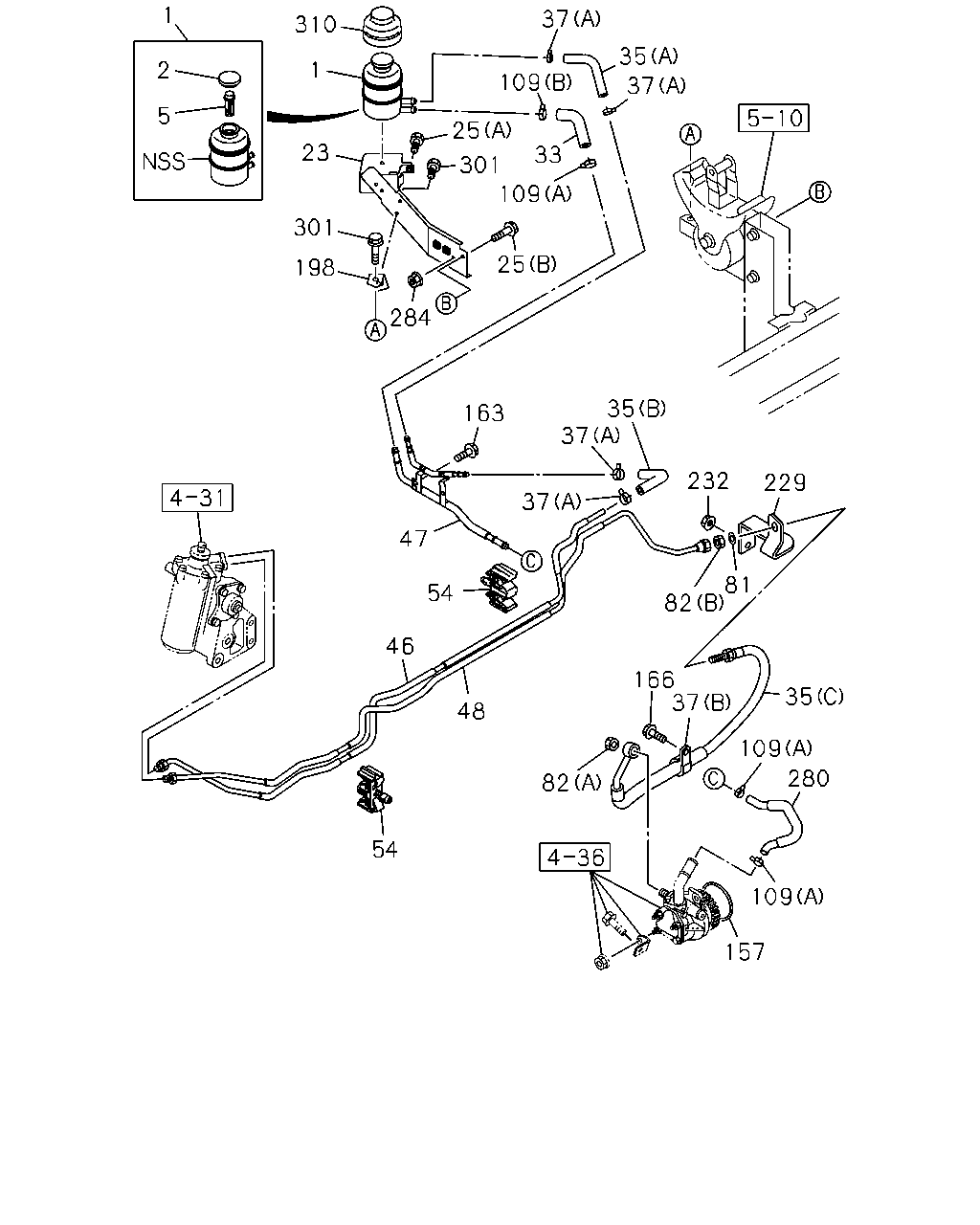

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#54430) — 84 parça

1 37 310 35 2 1 109 37 5 25 23 33 301 109 301 25 198 284 35 37 163 232 229 37 47 81 82 54 46 166 37 35 48 109 280 82 54 109 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1012-1303	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1304-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1012-1303	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1304-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1012-1303	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1304-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1012-1303	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1304-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1012-1303	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1304-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1012-1303	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1304-	●	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1012-1303	●
35	06.671 HOSE; RETURN,P/S TANK FRAME STRAIGHT TYPE<7KJ> (C)	8-97389-832-2	01	1	1304-	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1304-		●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1012-1303	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1304-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1012-1303	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1304-	●	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	1012-1303	●
37	01.762 CLIP; HOSE,P/S FRAME STRAIGHT TYPE<7KJ> (B) ID=26 L=26	1-09701-236-0	01	1	1304-	●
37	01.762 CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1304-		●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1012-1303	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	1304-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1530	8-98138-265-0	01	1	1012-1303	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1530	8-98138-265-0	01	1	1304-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCN ENG(RDQ) FRONT WIDE TREAD<7GV> L=1530	8-98138-265-0	01	1	1304-		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1012-1303	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1304-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HK1-TCN ENG(RDQ) EXC. FRONT WIDE TREAD<7GV>	8-98041-184-3	01	1	1304-		●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1012-1303	●
47	06.671 PIPE; RETURN FRAME STRAIGHT TYPE<7KJ>	8-98083-166-1	01	1	1304-	●
47	06.671 PIPE; RETURN	8-98083-166-1	01	1	1304-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1012-1303	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> L=1646	8-98138-267-0	01	1	1304-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCN ENG(RDQ) FRONT WIDE TREAD<7GV> L=1646	8-98138-267-0	01	1	1304-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1012-1303	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1304-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HK1-TCN ENG(RDQ) EXC. FRONT WIDE TREAD<7GV>	8-98041-185-4	01	1	1304-		●
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1012-1303	●
54	06.672 CLIP; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1304-	●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	1304-		●
81	06.672 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1012-1303	●
81	06.672 WASHER; LK,FLEX HOSE FRAME STRAIGHT TYPE<7KJ> ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1304-	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1304-		●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1012-1303	●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.897 (B) M16	8-94370-339-0	01	1	1304-	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	1304-		●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1012-1303	●
82	06.672 NUT; FLEX HOSE,P/S FRAME STRAIGHT TYPE<7KJ> 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1304-	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	1304-		●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	1012-1303	●
109	06.672 CLIP; RUBBER HOSE FRAME STRAIGHT TYPE<7KJ> 04.681 (A) ID=21	8-98150-355-0	02	1	1304-	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	1304-		●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1012-1303	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1304-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1012-1303	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1304-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1012-1303	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1304-	●	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
163	06.671 BOLT; OIL PIPE FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
166	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
166	06.672 BOLT; CLIP FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1012-1303	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1304-	●	●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ>	8-98079-341-0	01	1	1012-1303	●
229	06.606 BRACKET; HOSE,POWER STRG FRAME STRAIGHT TYPE<7KJ>	8-98079-341-0	01	1	1304-	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1304-		●
232	06.672 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1012-1303	●
232	06.672 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1304-	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	1304-		●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98082-972-0	01	1	1304-		●
280	06.672 HOSE; P/S OIL PUMP,INL FRAME STRAIGHT TYPE<7KJ>	8-98082-973-0	01	1	1012-	●
284	06.670 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
284	06.670 NUT; PIPE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-1303	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1012-	●
