Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#5443) — 225 parça

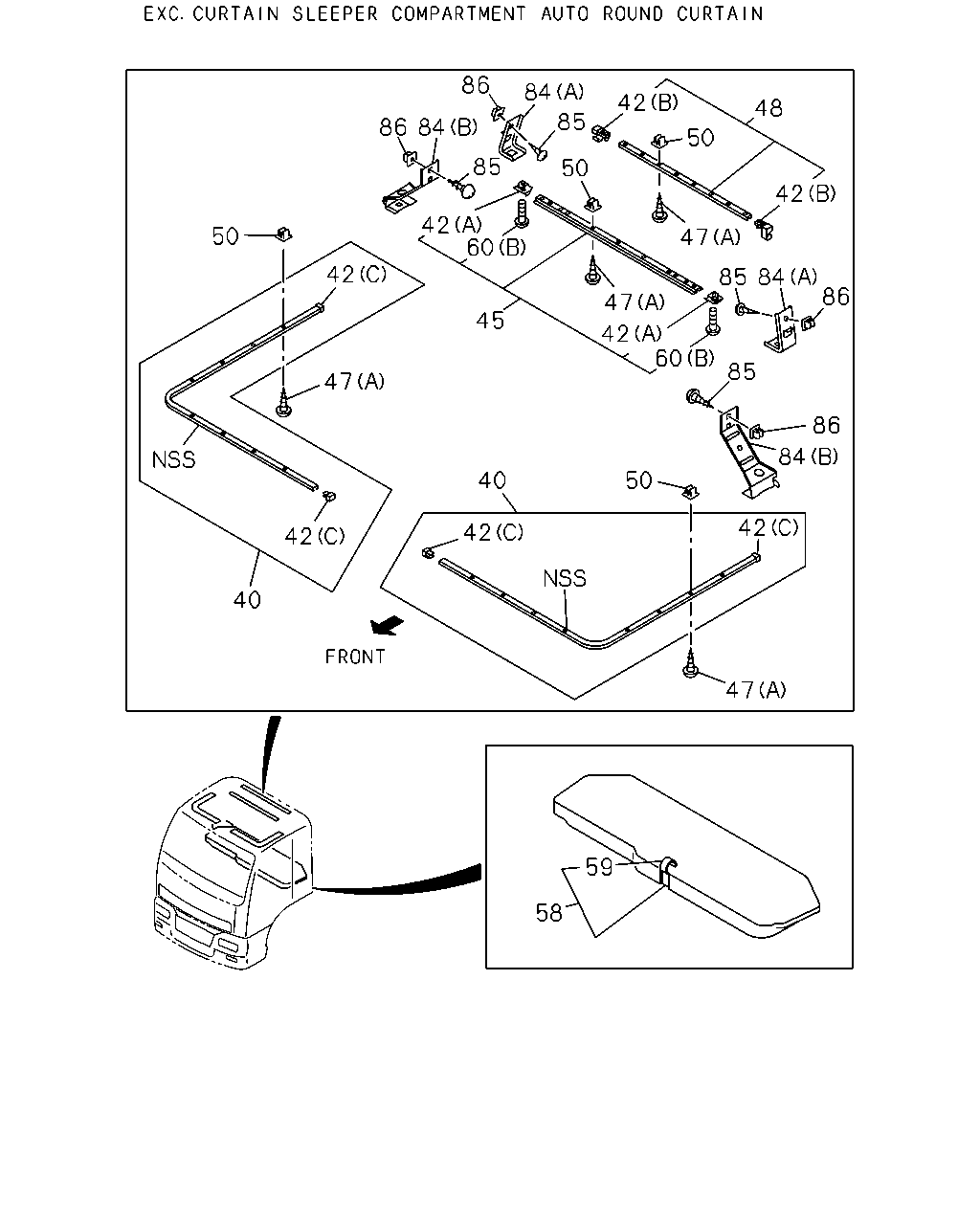

86 84 85 86 84 42 48 50 85 47 42 50 41 42 40 85 84 86 50 85 42 60 41 86 47 47 84 41 42 45 60 42 50 42 47 41 42 40 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9601-9904
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9601-9904
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	26	1	9601-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	27	1	9705-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9601-9904
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9601-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9601-9904
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-379-5	01	1	9601-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9601-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9601-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9601-
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9601-9904
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9601-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9601-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9601-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9601-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-
60	HOLDER (B)	1-73907-400-0	02	1	9601-9904
60	HOLDER AUTO ROUND CURTAIN<TAR> (A)	1-79198-011-0	04	1	9601-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9601-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9705-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9601-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9601-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9601-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9601-9708
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-

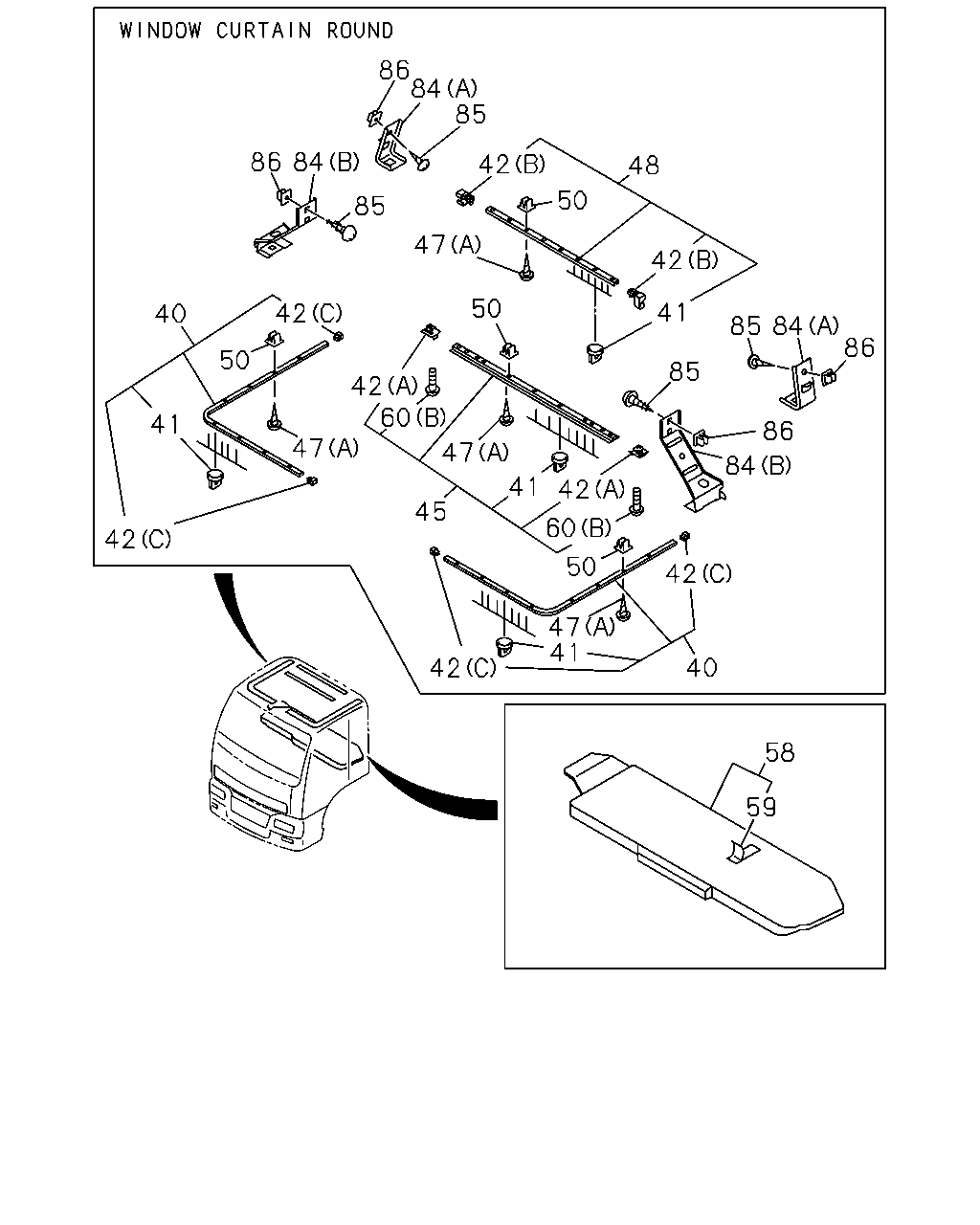

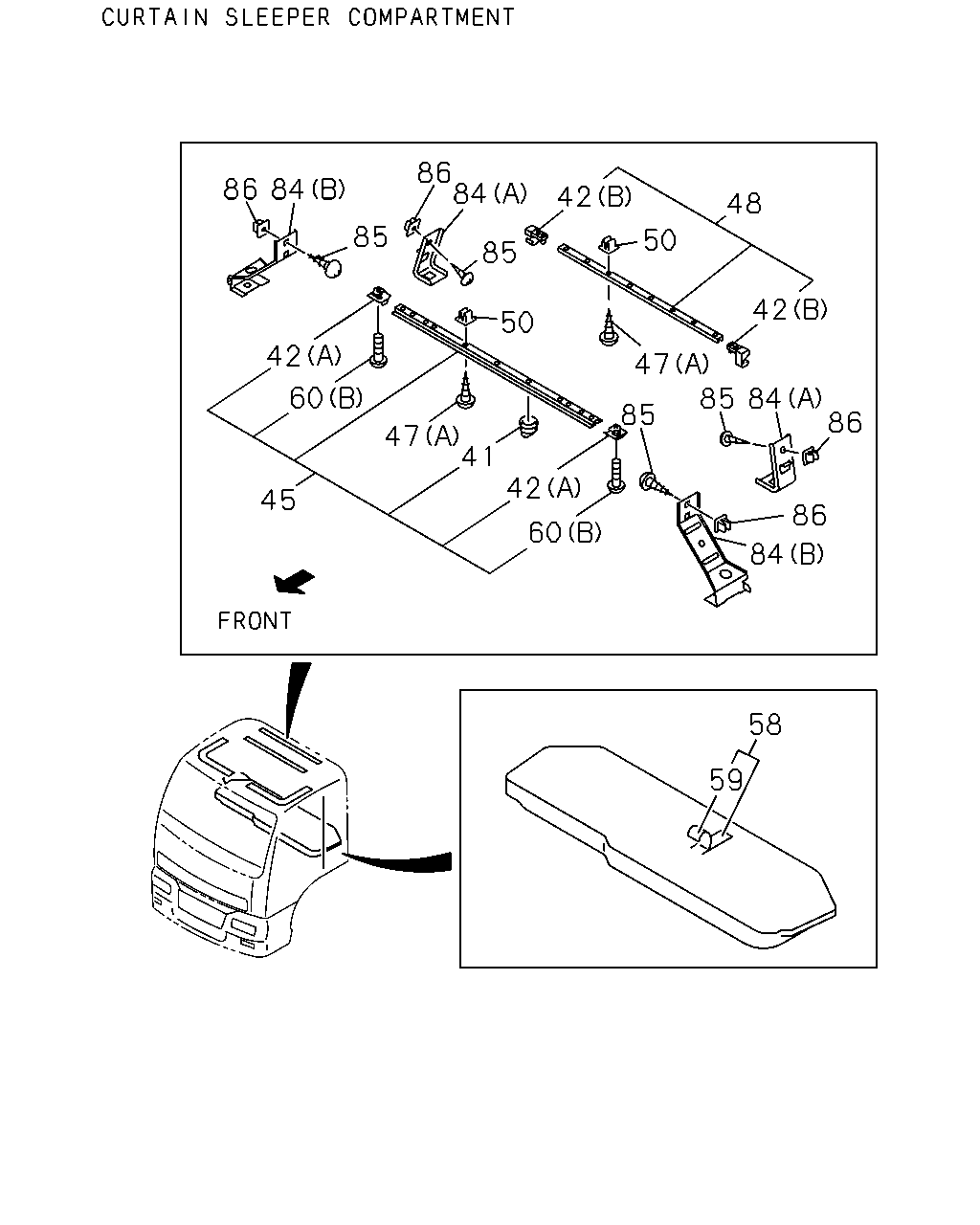

86 84 42 48 85 86 84 50 85 50 42 42 60 50 47 42 85 84 86 47 45 42 60 85 47 86 84 40 50 42 42 42 40 47 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	9601-9904
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-487-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-424-0	01	1	0003-
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	9601-9904
40	RAIL; CURTAIN,SIDE EXC. AUTO ROUND CURTAIN<TAR>	1-73907-486-0	01	1	9905-0002
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73907-423-0	01	1	0003-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-465-0	01	1	9905-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-464-0	01	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9601-9904
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9601-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9601-9904
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-379-5	01	1	9601-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9601-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9601-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9601-
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9601-9904
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9601-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9601-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9601-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9601-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-
60	HOLDER (B)	1-73907-400-0	02	1	9601-9904
60	HOLDER AUTO ROUND CURTAIN<TAR> (A)	1-79198-011-0	04	1	9601-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9601-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9705-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9601-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9601-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9601-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9601-9708
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-

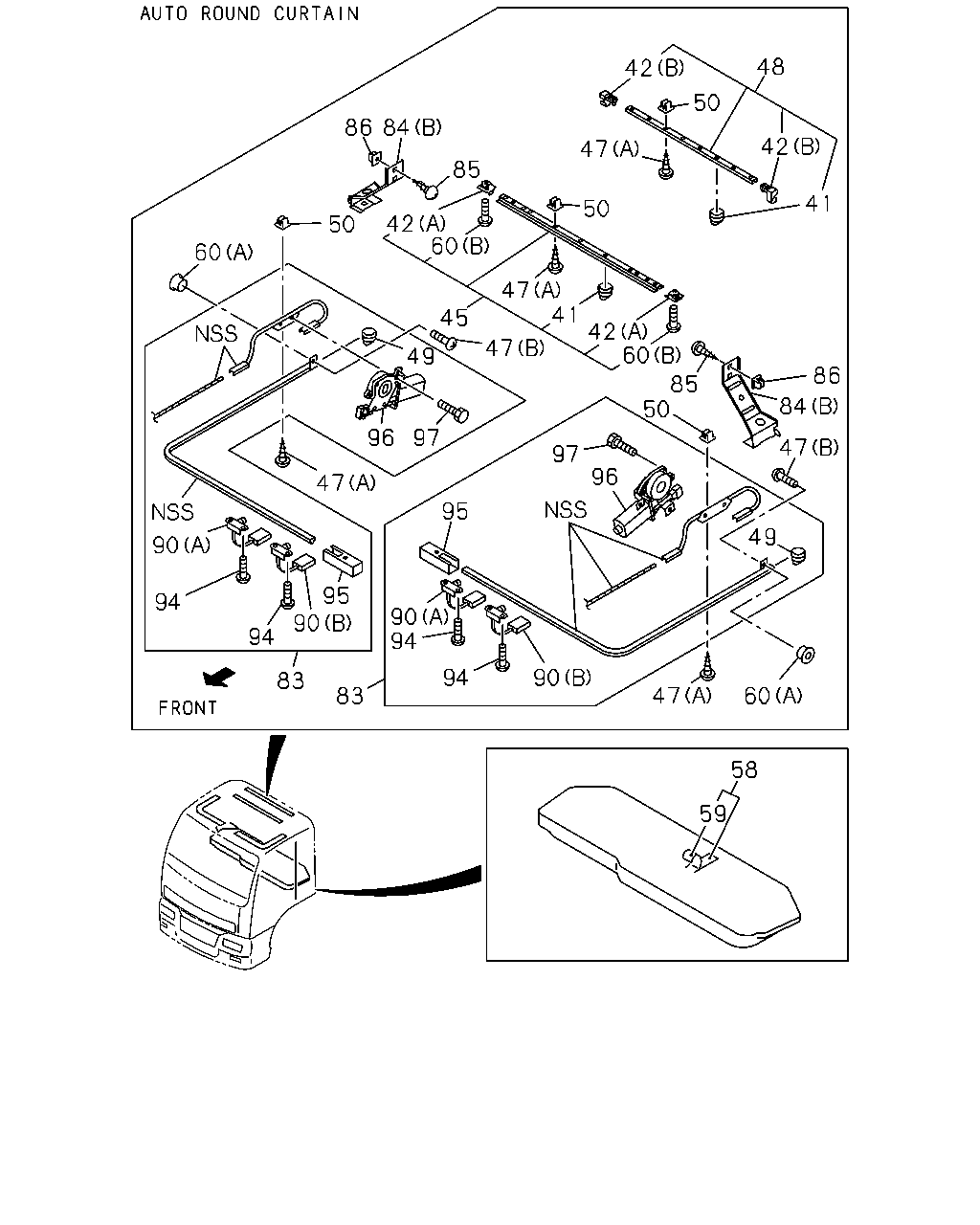

48 42 50 86 84 42 47 85 41 50 50 42 60 60 47 41 45 42 60 47 49 86 85 50 84 96 97 47 97 96 47 95 49 90 95 90 94 90 94 94 94 90 83 83 47 60 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	26	1	9601-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	27	1	9705-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9601-9904
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9601-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9601-9904
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-379-5	01	1	9601-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9601-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9601-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9601-
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9601-9904
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9601-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
49	HOOK; CURTAIN AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	32	1	9601-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9601-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9601-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9601-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-
60	HOLDER (B)	1-73907-400-0	02	1	9601-9904
60	HOLDER AUTO ROUND CURTAIN<TAR> (A)	1-79198-011-0	04	1	9601-
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-289-5	01	1	9601-
83	RAIL; CURTAIN,AUTOMATIC AUTO ROUND CURTAIN<TAR>	1-73907-288-5	01	1	9601-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9601-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9705-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9601-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9601-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9601-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9601-9708
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (A)	1-73996-224-2	02	1	9601-
90	SWITCH; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B)	1-73996-225-2	02	1	9601-
94	FIXING PARTS; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-256-0	10	1	9601-
95	COVER; SWITCH,CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-254-0	02	1	9601-
96	MOTOR ASM; CURTAIN RAIL AUTO ROUND CURTAIN<TAR>	1-73996-255-0	02	1	9601-
97	SCREW; MOTOR,CURTAIN RAIL AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER	9-03910-625-0	04	1	9601-

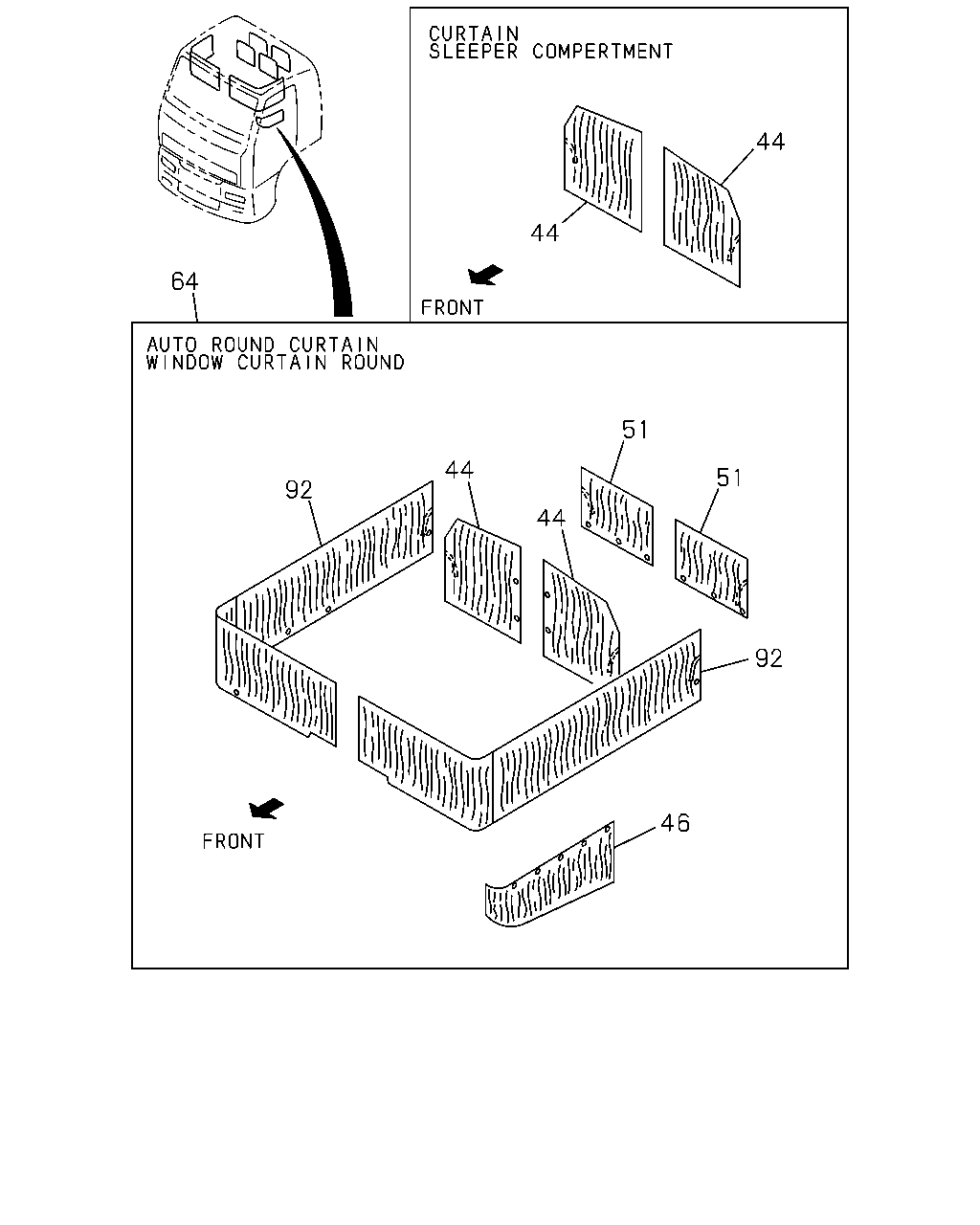

44 44 64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-498-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-497-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-0	01	1	9905-0102
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-505-0	01	1	0103-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-0	01	1	9905-0102
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-504-0	01	1	0103-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-481-0	01	1	9601-9904
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-481-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-480-0	01	1	9601-9904
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-480-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-507-0	01	1	9905-
44	CURTAIN ASM; CABIN CENTER HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-506-0	01	1	9905-
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR>	1-73907-426-0	01	1	9601-9904
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	9905-
46	CURTAIN ASM; DOOR AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-501-0	01	1	9905-
46	CURTAIN ASM; DOOR HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-501-0	01	1	9905-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-494-0	01	1	9905-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-483-0	01	1	9601-9904
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-483-0	01	1	9905-0102
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-483-0	01	1	0103-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-482-0	01	1	9601-9904
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-482-0	01	1	9905-0102
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73907-482-0	01	1	0103-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-500-0	01	1	9905-
51	CURTAIN; BACK AUTO ROUND CURTAIN<TAR>	1-73907-499-0	01	1	9905-
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR>	1-73907-479-0	01	1	9601-9904
64	CURTAIN KIT HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR>	1-73907-580-0	01	1	9905-
64	CURTAIN KIT AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-579-0	01	1	9905-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	9905-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	9905-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-485-0	01	1	9601-9904
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-485-0	01	1	9905-0102
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-485-0	01	1	0103-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-484-0	01	1	9601-9904
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-484-0	01	1	9905-0102
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73907-484-0	01	1	0103-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-496-0	01	1	9905-
92	CURTAIN ASM; ROUND AUTO ROUND CURTAIN<TAR>	1-73907-495-0	01	1	9905-

86 84 86 84 42 48 85 50 85 42 50 42 47 85 60 84 86 85 47 41 42 45 86 60 84 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9601-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	08	1	9905-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	26	1	9601-9704
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	27	1	9705-9904
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	34	1	9905-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY	1-73996-105-0	14	1	9905-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	04	1	9601-9904
42	STOPPER; CURTAIN RAIL (B)	1-73996-146-2	02	1	9601-
42	STOPPER; CURTAIN RAIL (A)	1-73907-403-1	02	1	9905-
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	9601-9904
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	02	1	9905-0002
42	STOPPER; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (C)	1-73908-193-0	04	1	0003-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73908-193-0	04	1	9905-0002
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-379-5	01	1	9601-9904
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F>	1-73907-379-5	01	1	9905-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9601-9904
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>	1-73907-420-0	01	1	9905-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR>	1-73907-460-0	01	1	9905-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F>	1-73907-380-6	01	1	9905-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	32	1	9601-
47	SCREW; CURTAIN RAIL AUTO ROUND CURTAIN<TAR> (B) M5X16	9-93490-516-0	04	1	9601-
48	RAIL; CURTAIN,BACK AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9601-9904
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-106-3	01	1	9905-
48	RAIL; CURTAIN,BACK EXC. AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9601-9904
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73996-279-0	01	1	9905-0008
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR>	1-73908-111-0	01	1	0009-
50	GROMMET; SCREW,CURTAIN RAIL D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	32	1	9601-9708
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	32	1	9709-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-852-3	01	1	9601-0003
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-990-1	01	1	0004-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75117-861-1	01	1	9601-0003
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-082-0	01	1	0004-
60	HOLDER (B)	1-73907-400-0	02	1	9601-9904
60	HOLDER AUTO ROUND CURTAIN<TAR> (A)	1-79198-011-0	04	1	9601-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	9601-
84	BRACKET; CURTAIN RAIL EXC. AUTO ROUND CURTAIN<TAR> (A)	1-73998-986-2	02	1	9705-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	9601-
85	SCREW; BRKT EXC. AUTO ROUND CURTAIN<TAR> M5X20	5-09981-059-0	02	1	9601-
86	GROMMET; SCREW,BRKT D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	07	1	9601-9708
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	9709-
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	02	1	9601-9708
86	GROMMET; SCREW,BRKT EXC. AUTO ROUND CURTAIN<TAR> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9709-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
