Sayfa 3-60 - Isuzu EPC

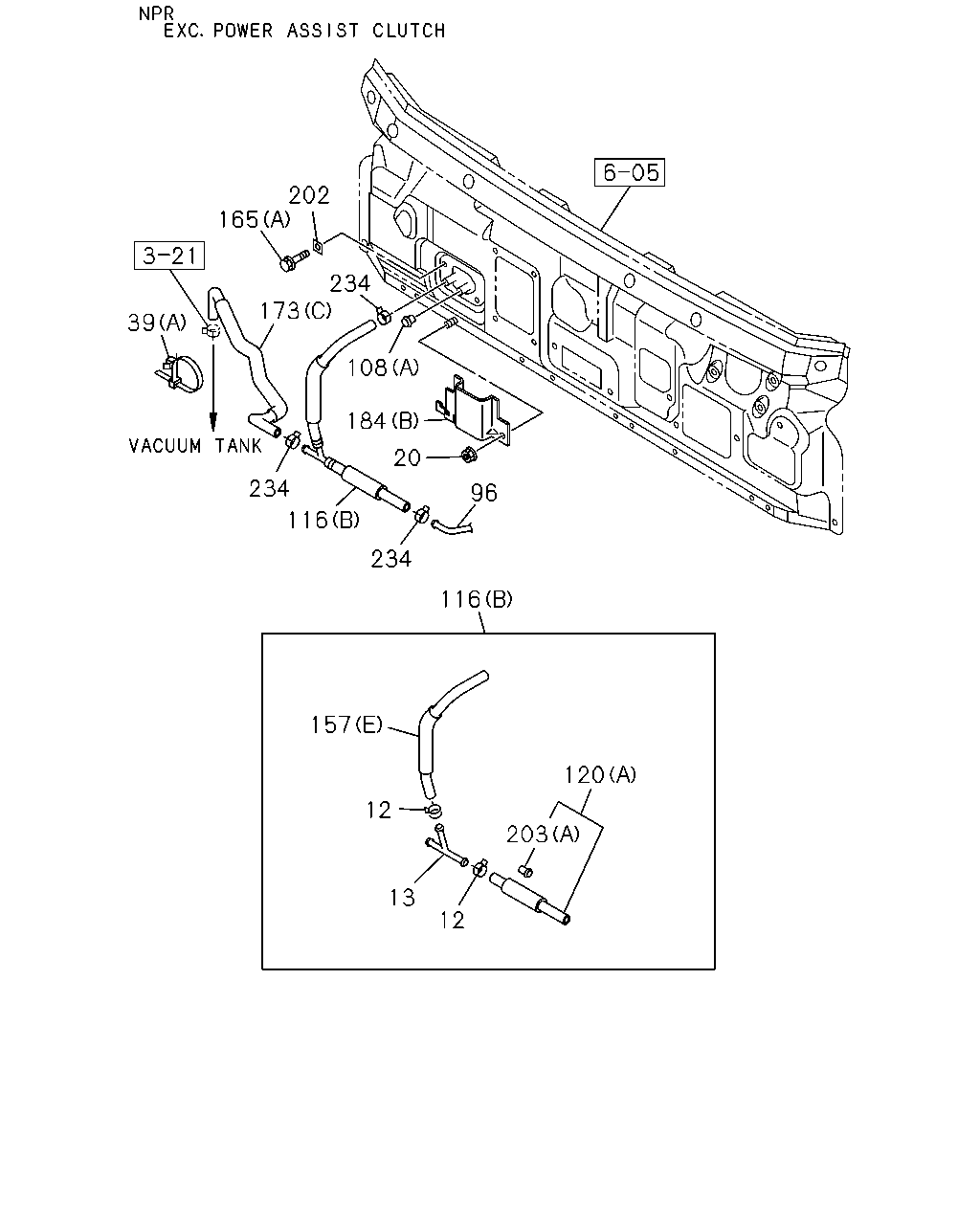

3-60 — BRAKE PIPING; VACUUM (#54421) — 752 parça

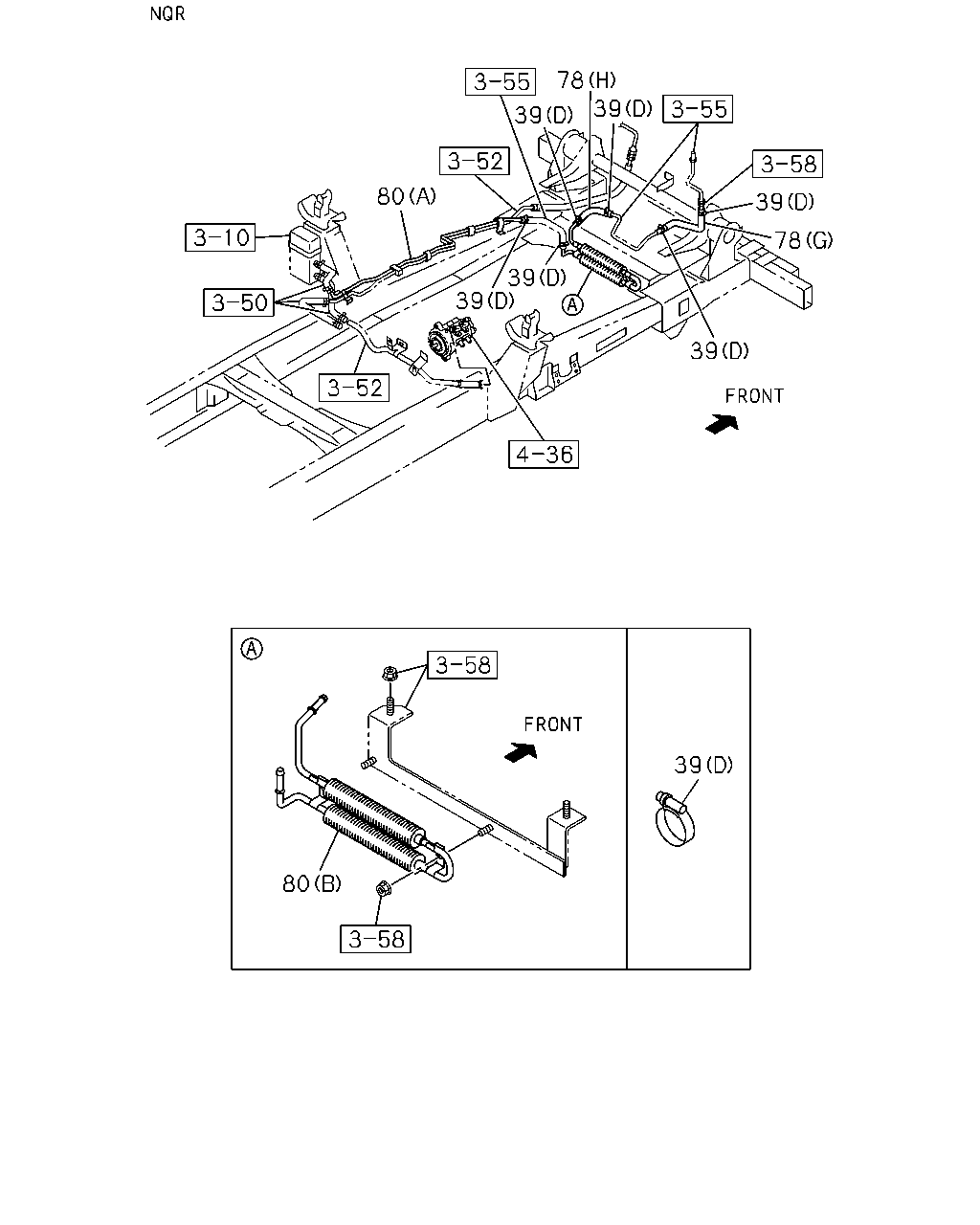

116 39 165 184 184 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●

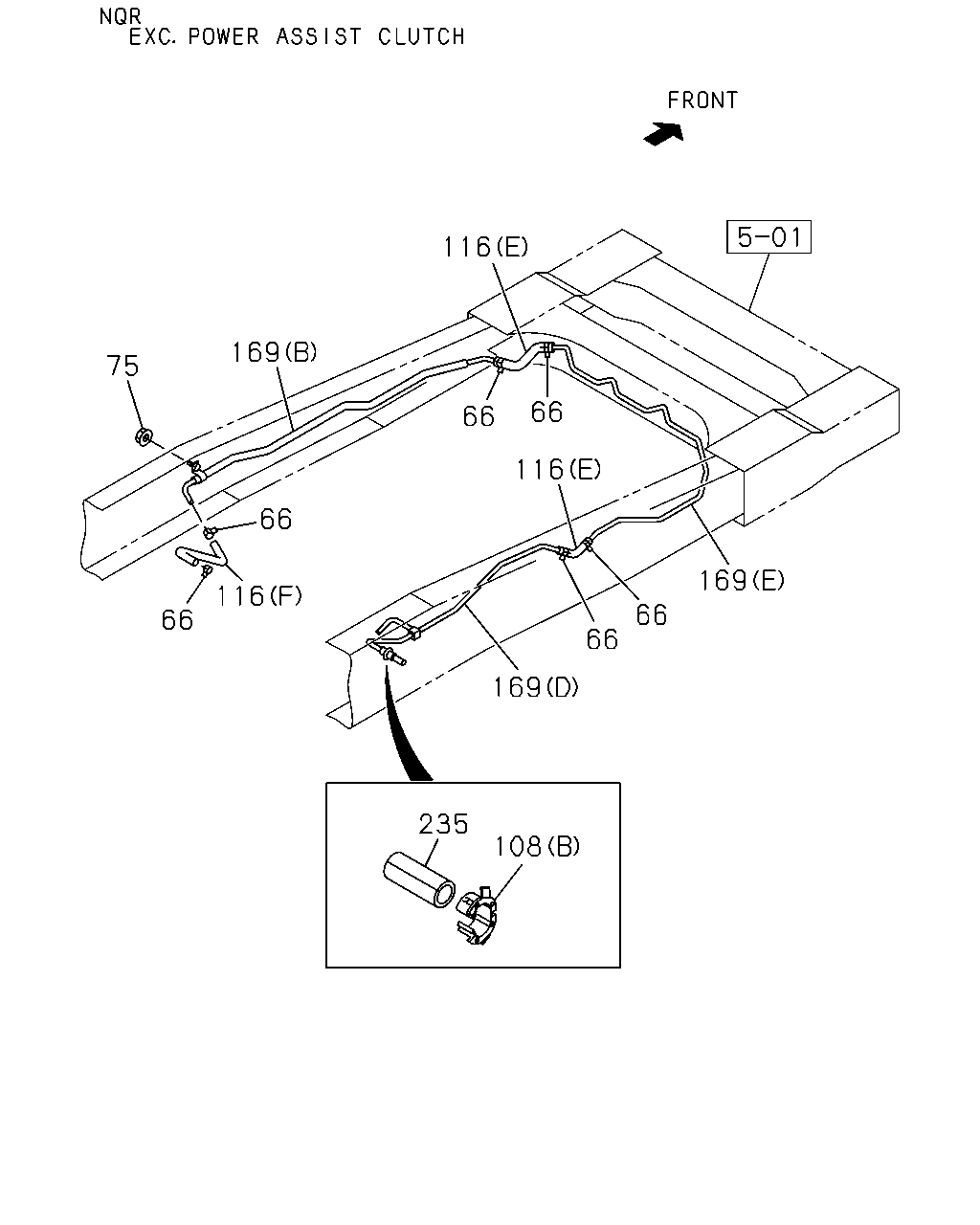

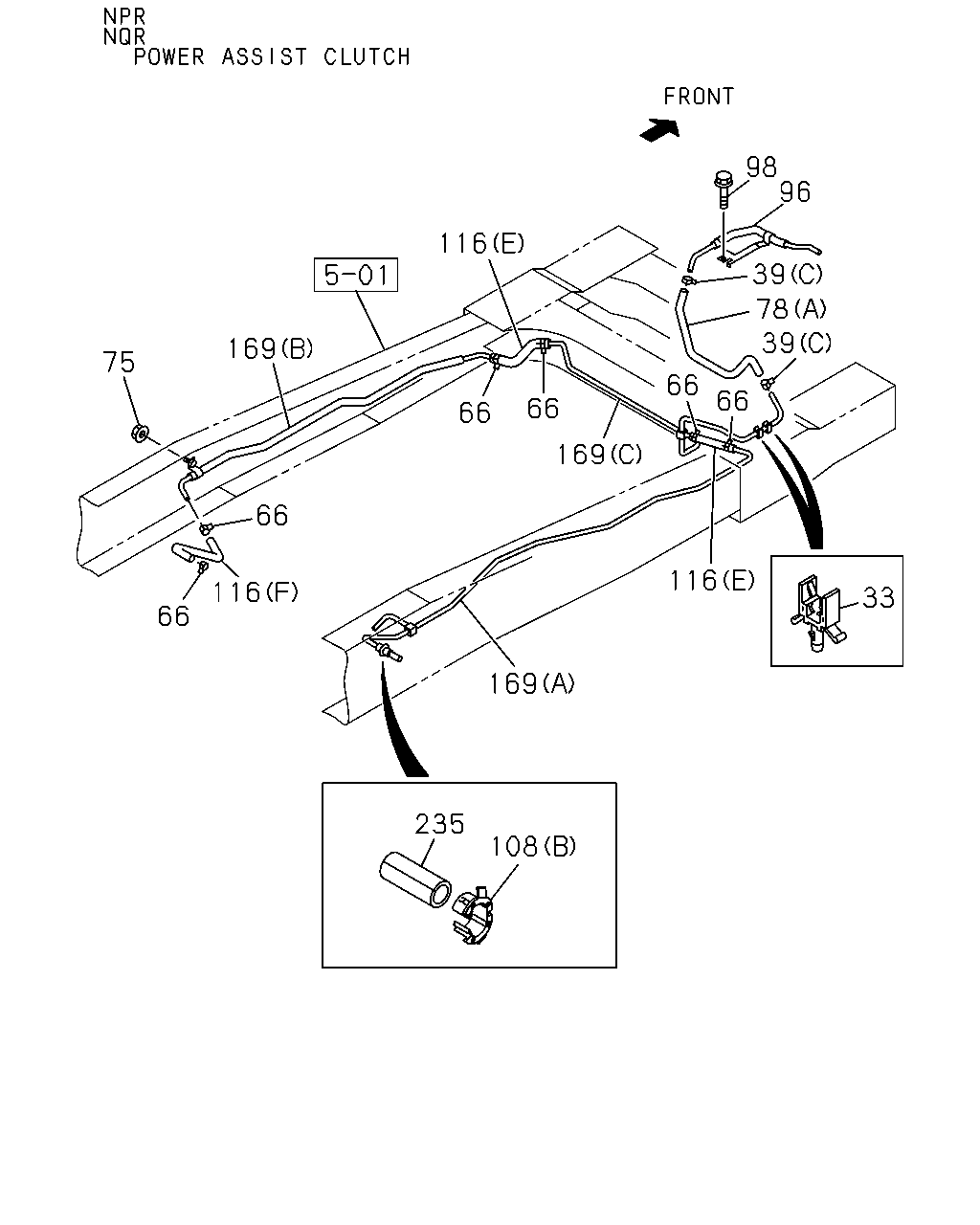

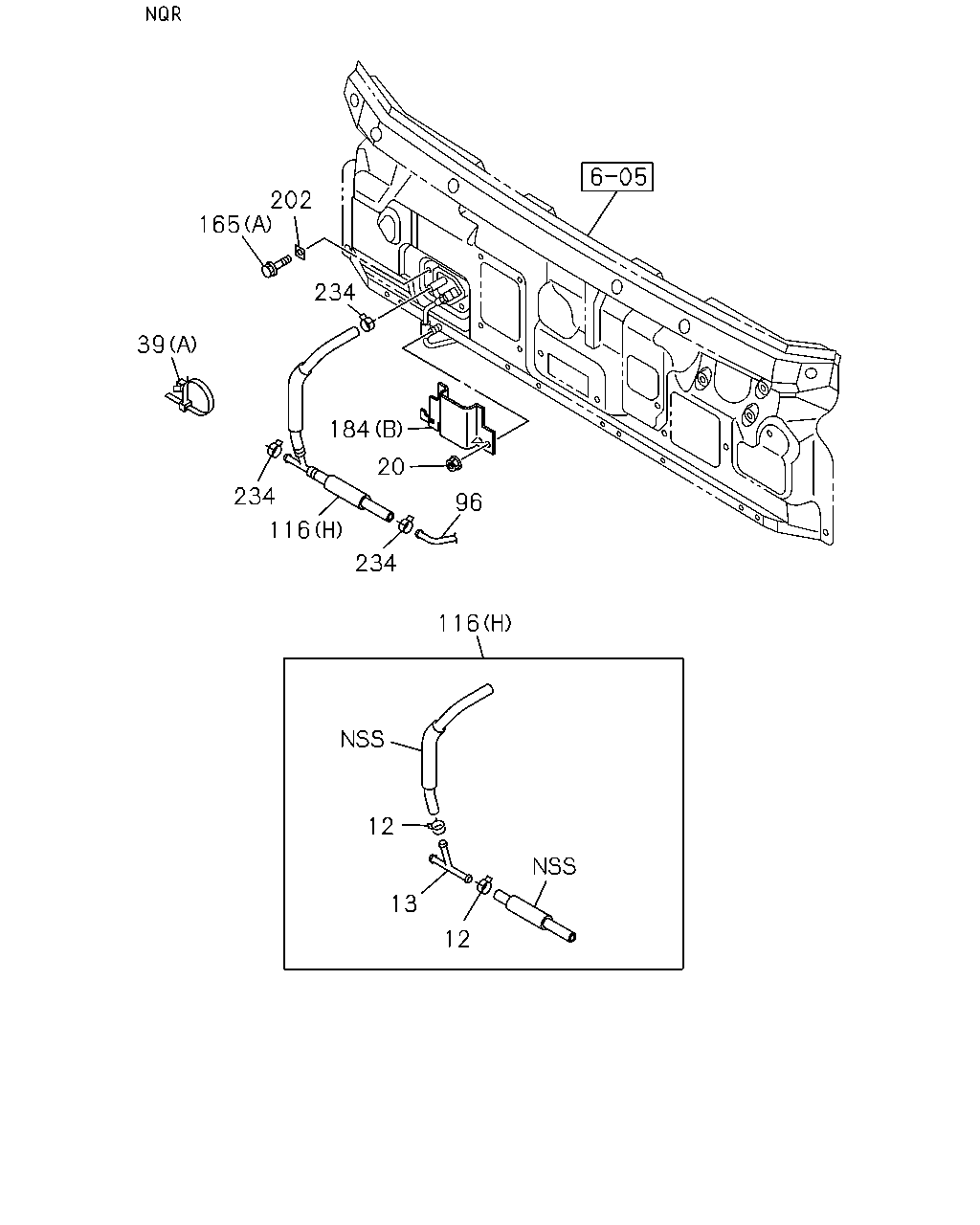

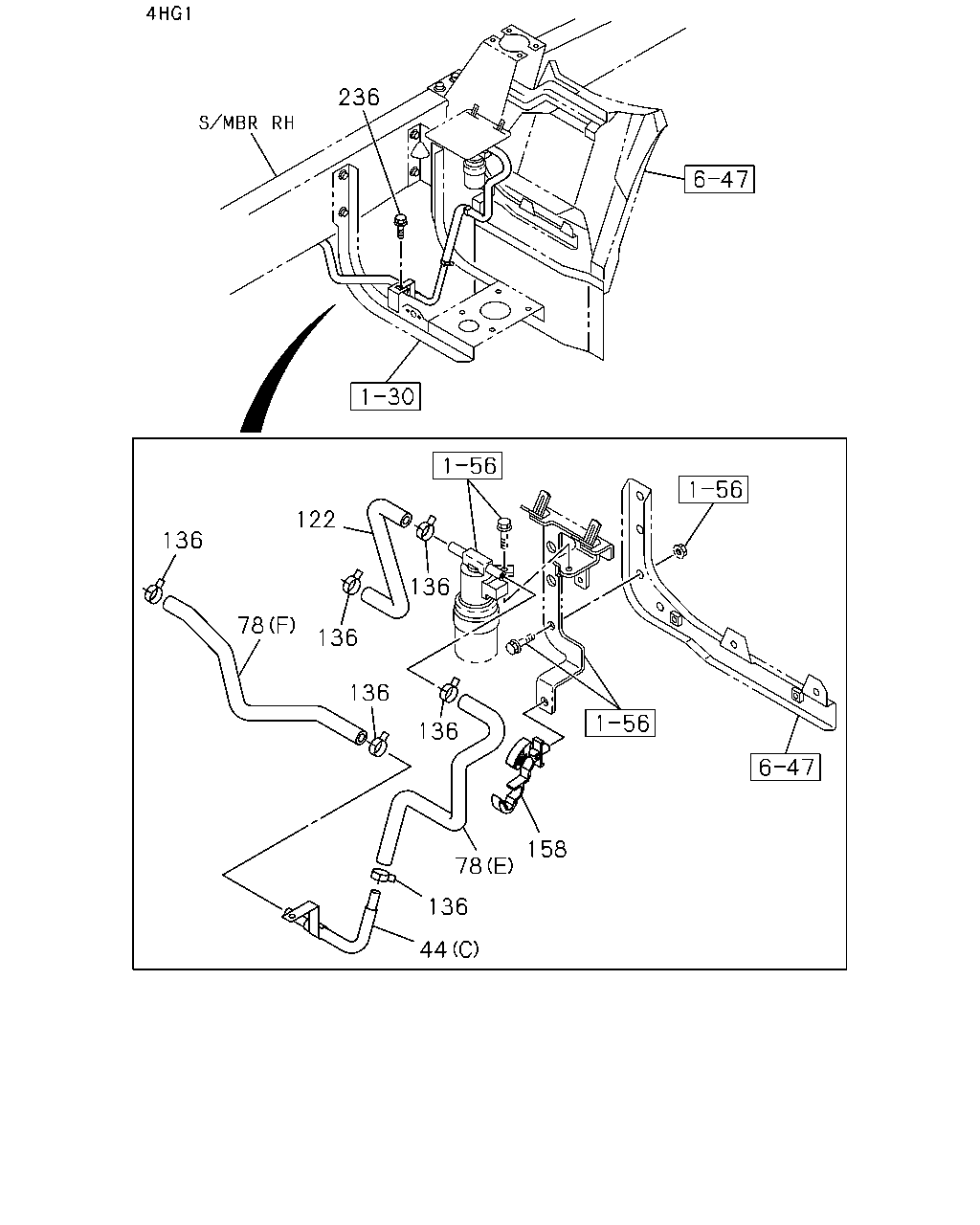

13 12 203 120 12 157 116 96 234 116 234 20 184 108 234 173 39 165 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1012-		●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1303		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1303		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1303		●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1303		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1304-	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1304-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-		●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1303		●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1304-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1303		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-	●

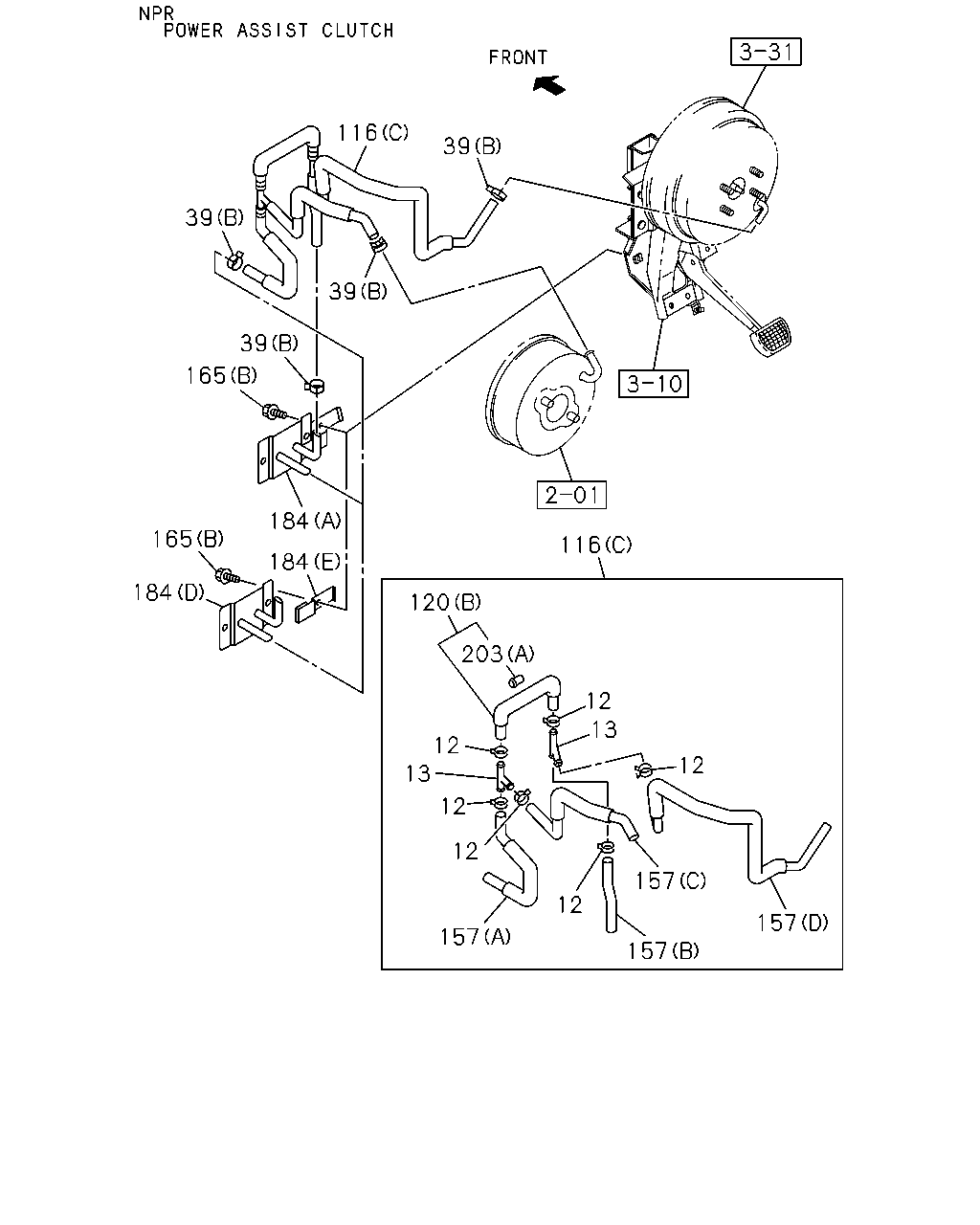

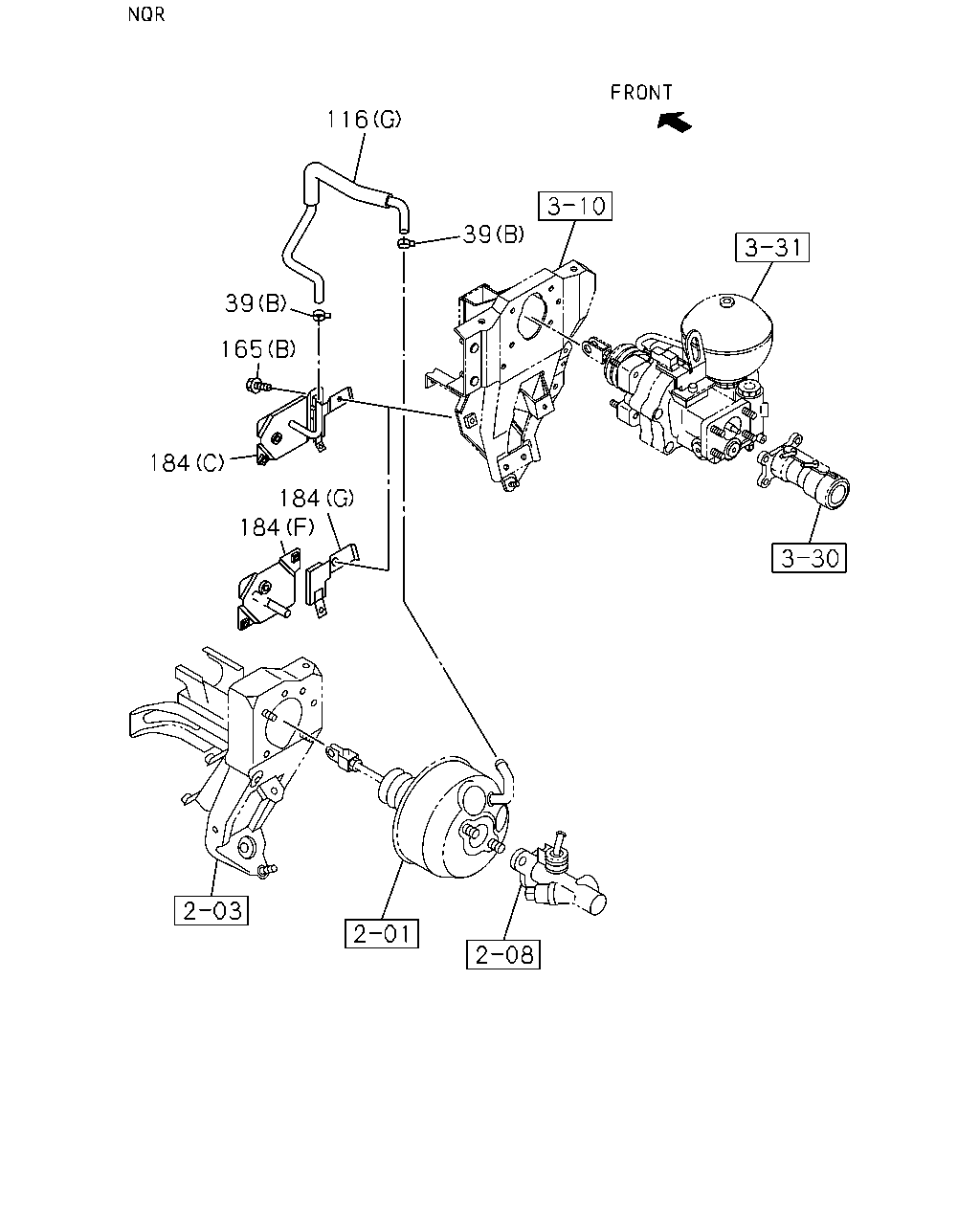

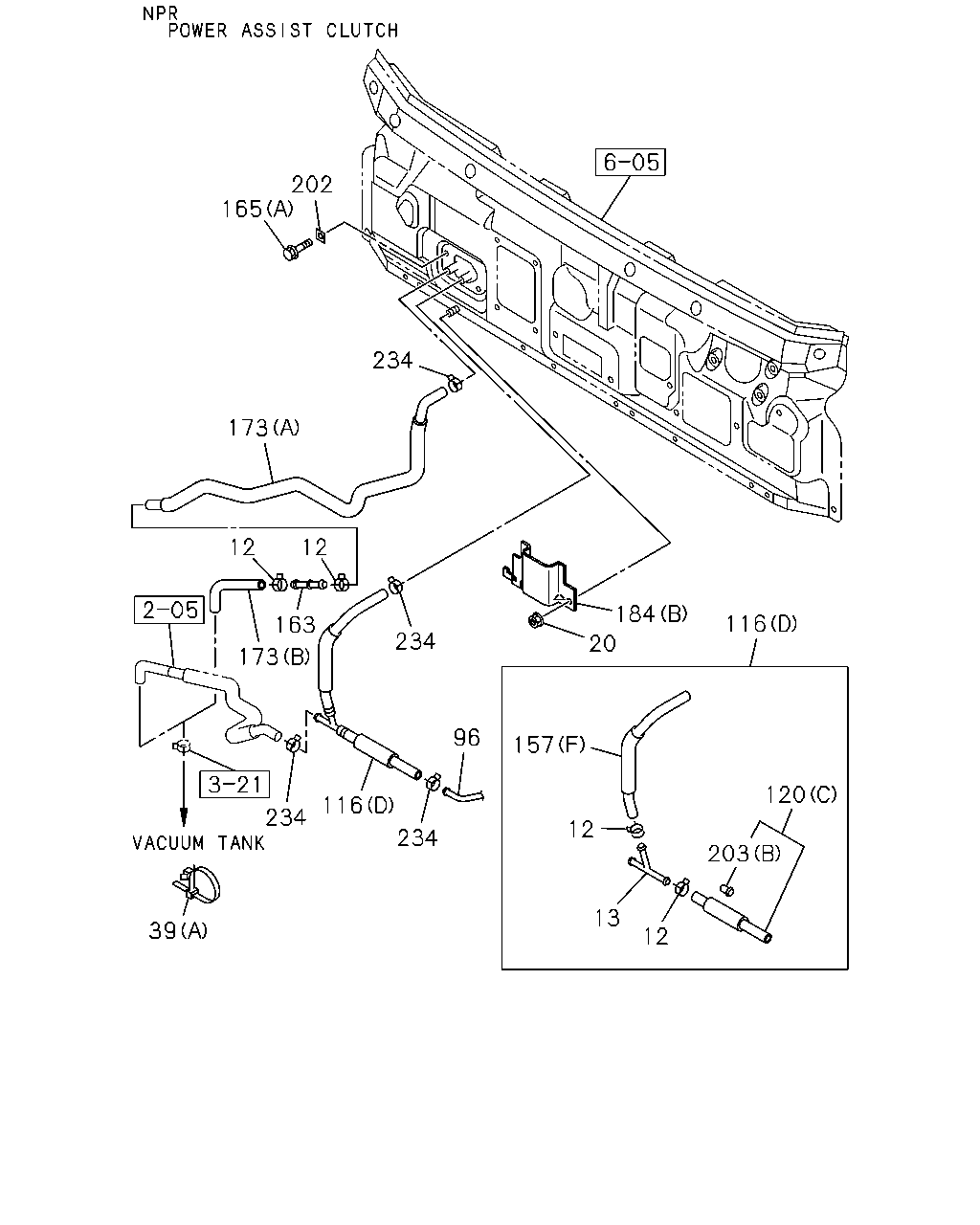

116 39 39 165 165 184 184 184 120 203 12 13 12 12 157 12 157 157 12 157 13 12 116 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1012-		●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1303		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1303		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-		●

39 39 116 165 184 184 184 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●

13 12 203 120 12 157 20 116 184 96 234 234 116 234 39 173 163 12 12 173 234 165 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1012-		●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1303		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1303		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1303		●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1303		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1012-		●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1012-		●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1012-		●
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1012-		●
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-		●
173	04.931 HOSE; VAC,VAC TANK SIDE 4HG1 ENG(RJH) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1012-1012		●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-		●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1303		●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1304-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	1012-		●
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	1012-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1303		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-	●

13 12 12 116 96 234 116 234 184 20 234 202 165 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	08	1	1012-		●
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	1012-1012		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1101-1303		●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-		●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	02	1	1304-	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1012-		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1012-1303		●
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-		●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1304-	●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-1303		●
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	1304-	●	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1303		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1012-1303		●
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1304-	●	●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1012-1303		●
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1304-	●	●
184	04.685 BRACKET; UNION FIX (E)	8-98255-548-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (G)	8-98255-541-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (C)	8-98193-144-0	01	1	1304-1311	●
184	04.685 BRACKET; UNION FIX (F)	8-98255-539-0	01	1	1312-	●
184	04.685 BRACKET; UNION FIX (A)	8-97389-686-1	01	1	1012-1102		●
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1103-1311		●
184	04.685 BRACKET; UNION FIX (D)	8-98255-535-0	01	1	1312-		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1012-1303		●
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1304-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1012-1303		●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1304-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1012-		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1012-1303		●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-		●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1304-	●

108 235 169 116 33 169 66 66 66 66 116 66 66 75 169 116 98 96 39 78 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1012-1303		●
33	04.930 CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1304-		●
33	04.930 CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) ID=10 H=40	8-94462-219-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (H)	8-97386-589-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98136-613-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98057-462-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (C)	8-98057-462-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98171-287-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98171-287-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-104-4	01	1	1012-1103		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-106-0	01	1	1104-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98133-654-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1304-	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98046-550-0	01	1	1012-1205		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1206-1303		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1304-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T)	8-98220-579-0	01	1	1304-	●
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
98	04.931 BOLT; VAC PIPE FIX 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-1303		●
98	04.931 BOLT; VAC PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1304-	●	●
98	04.931 BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1304-	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1304-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (E)	8-98048-901-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (B)	8-98041-052-2	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-259-2	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-259-2	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-234-2	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98101-041-1	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-053-4	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-053-4	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303		●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-	●

75 169 116 66 66 116 169 66 66 169 108 235 116 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-		●
66	04.930 CLIP; VAC HOSE,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	04	1	1012-		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
75	04.930 NUT; CLIP,VAC HOSE FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
75	04.930 NUT; CLIP,VAC HOSE 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) 02.343 (B) ID=17	8-94128-319-2	01	1	1304-1509	●
108	04.931 GROMMET; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-		●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.343 (B) ID=17	8-94128-319-2	01	1	1510-	●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1012-1303		●
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A)	9-09956-353-0	01	1	1304-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (G)	8-98067-702-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (H)	8-98081-002-2	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1304-1509	●
116	04.931 HOSE; VAC,M/VAC FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (E) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1510-	●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1012-1303		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (F)	8-98158-378-0	01	1	1304-		●
116	04.931 HOSE; VAC,M/VAC 4HK1-TCN ENG(RDQ) (F)	8-98158-378-0	01	1	1304-	●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98100-244-1	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98189-220-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98130-735-0	01	1	1012-1104		●
116	04.931 HOSE; VAC,M/VAC 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EXHAUST BRAKE<NF8> (F)	8-98189-219-0	01	1	1105-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1012-		●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) 04.685 (E)	8-98048-901-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98048-903-0	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-052-2	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) (B)	8-98041-052-2	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-259-2	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-259-2	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) (A)	8-98067-259-2	01	1	1304-	●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98100-234-2	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98101-041-1	01	1	1012-		●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-053-4	01	1	1012-1303		●
169	04.930 PIPE; VAC,BOOSTER SIDE FRAME STRAIGHT TYPE<7KJ> (C)	8-98041-053-4	01	1	1304-		●
169	04.930 PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) (C)	8-98041-053-4	01	1	1304-	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1012-1303		●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1304-1509	●
235	04.931 RUBBER; SUPPORT,PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-		●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-	●
235	04.931 RUBBER; SUPPORT,PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 OD=16.5 L=50	8-97214-235-0	01	1	1510-	●

122 136 136 136 78 158 236 136 44 136 78 136 44 136 78 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-1303		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1304-1509		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1304-1509	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1510-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98057-425-1	01	1	1510-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-1303		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1304-1509		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1304-1509	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1510-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (A)	8-98070-194-0	01	1	1510-	●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (H)	8-97386-589-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98136-613-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98057-462-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (C)	8-98057-462-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98171-287-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98171-287-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-104-4	01	1	1012-1103		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-106-0	01	1	1104-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98133-654-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1304-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-1303		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1304-1509		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ)	8-98189-104-0	01	1	1304-1509	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1510-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98189-104-0	01	1	1510-	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-1509		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-1509	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1510-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 ID=16	8-98008-098-0	06	1	1510-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-1303		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1304-1509		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1304-1509	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1510-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 ID=16	8-98008-098-0	02	1	1510-	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-1303		●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1304-1509		●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1304-1509	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.559 ID=14-20	8-97061-603-0	01	1	1510-		●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.559 ID=14-20	8-97061-603-0	01	1	1510-	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509		●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●

236 136 122 78 136 136 136 136 158 78 136 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1012-1303		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1304-1509		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (B)	8-98057-425-1	01	1	1304-1509	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98057-425-1	01	1	1510-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98057-425-1	01	1	1510-	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1012-1303		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1304-1509		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) (A)	8-98070-194-0	01	1	1304-1509	●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (A)	8-98070-194-0	01	1	1510-		●
44	04.930 PIPE; VAC,MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (A)	8-98070-194-0	01	1	1510-	●
44	04.930 PIPE; VAC,MAG VLV 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98034-281-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (H)	8-97386-589-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98136-613-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98057-462-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (C)	8-98057-462-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98171-287-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98171-287-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-104-4	01	1	1012-1103		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-106-0	01	1	1104-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98133-654-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1304-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-103-2	01	1	1012-1103		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1104-1303		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1304-1509		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ)	8-98189-104-0	01	1	1304-1509	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ>	8-98189-104-0	01	1	1510-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98189-104-0	01	1	1510-	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1012-1303		●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1304-1509		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	06	1	1304-1509	●
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	06	1	1510-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 ID=16	8-98008-098-0	06	1	1510-	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1012-1303		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1304-1509		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) 03.162 ID=16	8-98008-098-0	02	1	1304-1509	●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> 03.162 ID=16	8-98008-098-0	02	1	1510-		●
136	04.681 CLIP; VAC HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.162 ID=16	8-98008-098-0	02	1	1510-	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1012-1303		●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 02.559 ID=14-20	8-97061-603-0	01	1	1304-1509		●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) 02.559 ID=14-20	8-97061-603-0	01	1	1304-1509	●
158	04.681 CLIP; HOSE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.559 ID=14-20	8-97061-603-0	01	1	1510-		●
158	04.681 CLIP; HOSE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 02.559 ID=14-20	8-97061-603-0	01	1	1510-	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509		●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509	●
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
236	04.930 BOLT; PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●

80 39 39 39 78 39 39 78 39 39 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC (D) ID=11-17	8-98173-762-1	08	1	1304-	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1012-		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 02.559 (A) L=170.3	1-09987-182-0	01	1	1304-	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1012-1205		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1206-1303		●
39	04.681 CLIP; HOSE,VAC 01.097 (C) ID=16	8-97329-628-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 01.097 (C) ID=16	8-97329-628-0	02	1	1304-	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1012-1303		●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-		●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 04.686 (H)	8-97386-589-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE (G)	8-98136-613-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (C)	8-98057-462-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (C)	8-98057-462-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (C)	8-98057-462-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1304-1509		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (B)	8-98171-287-0	01	1	1304-1509	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (B)	8-98171-287-0	01	1	1510-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> (B)	8-98171-287-0	01	1	1510-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (D)	8-98112-680-0	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HK1-TCN ENG(RDQ) (D)	8-98112-680-0	01	1	1304-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98034-104-4	01	1	1012-1103		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (E)	8-98189-106-0	01	1	1104-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (F)	8-98133-654-1	01	1	1012-		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1012-1303		●
78	04.931 HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98080-833-1	01	1	1304-		●
78	04.931 HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) (A)	8-98080-833-1	01	1	1304-	●
80	04.930 PIPE; VAC,ENG SIDE 04.685 (B)	8-97386-605-0	01	1	1304-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98097-788-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
