◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#5442) — 33 parça

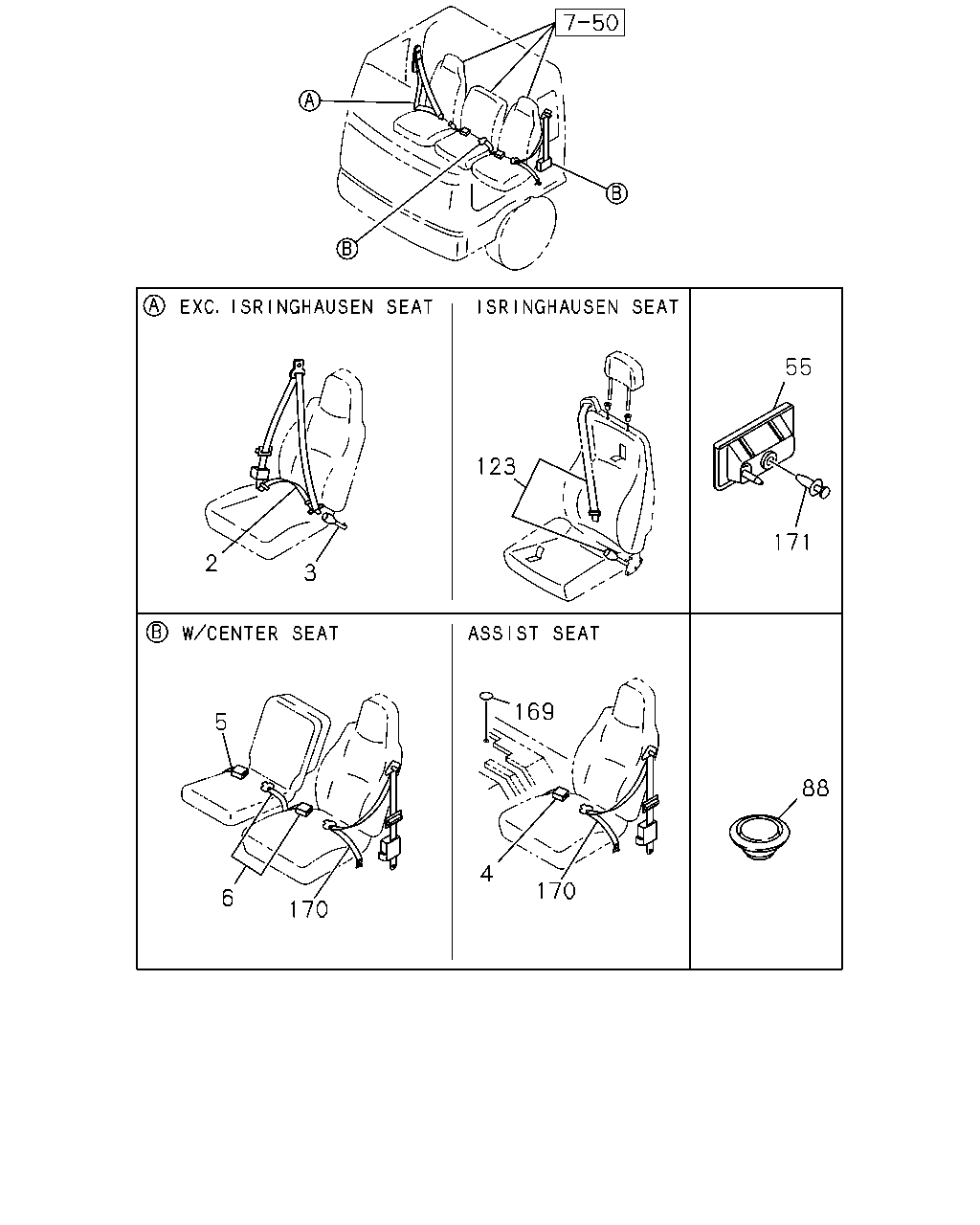

çizim 39326
55 123 171 2 3 169 5 88 4 170 6 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-2 01 1 9601-9904
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9905-
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9601-
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-779-0 01 1 9601-9904
3 BELT; SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-779-0 01 1 9905-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) 		1-75617-566-0 01 1 9905-0012
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75617-566-1 01 1 0101-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) 		1-75618-752-0 01 1 9601-9904
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-752-0 01 1 9905-0012
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) 		1-75618-752-1 01 1 0101-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-752-1 01 1 0101-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 9601-
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75617-567-0 01 1 9905-0012
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5),CENTER SEAT DELETE(SP9) 		1-75617-567-1 01 1 0101-
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-798-2 01 1 0101-
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. CENTER SEAT DELETE(SP9) 		1-75618-737-2 01 1 9601-9904
6 BELT; CENTER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75618-737-4 01 1 9905-
55 GUIDE; SEAT BELT
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 01 1 9905-
55 GUIDE; SEAT BELT
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9601-
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9601-9709
88 PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=31.6 		8-94198-177-0 02 1 9601-9709
88 PLUG; HOLE
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9710-
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 9905-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9601-
169 SEAL
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 9905-
169 SEAL
EXC. FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 9601-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-738-4 01 1 9601-9904
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-738-6 01 1 9905-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-565-0 01 1 9905-0012
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75617-565-1 01 1 0101-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT & SHOULDER BELT W/RETRACTOR(AK3) NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75617-515-2 01 1 0101-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9601-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9601-
