3-52 — BRAKE PIPING; OIL,FRONT (#54418) — 33 parça

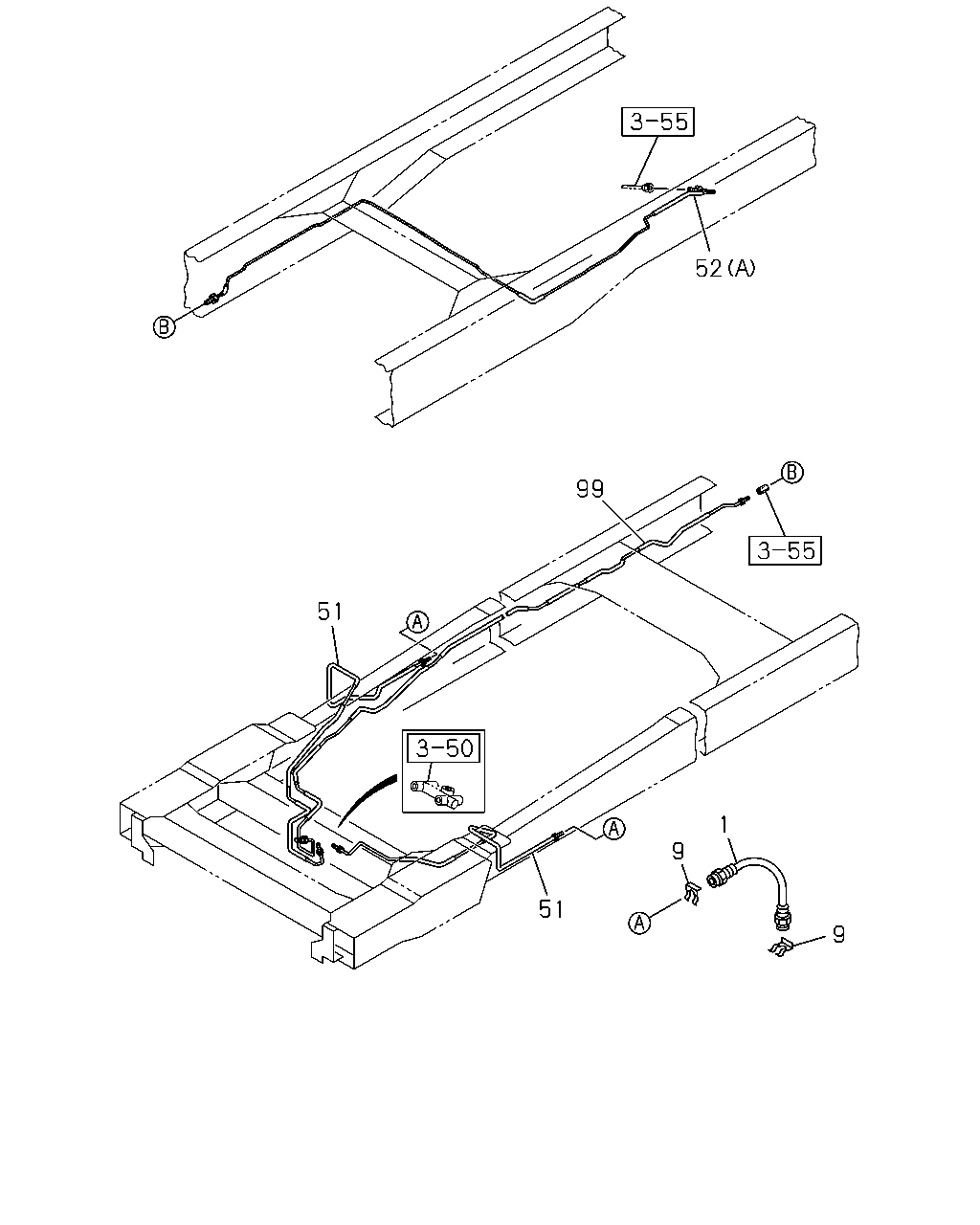

çizim 175295
51 99 52 9 1 51 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1012-1303 ●
1 04.680 HOSE; FLEX,FRT BRK
FRONT WIDE TREAD<7GV> 		8-97115-907-0 02 1 1304- ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1012-1303 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRONT WIDE TREAD<7GV> 		8-97039-543-1 02 1 1304- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012-1303 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1012-1303 ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1304- ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 1304- ● ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT 		8-98136-043-0 01 1 1012-1303 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT 		8-98136-043-0 01 1 1304- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98136-043-0 01 1 1304- ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT 		8-98136-044-0 01 1 1012-1303 ●
51 04.685 PIPE; BRK
FRONT WIDE TREAD<7GV> FRAME STRAIGHT TYPE<7KJ> 5/6WAY TO FRONT 		8-98136-044-0 01 1 1304- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98136-044-0 01 1 1304- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-765-1 01 1 1012-1303 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-765-1 01 1 1304- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-765-1 01 1 1304- ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-766-1 01 1 1012-1303 ●
51 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-766-1 01 1 1304- ●
51 04.685 PIPE; BRK
4HK1-TCN ENG(RDQ) EXC. FRONT WIDE TREAD<7GV> 5/6WAY TO FRONT 		8-98065-766-1 01 1 1304- ●
52 04.685 PIPE; BRK
(B) 		8-98036-162-0 01 1 1304- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 1304- ●
52 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) 2WAY TO REAR 		8-98168-282-0 01 1 1304- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1012- ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1012-1303 ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME STRAIGHT TYPE<7KJ> 4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1304- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4/6WAY TO 2WAY,REAR 		8-98057-259-0 01 1 1304- ●

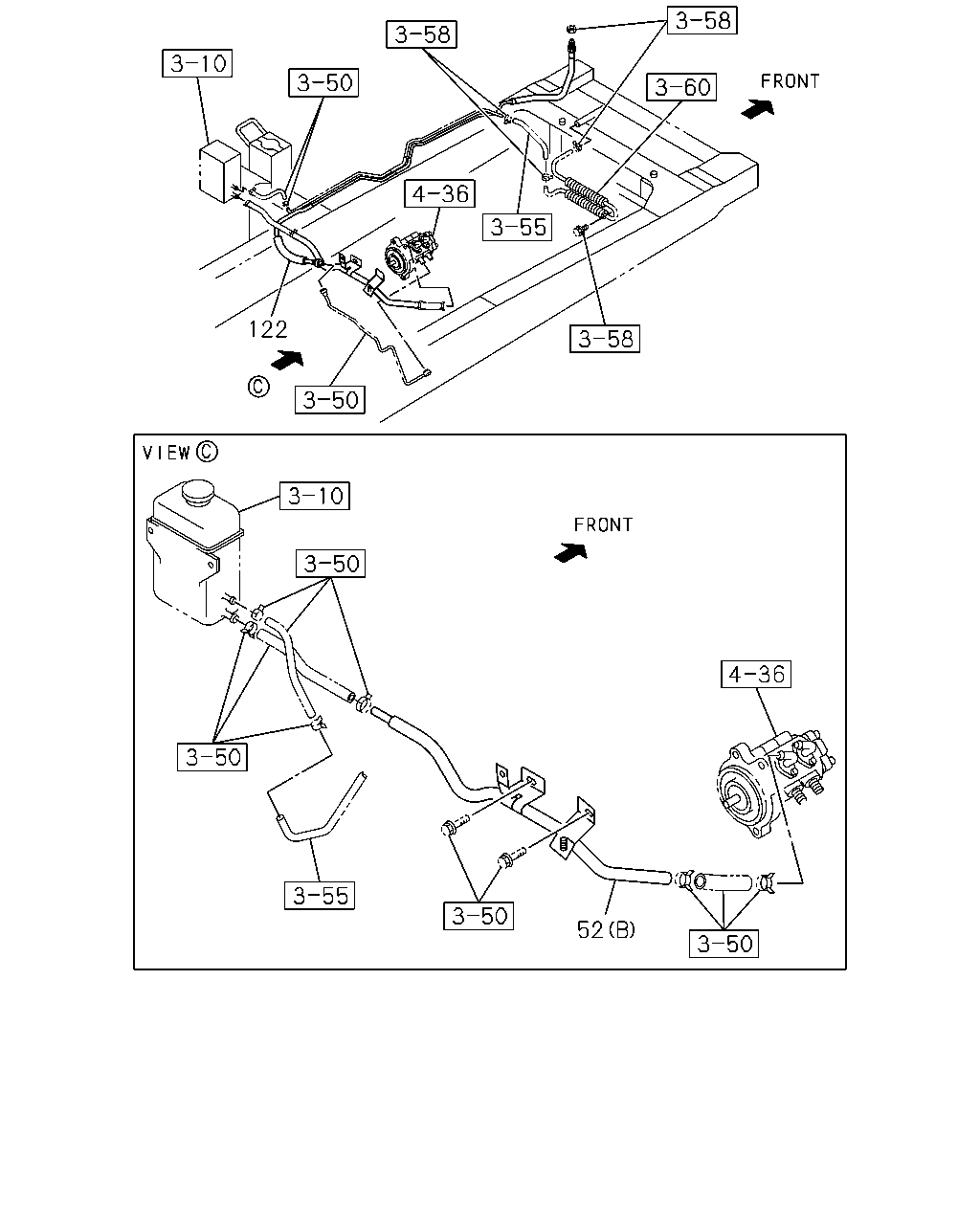

çizim 358522
122 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 04.685 PIPE; BRK
(B) 		8-98036-162-0 01 1 1304- ●
52 04.685 PIPE; BRK
WHEEL BASE 4100MM(41W) (A) 2WAY TO REAR 		8-98057-264-0 01 1 1304- ●
52 04.685 PIPE; BRK
WHEEL BASE 4400MM(44W) (A) 2WAY TO REAR 		8-98168-282-0 01 1 1304- ●
52 04.685 PIPE; BRK
FRAME STRAIGHT TYPE<7KJ> (A) 2WAY TO REAR 		8-98057-263-0 01 1 1012- ●
122 04.685 PIPE ASM; BRK,2 WAY
L=1839 		8-98136-573-0 01 1 1304- ●

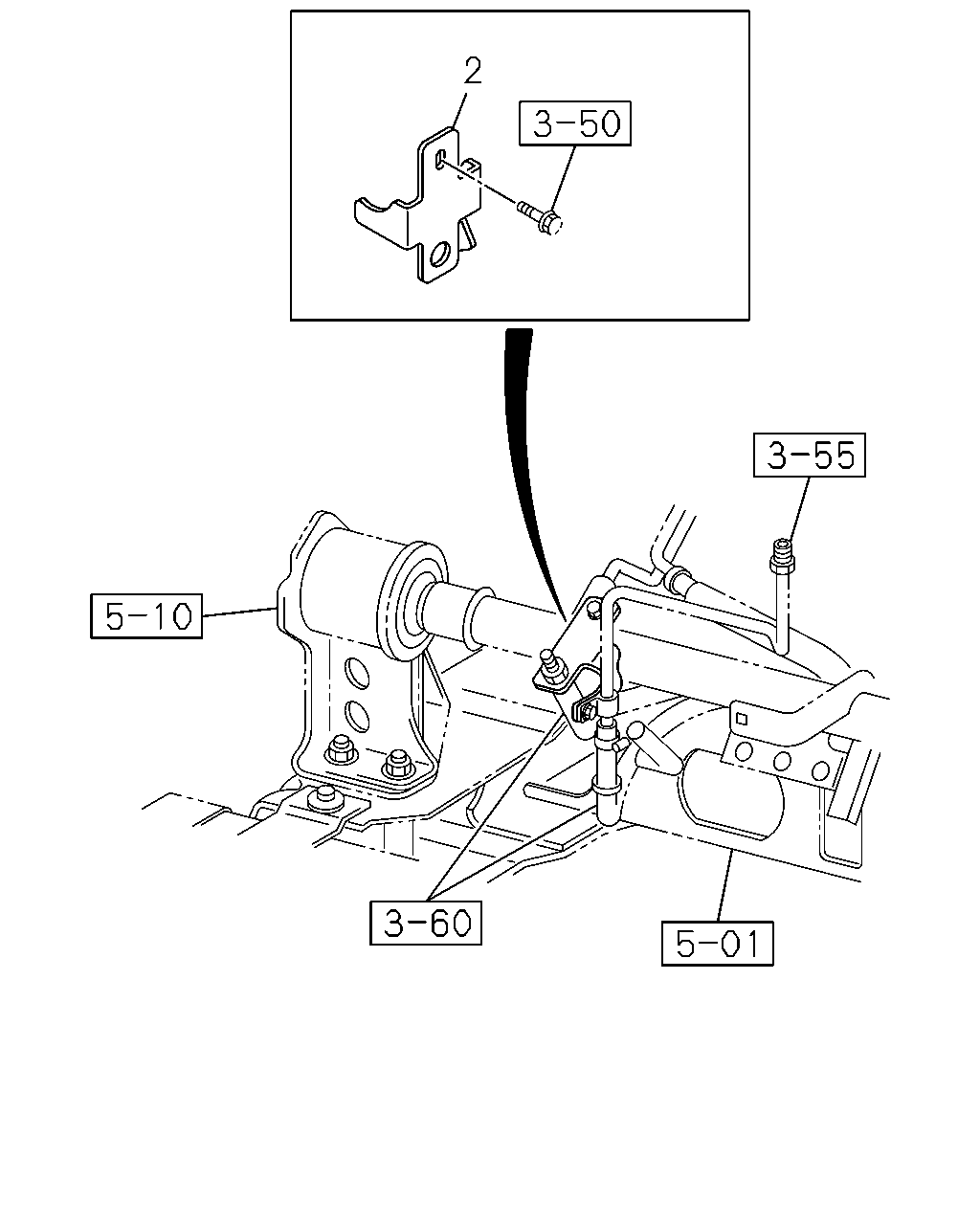

çizim 358782
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-98136-577-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
