Sayfa 3-50 - Isuzu EPC

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#54417) — 67 parça

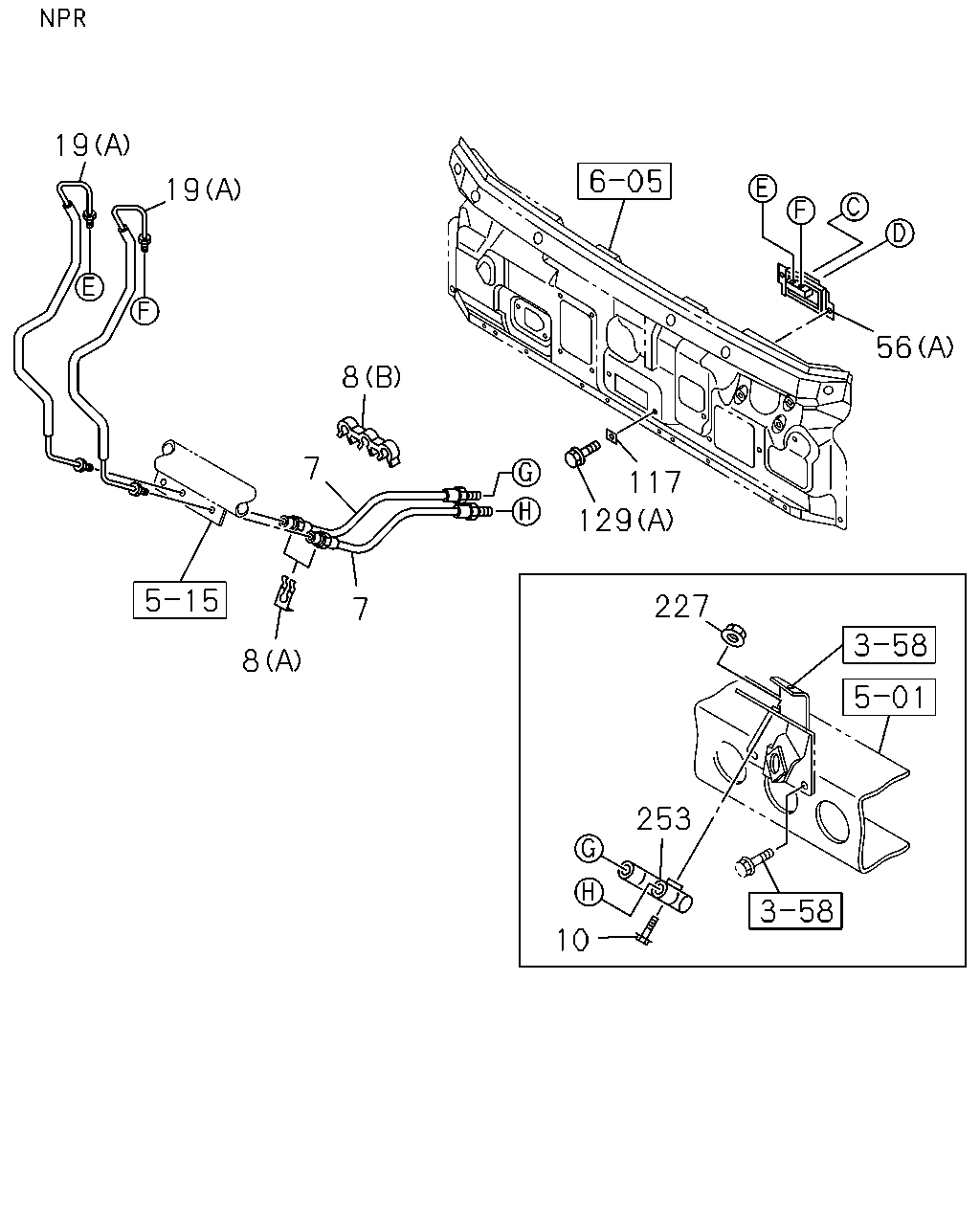

19 19 8 7 7 8 129 117 56 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1012-1303	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1304-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1012-1303	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1304-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1012-1303	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1304-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1012-1303	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1304-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1012-	●
56	04.686 BRACKET; UNION,BRK (C)	8-98098-679-0	01	1	1304-		●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1304-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-264-1	01	1	1012-	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1012-1303	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1304-	●	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1304-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1303	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1304-	●	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
227	04.685 NUT; JOINT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●
227	04.685 NUT; JOINT 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-		●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1012-1303	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1304-	●	●

19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1012-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98098-680-1	01	1	1304-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1012-	●

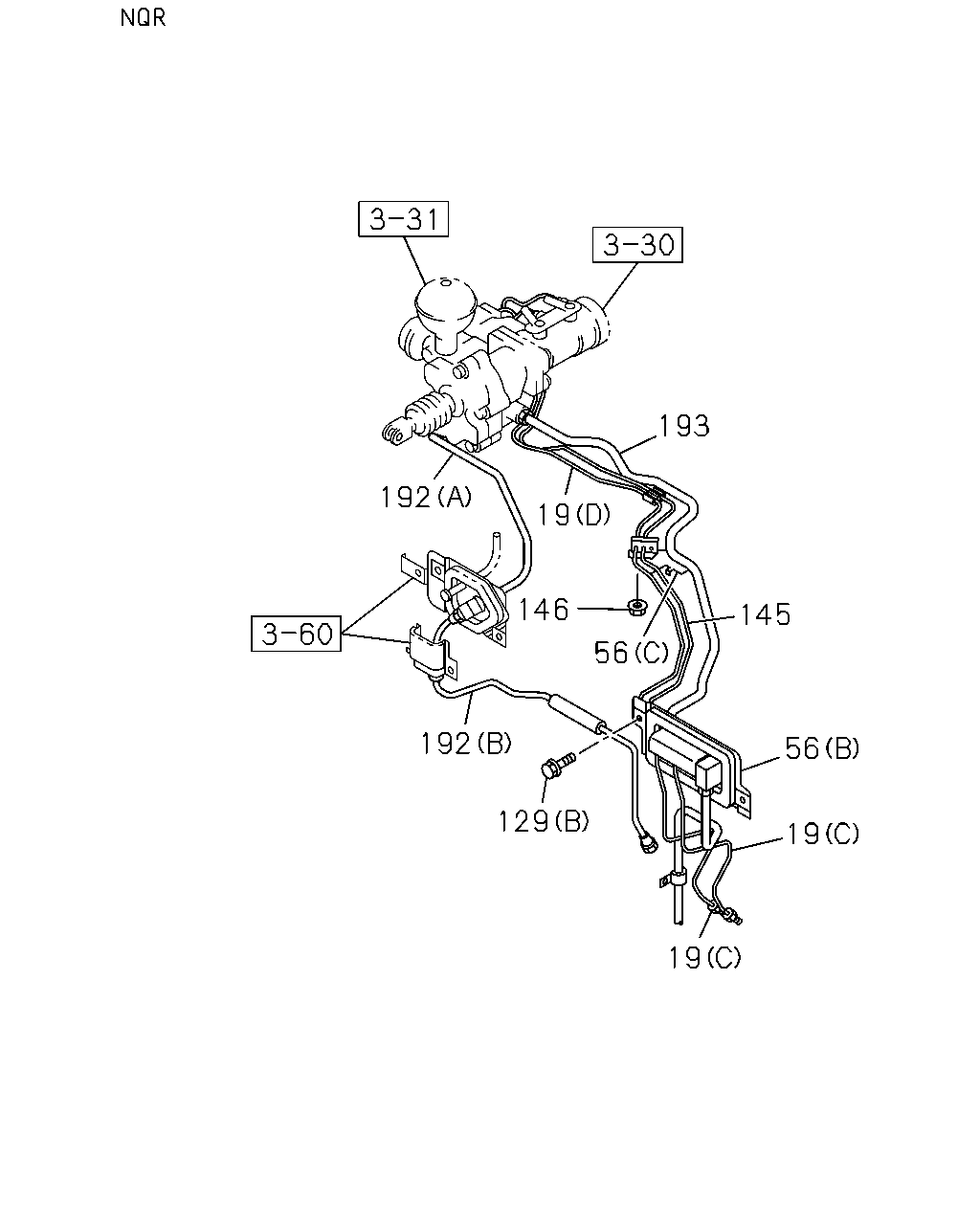

192 146 192 129 56 19 193 145 56 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-98043-501-2	02	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (D)	8-98098-682-1	01	1	1304-		●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1012-	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1012-	●
56	04.686 BRACKET; UNION,BRK (C)	8-98098-679-0	01	1	1304-		●
56	04.686 BRACKET; UNION,BRK (B)	8-98154-266-1	01	1	1304-		●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-264-1	01	1	1012-	●
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1304-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1303	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1304-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-98098-680-1	01	1	1304-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1012-	●
146	04.685 NUT; BRKT 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	1304-		●
192	04.685 PIPE; PRESSURE (A)	8-98127-262-0	01	1	1304-		●
192	04.685 PIPE; PRESSURE (B)	8-98193-137-0	01	1	1304-		●
193	04.685 PIPE; RETURN	8-98098-683-0	01	1	1304-		●

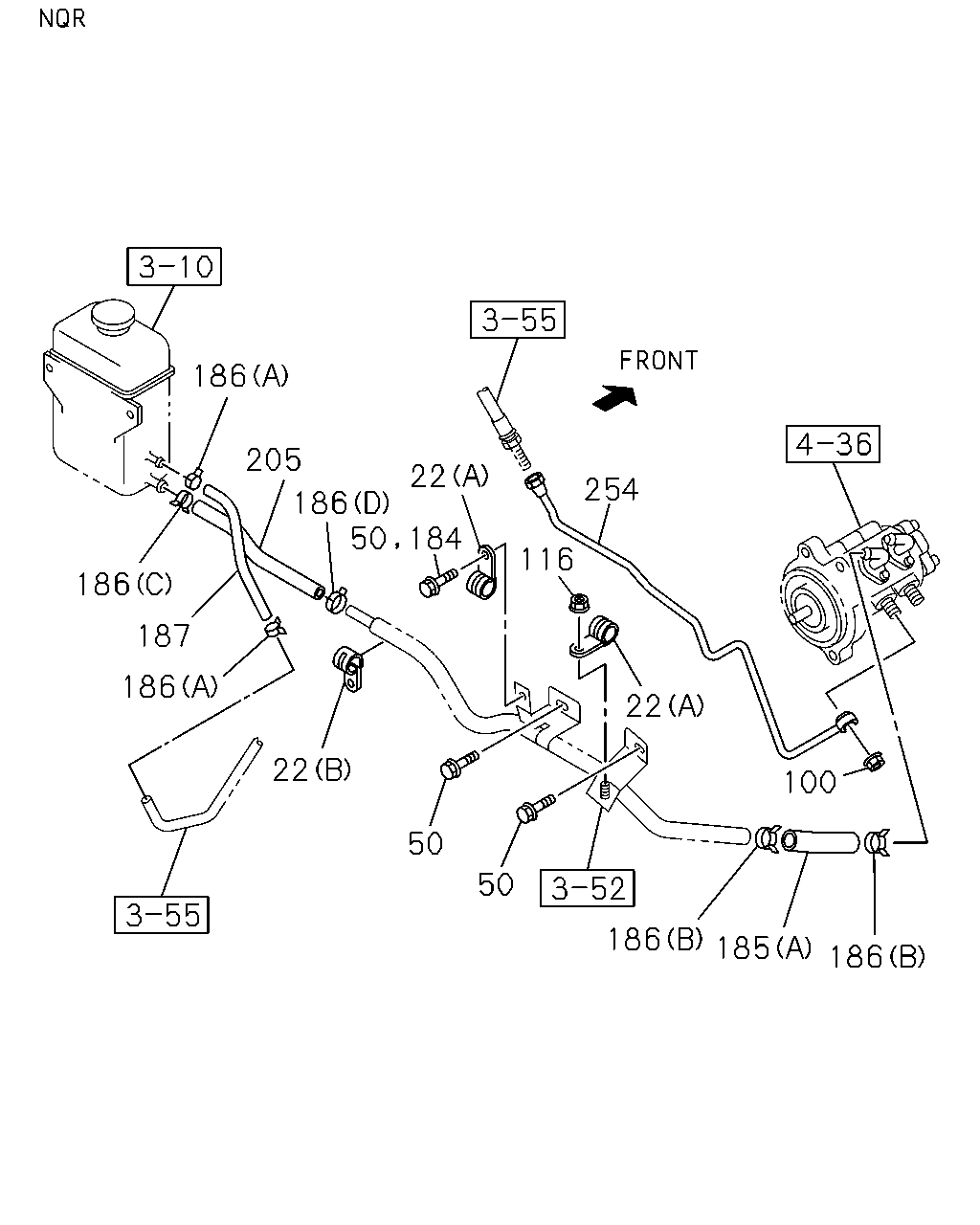

50 50 22 100 254 22 184 116 186 205 187 186 186 22 50 186 186 185 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
22	04.685 CLIP (A) ID=10 L=16.5	8-98082-034-0	02	1	1304-	●
22	04.685 CLIP (B) ID=17 L=21	8-98082-035-0	01	1	1304-	●
50	04.710 BOLT; PIPE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1304-	●
100	04.730 NUT; HYDRAULIC UNIT	8-97358-958-0	01	1	1304-	●
116	04.686 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
184	04.681 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1304-	●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1304-	●
186	04.681 CLIP; HOSE 06.672 (B) ID=21	8-94242-034-0	02	1	1304-	●
186	04.681 CLIP; HOSE 03.278 (C) ID=22	8-97359-141-0	01	1	1304-	●
186	04.681 CLIP; HOSE 03.162 (A) ID=16	8-98008-098-0	02	1	1304-	●
186	04.681 CLIP; HOSE (D) ID=21	8-98150-355-0	01	1	1304-	●
187	04.681 HOSE; RUBBER,OIL TANK 06.671 L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1304-	●
205	04.681 HOSE; TANK TO PIPE 06.670 SERVICED BY L=300	0-09814-300-0	01	1	1304-	●
254	04.685 PIPE; BRAKE,2WAY	8-98036-161-0	01	1	1304-	●

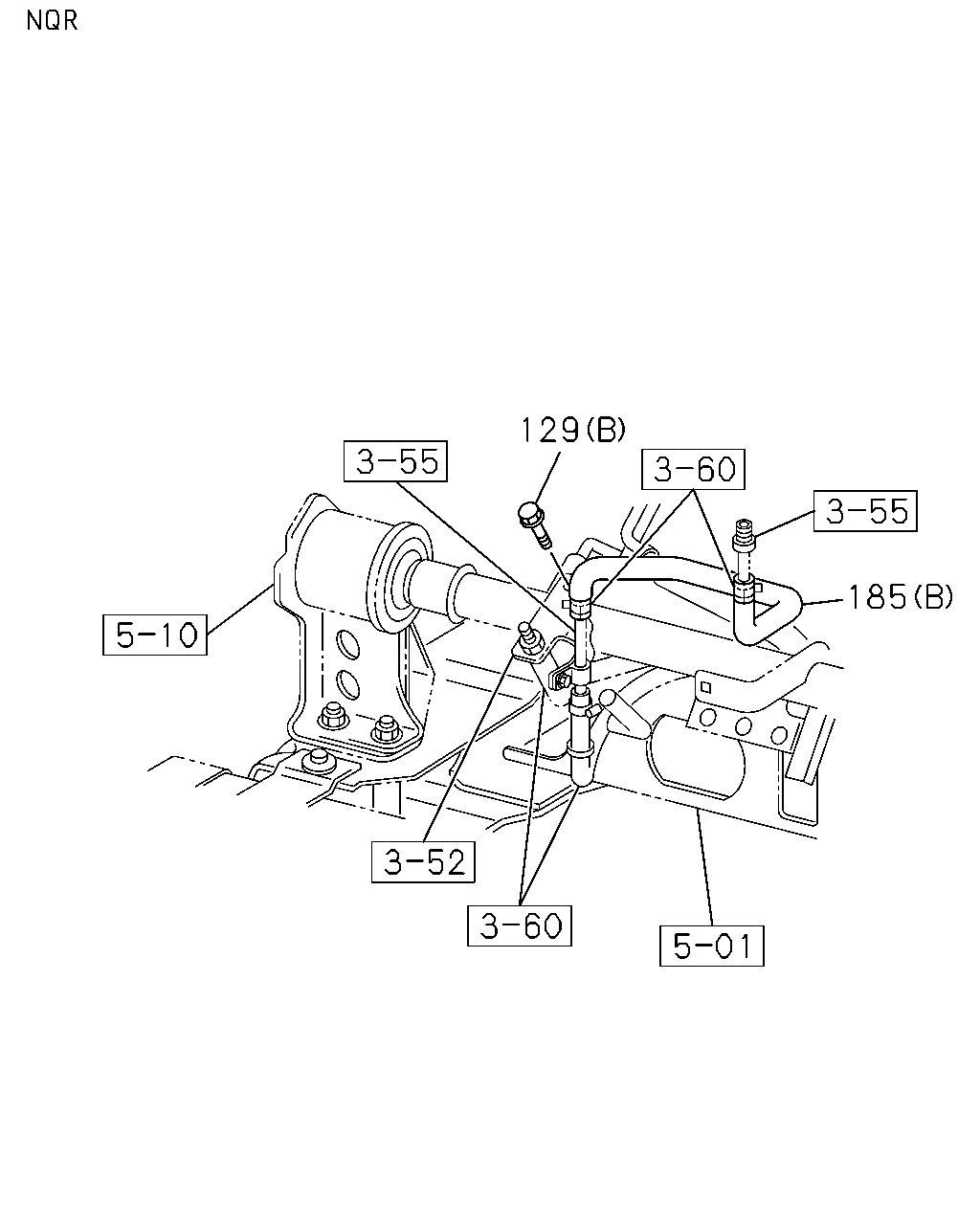

185 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	04.710 BOLT; BRKT 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1304-		●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1303	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1304-	●	●
185	04.681 HOSE; RUBBER,SUCTION (A)	8-97330-513-0	01	1	1304-		●
185	04.681 HOSE; RUBBER,SUCTION (B)	8-98085-720-0	01	1	1304-		●
