7-50 — FRONT SEAT (#5441) — 1289 parça

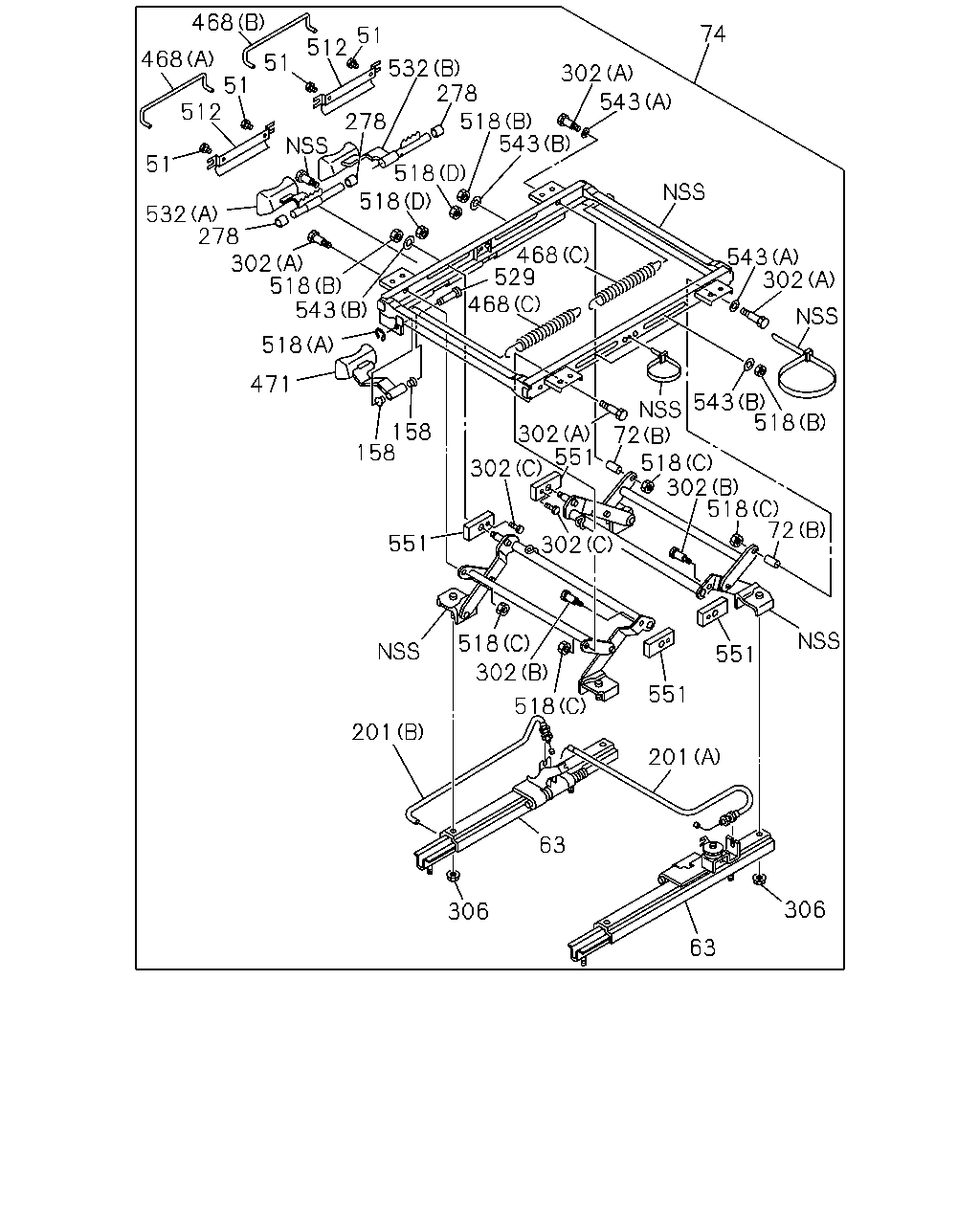

çizim 8397
468 74 51 512 468 51 532 278 518 543 302 51 512 543 278 51 518 518 532 278 302 518 543 468 529 468 543 302 518 471 543 518 551 518 302 518 72 158 158 302 551 302 518 551 302 551 518 201 201 63 306 306 63 302 72
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
M6X12 W/LK WASHER 		9-03910-612-0 04 1 9601-9904
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9905-0003
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0004-0012
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-325-0 04 1 0101-0103
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0101-0103
51 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-325-0 04 1 0104-
51 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0104-
51 SCREW; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0104-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-325-0 04 1 0104-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 08 1 0004-0012
63 ADJUSTER; SEAT SLIDE 1-75518-199-0 01 1 9601-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-199-0 01 1 9905-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-199-1 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-199-1 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE 1-75518-198-0 01 1 9601-9705
63 ADJUSTER; SEAT SLIDE 1-75518-294-0 01 1 9706-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-294-0 01 1 9905-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-323-0 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-323-0 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 02 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 02 1 0004-0012
72 SPACER; SEAT ADJ
(B) 		1-75518-269-0 02 1 9603-9904
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-269-0 02 1 9905-0003
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-269-0 02 1 0004-0012
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0103-0103
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103-0103
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75517-911-0 02 1 9601-9904
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75517-911-0 02 1 9905-0003
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75517-911-0 02 1 0004-0012
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75517-911-0 02 1 0101-0103
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75517-911-0 04 1 0004-0012
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-269-0 04 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-906-1 01 1 9601-9602
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-920-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-929-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-934-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-934-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-955-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-955-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-959-0 01 1 0103-0103
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 02 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-242-0 01 1 9601-9602
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-259-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-275-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-299-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-299-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-317-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0103-0103
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-75518-317-1 02 1 0004-0012
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9601-9904
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9905-0003
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012
158 BUSHING; LINK ARM
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-209-0 02 1 0101-0103
158 BUSHING; LINK ARM
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0101-0103
158 BUSHING; LINK ARM
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-209-0 02 1 0104-
158 BUSHING; LINK ARM
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0104-
158 BUSHING; LINK ARM
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0104-
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 0104-
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012
201 CABLE; ADJ
(A) L=667 		1-75518-201-0 01 1 9601-9705
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9706-9904
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9905-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) L=667 		1-75518-288-0 01 1 0101-0103
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0101-0103
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) L=667 		1-75518-288-0 01 1 0104-
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0104-
201 CABLE; ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0104-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 0104-
201 CABLE; ADJ
(B) L=605 		1-75518-202-1 01 1 9601-9705
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9706-9904
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9905-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0004-0012
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) L=605 		1-75518-289-1 01 1 0101-0103
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0101-0103
201 CABLE; ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) L=605 		1-75518-289-1 01 1 0104-
201 CABLE; ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0104-
201 CABLE; ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0104-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-1 01 1 0104-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0004-0012
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 9601-9904
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9905-0003
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0012
278 COLLAR; FRT SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-244-0 03 1 0101-0103
278 COLLAR; FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0101-0103
278 COLLAR; FRT SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-244-0 03 1 0104-
278 COLLAR; FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0104-
278 COLLAR; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0104-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 0104-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 06 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-236-0 04 1 9601-9602
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-0 02 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-266-1 02 1 0101-0103
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0101-0103
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-266-1 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-1 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-0 04 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-270-0 04 1 0101-0103
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0101-0103
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-270-0 04 1 0104-
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0104-
302 BOLT; ADJ,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0104-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 0104-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-336-0 02 1 0103-0103
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0103-0103
302 BOLT; ADJ,HEIGHT CONT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-336-0 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-336-0 02 1 0104-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004-0012
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9601-9904
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-9912
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012
306 NUT; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 06 1 0101-0103
306 NUT; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0101-0103
306 NUT; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 06 1 0104-
306 NUT; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0104-
306 NUT; SEAT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0104-
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 06 1 0104-
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012

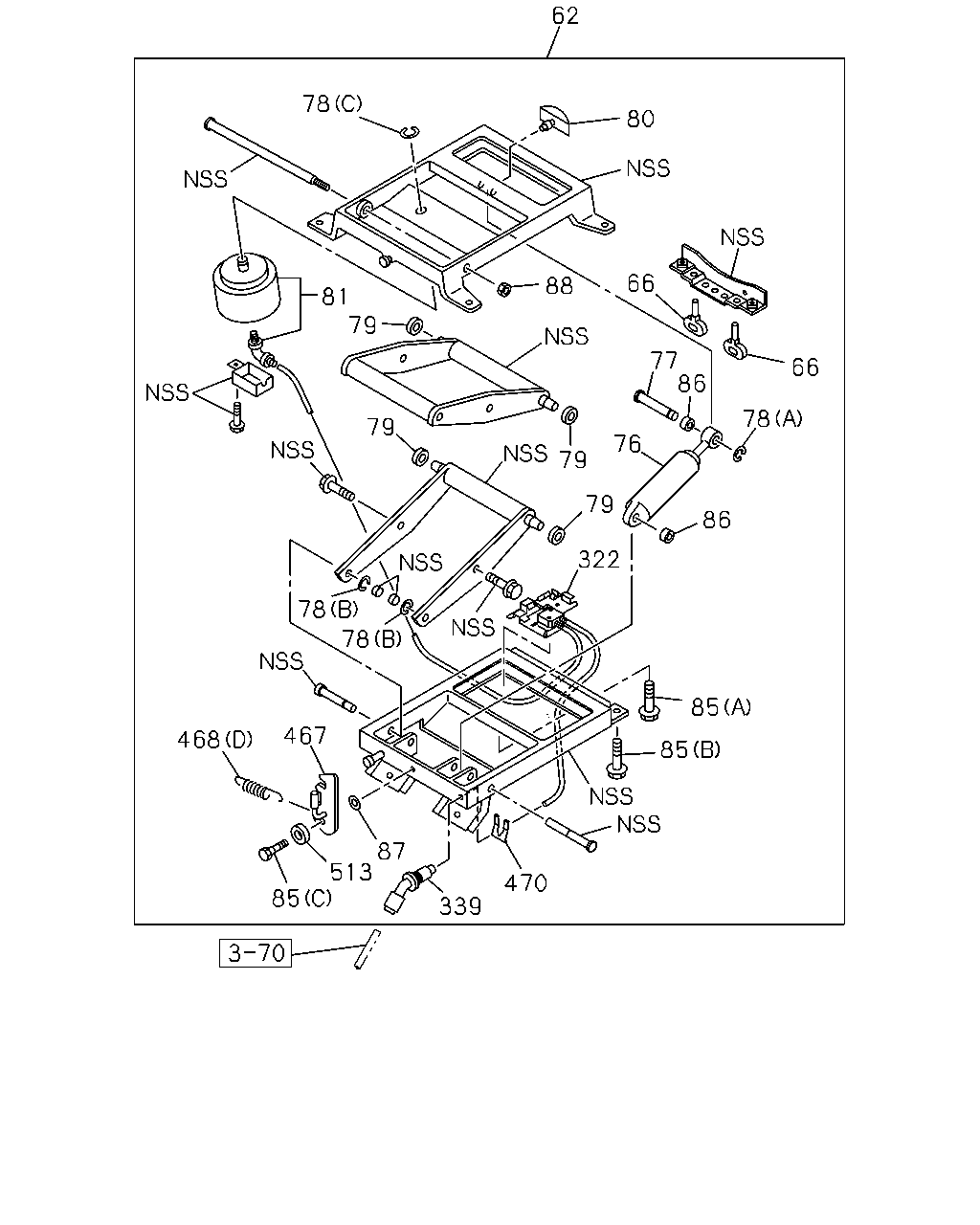

468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9601-
471 LEVER; SEAT ADJ 1-75518-205-1 01 1 9601-9705
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 9706-9904
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-291-0 01 1 9905-0003
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0004-0012
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-291-0 01 1 0101-0103
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-291-0 01 1 0101-0103
471 LEVER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-291-0 01 1 0104-
471 LEVER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-291-0 01 1 0104-
471 LEVER; SEAT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0104-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-291-0 01 1 0104-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-291-0 01 1 0004-0012
512 COVER; LEVER 1-75518-243-0 02 1 9601-9904
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-243-0 02 1 9905-0003
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-0 02 1 0004-0012
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-243-1 02 1 0101-0103
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-243-1 02 1 0101-0103
512 COVER; LEVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-243-1 02 1 0104-
512 COVER; LEVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-243-1 02 1 0104-
512 COVER; LEVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-1 02 1 0104-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-243-1 02 1 0104-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-243-0 02 1 0004-0012
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-263-0 01 1 0101-0103
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0101-0103
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-263-0 01 1 0104-
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0104-
518 NUT; TILT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0104-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 0104-
518 NUT; TILT ADJ
(B) 		1-75518-264-0 04 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-264-0 04 1 0101-0103
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0101-0103
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-264-0 04 1 0104-
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0104-
518 NUT; TILT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0104-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 0104-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0103
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0103
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0104-
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0104-
518 NUT; TILT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0104-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0104-
518 NUT; TILT ADJ
(C) M8 FLANGE 		8-94152-886-0 04 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0103
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0103
518 NUT; TILT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) M8 FLANGE 		8-94152-886-0 04 1 0104-
518 NUT; TILT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0104-
518 NUT; TILT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0104-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 0104-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012
529 PIN; LINK 1-75518-262-0 01 1 9603-9904
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9905-0003
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012
529 PIN; LINK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-262-0 01 1 0101-0103
529 PIN; LINK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0101-0103
529 PIN; LINK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-262-0 01 1 0104-
529 PIN; LINK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0104-
529 PIN; LINK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0104-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 0104-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 9601-9904
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-203-0 01 1 9905-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0004-0012
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-203-0 01 1 0101-0103
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-203-0 01 1 0101-0103
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-203-0 01 1 0104-
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-203-0 01 1 0104-
532 LEVER ASM; TILT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0104-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-203-0 01 1 0104-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 9601-9904
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-204-1 01 1 9905-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0004-0012
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-204-1 01 1 0101-0103
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-204-1 01 1 0101-0103
532 LEVER ASM; TILT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-204-1 01 1 0104-
532 LEVER ASM; TILT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-204-1 01 1 0104-
532 LEVER ASM; TILT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0104-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-204-1 01 1 0104-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-203-0 01 1 0004-0012
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-204-1 01 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
(A) ID=10.5 		9-09164-510-0 02 1 9601-9904
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) ID=10.5 		9-09164-510-0 02 1 9905-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 		9-09164-510-0 02 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-335-0 02 1 0103-0103
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-335-0 02 1 0103-0103
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-335-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-335-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-335-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
(B) ID=6.4 		9-09160-506-0 04 1 9603-9904
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=6.4 		9-09160-506-0 04 1 9905-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) ID=6.4 		9-09160-506-0 04 1 0101-0103
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) ID=6.4 		9-09160-506-0 04 1 0101-0103
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) ID=6.4 		9-09160-506-0 04 1 0104-
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=6.4 		9-09160-506-0 04 1 0104-
543 WASHER; HEIGHT ADJUSTER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0104-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=6.4 		9-09160-506-0 04 1 0104-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=6.4 		9-09160-506-0 04 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 		9-09164-510-0 02 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-337-0 02 1 0103-0103
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-337-0 02 1 0103-0103
543 WASHER; HEIGHT ADJUSTER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-337-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-337-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-337-0 02 1 0104-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-337-0 02 1 0104-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 9603-9904
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9905-0003
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012
551 SLIDER; HEIGHT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-265-0 04 1 0101-0103
551 SLIDER; HEIGHT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0101-0103
551 SLIDER; HEIGHT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-265-0 04 1 0104-
551 SLIDER; HEIGHT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0104-
551 SLIDER; HEIGHT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0104-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 0104-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012

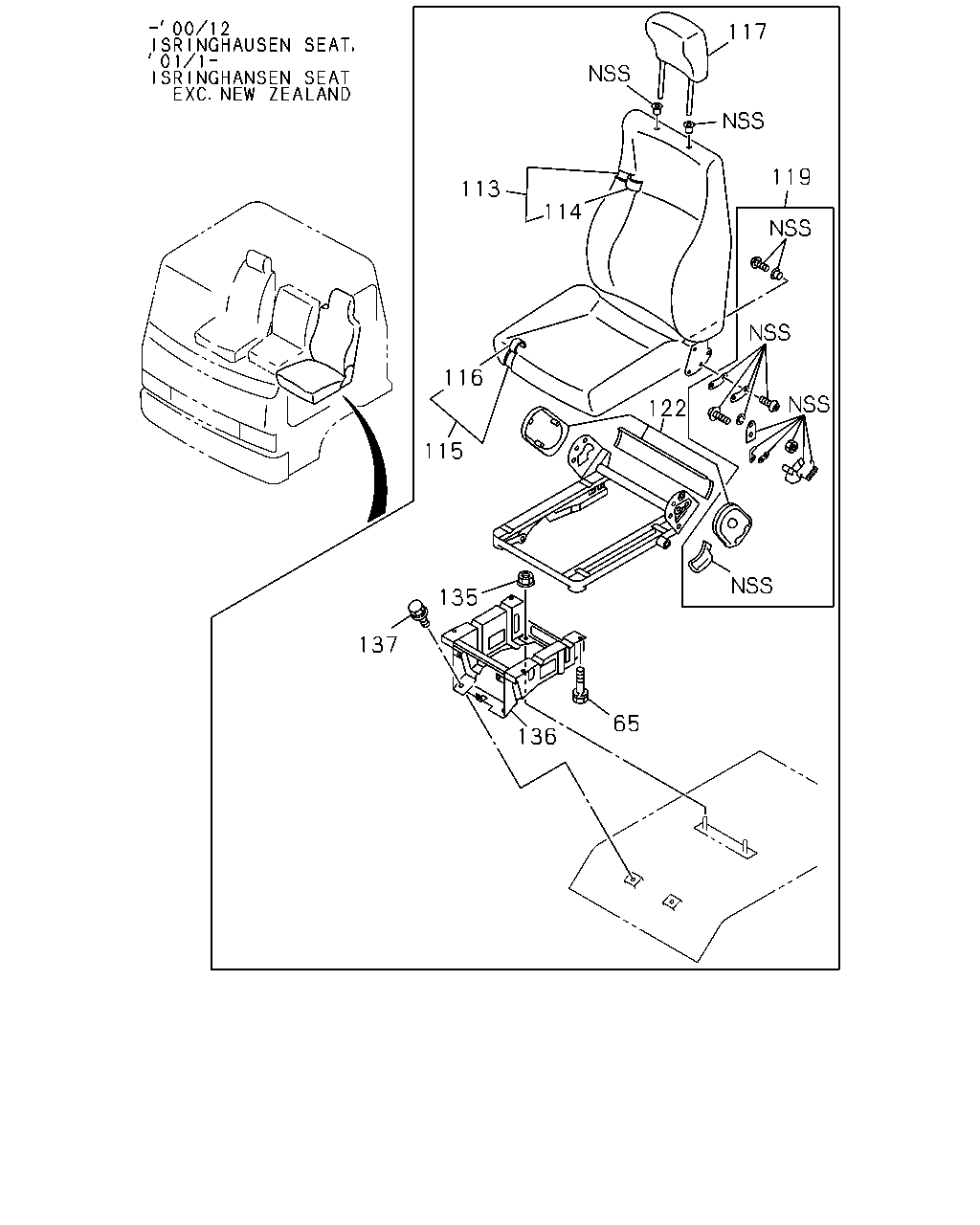

çizim 8398
117 119 113 114 116 122 115 135 17 65 136
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9601-9904
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0101-0103
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0103
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0004-0012
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-0012
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0101-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-0012
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-267-0 01 1 0101-
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-796-0 01 1 0101-0105
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75208-191-2 01 1 0106-
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-515-1 01 1 9601-9904
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-586-2 01 1 9905-0003
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-223-0 01 1 0004-0105
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-544-0 01 1 0106-
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75028-761-1 01 1 9601-9904
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-863-0 01 1 9905-0003
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-227-0 01 1 0004-0105
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-548-1 01 1 0106-
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-615-2 01 1 9601-9904
113 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75028-615-2 01 1 9905-0003
113 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75026-720-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75208-059-1 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-0012
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-464-0 01 1 0101-
114 COVER; TRIM,PASSENGER SEAT,BACK
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-709-1 01 1 0101-
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-850-1 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-878-1 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-057-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75116-297-0 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-940-0 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-058-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-273-1 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75116-273-1 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75116-599-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-0012
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-268-0 01 1 0101-
115 CUSHION ASM; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-784-1 01 1 0101-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-516-1 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-584-0 01 1 9905-0003

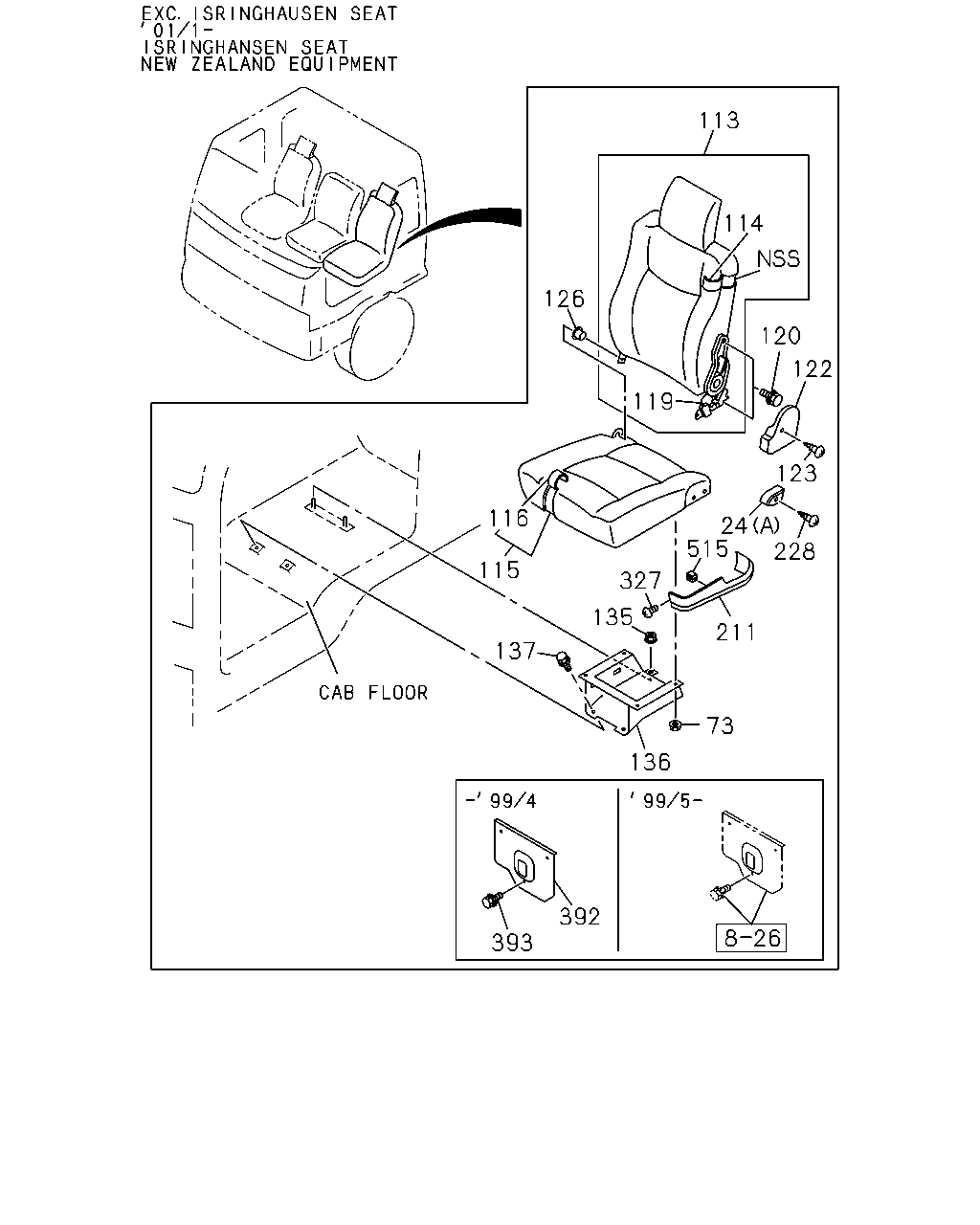

115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-209-1 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75027-580-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75207-205-1 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75028-765-1 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-857-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-211-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-800-2 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75028-800-2 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75026-773-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-0012
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-465-0 01 1 0101-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-691-1 01 1 0101-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-851-0 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-877-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-025-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75117-873-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75127-021-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75116-298-0 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-930-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-027-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-319-1 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75116-319-1 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75116-577-0 01 1 0004-
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 9905-0012
117 REST; HD
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75658-052-0 01 1 0101-
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75417-603-0 01 1 9905-0012
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75417-603-0 01 1 0101-
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) 		1-75417-597-0 01 1 9601-9904
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-597-0 01 1 9905-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-0012
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75418-063-0 01 1 0101-
122 COVER; ADJ,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-018-0 01 1 0101-
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-596-0 01 1 9601-9904
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-596-0 01 1 9905-
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9601-9904
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9905-0003
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 0004-0105
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 0106-
122 COVER; ADJ,RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004-0105
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9601-
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-602-3 01 1 0106-
136 STAND; PASSENGER SEAT 1-75558-547-0 01 1 9601-9601
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-547-1 01 1 9602-9609
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75557-585-0 01 1 9905-0003
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-585-3 01 1 0004-
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-485-0 01 1 9905-0012
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75557-485-0 01 1 0101-
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-482-7 01 1 9602-9609
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 9905-0012
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 9905-0012
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-7 01 1 0106-
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-7 01 1 0106-

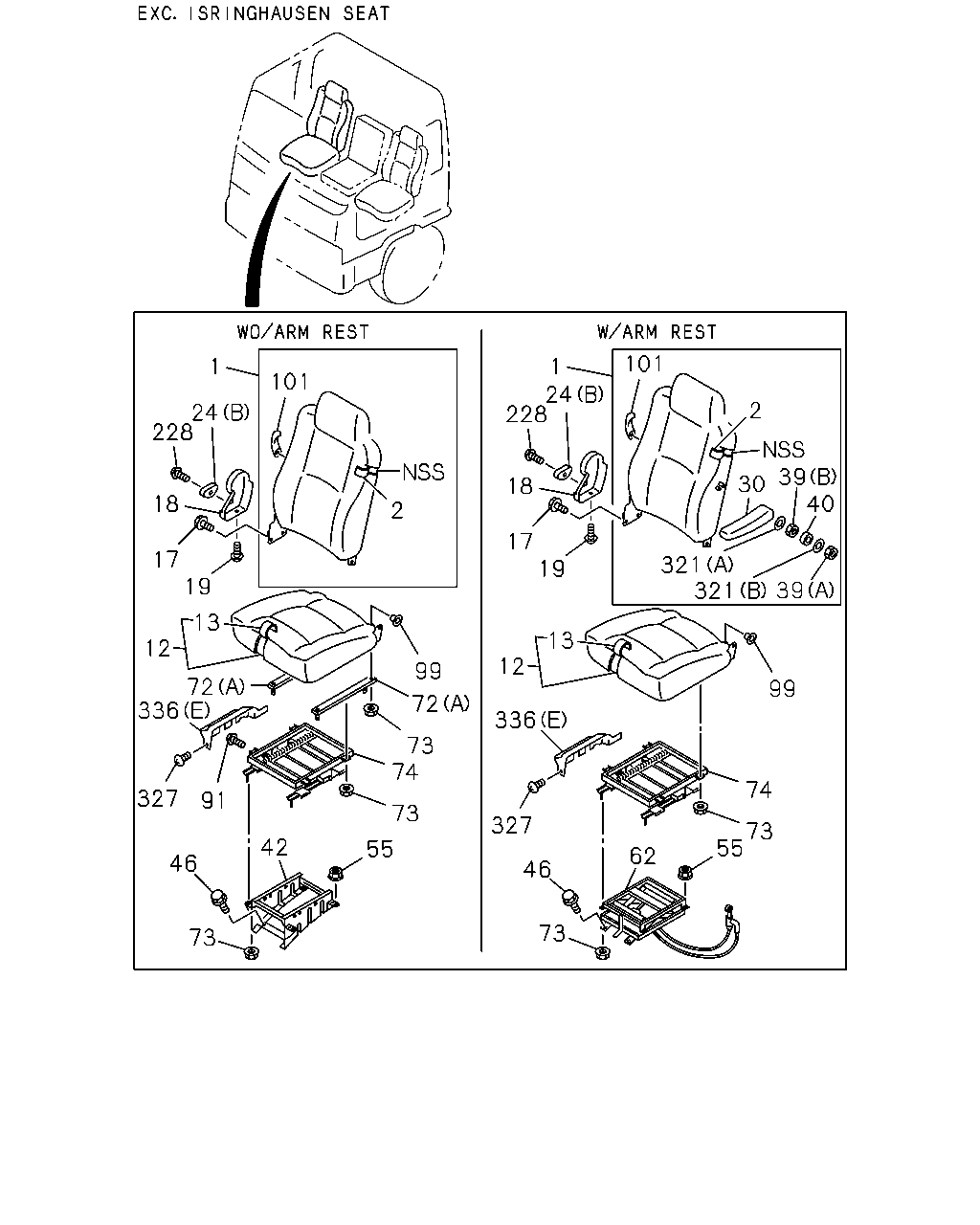

çizim 8548
101 1 1 24 228 101 2 24 228 39 40 30 18 18 2 17 19 17 19 321 13 13 12 12 99 72 336 99 72 336 73 74 74 327 91 73 327 73 55 42 55 62 46 46 73 73 321 39
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-458-0 01 1 0106-
1 BACK ASM; SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-512-2 01 1 9601-9904
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-941-0 01 1 9905-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75027-511-1 01 1 9601-9904
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9905-9910
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75028-760-1 01 1 9601-9904
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-862-0 01 1 9905-9910
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-862-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-171-0 01 1 0004-0012
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0101-0105
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-171-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-277-2 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75117-848-1 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75116-296-1 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-938-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-938-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-043-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-764-2 01 1 9601-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-824-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-824-0 01 1 9911-9912
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-562-1 01 1 0001-0003
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-151-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0101-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-763-1 01 1 9601-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-301-1 01 1 9601-9904
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-916-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-916-0 01 1 9911-9912
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-869-0 01 1 0001-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-099-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-835-0 01 1 9601-9904
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9601-9904
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0101-0103
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0103
17 BOLT; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0104-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 04 1 0004-0012
18 COVER; RECLINING 1-75418-050-0 01 1 9601-9904
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-0003
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 01 1 0004-0012
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75418-050-0 01 1 0101-0103
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75418-050-0 01 1 0101-0103
18 COVER; RECLINING
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75418-050-0 01 1 0104-
18 COVER; RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-050-0 01 1 0104-
18 COVER; RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 01 1 0104-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0104-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-050-0 02 1 0004-0012
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-9904
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0003
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
19 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0103
19 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0103
19 SCREW; COVER
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0104-
19 SCREW; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0104-
19 SCREW; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0104-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0104-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9601-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 02 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY 		8-97859-019-0 01 1 0101-
24 KNOB; RECLINING,FRT,SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9601-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 0004-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0106-
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-321-0 01 1 9601-9904
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9905-9910
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-906-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 02 1 0004-0012
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0101-0103
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0101-0103
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-010-0 01 1 0101-0103
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0104-
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0104-
30 REST ASM; ARM,FRT SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-010-0 01 1 0104-
30 REST ASM; ARM,FRT SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0104-
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-010-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9601-9910
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) M8 		1-75147-657-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0104-
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0104-
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 		1-75147-657-0 01 1 0104-
39 NUT; ARM REST
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0104-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) M10 		9-09110-410-0 01 1 0101-0103
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0104-
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0104-
39 NUT; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M10 		9-09110-410-0 01 1 0104-
39 NUT; ARM REST
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0104-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9601-9910
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 04 1 0004-0012
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-0103
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-0103
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0101-0103
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0104-
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0104-
40 SPACER; ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0104-
40 SPACER; ARM REST
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0104-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0012
42 STAND; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-607-0 01 1 0103-
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9601-9904
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9905-0003
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0004-0012
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75558-604-0 01 1 0101-0102
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0101-0102
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75558-604-0 01 1 0103-0103
42 STAND; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-75558-604-0 01 1 0104-
42 STAND; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75558-604-0 01 1 0104-
42 STAND; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0104-
42 STAND; DRIVER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0104-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9601-
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-240-3 01 1 9601-9712
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-254-0 01 1 9801-9804
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-258-0 01 1 9805-9904
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-4 01 1 9905-
72 SPACER; SEAT ADJ
(B) 		1-75518-269-0 02 1 9603-9904
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-269-0 02 1 9905-0003
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-269-0 02 1 0004-0012
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0103-0103
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0103-0103
72 SPACER; SEAT ADJ
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-334-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75517-911-0 02 1 9601-9904
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75517-911-0 02 1 9905-0003
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75517-911-0 02 1 0004-0012
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> (A) 		1-75517-911-0 02 1 0101-0103
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75517-911-0 02 1 0104-
72 SPACER; SEAT ADJ
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75517-911-0 04 1 0004-0012
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-269-0 04 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 12 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 12 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0101-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0101-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 08 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 24 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 12 1 0101-0103
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0101-0103
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-906-1 01 1 9601-9602
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-920-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-929-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-934-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-934-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-955-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-955-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75517-959-0 01 1 0103-0103
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-75517-959-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75517-955-1 02 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-242-0 01 1 9601-9602
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-259-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-275-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-299-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-299-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-317-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-317-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0103-0103
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-75518-330-0 01 1 0104-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-75518-317-1 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9904
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0003
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0103
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0104-
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0104-
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0104-
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0104-
91 SCREW; SEAT ADJ COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0004-0012
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9601-9904
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0003
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
99 BUSHING; SEAT BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		8-97854-087-0 01 1 0101-0103
99 BUSHING; SEAT BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0101-0103
99 BUSHING; SEAT BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		8-97854-087-0 01 1 0104-
99 BUSHING; SEAT BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0104-
99 BUSHING; SEAT BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0104-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0104-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 02 1 0004-0012
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 9601-9904
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9905-0003
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
101 LEVER ASM; LUMBAR
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		5-75190-138-0 01 1 0101-0103
101 LEVER ASM; LUMBAR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0101-0103
101 LEVER ASM; LUMBAR
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		5-75190-138-0 01 1 0104-
101 LEVER ASM; LUMBAR
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0104-
101 LEVER ASM; LUMBAR
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0104-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 0104-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 02 1 0004-0012
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9601-9904
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
ISRINGHAUSEN SEAT(SJA) NEW ZEALAND EQUIPMENT(PK5) M4X6 		8-97042-273-0 01 1 0101-0103
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0103
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9601-9910
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 02 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0104-
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0104-
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0104-
321 WASHER; PL,ARM REST
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0104-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 02 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-0103
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0104-
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0104-
321 WASHER; PL,ARM REST
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0104-
321 WASHER; PL,ARM REST
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 01 1 9601-9904
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 01 1 0101-0103
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-09987-249-0 04 1 0004-0012
327 CLIP; COVER
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-09987-273-0 02 1 0101-
327 CLIP; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 9601-9904
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-09987-249-0 02 1 9905-0003
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 9905-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75517-902-0 01 1 9601-9904
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 02 1 0004-0012
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 9911-9912
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75517-902-0 01 1 0001-0003
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 0004-0012
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75517-902-0 01 1 0101-0103
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 9601-9904
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 9905-9910
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 0001-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0004-0012
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0101-0103
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 02 1 0004-0012
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-208-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-210-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-212-0 01 1 9905-
çizim 41055
506 360 175 176 188 16 188 189 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-057-1 01 1 9601-9904
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-0 01 1 9905-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-602-0 01 1 9905-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-587-1 01 1 9601-9605
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-925-0 01 1 9606-9904
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75027-864-0 01 1 9905-0003
175 BACK ASM; PASSENGER CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75207-257-0 01 1 0004-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) DARK GRAY 		1-75028-592-0 01 1 9601-9605
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) DARK GRAY 		1-75028-924-0 01 1 9606-9904
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75027-598-1 01 1 9905-0003
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75207-255-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-258-1 01 1 9601-9904
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75117-941-0 01 1 9905-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75127-077-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) DARK GRAY 		1-75116-257-0 01 1 9601-9904
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75116-884-0 01 1 9905-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75127-075-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-309-1 01 1 9601-9904
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75117-934-0 01 1 9905-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75127-071-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) DARK GRAY 		1-75116-310-0 01 1 9601-9904
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75117-933-0 01 1 9905-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75127-070-0 01 1 0004-
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-767-2 01 1 9601-9904
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75027-860-0 01 1 9905-0003
182 CUSHION ASM; CENTER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) 		1-75207-250-1 01 1 0004-
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) DARK GRAY 		1-75028-766-1 01 1 9601-9904
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75027-859-0 01 1 9905-0003
182 CUSHION ASM; CENTER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) 		1-75207-249-1 01 1 0004-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 9601-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 9601-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 9601-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 9601-
360 SCREW; PARCEL
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9904
360 SCREW; PARCEL
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9601-9904
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905-
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9601-9606
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		8-94279-504-1 04 1 9607-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-164-2 04 1 9601-
çizim 41186
359 533 535 365 98 360 98 360 537 360 536 360 534 538 359
BalonParca AdiParca NoAdetTipApplied Date
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9601-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-157-4 01 1 9601-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9601-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 9601-
360 SCREW; PARCEL
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9601-9904
360 SCREW; PARCEL
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9601-9904
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9905-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 9601-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-194-2 01 1 9601-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-181-0 01 1 9601-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 9601-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 9601-
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 9601-
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 9601-
çizim 41187
113 114 126 120 122 119 123 116 24 515 228 115 327 135 211 137 73 136 392 393
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-059-0 01 1 9601-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0101-0103
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0104-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-059-0 01 1 0106-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-059-0 02 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY 		8-97859-019-0 01 1 0101-
24 KNOB; RECLINING,FRT,SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9601-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-056-0 01 1 0004-0105
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75418-056-0 01 1 0106-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		8-94279-518-0 04 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 12 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 12 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0101-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 04 1 0101-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		8-94279-518-0 08 1 9601-9904
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 08 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 24 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 12 1 0101-0103
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 12 1 0104-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) M8 FLANGE 		1-75538-207-0 16 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0101-0103
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) M8 FLANGE 		1-75538-207-0 08 1 0104-
73 NUT; ADJ,HEIGHT CONT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		1-75538-207-0 08 1 0104-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-0012
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-267-0 01 1 0101-
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-796-0 01 1 0101-0105
113 BACK ASM; SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75208-191-2 01 1 0106-
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-515-1 01 1 9601-9904
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-586-2 01 1 9905-0003
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-223-0 01 1 0004-0105
113 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-544-0 01 1 0106-
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75028-761-1 01 1 9601-9904
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-863-0 01 1 9905-0003
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-227-0 01 1 0004-0105
113 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-548-1 01 1 0106-
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-615-2 01 1 9601-9904
113 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75028-615-2 01 1 9905-0003
113 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75026-720-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75208-059-1 01 1 0106-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-0012
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-464-0 01 1 0101-
114 COVER; TRIM,PASSENGER SEAT,BACK
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-709-1 01 1 0101-
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-850-1 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-878-1 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-057-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75116-297-0 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-940-0 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-058-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-273-1 01 1 9601-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75116-273-1 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75116-599-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-0012
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75026-268-0 01 1 0101-
115 CUSHION ASM; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75026-784-1 01 1 0101-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-516-1 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-584-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-209-1 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75027-580-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75207-205-1 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75028-765-1 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-857-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-211-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-800-2 01 1 9601-9904
115 CUSHION ASM; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75028-800-2 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75026-773-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-0012
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75116-465-0 01 1 0101-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75116-691-1 01 1 0101-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-851-0 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-877-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-025-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75117-873-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75127-021-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) DARK GRAY 		1-75116-298-0 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-930-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-027-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-319-1 01 1 9601-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY 		1-75116-319-1 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75116-577-0 01 1 0004-
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75417-603-0 01 1 9905-0012
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75417-603-0 01 1 0101-
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) 		1-75417-597-0 01 1 9601-9904
119 ADJ; SEAT RECLINING,ASSIST SIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-597-0 01 1 9905-
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) M8X20 		1-09980-438-0 04 1 9601-9904
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 04 1 9905-0003
120 BOLT; RECLINING ADJ
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 04 1 0004-
120 BOLT; RECLINING ADJ
EXC. PASSENGER SEAT MULTI USED(WX9) M8X18 		8-94279-109-1 02 1 9601-9904
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X18 		8-94279-109-1 02 1 9905-0003
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0004-0012
120 BOLT; RECLINING ADJ
ISRINGHAUSEN SEAT(SJA) NEW ZEALAND EQUIPMENT(PK5) M8X20 		8-97255-906-0 02 1 0101-
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20 		8-97255-906-0 02 1 0101-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-0012
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75418-063-0 01 1 0101-
122 COVER; ADJ,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) DARK GRAY 		8-97859-018-0 01 1 0101-
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) 		1-75417-596-0 01 1 9601-9904
122 COVER; ADJ,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75417-596-0 01 1 9905-
122 COVER; ADJ,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9601-9904
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 9905-0003
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 0004-0105
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75418-052-0 01 1 0106-
122 COVER; ADJ,RECLINING
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 0004-0105
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) M6X12 		9-03490-612-0 01 1 9601-9904
123 SCREW; COVER,RECLINING
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M6X12 		9-03490-612-0 01 1 9905-
123 SCREW; COVER,RECLINING
EXC. PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9601-9904
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0012
123 SCREW; COVER,RECLINING
ISRINGHAUSEN SEAT(SJA) NEW ZEALAND EQUIPMENT(PK5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 9601-9904
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0012
126 BUSHING; HINGE,RECLINING
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0101-
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 0101-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9601-
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-602-3 01 1 0106-
136 STAND; PASSENGER SEAT 1-75558-547-0 01 1 9601-9601
136 STAND; PASSENGER SEAT
EXC. PASSENGER SEAT MULTI USED(WX9) 		1-75558-547-1 01 1 9602-9609
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75557-585-0 01 1 9905-0003
136 STAND; PASSENGER SEAT
ELEC OUTLET 12V<TAW> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-585-3 01 1 0004-
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-485-0 01 1 9905-0012
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-75557-485-0 01 1 0101-
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-75558-482-7 01 1 9602-9609
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 9905-0012
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 9905-0012
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-4 01 1 0101-0105
136 STAND; PASSENGER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-75558-550-7 01 1 0106-
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) 		1-75558-550-7 01 1 0106-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-
211 COVER; FRT SEAT
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-72538-274-0 01 1 0101-
211 COVER; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) 		1-72537-151-0 01 1 9601-9904
211 COVER; FRT SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-72537-151-0 01 1 9905-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9601-9904
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
ISRINGHAUSEN SEAT(SJA) NEW ZEALAND EQUIPMENT(PK5) M4X6 		8-97042-273-0 01 1 0101-0103
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0101-0103
228 SCREW; KNOB
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0104-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 02 1 0004-0012
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 01 1 9601-9904
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 01 1 0101-0103
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 0104-
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-09987-249-0 04 1 0004-0012
327 CLIP; COVER
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) 		1-09987-273-0 02 1 0101-
327 CLIP; COVER
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 9601-9904
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> 		1-09987-249-0 02 1 9905-0003
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 9905-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 02 1 0004-0012
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0101-0103
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0104-
327 CLIP; COVER
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 02 1 0104-
392 COVER; STAND,PASSENGER SEAT 1-75558-523-4 01 1 9610-9904
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9610-9904
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) BLACK 		8-94227-248-1 01 1 9601-9904
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW> BLACK 		8-94227-248-1 01 1 9905-0003
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0004-0012
515 CLIP; PIPE
NEW ZEALAND EQUIPMENT(PK5) ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0101-
515 CLIP; PIPE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) BLACK 		8-94227-248-1 01 1 0101-
çizim 41224
62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-240-3 01 1 9601-9712
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-254-0 01 1 9801-9804
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-258-0 01 1 9805-9904
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-4 01 1 9905-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9601-
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9601-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9601-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9601-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9601-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9601-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-155-0 04 1 9601-9602
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9603-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9601-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9601-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9601-0003
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0004-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9601-0003
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9601-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9601-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9601-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		8-94279-519-0 01 1 9601-9904
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 9905-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-154-0 01 1 9601-9804
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-2 01 1 9805-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 9601-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9601-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 0104-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 0104-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 9601-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0101-0103
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0103
468 SPRING; RETURN
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 0104-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9601-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9601-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9601-
çizim 41259
27 1 2 13 12 336 336 590 587 16 336 325 336 63 55 46 81 76 582 582 582 581 582
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-445-1 01 1 0106-
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-458-0 01 1 0106-
1 BACK ASM; SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75027-512-2 01 1 9601-9904
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-941-0 01 1 9905-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75027-511-1 01 1 9601-9904
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9905-9910
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-563-2 01 1 9911-0003
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0101-0103
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0104-0105
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-267-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75028-760-1 01 1 9601-9904
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-862-0 01 1 9905-9910
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-862-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-171-0 01 1 0004-0012
1 BACK ASM; SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-171-0 01 1 0101-0105
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-171-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-277-2 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75117-848-1 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-870-1 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0101-0103
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0104-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-038-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY 		1-75116-296-1 01 1 9601-9904
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-938-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-938-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-043-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-043-0 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-764-2 01 1 9601-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-824-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-824-0 01 1 9911-9912
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75027-562-1 01 1 0001-0003
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-151-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75207-151-0 01 1 0101-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75028-763-1 01 1 9601-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-560-1 01 1 9911-0003
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-0 01 1 0101-0103
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-150-1 01 1 0104-
12 CUSHION; SEAT,FRT
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-150-1 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75116-301-1 01 1 9601-9904
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-916-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-916-0 01 1 9911-9912
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75117-869-0 01 1 0001-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-099-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75127-099-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) DARK GRAY 		1-75117-835-0 01 1 9601-9904
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-867-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0101-0103
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-098-0 01 1 0104-
13 COVER; TRIM,FRT SEAT,CUSHION
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-098-0 01 1 0104-
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-057-1 01 1 9601-9904
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) (B) 		1-75418-062-0 01 1 9905-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) (A) 		1-75417-602-0 01 1 9905-
27 REST; HD,FRT SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 9905-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9601-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9601-
63 ADJUSTER; SEAT SLIDE 1-75518-199-0 01 1 9601-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-199-0 01 1 9905-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-199-1 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-199-1 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-199-1 01 1 0104-
63 ADJUSTER; SEAT SLIDE 1-75518-198-0 01 1 9601-9705
63 ADJUSTER; SEAT SLIDE 1-75518-294-0 01 1 9706-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-294-0 01 1 9905-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-323-0 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) RIGID SEAT W/ARM REST(SGC) 		1-75518-323-0 01 1 0101-0103
63 ADJUSTER; SEAT SLIDE
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-323-0 01 1 0104-
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-199-1 02 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-323-0 02 1 0004-0012
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9601-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9601-
325 COVER; SUSPENSION DEVICE
ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 9905-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75517-902-0 01 1 9601-9904
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 02 1 0004-0012
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 9911-9912
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75517-902-0 01 1 0001-0003
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 0004-0012
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75517-902-0 01 1 0101-0103
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
DRIVING POSITION WIDE LEG SPACE<PR2> EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75517-902-0 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 9601-9904
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 9905-9910
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
EXC. SEAT ASSEMBLY FABRIC W/RECLINING(SFQ), ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75518-066-3 01 1 9911-9912
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 0001-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0004-0012
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0101-0103
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASSEMBLY FABRIC W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
SEAT ASSEMBLY FABRIC W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
PASSENGER SEAT MULTI USED(WX9) EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA) (E) 		1-75518-066-3 01 1 0104-
336 COVER; DRIVER SEAT
EXC. DRIVING POSITION WIDE LEG SPACE<PR2>, ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARMREST(SLL) (E) 		1-75518-066-3 02 1 0004-0012
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-208-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-210-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-212-0 01 1 9905-
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-605-0 01 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905-
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-007-0 01 1 9905-
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-600-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
