◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#54409) — 64 parça

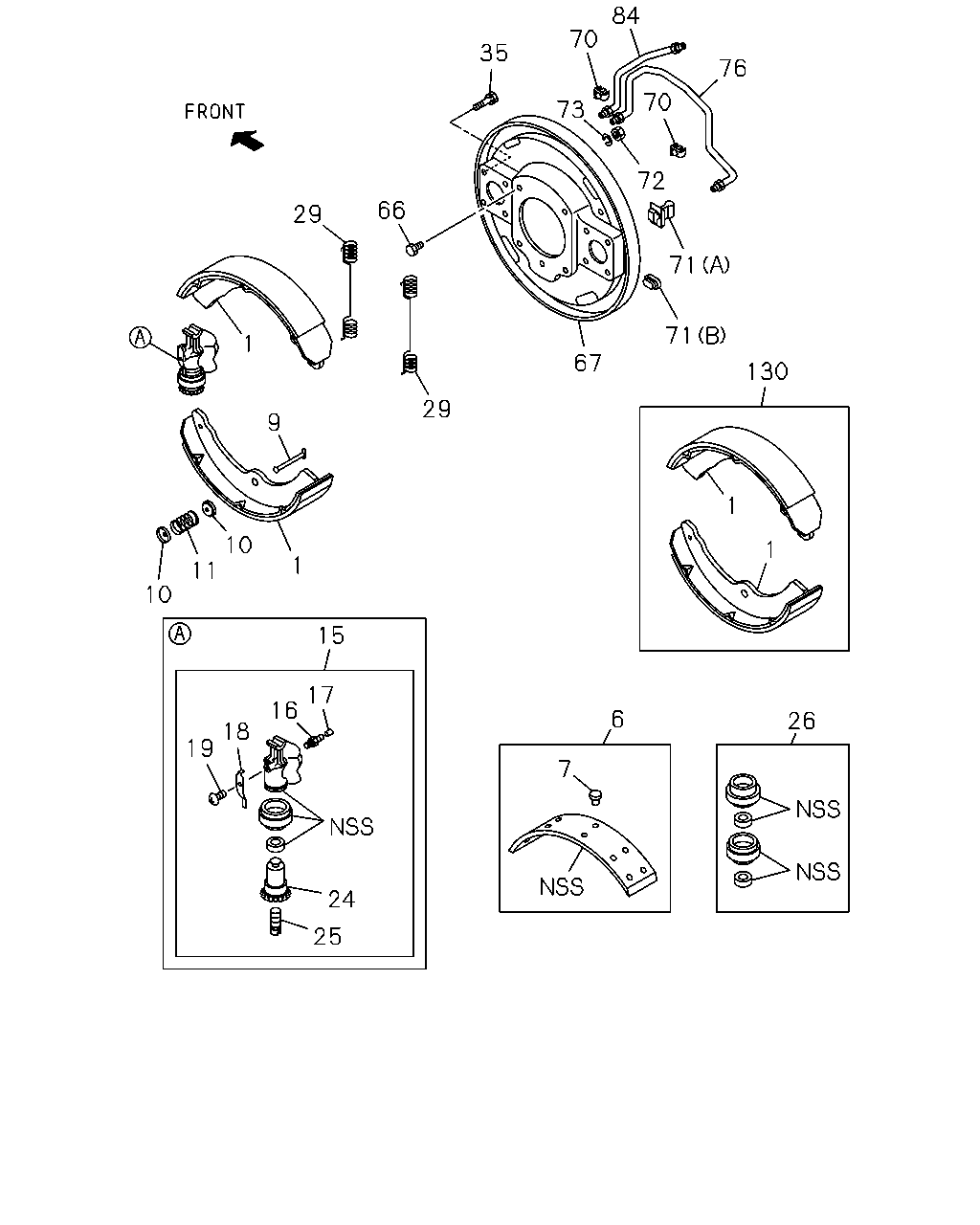

çizim 175556
84 70 35 76 70 73 72 66 29 71 71 1 67 130 29 9 1 10 1 1 11 10 15 17 16 6 26 18 19 7 24 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT 8-97188-455-0 04 1 1304- ●
1 05.017 SHOE; BRK,FRT 8-97201-061-0 04 1 1012- ●
6 05.018 LINING KIT; FRT BRK 5-87831-692-0 01 1 1304- ●
6 05.018 LINING KIT; FRT BRK 5-87831-774-0 01 1 1012- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1012- ●
6 05.018 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 1304- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 1304- ●
7 05.019 RIVET; LINING,FRT BRK 1-09732-029-0 48 1 1012- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97122-870-0 04 1 1304- ●
9 05.026 PIN; SHOE HOLDER
05.043 		8-97022-089-0 04 1 1012- ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1012-1303 ●
10 05.043 CUP; SHOE HOLDING 9-47165-096-0 08 1 1304- ● ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1012-1303 ●
11 05.027 SPRING; SHOE HOLDING
05.043 		5-09580-101-1 04 1 1304- ● ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-573-0 01 1 1304- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97353-574-0 01 1 1304- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-575-0 01 1 1304- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97353-576-0 01 1 1304- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-818-0 01 1 1012- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-97139-819-0 01 1 1012- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-820-0 01 1 1012- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97139-821-0 01 1 1012- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 1304- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1012- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1012-1303 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1304- ● ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1012-1303 ●
18 05.107 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1304- ● ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1012-1303 ●
19 05.107 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1304- ● ●
24 04.668 PISTON; FRT WHEEL CYL 8-97353-579-0 04 1 1304- ●
24 04.668 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 1012- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1012-1303 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 		8-94414-702-0 04 1 1304- ● ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87832-080-0 01 1 1304- ●
26 04.667 CUP SET; FRT WHEEL CYL
04.665 		5-87831-598-0 01 1 1012- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 1304- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97022-087-0 04 1 1012- ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1012-1303 ●
35 04.665 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 1304- ● ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 M14X40 		8-98007-879-0 08 1 1012-1303 ●
66 05.815 BOLT; OIL SHIELD COVER
05.002 M14X40 		8-98007-879-0 08 1 1304- ● ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-410-0 01 1 1304- ●
67 05.001 PLATE; BACK,FRT BRK 8-97160-411-0 01 1 1304- ●
67 05.001 PLATE; BACK,FRT BRK 8-98072-847-0 01 1 1012- ●
67 05.001 PLATE; BACK,FRT BRK 8-98072-848-0 01 1 1012- ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 1012-1303 ●
70 04.685 CLIP; PIPE HOLD 8-97022-086-0 04 1 1304- ● ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 1012-1303 ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 1304- ● ●
71 05.002 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 1012-1303 ●
71 05.002 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 04 1 1304- ● ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 1012-1303 ●
72 05.815 NUT; OIL SHIELD COVER
07.833 M14 		0-91110-514-0 08 1 1304- ● ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 1012-1303 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
06.174 ID=14.2 		0-91510-814-0 08 1 1304- ● ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 1012-1303 ●
76 04.685 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 1304- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 1012-1303 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 1304- ● ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 1012-1303 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 1304- ● ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 1304- ●
130 05.017 SHOE KIT; BRK,FRT 5-87831-775-0 01 1 1012- ●
