2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#54408) — 20 parça

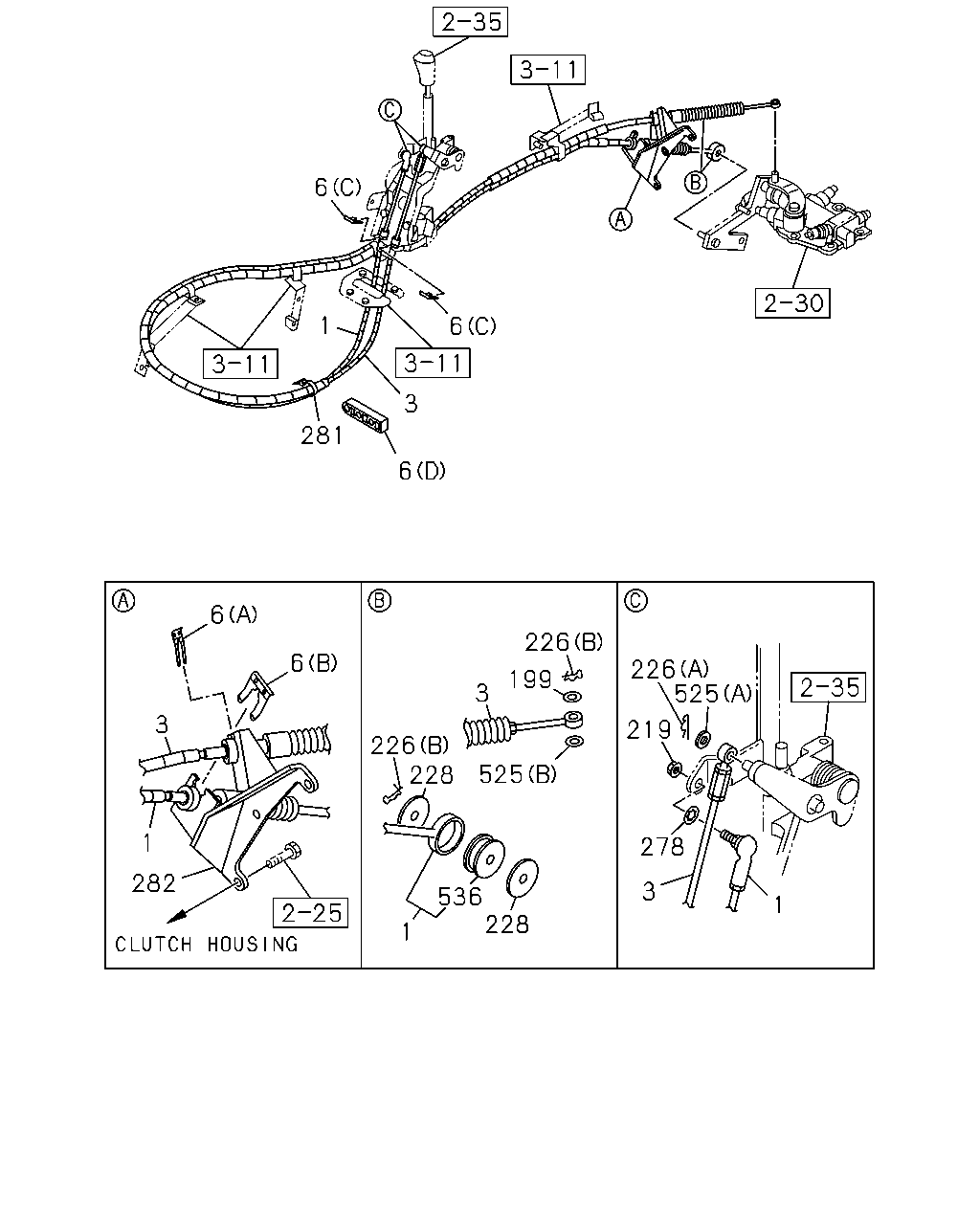

çizim 175553
6 1 6 3 281 6 6 226 6 226 525 199 3 3 219 226 228 525 1 278 282 3 536 228 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.854 CABLE; SHIFT,TRANS CONT
FRONT WIDE TREAD<7GV> L=3115 		8-98147-384-0 01 1 1012- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3090 		8-98146-856-0 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FRONT WIDE TREAD<7GV> 		8-98130-265-0 01 1 1012- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
EXC. FRONT WIDE TREAD<7GV> L=3202 		8-98025-442-3 01 1 1012- ● ●
6 04.047 CLIP; CABLE
00.854 (A) ID=22.2 		1-09701-209-1 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(C) 		8-97011-448-0 02 1 1012- ● ●
6 04.047 CLIP; CABLE
04.008 (D) 		8-97093-491-1 01 1 1012- ● ●
6 04.047 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 01 1 1012- ● ●
199 04.012 WASHER; PL,SELECT
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1012- ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
04.037 M8 T=8.0 		8-94363-045-0 01 1 1012- ● ●
226 04.047 PIN; SHIFT CABLE
00.833 (A) L=27.7 		8-94111-137-0 01 1 1012- ● ●
226 04.047 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 02 1 1012- ● ●
228 04.047 WASHER; PL,SHIFT CABLE
ID=8.2 OD=40 		8-97182-975-0 02 1 1012- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 1012- ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 1012- ● ●
282 04.010 BRACKET; TRANS SIDE 8-98032-395-1 01 1 1012- ●
282 04.010 BRACKET; TRANS SIDE 8-98126-234-1 01 1 1012- ●
525 04.047 WASHER; SHIFT CABLE
06.056 (A) ID=8.4 OD=16 		0-91614-508-0 01 1 1012- ● ●
525 04.047 WASHER; SHIFT CABLE
00.854 (B) ID=8.4 OD=14 		5-09550-002-0 01 1 1012- ● ●
536 00.854 DAMPER; CABLE 8-98097-681-0 01 1 1012- ● ●
