2-26 — MANUAL TRANSMISSION GEAR (#54405) — 169 parça

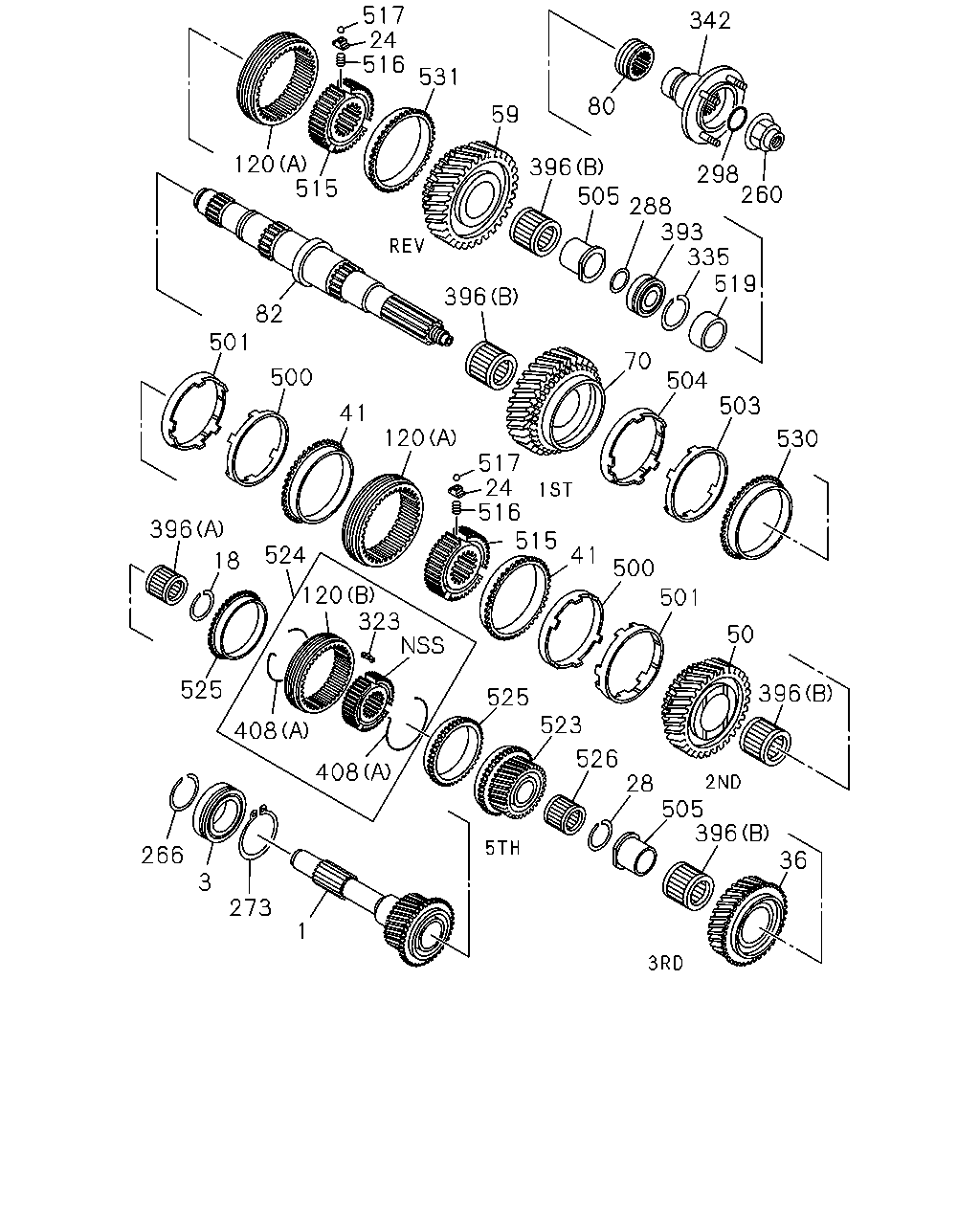

517 24 516 169 342 531 80 59 120 396 298 260 515 505 288 393 335 77 396 82 501 500 70 504 41 120 503 517 530 24 516 515 396 41 500 524 18 501 120 323 50 408 396 525 525 30 408 526 28 505 396 36 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1012-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1012-	●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1012-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=28	8-97241-230-0	01	1	1012-	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1012-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1012-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1012-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1012-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1012-	●	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=21	8-97386-582-0	01	1	1012-	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1012-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-		●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1012-	●	●
169	04.419 COLLAR; MAINSHAFT	8-97252-937-1	01	1	1012-	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1012-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1012-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1012-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1012-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1012-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1012-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-862-0	01	1	1012-	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1012-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1012-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1012-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1012-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1012-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1012-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1012-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1012-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1012-	●	●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1012-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1012-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1012-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1012-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1012-	●	●

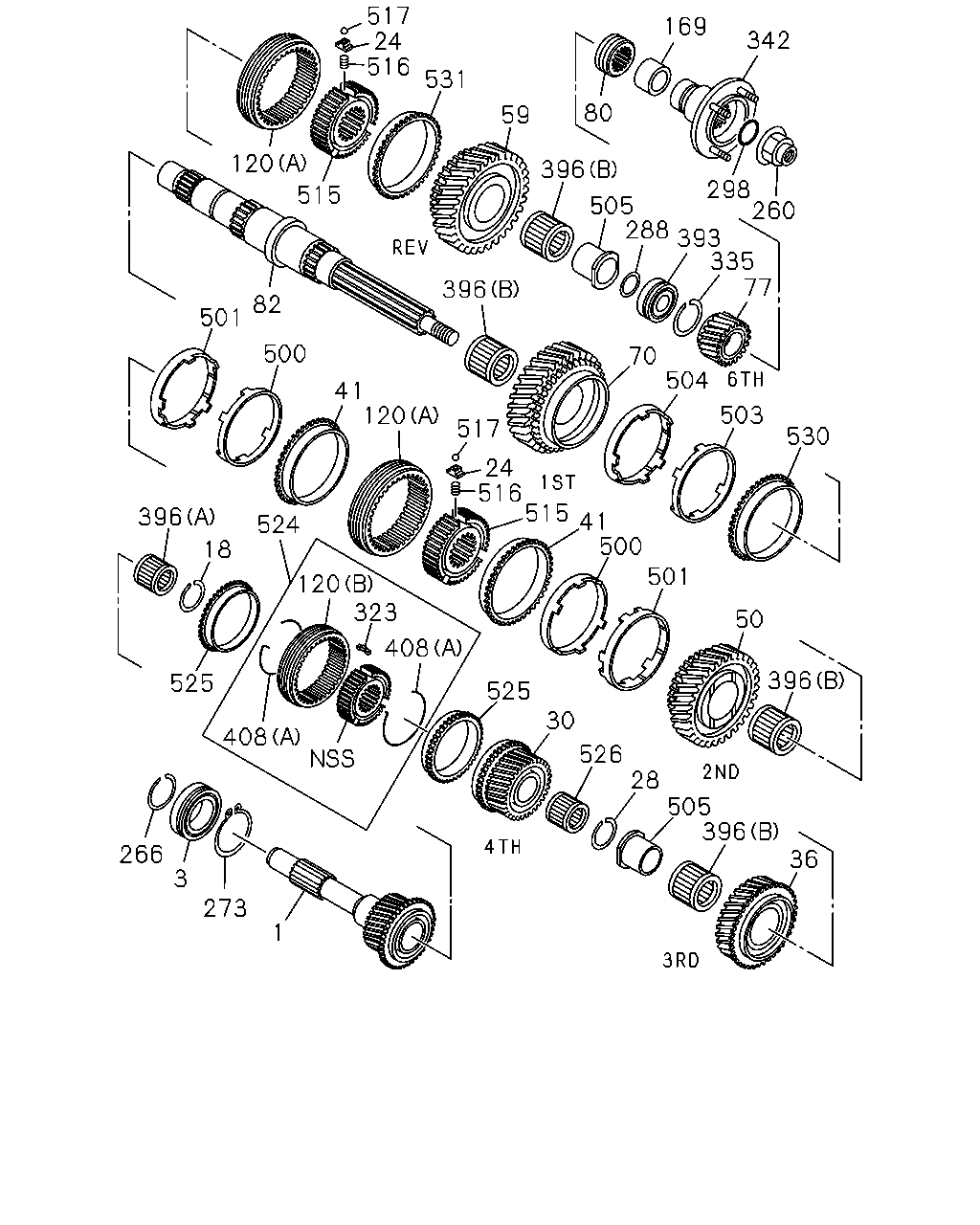

517 24 516 342 531 80 59 120 515 396 505 288 393 335 519 298 260 396 82 501 70 500 504 503 41 120 530 517 24 516 515 396 524 41 18 500 120 323 501 50 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98021-266-0	01	1	1012-	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=28	8-98031-848-0	01	1	1012-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-098-1	01	1	1012-	●	●
18	04.384 RING; SNAP,CLU HUB ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●	●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	06	1	1012-	●	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	1012-	●	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-234-0	01	1	1012-	●	●
41	04.383 RING; BLOCK,2ND & 3RD Z=45	8-97241-306-1	02	1	1012-	●	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=38	8-97241-237-1	01	1	1012-	●	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97241-244-0	01	1	1012-	●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-97350-010-0	01	1	1012-	●	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-556-0	01	1	1012-	●	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-116-3	01	1	1012-	●
82	04.403 SHAFT; MAIN,TRANS Z=28-42-42-21	8-97253-117-3	01	1	1012-		●
120	04.383 SLEEVE (A) Z=45	8-97241-296-1	02	1	1012-1311	●	●
120	04.383 SLEEVE (A) Z=45	8-98258-279-0	02	1	1312-	●	●
120	04.383 SLEEVE 04.535 (B) Z=45	8-94421-871-1	01	1	1012-	●	●
260	04.412 NUT; MAINSHAFT END 04.525 M27 H=25	8-97360-410-0	01	1	1012-	●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-916-0	01	1	1012-	●	●
273	04.525 RING; SNAP,BRG OUTER	8-97254-610-0	01	1	1012-	●	●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-942-0	01	1	1012-	●	●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7	8-98028-226-0	01	1	1012-	●	●
323	04.384 INSERT	8-94448-202-2	03	1	1012-	●	●
335	04.383 RING; SNAP,BEARING	8-97254-722-0	01	1	1012-	●	●
342	05.545 FLANGE; OUTPUT	8-98031-862-0	01	1	1012-	●
342	05.545 FLANGE; OUTPUT	8-98031-640-0	01	1	1012-		●
393	04.352 BEARING; MAINSHAFT END	8-97253-105-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97253-102-1	01	1	1012-	●	●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-110-0	04	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-309-1	02	1	1012-	●	●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-312-1	02	1	1012-	●	●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-309-1	01	1	1012-	●	●
504	04.383 RING; INSIDE,LOW & REV	8-97241-312-1	01	1	1012-	●	●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	1012-	●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97241-298-3	02	1	1012-	●	●
516	04.384 SPRING; SYNCHRO,INDEX	8-97254-835-0	06	1	1012-	●	●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	06	1	1012-	●	●
519	04.419 COLLAR; MAINSHAFT END,5TH 04.415	8-97252-940-0	01	1	1012-		●
523	04.395 GEAR; OD,MAINSHAFT Z=22	8-97241-231-0	01	1	1012-		●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD	8-97366-526-0	01	1	1012-	●	●
525	04.395 RING; BLOCK,TOP & 4TH,OD Z=45	8-97309-532-0	02	1	1012-	●	●
526	04.352 BEARING; NEEDLE,4TH & 5TH	8-97253-112-0	01	1	1012-	●	●
530	04.383 RING; BLOCK,LOW Z=45	8-97241-306-1	01	1	1012-	●	●
531	04.383 RING; BLOCK,REV Z=45	8-97368-343-0	01	1	1012-	●	●

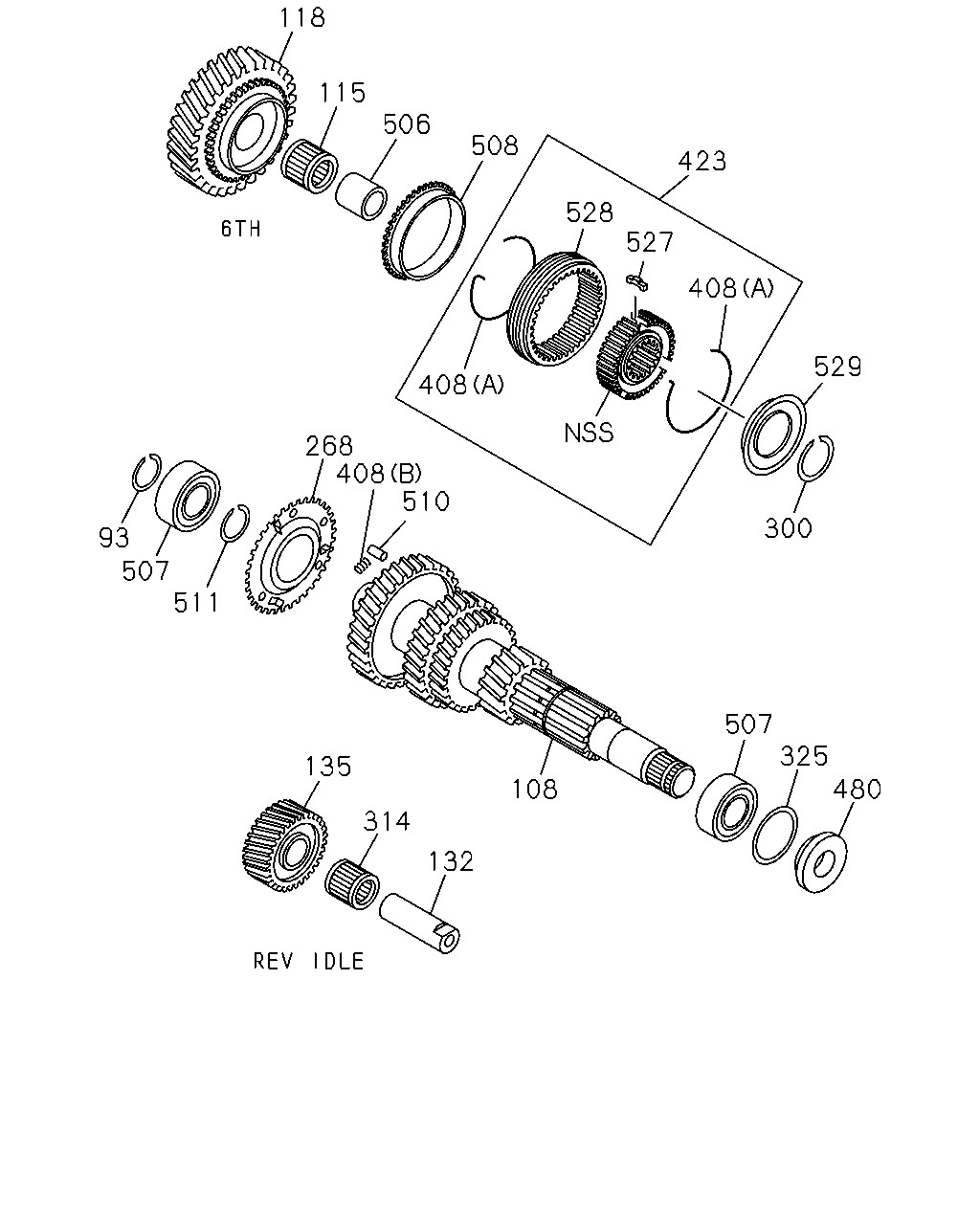

118 115 506 508 423 528 527 408 529 408 268 408 510 300 93 507 511 507 325 135 480 108 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1012-	●	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1012-	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1012-		●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	1012-	●
118	04.421 GEAR; 6TH,COUNTER Z=50	8-97386-580-0	01	1	1012-	●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1012-	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1012-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1012-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1012-		●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7	8-97254-727-0	01	1	1012-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 04.384 ID=30.7 T=1.8	8-97254-728-0	01	1	1012-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6	8-97365-617-0	01	1	1012-	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
423	04.384 SLEEVE & HUB ASM; 6TH	8-97367-022-0	01	1	1012-	●
480	04.419 WASHER; THRUST,6TH	8-97253-123-1	01	1	1012-	●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-121-1	01	1	1012-	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1012-	●	●
508	04.383 RING; BLOCK,6TH 04.395 Z=45	8-97309-532-0	01	1	1012-	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1012-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1012-	●	●
527	04.384 INSERT; 6TH	8-94448-202-2	03	1	1012-	●
528	04.384 SLEEVE; 6TH 04.535 Z=45	8-94421-871-1	01	1	1012-	●
529	04.384 PLATE; STOPPER,6TH	8-97248-952-0	01	1	1012-	●

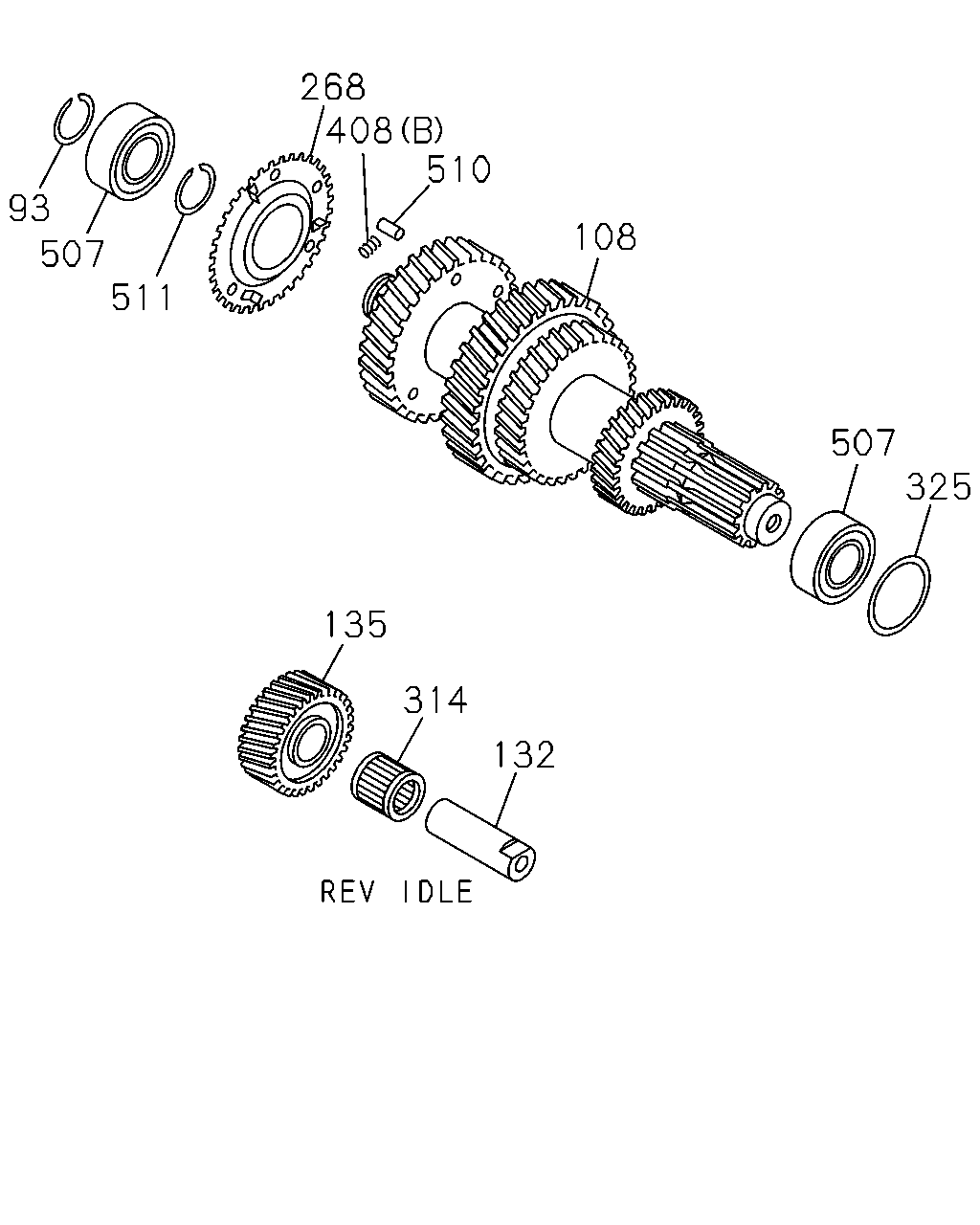

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9	8-97254-734-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1	8-97254-740-0	01	1	1012-	●	●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3	8-97254-742-0	01	1	1012-	●	●
108	04.428 SHAFT; COUNTER Z=47-39-33-20	8-97380-627-1	01	1	1012-	●
108	04.428 SHAFT; COUNTER Z=45-49-33-20	8-97380-630-1	01	1	1012-		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	1012-	●	●
135	04.430 GEAR; REV IDLER Z=25	8-98031-869-1	01	1	1012-	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-684-1	01	1	1012-	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97257-300-1	01	1	1012-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29	8-97252-666-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35	8-97252-667-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41	8-97252-668-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47	8-97252-669-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53	8-97252-670-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59	8-97252-671-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65	8-97252-672-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71	8-97252-673-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77	8-97252-674-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83	8-97252-675-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89	8-97257-622-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11	8-97306-188-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17	8-97306-189-0	01	1	1012-	●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23	8-97306-190-0	01	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●	●
408	04.384 SPRING (A)	8-97366-040-1	02	1	1012-	●
408	04.384 SPRING 04.422 (B)	8-94148-196-0	03	1	1012-	●	●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-107-0	02	1	1012-	●	●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	1012-	●	●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
