7-45 — CONSOLE BOX (#5440) — 82 parça

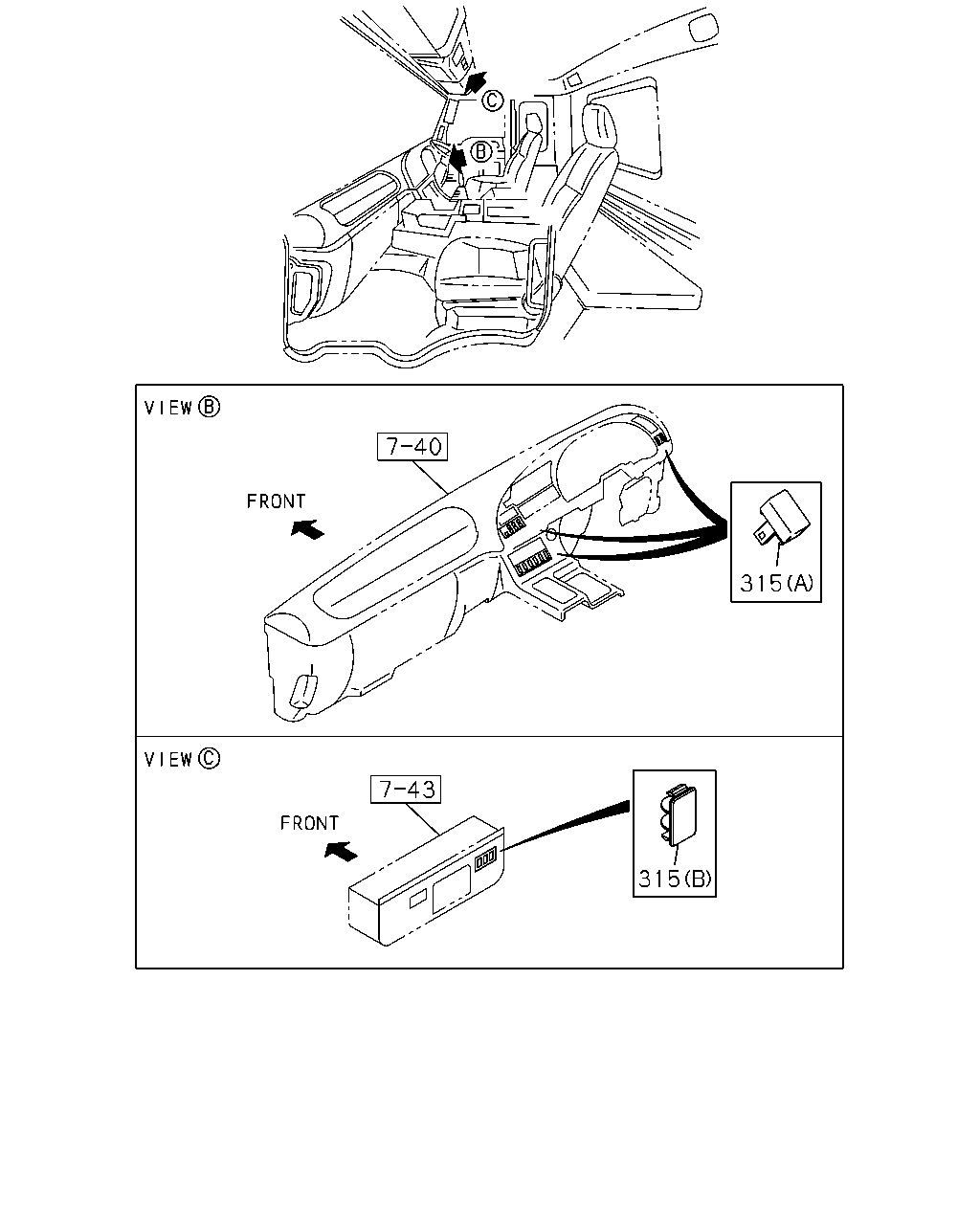

315 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
315	COVER; HOLE,SW (A)	1-82359-069-2	15	1	9601-9904
315	COVER; HOLE,SW (A)	1-82359-069-2	16	1	9905-
315	COVER; HOLE,SW (B)	8-97043-732-1	04	1	9601-
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	9601-9904
315	COVER; HOLE,SW (A)	1-82359-069-2	01	1	9601-9904
315	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82359-069-2	01	1	9601-9904
315	COVER; HOLE,SW EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-82359-069-2	01	1	9905-
315	COVER; HOLE,SW EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82359-069-2	01	1	9905-

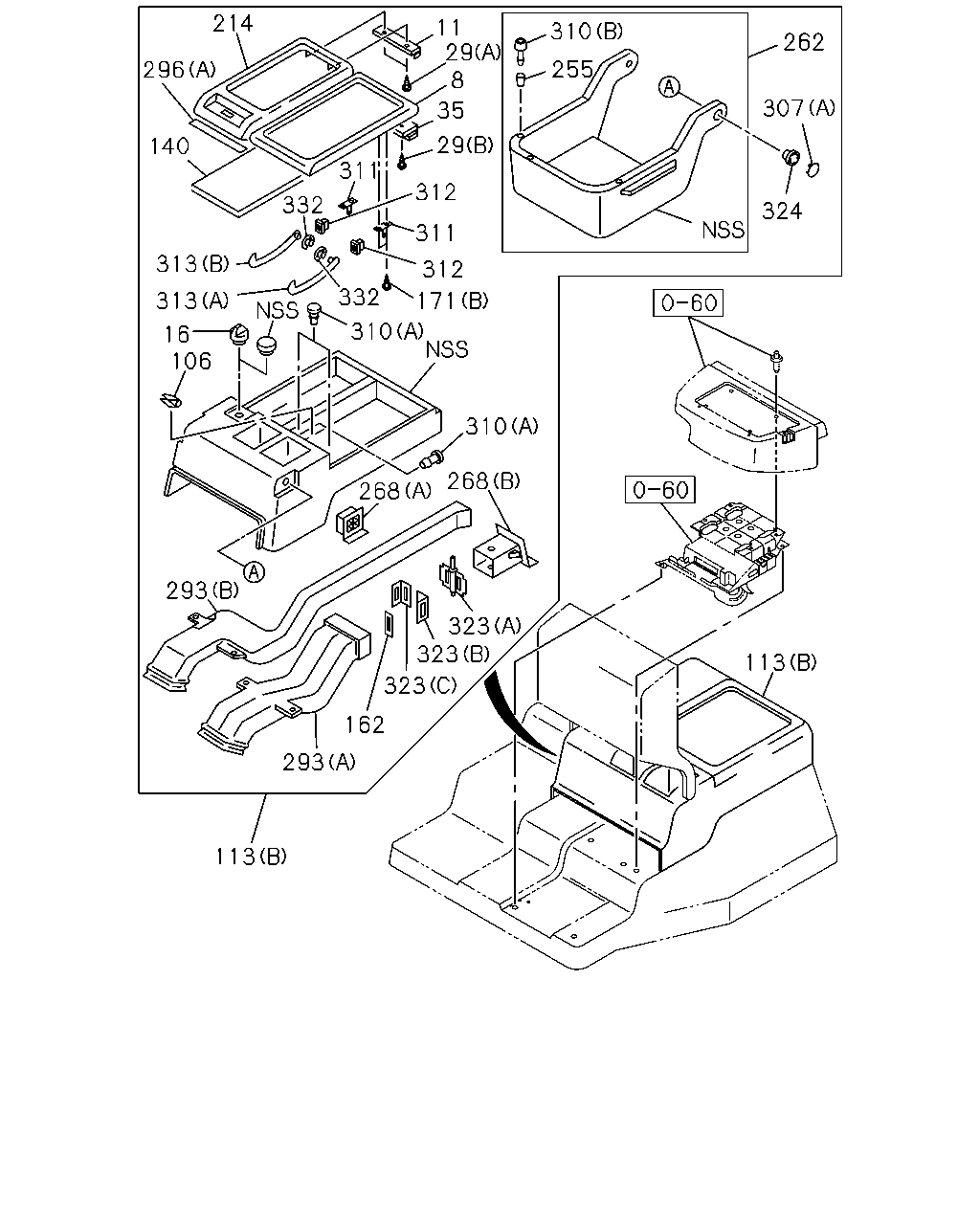

214 11 29 8 310 262 255 296 307 35 29 140 311 312 332 324 311 313 312 332 171 313 310 16 106 310 268 268 293 323 323 113 323 162 293 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72537-078-3	01	1	9905-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9905-
16	KNOB ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-111-3	01	1	9905-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) M5X14 BINDING HEAD	1-72537-168-0	08	1	9905-0011
29	SCREW; HINGE CENTER SEAT DELETE(SP9) (A) M5X14 BINDING HEAD	1-72537-168-0	08	1	0012-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0012-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	9905-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-079-0	02	1	9905-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72537-161-0	01	1	9607-9904
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-072-5	01	1	9905-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A)	1-72537-154-0	01	1	9905-
140	SHEET CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-093-1	01	1	9905-
162	CUSHION; PARCEL BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-128-0	03	1	9905-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9905-
214	LID; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-076-4	01	1	9905-
255	SPRING; TABLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-152-0	03	1	9905-0011
262	TABLE ASM CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-088-6	01	1	9905-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-109-0	01	1	9905-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-110-1	01	1	9905-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	9905-
293	DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	9905-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	9601-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	9905-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9905-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-153-0	03	1	9905-0011
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-187-0	02	1	9905-
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-188-2	03	1	9905-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-186-1	03	1	9905-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	9905-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	9905-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	9905-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-126-0	01	1	9905-
323	SHUTTER CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	9905-
324	BUSHING CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-116-0	02	1	9905-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-170-0	03	1	9905-0011
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72537-170-0	03	1	0012-

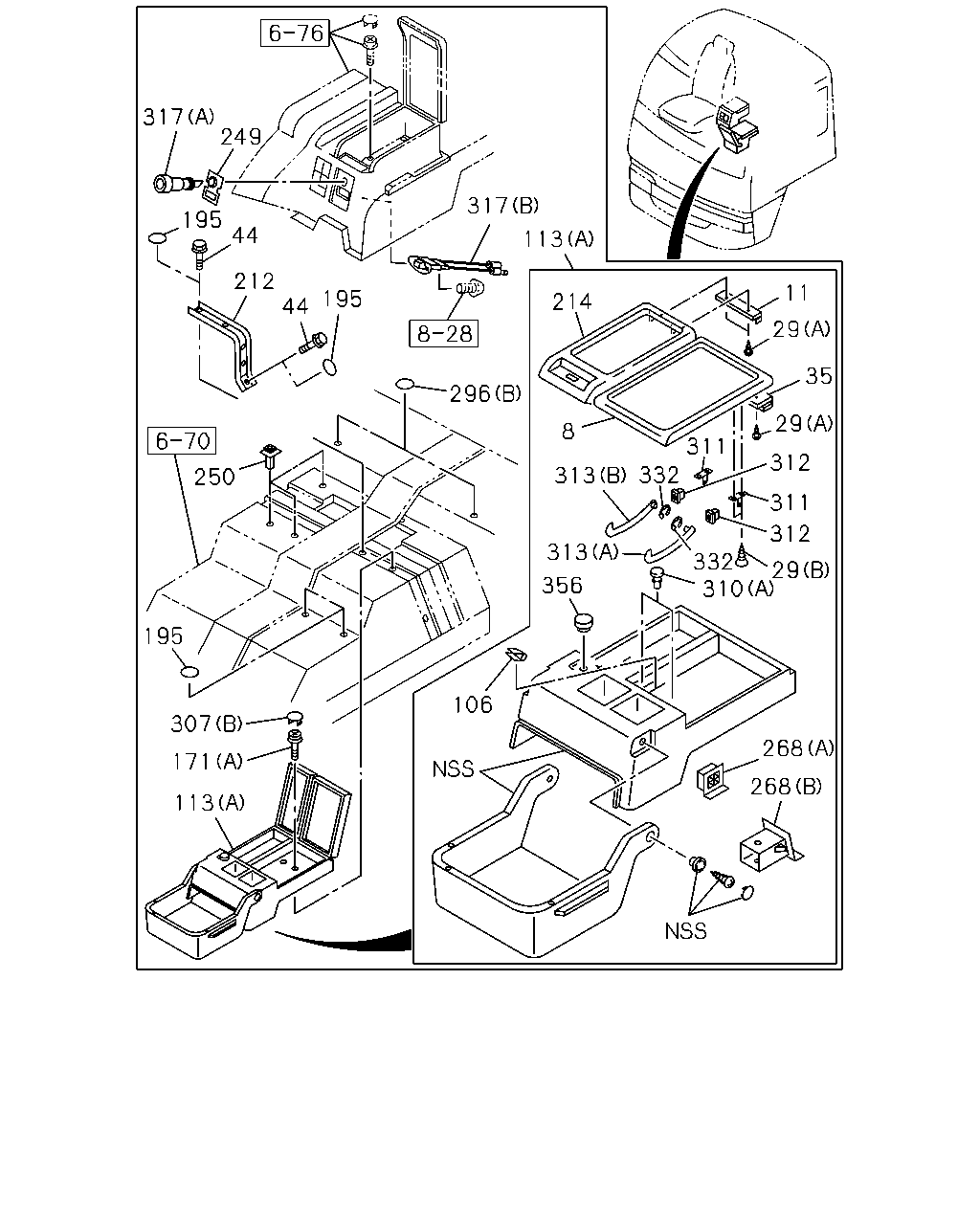

317 249 317 195 44 113 212 44 11 195 214 29 35 296 311 29 8 312 332 313 250 311 312 313 332 310 29 356 195 106 307 268 171 268 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72537-078-3	01	1	9905-
11	HINGE; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-070-2	01	1	9905-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) M5X14 BINDING HEAD	1-72537-168-0	08	1	9905-0011
29	SCREW; HINGE CENTER SEAT DELETE(SP9) (A) M5X14 BINDING HEAD	1-72537-168-0	08	1	0012-
29	SCREW; HINGE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0012-
35	HINGE; CENTER CONSOLE CENTER SEAT DELETE(SP9)	1-72538-182-1	01	1	9905-
44	BOLT; SUPPORT,CTR CONSOLE CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9607-
106	LOCK; CONSOLE LID CENTER SEAT DELETE(SP9)	1-72537-079-0	02	1	9905-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) (A)	1-72537-161-0	01	1	9607-9904
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-072-5	01	1	9905-
113	BOX; CONSOLE CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A)	1-72537-154-0	01	1	9905-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	9607-
171	SCREW; CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	9905-
195	SEAL; CENTER CONSOLE OD=25 BLACK	1-76798-019-0	05	1	9601-9606
195	SEAL; CENTER CONSOLE EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK	1-76798-019-0	05	1	9607-
212	SUPPORT; CONSOLE TO COMPT CENTER SEAT DELETE(SP9)	1-72537-095-1	01	1	9607-
214	LID; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-076-4	01	1	9905-
249	COVER ELEC OUTLET 12V<TAW>	1-82529-001-0	01	1	9905-
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	9601-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-109-0	01	1	9905-
268	COVER; DUCT CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-110-1	01	1	9905-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	02	1	9601-
296	SEAL CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	9905-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) (B)	1-72538-166-0	04	1	9607-
307	COVER; HOLE,CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-120-1	02	1	9905-
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-153-0	03	1	9905-0011
310	CUSHION; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-187-0	02	1	9905-
311	HOLDER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-188-2	03	1	9905-
312	STOPPER; CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72538-186-1	03	1	9905-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	9905-
313	ARM; CTR CONSOLE CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	9905-
317	CONSENT (B)	1-82523-020-2	01	1	9601-
317	CONSENT ELEC OUTLET 12V<TAW> (A)	8-94382-451-1	01	1	9905-
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-170-0	03	1	9905-0011
332	RING; SNAP,CONSOLE BOX CENTER SEAT DELETE(SP9)	1-72537-170-0	03	1	0012-
356	COVER; KNOB CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU>	1-72537-155-0	01	1	0012-
