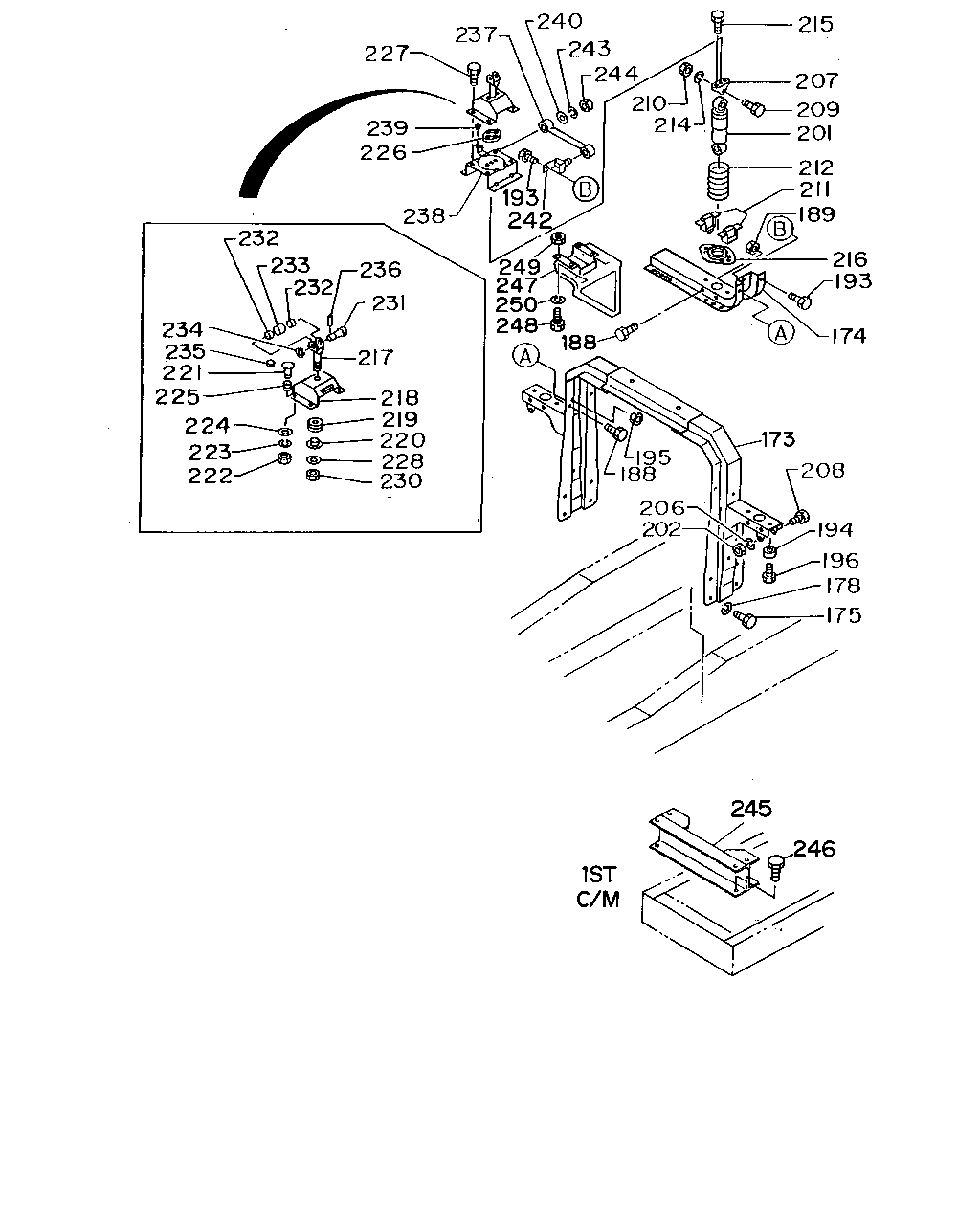

5-10 — CAB MOUNTING; FRAME SIDE (#544) — 203 parça

246 245 175 178 196 194 208 173 202 206 188 195 188 248 250 247 249 242 193 238 226 239 227 237 240 243 244 210 214 215 207 209 201 212 211 189 216 193 174 230 228 220 219 218 217 231 236 232 233 232 234 235 221 225 224 223 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +50MM<W60>	1-53450-491-6	01	1	9501-
173	MEMBER; CAB MTG RR CAB UP +50MM<W60>	1-53450-458-5	01	1	8712-
173	MEMBER; CAB MTG RR EXC. CAB UP +50MM<W60>	1-53450-494-3	01	1	8712-9412
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>,CAB UP +50MM<W60>	1-53450-494-3	01	1	9501-
174	OUTRIGGER	1-53456-153-6	02	1	8712-9210
174	OUTRIGGER	1-53456-242-1	02	1	9211-
175	BOLT; MEMBER TO FRAME M14X45	9-92061-445-0	08	1	8712-8801
175	BOLT; MEMBER TO FRAME CAB UP +50MM<W60> M14X45	9-92061-445-0	08	1	8802-
175	BOLT; MEMBER TO FRAME EXC. CAB UP +50MM<W60> M14X40	9-92061-440-0	08	1	8802-
178	WASHER; LK,MEMBER ID=14.2	9-09150-614-0	08	1	8712-
188	BOLT; OUTRIGGER M10X25	9-01911-025-0	08	1	8712-9002
188	BOLT; OUTRIGGER M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	9-01911-230-0	02	1	8712-9005
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
189	NUT; OUTRIGGER M12	9-99110-412-0	02	1	8712-9304
189	NUT; OUTRIGGER M12	9-99110-512-0	02	1	9305-
193	BOLT; BRKT M10X30 W/LK WASHER	9-01911-030-0	02	1	8712-9002
193	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
193	BOLT; BRKT M12X30 W/LK WASHER	9-01911-230-0	02	1	8712-9005
193	BOLT; BRKT M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
194	SEAT; RUBBER	1-53459-320-0	04	1	8712-
195	NUT; BRKT FIX M10	9-09110-510-0	02	1	8712-
196	BOLT; CAB SUSP MTG	1-09009-090-0	04	1	8712-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-152-0	02	1	8712-9404
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-450-1	02	1	9405-
202	NUT; S/ABS M12	9-99110-412-0	02	1	8712-9304
202	NUT; S/ABS M12	9-99110-512-0	02	1	9305-
206	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	8712-
207	BRACKET; S/ABS	1-51681-299-0	02	1	8712-
208	BOLT; S/ABS M12X55	9-91056-255-0	02	1	8712-9005
208	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-
209	BOLT; S/ABS M12X55	9-91056-255-0	02	1	8712-9005
209	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-
210	NUT; S/ABS M12	9-99110-412-0	02	1	8712-9304
210	NUT; S/ABS M12	9-99110-512-0	02	1	9305-
211	RUBBER; CUSHION,S/ABS	1-53366-050-1	04	1	8712-
212	SPRING; COIL	1-09580-353-0	02	1	8712-8901
212	SPRING; COIL EXC. HONG KONG EQUIPMENT(PQ1)	1-09580-353-0	02	1	8902-9305
212	SPRING; COIL HONG KONG EQUIPMENT(PQ1)	1-09580-351-0	02	1	8902-9305
212	SPRING; COIL	1-09580-351-0	02	1	9306-
214	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	8712-
215	BOLT; BRKT TO HOLDER M10X25	9-01911-025-0	04	1	8712-9002
215	BOLT; BRKT TO HOLDER M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
216	HOLDER; COIL SPR,CAB BACK	1-53459-319-0	02	1	8712-
217	JAW; CAB HOOK	1-53459-373-1	02	1	8712-
218	HOLDER	1-53459-372-2	02	1	8712-9001
218	HOLDER	1-53459-838-0	02	1	9002-9106
218	HOLDER	1-53458-290-0	02	1	9107-
219	SPRING; COIL,CAB HOOK	1-09580-350-1	02	1	8712-
220	GUIDE; SPR	1-53459-374-0	02	1	8712-
221	PLATE AUTO CAB TILT<WV2>	1-53459-546-1	01	1	8712-
222	NUT; PLATE FIX AUTO CAB TILT<WV2> M10	9-09110-510-0	01	1	8712-
223	WASHER; LK AUTO CAB TILT<WV2> ID=10.2	9-09150-510-0	01	1	8712-
224	WASHER; PL AUTO CAB TILT<WV2> ID=10.5 OD=22	9-09160-610-0	01	1	8712-
225	SPRING AUTO CAB TILT<WV2>	1-09580-400-0	01	1	8712-
226	RUBBER; BUFFER	1-53459-539-0	02	1	8712-
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	8712-9005
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-
228	WASHER; PL	1-09503-152-0	02	1	8712-
230	NUT M14	9-99110-514-0	02	1	8712-
231	PIN; CAB HOOK	1-53459-375-0	02	1	8712-
232	BUSHING; COLLAR	5-33659-053-0	04	1	8712-
233	COLLAR; CAB HOOK	1-53459-376-0	02	1	8712-
234	RING; SNAP	1-09588-032-0	02	1	8712-
235	ROLLER; GUIDE	1-53459-377-0	02	1	8712-
236	PIN; SPR,ROLLER	1-09748-018-0	02	1	8712-
237	ROD ASM; LATERAL	1-53459-337-5	02	1	8712-9012
237	ROD ASM; LATERAL	1-53459-730-1	02	1	9101-9207
237	ROD ASM; LATERAL	1-53458-288-0	02	1	9208-
238	BRACKET; BUFFER,RH	1-53459-329-4	01	1	8712-9108
238	BRACKET; BUFFER,RH	1-53458-291-0	01	1	9109-
238	BRACKET; BUFFER,RH AUTO CAB TILT<WV2>	1-53459-545-1	01	1	8712-
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53459-330-4	01	1	8712-9108
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53458-292-0	01	1	9109-
239	BUSHING; BRKT,BUFFER AUTO CAB TILT<WV2>	1-09330-055-0	01	1	8712-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	04	1	8712-
242	BRACKET; LATERAL ROD	1-53454-224-2	01	1	8712-
242	BRACKET; LATERAL ROD	1-53454-223-2	01	1	8712-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	04	1	8712-
244	NUT; LATERAL ROD M12	9-99110-412-0	04	1	8712-9304
244	NUT; LATERAL ROD M12	9-99110-512-0	04	1	9305-
245	MEMBER; CROSS,CAB MTG L TYPE ENG<90L>	8-94300-477-6	01	1	8712-
246	BOLT; C/MBR FIX L TYPE ENG<90L> M14X50	9-91066-450-0	04	1	8712-
247	PROTECTOR ASM; HEAT L TYPE ENG<90L>	1-79930-378-6	01	1	8712-9006
247	PROTECTOR ASM; HEAT V TYPE ENG<91L>	1-79930-596-3	01	1	8712-9412
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-596-3	01	1	9501-
247	PROTECTOR ASM; HEAT V TYPE ENG<91L>	1-79930-595-3	01	1	8712-9412
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-595-3	01	1	9501-
248	BOLT; HEAT PROTECTOR M10X25	9-01911-025-0	02	1	8712-9002
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25	9-01911-025-0	02	1	8712-9002
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9006
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9006
248	BOLT; HEAT PROTECTOR V TYPE ENG<91L> M10X25 W/LK WASHER	0-50041-025-0	04	1	9007-9412
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	04	1	9501-
249	NUT; PROTECTOR M10	9-09110-410-0	02	1	8712-9006
249	NUT; PROTECTOR V TYPE ENG<91L> M10	9-09110-410-0	02	1	8712-9006
249	NUT; PROTECTOR V TYPE ENG<91L> M10	9-09110-510-0	04	1	9007-9412
249	NUT; PROTECTOR 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	04	1	9501-
250	WASHER; LK ID=10.5 OD=18	9-09160-510-0	02	1	8712-9006
250	WASHER; LK V TYPE ENG<91L> ID=10.5 OD=18	9-09160-510-0	02	1	8712-9006
250	WASHER; LK V TYPE ENG<91L> ID=10.5 OD=18	9-09160-510-0	04	1	9007-9412
250	WASHER; LK 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	04	1	9501-

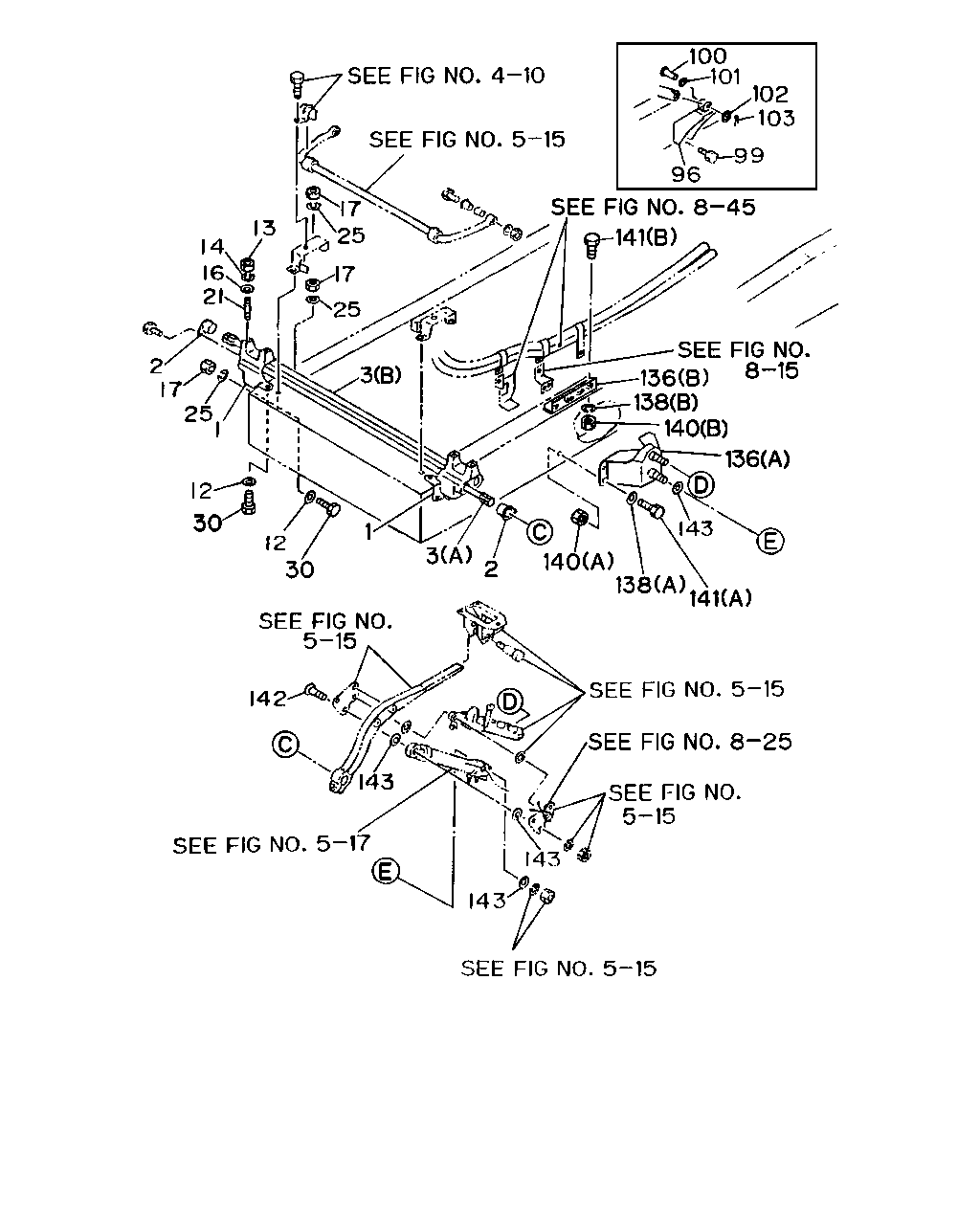

100 101 102 103 99 96 17 25 17 25 13 14 16 21 2 17 25 3 12 30 12 1 30 3 2 140 143 136 140 138 136 138 143 143 143 142 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG L TYPE ENG<90L>	1-53453-092-0	02	1	8712-
1	BRACKET; CAB MTG V TYPE ENG<91L>	1-53453-036-4	02	1	8712-
2	BUSHING; TORSION BAR	1-53459-408-0	02	1	8712-9001
2	BUSHING; TORSION BAR	1-53459-837-0	02	1	9002-
3	TORSION BAR (A) YELLOW	1-09585-089-1	01	1	8712-
3	TORSION BAR (B) WHITE	1-09585-090-1	01	1	8712-
12	WASHER; LK,BRKT ID=12.5	1-09503-171-0	04	1	8712-9001
12	WASHER; LK,BRKT ID=15	9-09651-069-0	10	1	8712-9001
12	WASHER; LK,BRKT L TYPE ENG<90L> ID=15	9-09651-069-0	12	1	9002-
12	WASHER; LK,BRKT V TYPE ENG<91L> ID=15	9-09651-069-0	10	1	9002-
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	8712-
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	8712-
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	8712-
17	NUT; BRKT,CAB TILT M12	1-09468-012-1	01	1	9307-
17	NUT; BRKT,CAB TILT L TYPE ENG<90L> M14	9-99110-514-0	12	1	8712-
17	NUT; BRKT,CAB TILT V TYPE ENG<91L> M14	9-99110-514-0	10	1	8712-
21	STUD; BRKT,CAB TILT	9-94321-235-0	04	1	8712-
25	WASHER; LK,BRKT,CAB TILT L TYPE ENG<90L> ID=14.2	9-09150-614-0	12	1	8712-
25	WASHER; LK,BRKT,CAB TILT V TYPE ENG<91L> ID=14.2	9-09150-614-0	10	1	8712-
30	BOLT; CAB FRT FOOT L TYPE ENG<90L> UPPER REAR M14X63	1-09000-348-0	02	1	8712-
30	BOLT; CAB FRT FOOT L TYPE ENG<90L> SIDE,UPPER FRONT M14X50	9-91066-450-0	10	1	8712-
30	BOLT; CAB FRT FOOT V TYPE ENG<91L> UPPER REAR M14X75	1-09000-292-0	02	1	8712-
30	BOLT; CAB FRT FOOT V TYPE ENG<91L> SIDE M14X50	9-91066-450-0	06	1	8712-
30	BOLT; CAB FRT FOOT V TYPE ENG<91L> UPPER FRONT M14X55	9-91066-455-0	02	1	8712-
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>,CAB UP +50MM<W60>,NYLON TUBE AIR PIPING<Z29>	1-53459-622-0	01	1	8712-
96	BRACKET; CAB STAY CAB UP +50MM<W60> EXC. AUTO CAB TILT<WV2>,NYLON TUBE AIR PIPING<Z29>	1-53459-629-0	01	1	8712-9009
96	BRACKET; CAB STAY CAB UP +50MM<W60> NYLON TUBE AIR PIPING<Z29> EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	8712-9009
96	BRACKET; CAB STAY CAB UP +50MM<W60> EXC. AUTO CAB TILT<WV2>	1-53459-743-0	01	1	9010-
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35	9-01911-235-0	04	1	8712-9005
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-
100	PIN; JOINT EXC. AUTO CAB TILT<WV2>	9-08234-455-0	01	1	8712-
101	WASHER; WAVE EXC. AUTO CAB TILT<WV2> ID=15 OD=25	8-11053-111-0	01	1	8712-
102	WASHER; PL,CAB STAY EXC. AUTO CAB TILT<WV2> ID=15	9-09160-514-0	01	1	8712-
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=3.7 L=25	9-08114-025-0	01	1	8712-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> (A)	1-53459-429-0	01	1	8712-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B)	1-53459-446-2	01	1	8712-9306
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> (A) ID=12.2	9-09150-612-0	04	1	8712-
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B) ID=14.2	9-09150-514-0	04	1	8712-9306
140	NUT; BRKT AUTO CAB TILT<WV2> (A) M12	9-99110-512-0	02	1	8712-
140	NUT; BRKT AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B) M14	9-99110-414-0	04	1	8712-9306
141	BOLT; BRKT AUTO CAB TILT<WV2> (A) M12X45	9-91066-245-0	04	1	8712-
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B) M14X40	9-91056-440-0	04	1	8712-8912
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B) M14X40	9-92051-440-0	04	1	9001-9005
141	BOLT; BRKT AUTO CAB TILT<WV2> CAB UP +50MM<W60> (B) M14X40	0-20801-440-0	04	1	9006-9306
142	PIN; OIL CYL,UPR AUTO CAB TILT<WV2>	1-53459-352-0	01	1	8712-
143	SPACER; OIL CYL,LWR AUTO CAB TILT<WV2>	1-53459-463-0	04	1	8712-

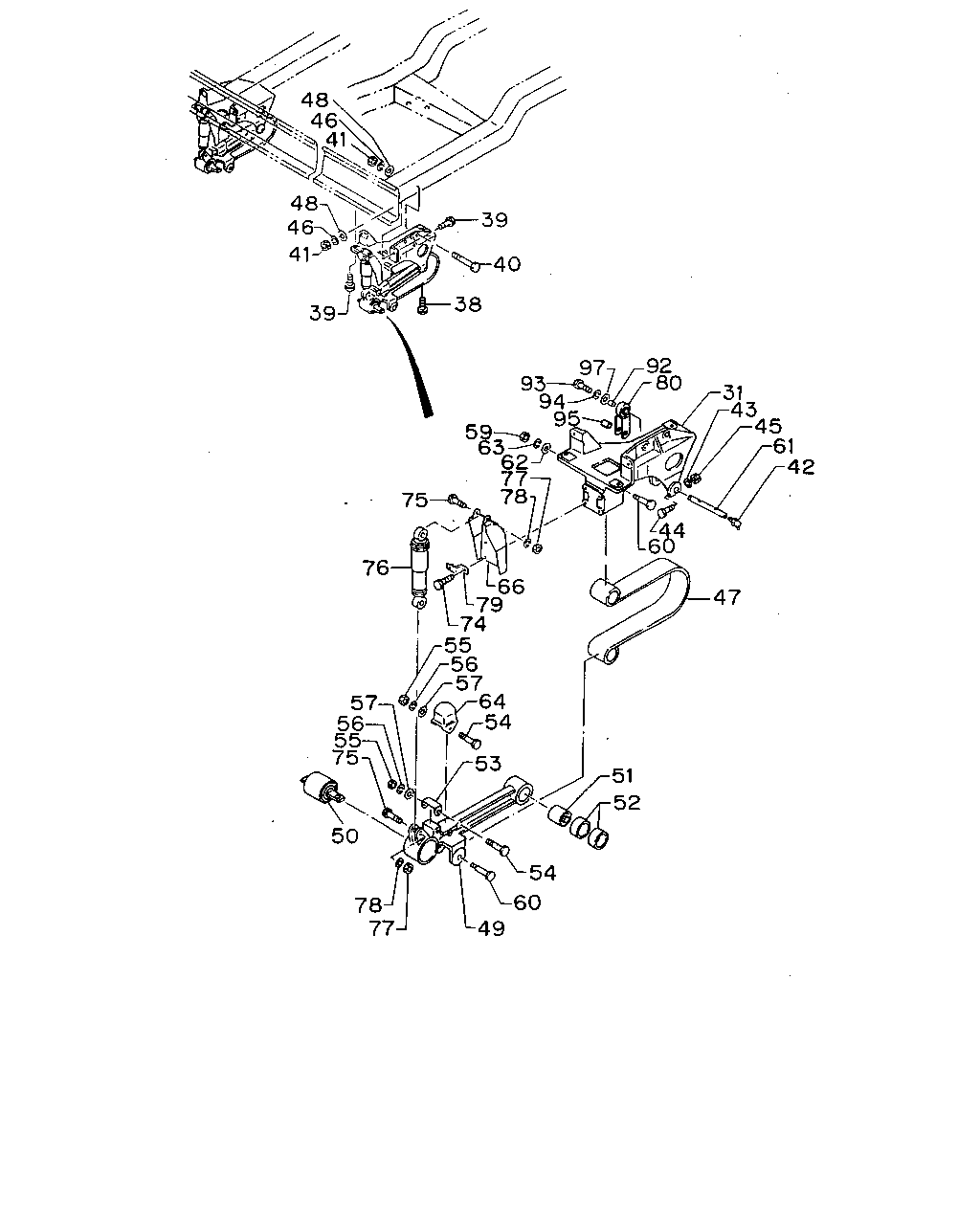

48 46 41 48 46 41 39 39 40 38 93 97 92 80 31 43 45 61 42 95 94 59 63 62 77 78 75 76 57 56 55 75 50 78 77 49 60 54 51 52 53 54 64 57 56 55 74 79 66 44 60 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB	1-53453-033-4	01	1	8712-
31	BRACKET; CAB	1-53453-032-4	01	1	8712-
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	9-01911-035-0	02	1	8712-9002
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
39	BOLT; CAB TO BRKT M10X30	1-09980-546-0	08	1	8712-
40	BOLT; CAB TO BRKT M10X100	1-09980-547-0	04	1	8712-
41	NUT M10	9-09110-410-0	08	1	8712-
42	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	8712-
43	WASHER; LK ID=8.2	9-09150-508-0	02	1	8712-
44	BOLT; PIN LOCK M8X50	9-01050-850-0	02	1	8712-9005
44	BOLT; PIN LOCK M8X50	0-10810-850-0	02	1	9006-
45	NUT M8	9-09110-408-0	02	1	8712-
46	WASHER; LK ID=10.2	9-09150-510-0	04	1	8712-
47	SPRING; LEAF,"U"	1-53459-395-3	02	1	8712-8901
47	SPRING; LEAF,"U" HONG KONG EQUIPMENT(PQ1)	1-53459-387-4	02	1	8902-9305
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9306-
47	SPRING; LEAF,"U" EXC. HONG KONG EQUIPMENT(PQ1)	1-53459-395-4	02	1	8902-9305
48	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	8712-
49	ARM; LINK	1-53459-297-2	02	1	8712-
50	BUSHING; RUBBER	1-53459-308-2	02	1	8712-9004
50	BUSHING; RUBBER	1-53459-974-0	02	1	9005-9108
50	BUSHING; RUBBER	1-53458-293-1	02	1	9109-
51	BUSHING; RUBBER	1-53459-315-2	02	1	8712-
52	BUSHING; RUBBER	1-09330-068-0	04	1	8712-
53	RUBBER; STOPPER	1-53459-314-0	02	1	8712-
54	BOLT; RUBBER M8X70	9-01055-870-0	04	1	8712-9005
54	BOLT; RUBBER M8X70	0-10805-870-0	04	1	9006-
55	NUT; RUBBER M8	9-09110-408-0	04	1	8712-
56	WASHER; LK ID=8.2	9-09150-508-0	04	1	8712-
57	WASHER; PL ID=8.4	9-09160-508-0	08	1	8712-
59	NUT M10	9-09110-410-0	04	1	8712-
60	PIN; "U" LEAF SPRING	1-53459-307-3	04	1	8712-
61	PIN; BRKT TO LINK ARM	1-53459-540-0	02	1	8712-
62	WASHER; PL ID=10.5 OD=18	9-09160-510-0	04	1	8712-
63	WASHER; LK ID=10.2	9-09150-510-0	04	1	8712-
64	RUBBER; CUSHION	1-53366-089-0	02	1	8712-9010
64	RUBBER; CUSHION	1-53366-122-0	02	1	9011-9404
64	RUBBER; CUSHION	1-53366-110-0	02	1	9405-
66	BRACKET; S/ABS	1-53459-305-2	02	1	8712-
74	BOLT; BRKT FIX M8X22	9-01910-822-0	08	1	8712-9005
74	BOLT; BRKT FIX M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-
75	BOLT; S/ABS M12X60	9-91056-260-0	04	1	8712-9005
75	BOLT; S/ABS M12X60	0-10806-260-0	04	1	9006-
76	ABSORBER ASM; SHOCK	1-51630-151-0	02	1	8712-9404
76	ABSORBER ASM; SHOCK	1-51630-449-1	02	1	9405-
77	NUT M12	9-99110-412-0	04	1	8712-
78	WASHER; LK ID=12.2	9-09150-512-0	04	1	8712-
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	8712-
80	LINK ASM; STABILIZER W/BUSHING	1-53459-608-0	02	1	8712-
92	BUSHING; RUBBER	1-53459-417-2	02	1	8712-
93	BOLT; PIN	1-09000-354-0	02	1	8712-
94	WASHER; DISH	1-09500-007-0	02	1	8712-9105
94	WASHER; DISH	1-09500-028-0	02	1	9106-
95	BUSHING; RUBBER	1-09330-069-0	04	1	8712-
97	WASHER; PL ID=17	9-09160-516-0	02	1	8712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
