◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#54396) — 21 parça

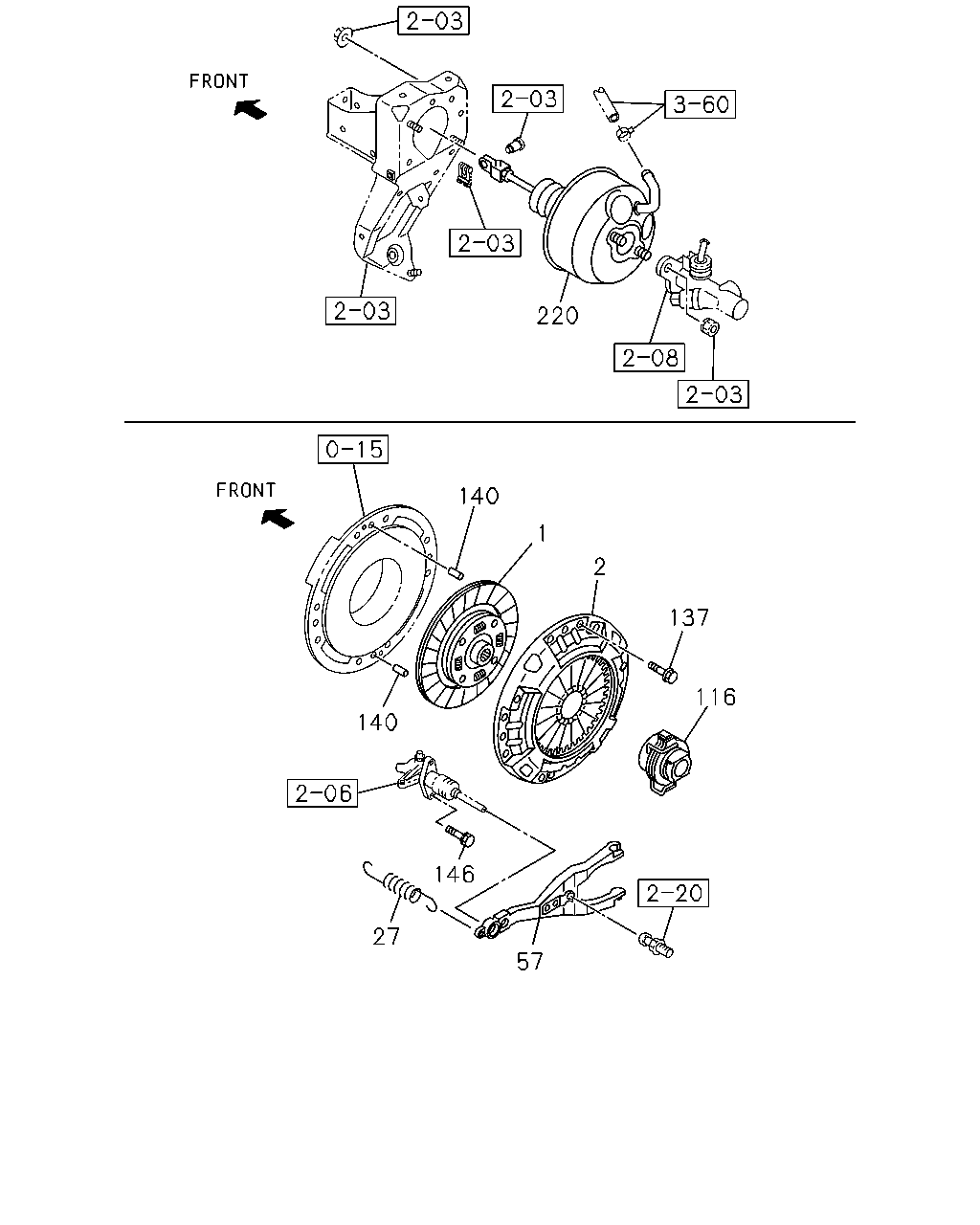

çizim 175541
220 140 1 2 137 116 140 146 27 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) 		8-97377-149-0 01 1 1012-1402 ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) 		8-98255-959-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) 		8-97362-235-1 01 1 1012-1402 ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) 		8-98255-140-1 01 1 1403- ●
1 00.886 DISC; CLUTCH
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-080-1 01 1 1012- ●
1 00.886 DISC; CLUTCH
4HG1 ENG(RJH) BEST VALUE PARTS 		5-87610-049-2 01 1 1012- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) 		8-97310-796-0 01 1 1012- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) 08.859 		8-97351-794-0 01 1 1012-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) 		8-97038-831-2 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-081-0 01 1 1012-1405 ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HK1-TCN ENG(RDQ) BEST VALUE PARTS 		5-87610-104-0 01 1 1406- ●
2 00.859 PLATE ASM; PRESSURE,CLU
4HG1 ENG(RJH) BEST VALUE PARTS 		5-87610-050-1 01 1 1012- ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-313-0 01 1 1012- ● ●
57 00.795 FORK; SHIFT,CLU 8-97255-303-0 01 1 1012- ● ●
116 00.799 BLOCK; SHIFT,CLU 8-97255-313-0 01 1 1012- ● ●
116 00.799 BLOCK; SHIFT,CLU
BEST VALUE PARTS 		5-87610-110-0 01 1 1012- ● ●
137 00.862 BOLT; CLU COVER
02.483 M10X16 FLANGE 		0-28051-016-0 10 1 1012- ● ●
140 00.862 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 1012- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1012- ● ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ) POWER ASSIST CLUTCH(S2T) 		8-98033-837-0 01 1 1012- ●
220 00.775 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) 		8-98043-208-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
