1-56 — EXHAUST BRAKE SYSTEM (#54395) — 62 parça

5 1 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ>	8-98274-409-0	01	1	1510-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE VAR3<8QZ>	8-98274-409-0	01	1	1510-		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98056-673-0	01	1	1012-1303	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98056-673-0	01	1	1304-1407	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98288-176-0	01	1	1408-1509	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98332-039-0	01	1	1510-1510		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2)	8-98333-421-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98333-421-0	01	1	1511-		●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98033-200-1	01	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	1012-1303	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	1304-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-1303	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-1303	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1304-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1304-	●

1 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) EXHAUST BRAKE VAR3<8QZ>	8-98274-409-0	01	1	1510-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE VAR3<8QZ>	8-98274-409-0	01	1	1510-		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98056-673-0	01	1	1012-1303	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98056-673-0	01	1	1304-1407	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ)	8-98288-176-0	01	1	1408-1509	●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2)	8-98332-039-0	01	1	1510-1510	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98332-039-0	01	1	1510-1510		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2)	8-98333-421-0	01	1	1511-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>	8-98333-421-0	01	1	1511-		●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8>	8-98033-200-1	01	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	1012-1303	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ) 03.611 ID=64	8-97373-108-0	02	1	1304-	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-1303	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-1303	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HK1-TCN ENG(RDQ) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1304-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1304-	●

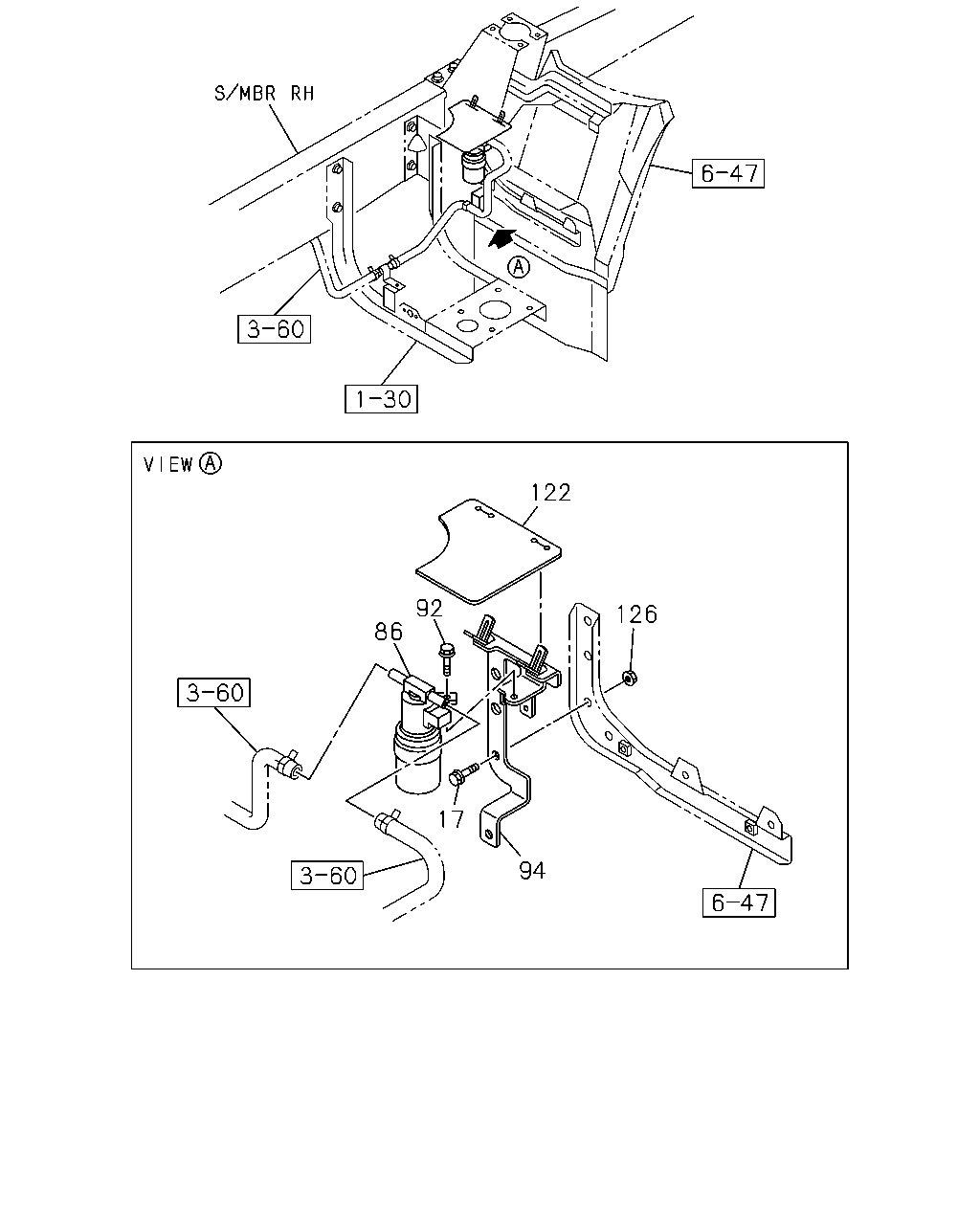

122 92 126 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509	●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509		●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
17	03.634 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1012-1303	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1304-1509	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1304-1509		●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-	●	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-1509		●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-053-3	01	1	1012-1303	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ>	8-98034-053-3	01	1	1304-1509	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ)	8-98034-053-3	01	1	1304-1509		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ>	8-98034-053-3	01	1	1510-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98034-053-3	01	1	1510-		●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98087-988-0	01	1	1012-1303	●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98087-988-0	01	1	1304-1509	●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCN ENG(RDQ)	8-98087-988-0	01	1	1304-1509		●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98087-988-0	01	1	1510-	●
122	03.640 PROTECTOR; MAG VLV 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98087-988-0	01	1	1510-		●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303	●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-1509	●
126	03.634 NUT; BRKT 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-1509		●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1510-	●
126	03.634 NUT; BRKT 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1510-		●
