Sayfa 1-41 - Isuzu EPC

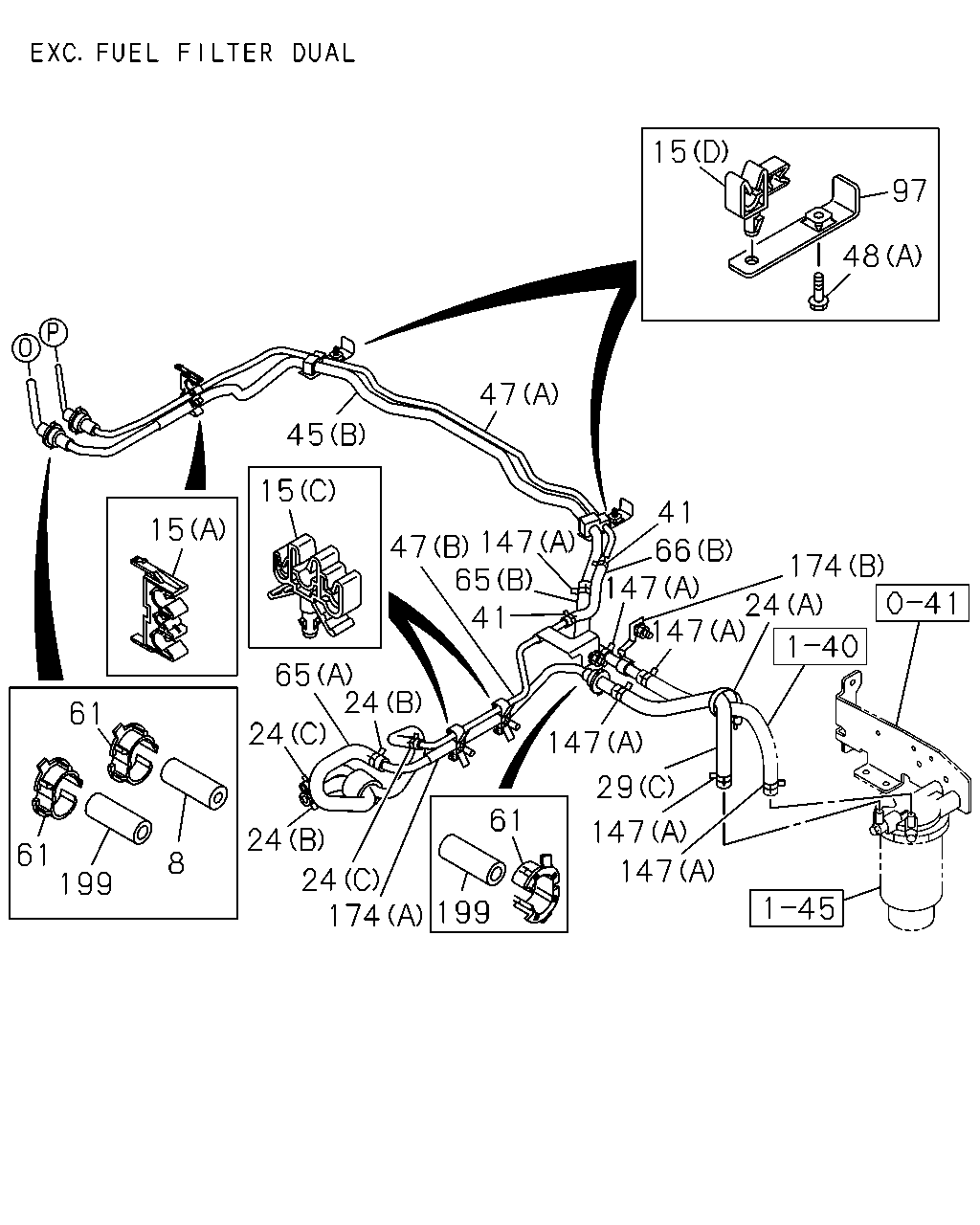

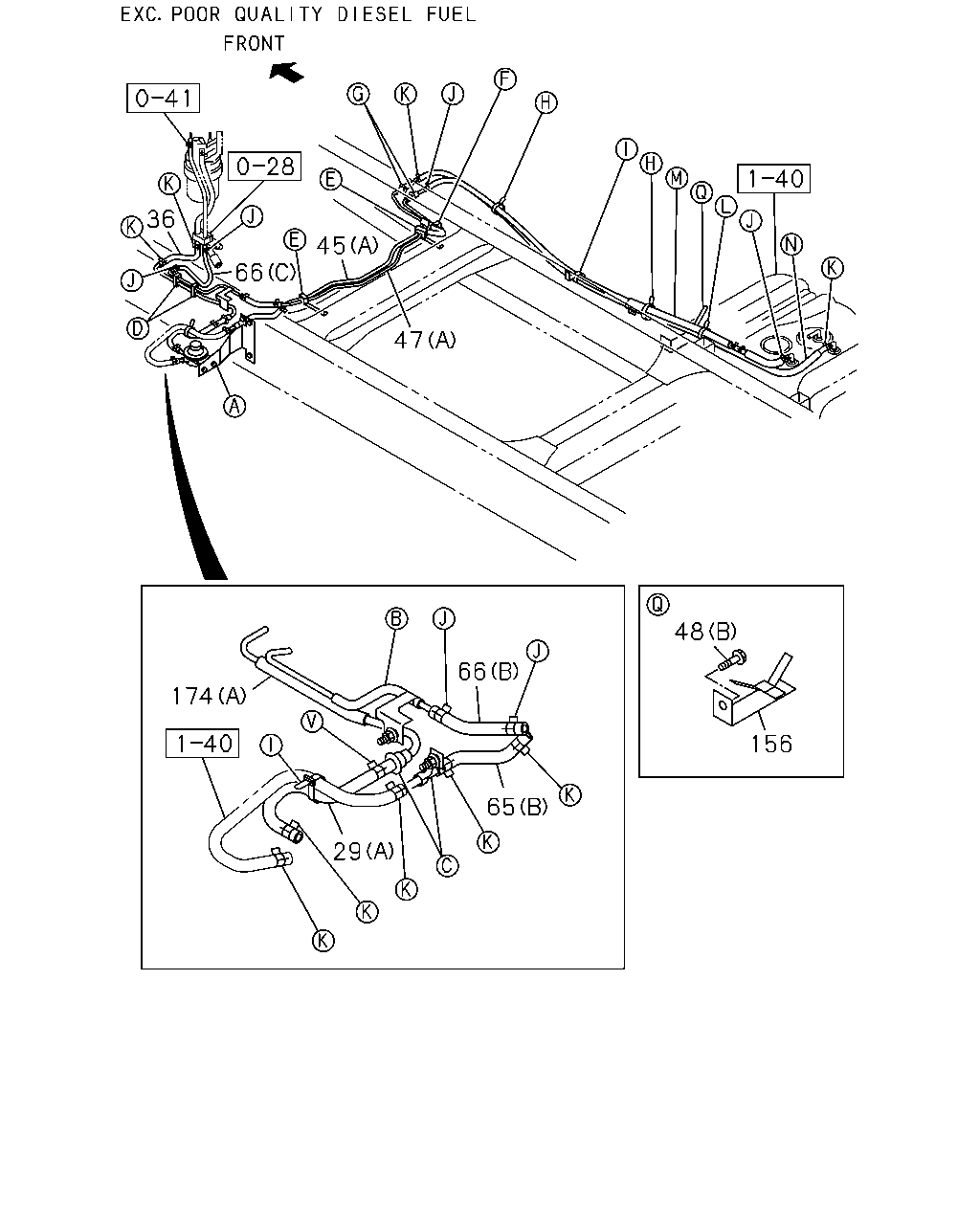

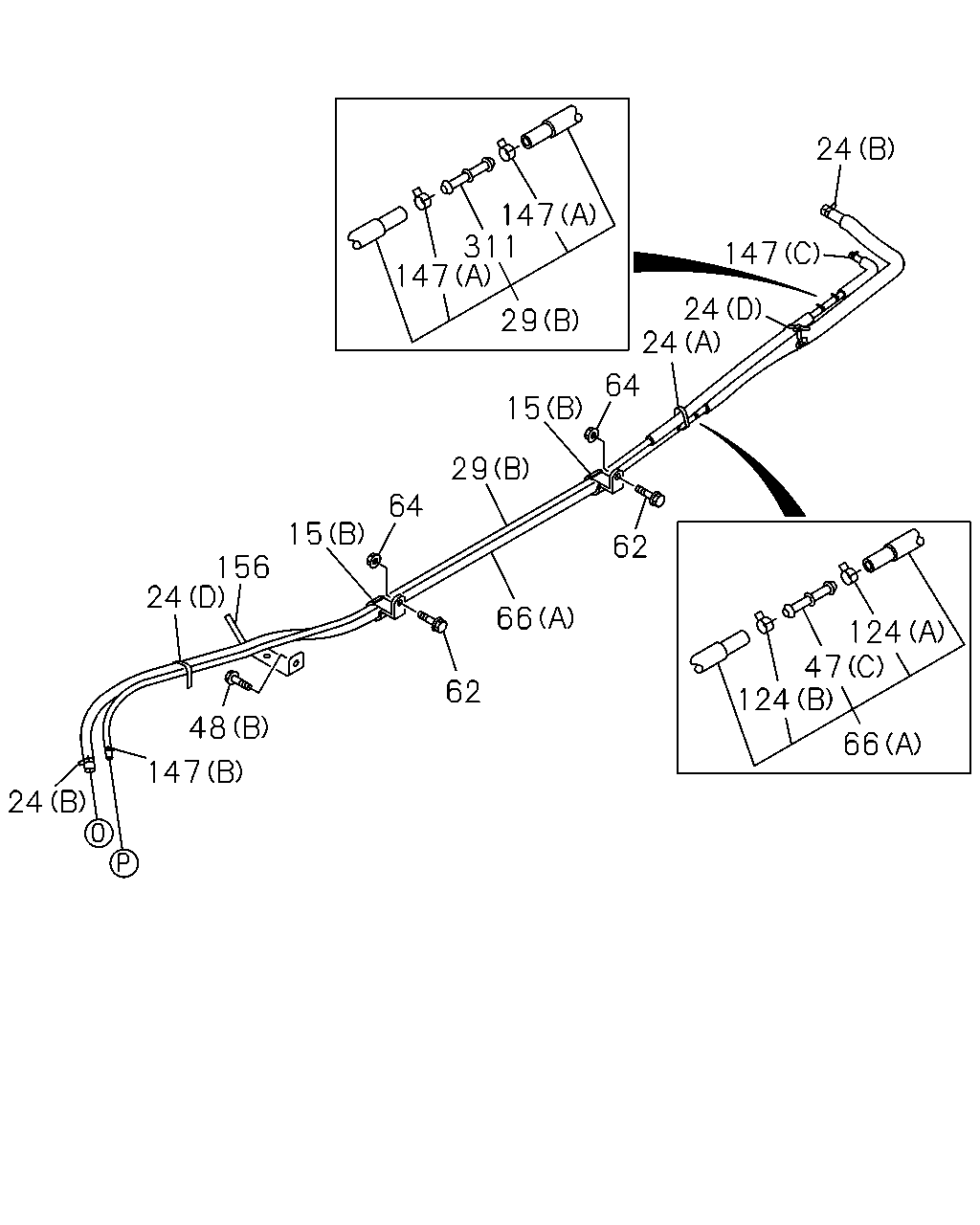

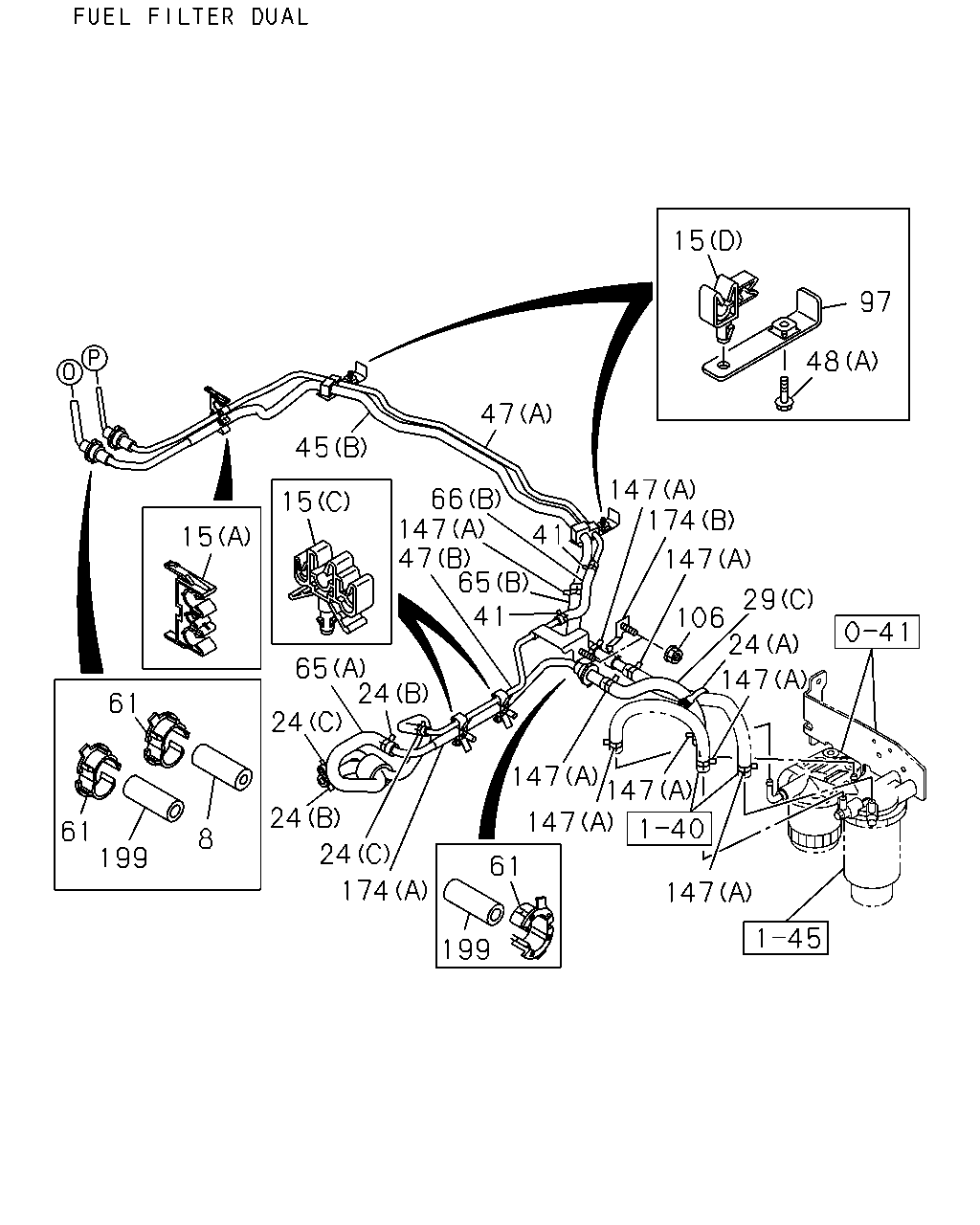

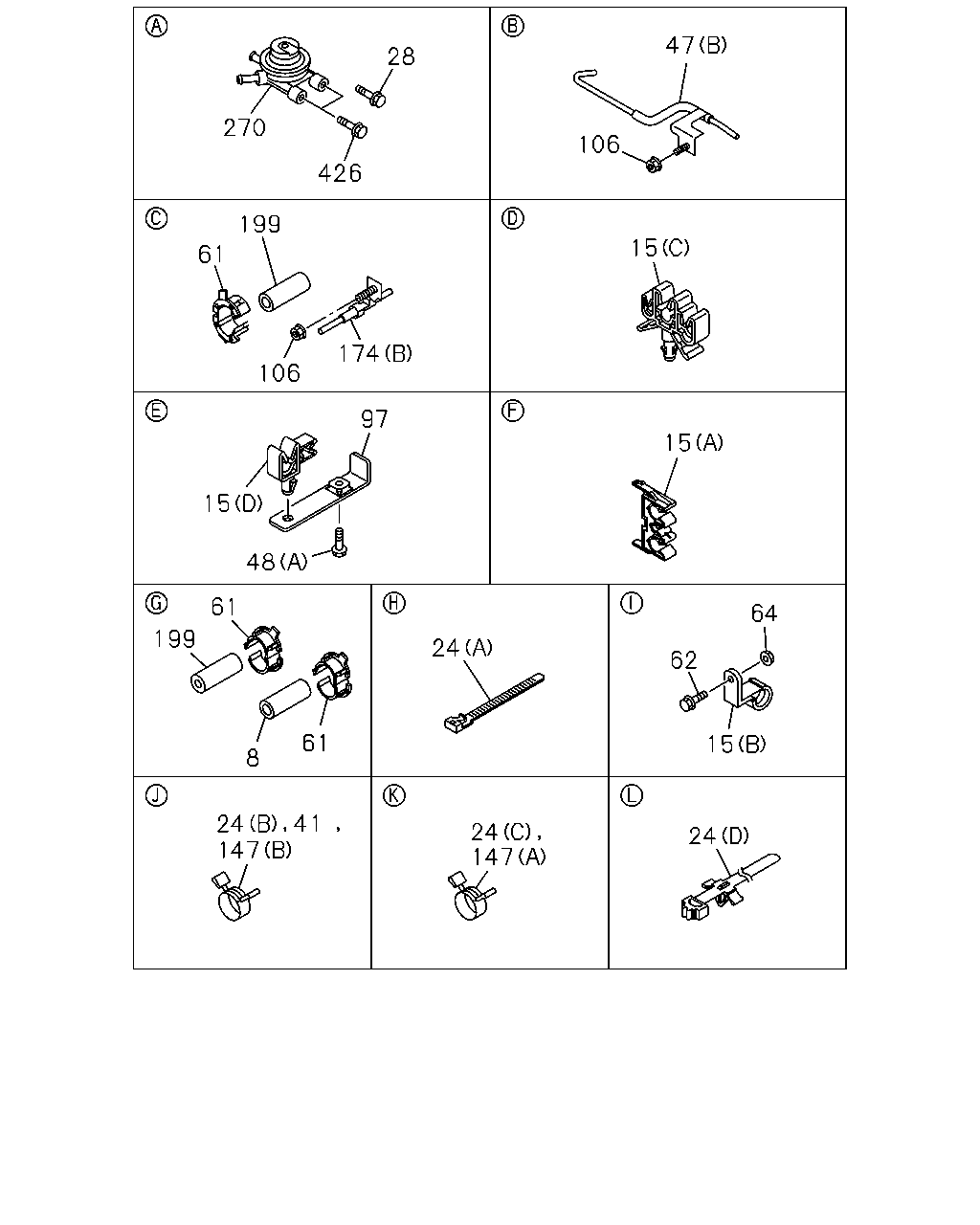

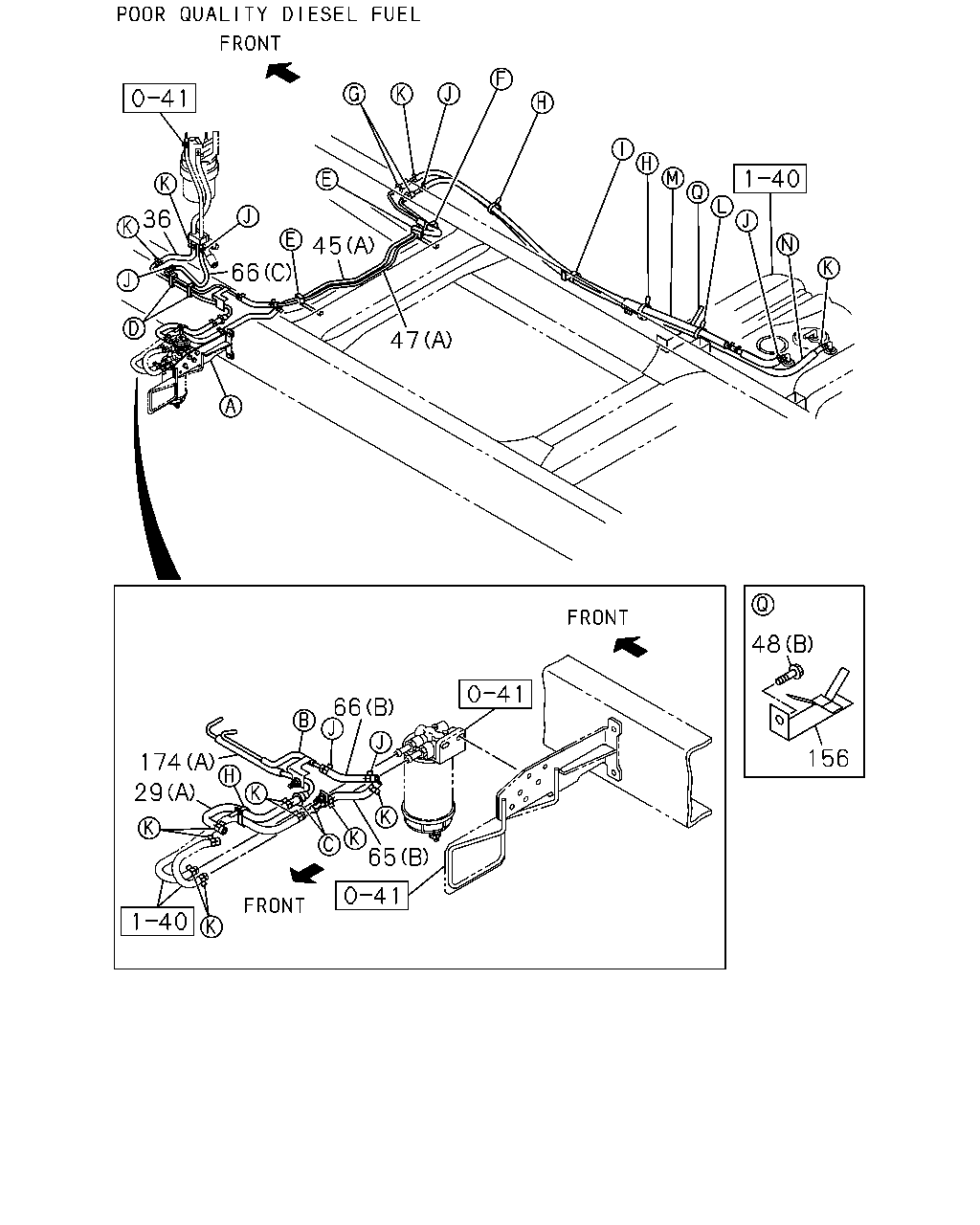

1-41 — FUEL PIPING; CHASSIS (#54391) — 619 parça

66 124 47 124 29 147 311 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1012-1303		●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1304-		●
124	03.162 CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=13	8-98150-357-0	01	1	1304-	●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-		●
124	03.162 CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1304-	●	●
311	03.163 JOINT; HOSE FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	1012-1303		●
311	03.163 JOINT; HOSE FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	1304-		●
311	03.163 JOINT; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97353-668-0	01	1	1304-	●

270 28 426 199 61 106 174 97 48 15 61 61 8 199 24 41 147 47 106 15 15 24 24 147 64 62 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1012-1303		●
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1304-	●	●
28	03.330 BOLT; BRKT,FUEL PUMP 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-		●
28	03.330 BOLT; BRKT,FUEL PUMP 4HK1-TCN ENG(RDQ) EXC. POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1012-1303		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1304-		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	02	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1304-		●
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1304-	●	●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
62	03.162 BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
62	03.162 BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
64	03.162 NUT; CLIP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
64	03.162 NUT; CLIP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1012-1303		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1304-		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98041-203-0	02	1	1304-	●
97	03.162 BRACKET; CLIP 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98057-653-0	02	1	1012-		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1012-1303		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1012-1303		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1304-		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1304-		●
106	03.162 NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91180-110-0	01	1	1304-	●
106	03.162 NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91180-110-0	01	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1304-	●	●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●
270	03.900 PUMP ASM; FUEL 4HK1-TCN ENG(RDQ)	8-98018-187-4	01	1	1012-1303		●
270	03.900 PUMP ASM; FUEL 4HK1-TCN ENG(RDQ)	8-98018-187-4	01	1	1304-1408	●	●
270	03.900 PUMP ASM; FUEL 4HK1-TCN ENG(RDQ)	8-97948-892-0	01	1	1409-	●	●
426	03.330 BOLT; FUEL PUMP 4HK1-TCN ENG(RDQ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1012-1303		●
426	03.330 BOLT; FUEL PUMP 4HK1-TCN ENG(RDQ) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●

36 45 66 47 48 66 174 156 65 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1012-1303		●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1304-		●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ)	8-98171-618-0	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1012-1303		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1304-		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-681-1	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98136-891-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98122-642-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1303		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1012-1303		●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1304-		●
156	03.162 BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ)	8-98041-250-2	01	1	1304-	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1304-	●	●

24 147 311 147 147 24 24 29 64 15 29 64 15 62 156 24 66 124 47 124 62 48 66 147 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1304-	●	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1303		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
62	03.162 BOLT; CLIP FIX FRAME STRAIGHT TYPE<7KJ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
62	03.162 BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
62	03.162 BOLT; CLIP FIX 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-1303		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
64	03.162 NUT; CLIP FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-		●
64	03.162 NUT; CLIP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
64	03.162 NUT; CLIP 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1012-1303		●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=13	8-98150-357-0	01	1	1304-		●
124	03.162 CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=13	8-98150-357-0	01	1	1304-	●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
124	03.162 CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-		●
124	03.162 CLIP; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1304-	●	●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1012-1303		●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1304-		●
156	03.162 BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ)	8-98041-250-2	01	1	1304-	●
311	03.163 JOINT; HOSE FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	1012-1303		●
311	03.163 JOINT; HOSE FRAME STRAIGHT TYPE<7KJ>	8-97353-668-0	01	1	1304-		●
311	03.163 JOINT; HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W)	8-97353-668-0	01	1	1304-	●

15 97 48 47 45 147 174 66 147 47 65 41 15 41 15 147 29 106 24 65 24 147 61 24 147 147 24 147 61 8 24 199 61 174 147 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1012-1303		●
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1304-	●	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1012-1303		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1304-		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	02	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1012-1303		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1304-		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-681-1	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98136-891-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1304-		●
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1304-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98122-642-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1303		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1012-1303		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1304-		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98041-203-0	02	1	1304-	●
97	03.162 BRACKET; CLIP 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98057-653-0	02	1	1012-		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1012-1303		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1012-1303		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1304-		●
106	03.162 NUT; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> M10 FLANGE	0-91180-110-0	01	1	1304-		●
106	03.162 NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91180-110-0	01	1	1304-	●
106	03.162 NUT; FUEL PIPE 4HK1-TCN ENG(RDQ) M10 FLANGE	0-91180-110-0	01	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1304-	●	●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●

36 45 66 47 48 66 156 174 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1012-1303		●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ>	8-98171-618-0	01	1	1304-		●
36	03.163 HOSE; FUEL,FILTER TO TANK 4HK1-TCN ENG(RDQ)	8-98171-618-0	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1012-1303		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1304-		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-681-1	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98136-891-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98122-642-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1303		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1012-1303		●
156	03.162 BRACKET; FUEL HOSE FRAME STRAIGHT TYPE<7KJ>	8-98041-250-2	01	1	1304-		●
156	03.162 BRACKET; FUEL HOSE 4HK1-TCN ENG(RDQ)	8-98041-250-2	01	1	1304-	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1304-	●	●

15 97 48 47 45 15 41 66 147 15 47 147 65 41 174 24 147 65 24 61 24 147 29 61 147 24 61 8 147 24 174 199 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1012-1303		●
8	03.162 RUBBER; MTG FRAME STRAIGHT TYPE<7KJ> OD=17 L=50	8-94157-054-1	01	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) ID=12 & 6.35	8-97215-437-0	02	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.686 (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1304-	●	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1012-1303		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-		●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
15	03.162 CLIP; FUEL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 02.559 (B) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1304-	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 02.559 (D) L=170.3	1-09987-182-0	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	01	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (A) L=140	5-09707-031-1	02	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> (B) ID=16	8-98008-098-0	04	1	1304-	●	●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1012-1303		●
24	03.162 CLIP; FUEL HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (C) ID=12	8-98150-358-0	02	1	1304-	●	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (B)	8-98067-564-4	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1012-1303		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A)	8-98099-502-0	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A)	8-98099-502-0	01	1	1304-	●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98037-758-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (C)	8-98130-342-0	01	1	1012-		●
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. FUEL FILTER DUAL(S6B) 03.003 (C) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	1012-		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1012-1303		●
29	03.163 HOSE; FUEL FRAME STRAIGHT TYPE<7KJ> (B)	8-98067-563-4	01	1	1304-		●
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98067-563-4	01	1	1304-	●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1012-1303		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK FRAME STRAIGHT TYPE<7KJ> 01.240 ID=12	8-98150-358-0	02	1	1304-		●
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	02	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1012-1303		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-681-1	01	1	1304-		●
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-681-1	01	1	1304-	●
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98136-891-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-98043-639-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (A)	8-98043-639-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98136-892-0	01	1	1012-		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (C) L=70	8-98036-483-0	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (C) L=70	8-98036-483-0	01	1	1304-	●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1012-1303		●
47	03.163 PIPE; FUEL,RETURN FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-618-1	01	1	1304-		●
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) (B)	8-98041-618-1	01	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-1303		●
48	03.162 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-		●
48	03.162 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	01	1	1304-		●
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	01	1	1304-	●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1012-1303		●
61	03.162 GROMMET; PIPE TO FRAME FRAME STRAIGHT TYPE<7KJ> 02.343 ID=17	8-94128-319-2	02	1	1304-	●	●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (A)	8-98122-642-0	01	1	1012-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1303		●
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME STRAIGHT TYPE<7KJ> 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-		●
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4400MM(44W) (A)	8-98067-567-2	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (C)	8-98093-616-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (C)	8-98093-616-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) (B) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1304-	●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1012-1303		●
66	03.163 HOSE; FUEL,RETURN PIPE FRAME STRAIGHT TYPE<7KJ> (A)	8-98067-566-2	01	1	1304-		●
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (A)	8-98067-566-2	01	1	1304-	●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1012-1303		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98041-203-0	02	1	1304-		●
97	03.162 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98041-203-0	02	1	1304-	●
97	03.162 BRACKET; CLIP 4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ>	8-98057-653-0	02	1	1012-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-98008-098-0	02	1	1304-		●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) ID=16	8-98008-098-0	02	1	1304-	●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME STRAIGHT TYPE<7KJ> 01.240 (B) ID=12	8-98150-358-0	01	1	1304-	●	●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1012-1303		●
147	03.162 CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (A)	8-98033-844-1	01	1	1304-	●	●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1012-1303		●
174	03.163 PIPE; FUEL,FEED,FRT FRAME STRAIGHT TYPE<7KJ> (B)	8-98041-616-0	01	1	1304-	●	●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1012-1303		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE FRAME STRAIGHT TYPE<7KJ> OD=15 L=50	8-97077-629-0	01	1	1304-		●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●
199	03.162 PROTECTOR; FUEL PIPE 4HK1-TCN ENG(RDQ) OD=15 L=50	8-97077-629-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
