Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#5439) — 198 parça

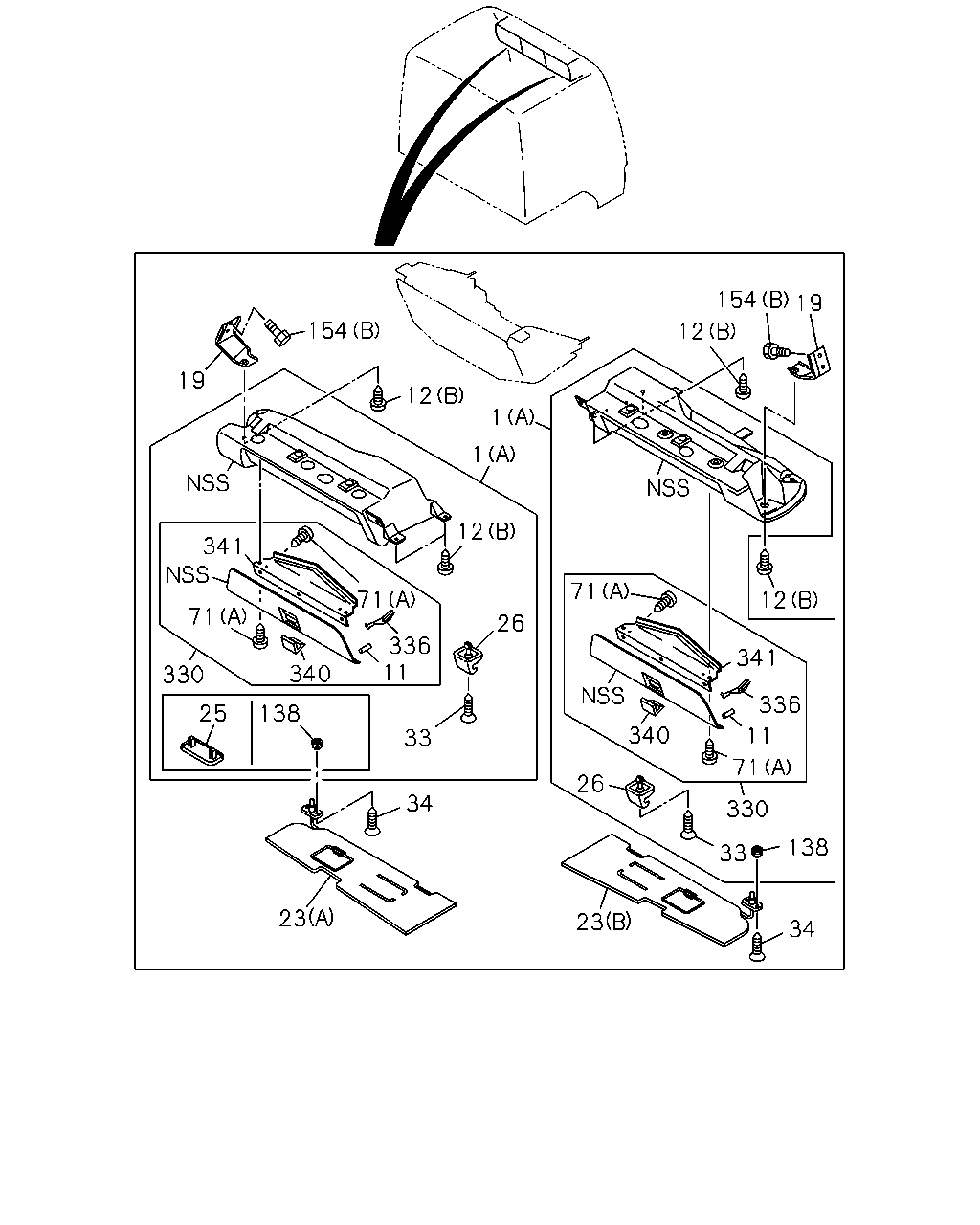

154 19 154 12 19 12 1 1 12 341 71 71 12 71 26 336 11 341 340 330 336 25 138 340 11 33 71 26 34 330 138 33 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9601-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9601-9904
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9601-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9601-9904
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9905-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9601-9601
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9602-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9601-
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9601-
23	SUN VISOR (A)	1-73138-150-1	01	1	9601-9904
23	SUN VISOR EXC. CHEAPER CAB(WY1) (A)	1-73138-150-1	01	1	9905-0011
23	SUN VISOR SUN VISOR PASSENGER<D20> (A)	1-73138-150-1	01	1	0012-
23	SUN VISOR (B)	1-73138-148-1	01	1	9601-
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-9904
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	9905-0011
26	HOLDER; SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-142-0	01	1	9905-0011
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-9904
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011
33	SCREW; HOLDER,SUN VISOR EXC. CHEAPER CAB(WY1) M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9601-9904
34	SCREW; SUN VISOR EXC. CHEAPER CAB(WY1) M6X25	1-09981-441-0	04	1	9905-0011
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9601-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14	8-94279-325-0	06	1	9601-9601
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9602-9904
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904
71	SCREW ASSIST GRIP A POST<NBK> (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9601-9904
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9905-0011
138	NUT; BRKT,HEADER SHELF EXC. CHEAPER CAB(WY1)	1-09984-166-0	02	1	9905-0011
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9601-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9601-9904
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9601-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
330	LID; HEADER SHELF	1-72448-360-3	02	1	9601-9904
330	LID; HEADER SHELF	1-72448-360-3	02	1	9905-
336	STAY; LID	1-72448-379-3	04	1	9601-9904
336	STAY; LID	1-72448-379-3	04	1	9905-
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9601-9904
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9905-
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9601-9904
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9905-

154 64 62 64 154 48 48 154 66 103 48 59 69 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9601-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9601-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9601-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9601-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	02	1	9601-9610
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9611-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9601-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9601-
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	9601-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9601-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9601-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9601-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9601-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9601-9904
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9601-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-

325 12 83 329 83 1 5 18 1 154 135 154 9 12 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-657-2	01	1	9601-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9601-9904
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-597-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-597-2	01	1	0012-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9601-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72447-718-0	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72447-718-0	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9601-0001
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-
9	COVER; HOLE,HEADER SHELF CENTER CENTER	1-72447-663-2	01	1	9601-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	14	1	9601-9601
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9602-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9601-9604
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9601-
143	BEZEL	1-72448-411-0	01	1	9601-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9601-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9601-9904
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9601-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0002-
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0002-

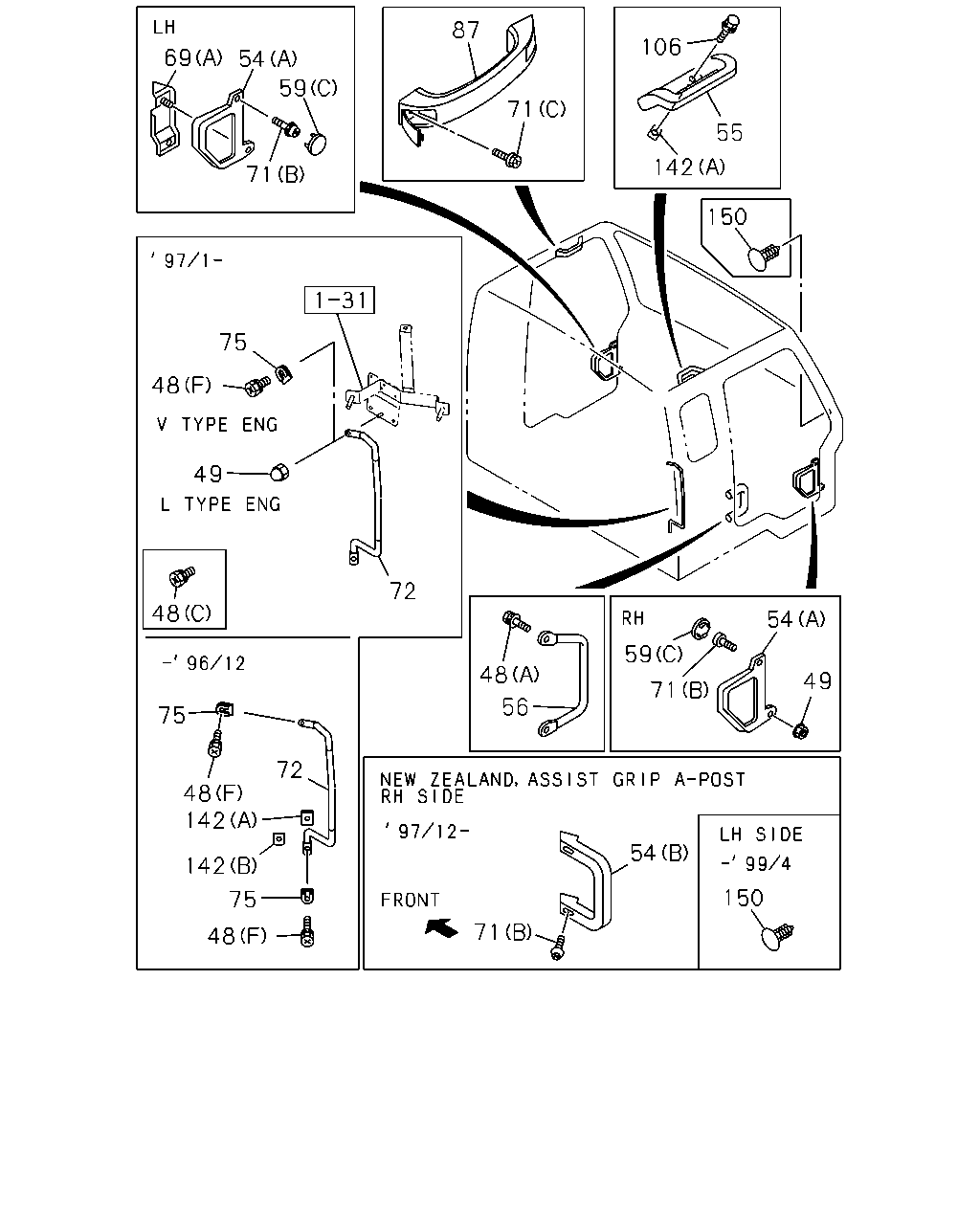

87 106 69 54 59 71 55 142 71 150 75 48 49 72 48 54 59 48 49 71 56 75 72 48 142 54 142 150 75 71 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9601-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9601-
48	BOLT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9601-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	01	1	9601-
49	NUT; ASSIST GRIP 6WA1 TC-C(55L),6WA1 TC-S(56L) GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9701-9702
49	NUT; ASSIST GRIP 6WA1 TC-C(55L),6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9703-9709
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9710-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9601-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9601-
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-158-2	01	1	9712-9904
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9601-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9601-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9601-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9601-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	9601-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9601-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9601-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9601-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14	8-94279-325-0	06	1	9601-9601
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9602-9904
71	SCREW CHEAPER CAB(WY1) (A) M5X14	8-94279-325-0	03	1	9905-0011
71	SCREW EXC. SUN VISOR PASSENGER<D20> (A) M5X14	8-94279-325-0	03	1	0012-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011
71	SCREW EXC. CHEAPER CAB(WY1) (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-0011
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW SUN VISOR PASSENGER<D20> (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	0012-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	02	1	9712-9904
71	SCREW ASSIST GRIP A POST<NBK> (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9601-9612
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-288-2	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-288-2	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	9712-
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-C(55L),6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-C(55L),6WA1 TC-S(56L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-494-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	9712-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> V TYPE ENG<91L>	1-71997-548-0	02	1	0003-
75	SHEET; ASSIST GRIP,CAB ENTRY 10PE1S(60L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9601-9709
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-0002
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> L TYPE ENG<90L>	1-71997-548-0	01	1	0003-
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9601-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9601-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9710-9904
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9905-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) 25X25	8-94272-533-0	03	1	9905-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (A) 25X25	8-94272-533-0	02	1	0003-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (B)	1-71997-691-1	01	1	0003-
142	SEAL; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9601-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9710-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (B)	1-71997-691-1	02	1	0003-
142	SEAL; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	9601-9709
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9601-9711
150	CLIP; ASSIST GRIP HOLE NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9712-9904
150	CLIP; ASSIST GRIP HOLE EXC. NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9712-9904
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
