1-31 — AIR DUCT (#54388) — 336 parça

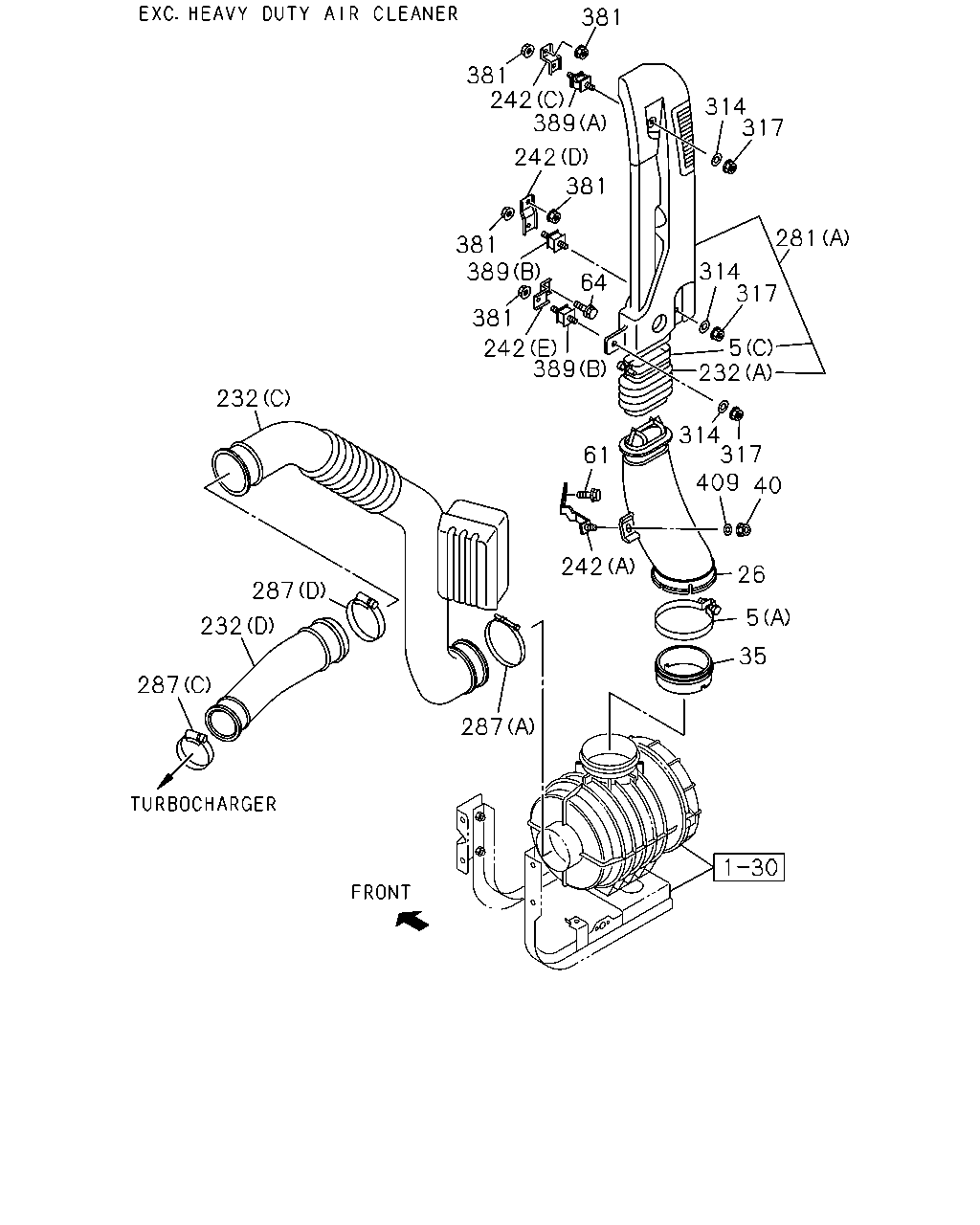

çizim 175504
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 5 232 242 389 232 314 317 409 61 40 242 26 287 5 232 35 287 287
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1304- ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1012-1303 ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1304- ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012-1303 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1304- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012-1303 ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1304- ● ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1012-1303 ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1304-1309 ● ●
232 03.417 HOSE; CONN
(A) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (C) 		8-98105-926-1 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (D) 		8-98131-538-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98080-929-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1304- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012-1303 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1304- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1304- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012-1303 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1304- ● ●

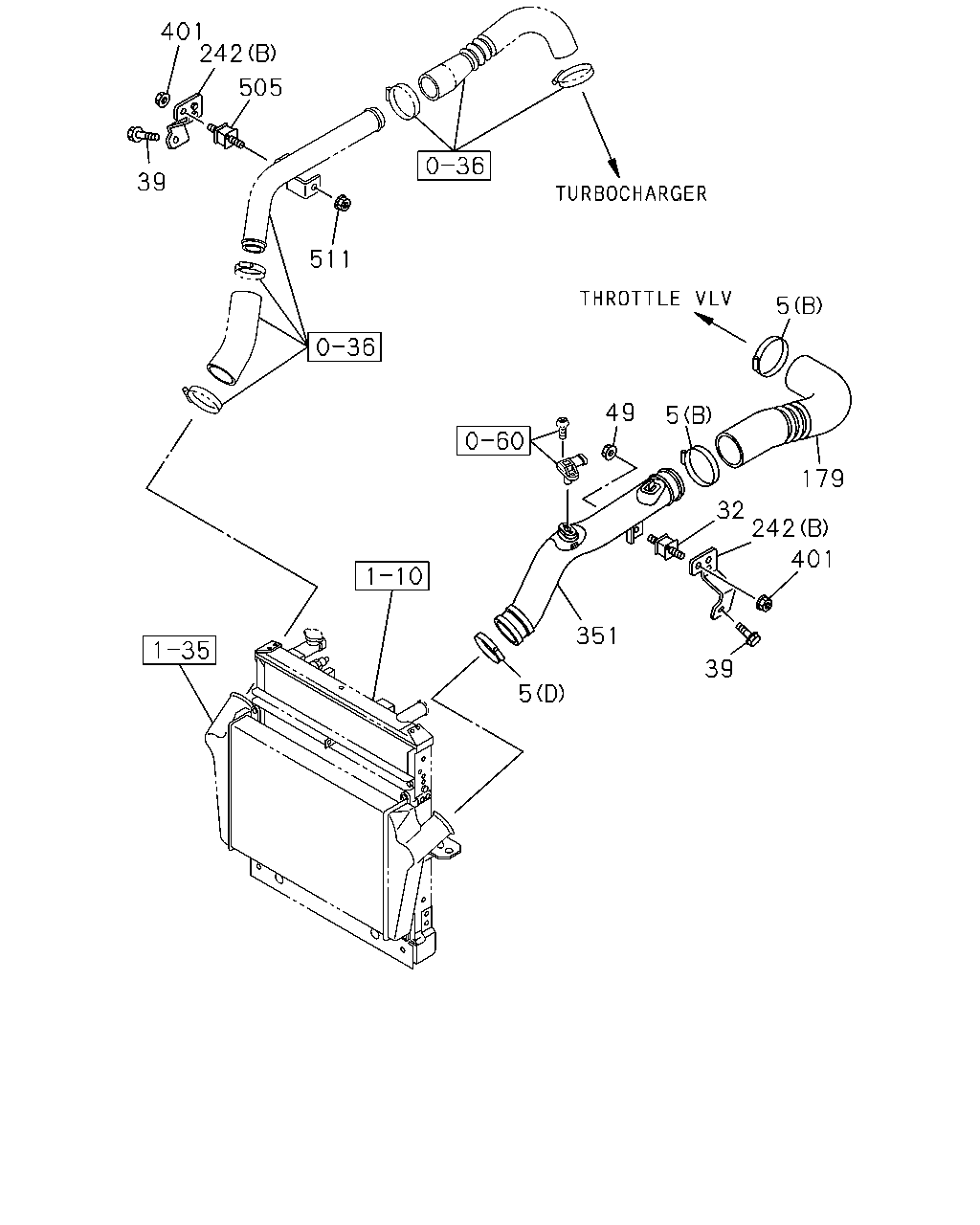

çizim 175507
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1304- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ) 		8-98036-826-0 01 1 1012-1106 ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ) 		8-97081-886-0 01 1 1107-1303 ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ) 		8-97081-886-0 01 1 1304- ● ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1012-1303 ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ) 		8-98114-719-0 01 1 1012-1303 ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ) 		8-98114-719-0 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1304- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) 		8-98105-722-1 01 1 1012-1303 ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) 		8-98105-722-1 01 1 1304- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.417 		8-97081-886-0 01 1 1107-1303 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.417 		8-97081-886-0 01 1 1304- ● ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012-1303 ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●

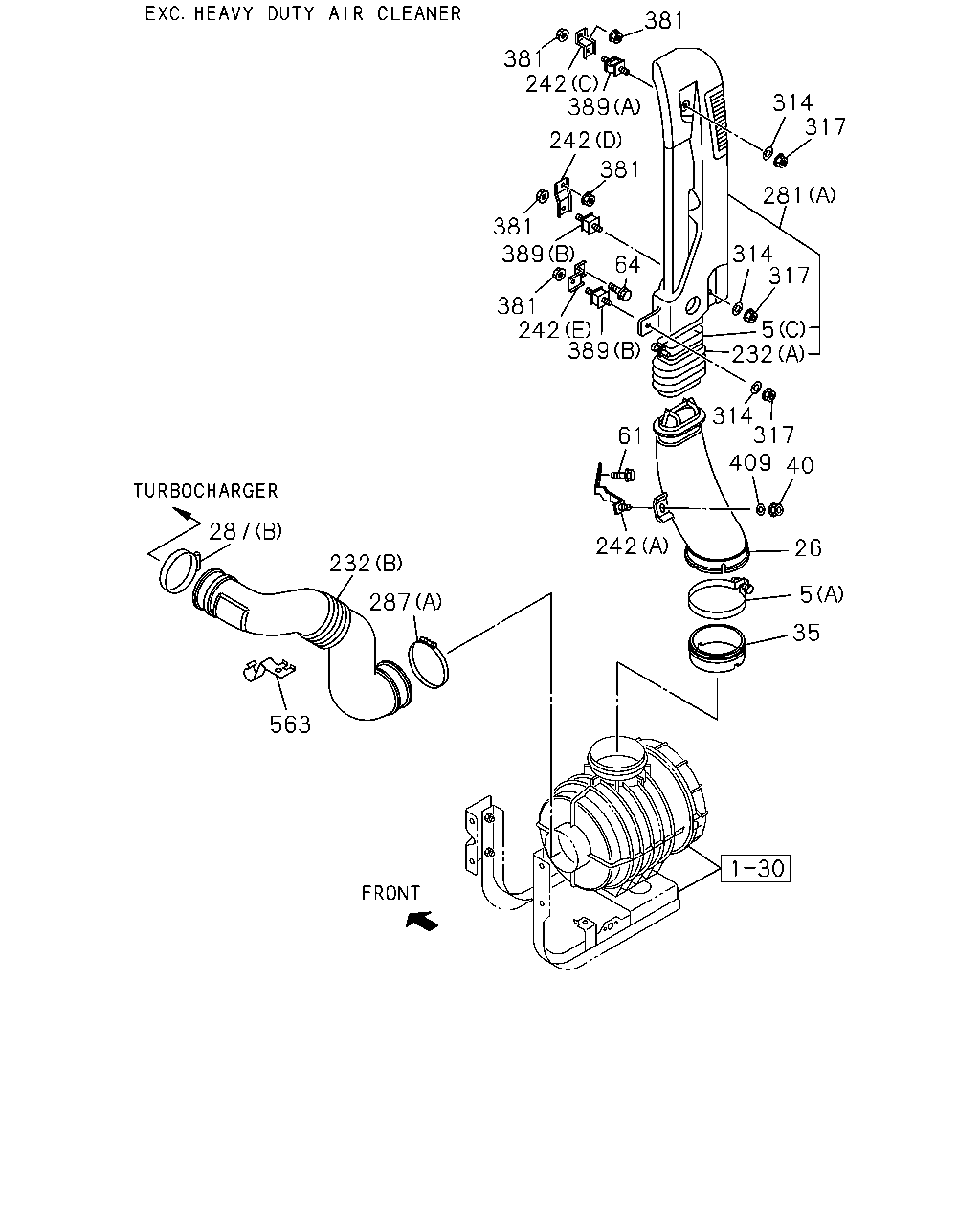

çizim 175511
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 242 389 5 232 314 317 409 61 40 287 242 26 232 5 287 35 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1304- ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1012-1303 ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1304- ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012-1303 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1304- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012-1303 ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1304- ● ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1012-1303 ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1304-1309 ● ●
232 03.417 HOSE; CONN
(A) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (C) 		8-98105-926-1 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (D) 		8-98131-538-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98080-929-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1304- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012-1303 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1304- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1304- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012-1303 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1304- ● ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1012-1303 ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1304- ● ●

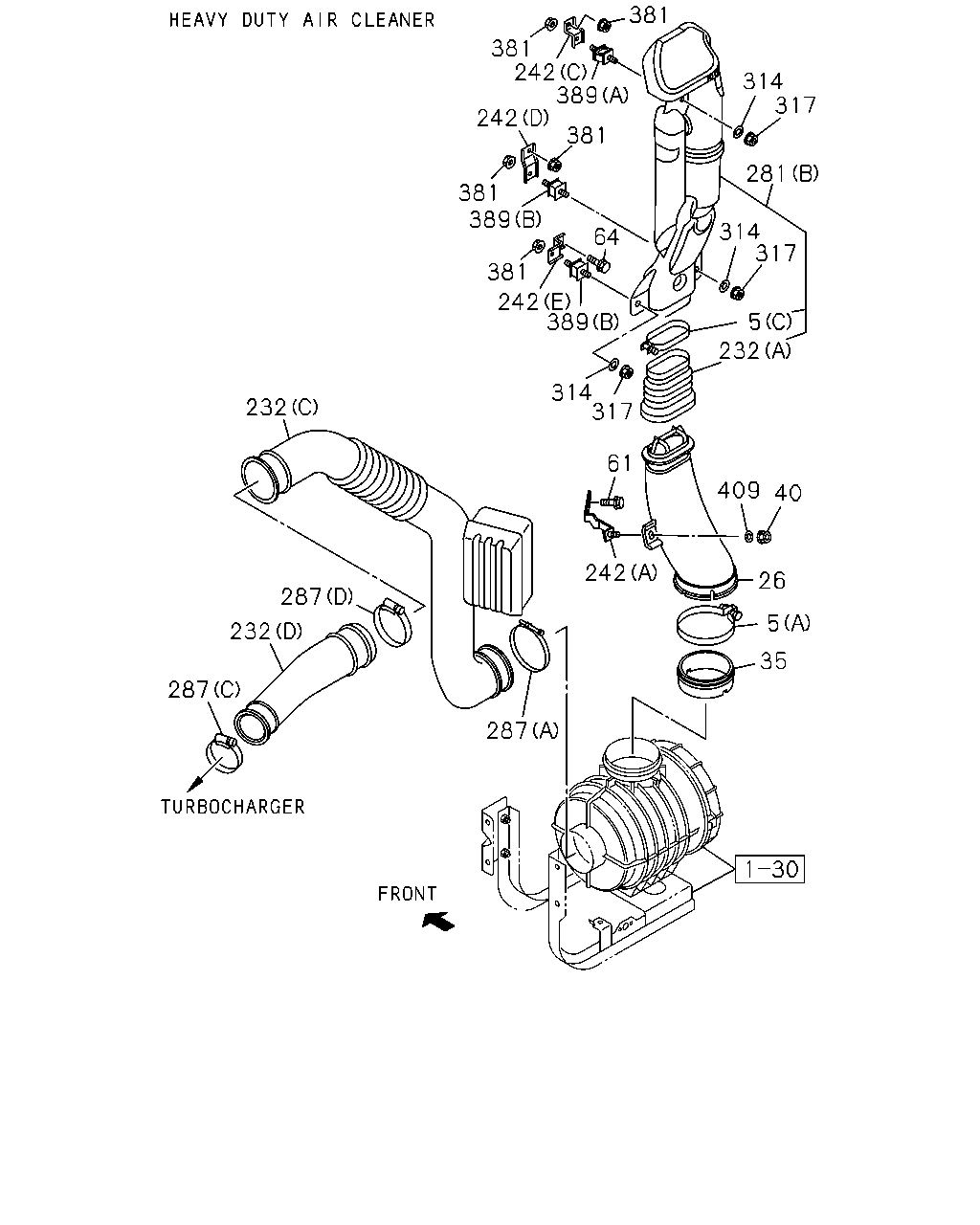

çizim 175515
381 381 242 389 242 314 317 381 281 381 389 314 317 64 381 242 389 5 232 314 317 232 61 409 40 242 26 287 5 232 35 287 287
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1304- ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1012-1303 ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1304- ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012-1303 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1304- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012-1303 ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1304- ● ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1012-1303 ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1304-1309 ● ●
232 03.417 HOSE; CONN
(A) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (C) 		8-98105-926-1 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (D) 		8-98131-538-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98080-929-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1304- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012-1303 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1304- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1304- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012-1303 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1304- ● ●

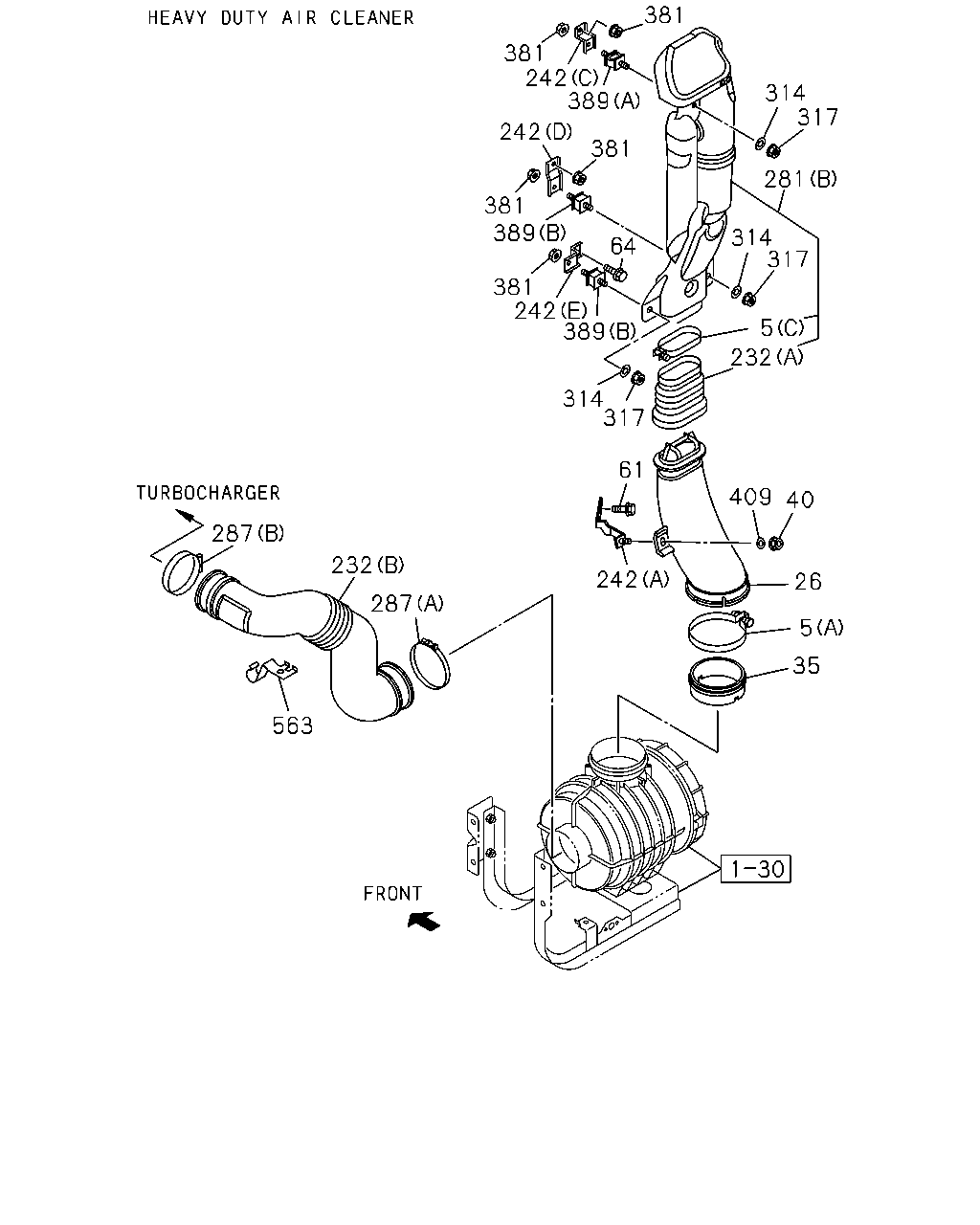

çizim 175527
381 381 242 389 314 317 242 381 281 381 389 64 314 317 381 242 389 5 232 314 317 61 409 40 287 232 242 26 287 5 35 563
BalonParca AdiParca NoAdetTipApplied Date A B
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85 		8-98133-350-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95 		8-98133-357-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99 		1-09707-141-0 02 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90 		8-98122-372-0 01 1 1304- ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012-1303 ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1304- ● ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1012-1303 ●
26 03.417 DUCT; AIR INT 8-98025-626-0 01 1 1304- ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012-1303 ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1304- ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012-1303 ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1304- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012-1303 ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012-1303 ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1304- ● ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1012-1303 ●
232 03.417 HOSE; CONN
(A) 		8-98082-535-0 01 1 1304-1309 ● ●
232 03.417 HOSE; CONN
(A) 		8-98231-785-0 01 1 1310- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) HEAVY DUTY AIR CLEANER<K46> (B) 		8-98070-857-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1012-1303 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (B) 		8-98095-507-1 01 1 1304- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (C) 		8-98105-926-1 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (D) 		8-98131-538-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-142-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ) (B) 		8-98032-143-1 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1304- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012-1303 ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> (B) 		8-98101-995-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1012-1303 ●
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98000-230-5 01 1 1304- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98080-929-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=55-75 		8-98133-349-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (B) ID=58-79 		1-09707-136-0 01 1 1304- ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (C) ID=40-50 		8-98133-347-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (C) ID=44-60 		8-94175-940-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (D) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1012-1303 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=112 		9-09915-074-1 01 1 1304- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012-1303 ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1304- ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 02 1 1304- ● ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1012-1303 ●
381 03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER 		8-97581-234-0 03 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1304- ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012-1303 ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1304- ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012-1303 ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1304- ● ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1012-1303 ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ) 		8-98090-587-0 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
