1-10 — RADIATOR (#54385) — 103 parça

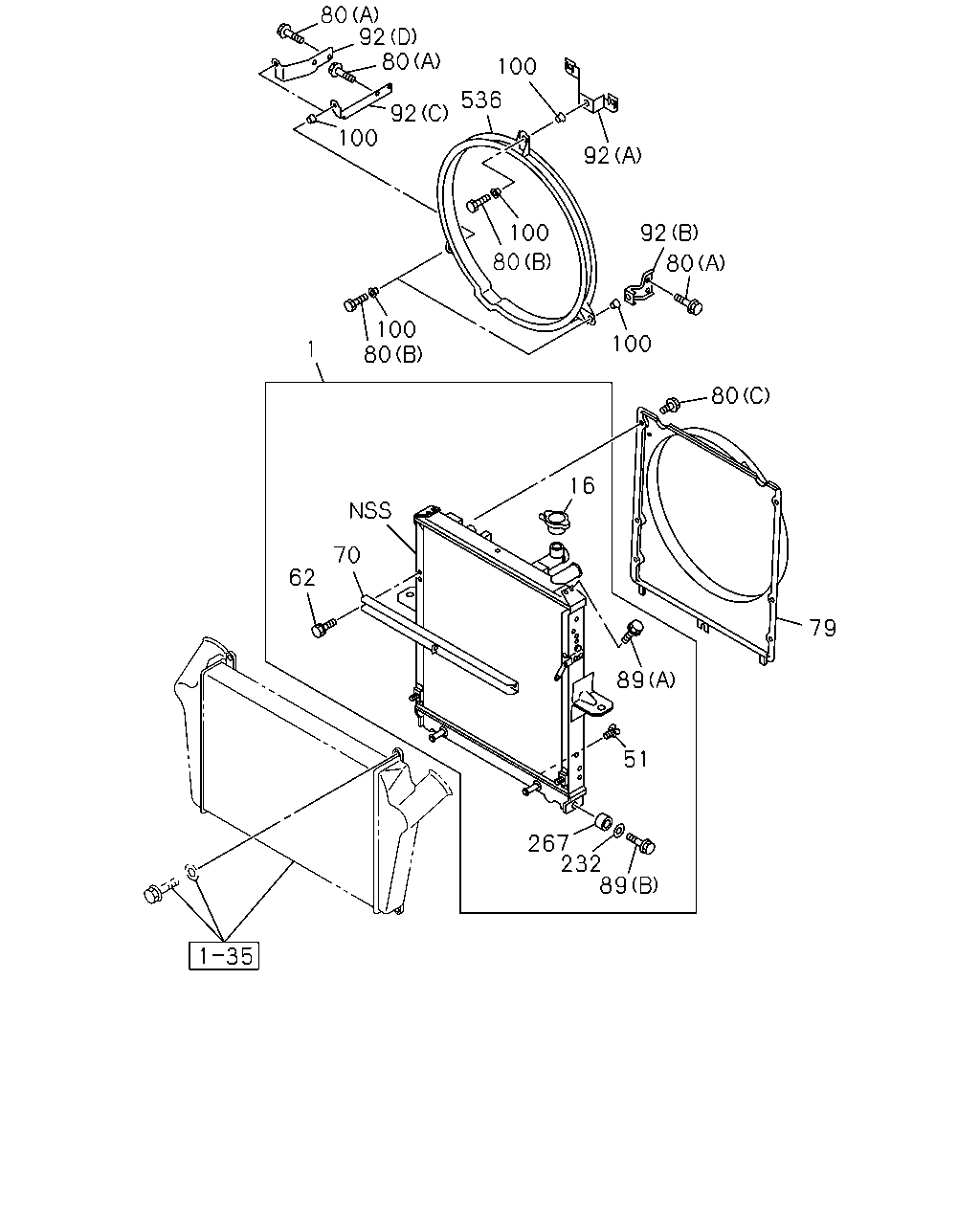

80 92 80 100 536 92 100 92 100 92 80 80 100 80 100 1 80 16 70 62 79 89 51 267 232 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1012-1303	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1304-	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-915-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-587-2	01	1	1202-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1012-1303	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1304-	●	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-1303	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1304-	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-1303	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1012-1303	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1304-	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH)	8-98034-644-0	01	1	1012-	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1012-1303	●
79	01.277 GUIDE; FAN,RAD 4HK1-TCN ENG(RDQ)	8-98172-924-0	01	1	1304-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X16	1-21559-481-0	04	1	1012-1303	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) (C) M6X16	1-21559-481-0	04	1	1304-	●	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-1104	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	04	1	1012-1104	●
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	1012-1104	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1012-1303	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1012-1303	●
89	01.277 BOLT 4HK1-TCN ENG(RDQ) 01.271 (B) M8X25 W/PL WASHER	1-21469-153-0	02	1	1304-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97386-233-0	01	1	1012-1104	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1012-1303	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97382-827-2	01	1	1304-	●	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) GENERATOR 24V80A(7YN) (D)	8-98032-526-0	01	1	1012-1104	●
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) EXC. GENERATOR 24V80A(7YN) (C)	8-97350-997-0	01	1	1012-1104	●
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ)	1-09337-027-0	06	1	1012-1104	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1012-1303	●
232	01.540 COLLAR; DIST,CUSHION RUBBER 4HK1-TCN ENG(RDQ)	1-87410-723-0	02	1	1304-	●	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1012-1303	●
267	01.277 RUBBER; CUSHION 4HK1-TCN ENG(RDQ)	1-21467-023-0	02	1	1304-	●	●
536	01.020 SHROUD; FAN 4HK1-TCN ENG(RDQ) 01.277	8-97350-995-0	01	1	1012-1104	●

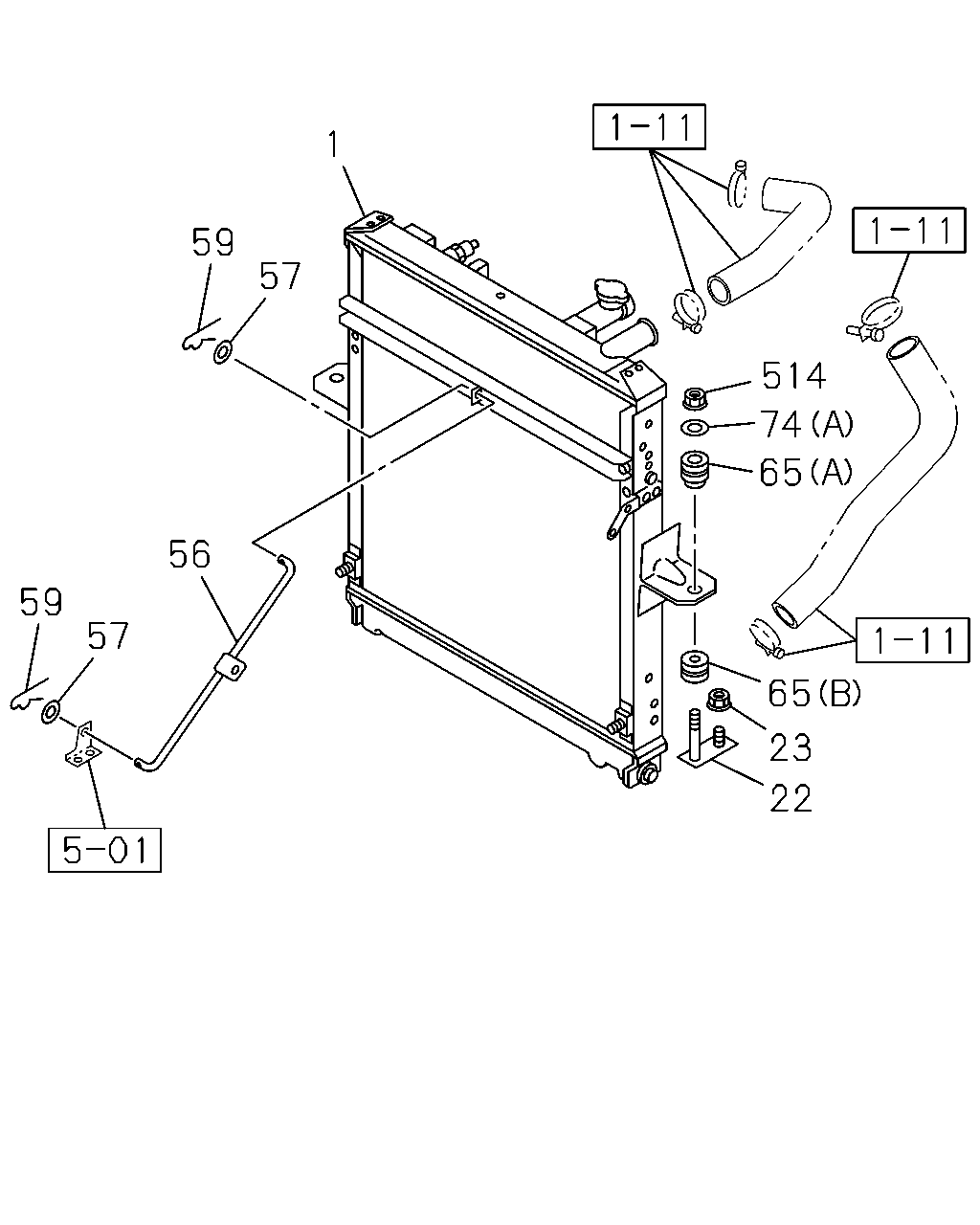

1 59 57 514 74 65 56 59 57 65 23 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1012-1303	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1304-	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-915-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-587-2	01	1	1202-	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1012-1303	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1304-	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	01	1	1012-	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1012-1303	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1304-	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-1303	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1304-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-1303	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1304-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-1303	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1304-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-1303	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1304-	●	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) (B) ID=10.5	0-91610-710-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-1303	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1304-	●	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●

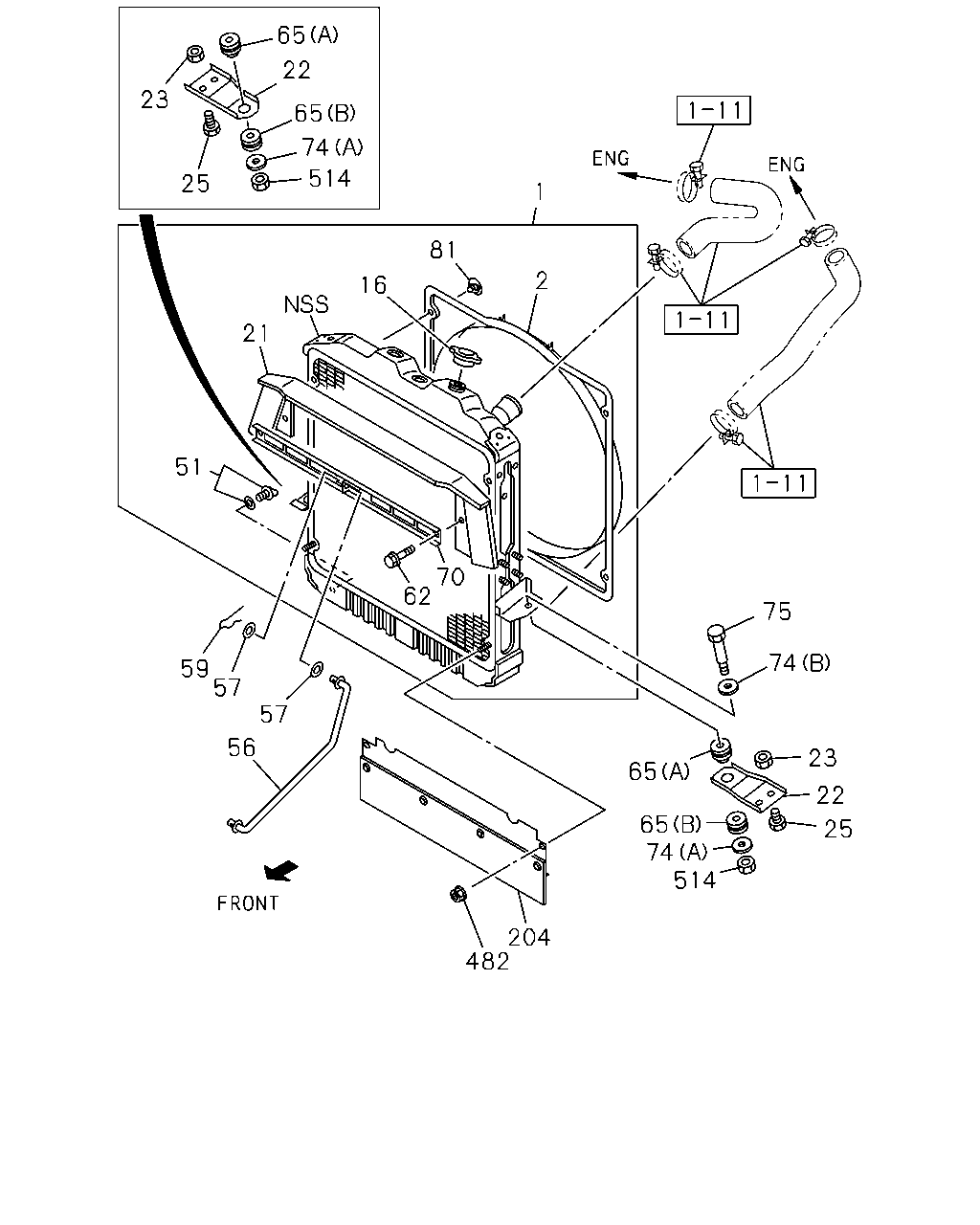

65 22 23 65 74 514 25 1 81 2 16 21 51 70 62 75 74 59 57 57 56 23 65 22 65 74 514 25 204 482

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1012-1303	●
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ)	8-98174-420-0	01	1	1304-	●	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98172-915-0	01	1	1012-1201	●
1	01.219 RADIATOR ASM 4HG1 ENG(RJH)	8-98095-587-2	01	1	1202-	●
2	01.277 GUIDE; FAN 4HG1 ENG(RJH)	8-98095-606-0	01	1	1012-	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1012-1303	●
16	01.203 CAP; RAD	8-98096-226-0	01	1	1304-	●	●
21	01.276 SEAL; RAD 4HG1 ENG(RJH)	8-98080-347-0	01	1	1012-1201	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1012-1303	●
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) 01.277	8-97330-527-1	02	1	1304-	●	●
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-97074-093-0	01	1	1012-	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	02	1	1012-	●
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1012-1303	●
51	08.951 PLUG; DRAIN W/GASKET	8-97171-437-0	01	1	1304-	●	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1012-1303	●
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98006-490-2	01	1	1304-	●	●
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-98058-497-0	01	1	1012-	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1012-1303	●
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	02	1	1304-	●	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1012-1303	●
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	02	1	1304-	●	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1012-1303	●
62	01.271 BOLT; STAY 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1304-	●	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1012-1303	●
65	01.271 INSULATOR; RAD 01.270 (A)	8-94249-346-0	02	1	1304-	●	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1012-1303	●
65	01.271 INSULATOR; RAD 01.270 (B)	8-94249-347-0	02	1	1304-	●	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1012-1303	●
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ)	8-98018-941-0	01	1	1304-	●	●
70	01.271 STAY; RAD 4HG1 ENG(RJH)	8-98034-644-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) (B) ID=10.5	0-91610-710-0	01	1	1012-	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1012-1303	●
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	1304-	●	●
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	1012-	●
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	02	1	1012-	●
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH)	8-97387-572-1	01	1	1012-1112	●
482	01.277 NUT; AIR GUIDE 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1303	●
514	01.276 NUT; RAD 01.062 M8 FLANGE	0-91180-108-0	02	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
