1-01 — ACCELERATOR PEDAL AND CONTROL (#54384) — 104 parça

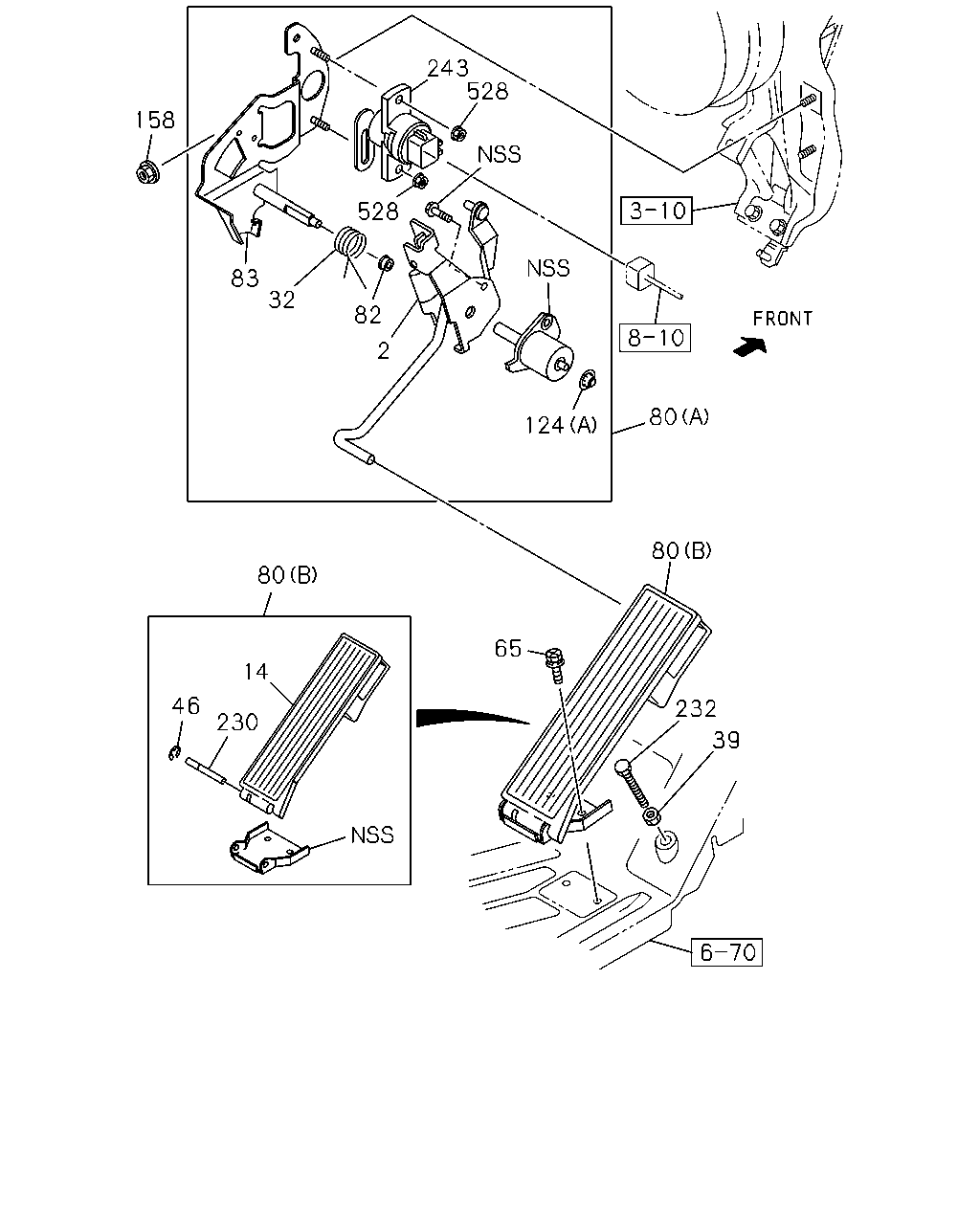

243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.454 LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1012-1303	●
2	03.454 LEVER; ENG CONT 4HK1-TCN ENG(RDQ)	8-98002-158-2	01	1	1304-	●	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-1303	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1304-	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1012-1303	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-98031-665-0	01	1	1304-	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1012-1303	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1304-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-1303	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1304-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-1303	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (A)	8-97387-358-3	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (A)	8-97387-358-3	01	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) (C)	8-98038-416-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1304-	●	●
82	03.463 BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1012-1303	●
82	03.463 BUSHING; ENG CONT LVR 4HK1-TCN ENG(RDQ)	8-97581-053-0	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1012-1303	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-900-0	01	1	1012-	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 (A) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-1303	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 (A) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1304-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 (C) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-1303	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1304-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1012-1303	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1304-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1012-1303	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1304-	●	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1012-1303	●
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-98131-263-0	01	1	1304-	●	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	1012-1303	●
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	1304-	●	●

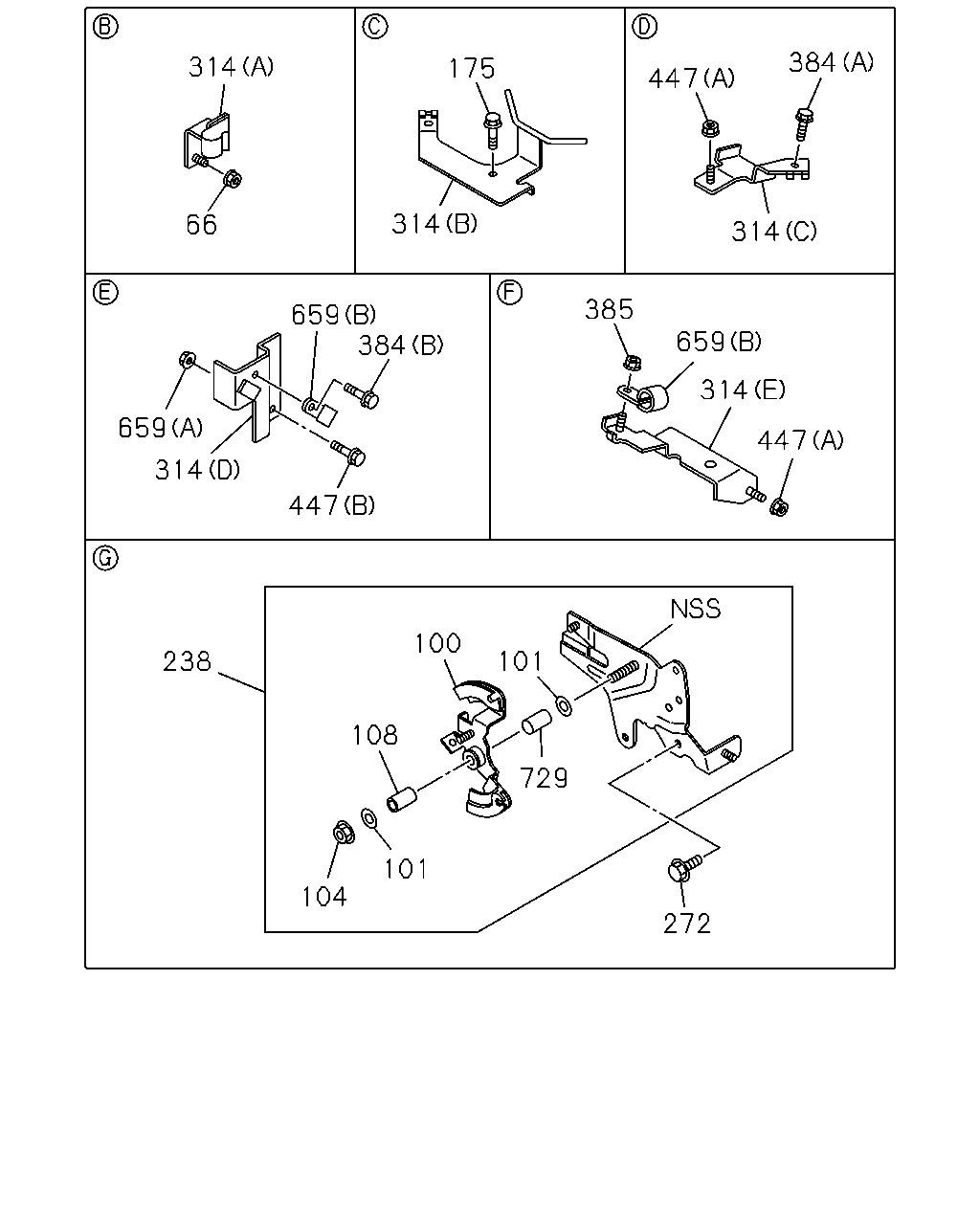

384 314 175 447 314 66 314 385 659 384 659 314 659 447 314 447 100 101 238 108 729 101 104 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
66	03.452 NUT; BRKT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	1012-	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	1012-	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	1012-	●
175	03.483 BOLT; BRKT,ACCEL CABLE 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1210	●
238	03.463 LEVER; ACCEL CONT 4HG1 ENG(RJH)	8-97118-729-0	01	1	1012-	●
272	03.454 BOLT; LEVER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (A)	8-98094-801-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (D)	8-98100-387-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (E)	8-98120-569-1	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (C)	8-98120-570-0	01	1	1012-	●
314	03.481 BRACKET; ACCEL CABLE 4HG1 ENG(RJH) (B)	8-98120-571-0	01	1	1012-1210	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1 ENG(RJH) 03.162 (B) M6X12 FLANGE	0-28050-612-0	01	1	1012-	●
384	03.483 BOLT; CLIP,CONT CABLE 4HG1 ENG(RJH) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
385	03.481 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1 ENG(RJH) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●
447	03.452 NUT; BRKT,CONT WIRE 4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1012-	●
659	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 04.785 (A) ID=16 L=28	0-95235-552-0	01	1	1012-	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	1012-	●

54 385 238 54 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	1012-	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2883	8-98099-702-3	01	1	1012-	●
238	03.463 LEVER; ACCEL CONT 4HG1 ENG(RJH)	8-97118-729-0	01	1	1012-	●
385	03.481 NUT; CLIP 4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 02.559 L=250	5-09707-030-1	01	1	1012-	●

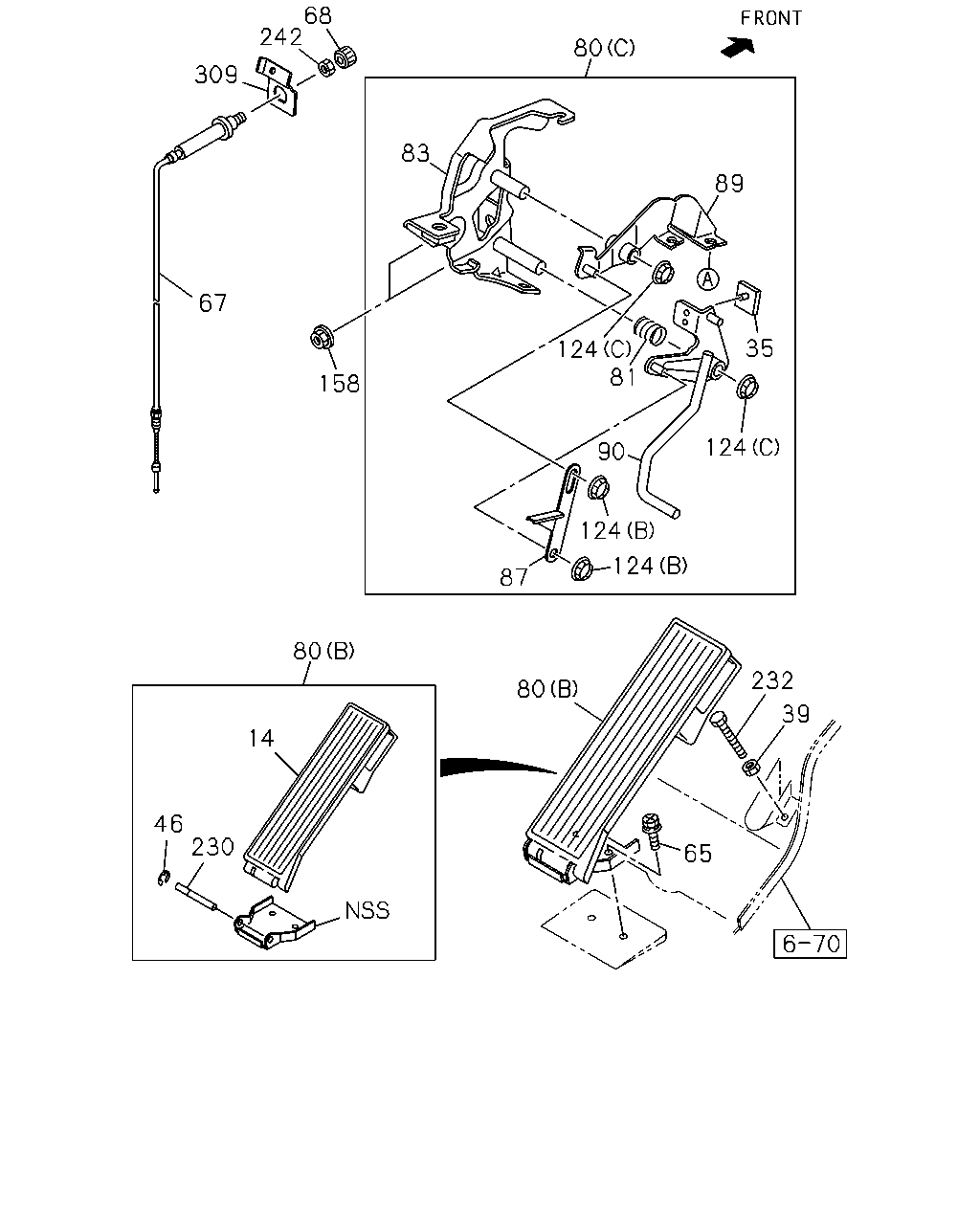

68 242 80 309 83 89 67 35 124 81 158 124 90 124 124 87 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1012-1303	●
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	1304-	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH)	8-97302-305-0	01	1	1012-	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1012-1303	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	1304-	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1012-1303	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	1304-	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-1303	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1304-	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH)	8-98124-108-3	01	1	1012-	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (A)	8-97387-358-3	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (A)	8-97387-358-3	01	1	1304-	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) (C)	8-98038-416-1	01	1	1012-	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1012-1303	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	1304-	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH)	8-98031-665-0	01	1	1012-	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1012-1303	●
83	03.452 BRACKET; CONT LINK 4HK1-TCN ENG(RDQ)	8-98023-885-2	01	1	1304-	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH)	8-98093-900-0	01	1	1012-	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH)	8-97853-204-1	01	1	1012-	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH)	8-97868-042-0	01	1	1012-	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH)	8-98059-513-0	01	1	1012-	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 (A) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1012-1303	●
124	03.463 NUT; LEVER 4HK1-TCN ENG(RDQ) 03.452 (A) ID=7.9 PUSH NUT	8-94368-617-0	01	1	1304-	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	1012-	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH) 09.011 (C) ID=9.9 PUSH NUT	8-97012-098-0	02	1	1012-	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1012-1303	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1304-	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1012-1303	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	1304-	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1012-1303	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	1304-	●	●
242	03.483 NUT; ACCEL PEDAL 4HG1 ENG(RJH) M18	8-97853-233-0	01	1	1012-	●
309	03.483 BRACKET; IDLE CONT CABLE 4HG1 ENG(RJH)	8-98124-981-1	01	1	1012-	●

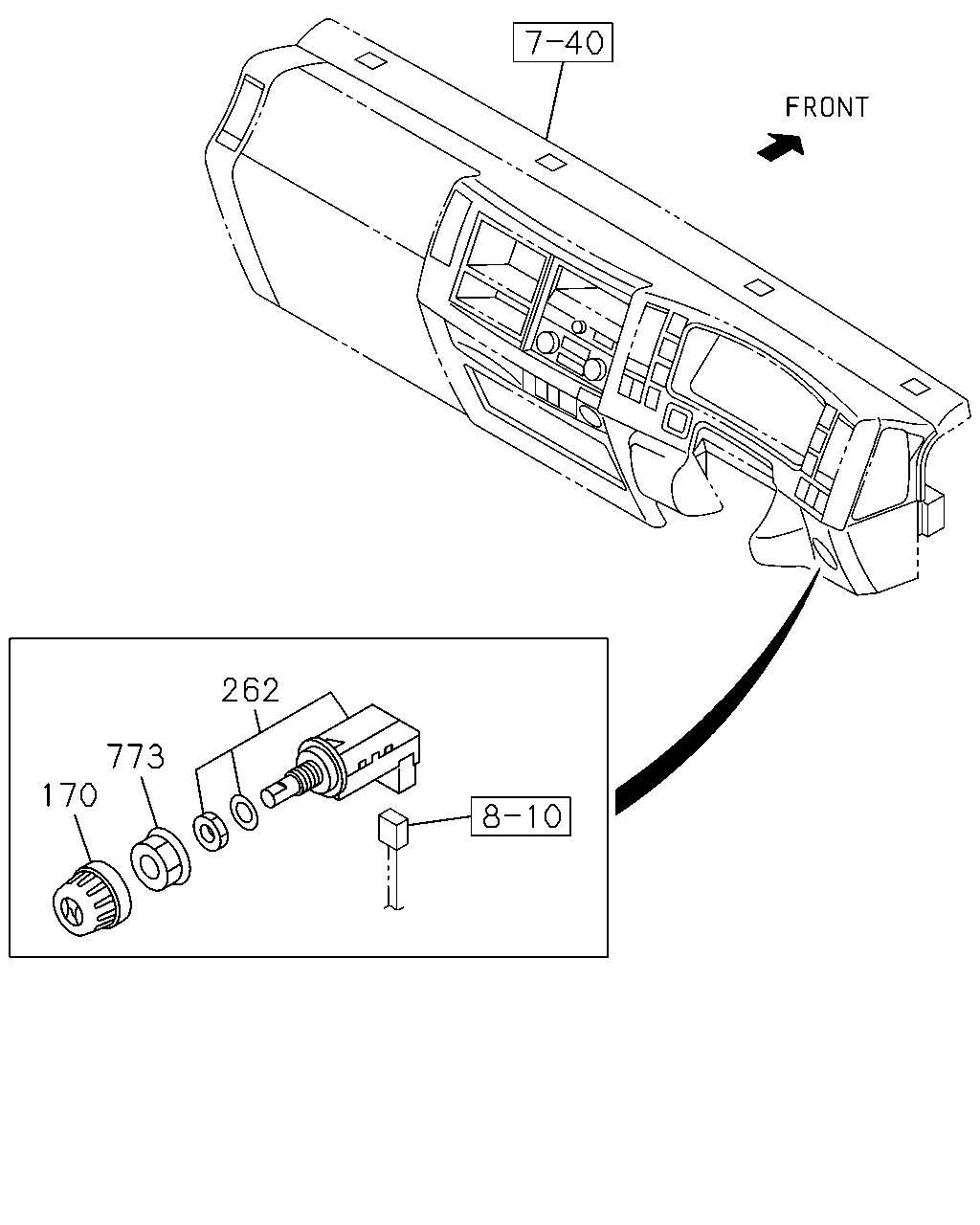

262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	03.480 KNOB	8-98013-420-0	01	1	1012-1012	●
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1101-1303	●
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-98013-420-0	01	1	1304-	●	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1012-1303	●
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-98013-418-0	01	1	1304-	●	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1012-1303	●
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	1304-	●	●
