◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51295 - NPR/NQR BUS CHA(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#54374) — 34 parça

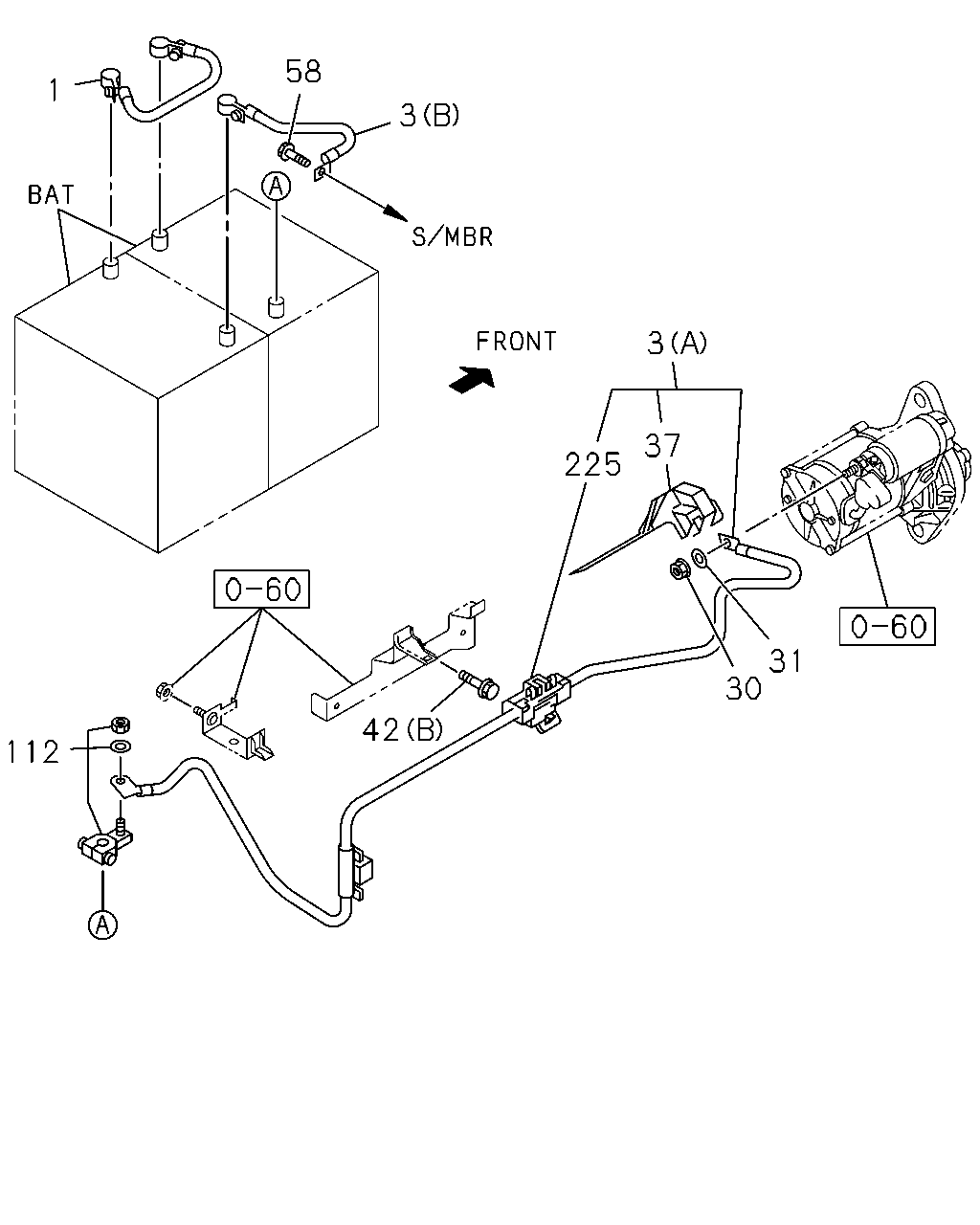

çizim 175482
58 1 3 3 37 225 31 30 42 112
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 1012-1203 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ●

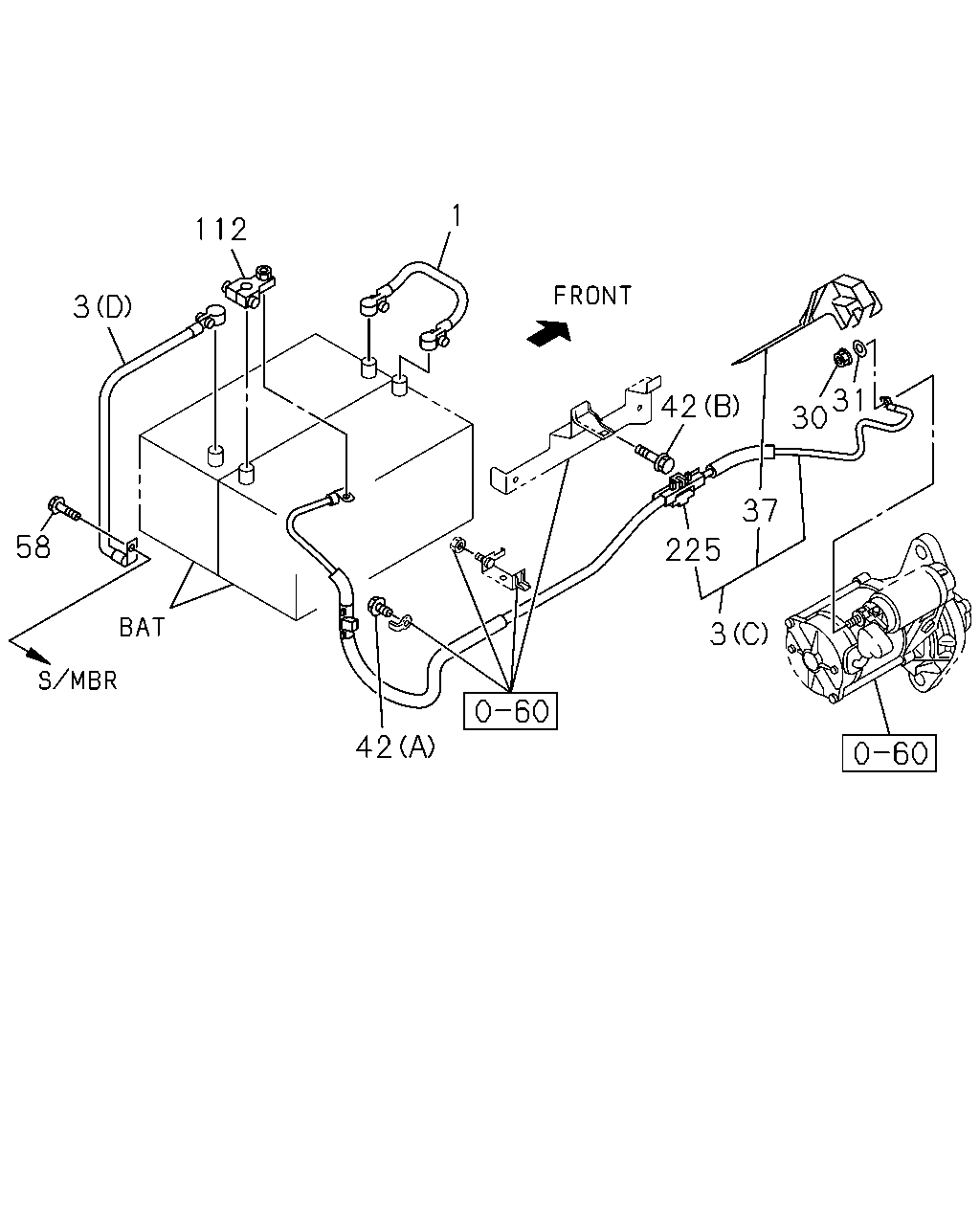

çizim 175483
1 112 3 31 30 42 37 58 225 3 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98056-339-1 01 1 1012-1203 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (D) L=400 		8-98201-105-0 01 1 1204- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (C) 		8-98070-230-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> (C) 		8-98294-721-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ●
