7-40 — INSTRUMENT PANEL AND BOX (#5437) — 114 parça

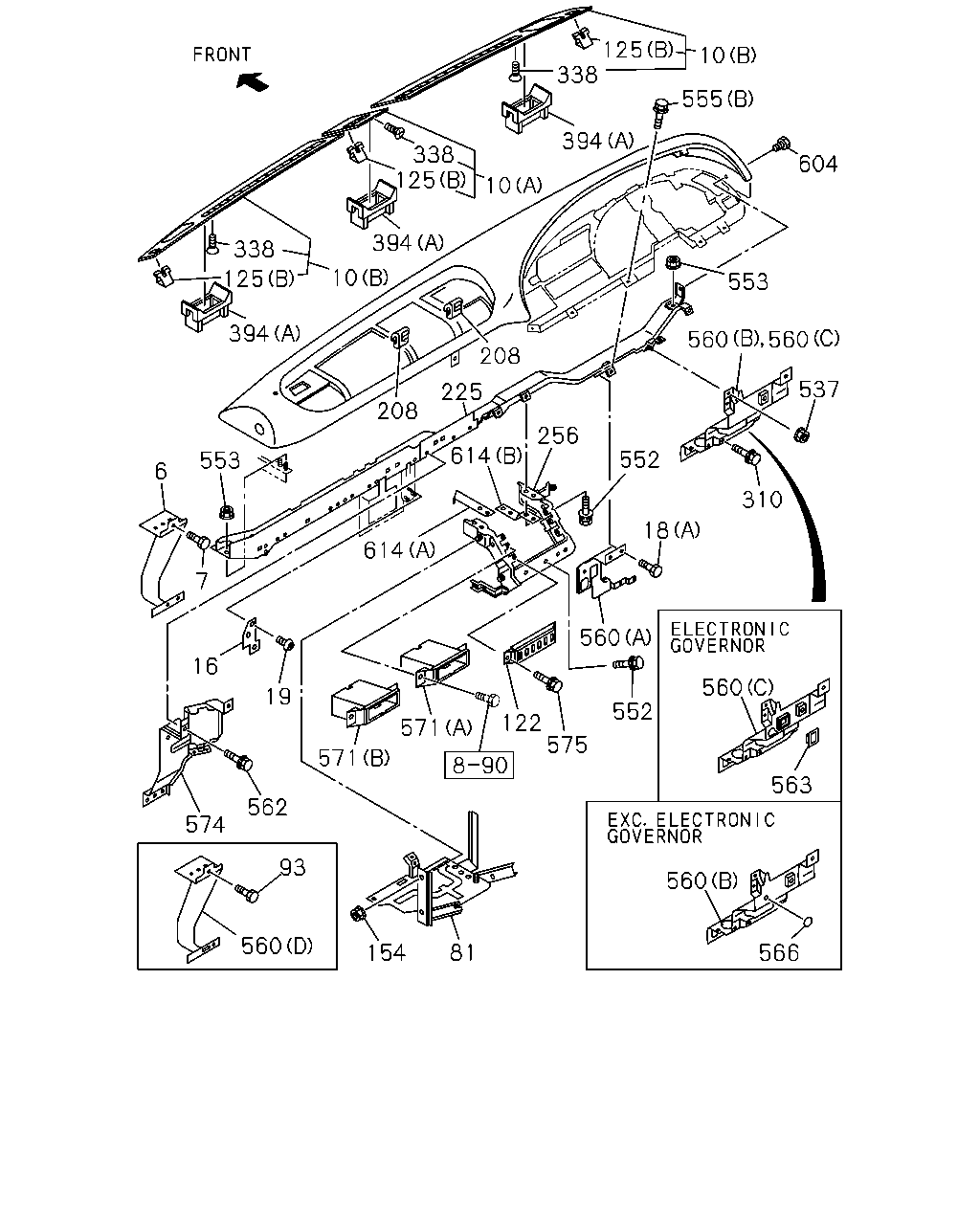

çizim 8214
125 338 10 555 338 125 394 604 10 394 338 10 125 553 394 208 537 225 208 256 614 552 553 6 310 18 614 7 560 16 560 19 552 122 575 571 571 563 562 574 93 560 560 81 154 566 560 560
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-064-2 01 1 9601-
6 SUPPORT; INST PANEL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-65681-063-3 01 1 9601-
7 BOLT; SUPPORT,INST PNL
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-592-1 01 1 9601-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-142-0 01 1 9601-9601
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-158-1 01 1 9602-
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-141-0 01 1 9601-9601
10 PANEL ASM; GARNISH
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-157-1 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) 		1-72437-540-6 01 1 9601-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72437-089-8 01 1 9601-9601
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-601-5 01 1 9602-
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) 		1-72438-150-2 01 1 9601-9601
10 PANEL ASM; GARNISH
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) W/SPEAKER NET 		1-72437-600-5 01 1 9602-
16 BRACKET; INST PNL
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) 		1-73908-023-2 01 1 9601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-
19 SCREW; BRKT
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 02 1 9601-
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9601-0003
81 BRACKET; ELEC CONT UNIT 1-73907-655-5 01 1 0004-
93 BOLT; PANEL BRKT
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9602-
122 PANEL; CENTER CLUSTER 1-65671-550-4 01 1 9601-
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9601-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9601-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9901-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9601-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601-
225 FRAME; FACIA 1-65671-725-6 01 1 9601-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 9601-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
338 SCREW; COVER
EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14 		8-94279-325-0 12 1 9601-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9601-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-
560 BRACKET
(A) 		1-65680-976-2 01 1 9601-
560 BRACKET
(B) 		1-65671-717-6 01 1 9601-9609
560 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-65671-717-8 01 1 9611-
560 BRACKET
ELECTRONIC GOV RED3(KG5) (C) 		1-65671-715-9 01 1 9611-9701
560 BRACKET
ELECTRONIC GOV RED3(KG5) (C) 		1-65671-756-0 01 1 9702-9904
560 BRACKET
ELECTRONIC GOV RED3(KG5) (C) 		1-65671-760-0 01 1 9905-
560 BRACKET
HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (D) 		1-65671-751-0 01 1 9602-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-
563 BEZEL; BRKT
ELECTRONIC GOV RED3(KG5) 		1-72448-410-3 01 1 9611-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9601-
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9812
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9601-9812
571 BEZEL; POCKET
(B) 		1-72438-151-1 01 1 9901-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-1 01 1 9901-
574 PANEL; RELAY BOX 1-73907-365-6 01 1 9601-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-
604 CLIP; INST PAD 1-09983-123-0 01 1 9601-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9601-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9601-

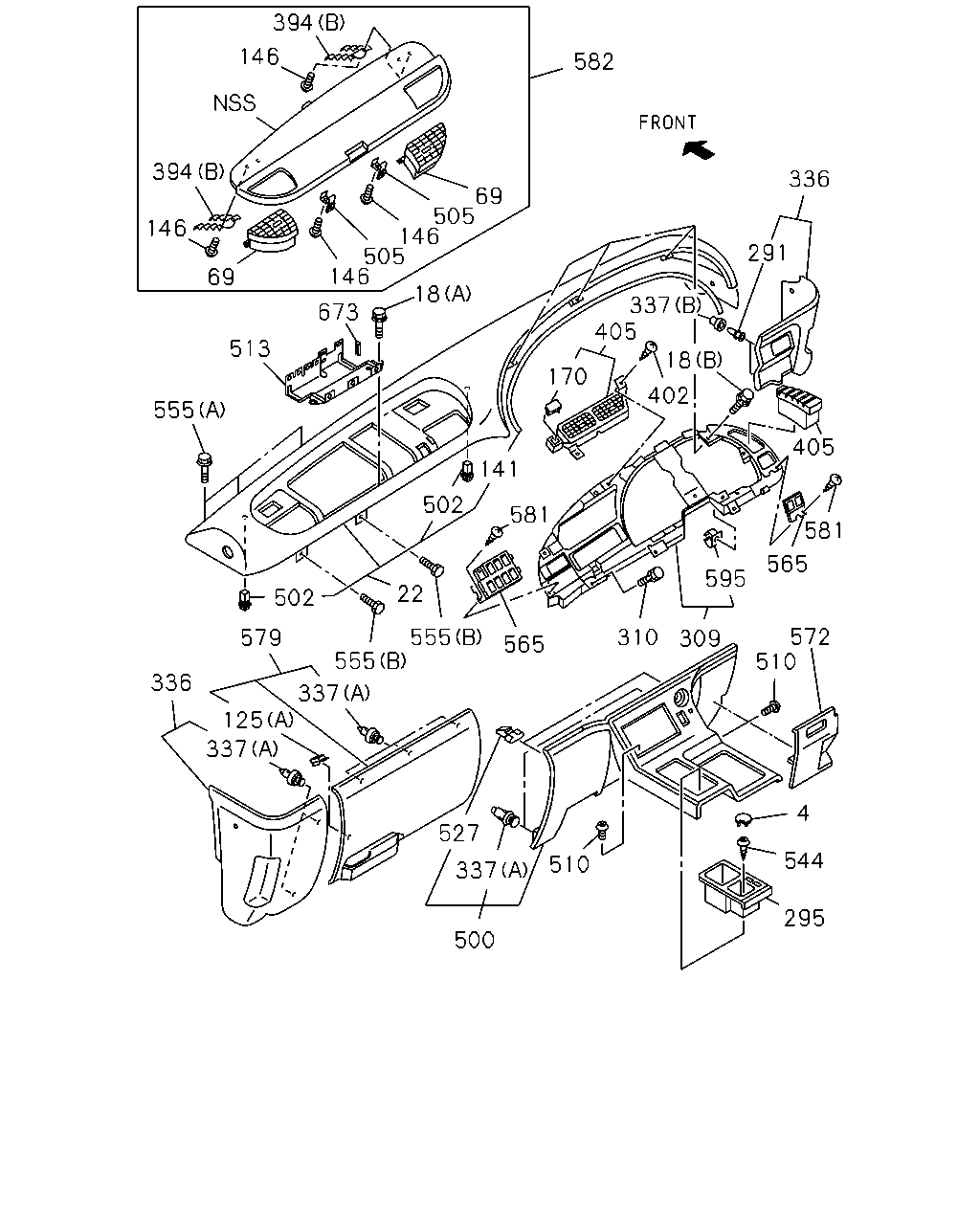

çizim 8317
394 146 582 394 336 69 505 146 505 146 146 291 69 337 405 18 673 513 18 170 402 555 405 141 581 502 581 565 595 22 502 572 510 555 555 310 579 309 565 336 337 125 337 4 527 544 510 337 295 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-
22 PAD; INST
DARK GRAY 		1-72317-344-1 01 1 9601-
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		1-76368-029-5 01 1 9601-
69 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		1-76368-028-5 01 1 9601-
125 CLIP; INST PANEL
(A) 		8-97853-939-4 01 1 9601-9812
125 CLIP; INST PANEL
(A) 		8-97217-066-0 01 1 9901-
125 CLIP; INST PANEL
(B) 		8-97853-939-4 10 1 9601-9812
125 CLIP; INST PANEL
(B) 		8-97217-066-0 10 1 9901-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601-
170 COVER; HOLE 1-76367-068-0 01 1 9601-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9601-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9601-
309 PANEL; SW,INST 1-72418-009-6 01 1 9601-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9601-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9601-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 9601-9606
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9607-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9601-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9607-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9601-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-
405 GRILLE ASM; METER VENT 1-76367-062-1 01 1 9601-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 9601-
500 CLUSTER; INST CENTER 1-72437-590-0 01 1 9601-9606
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9607-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9607-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601-
505 LOCK; LID 1-72558-024-2 02 1 9601-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9601-
513 BRACKET; RELAY 1-73908-009-9 01 1 9601-
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9812
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9601-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9601-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601-
565 BEZEL; SW PANEL 1-72418-010-1 01 1 9601-
565 BEZEL; SW PANEL 1-72418-011-2 01 1 9601-
572 COVER; INSPECTION 1-72437-098-3 01 1 9601-9808
572 COVER; INSPECTION 1-72437-633-0 01 1 9809-
579 COVER; INST PNL 1-72437-542-3 01 1 9601-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9601-
595 NUT; HOOK 1-72418-013-0 11 1 9601-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-
çizim 8339
18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 9906-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9601-
