0-36 — TURBOCHARGER SYSTEM (#54356) — 1141 parça

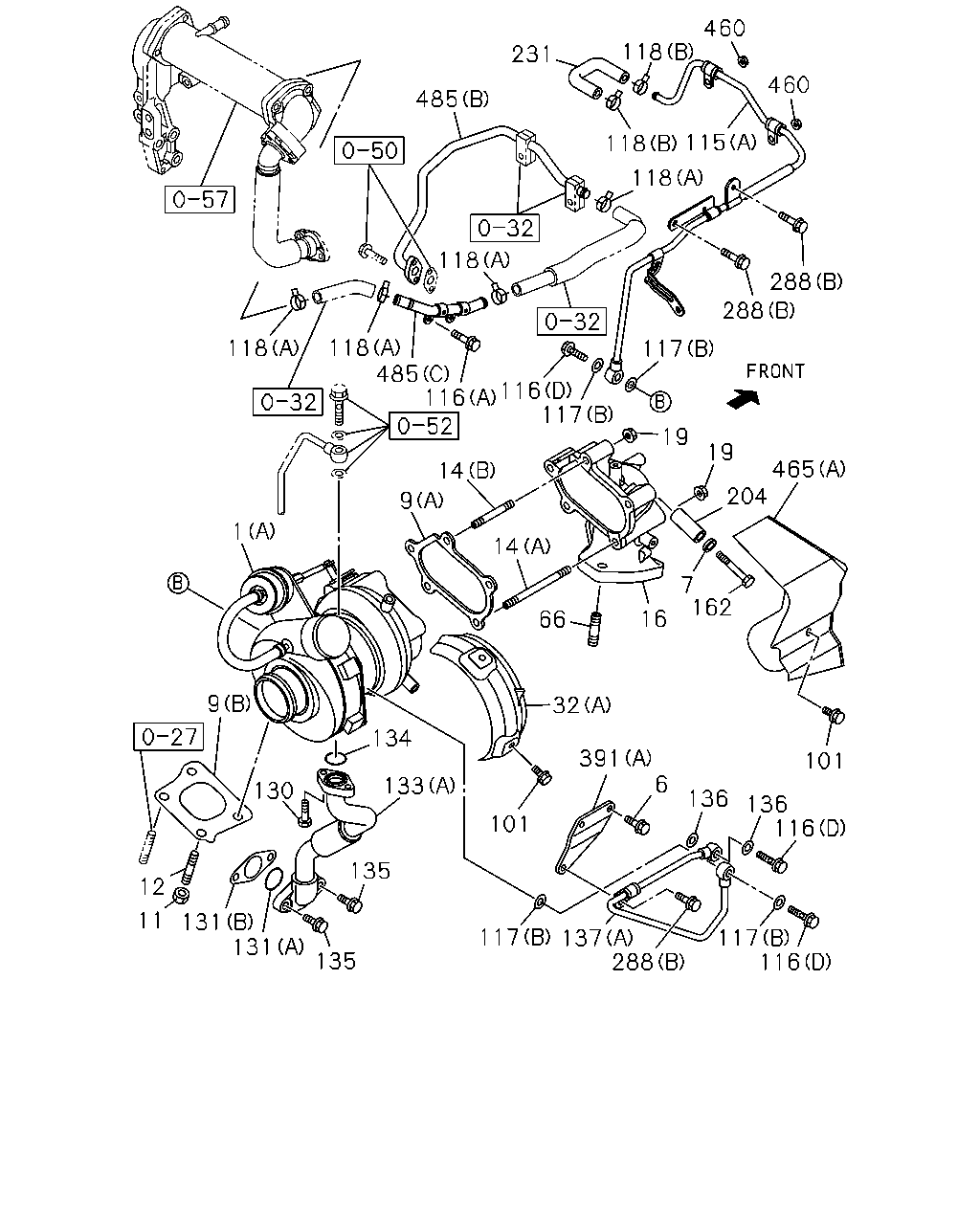

çizim 120119
135 131 131 11 12 130 135 133 134 101 117 137 117 116 116 136 136 391 101 9 1 9 14 118 118 118 116 116 117 19 14 16 162 19 117 118 118 118 115 460 460 231 485 485 204 465 7 66 6 32 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
6 03.417 BOLT; BRKT TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0803- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-3 01 1 1105- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F) 		8-98011-532-0 01 1 0809- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98015-116-1 01 1 0804-1104 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-1 01 1 1105- ●
11 03.342 NUT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
11 03.342 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0803 ● ●
11 03.342 NUT; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0804- ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0803-0803 ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0804-0805 ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE 		8-97381-617-0 04 1 0806- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0804-0808 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0809-1104 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
12 03.342 STUD; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0803-0803 ● ●
12 03.342 STUD; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0804- ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0803-0803 ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0804-0805 ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30 L=45 		1-09302-106-0 02 1 0806- ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0804-0808 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0809- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0803-0803 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0804- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 03 1 0809-0903 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0904- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0804-0903 ●
16 03.609 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0803-0803 ● ●
16 03.609 ADAPTER; EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98009-717-3 01 1 0809-0910 ●
16 03.609 ADAPTER; EXH PIPE 8-98147-897-1 01 1 0911- ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-2 01 1 0803-0803 ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-3 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 0804-1104 ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 1105- ● ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) 		8-98012-735-4 01 1 1105- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0803-0803 ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0804- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0803-0803 ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0803-0803 ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(D) 		8-98034-990-3 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(C) 		8-98034-991-1 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0803-0803 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0804- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0803- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0804-0808 ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0809- ● ●
101 03.602 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0803- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0803-0803 ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98113-333-0 01 1 0809- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0803-0803 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 0804-1104 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 1105- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98113-710-0 01 1 1105- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 01 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0803- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0804-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=12.6 		8-97331-137-1 02 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0803 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0804-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0804- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0804-0804 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) 		8-97262-117-0 01 1 0809- ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0803- ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0803-1006 ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30 		8-94394-671-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-1 01 1 0803-0803 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-2 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98172-658-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-0 01 1 0803-0803 ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-1 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98172-661-0 01 1 1007- ● ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0803- ● ●
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 0803- ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0803-1312 ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0803-0803 ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0803-0803 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0804-0808 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0809- ● ●
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0803- ● ●
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0804-0808 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0809- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0803-0803 ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0803-0803 ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
(A) 		8-97371-730-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0803-0803 ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0804- ● ●
460 03.374 NUT; PIPE
EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
460 03.374 NUT; PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0803-0803 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0804-1204 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98176-248-0 01 1 1205- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0803-0803 ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (B) 		8-97376-773-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (C) 		8-98064-164-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
(E) 		8-97381-651-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
(F) 		8-97381-652-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0803-0803 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
(A) 		8-98041-637-1 01 1 0803-0803 ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-98041-637-1 01 1 0804- ● ●

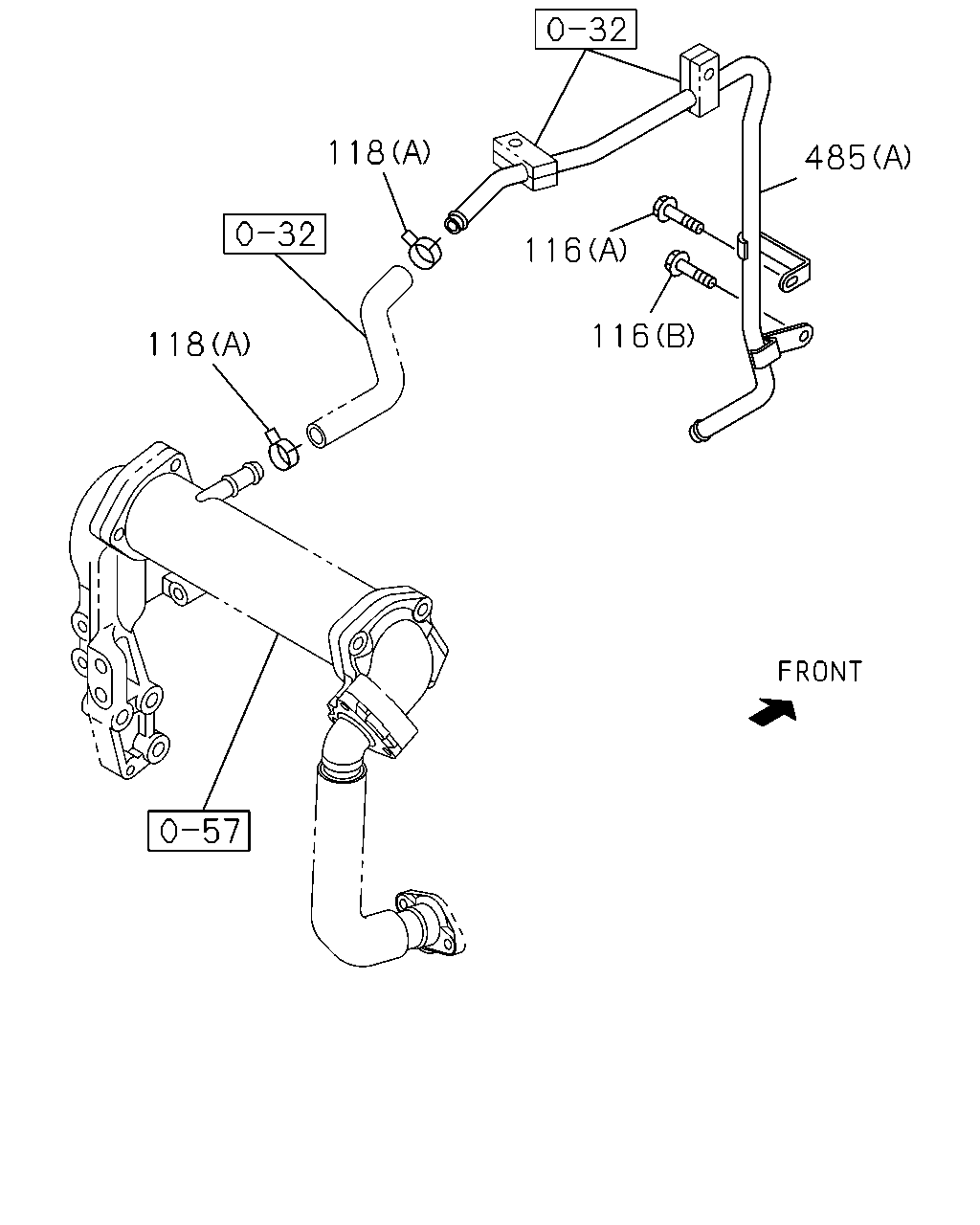

çizim 120120
118 485 116 116 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 01 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0803- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0804-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805- ● ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (B) 		8-97376-773-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (C) 		8-98064-164-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
(E) 		8-97381-651-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
(F) 		8-97381-652-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0803-0803 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
(A) 		8-98041-637-1 01 1 0803-0803 ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-98041-637-1 01 1 0804- ● ●

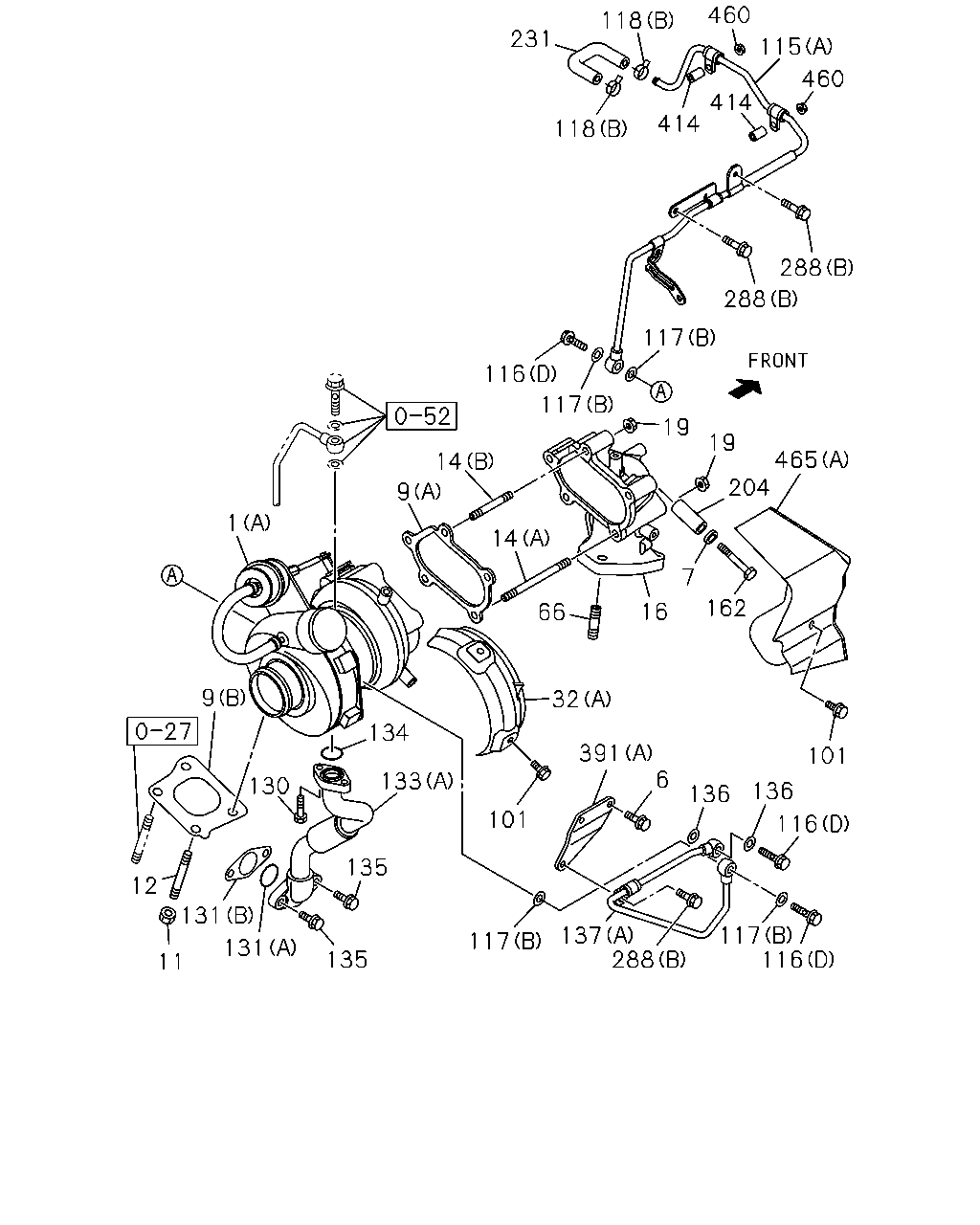

çizim 120121
116 117 116 101 136 136 6 391 32 101 117 288 137 133 134 135 135 131 131 11 12 130 9 1 9 14 14 16 66 162 7 204 465 19 19 117 117 116 288 288 460 414 414 118 118 460 115 231
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
6 03.417 BOLT; BRKT TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0803- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-3 01 1 1105- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F) 		8-98011-532-0 01 1 0809- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98015-116-1 01 1 0804-1104 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-1 01 1 1105- ●
11 03.342 NUT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
11 03.342 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0803 ● ●
11 03.342 NUT; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0804- ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0803-0803 ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0804-0805 ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE 		8-97381-617-0 04 1 0806- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0804-0808 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0809-1104 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
12 03.342 STUD; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0803-0803 ● ●
12 03.342 STUD; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0804- ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0803-0803 ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0804-0805 ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30 L=45 		1-09302-106-0 02 1 0806- ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0804-0808 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0809- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0803-0803 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0804- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 03 1 0809-0903 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0904- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0804-0903 ●
16 03.609 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0803-0803 ● ●
16 03.609 ADAPTER; EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98009-717-3 01 1 0809-0910 ●
16 03.609 ADAPTER; EXH PIPE 8-98147-897-1 01 1 0911- ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-2 01 1 0803-0803 ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-3 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 0804-1104 ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 1105- ● ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) 		8-98012-735-4 01 1 1105- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0803-0803 ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0804- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0803-0803 ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0803-0803 ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(D) 		8-98034-990-3 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(C) 		8-98034-991-1 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0803-0803 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0804- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0803- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0804-0808 ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0809- ● ●
101 03.602 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0803- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0803-0803 ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98113-333-0 01 1 0809- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0803-0803 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 0804-1104 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 1105- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98113-710-0 01 1 1105- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 01 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0803- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0804-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=12.6 		8-97331-137-1 02 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0803 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0804-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0804- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0804-0804 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) 		8-97262-117-0 01 1 0809- ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0803- ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0803-1006 ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30 		8-94394-671-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-1 01 1 0803-0803 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-2 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98172-658-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-0 01 1 0803-0803 ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-1 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98172-661-0 01 1 1007- ● ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0803- ● ●
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 0803- ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0803-1312 ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0803-0803 ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0803-0803 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0804-0808 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0809- ● ●
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0803- ● ●
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0804-0808 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0809- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0803-0803 ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0803-0803 ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
(A) 		8-97371-730-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0803-0803 ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0804- ● ●
414 03.602 SPACER
EURO2 SPECIFICATION(NT2) 01.429 M8X10 		1-11369-081-0 02 1 0804- ● ●
460 03.374 NUT; PIPE
EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0803-0803 ● ●
460 03.374 NUT; PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0803-0803 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0804-1204 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98176-248-0 01 1 1205- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0803-0803 ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0804- ● ●

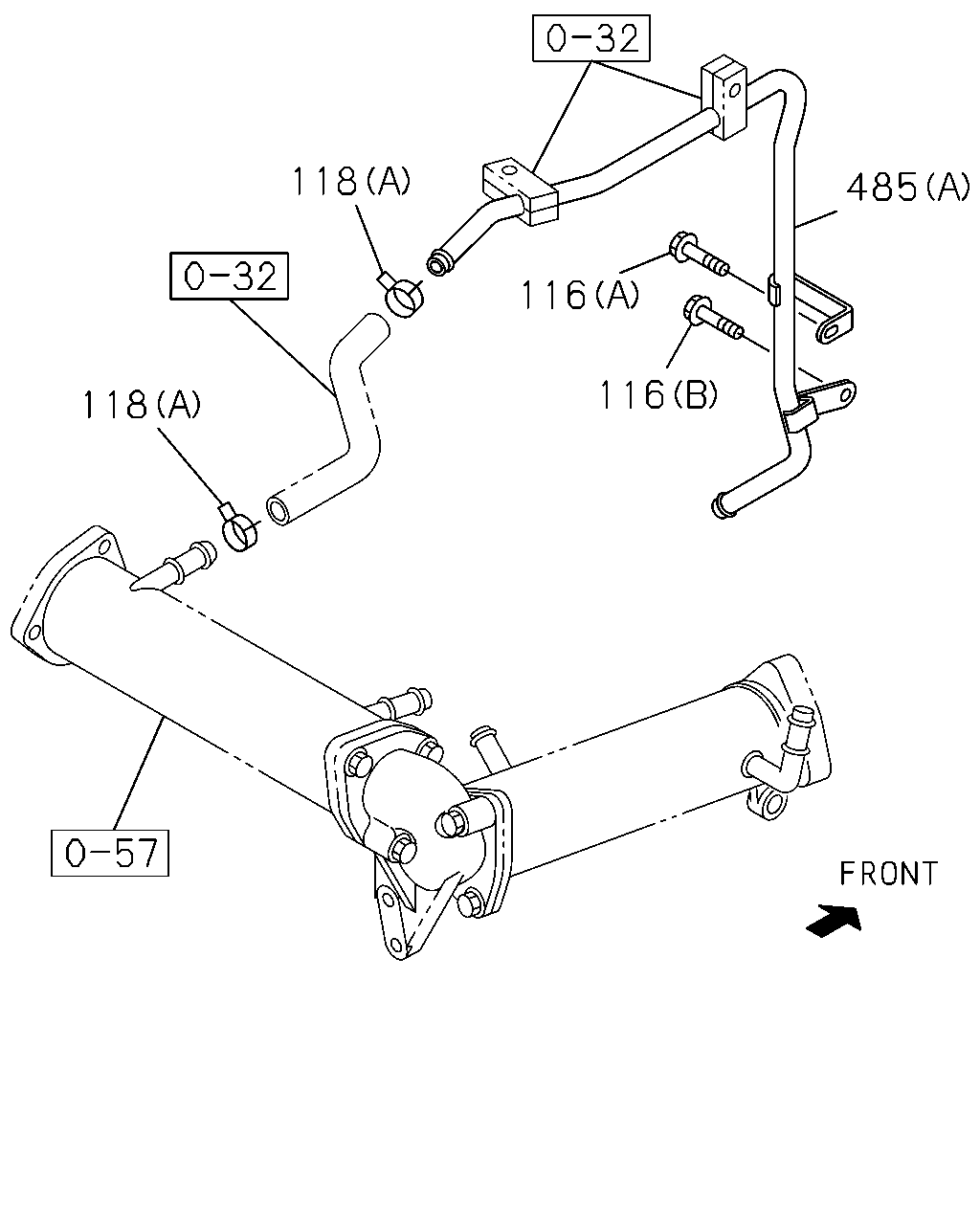

çizim 120122
118 485 116 116 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 01 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0803- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0804-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805- ● ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (B) 		8-97376-773-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (C) 		8-98064-164-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
(E) 		8-97381-651-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
(F) 		8-97381-652-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0803-0803 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
(A) 		8-98041-637-1 01 1 0803-0803 ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-98041-637-1 01 1 0804- ● ●

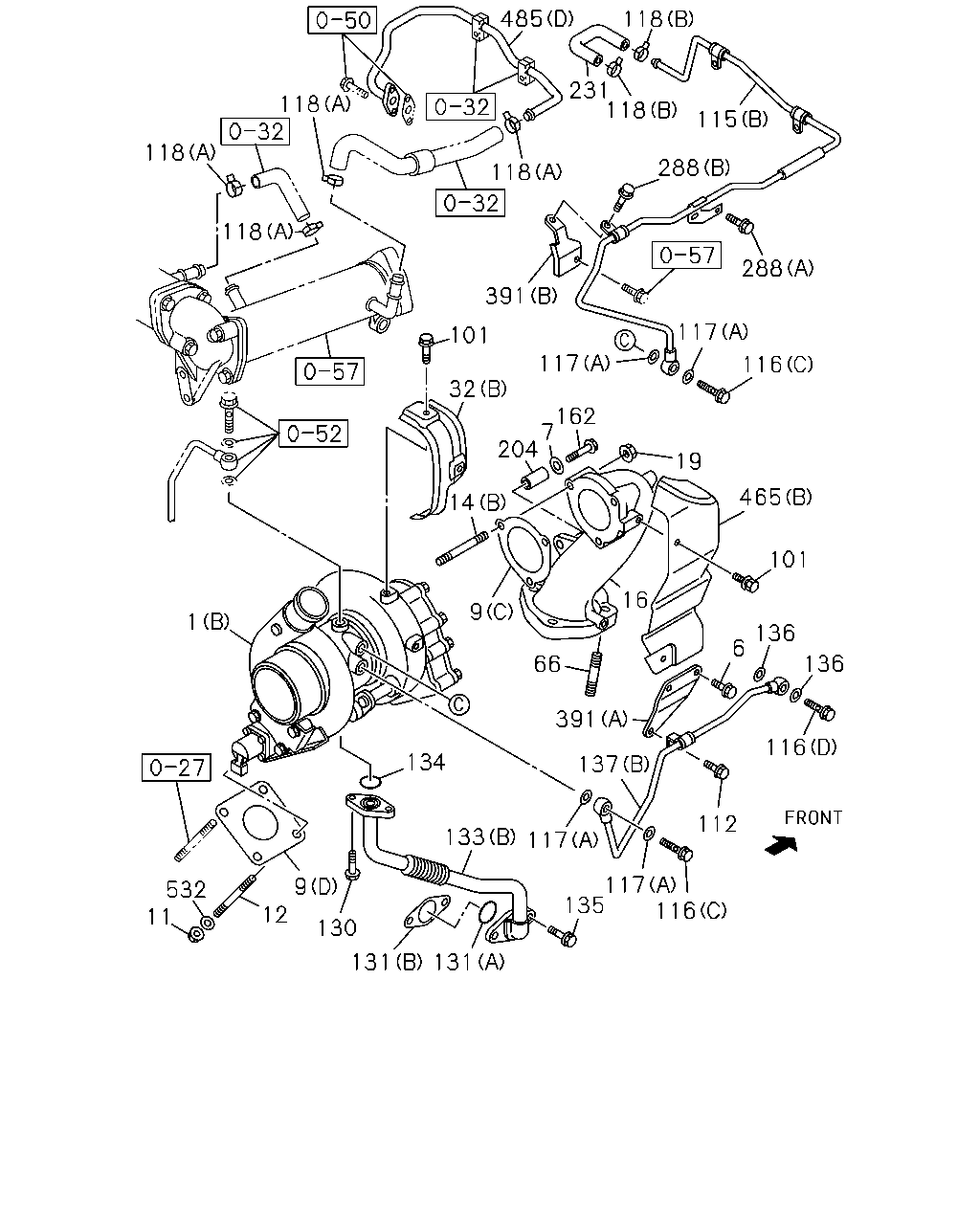

çizim 120123
485 118 231 118 118 115 118 288 118 118 288 391 117 101 117 116 32 162 7 204 19 465 14 101 16 9 1 136 6 136 66 391 116 134 137 112 133 117 117 135 116 9 12 532 11 130 131 131
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
6 03.417 BOLT; BRKT TO C/BL
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0803- ● ●
7 03.613 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0803- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-3 01 1 1105- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F) 		8-98011-532-0 01 1 0809- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98015-116-1 01 1 0804-1104 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-1 01 1 1105- ●
11 03.342 NUT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
11 03.342 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0803 ● ●
11 03.342 NUT; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0804- ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0803-0803 ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0804-0805 ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE 		8-97381-617-0 04 1 0806- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0804-0808 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0809-1104 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
12 03.342 STUD; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0803-0803 ● ●
12 03.342 STUD; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0804- ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0803-0803 ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0804-0805 ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30 L=45 		1-09302-106-0 02 1 0806- ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0804-0808 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0809- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0803-0803 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0804- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 03 1 0809-0903 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0904- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0804-0903 ●
16 03.609 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0803-0803 ● ●
16 03.609 ADAPTER; EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98009-717-3 01 1 0809-0910 ●
16 03.609 ADAPTER; EXH PIPE 8-98147-897-1 01 1 0911- ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-2 01 1 0803-0803 ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-3 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 0804-1104 ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 1105- ● ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) 		8-98012-735-4 01 1 1105- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0803-0803 ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.604 M8 FLANGE 		8-94170-486-0 05 1 0804- ● ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0803-0803 ●
19 03.342 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M8 FLANGE 		8-94170-486-0 03 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0803-0803 ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(D) 		8-98034-990-3 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(C) 		8-98034-991-1 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0803-0803 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0804- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0803- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0804-0808 ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0809- ● ●
101 03.602 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0803- ● ●
112 03.417 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0803-0803 ●
112 03.417 BOLT; CLIP
EURO4 SPECIFICATION(NT4) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0803-0803 ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98113-333-0 01 1 0809- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0803-0803 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 0804-1104 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 1105- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98113-710-0 01 1 1105- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 01 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) 01.531 (C) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 04 1 0803- ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0804-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) M14X30 EYE-BOLT 		8-94455-144-0 03 1 0805- ● ●
116 03.342 BOLT; WATER PIPE
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803-0803 ● ●
116 03.342 BOLT; WATER PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.531 (A) M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ●
116 03.342 BOLT; WATER PIPE
(D) M14X30 EYE-BOLT 		8-94455-144-0 02 1 0803-0804 ● ●
116 03.342 BOLT; WATER PIPE
EURO4 SPECIFICATION(NT4) (D) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0805- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=12.6 		8-97331-137-1 02 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0803 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0804-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0804- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0804-0804 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) 		8-97262-117-0 01 1 0809- ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
130 01.531 BOLT; OIL PIPE TO TURBOCHARGER D
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0803- ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7 		9-09566-228-0 01 1 0803-1006 ● ●
131 01.531 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30 		8-94394-671-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-1 01 1 0803-0803 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97148-925-2 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98172-658-0 01 1 1007- ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-0 01 1 0803-0803 ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-97386-642-1 01 1 0804-1006 ● ●
133 03.358 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98172-661-0 01 1 1007- ● ●
134 01.531 GASKET; OIL PIPE,TURBOCHARGER DR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0803- ● ●
135 01.531 BOLT; OIL PIPE TO C/BL
04.338 M8X20 FLANGE 		0-28050-820-0 02 1 0803- ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 02 1 0803-1312 ● ●
136 01.519 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0803-0803 ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0803-0803 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0804-0808 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0809- ● ●
162 03.613 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0803- ● ●
204 03.342 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0804-0808 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0809- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0803-0803 ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 02.343 (B) M8X12 FLANGE 		0-28050-812-0 02 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0803-0803 ●
288 03.342 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION(NT4) 03.407 (A) M8X10 FLANGE 		0-28050-810-0 01 1 0804- ● ●
288 03.342 BOLT; WATER PIPE CLIP
02.343 (B) M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
(A) 		8-97371-730-0 01 1 0803- ● ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0803-0803 ●
391 03.342 BRACKET; WATER PIPE
EURO4 SPECIFICATION(NT4) (B) 		8-98013-958-0 01 1 0804- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0803-0803 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 (A) 		8-97351-167-0 01 1 0804-1204 ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98176-248-0 01 1 1205- ● ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0803-0803 ●
465 03.602 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION(NT4) 03.417 (B) 		8-98052-394-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (B) 		8-97376-773-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (C) 		8-98064-164-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
(E) 		8-97381-651-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
(F) 		8-97381-652-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0803-0803 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
(A) 		8-98041-637-1 01 1 0803-0803 ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-98041-637-1 01 1 0804- ● ●
532 03.407 WASHER; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.613 ID=10 		1-09503-033-1 04 1 0803-0803 ●
532 03.407 WASHER; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.613 ID=10 		1-09503-033-1 04 1 0804-0805 ● ●
çizim 120124
1 71 143 389 143 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98159-280-1 01 1 1002- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0809-1001 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (F) 		8-98055-062-2 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1002- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0804-0811 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0804- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0804-0808 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0809-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=45-65 		8-98133-348-0 04 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1002- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0803-0803 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0804- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0804-0808 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0809- ● ●
çizim 120125
9 14 33 173 16 18 534 66 251 173 217 217 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-3 01 1 1105- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F) 		8-98011-532-0 01 1 0809- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98015-116-1 01 1 0804-1104 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-1 01 1 1105- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0803-0803 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0804- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 03 1 0809-0903 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0904- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0804-0903 ●
16 03.609 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0803-0803 ● ●
16 03.609 ADAPTER; EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98009-717-3 01 1 0809-0910 ●
16 03.609 ADAPTER; EXH PIPE 8-98147-897-1 01 1 0911- ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-2 01 1 0803-0803 ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-3 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 0804-1104 ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 1105- ● ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) 		8-98012-735-4 01 1 1105- ● ●
18 03.613 NUT; EXH PIPE
VIETNAM EQUIPMENT(CL0) 03.342 M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 03 1 0809-0903 ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 0904-1104 ● ●
18 03.613 NUT; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97161-607-0 02 1 1105- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 1105- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 0804-0903 ●
33 03.342 BOLT; HEAT PROTECTOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 03 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 07 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 0804-1104 ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
33 03.342 BOLT; HEAT PROTECTOR
EXC. VIETNAM EQUIPMENT(CL0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0803- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0804-0808 ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0809- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(C) 		8-98032-022-3 01 1 0809- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-98032-023-1 01 1 0804-1104 ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-98032-023-1 01 1 1105- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) 		8-98032-023-1 01 1 1105- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-2 01 1 0804-0808 ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-3 01 1 0809- ● ●
217 03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE 		0-28051-070-0 02 1 0804-0808 ●
217 03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809- ● ●
217 03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE 		8-98032-158-0 02 1 0804-0808 ●
217 03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE 		8-98032-158-0 02 1 0809- ● ●
251 03.417 BRACKET; ADAPTER 8-98009-098-1 01 1 0804-0808 ●
251 03.417 BRACKET; ADAPTER 8-98009-098-1 01 1 0809- ● ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 01 1 0809-0903 ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 0904- ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE 		8-98053-224-0 02 1 0804-1104 ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE 		8-98053-224-0 02 1 1105- ● ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) M8X35 FLANGE 		8-98053-224-0 02 1 1105- ● ●
çizim 120127
138 117 117 423 117 138 117 117 117 525 488 137 115 231 118 118 118 119 118
BalonParca AdiParca NoAdetTipApplied Date A B C D
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0803-0803 ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98113-333-0 01 1 0809- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0803-0803 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 0804-1104 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 1105- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98113-710-0 01 1 1105- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=12.6 		8-97331-137-1 02 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0803 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0804-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0804- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0804-0804 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) 		8-97262-117-0 01 1 0809- ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
119 03.342 HOSE; WATER,TURBOCHARGER 8-98113-336-0 01 1 0804-0808 ●
119 03.342 HOSE; WATER,TURBOCHARGER 8-98113-336-0 01 1 0809- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0803-0803 ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0803-0803 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0804-0808 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0809- ● ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0804-0808 ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0809- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0804-0808 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0809- ● ●
423 03.373 STUD; WATER PIPE
00.206 M6X16 L=25 		0-41010-616-0 01 1 0804-1104 ●
423 03.373 STUD; WATER PIPE
00.206 M6X16 L=25 		0-41010-616-0 01 1 1105- ● ●
423 03.373 STUD; WATER PIPE
EXC. VIETNAM EQUIPMENT(CL0) 00.206 M6X16 L=25 		0-41010-616-0 01 1 1105- ● ●
488 03.163 HOSE; RUBBER
01.540 (A) L=110 SERVICED BY L=3000 		0-03566-300-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(B) L=120 SERVICED BY L=3000 		0-03666-300-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(C) 		8-98015-118-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(D) 		8-98066-091-0 01 1 0804-1104 ●
488 03.163 HOSE; RUBBER
(D) 		8-98066-091-0 01 1 1105- ● ●
488 03.163 HOSE; RUBBER
EXC. VIETNAM EQUIPMENT(CL0) (D) 		8-98066-091-0 01 1 1105- ● ●
525 03.373 PLATE; WATER,TURBO
VIETNAM EQUIPMENT(CL0) ID=6.4 OD=18 		0-91614-706-0 01 1 1105- ● ●
525 03.373 PLATE; WATER,TURBO
02.334 ID=6.4 OD=18 		9-09164-706-0 01 1 0804-1104 ●
525 03.373 PLATE; WATER,TURBO
EXC. VIETNAM EQUIPMENT(CL0) 02.334 ID=6.4 OD=18 		9-09164-706-0 01 1 1105- ●
çizim 120128
143 71 143 1 2 11 12 389 309 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) 		8-97912-697-0 01 1 1105- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 0804-0808 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 0809-1104 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 1105- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 1105- ●
11 03.342 NUT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
11 03.342 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0803 ● ●
11 03.342 NUT; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0804- ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0803-0803 ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0804-0805 ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE 		8-97381-617-0 04 1 0806- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0804-0808 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0809-1104 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
12 03.342 STUD; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0803-0803 ● ●
12 03.342 STUD; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0804- ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0803-0803 ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0804-0805 ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30 L=45 		1-09302-106-0 02 1 0806- ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0804-0808 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98159-280-1 01 1 1002- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0809-1001 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (F) 		8-98055-062-2 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1002- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0804-0811 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0804- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0804-0808 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0809-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=45-65 		8-98133-348-0 04 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1002- ● ●
309 03.342 BOLT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98041-363-0 02 1 1105- ● ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803-0803 ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0804-0808 ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0809-1104 ● ●
309 03.342 BOLT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0803-0803 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0804- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0804-0808 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0809- ● ●
çizim 120132
71 143 1 389 143 143 71 143 309 527
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98159-280-1 01 1 1002- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0809-1001 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (F) 		8-98055-062-2 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1002- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0804-0811 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0804- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0804-0808 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0809-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=45-65 		8-98133-348-0 04 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1002- ● ●
309 03.342 BOLT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98041-363-0 02 1 1105- ● ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803-0803 ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0804-0808 ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0809-1104 ● ●
309 03.342 BOLT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0803-0803 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0804- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0804-0808 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0809- ● ●
527 03.373 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 		8-98105-299-0 01 1 0803-0803 ●
527 03.373 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 		8-98105-299-0 01 1 0804- ● ●
çizim 120470
138 138 117 117 117 117 117 117 118 137 488 117 118 118 21 231 485 118 21 485 115 118 118 119 118 33 118 118 488 118 488 9 14 173 18 16 534 217 66 251 173 217 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-3 01 1 1105- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97039-777-1 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0803-0803 ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-97374-412-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.611 (F) 		8-98011-532-0 01 1 0809- ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (C) ID=54 		8-97376-758-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0803-0803 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EURO4 SPECIFICATION(NT4) (D) ID=49 		8-98046-241-0 01 1 0804- ● ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (E) 		8-98015-116-1 01 1 0804-1104 ●
9 03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) (E) 		8-98015-116-1 01 1 1105- ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0803-0803 ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M8X94 L=108 		8-97019-477-0 02 1 0804- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 03 1 0809-0903 ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0904- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0803- ● ●
14 03.342 STUD; TURBOCHARGER TO EXH PIPE
03.601 (C) M8X25 L=36 		8-97378-062-0 02 1 0804-0903 ●
16 03.609 ADAPTER; EXH PIPE
EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0803-0803 ● ●
16 03.609 ADAPTER; EXH PIPE
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97039-749-2 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98009-717-3 01 1 0809-0910 ●
16 03.609 ADAPTER; EXH PIPE 8-98147-897-1 01 1 0911- ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-2 01 1 0803-0803 ●
16 03.609 ADAPTER; EXH PIPE
EURO4 SPECIFICATION(NT4) 		8-98030-080-3 01 1 0804- ● ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 0804-1104 ●
16 03.609 ADAPTER; EXH PIPE 8-98012-735-4 01 1 1105- ● ●
16 03.609 ADAPTER; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) 		8-98012-735-4 01 1 1105- ● ●
18 03.613 NUT; EXH PIPE
VIETNAM EQUIPMENT(CL0) 03.342 M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 03 1 0809-0903 ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 0904-1104 ● ●
18 03.613 NUT; EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97161-607-0 02 1 1105- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 1105- ●
18 03.613 NUT; EXH PIPE
M8 FLANGE 		8-97161-607-0 02 1 0804-0903 ●
21 03.358 BOLT; PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0809- ●
21 03.358 BOLT; PIPE
M6X20 HEX SOCKET 		0-58330-620-0 02 1 0809-0809 ●
21 03.358 BOLT; PIPE
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0810- ●
33 03.342 BOLT; HEAT PROTECTOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 03 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 07 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 0804-1104 ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
33 03.342 BOLT; HEAT PROTECTOR
EXC. VIETNAM EQUIPMENT(CL0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0803- ● ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0804-0808 ●
66 03.342 STUD; EXH PIPE
M10X25 L=45 		0-43211-025-0 03 1 0809- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0803-0803 ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98096-928-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(D) 		8-98113-333-0 01 1 0809- ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0803-0803 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION(NT4) (B) 		8-98085-187-0 01 1 0804- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 0804-1104 ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
(C) 		8-98113-710-0 01 1 1105- ● ●
115 03.342 PIPE; WATER,TURBOCHARGER OUT
EXC. VIETNAM EQUIPMENT(CL0) (C) 		8-98113-710-0 01 1 1105- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (D) ID=12.6 		8-97331-137-1 02 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 02 1 0803-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0803-0803 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 02 1 0804-0804 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (B) ID=14.2 OD=20.0 		9-09571-414-0 04 1 0804- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0804-0804 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0805-0808 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0809-0904 ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=12.2 		9-09571-412-0 04 1 0905- ● ●
117 03.342 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 (C) 		8-97262-117-0 01 1 0809- ●
118 03.342 CLIP; WATER HOSE
VIETNAM EQUIPMENT(CL0) (C) ID=12.8 		8-97944-125-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
08.846 (D) ID=22 		8-94382-401-0 06 1 0809-1003 ●
118 03.342 CLIP; WATER HOSE
03.278 (D) ID=22 		8-97359-141-0 06 1 1004- ●
118 03.342 CLIP; WATER HOSE
08.846 (A) ID=20 		1-09707-084-1 06 1 0803-0803 ● ●
118 03.342 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 08.846 (A) ID=20 		1-09707-084-1 06 1 0804- ● ●
118 03.342 CLIP; WATER HOSE
03.162 (B) ID=15.5 		8-94221-519-0 02 1 0803- ● ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0804-0808 ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 0809-1112 ● ●
118 03.342 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
118 03.342 CLIP; WATER HOSE
01.153 (C) ID=12.8 		8-94367-943-0 04 1 1201- ●
119 03.342 HOSE; WATER,TURBOCHARGER 8-98113-336-0 01 1 0804-0808 ●
119 03.342 HOSE; WATER,TURBOCHARGER 8-98113-336-0 01 1 0809- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0803-0803 ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98063-840-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0803-0803 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION(NT4) (B) 		8-97387-271-0 01 1 0804- ● ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0804-0808 ●
137 01.097 PIPE; WATER,TURBOCHARGER IN
(C) 		8-97381-650-0 01 1 0809- ● ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0804-0808 ●
138 03.342 BOLT; EYE,WATER PIPE
01.531 M12X24 EYE-BOLT 		1-09675-081-0 02 1 0809- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(C) 		8-98032-022-3 01 1 0809- ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-98032-023-1 01 1 0804-1104 ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(A) 		8-98032-023-1 01 1 1105- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
EXC. VIETNAM EQUIPMENT(CL0) (A) 		8-98032-023-1 01 1 1105- ● ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-2 01 1 0804-0808 ●
173 03.417 PROTECTOR; HEAT,FUEL PIPE
(B) 		8-98032-024-3 01 1 0809- ● ●
217 03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE 		0-28051-070-0 02 1 0804-0808 ●
217 03.417 BOLT; BRKT
03.706 (A) M10X70 FLANGE 		0-28051-070-0 02 1 0809- ● ●
217 03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE 		8-98032-158-0 02 1 0804-0808 ●
217 03.417 BOLT; BRKT
03.604 (B) M10X30 FLANGE 		8-98032-158-0 02 1 0809- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0803- ● ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0804-0808 ●
231 03.342 HOSE; RUBBER,TURBOCHARGER OUT 8-98030-402-0 01 1 0809- ● ●
251 03.417 BRACKET; ADAPTER 8-98009-098-1 01 1 0804-0808 ●
251 03.417 BRACKET; ADAPTER 8-98009-098-1 01 1 0809- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (B) 		8-97376-773-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3) (C) 		8-98064-164-0 01 1 0803- ● ●
485 01.097 PIPE; WATER EGR
(E) 		8-97381-651-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
(F) 		8-97381-652-0 01 1 0809- ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0803-0803 ●
485 01.097 PIPE; WATER EGR
EURO4 SPECIFICATION(NT4) (D) 		8-98032-267-0 01 1 0804- ● ●
485 01.097 PIPE; WATER EGR
(A) 		8-98041-637-1 01 1 0803-0803 ● ●
485 01.097 PIPE; WATER EGR
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-98041-637-1 01 1 0804- ● ●
488 03.163 HOSE; RUBBER
01.540 (A) L=110 SERVICED BY L=3000 		0-03566-300-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(B) L=120 SERVICED BY L=3000 		0-03666-300-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(C) 		8-98015-118-0 01 1 0809- ●
488 03.163 HOSE; RUBBER
(D) 		8-98066-091-0 01 1 0804-1104 ●
488 03.163 HOSE; RUBBER
(D) 		8-98066-091-0 01 1 1105- ● ●
488 03.163 HOSE; RUBBER
EXC. VIETNAM EQUIPMENT(CL0) (D) 		8-98066-091-0 01 1 1105- ● ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 01 1 0809-0903 ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
03.417 M8X23 FLANGE 		8-97378-077-0 02 1 0904- ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE 		8-98053-224-0 02 1 0804-1104 ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
M8X35 FLANGE 		8-98053-224-0 02 1 1105- ● ●
534 03.342 BOLT; TURBOCHARGER TO EXH PIPE
EXC. VIETNAM EQUIPMENT(CL0) M8X35 FLANGE 		8-98053-224-0 02 1 1105- ● ●
çizim 120475
143 71 143 389 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C D
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98159-280-1 01 1 1002- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0809-1001 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (F) 		8-98055-062-2 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1002- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0804-0811 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0804- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0804-0808 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0809-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=45-65 		8-98133-348-0 04 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1002- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0803-0803 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0804- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0804-0808 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0809- ● ●
çizim 120486
143 71 143 1 309 11 33 2 12 32 389 33 143 32 71 143
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-1 01 1 0803-0803 ● ●
1 03.342 TURBOCHARGER ASM
EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98000-031-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
(D) 		8-97381-507-5 01 1 0809- ●
1 03.342 TURBOCHARGER ASM
COLOMBIA EQUIPMENT(CB7) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98054-011-1 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-1 01 1 0803-0803 ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) 		8-98027-772-5 01 1 0804-1509 ● ●
1 03.342 TURBOCHARGER ASM
EURO4 SPECIFICATION(NT4) (B) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98322-481-0 01 1 1510- ● ●
1 03.342 TURBOCHARGER ASM
EURO2 SPECIFICATION(NT2) (A) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98079-569-2 01 1 0804- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98015-115-1 01 1 0804-0804 ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) EXC. KD PREPARATORY PACK<6HF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
DBL CAB(NP**W*) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
1 03.342 TURBOCHARGER ASM
NPR SGL CAB(NP**SN) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. COLOMBIA EQUIPMENT(CB7), TRANSMISSION CONTROL-SMOOTHER(8GF) (C) SEE FIG-NO 0-37 FOR COMPONENT. 		8-98097-686-1 01 1 0805- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) 		8-97912-697-0 01 1 1105- ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 0804-0808 ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 0809-1104 ● ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 1105- ●
2 03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-94433-605-0 01 1 1105- ●
11 03.342 NUT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) M8 FLANGE 		8-97379-384-0 02 1 1105- ● ●
11 03.342 NUT; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0803-0803 ● ●
11 03.342 NUT; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10 P=1.5 H=8 		9-09842-007-0 04 1 0804- ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0803-0803 ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10 		1-09420-005-0 04 1 0804-0805 ● ●
11 03.342 NUT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 03.604 M10 FLANGE 		8-97381-617-0 04 1 0806- ● ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0804-0808 ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 0809-1104 ● ●
11 03.342 NUT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
11 03.342 NUT; TURBOCHARGER
03.613 M8 FLANGE 		8-97161-607-0 02 1 1105- ●
12 03.342 STUD; TURBOCHARGER
EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0803-0803 ● ●
12 03.342 STUD; TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M10X28 		9-04731-028-0 02 1 0804- ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0803-0803 ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0804-0805 ● ●
12 03.342 STUD; TURBOCHARGER
EURO4 SPECIFICATION(NT4) M10X30 L=45 		1-09302-106-0 02 1 0806- ● ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0804-0808 ●
12 03.342 STUD; TURBOCHARGER
03.601 M8X25 L=36 		8-97378-062-0 02 1 0809- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0803-0803 ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97351-168-0 01 1 0804- ● ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(D) 		8-98034-990-3 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
(C) 		8-98034-991-1 01 1 0809- ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0803-0803 ●
32 03.342 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION(NT4) (B) 		8-98031-888-3 01 1 0804- ● ●
33 03.342 BOLT; HEAT PROTECTOR
03.162 (C) M6X12 FLANGE 		0-28050-612-0 03 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (B) M8X12 FLANGE 		0-28050-812-0 07 1 0809- ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 0804-1104 ●
33 03.342 BOLT; HEAT PROTECTOR
02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
33 03.342 BOLT; HEAT PROTECTOR
EXC. VIETNAM EQUIPMENT(CL0) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 06 1 1105- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98159-280-1 01 1 1002- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98059-964-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0803-0803 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) 		8-98107-509-1 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (C) 		8-98006-133-2 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0803-0803 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (D) 		8-98039-732-3 01 1 0804- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(E) 		8-98036-513-2 01 1 0809- ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0804-0808 ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
(F) 		8-98055-062-1 01 1 0809-1001 ● ●
71 03.417 HOSE; INLET PIPE TO TURBOCHARGER
EURO4 SPECIFICATION(NT4) (F) 		8-98055-062-2 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65 		8-98096-418-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. MANUAL TILT CAB<RWZ>, IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=60-65 		8-98096-418-0 04 1 1002- ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=68-85 		1-09707-202-0 01 1 0804-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (C) ID=65-85 		8-98133-350-0 01 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
01.159 (A) ID=58-76 		1-09707-203-0 02 1 0804-0811 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=55-75 		8-98133-349-0 02 1 0812-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65 		8-98133-348-0 02 1 1002- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0803-0803 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 		8-98096-418-0 01 1 0804- ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0804-0808 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=50-65 		1-09707-204-0 04 1 0809-0810 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
(D) ID=45-65 		8-98133-348-0 04 1 0811-0812 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ● ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
MANUAL TILT CAB<RWZ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 0901-1001 ●
143 03.407 CLIP; HOSE,TURBOCHARGER OUTLET
IDENTIFICATION LABEL FOR KD<6UT> (D) ID=45-65 		8-98133-348-0 04 1 1002- ● ●
309 03.342 BOLT; TURBOCHARGER
VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98041-363-0 02 1 1105- ● ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0803-0803 ●
309 03.342 BOLT; TURBOCHARGER
EURO4 SPECIFICATION(NT4) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0804-0808 ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 0809-1104 ● ●
309 03.342 BOLT; TURBOCHARGER
EXC. VIETNAM EQUIPMENT(CL0) 03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
309 03.342 BOLT; TURBOCHARGER
03.417 M8X28 FLANGE 		8-98043-528-0 02 1 1105- ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0803-0803 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98042-688-1 01 1 0804- ● ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0804-0808 ●
389 03.342 PIPE; INL,TURBOCHARGER TO CAC 8-98036-505-1 01 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
