0-32 — WATER PIPING; ENGINE (#54353) — 61 parça

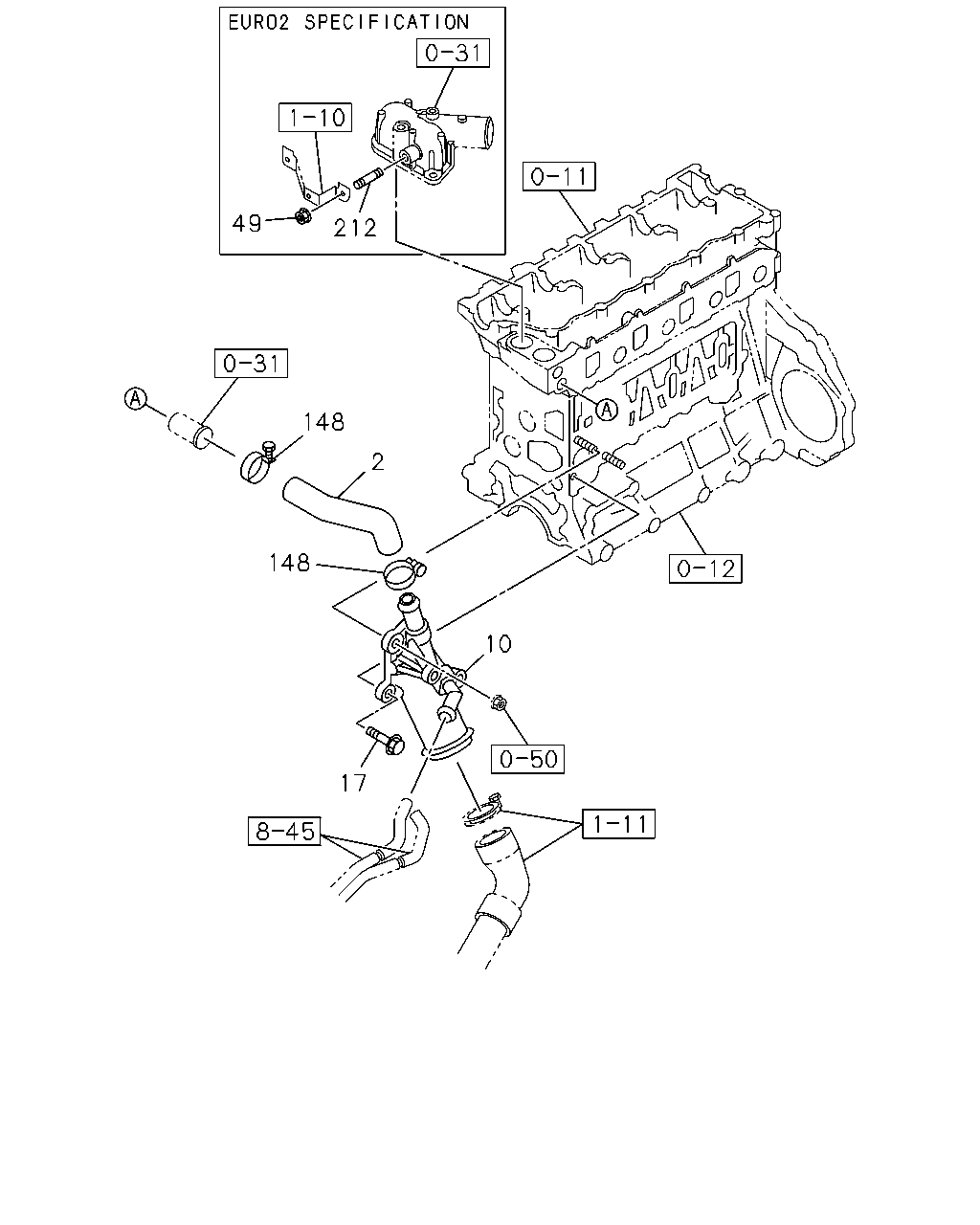

çizim 120110
212 49 148 148 2 10 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 01.097 HOSE; WATER,BY-PASS 8-97379-228-1 01 1 0803- ● ●
10 01.153 PIPE; SUCTION 8-97371-775-1 01 1 0803-1010 ● ●
10 01.153 PIPE; SUCTION 8-98166-991-0 01 1 1011- ● ●
17 01.153 BOLT; SUCTION PIPE
03.415 M8X48 FLANGE 		8-94458-473-1 01 1 0803- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
148 01.097 CLIP; BYPASS HOSE
03.417 ID=30 		9-09915-315-1 02 1 0803- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0803- ● ●

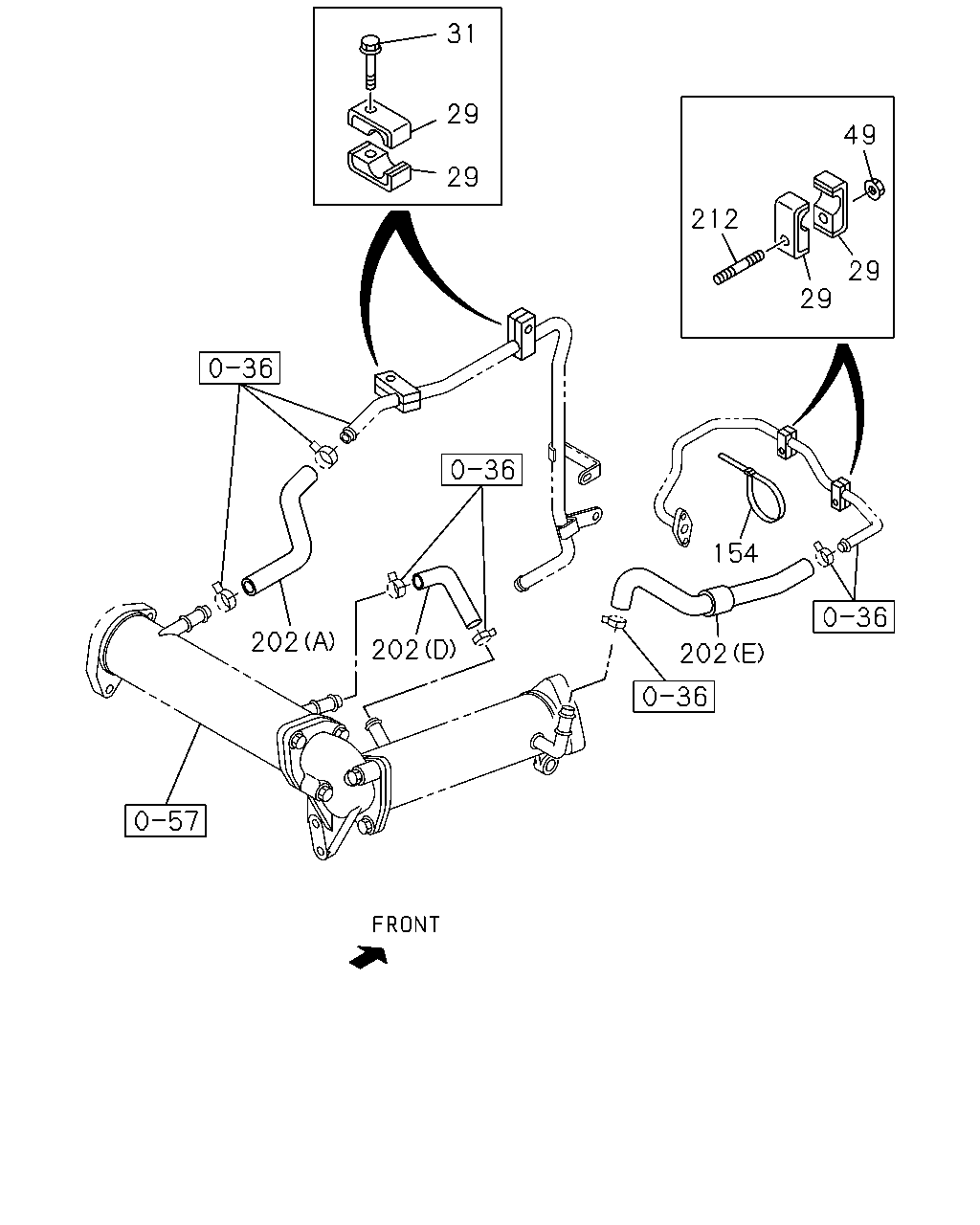

çizim 120111
31 29 29 49 29 29 212 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 01.166 CLIP; PIPE
ID=17 L=17 		1-09701-284-0 08 1 0803-0803 ● ●
29 01.166 CLIP; PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) ID=17 L=17 		1-09701-284-0 08 1 0804- ● ●
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0803-0803 ● ●
31 01.159 BOLT; CLIP
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0804- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
154 01.153 CLIP; WATER HOSE
02.559 L=170.3 		1-09987-182-0 01 1 0803-0803 ● ●
154 01.153 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.559 L=170.3 		1-09987-182-0 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-382-0 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (C) 		8-98097-605-1 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (D) 		8-97386-585-0 01 1 0803-0803 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (D) 		8-97386-585-0 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
(A) 		8-97386-586-1 01 1 0803-0803 ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97386-586-1 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (E) 		8-98032-268-0 01 1 0803-0803 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (E) 		8-98032-268-0 01 1 0804- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0803- ● ●

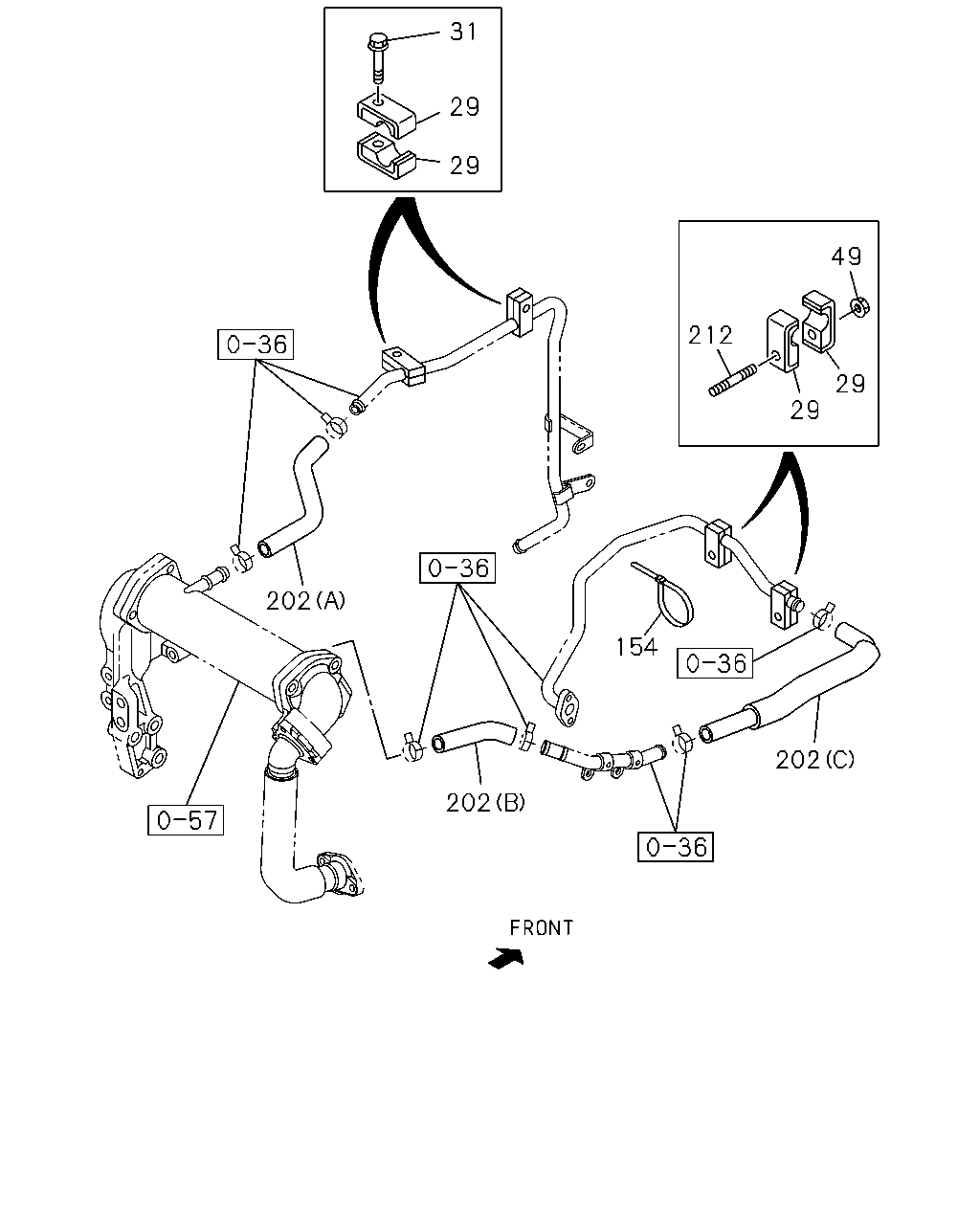

çizim 120112
31 29 29 212 49 29 29 154 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 01.166 CLIP; PIPE
ID=17 L=17 		1-09701-284-0 08 1 0803-0803 ● ●
29 01.166 CLIP; PIPE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) ID=17 L=17 		1-09701-284-0 08 1 0804- ● ●
31 01.159 BOLT; CLIP
02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0803-0803 ● ●
31 01.159 BOLT; CLIP
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.277 M8X40 FLANGE 		0-28050-840-0 02 1 0804- ● ●
49 01.153 NUT; WATER PIPE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0803- ● ●
154 01.153 CLIP; WATER HOSE
02.559 L=170.3 		1-09987-182-0 01 1 0803-0803 ● ●
154 01.153 CLIP; WATER HOSE
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.559 L=170.3 		1-09987-182-0 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (B) 		8-98092-382-0 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3) (C) 		8-98097-605-1 01 1 0803- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (D) 		8-97386-585-0 01 1 0803-0803 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (D) 		8-97386-585-0 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
(A) 		8-97386-586-1 01 1 0803-0803 ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97386-586-1 01 1 0804- ● ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (E) 		8-98032-268-0 01 1 0803-0803 ●
202 01.240 HOSE; RUBBER,EGR COOLER
EURO4 SPECIFICATION(NT4) (E) 		8-98032-268-0 01 1 0804- ● ●
212 01.153 STUD; PIPE
00.413 M8X45 L=55 		8-94217-227-0 02 1 0803- ● ●

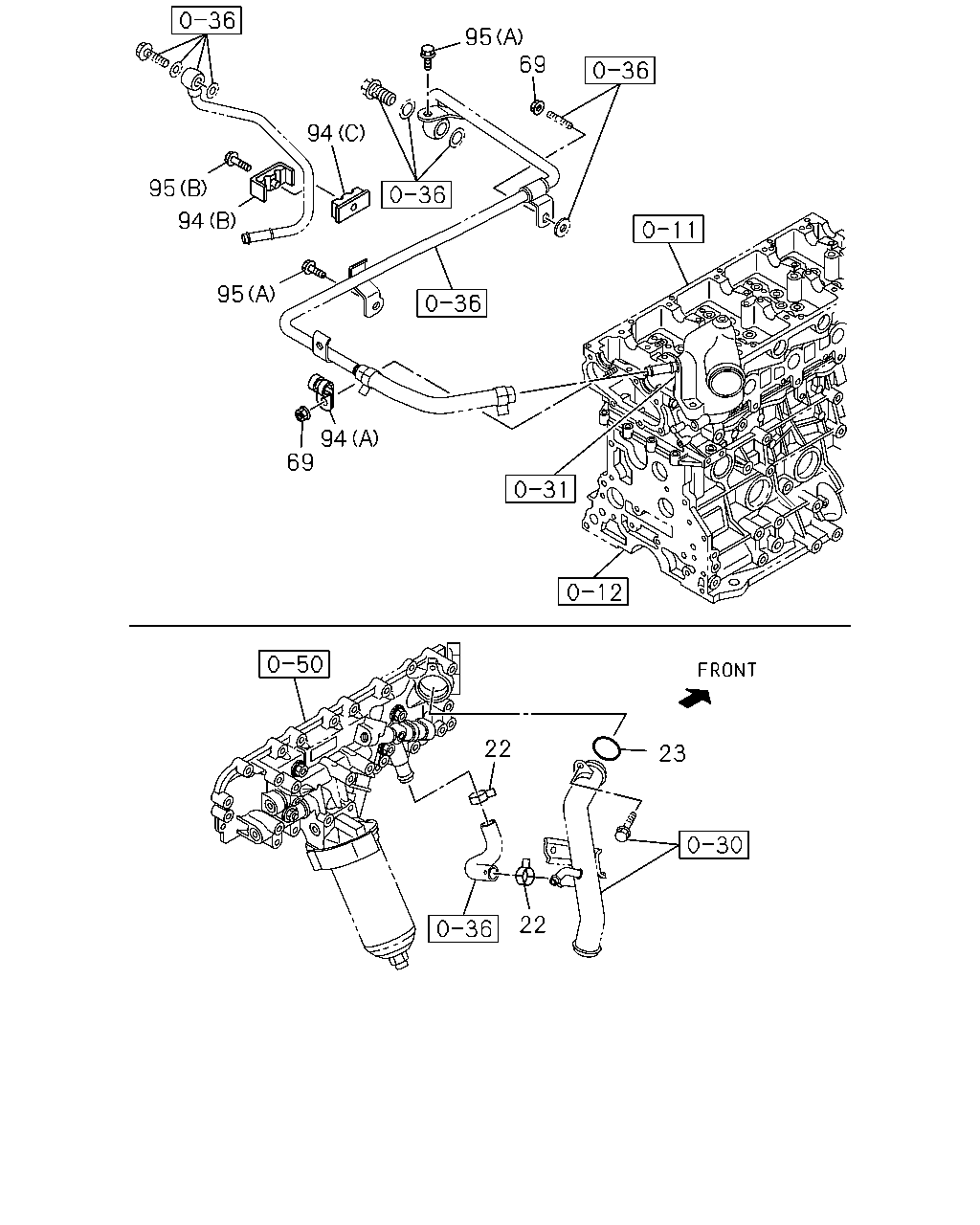

çizim 120113
95 69 94 95 94 95 94 69 22 23 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 01.153 CLIP; WATER HOSE
08.846 ID=22 		8-94382-401-0 02 1 0804-1003 ●
22 01.153 CLIP; WATER HOSE
03.278 ID=22 		8-97359-141-0 02 1 1004-1104 ●
22 01.153 CLIP; WATER HOSE
03.278 ID=22 		8-97359-141-0 02 1 1105- ● ●
22 01.153 CLIP; WATER HOSE
EXC. VIETNAM EQUIPMENT(CL0) 03.278 ID=22 		8-97359-141-0 02 1 1105- ● ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 0804-0808 ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		0-95690-338-0 01 1 0809- ● ●
69 01.153 NUT; WATER PIPE
VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 02 1 1105- ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 02 1 0804-0808 ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 0809-1104 ● ●
69 01.153 NUT; WATER PIPE
01.540 M6 FLANGE 		0-91180-206-0 01 1 0809-1104 ●
69 01.153 NUT; WATER PIPE
EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ● ●
69 01.153 NUT; WATER PIPE
EURO2 SPECIFICATION(NT2) EXC. VIETNAM EQUIPMENT(CL0) 01.540 M6 FLANGE 		0-91180-206-0 01 1 1105- ●
94 01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20 		1-09700-911-1 01 1 0804-0808 ●
94 01.153 CLIP; WATER PIPE
04.047 (A) ID=12 L=20 		1-09700-911-1 01 1 0809- ● ●
94 01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25 		1-09701-228-2 01 1 0804-0808 ●
94 01.153 CLIP; WATER PIPE
01.531 (B) ID=7 & 9 L=25 		1-09701-228-3 01 1 0809- ● ●
94 01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25 		1-09701-229-1 01 1 0804-0808 ●
94 01.153 CLIP; WATER PIPE
01.531 (C) ID=7 & 9 L=25 		1-09701-229-2 01 1 0809- ● ●
95 01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 0804-0808 ●
95 01.240 BOLT; CLIP
03.162 (A) M6X12 FLANGE 		0-28050-612-0 02 1 0809- ● ●
95 01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE 		0-28650-635-0 01 1 0804-0808 ●
95 01.240 BOLT; CLIP
03.162 (B) M6X35 FLANGE 		0-28650-635-0 01 1 0809- ● ●
