0-31 — THERMOSTAT AND HOUSING (#54352) — 60 parça

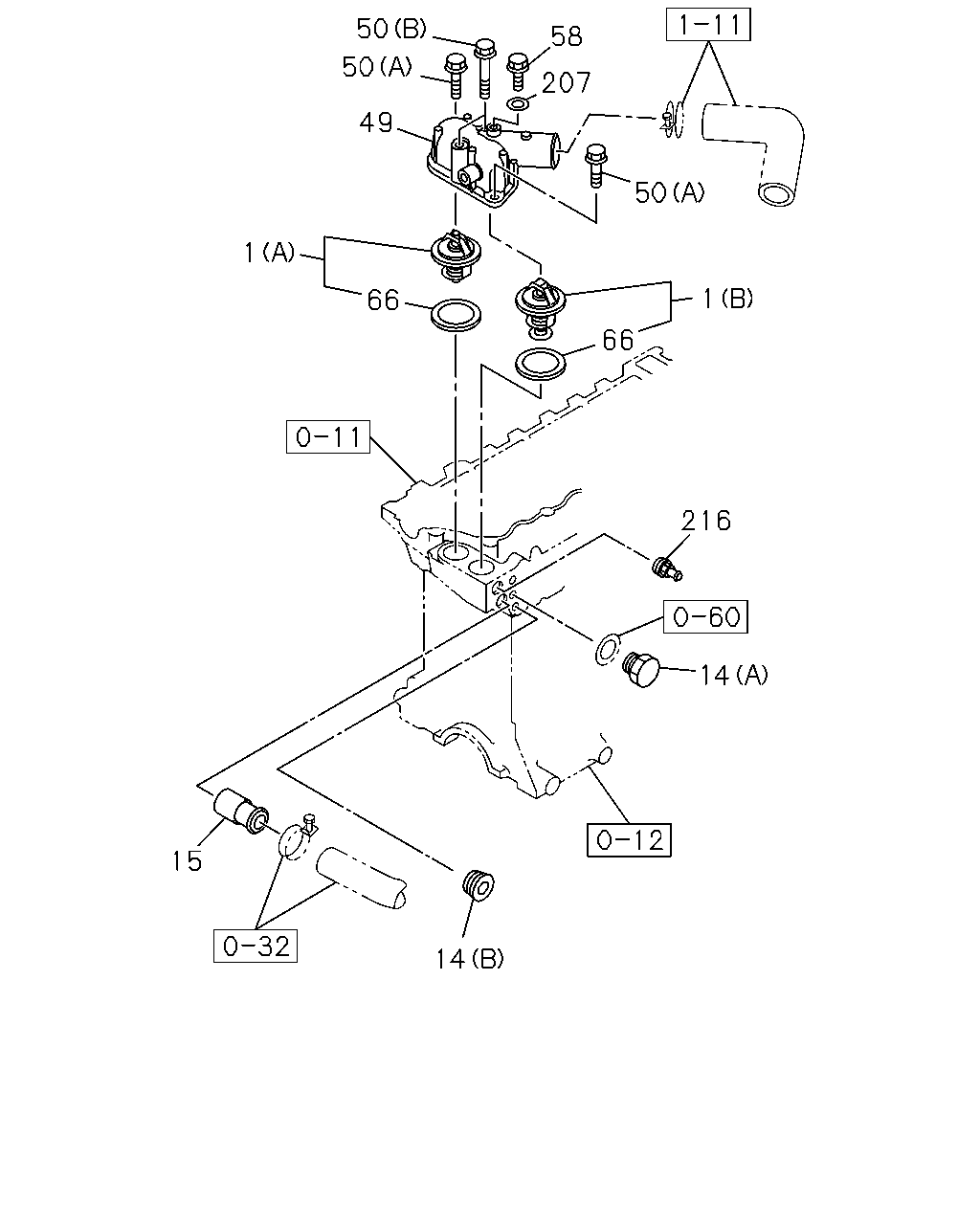

çizim 120107
50 50 49 58 207 50 66 66 1 216 14 14 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 0803- ● ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 0803- ● ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-1 01 1 0804-0808 ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 0809- ● ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 0803- ● ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 0803- ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0803- ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0804-0808 ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0809- ● ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 0803- ● ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-0 01 1 0804-0808 ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 0809- ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0804-0808 ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0803- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0804-0808 ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0809- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0804-0808 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0809- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0803-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0803-0803 ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0804-0808 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0809- ● ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 0803- ● ●

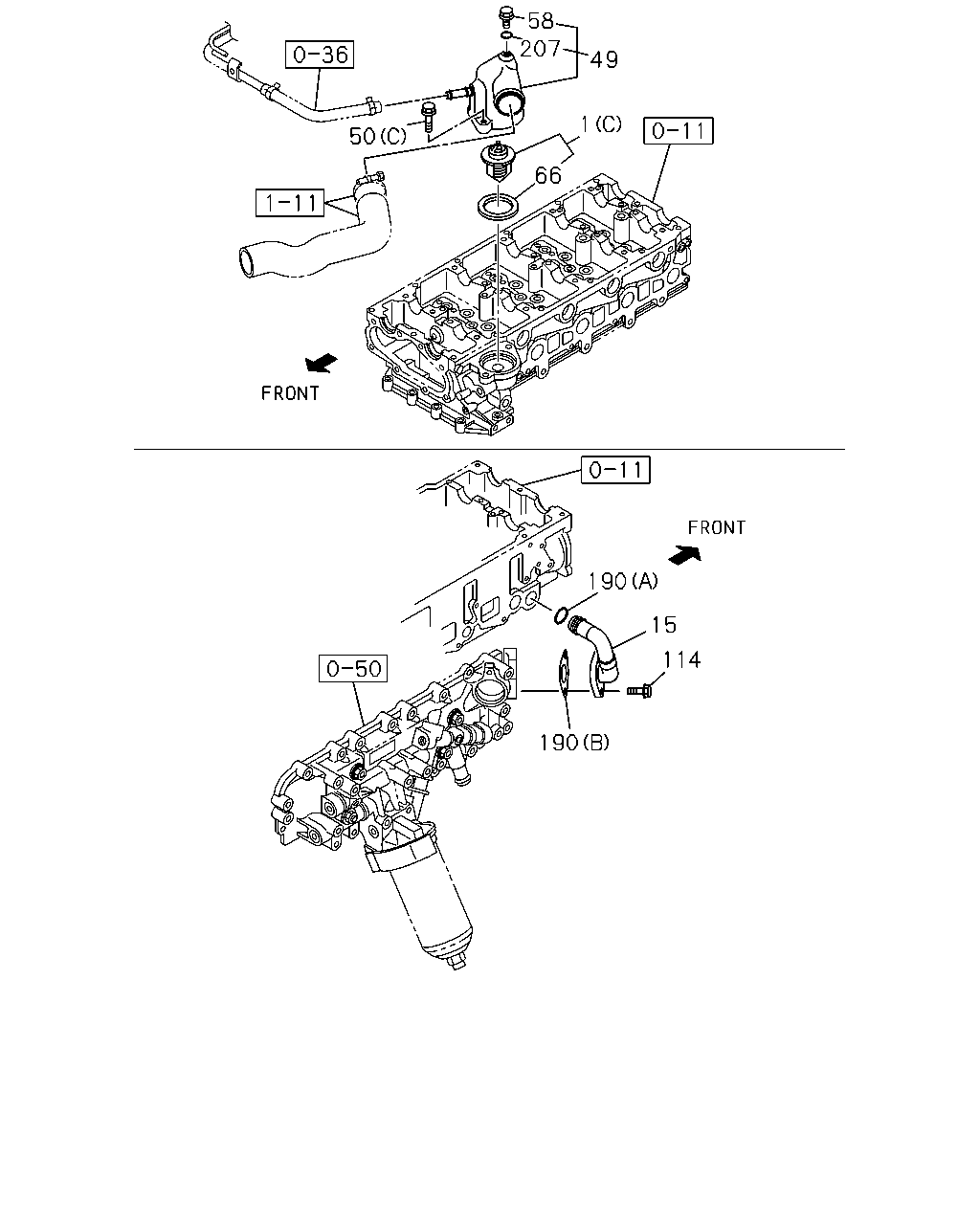

çizim 120109
58 207 49 1 50 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 0803- ● ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 0803- ● ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-1 01 1 0804-0808 ●
1 01.246 THERMOSTAT
(C) 85 CELSIUS 		8-98017-027-2 01 1 0809- ● ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 0803- ● ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0804-0808 ●
15 01.251 PIPE; BYPASS 8-97318-732-2 01 1 0809- ● ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 0803- ● ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-0 01 1 0804-0808 ●
49 01.153 PIPE; WATER OUTLET 8-98028-252-1 01 1 0809- ● ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 0803- ● ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0804-0808 ●
50 01.252 BOLT; OUTLET PIPE
03.403 (C) M8X30 FLANGE 		0-28650-830-0 02 1 0809- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 0803- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0804-0808 ●
58 00.073 PLUG; WATER OUTLET PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0809- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0804-0808 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 		8-98114-587-0 01 1 0809- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5 		8-97300-793-0 02 1 0803-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804-0808 ●
114 01.097 BOLT; BYPASS PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0809- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0) (B) 		8-97318-494-2 01 1 1105- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 0804-0808 ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 0809- ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 0804-0808 ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 0809-1104 ● ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0). (B) 		8-98009-322-0 01 1 1105- ●
190 01.159 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1105- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0803-0803 ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0804-0808 ● ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 0809- ● ● ● ●
