Sayfa 7-20 - Isuzu EPC

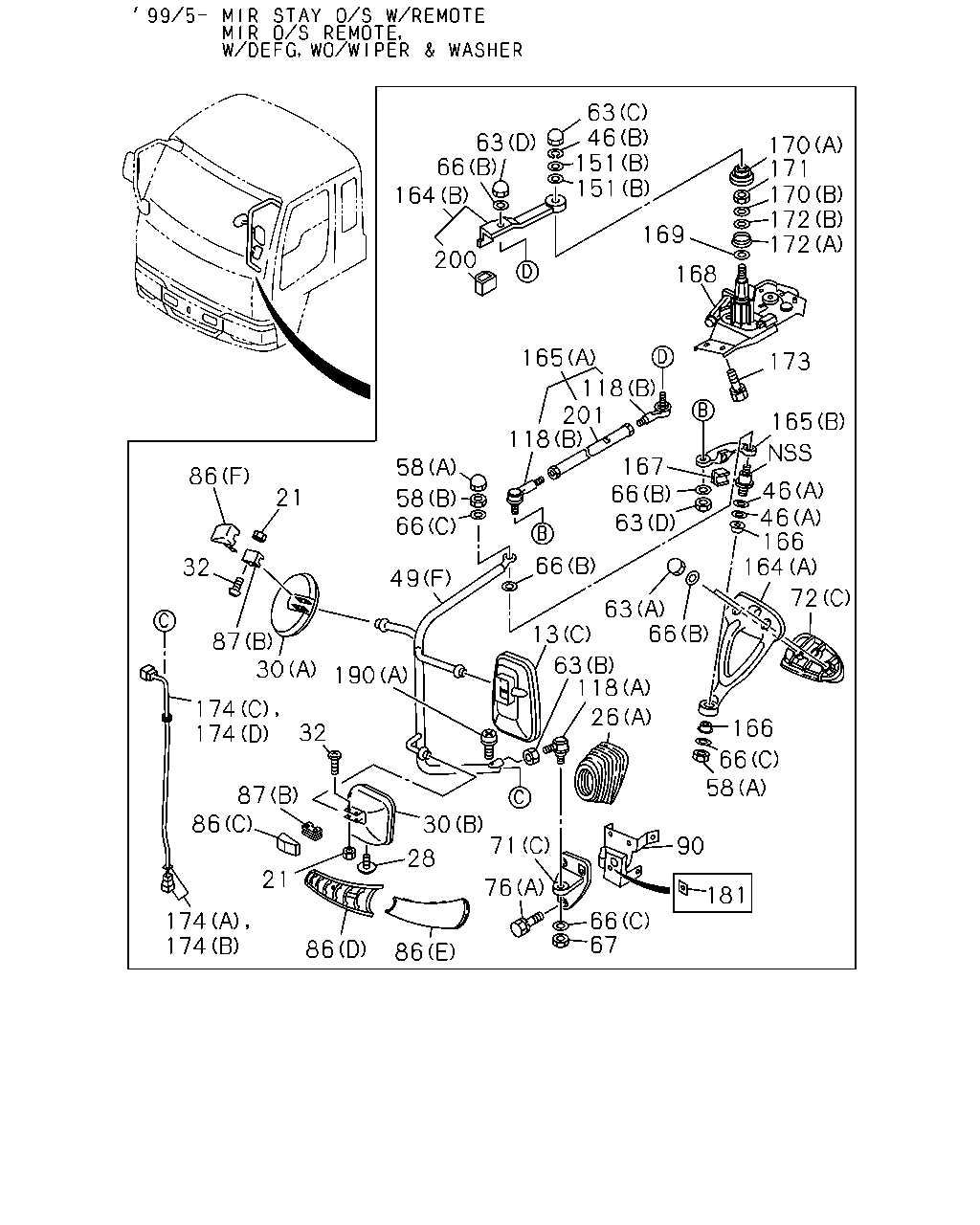

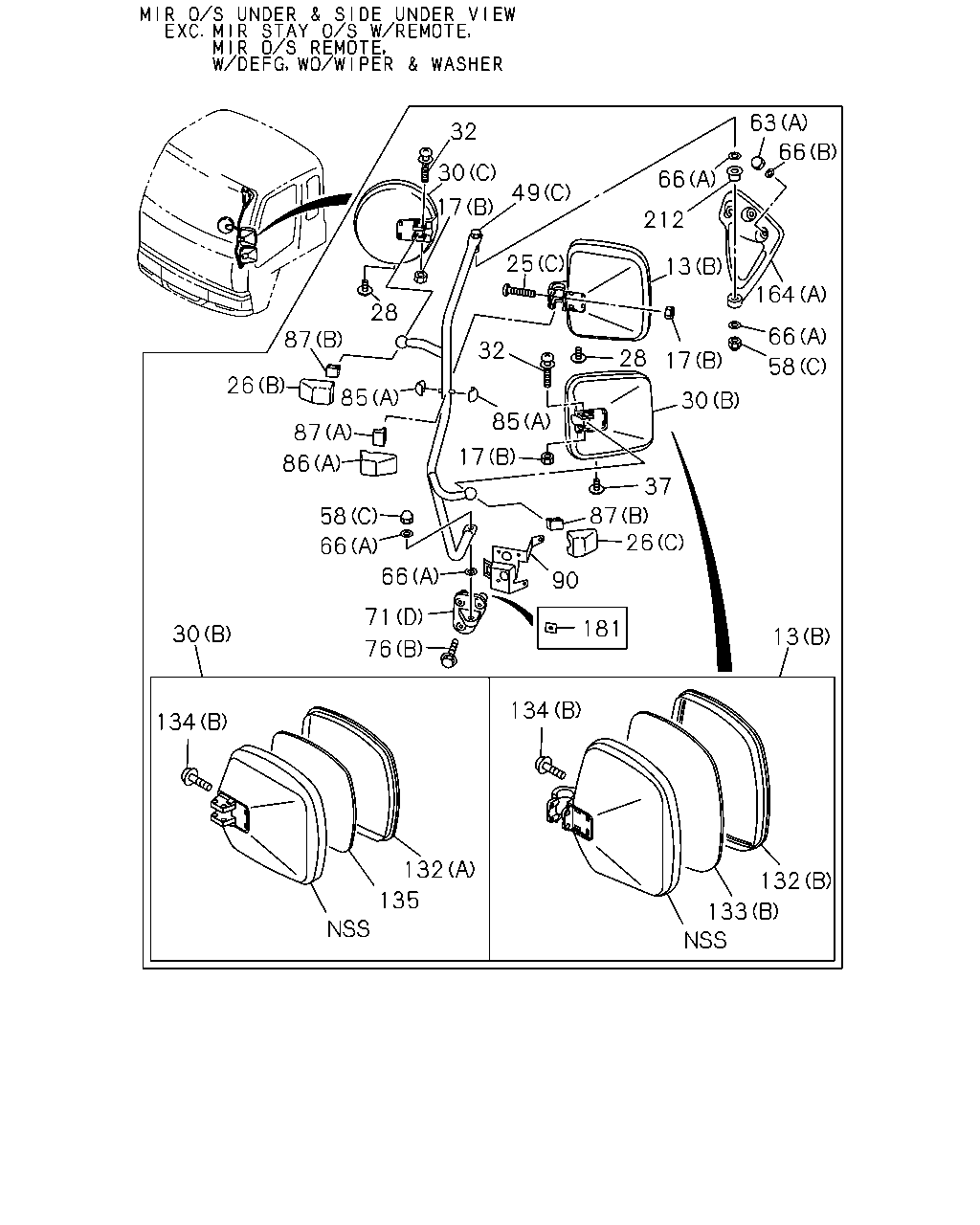

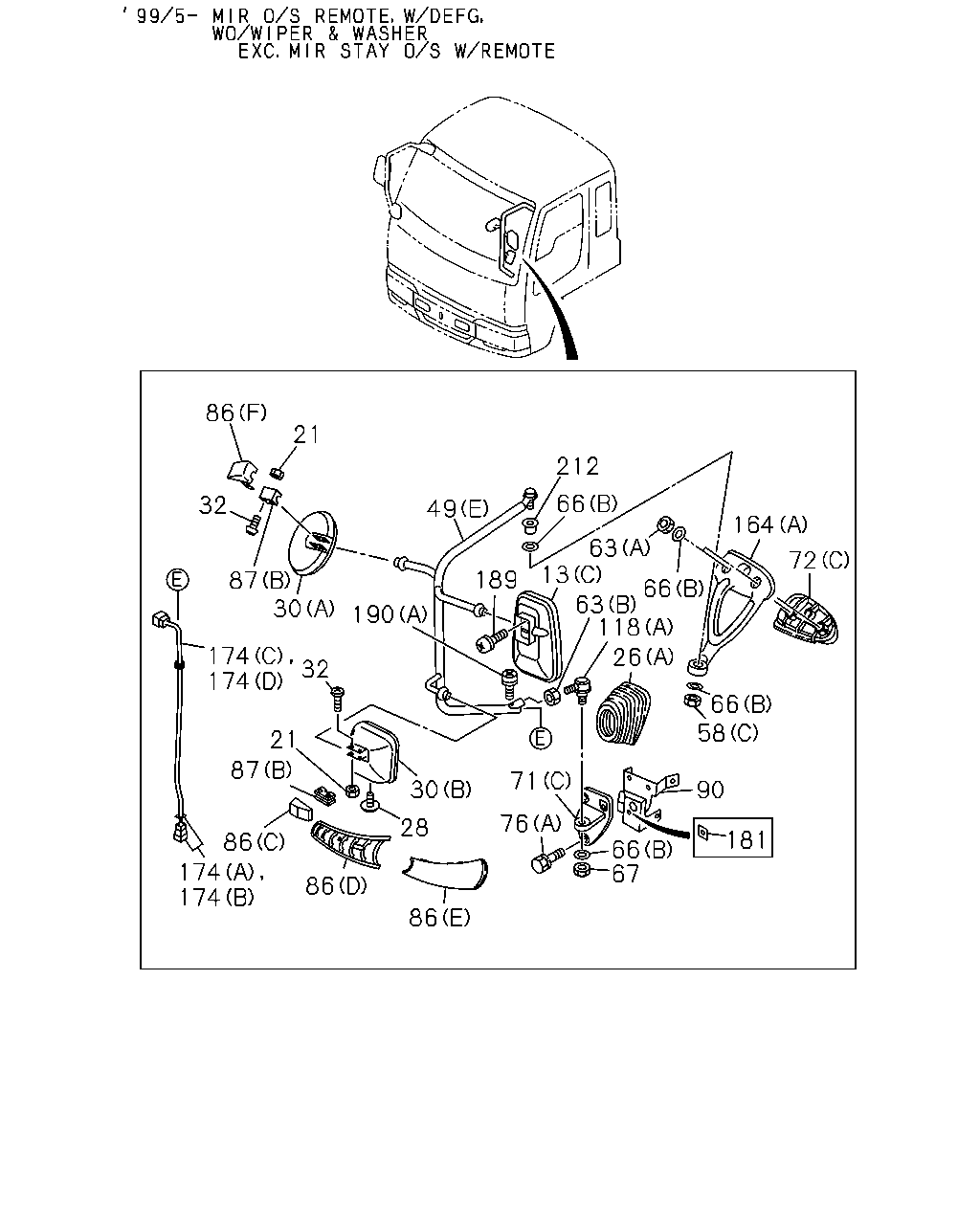

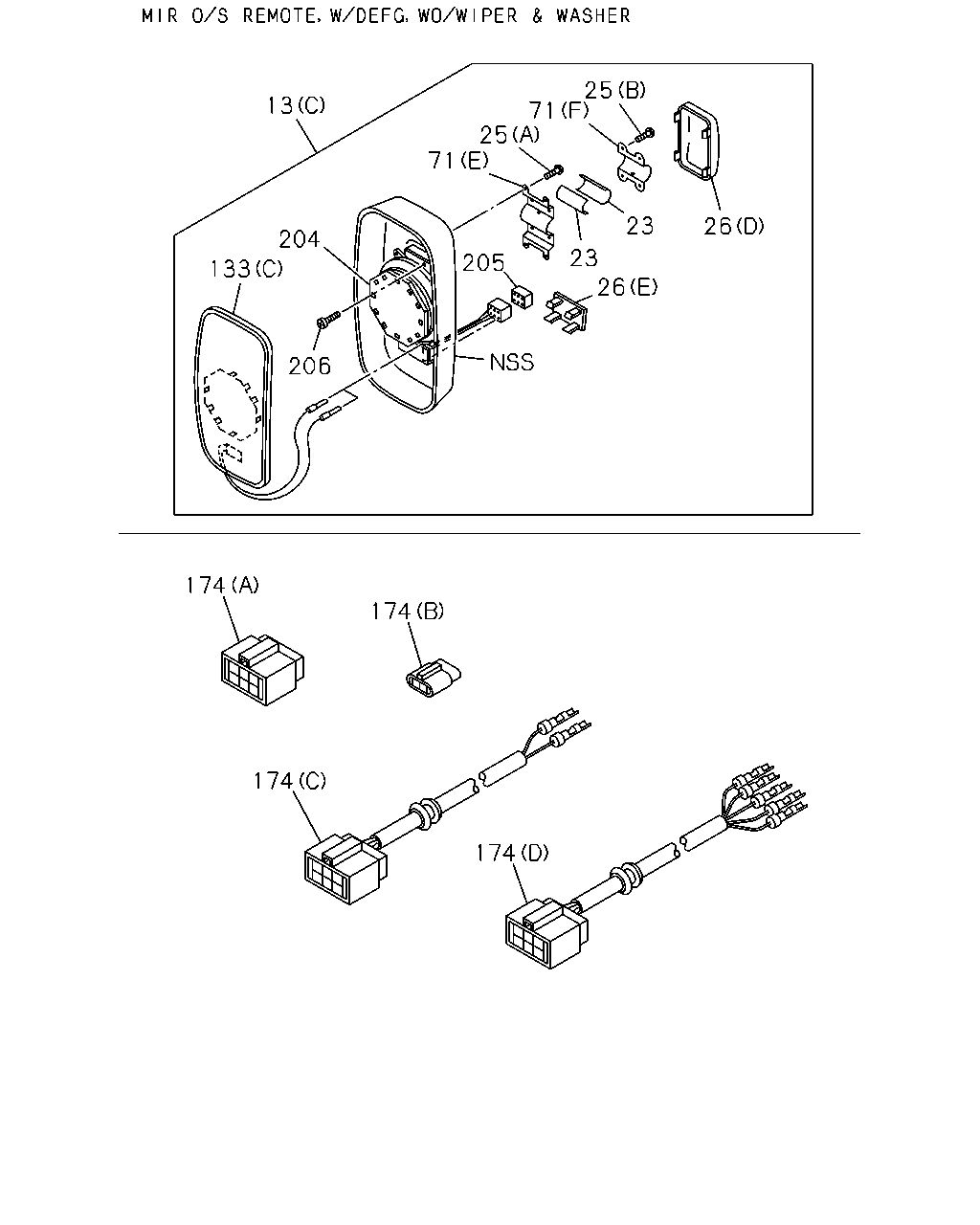

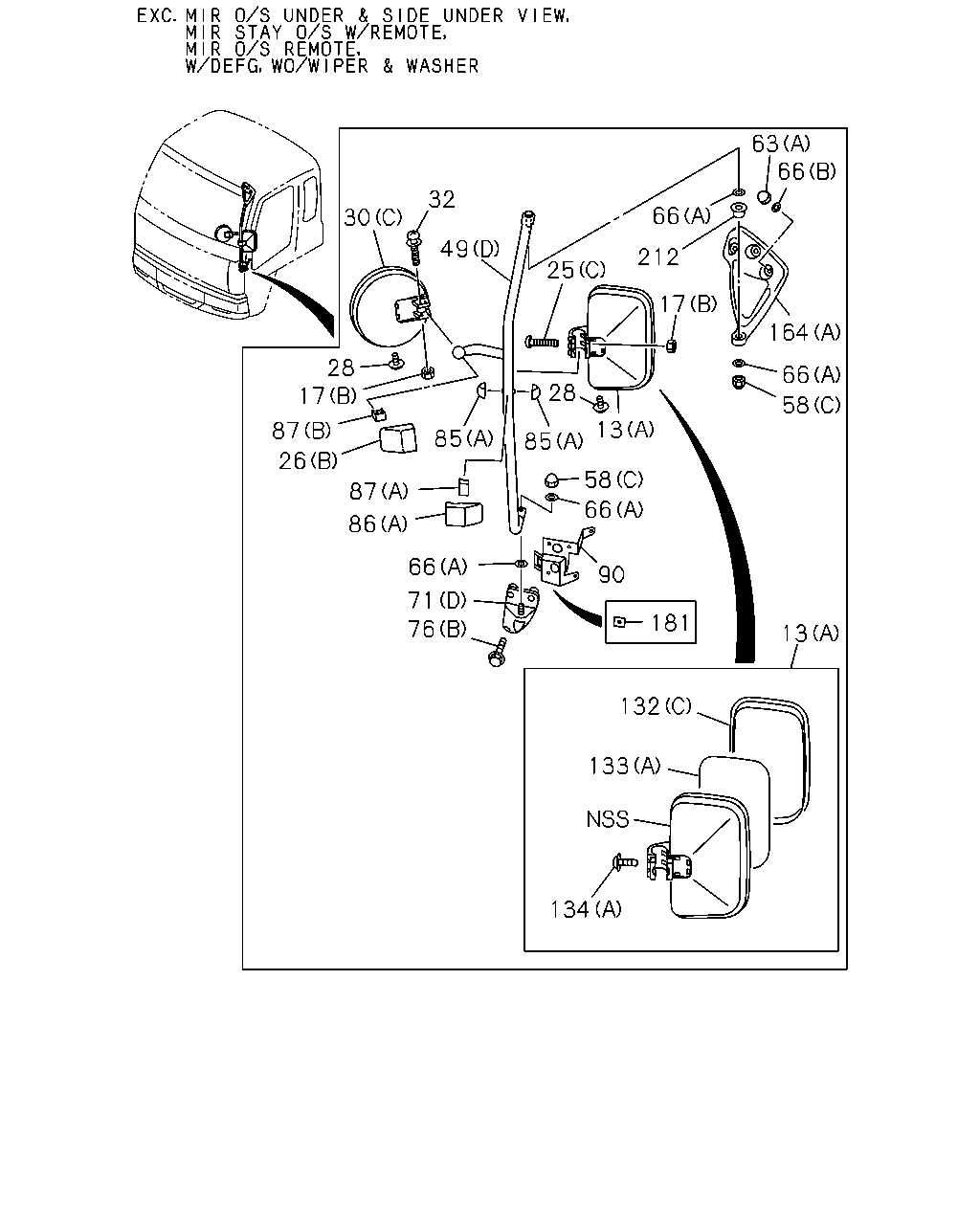

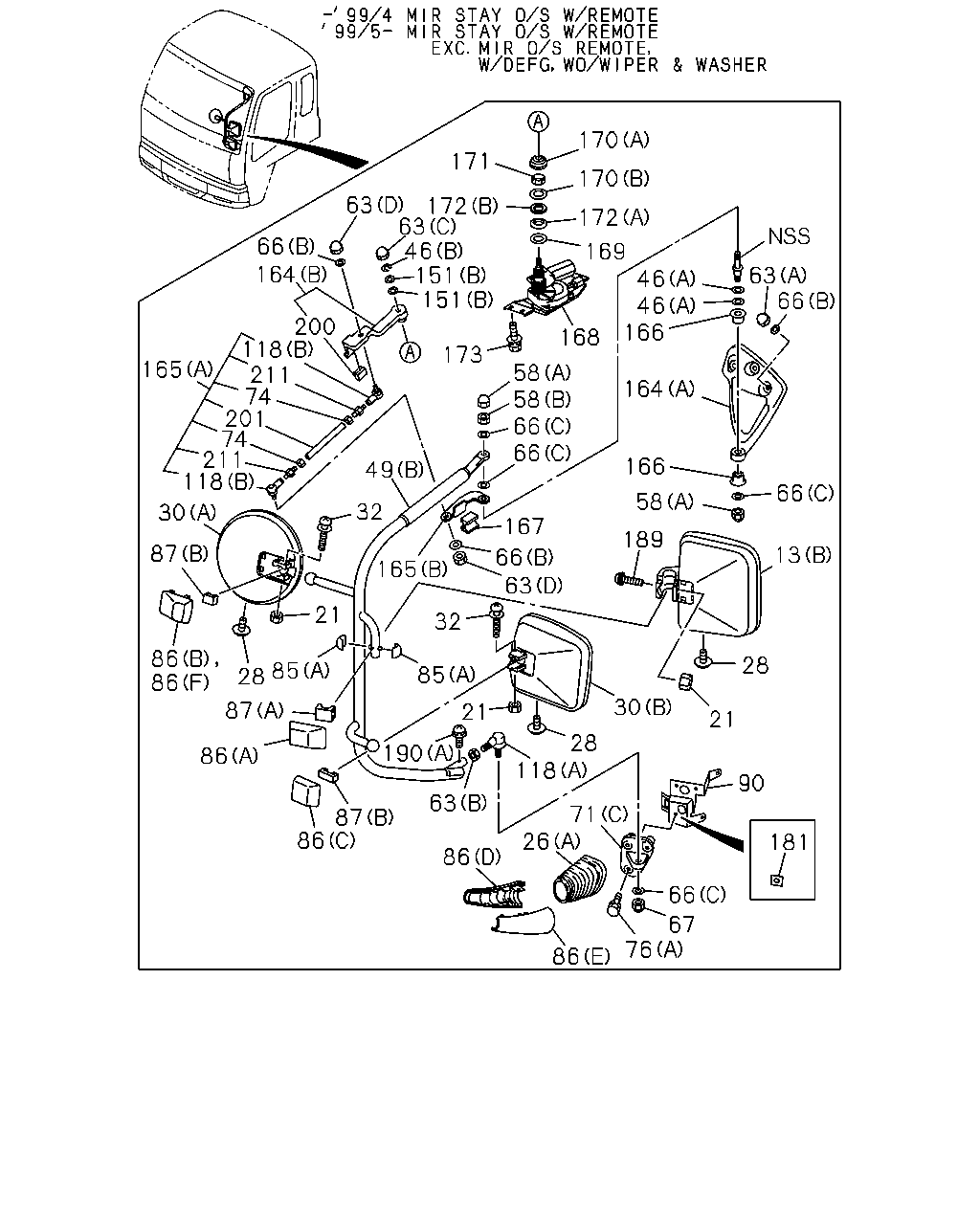

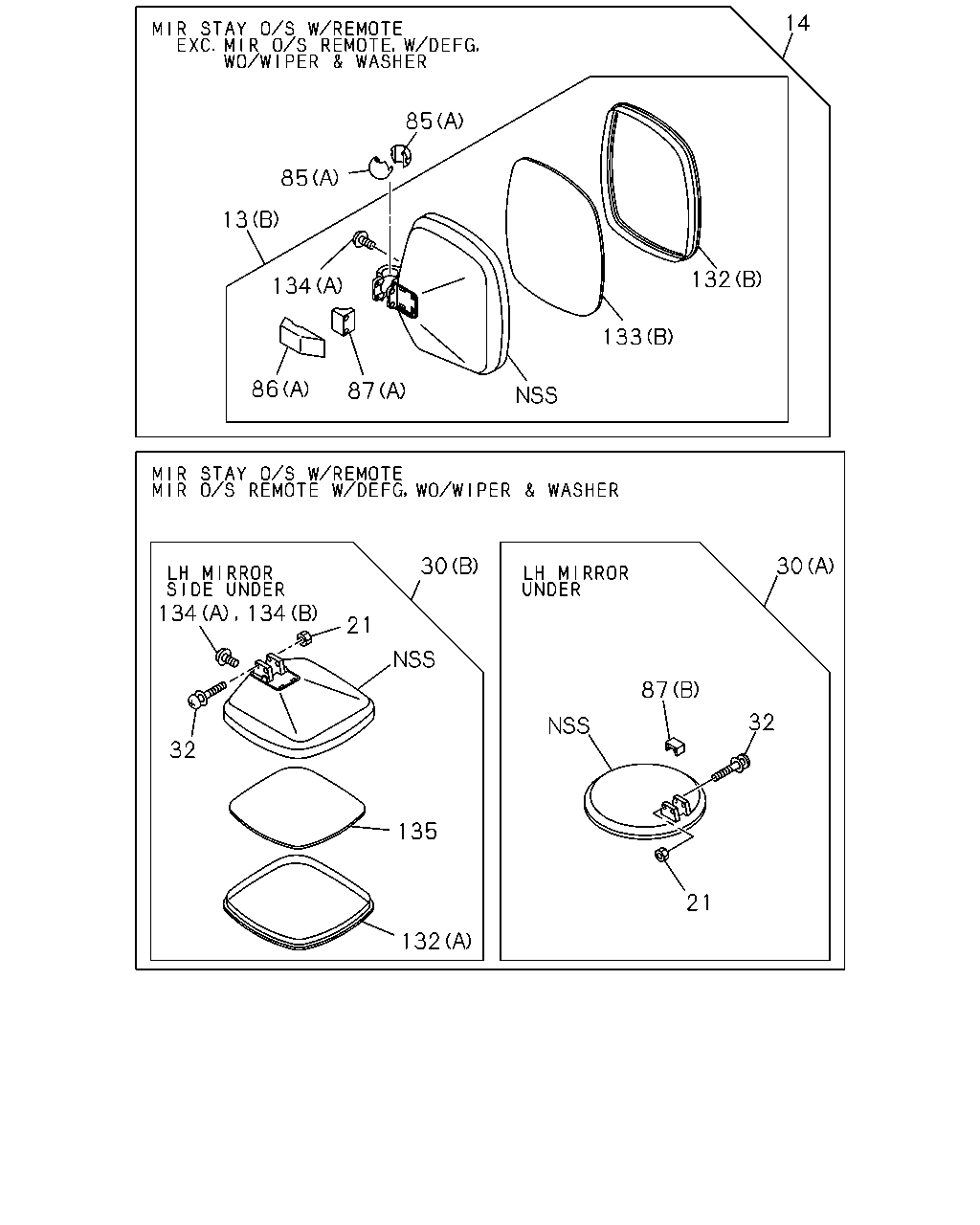

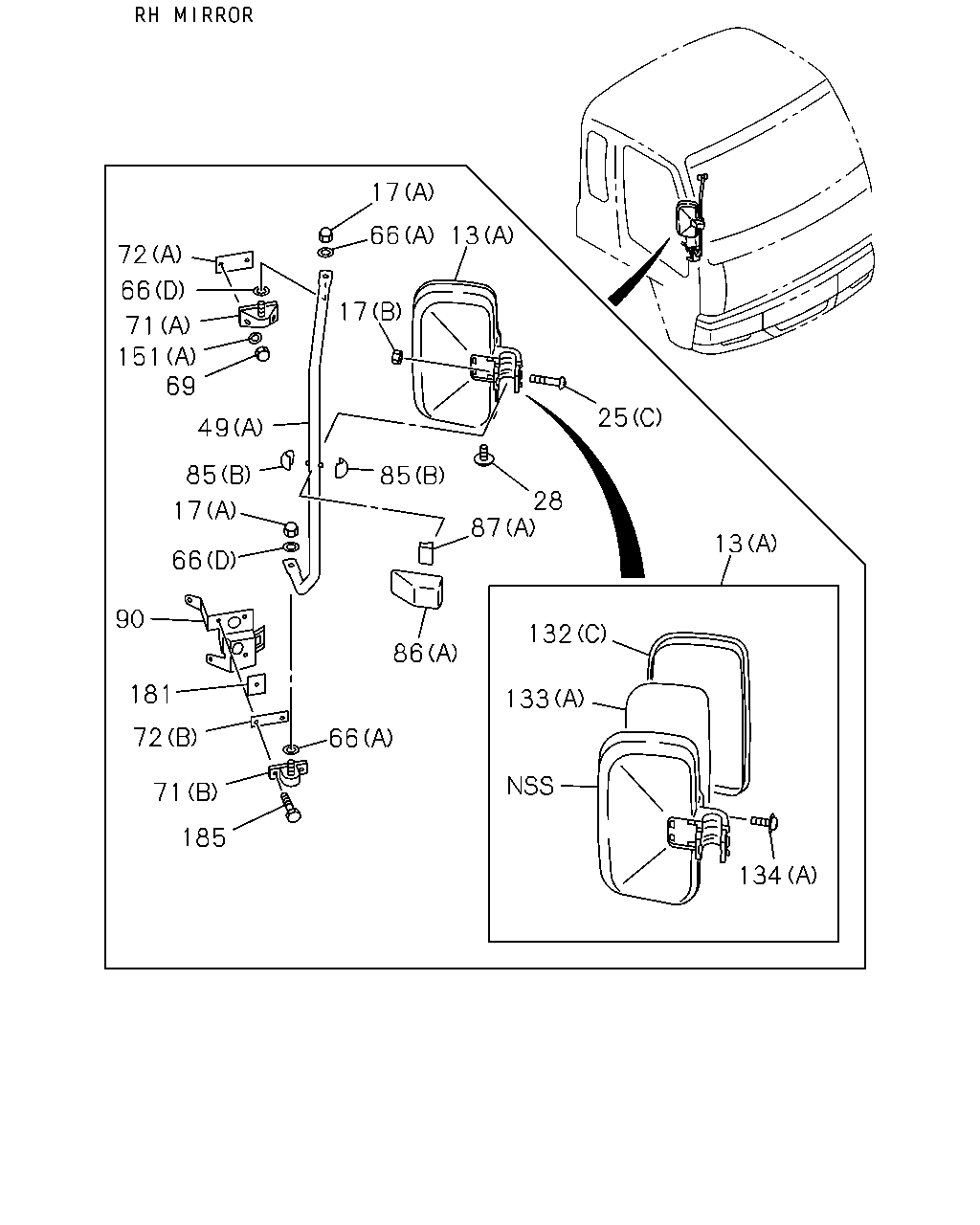

7-20 — MIRROR AND MIRROR STAY (#5435) — 1175 parça

63 32 66 30 66 49 17 212 25 13 164 28 17 66 87 32 28 58 26 85 30 85 87 17 86 37 87 26 58 66 66 90 71 181 30 13 76 134 134 132 132 135 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9601-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9601-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	06	1	9601-9904
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	06	1	9905-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	04	1	9601-9904
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M5X14	1-71797-881-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M6X10	1-71797-882-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
37	GASKET; SIDE UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	01	1	9601-9904
37	GASKET; SIDE UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9601-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9601-
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9601-0104
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9601-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9601-9904
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
63	NUT; STAY MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	9601-9702
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 FLANGE	0-28680-840-0	03	1	9703-9904
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT EXC. MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-0	03	1	9601-9904
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	9905-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	9601-9904
85	PIVOT; MAIN MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) ID=22.2	1-71736-489-2	02	1	9905-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	9601-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
132	RING; MIRROR (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-953-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-936-0	02	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA>	1-71737-929-0	01	1	9601-9904
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71737-929-0	01	1	9601-9904
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-
164	STAY; ROOF (A)	1-71798-299-4	01	1	9601-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	9601-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
212	BUSHING; MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	9601-

63 46 151 151 63 66 164 170 171 170 172 172 169 200 168 165 173 118 201 118 165 167 66 63 58 86 46 46 166 164 21 58 66 66 32 49 72 63 66 13 87 30 63 118 26 190 174 174 166 32 66 58 87 86 30 71 90 28 21 76 181 66 67 174 174 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	9601-9904
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	02	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
21	NUT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=10	1-09985-180-0	01	1	9601-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	9601-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9601-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9601-
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9601-0104
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9601-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9601-9904
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
63	NUT; STAY MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	9601-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
72	SHEET (A)	1-71798-487-3	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	9905-
72	SHEET (B)	1-71798-488-1	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	9905-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	9601-9702
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 FLANGE	0-28680-840-0	03	1	9703-9904
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT EXC. MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-0	03	1	9601-9904
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	9905-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-0	01	1	9601-9904
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-577-0	02	1	9601-9708
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) RH THREAD	1-71798-819-2	01	1	9709-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	9709-
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-9904
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9601-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-
164	STAY; ROOF (A)	1-71798-299-4	01	1	9601-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	9601-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-574-0	01	1	9601-9601
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-706-1	01	1	9602-9708
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	9709-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	9601-
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-176-0	02	1	9601-9712
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	9801-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	9601-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-001-3	01	1	9601-9702
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-025-1	01	1	9703-9907
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-027-0	01	1	9908-0009
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0010-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-011-1	01	1	9601-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	9601-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	9601-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-013-1	01	1	9601-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	9601-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	9601-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9601-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82625-561-0	01	1	9905-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-130-0	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-82626-129-3	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-82626-172-4	01	1	9905-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9601-9904
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
190	SCREW; COVER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	9601-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-707-2	01	1	9601-9708
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	9709-

170 171 170 63 172 63 46 151 151 172 66 164 169 63 66 46 46 166 200 118 211 74 201 74 211 118 168 173 165 58 58 66 66 164 166 49 66 58 32 30 165 167 189 87 13 66 63 21 32 86 86 28 85 28 85 30 87 21 21 28 118 190 86 90 71 26 63 87 86 181 86 66 67 76 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	9601-9904
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	02	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
21	NUT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=10	1-09985-180-0	01	1	9601-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	9601-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9601-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9601-
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9601-0104
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9601-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9601-9904
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
63	NUT; STAY MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	9601-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
74	NUT MIR STAY O/S W/REMOTE<TBA> M8 FLANGE	1-09984-122-0	02	1	9601-9601
74	NUT MIR STAY O/S W/REMOTE<TBA> M10	1-09984-121-0	02	1	9601-9601
74	NUT MIR STAY O/S W/REMOTE<TBA> M10	1-09984-120-0	02	1	9602-9708
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	9601-9702
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 FLANGE	0-28680-840-0	03	1	9703-9904
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT EXC. MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-0	03	1	9601-9904
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	9905-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	9601-9904
85	PIVOT; MAIN MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) ID=22.2	1-71736-489-2	02	1	9905-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	9601-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-0	01	1	9601-9904
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-577-0	02	1	9601-9708
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) RH THREAD	1-71798-819-2	01	1	9709-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	9709-
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-9904
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9601-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-
164	STAY; ROOF (A)	1-71798-299-4	01	1	9601-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	9601-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-574-0	01	1	9601-9601
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-706-1	01	1	9602-9708
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-2	01	1	9709-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	9601-
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-176-0	02	1	9601-9712
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	9801-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	9601-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-001-3	01	1	9601-9702
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-025-1	01	1	9703-9907
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-027-0	01	1	9908-0009
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0010-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-011-1	01	1	9601-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	9601-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	9601-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA>	1-86855-013-1	01	1	9601-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	9601-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	9601-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9601-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
189	SCREW; PIVOT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X25 W/LK&PL WASHER	9-03920-525-0	04	1	9905-
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	9601-9904
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X50	1-09981-444-0	02	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9601-9904
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
190	SCREW; COVER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	9601-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-707-2	01	1	9601-9708
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	9709-
211	STUD MIR STAY O/S W/REMOTE<TBA>	1-09980-615-0	02	1	9601-9708

86 21 212 66 32 49 164 63 13 66 63 118 26 72 189 87 30 190 174 32 174 66 58 21 87 71 30 90 76 28 181 86 66 67 174 174 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	9601-9904
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	02	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
21	NUT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9601-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9601-
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9601-0104
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9601-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9601-9904
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
63	NUT; STAY MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	9601-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
72	SHEET (A)	1-71798-487-3	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	9905-
72	SHEET (B)	1-71798-488-1	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	9905-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	9601-9702
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 FLANGE	0-28680-840-0	03	1	9703-9904
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT EXC. MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-0	03	1	9601-9904
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	9905-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-0	01	1	9601-9904
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-805-1	01	1	9905-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-577-0	02	1	9601-9708
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) RH THREAD	1-71798-819-2	01	1	9709-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-2	01	1	9709-
164	STAY; ROOF (A)	1-71798-299-4	01	1	9601-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	9601-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82625-561-0	01	1	9905-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-130-0	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-82626-129-3	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-82626-172-4	01	1	9905-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
189	SCREW; PIVOT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X25 W/LK&PL WASHER	9-03920-525-0	04	1	9905-
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	9601-9904
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X50	1-09981-444-0	02	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9601-9904
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
190	SCREW; COVER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
212	BUSHING; MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	9601-

17 66 13 72 66 17 71 151 69 25 49 85 85 28 17 87 13 66 90 132 86 181 133 72 66 71 185 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9601-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9601-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	06	1	9601-9904
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	06	1	9905-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	04	1	9601-9904
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M5X14	1-71797-881-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M6X10	1-71797-882-0	04	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
69	NUT; CAP UPPER BRKT FIX M8	1-09984-187-0	02	1	9601-9904
69	NUT; CAP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> UPPER BRKT FIX M8	1-09984-187-0	02	1	9905-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
72	SHEET (A)	1-71798-487-3	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-487-3	01	1	9905-
72	SHEET (B)	1-71798-488-1	01	1	9601-9904
72	SHEET EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-488-1	01	1	9905-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	9601-9904
85	PIVOT; MAIN MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) ID=22.2	1-71736-489-2	02	1	9905-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	9601-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
132	RING; MIRROR (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-953-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-936-0	02	1	9905-
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-9904
151	WASHER; PL,MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9601-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	9601-9904
185	BOLT; BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> M8X35 FLANGE	0-28690-835-0	02	1	9905-

14 85 85 13 132 134 133 86 87 30 30 134 134 21 87 32 32 135 21 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
14	MIRROR ASM; OUTSIDE MIR STAY O/S W/REMOTE<TBA> PIVOT ID=22.2	1-71707-152-1	01	1	9601-9904
14	MIRROR ASM; OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> PIVOT ID=22.2	1-71707-152-1	01	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	9601-9904
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	02	1	9905-
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
21	NUT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5	1-09984-124-0	04	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	9601-9904
85	PIVOT; MAIN MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) ID=22.2	1-71736-489-2	02	1	9905-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	9601-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
132	RING; MIRROR (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-953-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-936-0	02	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA>	1-71737-929-0	01	1	9601-9904
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>	1-71737-929-0	01	1	9601-9904
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-
135	LENS; MIRROR,SIDE UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71737-929-0	01	1	9905-

63 66 32 66 30 49 212 25 17 164 28 17 66 28 58 13 87 85 85 26 58 87 66 86 66 90 71 181 76 13 132 133 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	9601-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	9601-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	06	1	9601-9904
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	06	1	9905-
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B) M5	1-09984-124-0	04	1	9601-9904
17	NUT; CAP,MIRROR STAY EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M5	1-09984-124-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M5X14	1-71797-881-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M6X10	1-71797-882-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	03	1	9601-9904
28	GROMMET; UNDER MIRROR BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> BLACK	1-71737-678-0	01	1	9905-9910
28	GROMMET; UNDER MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9601-9904
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71797-853-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9601-9904
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71798-592-0	01	1	9905-
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-591-0	01	1	9601-9904
30	MIRROR; UNDER EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71798-591-0	01	1	9905-
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	02	1	9601-9904
32	SCREW; UNDER MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	02	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9601-9904
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
32	SCREW; UNDER MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9601-
49	STAY; MIRROR SIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> EXC. MIR STAY O/S W/REMOTE<TBA> (E)	1-71707-045-0	01	1	9905-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-896-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-896-2	01	1	9905-
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (D)	1-71797-856-0	01	1	9601-9904
49	STAY; MIRROR SIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-856-1	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71797-898-1	01	1	9601-9904
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71707-043-0	01	1	9905-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71707-087-0	01	1	9905-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9601-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9601-
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9601-0104
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9601-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (D) M8	1-71798-603-1	02	1	9601-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9601-9904
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
63	NUT; STAY MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M14	9-99110-414-0	01	1	9905-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9601-9710
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9711-0104
66	WASHER; PL (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	9601-
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9711-0104
66	WASHER; PL (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	01	1	9601-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	03	1	9601-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	9601-9702
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> (A) M8X40 FLANGE	0-28680-840-0	03	1	9703-9904
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-
76	BOLT; STAY BRKT EXC. MIR STAY O/S W/REMOTE<TBA> (B) M8X30 W/LK WASHER	8-94279-183-0	03	1	9601-9904
76	BOLT; STAY BRKT EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (B) M8X30 W/LK WASHER	8-94279-183-1	03	1	9905-
85	PIVOT; MAIN MIRROR (A) ID=22.2	1-71736-489-2	02	1	9601-9904
85	PIVOT; MAIN MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) ID=22.2	1-71736-489-2	02	1	9905-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	9601-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
87	SPACER (A)	1-71737-704-0	01	1	9601-9904
87	SPACER (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-704-0	01	1	9905-
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	01	1	9601-9904
87	SPACER EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	01	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9601-9904
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
87	SPACER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-646-2	02	1	9905-
90	BRACKET; MIRROR STAY	1-71798-229-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-829-0	01	1	9904-
90	BRACKET; MIRROR STAY	1-71798-228-4	01	1	9601-9903
90	BRACKET; MIRROR STAY	1-71798-828-0	01	1	9904-
132	RING; MIRROR (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (C)	1-71737-934-0	01	1	9601-9904
132	RING; MIRROR (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71737-934-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-933-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9601-9904
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
132	RING; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-935-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-953-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-936-0	01	1	9601-9904
134	CLIP; MIRROR LENS (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-936-0	01	1	9905-
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-936-0	02	1	9601-9904
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-936-0	02	1	9905-
164	STAY; ROOF (A)	1-71798-299-4	01	1	9601-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-602-1	01	1	9601-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9601-9904
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
212	BUSHING; MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>	1-09983-175-1	01	1	9601-

86 96 36 190 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73118-026-0	01	1	9601-
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9601-9906
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9907-
36	GROMMET; MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> M5 SCREW GROMMET	1-09983-131-0	03	1	9905-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-0	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) BLACK	1-71737-760-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (G)	1-73317-322-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-410-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71798-732-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-411-1	01	1	9601-9904
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71798-733-0	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F) BLACK	1-71737-649-1	01	1	9905-
96	CAP; MIRROR STAY HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA>	1-73317-324-0	03	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9601-9904
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-
190	SCREW; COVER MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-

25 71 25 71 13 23 26 204 23 26 205 133 206 174 174 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A) LH & RH	1-71737-918-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) LH & RH	1-71737-918-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-172-0	01	1	9905-0102
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71707-101-0	01	1	0103-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-917-1	01	1	9601-9904
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-917-2	01	1	9905-
23	WASHER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-883-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (C) M5X50	1-09981-444-0	02	1	9601-9904
25	SCREW; OUTSIDE MIRROR (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) M5X50	1-09981-444-0	02	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A) M5X14	1-71797-881-0	04	1	9905-
25	SCREW; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B) M6X10	1-71797-882-0	04	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-71797-879-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-880-0	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (C) BLACK	1-71737-652-1	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-316-2	01	1	9601-9904
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71798-316-2	01	1	9905-
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9601-9904
26	COVER; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B) BLACK	1-71737-649-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A)	1-71798-484-1	01	1	9905-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B)	1-71798-486-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (E)	1-71797-877-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (F)	1-71797-878-0	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-1	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-809-2	01	1	9905-
71	BRACKET; OUTSIDE MIRROR EXC. MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-581-3	01	1	9601-9904
71	BRACKET; OUTSIDE MIRROR EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG, WO/WIPER & WASHER<TDD> (D)	1-71798-581-3	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-71797-953-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-927-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE EXC. MIR O/S UNDER & SIDE UNDER VIEW<TAF>,MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-71737-927-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-926-0	01	1	9601-9904
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. MIR STAY O/S W/REMOTE<TBA>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-71737-926-0	01	1	9905-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (A)	1-82625-561-0	01	1	9905-
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (B)	1-82626-130-0	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (C)	1-82626-129-3	01	1	9905-0003
174	HARNESS; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D)	1-82626-172-4	01	1	9905-
204	MOTOR KIT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-954-0	01	1	9905-0102
204	MOTOR KIT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71707-144-0	01	1	0103-
205	CONNECTOR KIT; MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71797-955-0	01	1	9905-
206	SCREW; MOTOR,MIRROR MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	8-98134-316-0	02	1	0103-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
