Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#54348) — 156 parça

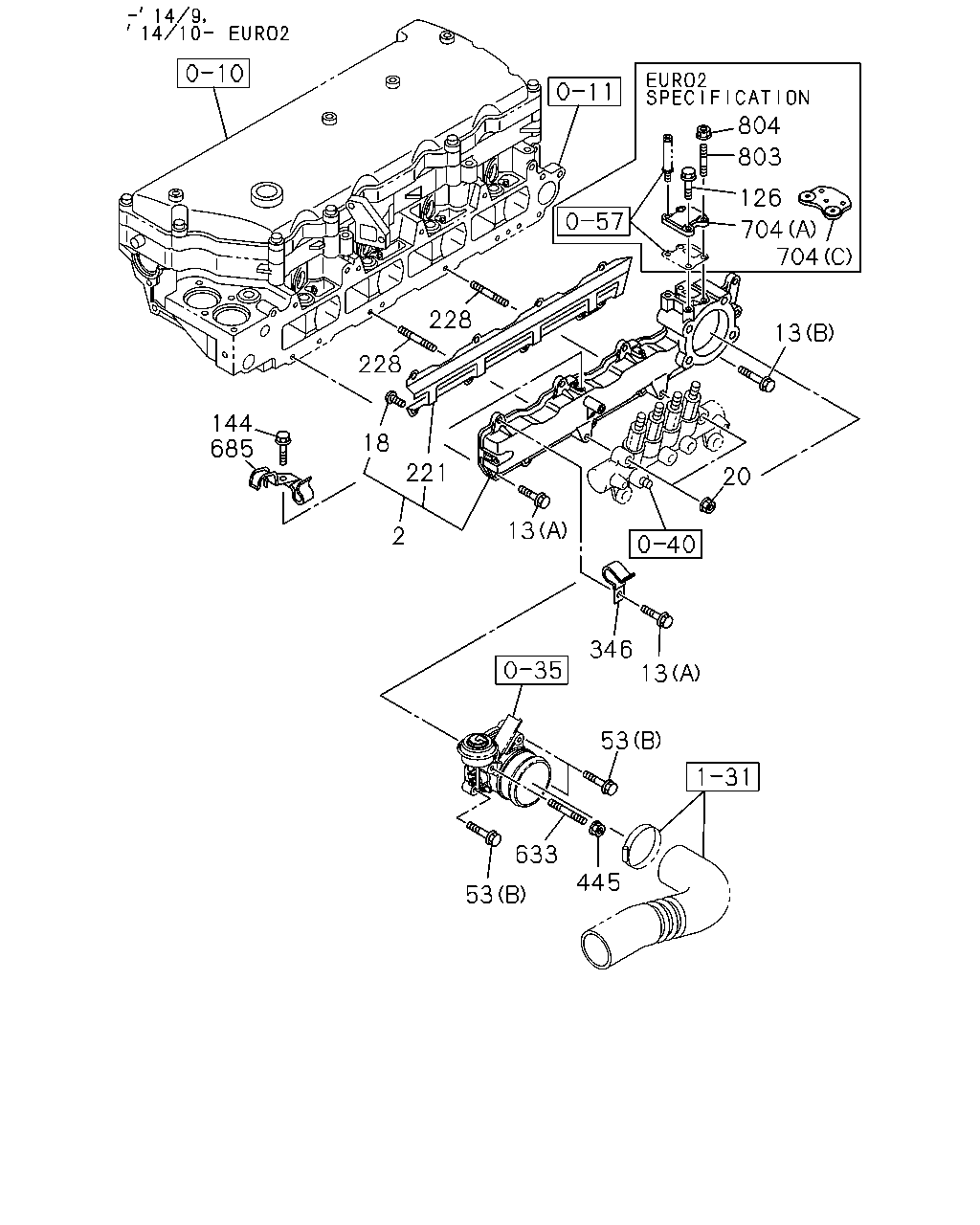

804 803 126 704 704 228 228 144 685 18 221 2 13 346 13 53 633 445 53 20 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL	8-97387-038-0	01	1	0803-1409	●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-038-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0803-	●	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	0803-	●	●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0804-0808			●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0809-			●	●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-0808			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0809-			●	●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	0803-1409	●	●
18	03.403 SCREW; PLATE,INL CVR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.525 M6X10	9-03490-610-0	09	1	1410-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
53	03.602 BOLT; INL PIPE EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0803-0803	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0803-0803	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
126	03.275 BOLT; COVER EURO2 SPECIFICATION(NT2) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	0803-1409	●	●
221	03.403 PLATE; INL COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97379-202-0	01	1	1410-	●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0803-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0803-	●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0803-	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	0804-1408	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-	●	●
704	03.270 COVER (B)	8-98056-986-0	01	1	0804-1104			●
704	03.270 COVER (B)	8-98056-986-0	01	1	1105-	●	●
704	03.270 COVER EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98056-986-0	01	1	1105-			●	●
803	03.275 STUD; COVER EURO2 SPECIFICATION(NT2) 02.510 M8X20 L=32	0-41010-820-0	02	1	0804-	●	●
804	03.275 NUT; COVER EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●

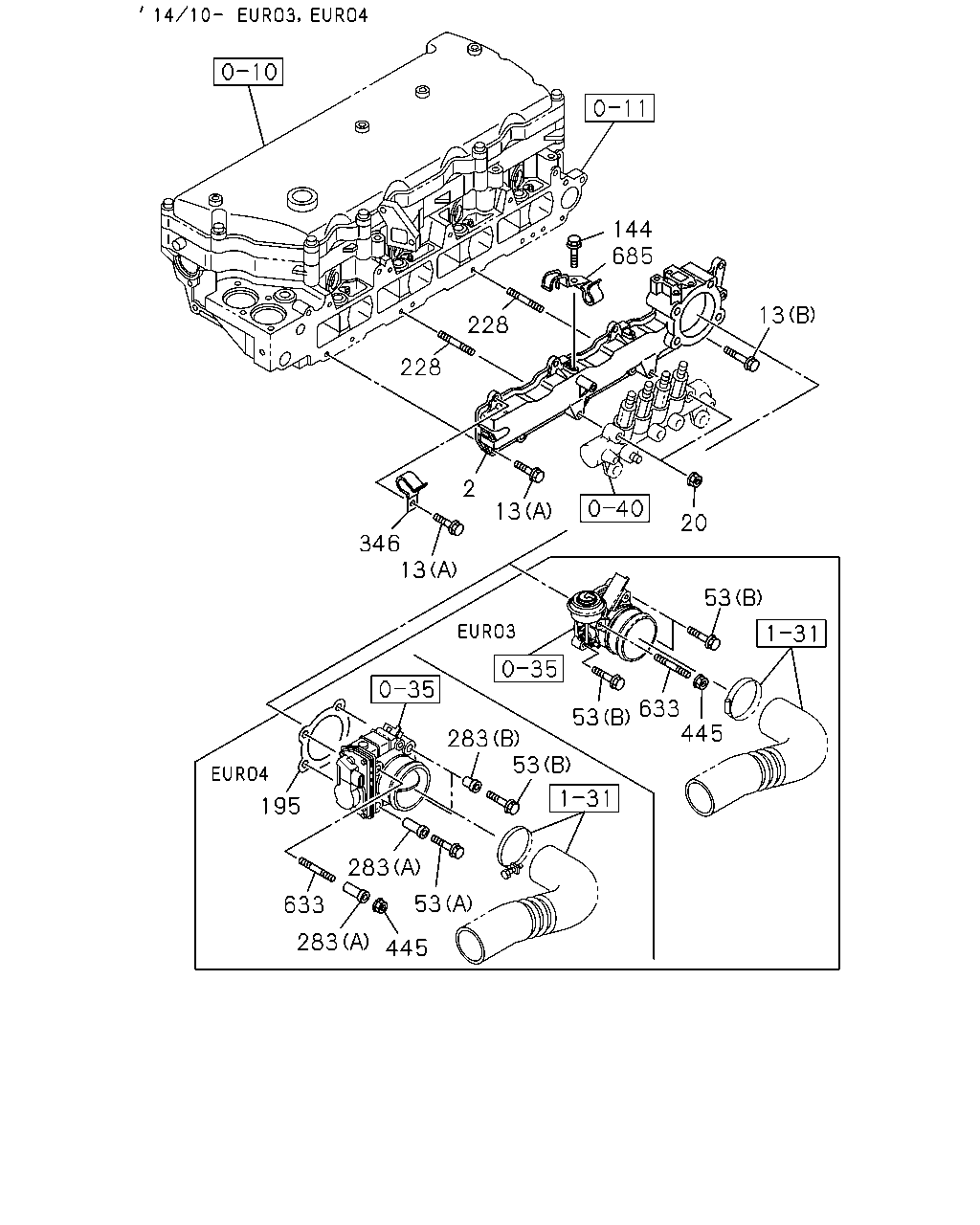

2 221 144 685 18 228 228 13 20 13 13 346 283 53 283 195 53 633 283 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL	8-97387-038-0	01	1	0803-1409	●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-038-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0803-	●	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	0803-	●	●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0804-0808			●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0809-			●	●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-0808			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0809-			●	●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	0803-1409	●	●
18	03.403 SCREW; PLATE,INL CVR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.525 M6X10	9-03490-610-0	09	1	1410-	●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
53	03.602 BOLT; INL PIPE EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0803-0803	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0803-0803	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=88	8-97387-009-0	01	1	0803-0803	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=88	8-97387-009-0	01	1	0804-	●	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	0803-1409	●	●
221	03.403 PLATE; INL COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97379-202-0	01	1	1410-	●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0803-	●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	0803-0803	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	0804-	●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (A) L=58	8-97387-995-0	02	1	0803-0803	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (A) L=58	8-97387-995-1	02	1	0804-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0803-	●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0803-	●	●

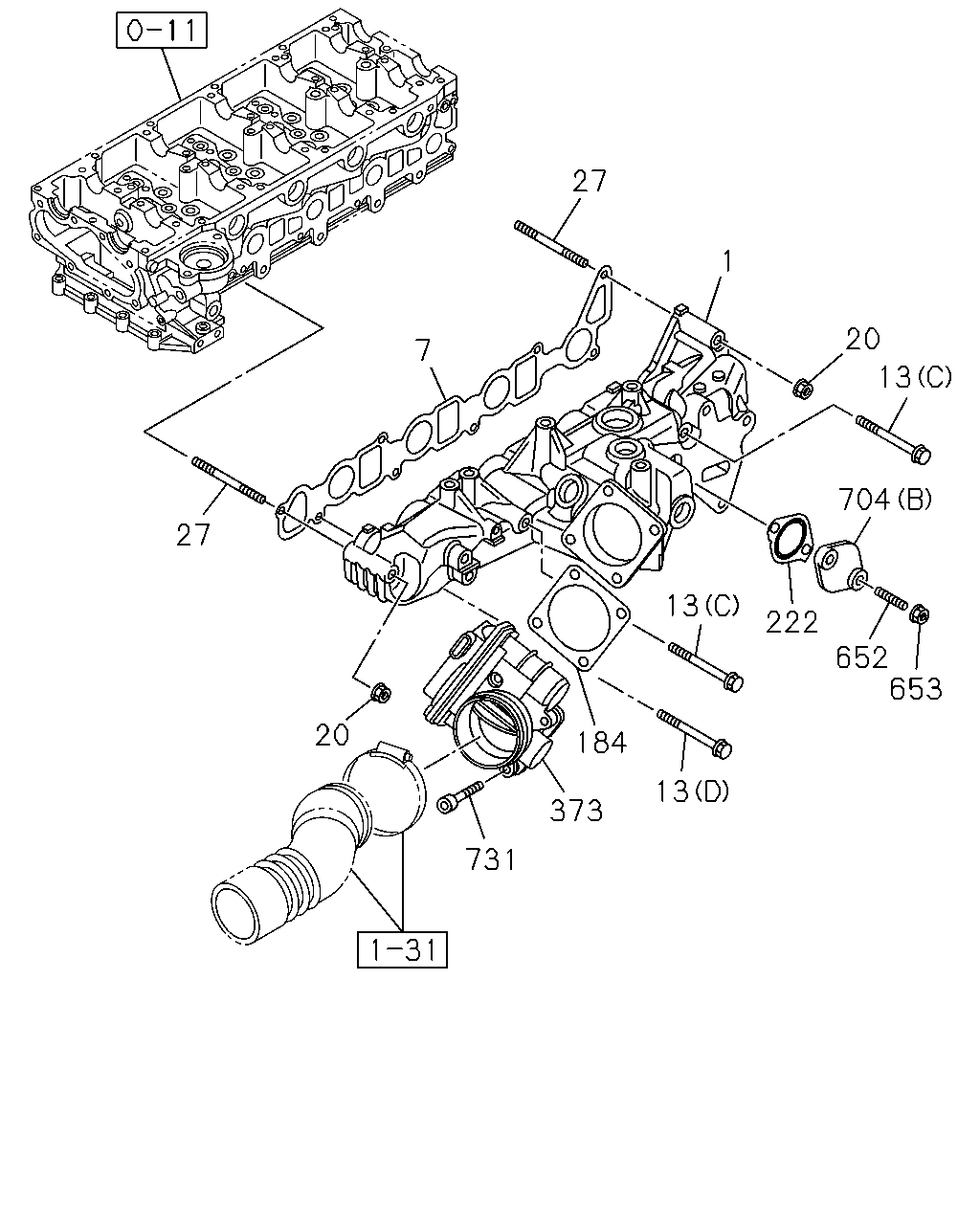

27 1 20 13 704 653 652 222 13 13 184 373 731 20 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.265 MANIFOLD; INL	8-98024-411-0	01	1	0804-0808			●
1	03.265 MANIFOLD; INL	8-98024-411-1	01	1	0809-			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0)	8-97312-067-1	01	1	1105-			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-067-1	01	1	0804-0808			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-067-1	01	1	0809-0902			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98063-396-0	01	1	0903-1104			●	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98063-396-0	01	1	1105-1211			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98063-396-0	01	1	1105-1211				●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98212-999-0	01	1	1212-			●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98212-999-0	01	1	1212-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0803-	●	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	0803-	●	●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0804-0808			●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0809-			●	●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-0808			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0809-			●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
27	03.275 STUD; INL MANIF VIETNAM EQUIPMENT(CL0) M8X71 L=83	8-97367-083-0	02	1	1105-			●	●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	0804-0808			●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	0809-1104			●	●
27	03.275 STUD; INL MANIF EXC. VIETNAM EQUIPMENT(CL0) M8X71 L=83	8-98017-063-0	02	1	1105-			●
27	03.275 STUD; INL MANIF M8X71 L=83	8-98017-063-0	02	1	1105-				●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0)	8-97366-784-1	01	1	1105-			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97366-784-1	01	1	0804-0808			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97366-784-1	01	1	0809-0902			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	0903-1104			●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	1105-			●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98096-968-0	01	1	1105-				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	0804-1104			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.665	8-97357-684-3	01	1	1105-	●	●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) 03.665	8-97357-684-3	01	1	1105-			●	●
373	03.265 THROTTLE ASM; INT	8-98040-003-2	01	1	0804-0808			●
373	03.265 THROTTLE ASM; INT	8-98040-003-4	01	1	0809-			●	●
652	03.275 STUD; DUCT,AIR INLET M8X25 L=41	0-40210-825-0	02	1	0804-1104			●
652	03.275 STUD; DUCT,AIR INLET M8X25 L=41	0-40210-825-0	02	1	1105-	●	●
652	03.275 STUD; DUCT,AIR INLET EXC. VIETNAM EQUIPMENT(CL0) M8X25 L=41	0-40210-825-0	02	1	1105-			●	●
653	03.265 NUT; DUCT,AIR INLET 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-1104			●
653	03.265 NUT; DUCT,AIR INLET 01.540 M8 FLANGE	0-91180-208-0	02	1	1105-	●	●
653	03.265 NUT; DUCT,AIR INLET EXC. VIETNAM EQUIPMENT(CL0) 01.540 M8 FLANGE	0-91180-208-0	02	1	1105-			●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) 03.407 (A)	8-98062-651-1	01	1	0804-1408	●	●
704	03.270 COVER EURO2 SPECIFICATION(NT2) (C)	8-98260-138-0	01	1	1409-	●	●
704	03.270 COVER (B)	8-98056-986-0	01	1	0804-1104			●
704	03.270 COVER (B)	8-98056-986-0	01	1	1105-	●	●
704	03.270 COVER EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98056-986-0	01	1	1105-			●	●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0804-0808			●
731	02.559 BOLT; THROTTLE ASM M6X50 HEX SOCKET	0-58330-650-0	04	1	0809-			●	●

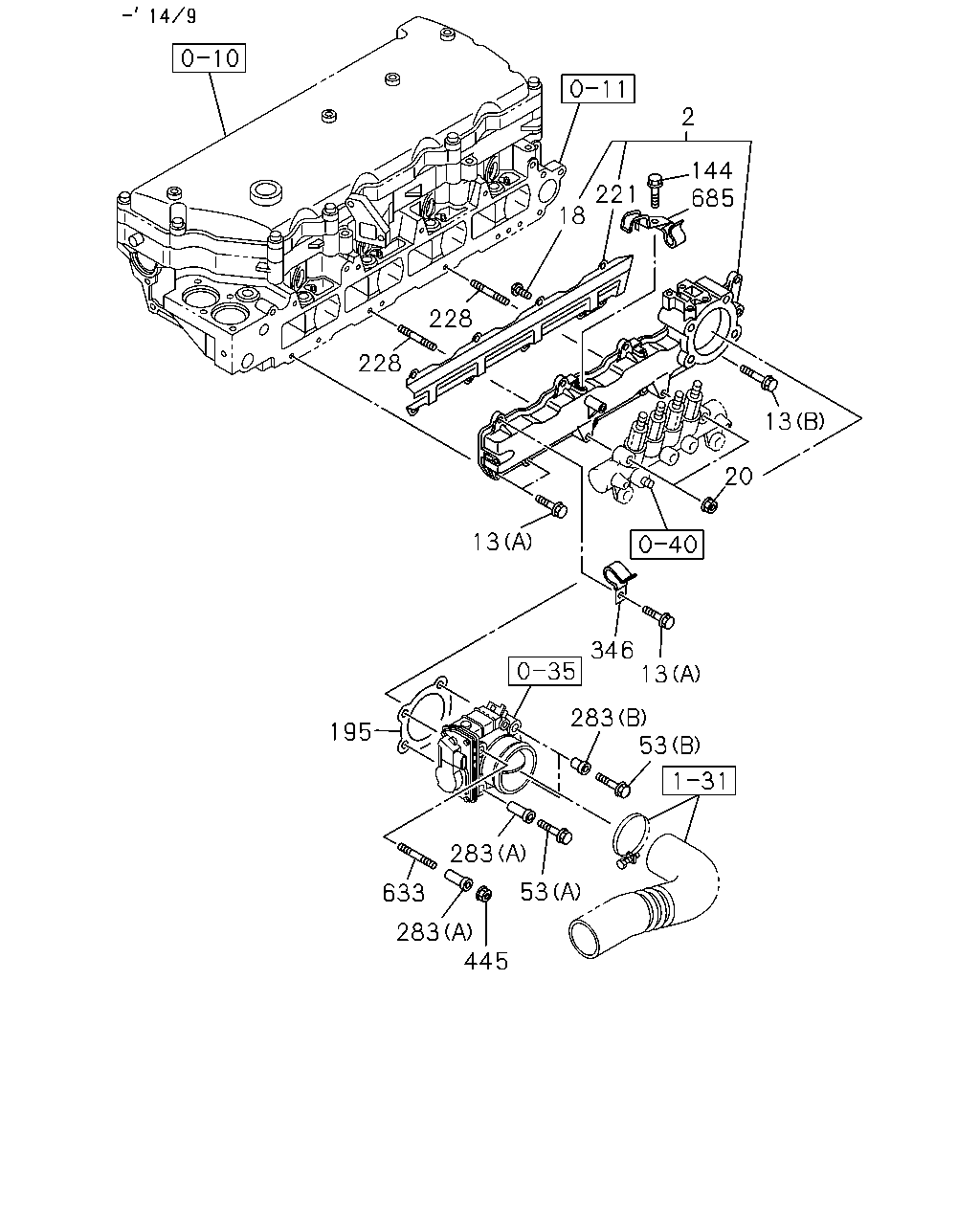

144 685 13 228 228 13 2 346 13 20 53 633 445 53 283 53 53 283 633 195 283 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.407 COVER; INL	8-97387-038-0	01	1	0803-1409	●	●
2	03.407 COVER; INL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-97387-038-0	01	1	1410-	●	●
2	03.407 COVER; INL EURO2 SPECIFICATION(NT2)	8-97387-039-0	01	1	1410-	●	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0803-	●	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	0803-	●	●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0804-0808			●
13	03.275 BOLT; INL MANIF (C) M8X110 FLANGE	0-28055-811-0	02	1	0809-			●	●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0804-0808			●
13	03.275 BOLT; INL MANIF (D) M8X70 12-POINT HEAD	8-97101-065-0	04	1	0809-			●	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
20	03.275 NUT; INL MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
53	03.602 BOLT; INL PIPE EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0803-0803	●	●
53	03.602 BOLT; INL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0803-0803	●
53	03.602 BOLT; INL PIPE EURO4 SPECIFICATION(NT4) 00.206 (A) M8X70 FLANGE	0-28050-870-0	01	1	0804-	●	●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-	●	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0803-	●	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=88	8-97387-009-0	01	1	0803-0803	●
195	03.729 GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=88	8-97387-009-0	01	1	0804-	●	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0803-	●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	0803-0803	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (B) L=18	8-97219-650-0	02	1	0804-	●	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (A) L=58	8-97387-995-0	02	1	0803-0803	●
283	03.265 RUBBER EURO4 SPECIFICATION(NT4) (A) L=58	8-97387-995-1	02	1	0804-	●	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0803-	●	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	0803-	●	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0803-	●	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0803-	●	●

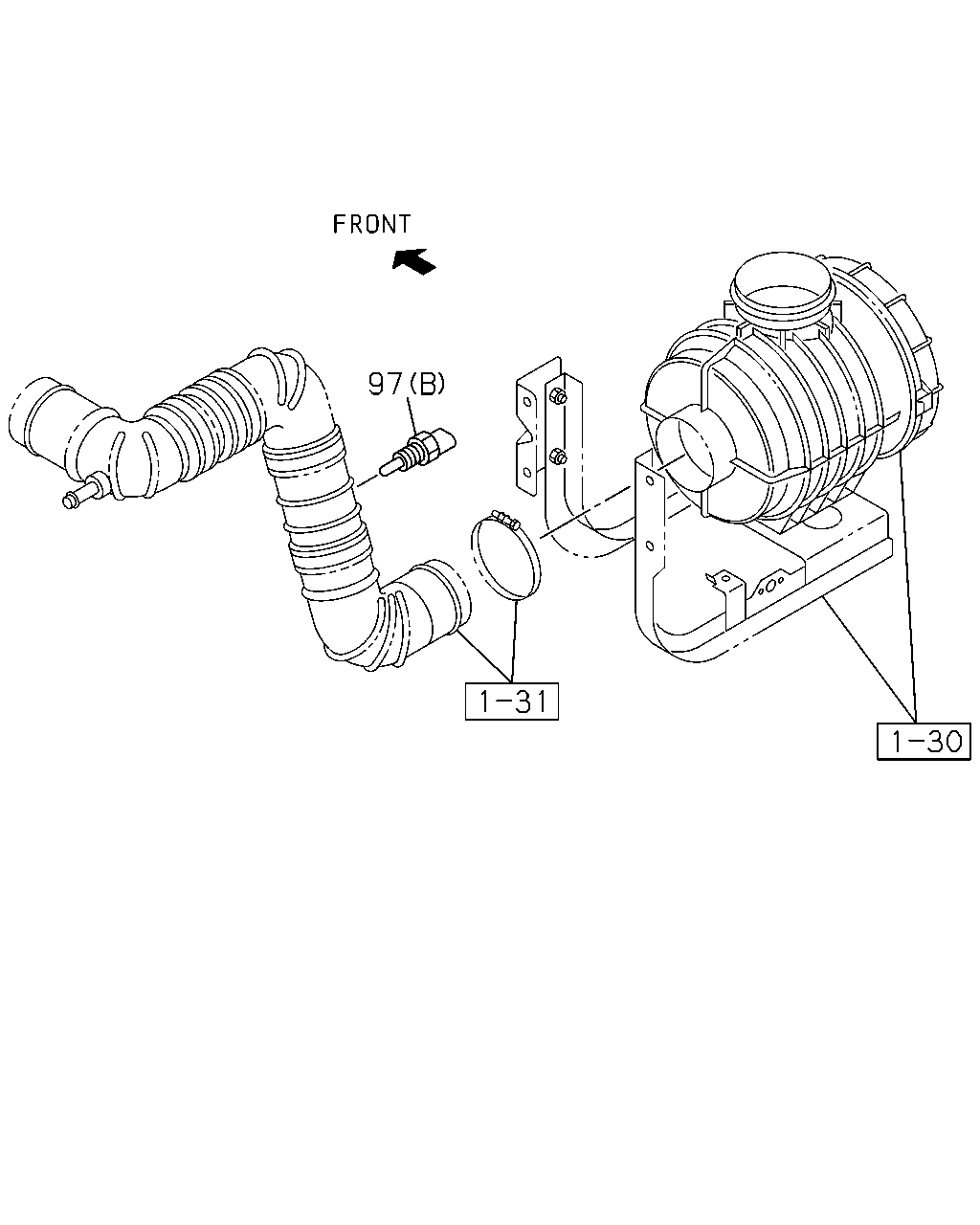

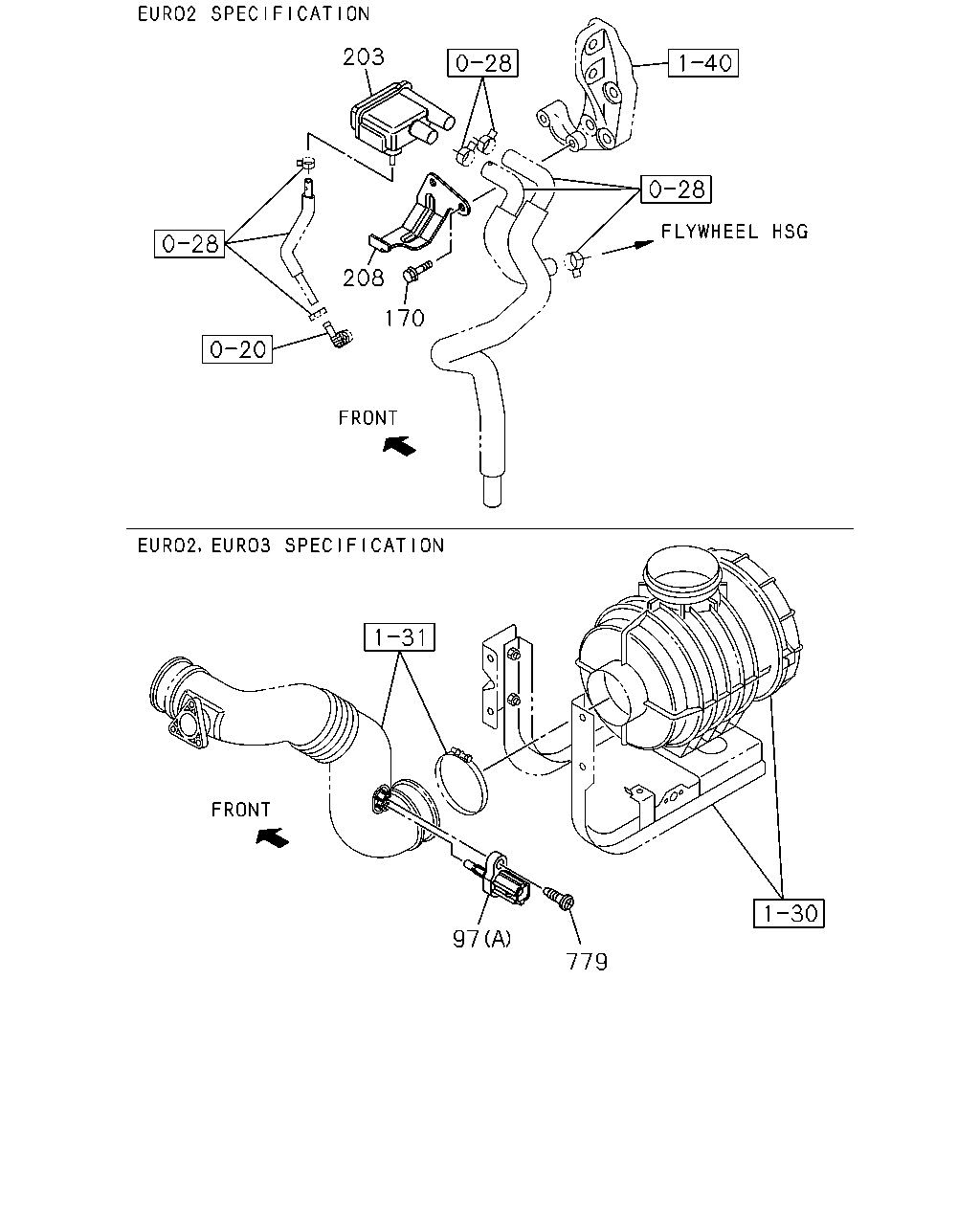

203 208 170 779 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO3 SPECIFICATION(NT3) (A)	8-98065-377-0	01	1	0803-0803	●	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98065-377-0	01	1	0804-	●	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	0804-			●
170	03.162 BOLT; BRKT EURO2 SPECIFICATION(NT2) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0804-	●	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION(NT2)	8-97088-685-1	01	1	0804-	●	●
208	01.750 BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION(NT2)	8-98074-130-0	01	1	0804-	●	●
779	03.682 BOLT; SENSOR EURO3 SPECIFICATION(NT3) 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	0803-0803	●	●
779	03.682 BOLT; SENSOR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	0804-	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO3 SPECIFICATION(NT3) (A)	8-98065-377-0	01	1	0803-0803	●	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98065-377-0	01	1	0804-	●	●
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE 01.150 (B)	8-12146-830-0	01	1	0804-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
