0-22 — ENGINE MOUNTING (#54347) — 163 parça

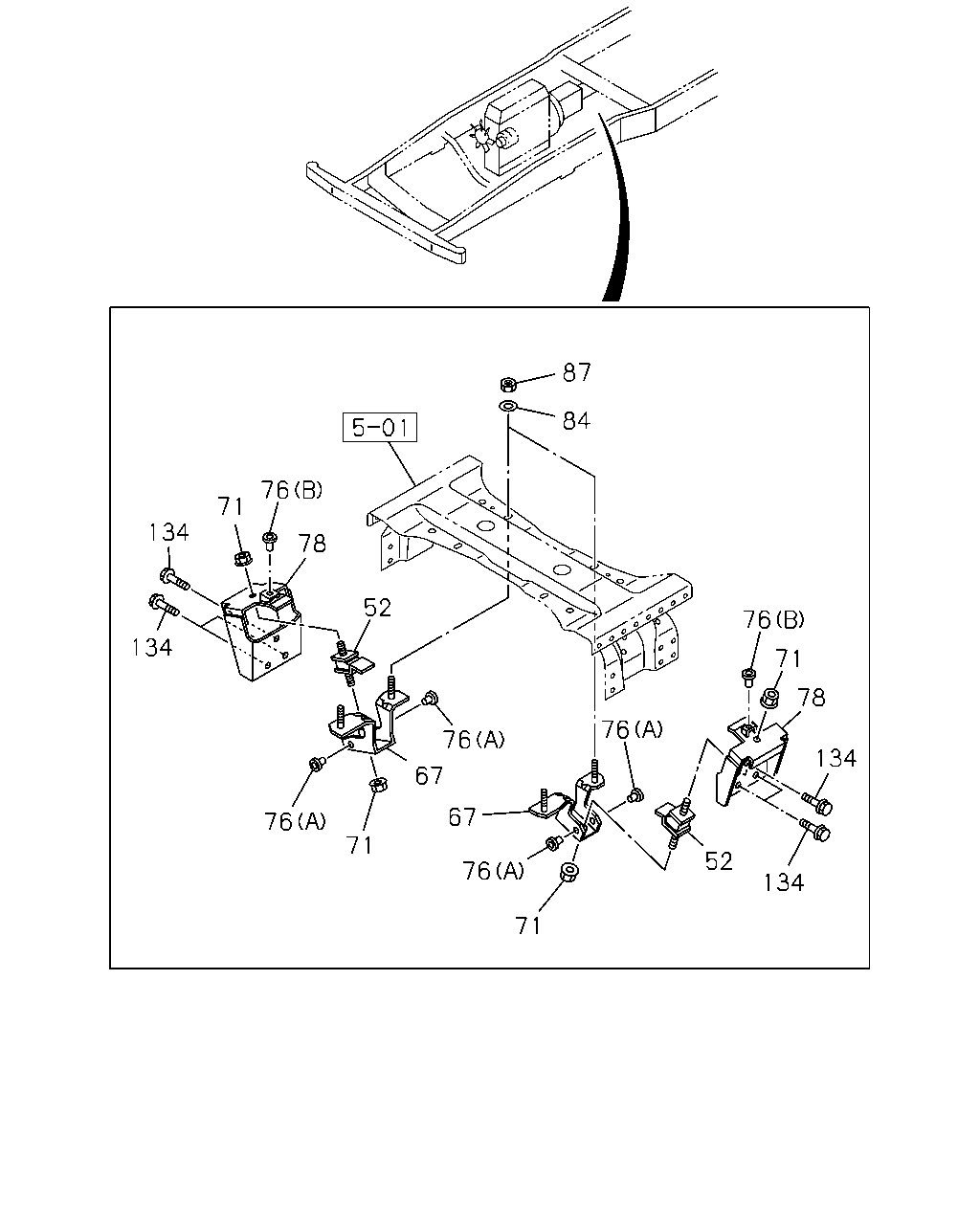

çizim 120086
87 84 76 71 134 78 52 76 134 71 78 76 76 134 67 67 76 71 52 76 134 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0803-0803 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97039-277-0 02 1 0804-0808 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97039-277-0 02 1 0809- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94111-903-1 02 1 0803-0803 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94111-903-1 02 1 0804-0808 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0804-0808 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94111-903-1 02 1 0809- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0809- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97180-457-0 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97180-457-0 01 1 0804-0808 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97180-457-0 01 1 0809- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97180-458-0 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF) 		8-97180-458-0 01 1 0804-0808 ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97180-458-0 01 1 0809- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-776-1 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-776-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NQR(NP***S) M/T MYY6S(RST) 		8-97255-776-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-778-1 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-778-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NQR(NP***S) M/T MYY6S(RST) 		8-97255-778-1 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-753-0 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-753-0 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-754-0 01 1 0803-0803 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-754-0 01 1 0804- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 0804-0808 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-324-1 01 1 0809- ● ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 0804-0808 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-98004-325-1 01 1 0809- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NQR(NP***S) M/T MZZ6U(RSF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MZZ6U(RSF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0808 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0808 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0808 ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NQR(NP***S) M/T MZZ6U(RSF),M/T MYY6S(RST) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NQR(NP***S) M/T MZZ6U(RSF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.027 (B) 		8-94111-904-0 02 1 0803-0803 ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF) 00.027 (B) 		8-94111-904-0 02 1 0803-0803 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) 00.027 (B) 		8-94111-904-0 02 1 0804-0808 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.027 (B) 		8-94111-904-0 02 1 0804-0808 ●
76 00.002 STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.027 (B) 		8-94111-904-0 02 1 0804-0808 ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) 00.027 (B) 		8-94111-904-0 02 1 0809- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF),M/T MYY6S(RST) 00.027 (B) 		8-94111-904-0 02 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF) 00.027 (B) 		8-94111-904-0 02 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0809- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.027 (B) 		8-94111-904-0 02 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97039-947-1 04 1 0803-0803 ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF) (A) 		8-97039-947-1 04 1 0803-0803 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6U(RSF) (A) 		8-97039-947-1 04 1 0804-0808 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97039-947-1 04 1 0804-0808 ●
76 00.002 STOPPER; ENG MTG RUBBER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97039-947-1 04 1 0804-0808 ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MZZ6U(RSF),M/T MZZ6F(RSR) (A) 		8-97039-947-1 04 1 0809- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF),M/T MYY6S(RST) (A) 		8-97039-947-1 04 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
NQR(NP***S) M/T MZZ6U(RSF) (A) 		8-97039-947-1 04 1 0809- ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 04 1 0809- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97039-947-1 04 1 0809- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97211-475-0 01 1 0803-0803 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97211-475-0 01 1 0804-0808 ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97211-475-0 01 1 0809- ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97234-719-0 01 1 0803-0803 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF) 		8-97234-719-0 01 1 0804-0808 ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6U(RSF),M/T MZZ6F(RSR) 		8-97234-719-0 01 1 0809- ● ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-756-1 02 1 0803-0803 ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97255-756-1 02 1 0804- ●
78 00.029 BRACKET; ENG MTG,RR
NQR(NP***S) M/T MYY6S(RST) 		8-97255-756-1 02 1 0804- ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-752-0 02 1 0803-0803 ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97350-752-0 02 1 0804-1407 ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98144-646-1 02 1 1408- ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 0804-0808 ●
78 00.029 BRACKET; ENG MTG,RR
DBL CAB(NP**W*) 		8-98037-083-1 01 1 0804-0808 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-083-1 01 1 0809- ● ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 0804-0808 ●
78 00.029 BRACKET; ENG MTG,RR
DBL CAB(NP**W*) 		8-98037-082-1 01 1 0804-0808 ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98037-082-1 01 1 0809- ● ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98053-903-0 02 1 0804-1407 ●
78 00.029 BRACKET; ENG MTG,RR
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98220-858-0 02 1 1408- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0803-0803 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0804-0808 ● ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0809- ● ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0803-0803 ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0804-0808 ● ● ●
87 00.029 NUT; ENG MTG RR
03.162 M10 FLANGE 		0-91180-110-0 04 1 0809- ● ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0803-0803 ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0804-0808 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0809- ● ● ● ●

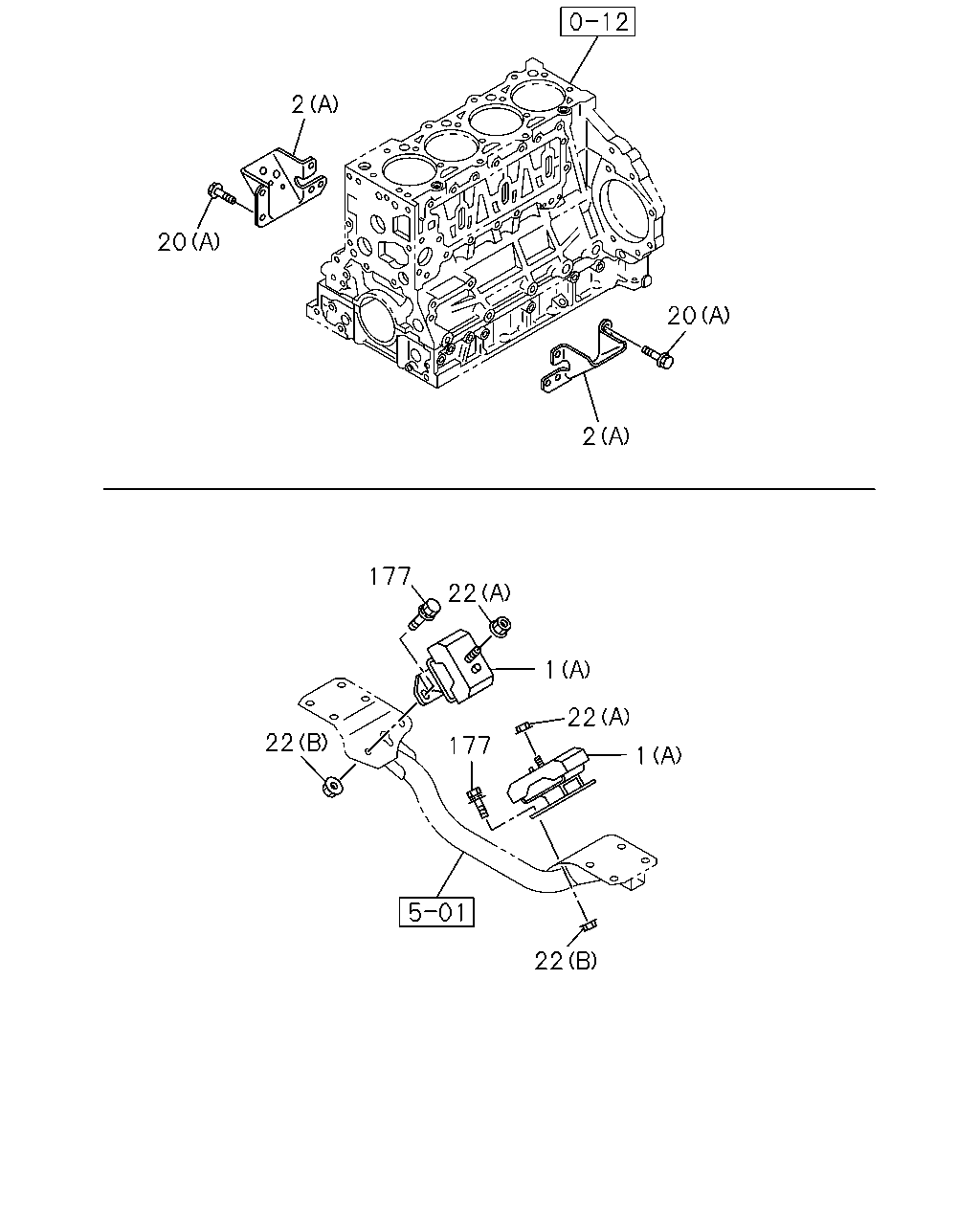

çizim 120089
2 20 20 2 177 22 1 22 22 177 1 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-97387-250-2 01 1 0803-0803 ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-97387-250-2 01 1 0804-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98203-633-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98061-232-0 01 1 0803-0803 ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98061-232-0 01 1 0804-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98203-634-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-001-0 01 1 0804-0808 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-001-0 01 1 0809-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98303-821-0 01 1 1602- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-000-0 01 1 0804-0808 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-000-0 01 1 0809-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98303-820-0 01 1 1602- ● ●
2 00.029 FOOT; ENG
(A) 		8-97228-669-2 02 1 0803- ● ●
2 00.029 FOOT; ENG
(B) 		8-97381-513-1 01 1 0804-0808 ●
2 00.029 FOOT; ENG
(B) 		8-97381-513-1 01 1 0809- ● ●
2 00.029 FOOT; ENG
(B) 		8-97381-514-2 01 1 0804-0808 ●
2 00.029 FOOT; ENG
(B) 		8-97381-514-2 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
03.706 (D) M10X70 FLANGE 		0-28051-070-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
03.706 (D) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (B) M10X20 FLANGE 		0-28651-020-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
02.343 (B) M10X20 FLANGE 		0-28651-020-0 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 01 1 0809- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0803-0803 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0804- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0804-0808 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0809- ● ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0804-0808 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0809- ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0803-0803 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0804- ● ●

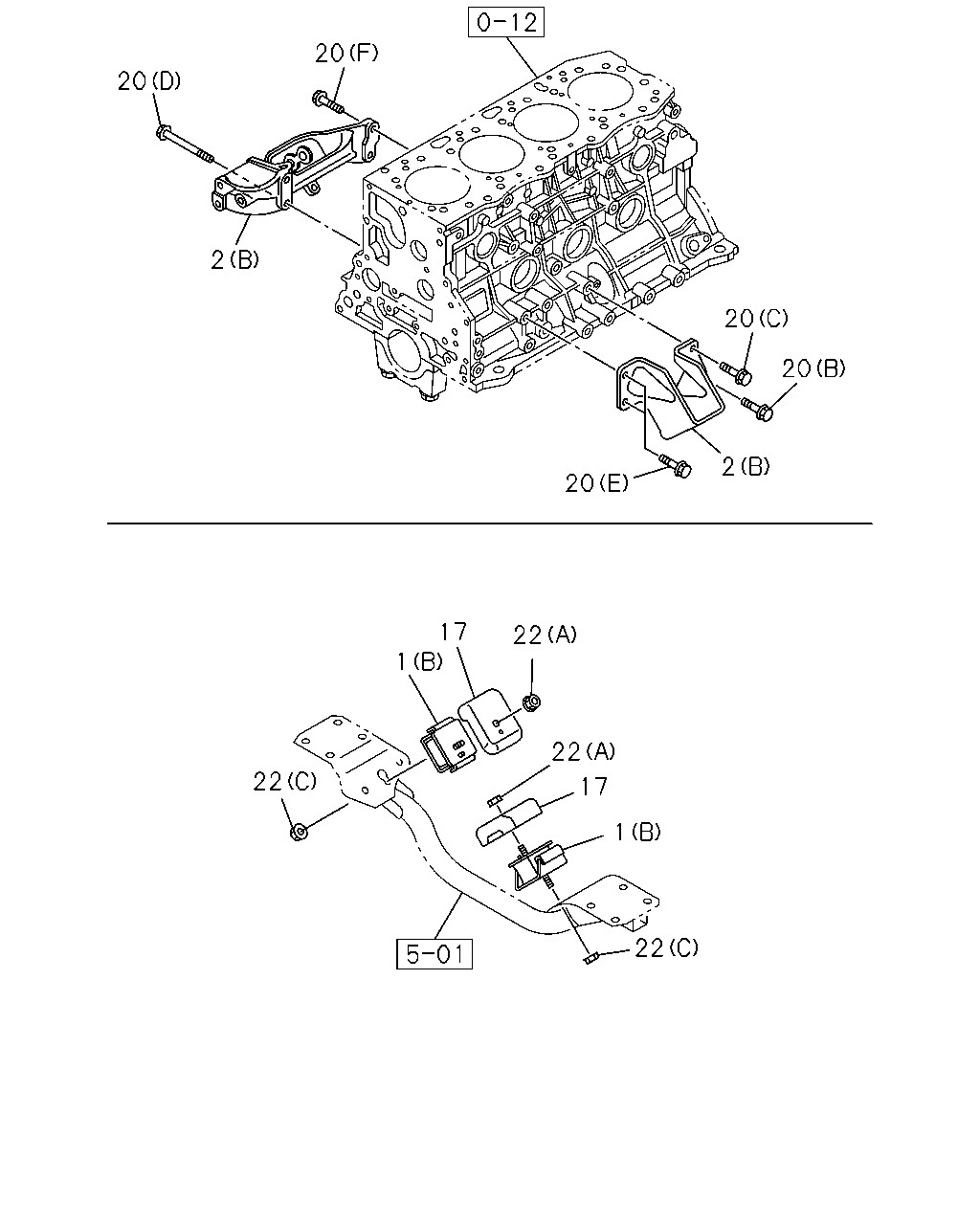

çizim 120093
20 20 2 20 20 2 20 17 1 22 22 22 17 1 22
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-97387-250-2 01 1 0803-0803 ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-97387-250-2 01 1 0804-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98203-633-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98061-232-0 01 1 0803-0803 ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98061-232-0 01 1 0804-1112 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(A) 		8-98203-634-0 01 1 1201- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-001-0 01 1 0804-0808 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-001-0 01 1 0809-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98303-821-0 01 1 1602- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-000-0 01 1 0804-0808 ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98043-000-0 01 1 0809-1601 ● ●
1 00.027 RUBBER; ENG FOOT,FRT
(B) 		8-98303-820-0 01 1 1602- ● ●
2 00.029 FOOT; ENG
(A) 		8-97228-669-2 02 1 0803- ● ●
2 00.029 FOOT; ENG
(B) 		8-97381-513-1 01 1 0804-0808 ●
2 00.029 FOOT; ENG
(B) 		8-97381-513-1 01 1 0809- ● ●
2 00.029 FOOT; ENG
(B) 		8-97381-514-2 01 1 0804-0808 ●
2 00.029 FOOT; ENG
(B) 		8-97381-514-2 01 1 0809- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0804-0808 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0809- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0804-0808 ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0803- ● ●
20 00.029 BOLT; ENG FOOT
03.706 (D) M10X70 FLANGE 		0-28051-070-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
03.706 (D) M10X70 FLANGE 		0-28051-070-0 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
02.343 (B) M10X20 FLANGE 		0-28651-020-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
02.343 (B) M10X20 FLANGE 		0-28651-020-0 01 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE 		0-28651-025-0 02 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 03 1 0809- ● ●
20 00.029 BOLT; ENG FOOT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 01 1 0804-0808 ●
20 00.029 BOLT; ENG FOOT
02.277 (C) M10X35 FLANGE 		0-28651-035-0 01 1 0809- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0803-0803 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (B) M10 FLANGE 		0-91180-210-0 04 1 0804- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0803-0803 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0804-0808 ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (A) M12 FLANGE 		0-91180-112-0 02 1 0809- ● ● ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0804-0808 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0809- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
