0-14 — CAMSHAFT AND VALVE (#54344) — 353 parça

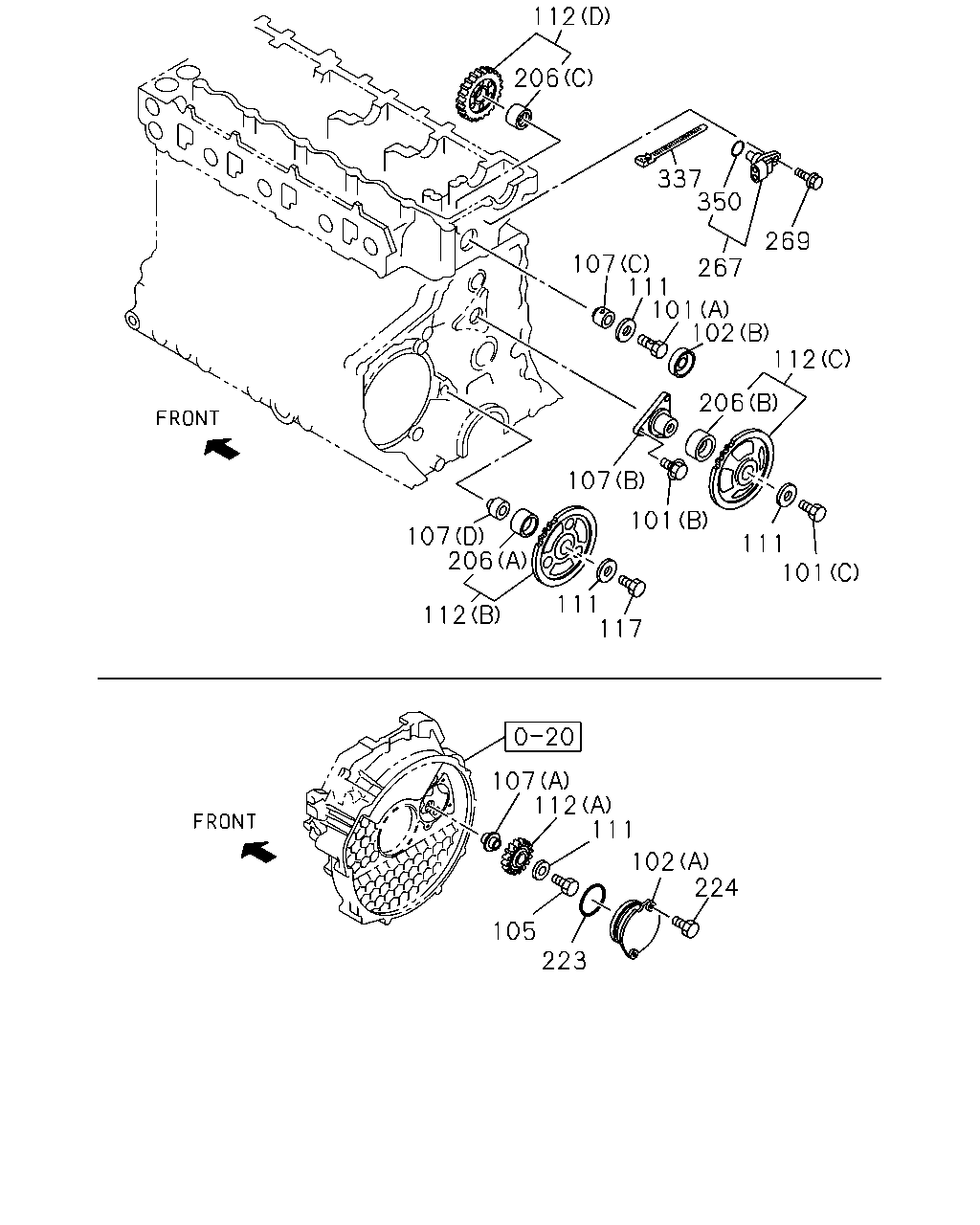

112 206 337 350 269 107 111 101 102 112 267 206 107 101 107 206 111 101 111 117 112 107 112 111 102 224 105 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0803-	●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0803-	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0803-1310	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0803-	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0803-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	0803-0803	●	●
107	00.724 SHAFT; IDLE GEAR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	0804-	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	0803-0803	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	0804-	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	0804-0808			●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	0809-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	0804-0808			●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	0809-			●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	04	1	0803-	●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (E) Z=80	8-98021-050-2	01	1	1105-			●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (F) Z=34	8-98021-052-1	01	1	1105-			●	●
112	00.724 GEAR; IDLE EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	0803-0803	●	●
112	00.724 GEAR; IDLE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	0804-	●	●
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	0803-	●	●
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0803-1402	●	●
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●
112	00.724 GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	0803-	●	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	0803-0803	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	0804-	●	●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	0804-0808			●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	0809-1104			●	●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (E) Z=80	8-97381-516-1	01	1	1105-1311			●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	1105-1311				●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (E) Z=80	8-98232-105-1	01	1	1312-			●
112	00.724 GEAR; IDLE (E) Z=80	8-98232-105-1	01	1	1312-				●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	0804-0808			●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	0809-1104			●	●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (F) Z=34	8-97381-518-0	01	1	1105-			●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	1105-				●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-2	01	1	0804-0808			●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-3	01	1	0809-			●	●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0803-	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0803-1402	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0803-	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0803-	●	●
224	00.724 BOLT; COVER 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0803-	●	●
267	00.724 SENSOR; CAM ANGLE	8-98019-024-0	01	1	0803-	●	●
269	00.685 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0803-	●	●
337	02.183 CLIP; SENSOR 03.162 L=170	5-09707-054-0	02	1	0803-0804	●	●
350	00.724 GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8	8-97369-404-0	01	1	0803-	●	●

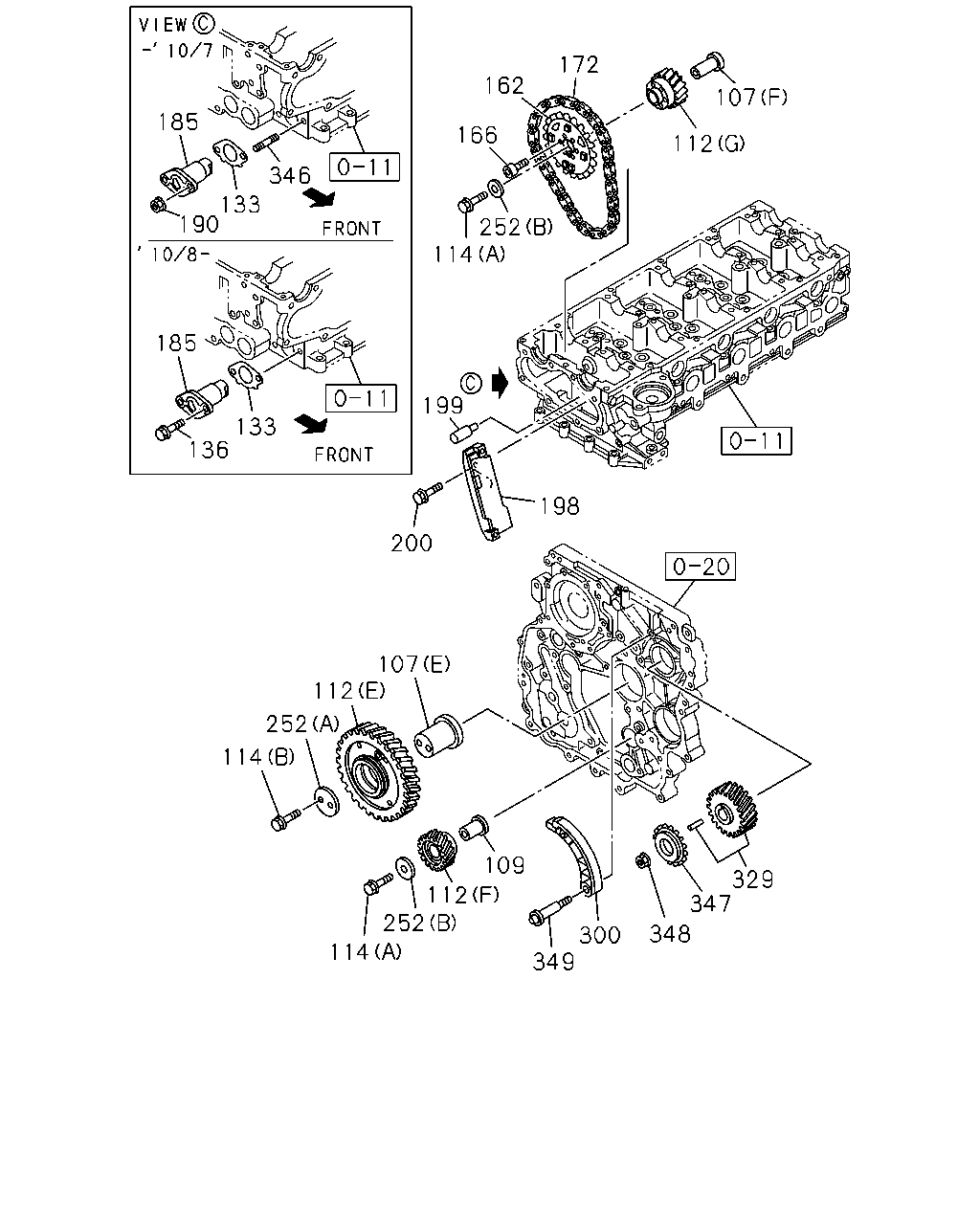

166 162 172 112 107 198 199 200 107 112 252 114 252 114 112 300 349 348 329 347 114 185 133 136 190 133 346 185 252 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	00.724 SHAFT; IDLE GEAR EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	0803-0803	●	●
107	00.724 SHAFT; IDLE GEAR EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-97186-398-1	01	1	0804-	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-1	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97350-021-0	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	0803-0803	●
107	00.724 SHAFT; IDLE GEAR EURO4 SPECIFICATION(NT4) (C)	8-97606-990-1	01	1	0804-	●	●
107	00.724 SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0803-	●	●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	0804-0808			●
107	00.724 SHAFT; IDLE GEAR (E)	8-97312-315-2	01	1	0809-			●	●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	0804-0808			●
107	00.724 SHAFT; IDLE GEAR (F)	8-97312-322-1	01	1	0809-			●	●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0804-0808			●
109	00.724 SHAFT; IDLE GEAR	8-97312-319-1	01	1	0809-			●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (E) Z=80	8-98021-050-2	01	1	1105-			●	●
112	00.724 GEAR; IDLE VIETNAM EQUIPMENT(CL0) (F) Z=34	8-98021-052-1	01	1	1105-			●	●
112	00.724 GEAR; IDLE EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	0803-0803	●	●
112	00.724 GEAR; IDLE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) Z=41	8-97606-929-0	01	1	0804-	●	●
112	00.724 GEAR; IDLE (A) Z=34	8-97120-005-1	01	1	0803-	●	●
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-97600-586-1	01	1	0803-1402	●	●
112	00.724 GEAR; IDLE (B) Z=72-60-30	8-98254-970-0	01	1	1403-	●	●
112	00.724 GEAR; IDLE (C) Z=61	8-97606-767-0	01	1	0803-	●	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	0803-0803	●
112	00.724 GEAR; IDLE EURO4 SPECIFICATION(NT4) (D) Z=41	8-98058-320-1	01	1	0804-	●	●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	0804-0808			●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	0809-1104			●	●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (E) Z=80	8-97381-516-1	01	1	1105-1311			●
112	00.724 GEAR; IDLE (E) Z=80	8-97381-516-1	01	1	1105-1311				●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (E) Z=80	8-98232-105-1	01	1	1312-			●
112	00.724 GEAR; IDLE (E) Z=80	8-98232-105-1	01	1	1312-				●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	0804-0808			●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	0809-1104			●	●
112	00.724 GEAR; IDLE EXC. VIETNAM EQUIPMENT(CL0) (F) Z=34	8-97381-518-0	01	1	1105-			●
112	00.724 GEAR; IDLE (F) Z=34	8-97381-518-0	01	1	1105-				●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-2	01	1	0804-0808			●
112	00.724 GEAR; IDLE (G) Z=35	8-97381-520-3	01	1	0809-			●	●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0804-0808			●
114	00.724 BOLT; IDLE GEAR (B) M10X60 FLANGE	0-28061-060-0	02	1	0809-			●	●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0804-0808			●
114	00.724 BOLT; IDLE GEAR (A) M12X60 FLANGE	0-28161-260-0	02	1	0809-			●	●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	0804-0808			●
133	00.356 GASKET; CHAIN TENSIONER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97312-336-0	01	1	0809-			●	●
136	00.724 BOLT; TENSIONER 09.242 M6X16 FLANGE	0-28050-616-0	02	1	1008-			●	●
162	00.736 SPROCKET; IDLE EXC. VIETNAM EQUIPMENT(CL0)	8-98193-179-0	01	1	1110-			●
162	00.736 SPROCKET; IDLE	8-98193-179-0	01	1	1110-				●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0804-0808			●
162	00.736 SPROCKET; IDLE	8-97312-331-1	01	1	0809-1109			●	●
162	00.736 SPROCKET; IDLE VIETNAM EQUIPMENT(CL0)	8-97312-331-1	01	1	1110-			●	●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0804-0808			●
166	00.724 BOLT; SPROCKET TO LAYSHAFT M6X16 HEX SOCKET	0-58330-616-0	06	1	0809-			●	●
172	00.724 CHAIN; TIMING,CM/SHF VIETNAM EQUIPMENT(CL0)	8-98119-279-1	01	1	1105-			●	●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0804-0808			●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	0809-1104			●	●
172	00.724 CHAIN; TIMING,CM/SHF EXC. VIETNAM EQUIPMENT(CL0)	8-97945-067-0	01	1	1105-			●
172	00.724 CHAIN; TIMING,CM/SHF	8-97945-067-0	01	1	1105-				●
185	00.724 TENSIONER; CHAIN	8-98039-754-0	01	1	0804-0808			●
185	00.724 TENSIONER; CHAIN	8-98039-754-1	01	1	0809-			●	●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0804-0808			●
190	00.724 NUT; CHAIN TENSIONER 01.540 M6 FLANGE	0-91180-206-0	02	1	0809-1007			●	●
198	00.724 GUIDE; TIMING CHAIN VIETNAM EQUIPMENT(CL0)	8-98173-188-0	01	1	1201-			●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0804-0808			●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	0809-1112			●	●
198	00.724 GUIDE; TIMING CHAIN EXC. VIETNAM EQUIPMENT(CL0)	8-97945-069-0	01	1	1201-			●
198	00.724 GUIDE; TIMING CHAIN	8-97945-069-0	01	1	1201-				●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0804-0808			●
199	00.724 JET; OIL,TIMING CHAIN	8-97356-061-1	01	1	0809-			●	●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0804-0808			●
200	00.724 BOLT; CHAIN GUIDE,LWR 01.064 M8X20	1-09070-120-1	02	1	0809-			●	●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT(CL0) (A)	8-97312-316-1	01	1	1105-			●	●
252	00.724 FLANGE; IDLE SHAFT VIETNAM EQUIPMENT(CL0) (B)	8-97312-323-1	02	1	1105-			●	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	0804-0808			●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	0809-1104			●	●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT(CL0) (A)	8-98016-892-0	01	1	1105-			●
252	00.724 FLANGE; IDLE SHAFT (A)	8-98016-892-0	01	1	1105-				●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	0804-0808			●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	0809-1104			●	●
252	00.724 FLANGE; IDLE SHAFT EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98016-893-0	02	1	1105-			●
252	00.724 FLANGE; IDLE SHAFT (B)	8-98016-893-0	02	1	1105-				●
300	00.724 LEVER; TENSION,TIMING CHAIN VIETNAM EQUIPMENT(CL0)	8-98119-278-1	01	1	1105-			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0804-0808			●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	0809-1104			●	●
300	00.724 LEVER; TENSION,TIMING CHAIN EXC. VIETNAM EQUIPMENT(CL0)	8-97945-070-0	01	1	1105-			●
300	00.724 LEVER; TENSION,TIMING CHAIN	8-97945-070-0	01	1	1105-				●
329	00.724 GEAR; INJ PUMP VIETNAM EQUIPMENT(CL0) Z=44	8-97312-298-3	01	1	1105-			●	●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	0804-0808			●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	0809-1104			●	●
329	00.724 GEAR; INJ PUMP EXC. VIETNAM EQUIPMENT(CL0) Z=44	8-98017-539-1	01	1	1105-			●
329	00.724 GEAR; INJ PUMP Z=44	8-98017-539-1	01	1	1105-				●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0804-0808			●
346	00.429 STUD; CHAIN 01.062 M6X18 L=27	0-41010-618-0	02	1	0809-1007			●	●
347	00.429 SPROCKET; I/PUMP EXC. VIETNAM EQUIPMENT(CL0)	8-98210-266-0	01	1	1208-			●
347	00.429 SPROCKET; I/PUMP	8-98210-266-0	01	1	1208-				●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0804-0808			●
347	00.429 SPROCKET; I/PUMP	8-97312-330-1	01	1	0809-1207			●	●
347	00.429 SPROCKET; I/PUMP VIETNAM EQUIPMENT(CL0)	8-97312-330-1	01	1	1208-			●	●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0804-0808			●
348	00.429 NUT; SPROCKET M14 FLANGE	8-97312-423-2	01	1	0809-			●	●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0804-0808			●
349	00.429 PIVOT; CHAIN LEVER	8-97312-328-0	01	1	0809-			●	●

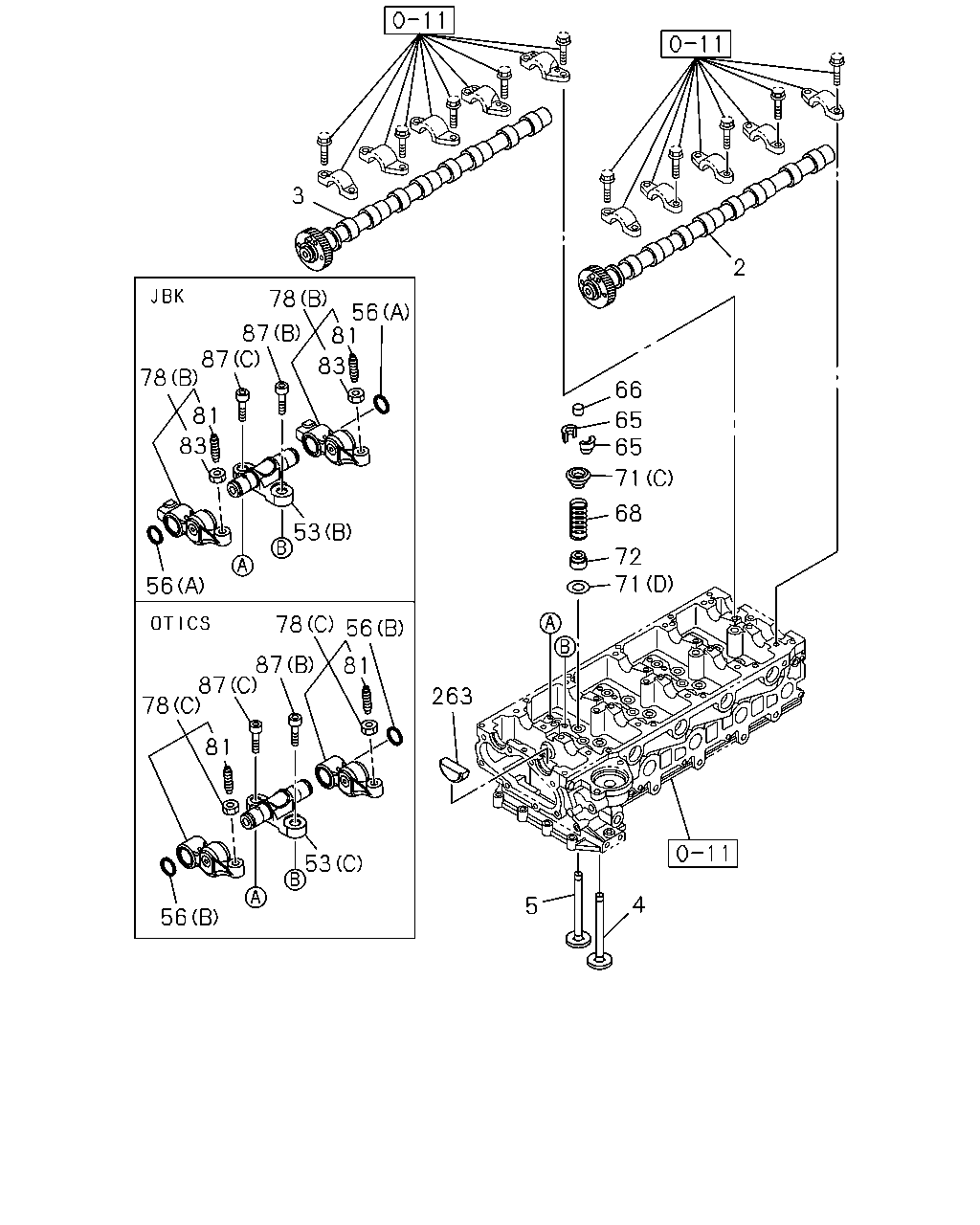

2 3 66 65 65 71 68 72 71 4 5 263 56 78 81 87 87 78 81 53 56 53 56 78 87 87 78 56 81 83 81 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT(CL0) TBKK	8-98182-902-1	01	1	1105-			●	●
2	00.519 CAMSHAFT; INL VIETNAM EQUIPMENT(CL0) IEMT	8-98186-004-1	01	1	1105-			●	●
2	00.519 CAMSHAFT; INL ISZ	8-98003-129-3	01	1	0804-0808			●
2	00.519 CAMSHAFT; INL ISZ	8-98003-129-3	01	1	0809-1104			●	●
2	00.519 CAMSHAFT; INL EXC. VIETNAM EQUIPMENT(CL0) ISZ	8-98003-129-4	01	1	1105-			●
2	00.519 CAMSHAFT; INL ISZ	8-98003-129-4	01	1	1105-				●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT(CL0) TBKK	8-98182-903-1	01	1	1105-			●	●
3	00.519 CAMSHAFT; EXH VIETNAM EQUIPMENT(CL0) IEMT	8-98186-005-1	01	1	1105-			●	●
3	00.519 CAMSHAFT; EXH ISZ	8-98003-130-3	01	1	0804-0808			●
3	00.519 CAMSHAFT; EXH ISZ	8-98003-130-3	01	1	0809-1104			●	●
3	00.519 CAMSHAFT; EXH EXC. VIETNAM EQUIPMENT(CL0) ISZ	8-98003-130-4	01	1	1105-			●
3	00.519 CAMSHAFT; EXH ISZ	8-98003-130-4	01	1	1105-				●
4	00.296 VALVE; INL VIETNAM EQUIPMENT(CL0)	8-97309-675-1	08	1	1105-			●	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	0803-	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	0804-0808			●
4	00.296 VALVE; INL	8-98016-973-0	08	1	0809-1104			●	●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT(CL0)	8-98016-973-0	08	1	1105-1501			●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501				●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-			●	●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT(CL0)	8-97309-677-1	08	1	1105-			●	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	0803-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	0804-0808			●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	0809-1104			●	●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT(CL0)	8-98016-974-1	08	1	1105-			●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-				●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1001-1309			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (C) INLET OTICS	8-97364-809-2	04	1	1310-1310			●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1310-1310				●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1310-			●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1001-1309			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310			●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310				●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-			●	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97389-921-0	01	1	0803-	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	0804-0808			●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	0809-1104			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) INLET JBK	8-98025-071-1	04	1	1105-			●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	1105-				●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	0804-0808			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	0809-1104			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) EXHAUST JBK	8-98025-074-1	04	1	1105-			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	1105-				●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1001-1309			●	●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B)	8-98109-470-0	16	1	1310-1310			●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-1310				●
56	00.349 RING; SNAP,ROCKER ARM (B)	8-98109-470-0	16	1	1310-			●	●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	0804-0808			●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	0809-1104			●	●
56	00.349 RING; SNAP,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) 00.353 (A)	8-98025-496-0	16	1	1105-			●
56	00.349 RING; SNAP,ROCKER ARM 00.353 (A)	8-98025-496-0	16	1	1105-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	0803-	●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0804-0808			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0809-			●	●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0804-0808			●
66	00.303 CAP; VLV STEM END	8-98029-870-1	16	1	0809-0910			●	●
66	00.303 CAP; VLV STEM END	8-98147-945-0	16	1	0911-			●	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	0803-	●	●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	0803-	●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0804-0808			●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0809-			●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0804-0808			●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0809-			●	●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT(CL0) (C) OD=29.5	8-97311-668-0	16	1	1105-			●	●
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	0803-	●	●
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	0803-	●	●
71	00.309 SEAT; SPR (D) OD=31	8-97144-584-0	16	1	0804-0808			●
71	00.309 SEAT; SPR (D) OD=31	8-97144-584-0	16	1	0809-			●	●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	0804-0808			●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	0809-1104			●	●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT(CL0) (C)	8-98017-067-0	16	1	1105-			●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	1105-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97376-720-0	16	1	0803-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0804-0808			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0809-			●	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-5	16	1	1001-1309			●	●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) (C) OTICS	8-98029-537-6	16	1	1310-1310			●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1310-1310				●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1310-			●	●
78	00.333 ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0803-	●	●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97306-424-3	04	1	0803-	●	●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-2	16	1	0804-0808			●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-3	16	1	0809-1104			●	●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) 00.353 (B) JBK	8-98025-059-4	16	1	1105-			●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-4	16	1	1105-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1001-1309			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) M8 L=22	8-98029-893-0	16	1	1310-1310			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1310-1310				●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1310-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0804-0808			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0809-1104			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) M8 L=22	8-98025-497-0	16	1	1105-			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	1105-				●
81	00.429 SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0803-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	0804-0808			●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	0809-1104			●	●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT(CL0) 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-			●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-				●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0803-	●	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	0803-	●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0804-0808			●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0809-			●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0804-0808			●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0809-			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0)	8-97947-079-0	04	1	1105-			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98101-472-0	04	1	0804-0808			●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98101-472-0	04	1	0809-1104			●	●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98101-472-0	04	1	1105-1204			●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98101-472-0	04	1	1105-1204				●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98216-269-0	04	1	1205-			●
263	00.529 GASKET; CAM END ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98216-269-0	04	1	1205-				●

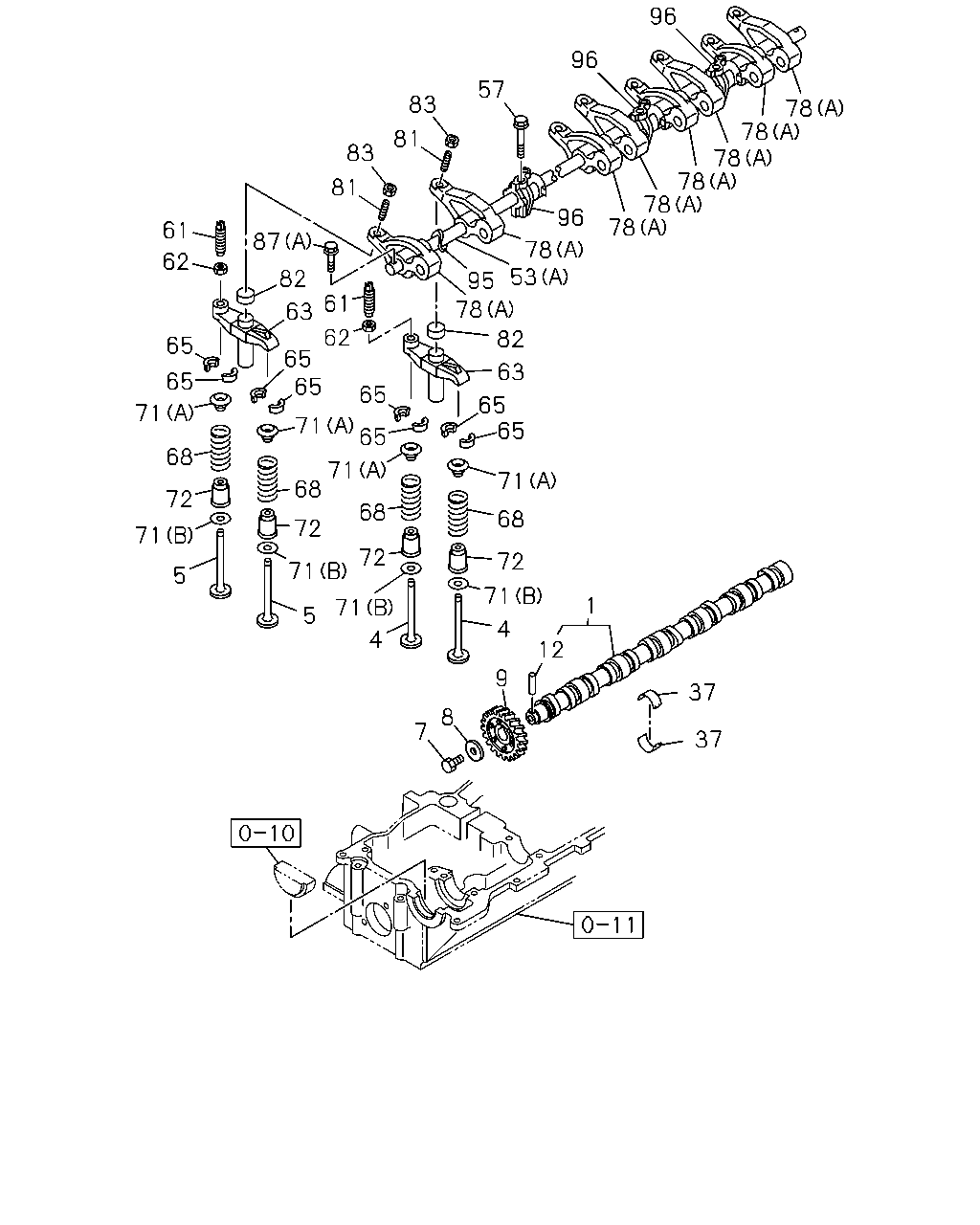

96 96 57 83 78 78 78 78 78 78 81 83 81 96 61 87 78 53 62 82 95 61 78 63 62 82 65 65 65 63 65 65 65 65 71 71 65 68 71 68 71 72 68 68 72 71 72 72 71 5 71 1 71 5 4 4 12 9 37 8 7 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-97262-166-0	01	1	0803-	●	●
4	00.296 VALVE; INL VIETNAM EQUIPMENT(CL0)	8-97309-675-1	08	1	1105-			●	●
4	00.296 VALVE; INL	8-94395-882-2	08	1	0803-	●	●
4	00.296 VALVE; INL	8-98016-973-0	08	1	0804-0808			●
4	00.296 VALVE; INL	8-98016-973-0	08	1	0809-1104			●	●
4	00.296 VALVE; INL EXC. VIETNAM EQUIPMENT(CL0)	8-98016-973-0	08	1	1105-1501			●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1105-1501				●
4	00.296 VALVE; INL	8-98016-973-0	08	1	1502-			●	●
5	00.297 VALVE; EXH VIETNAM EQUIPMENT(CL0)	8-97309-677-1	08	1	1105-			●	●
5	00.297 VALVE; EXH	8-97209-876-4	08	1	0803-	●	●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	0804-0808			●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	0809-1104			●	●
5	00.297 VALVE; EXH EXC. VIETNAM EQUIPMENT(CL0)	8-98016-974-1	08	1	1105-			●
5	00.297 VALVE; EXH	8-98016-974-1	08	1	1105-				●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0803-	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0803-	●	●
9	00.736 GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0803-	●	●
12	00.738 KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0803-	●	●
37	00.539 METAL; CM/SHF B=16	8-97386-189-0	10	1	0803-	●	●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1001-1309			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (C) INLET OTICS	8-97364-809-2	04	1	1310-1310			●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1310-1310				●
53	00.353 SHAFT; ROCKER ARM (C) INLET OTICS	8-97364-809-2	04	1	1310-			●	●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1001-1309			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310			●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-1310				●
53	00.353 SHAFT; ROCKER ARM (C) EXHAUST OTICS	8-97364-811-2	04	1	1310-			●	●
53	00.353 SHAFT; ROCKER ARM (A)	8-97389-921-0	01	1	0803-	●	●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	0804-0808			●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	0809-1104			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) INLET JBK	8-98025-071-1	04	1	1105-			●
53	00.353 SHAFT; ROCKER ARM (B) INLET JBK	8-98025-071-1	04	1	1105-				●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	0804-0808			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	0809-1104			●	●
53	00.353 SHAFT; ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) (B) EXHAUST JBK	8-98025-074-1	04	1	1105-			●
53	00.353 SHAFT; ROCKER ARM (B) EXHAUST JBK	8-98025-074-1	04	1	1105-				●
57	00.349 BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0803-	●	●
61	00.349 SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0803-	●	●
62	00.349 NUT; ADJ SCREW LK BRIDGE 00.429 M8 FLANGE	9-09844-574-0	08	1	0803-	●	●
63	00.349 BRIDGE	8-94392-002-3	08	1	0803-	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	32	1	0803-	●	●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0804-0808			●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	0809-			●	●
68	00.303 SPRING; VLV EXHAUST MARK RED	8-97210-682-0	08	1	0803-	●	●
68	00.303 SPRING; VLV INLET MARK BLUE	8-97352-888-0	08	1	0803-	●	●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0804-0808			●
68	00.303 SPRING; VLV INLET H=49 NATURAL	8-97311-669-0	08	1	0809-			●	●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0804-0808			●
68	00.303 SPRING; VLV EXHAUST H=57.5 MARK YELLOW	8-97311-675-1	08	1	0809-			●	●
71	00.309 SEAT; SPR VIETNAM EQUIPMENT(CL0) (C) OD=29.5	8-97311-668-0	16	1	1105-			●	●
71	00.309 SEAT; SPR (A) OD=32.8 T=12.75	8-94390-783-2	16	1	0803-	●	●
71	00.309 SEAT; SPR (B) ID=14.3 T=1.0	8-94391-468-0	16	1	0803-	●	●
71	00.309 SEAT; SPR (D) OD=31	8-97144-584-0	16	1	0804-0808			●
71	00.309 SEAT; SPR (D) OD=31	8-97144-584-0	16	1	0809-			●	●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	0804-0808			●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	0809-1104			●	●
71	00.309 SEAT; SPR EXC. VIETNAM EQUIPMENT(CL0) (C)	8-98017-067-0	16	1	1105-			●
71	00.309 SEAT; SPR (C)	8-98017-067-0	16	1	1105-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97376-720-0	16	1	0803-	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0804-0808			●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97328-647-0	16	1	0809-			●	●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-5	16	1	1001-1309			●	●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) (C) OTICS	8-98029-537-6	16	1	1310-1310			●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1310-1310				●
78	00.333 ARM; ROCKER (C) OTICS	8-98029-537-6	16	1	1310-			●	●
78	00.333 ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0803-	●	●
78	00.333 ARM; ROCKER (A) EXHAUST	8-97306-424-3	04	1	0803-	●	●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-2	16	1	0804-0808			●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-3	16	1	0809-1104			●	●
78	00.333 ARM; ROCKER EXC. VIETNAM EQUIPMENT(CL0) 00.353 (B) JBK	8-98025-059-4	16	1	1105-			●
78	00.333 ARM; ROCKER 00.353 (B) JBK	8-98025-059-4	16	1	1105-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1001-1309			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) M8 L=22	8-98029-893-0	16	1	1310-1310			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1310-1310				●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98029-893-0	16	1	1310-			●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0804-0808			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	0809-1104			●	●
81	00.429 SCREW; ADJ,ROCKER ARM EXC. VIETNAM EQUIPMENT(CL0) M8 L=22	8-98025-497-0	16	1	1105-			●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=22	8-98025-497-0	16	1	1105-				●
81	00.429 SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0803-	●	●
82	00.356 CAP; ROCKER SHAFT 00.303	8-94396-015-2	08	1	0803-	●	●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	0804-0808			●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	0809-1104			●	●
83	00.787 NUT; ADJ SCREW,LK EXC. VIETNAM EQUIPMENT(CL0) 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-			●
83	00.787 NUT; ADJ SCREW,LK 00.429 M8 FLANGE	9-09844-574-0	16	1	1105-				●
83	00.787 NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0803-	●	●
87	00.349 BOLT; ROCKER SHAFT 02.277 (A) M8X40 FLANGE	0-28050-840-0	02	1	0803-	●	●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0804-0808			●
87	00.349 BOLT; ROCKER SHAFT (B) M8X25 HEX SOCKET	0-58330-825-0	08	1	0809-			●	●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0804-0808			●
87	00.349 BOLT; ROCKER SHAFT (C) M8X40 HEX SOCKET	0-58330-840-0	08	1	0809-			●	●
95	00.376 SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0803-	●	●
96	00.349 BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
