Sayfa 0-13 - Isuzu EPC

0-13 — OIL PAN AND LEVEL GAUGE (#54343) — 177 parça

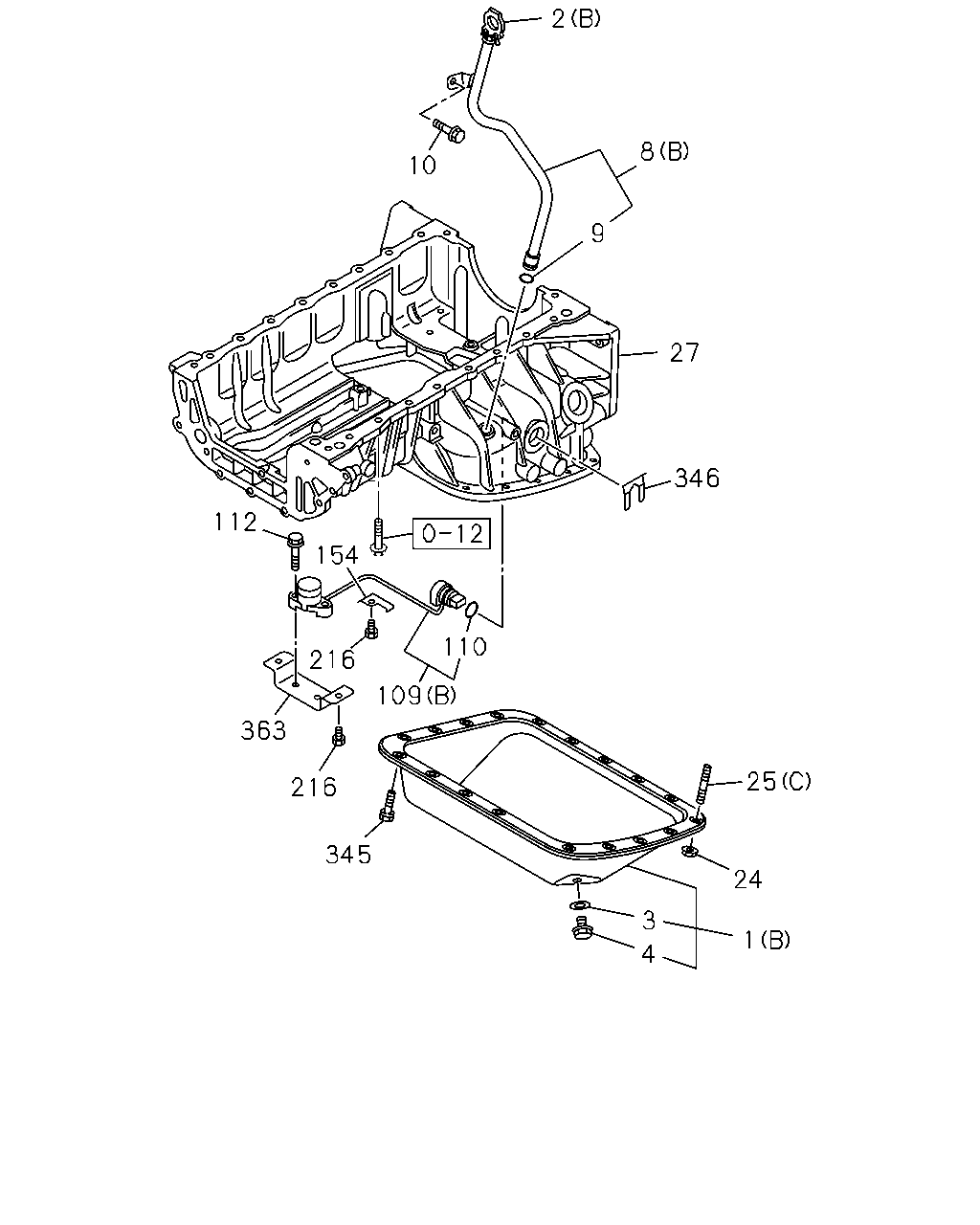

2 10 8 9 27 346 24 1 3 4 345 216 363 216 109 110 154 112 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97149-314-0	01	1	1101-1109	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98191-050-0	01	1	1110-	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-023-0	01	1	0811-0905	●	●
1	01.426 PAN ASM; OIL TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) (A)	8-98113-023-0	01	1	0906-1012	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-023-0	01	1	0906-1012	●	●
1	01.426 PAN ASM; OIL TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) (A)	8-98113-023-0	01	1	1101-	●	●
1	01.426 PAN ASM; OIL (A)	8-97386-772-0	01	1	0803-0810	●	●
1	01.426 PAN ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-97386-772-0	01	1	0811-	●	●
1	01.426 PAN ASM; OIL (B)	8-97383-067-3	01	1	0804-0808			●
1	01.426 PAN ASM; OIL (B)	8-97383-067-3	01	1	0809-			●	●
2	01.516 GAUGE; OIL LEVEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98183-344-0	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL (A)	8-98034-388-0	01	1	0803-1011	●	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4) (A)	8-98183-141-0	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL (B)	8-98112-777-0	01	1	0804-0808			●
2	01.516 GAUGE; OIL LEVEL (B)	8-98112-777-1	01	1	0809-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0803-0803	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0804-0808	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0809-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0803-0806	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0807-0808	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0809-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0804-0806			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98039-161-0	01	1	0803-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-97381-490-3	01	1	0804-0808			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-97381-490-3	01	1	0809-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0803-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0804-0808			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0809-			●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0808			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0809-			●	●
24	01.453 NUT; OIL PAN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 M8 W/LK WASHER	8-97581-234-0	07	1	1101-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0803-1012	●	●
24	01.453 NUT; OIL PAN EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	13	1	1101-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
25	01.453 STUD; OIL PAN EXC. VIETNAM EQUIPMENT(CL0) 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-			●
25	01.453 STUD; OIL PAN 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-				●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0803-1012	●	●
25	01.453 STUD; OIL PAN EURO4 SPECIFICATION(NT4) (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1101-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0803-1012	●	●
25	01.453 STUD; OIL PAN EURO4 SPECIFICATION(NT4) 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1101-	●	●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	0804-0808			●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	0809-1405			●	●
25	01.453 STUD; OIL PAN VIETNAM EQUIPMENT(CL0) (C) M8X16 L=28	0-41010-816-0	02	1	1406-			●
27	01.426 CRANKCASE VIETNAM EQUIPMENT(CL0)	8-98191-052-0	01	1	1106-1111			●
27	01.426 CRANKCASE	8-98191-052-0	01	1	1112-			●
27	01.426 CRANKCASE	8-97381-483-5	01	1	0804-0808			●
27	01.426 CRANKCASE	8-97381-483-6	01	1	0809-1105			●	●
27	01.426 CRANKCASE EXC. VIETNAM EQUIPMENT(CL0)	8-97381-483-7	01	1	1106-1111			●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1106-1111				●
27	01.426 CRANKCASE	8-97381-483-7	01	1	1112-				●
109	01.516 SWITCH; OIL LEVEL (A)	8-97328-993-1	01	1	0803-1012	●	●
109	01.516 SWITCH; OIL LEVEL EURO4 SPECIFICATION(NT4) (A)	8-97328-993-1	01	1	1101-	●	●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	0804-0808			●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	0809-1105			●	●
109	01.516 SWITCH; OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0) (B)	8-97328-879-0	01	1	1106-1111			●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	1106-1111				●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	1112-				●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0803-0803	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0804-0808	●	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0809-1012	●	●	●	●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1101-1105	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1101-1105			●	●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1106-1111	●	●
110	01.456 GASKET; SW,OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0)	8-98048-191-0	01	1	1106-1111			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1106-1111				●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1112-	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1112-				●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0804-0808			●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0809-1105			●	●
112	01.516 BOLT; SW,OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0) 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1106-1111			●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1106-1111				●
112	01.516 BOLT; SW,OIL LEVEL 03.680 M6X30 FLANGE	0-28650-630-0	02	1	1112-				●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	0804-0808			●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	0809-1105			●	●
154	01.428 BRACKET; CLIP,ENG HARNESS EXC. VIETNAM EQUIPMENT(CL0)	8-97386-380-0	01	1	1106-1111			●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1106-1111				●
154	01.428 BRACKET; CLIP,ENG HARNESS	8-97386-380-0	01	1	1112-				●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0804-0808			●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0809-1105			●	●
216	01.429 BOLT; BRKT EXC. VIETNAM EQUIPMENT(CL0) 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1106-1111			●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1106-1111				●
216	01.429 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	03	1	1112-				●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0804-0808			●
345	01.516 BOLT; SENSOR,OIL LEVEL 02.343 M8X12 FLANGE	0-28050-812-0	17	1	0809-			●	●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	0804-0808			●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	0809-1105			●	●
346	01.516 CLIP; OIL LEVEL SW EXC. VIETNAM EQUIPMENT(CL0) 04.047 ID=19.2	8-97211-011-0	01	1	1106-1111			●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1106-1111				●
346	01.516 CLIP; OIL LEVEL SW 04.047 ID=19.2	8-97211-011-0	01	1	1112-				●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	0804-0808			●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	0809-1105			●	●
363	01.516 BRACKET; OIL LEVEL SW EXC. VIETNAM EQUIPMENT(CL0)	8-97381-486-0	01	1	1106-1111			●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1106-1111				●
363	01.516 BRACKET; OIL LEVEL SW	8-97381-486-0	01	1	1112-				●

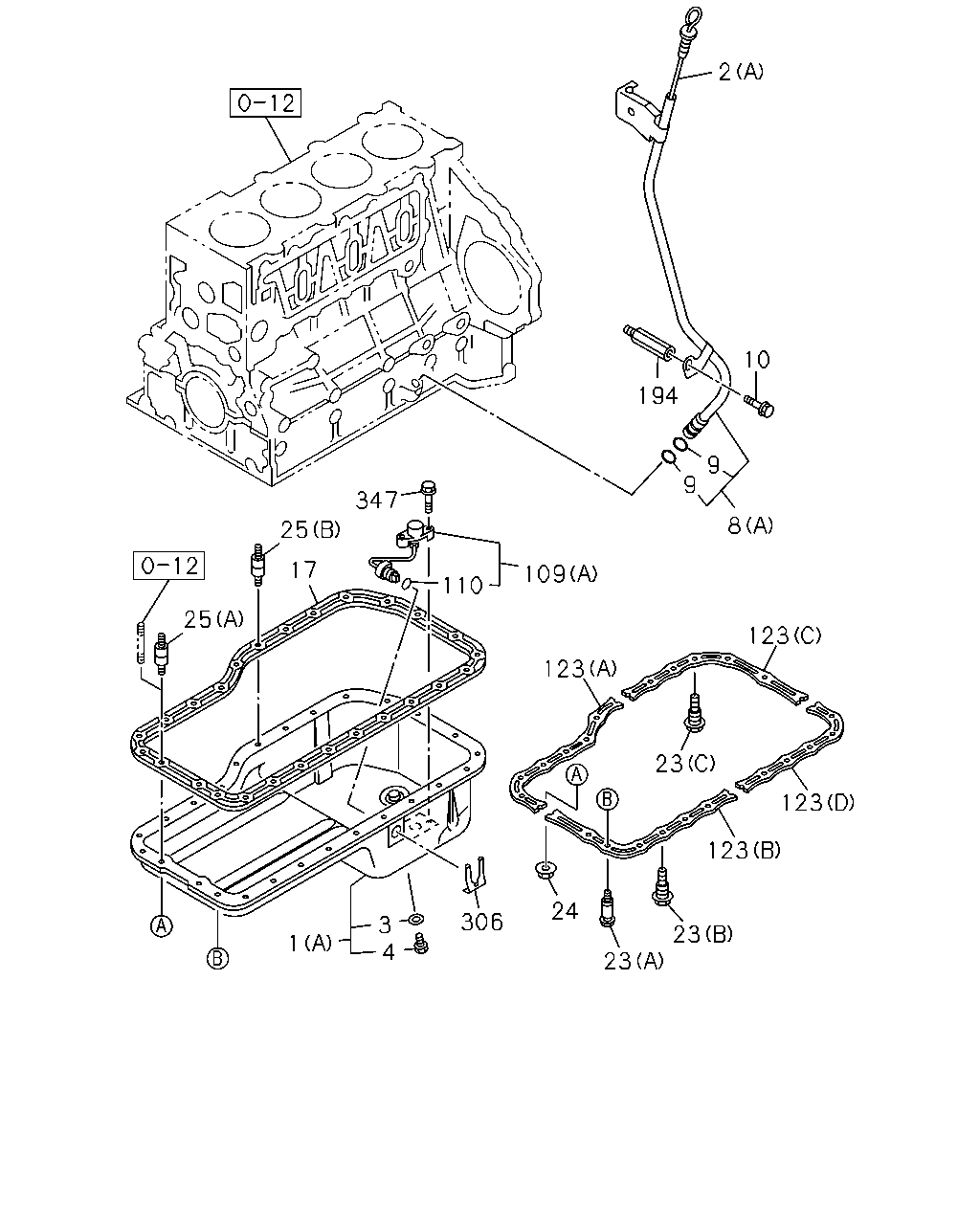

2 10 8 194 9 9 123 123 123 23 23 24 123 23 109 110 347 25 25 17 1 4 3 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-97149-314-0	01	1	1101-1109	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98191-050-0	01	1	1110-	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-023-0	01	1	0811-0905	●	●
1	01.426 PAN ASM; OIL TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) (A)	8-98113-023-0	01	1	0906-1012	●	●
1	01.426 PAN ASM; OIL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-023-0	01	1	0906-1012	●	●
1	01.426 PAN ASM; OIL TAIWAN EQUIPMENT(B04) EURO4 SPECIFICATION(NT4) (A)	8-98113-023-0	01	1	1101-	●	●
1	01.426 PAN ASM; OIL (A)	8-97386-772-0	01	1	0803-0810	●	●
1	01.426 PAN ASM; OIL EURO4 SPECIFICATION(NT4) (A)	8-97386-772-0	01	1	0811-	●	●
1	01.426 PAN ASM; OIL (B)	8-97383-067-3	01	1	0804-0808			●
1	01.426 PAN ASM; OIL (B)	8-97383-067-3	01	1	0809-			●	●
2	01.516 GAUGE; OIL LEVEL EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98183-344-0	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL (A)	8-98034-388-0	01	1	0803-1011	●	●
2	01.516 GAUGE; OIL LEVEL EURO4 SPECIFICATION(NT4) (A)	8-98183-141-0	01	1	1012-	●	●
2	01.516 GAUGE; OIL LEVEL (B)	8-98112-777-0	01	1	0804-0808			●
2	01.516 GAUGE; OIL LEVEL (B)	8-98112-777-1	01	1	0809-			●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0803-0803	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0804-0808	●	●	●
3	01.456 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	0809-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0803-0806	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0807-0808	●	●	●
4	01.453 PLUG; DRAIN,OIL 03.001 M14X14	8-94152-613-0	01	1	0809-	●	●	●	●
4	01.453 PLUG; DRAIN,OIL M14X14	8-97329-621-0	01	1	0804-0806			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98039-161-0	01	1	0803-	●	●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-97381-490-3	01	1	0804-0808			●
8	01.516 TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-97381-490-3	01	1	0809-			●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	0803-	●	●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0804-0808			●
9	01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	01	1	0809-			●	●
10	01.516 BOLT; GUIDE TUBE 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0803-	●	●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-0808			●
10	01.516 BOLT; GUIDE TUBE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0809-			●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE).	8-97364-386-0	01	1	0803-1012	●	●
17	01.429 GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4)	8-97364-386-0	01	1	1101-	●	●
23	01.428 BOLT; OIL PAN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1101-	●	●
23	01.428 BOLT; OIL PAN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B) M8X14	8-97047-005-0	18	1	1101-	●	●
23	01.428 BOLT; OIL PAN (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	0803-1012	●	●
23	01.428 BOLT; OIL PAN EURO4 SPECIFICATION(NT4) (A) M8X12.8 W/PL WASHER,RUBBER TUBE	8-97190-390-0	13	1	1101-	●	●
24	01.453 NUT; OIL PAN EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 M8 W/LK WASHER	8-97581-234-0	07	1	1101-	●	●
24	01.453 NUT; OIL PAN 01.062 M8 FLANGE	0-91180-108-0	13	1	0803-1012	●	●
24	01.453 NUT; OIL PAN EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	13	1	1101-	●	●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0804-0808			●
24	01.453 NUT; OIL PAN 01.540 M8 FLANGE	0-91180-208-0	02	1	0809-			●	●
25	01.453 STUD; OIL PAN EXC. VIETNAM EQUIPMENT(CL0) 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-			●
25	01.453 STUD; OIL PAN 00.349 (C) M8X20 L=31	8-97945-022-0	02	1	1406-				●
25	01.453 STUD; OIL PAN (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	0803-1012	●	●
25	01.453 STUD; OIL PAN EURO4 SPECIFICATION(NT4) (B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE	8-97190-391-0	01	1	1101-	●	●
25	01.453 STUD; OIL PAN 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	0803-1012	●	●
25	01.453 STUD; OIL PAN EURO4 SPECIFICATION(NT4) 01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	09	1	1101-	●	●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	0804-0808			●
25	01.453 STUD; OIL PAN (C) M8X16 L=28	0-41010-816-0	02	1	0809-1405			●	●
25	01.453 STUD; OIL PAN VIETNAM EQUIPMENT(CL0) (C) M8X16 L=28	0-41010-816-0	02	1	1406-			●
109	01.516 SWITCH; OIL LEVEL (A)	8-97328-993-1	01	1	0803-1012	●	●
109	01.516 SWITCH; OIL LEVEL EURO4 SPECIFICATION(NT4) (A)	8-97328-993-1	01	1	1101-	●	●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	0804-0808			●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	0809-1105			●	●
109	01.516 SWITCH; OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0) (B)	8-97328-879-0	01	1	1106-1111			●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	1106-1111				●
109	01.516 SWITCH; OIL LEVEL (B)	8-97328-879-0	01	1	1112-				●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0803-0803	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0804-0808	●	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	0809-1012	●	●	●	●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1101-1105	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1101-1105			●	●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1106-1111	●	●
110	01.456 GASKET; SW,OIL LEVEL EXC. VIETNAM EQUIPMENT(CL0)	8-98048-191-0	01	1	1106-1111			●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1106-1111				●
110	01.456 GASKET; SW,OIL LEVEL EURO4 SPECIFICATION(NT4)	8-98048-191-0	01	1	1112-	●	●
110	01.456 GASKET; SW,OIL LEVEL	8-98048-191-0	01	1	1112-				●
123	01.516 RUBBER; SEAL OIL (A)	8-97186-988-0	01	1	0803-1012	●	●
123	01.516 RUBBER; SEAL OIL EURO4 SPECIFICATION(NT4) (A)	8-97186-988-0	01	1	1101-	●	●
123	01.516 RUBBER; SEAL OIL (B)	8-97186-994-0	01	1	0803-1012	●	●
123	01.516 RUBBER; SEAL OIL EURO4 SPECIFICATION(NT4) (B)	8-97186-994-0	01	1	1101-	●	●
123	01.516 RUBBER; SEAL OIL (C)	8-97186-998-0	01	1	0803-1012	●	●
123	01.516 RUBBER; SEAL OIL EURO4 SPECIFICATION(NT4) (C)	8-97186-998-0	01	1	1101-	●	●
123	01.516 RUBBER; SEAL OIL (D)	8-97187-000-0	01	1	0803-1012	●	●
123	01.516 RUBBER; SEAL OIL EURO4 SPECIFICATION(NT4) (D)	8-97187-000-0	01	1	1101-	●	●
194	01.429 SPACER; GUIDE TUBE	8-97101-215-0	01	1	0803-	●	●
306	01.516 CLIP; CONNECTOR	8-97229-219-0	01	1	0803-1012	●	●
306	01.516 CLIP; CONNECTOR EURO4 SPECIFICATION(NT4)	8-97229-219-0	01	1	1101-	●	●
347	01.516 BOLT; OIL LEVEL SW 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0803-1012	●	●
347	01.516 BOLT; OIL LEVEL SW EURO4 SPECIFICATION(NT4) 00.685 M6X25 FLANGE	0-28650-625-0	02	1	1101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
